Bogen ZPM-3 User manual

ZPM3
Zone Paging Module
© 2011 Bogen Communications, Inc. All rights reserved.
Specifications subject to change without notice.
54-5891-03B 1107
RAMSEY, N.J.
ZONE 3
ZONE 2
ZONE 1
1 WAY
2 WAY
PREANN ONPREANN OFF
CONF ON
CONF OFF
LOCK SUBFREE SUB
TALK BAT
24V
TALK BAT
48V
8
7
6
5
4
3
2
1
O l
ZONE PAGING MODULE
ZPM-3
RINGER EQUIVALENCE: 0.9B
CD23CH-10678-PX-N
FCC REGISTRATION NUMBER:
COMPLIES WITH PART 68, FCC RULES BA
RIR
Z3B Z3A
Z2B Z2A
Z1AZ1B
TBOBTBIB
TBOATBIA
PIB POB
POAPIA
POB
BMOB
POABMOA
BMSBBMSA
BMBBBMBA
MT2
MTI
NCBNOB
CMBCMA
NCANOA
NRRNRT
NRCNRC
EMI EM2
-TBGS
+TB+24V
+24V -24V
TI
T
RT
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
VOL
BGM
VOL
RING
NIGHT
VOL
TONE
O l
BA

Notice
Every effort was made to ensure that the information in this manual
was complete and accurate at the time of printing. However, infor-
mation is subject to change.
FCC Statement (Part 15) - Radio Frequency Interference
This unit generates and uses radio frequency energy and if not in-
stalled and used in strict accordance with the manufacturer's in-
structions, may cause interference to radio and television reception.
Testing is being conducted for compliance with the limits for a Class
B device in accordance with the specifications in Part 15 of the FCC
Rules and Canadian D.O.C. regulations. This testing is designed to
provide reasonable protection against such interference. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause interference to radio or tel-
evision reception, which can be determined by turning the unit off
and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
- Reorient the radio or TV receiving antenna.
- Relocate the unit with respect to the radio or TV receiver or
vice versa.
- Plug the unit into a different outlet so that it and the radio or
TV receiver are on different branch circuits.
If necessary, the user should consult the dealer or an experienced
radio/television technician for additional suggestions. The user may
find the following booklet, "How To Identify and Resolve Radio-TV
Interference Problems," helpful. This booklet was prepared by the
Federal Communications Commission (FCC) and is available from
the U.S. Government Printing Office, Washington, DC 20402. Stock
order No. 004-000-00345-4.
Federal Communications Commission (FCC) Statement
(Part 68)
This equipment is component registered with the Federal Communi-
cations Commission (FCC) in accordance with Part 68 of its rules.
In compliance with the rules, be advised of the following:
Registered equipment may not be used with Coin Telephone Lines.
Equipment may be used with Party Lines in areas where state tariffs
permit such connections and when equipment is adaptable for such
service.
This equipment is registered as follows:
Registration Number - US: CD23CH-10678-PX-N
Ringer Equivalence - 0.9B
If trouble is experienced, the equipment should be disconnected from
the interface to determine if this equipment, or the telephone line, is
the trouble source. If the equipment is determined to be malfunc-
tioning, it should not be reconnected until repairs are effected.
Repairs to this equipment, other than routine repairs, can be made
only by the manufacturer or its authorized agents.
If the equipment causes harm to the telephone network, the local
telephone company may temporarily discontinue your service and, if
possible, notify you in advance. If advance notice is not practical, you
will be notified as soon as possible. You will be given the opportunity
to correct the problem and informed of your right to file a complaint
with the FCC.
The local telephone company may make changes in its facilities,
operations, or procedures that could affect the proper functioning of
your equipment. If they do, you will be given adequate notice in writ-
ing to allow you an opportunity to maintain uninterrupted telephone
service.
Important Safety Information
Always follow these basic safety precautions when installing and
using the system:
1.Read and understand all instructions.
2.Follow all warnings and instructions marked on the product.
3.DO NOT block or cover the ventilation slots and openings. They
prevent the product from overheating. DO NOT place the product
in a separate enclosure or cabinet, unless proper ventilation is
provided.
4.Never spill liquid on the product or drop objects into the ventila-
tion slots and openings. Doing so may result in serious damage
to the components.
5.Repair or service must be performed by a factory authorized re-
pair facility.
6.The product is provided with a UL-CSA approved, 3-wire ground
type plug. This is a safety feature. DO NOT defeat the safety pur-
pose of the grounding type plug. DO NOT staple or otherwise at-
tach the AC power supply cord to building surfaces.
7.DO NOT use the product near water or in a wet or damp place
(such as a wet basement).
8.DO NOT use extension cords. The product must be installed
within 6 feet of a grounded outlet receptacle.
9.DO NOT install telephone wiring during a lightning storm.
10.DO NOT install telephone jacks in a wet location unless the jack
is specifically designed for wet locations.
11. Never touch uninsulated wires or terminals, unless the line has
been disconnected at the paging or controller interface.
12.Use caution when installing or modifying paging or control lines.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO PREVENT THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE ANY FRONT/BACK
COVERS OR PANELS. NO USER-SERVICEABLE
PARTS INSIDE.
REFER SERVICING TO QUALIFIED PERSONNEL.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and main-
tenance (servicing) instructions.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient magni-
tude to constitute a risk of electric shock to
persons.

Table of Contents
Description ......................................................................................................................2
Installation ......................................................................................................................2
Wall-Mounting........................................................................................................................2
Technical Specifications ................................................................................................2
Connections ....................................................................................................................3

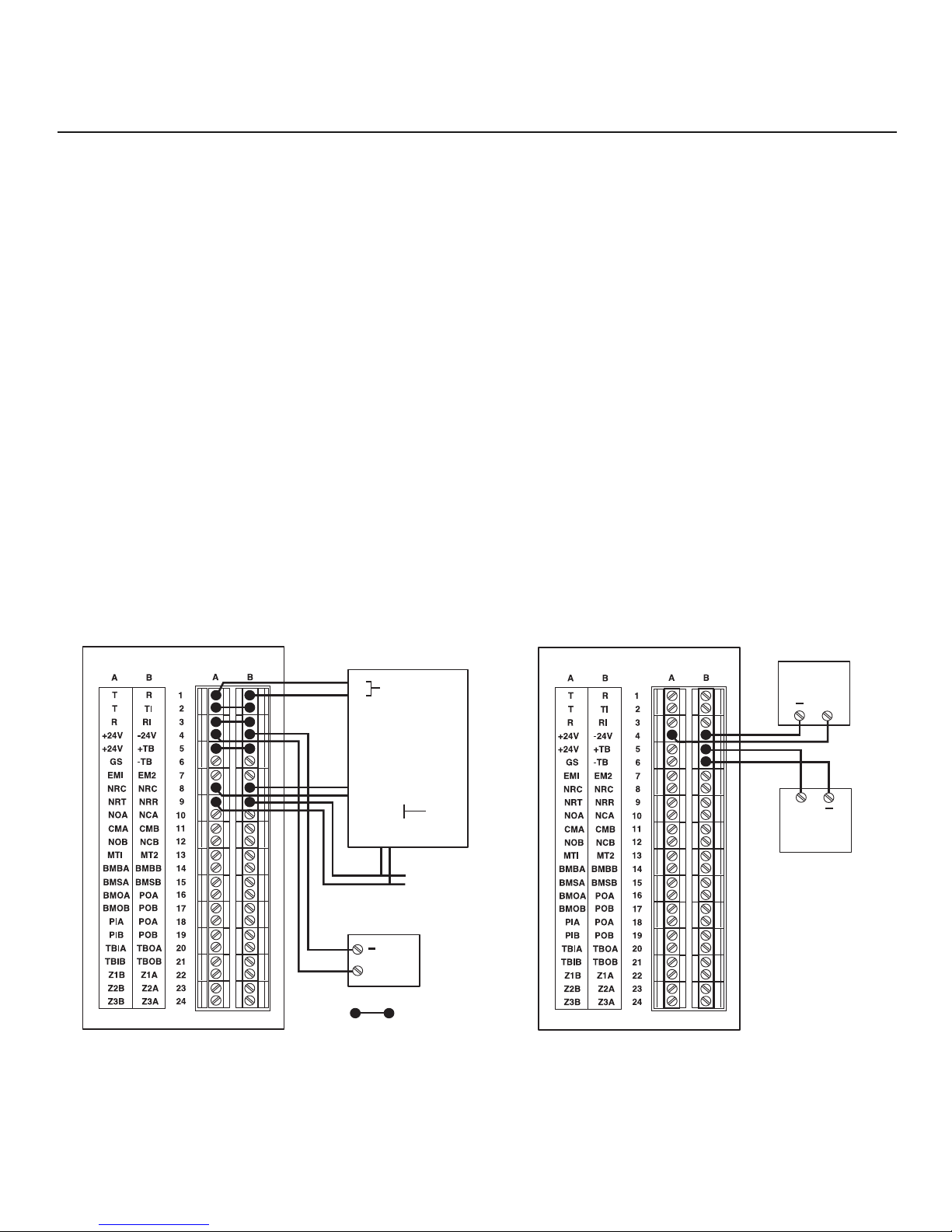

Connection to the Telephone System ....................................................................................3
Loop Start Trunk ............................................................................................................ 3
Ground Start Trunk ........................................................................................................ 3
48V Capability ................................................................................................................ 3
Paging Port .................................................................................................................... 3
Station Port .................................................................................................................... 3

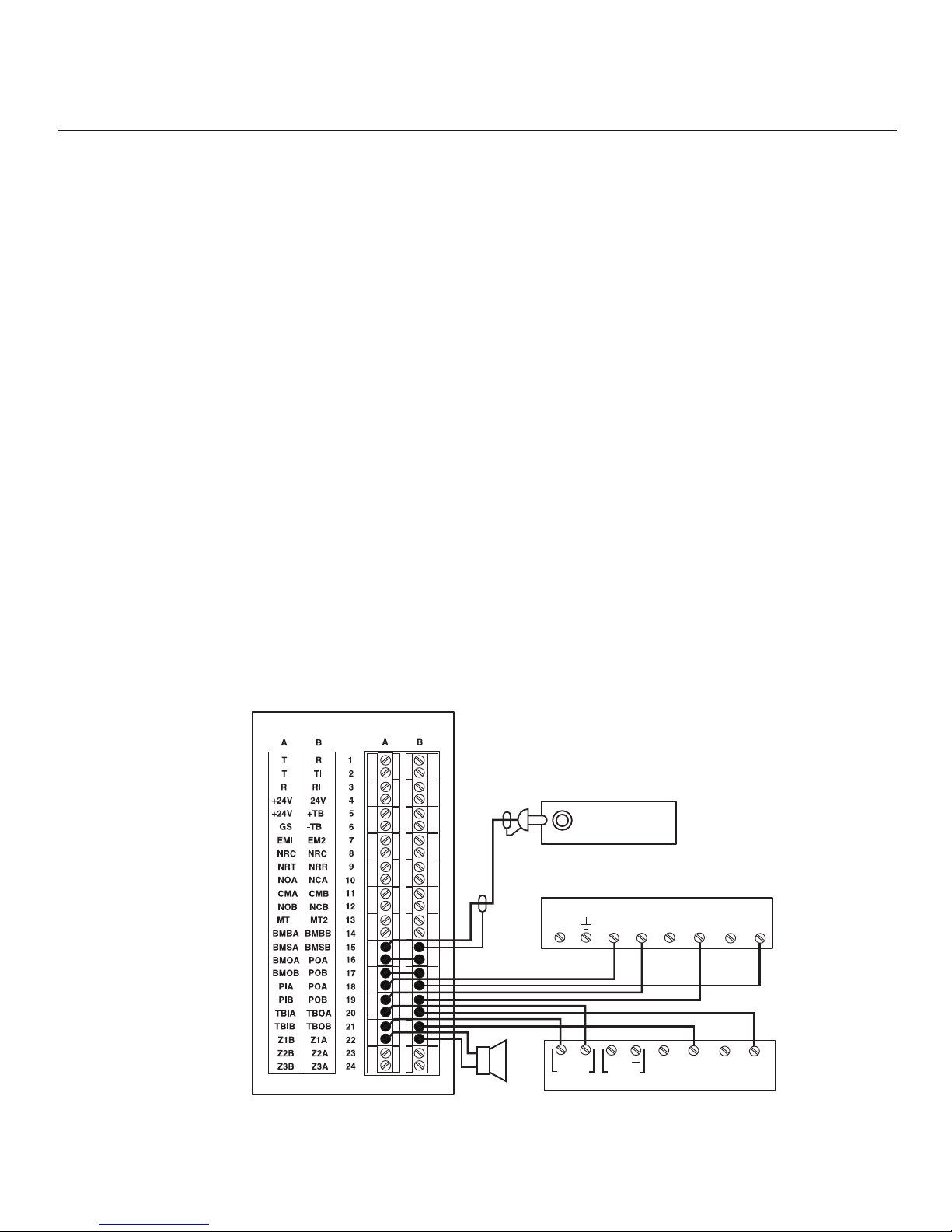

Connection to the Paging System ........................................................................................5

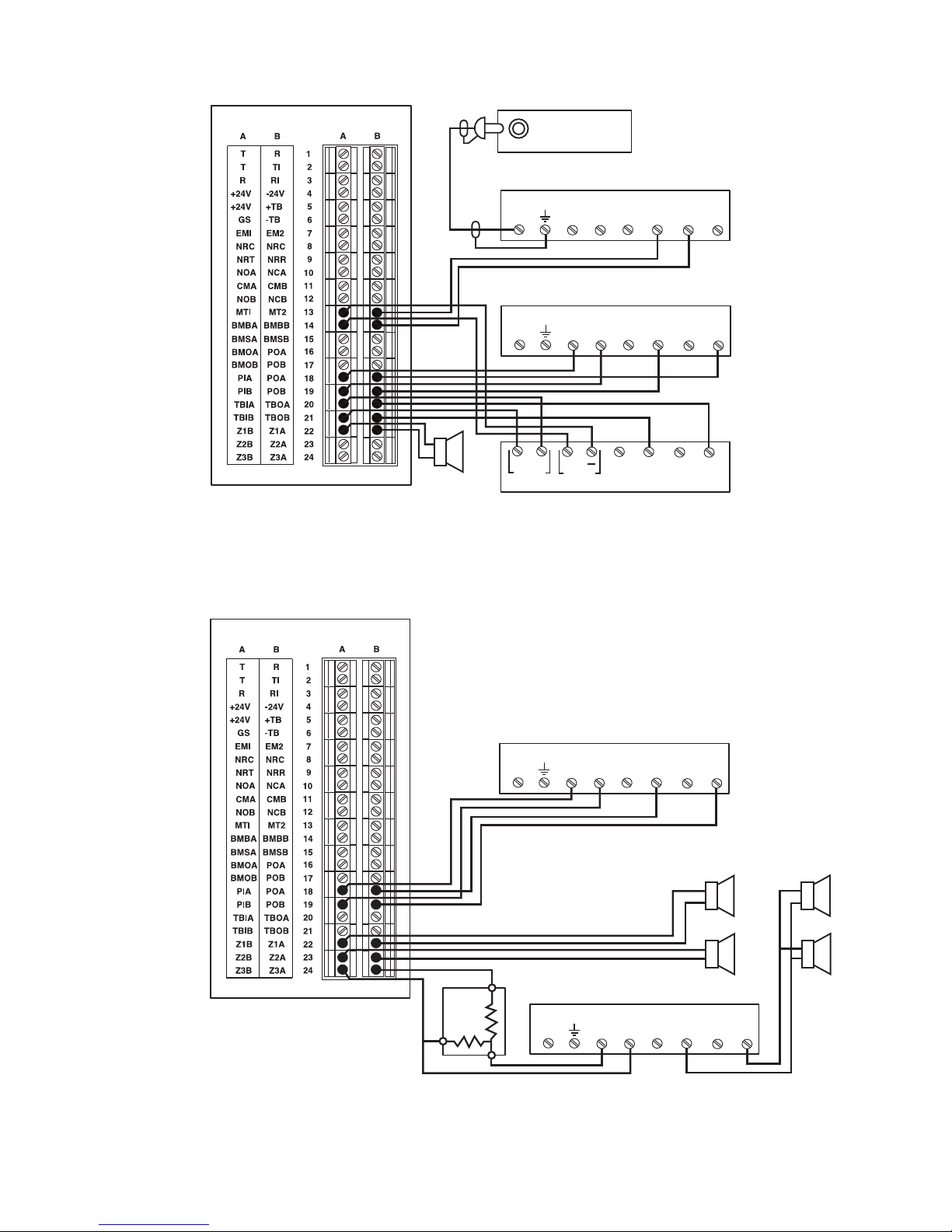

Central-Amplified Talk/Talk Back Systems with Page-Muted BGM ................................ 5
Central-Amplified Talk/Talk Back Systems
with BGM to All Unpaged Zones During Pages.............................................................. 5
Central-Amplified Talk/Talk Back Systems
with Dedicated High-Power Zones ................................................................................ 5
Amplified Speaker Systems and BGM Unpaged Zones ................................................ 5

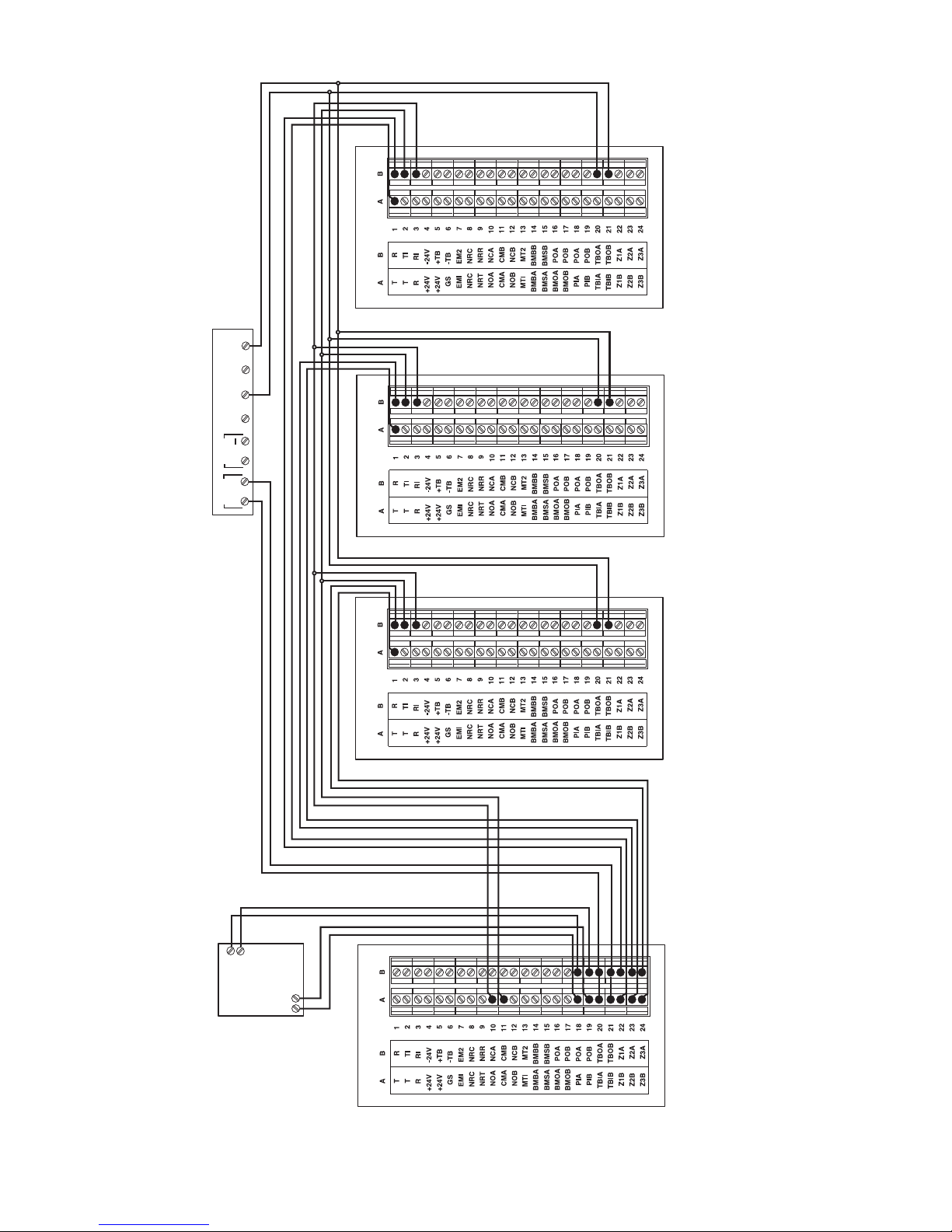

Bridging ZPM3 Units ...................................................................................................... 7
Features and Controls ....................................................................................................8
Shift Change/Emergency Call................................................................................................8
Night Bells..............................................................................................................................8
All-Call Inhibit ........................................................................................................................8
Privacy Beep..........................................................................................................................8
Volume Controls ....................................................................................................................8
Mute Contacts........................................................................................................................8
External Contact Closure ......................................................................................................8
24/48V Talk Battery Selection................................................................................................8
Subzone Lockout ..................................................................................................................8
Confirmation Tone..................................................................................................................8
Pre-Announce Tone ..............................................................................................................8
Talk/Talk Back Zone Selection ..............................................................................................8
Field Programming........................................................................................................11
Field Programming ..............................................................................................................11
Programming Zone Groups ................................................................................................11
Enable/Disable Privacy Beep ..............................................................................................11
Selecting Shift Change / Emergency All-Call Tone ..............................................................11
All-Call Inhibit ......................................................................................................................11
Battery Backup System ................................................................................................12
Operation ......................................................................................................................12
Paging a Zone ....................................................................................................................12
Paging All Zones (All-Call) ..................................................................................................12
Paging a Zone Group ..........................................................................................................12
1

2
Description
The Bogen ZPM3 Zone Paging Module provides up to 3 one- or two-way paging zones, including all-call capabilities, for self-
amplified or central-amplified paging systems. A night ringer feature provides night ring signaling in all zones or in a group
of up to 3 user-selected zones. A shift change tone or Emergency All-Call with alert tone can be programmed to sound in
all zones or in a group containing up to 3 user-selected zones.
Installation

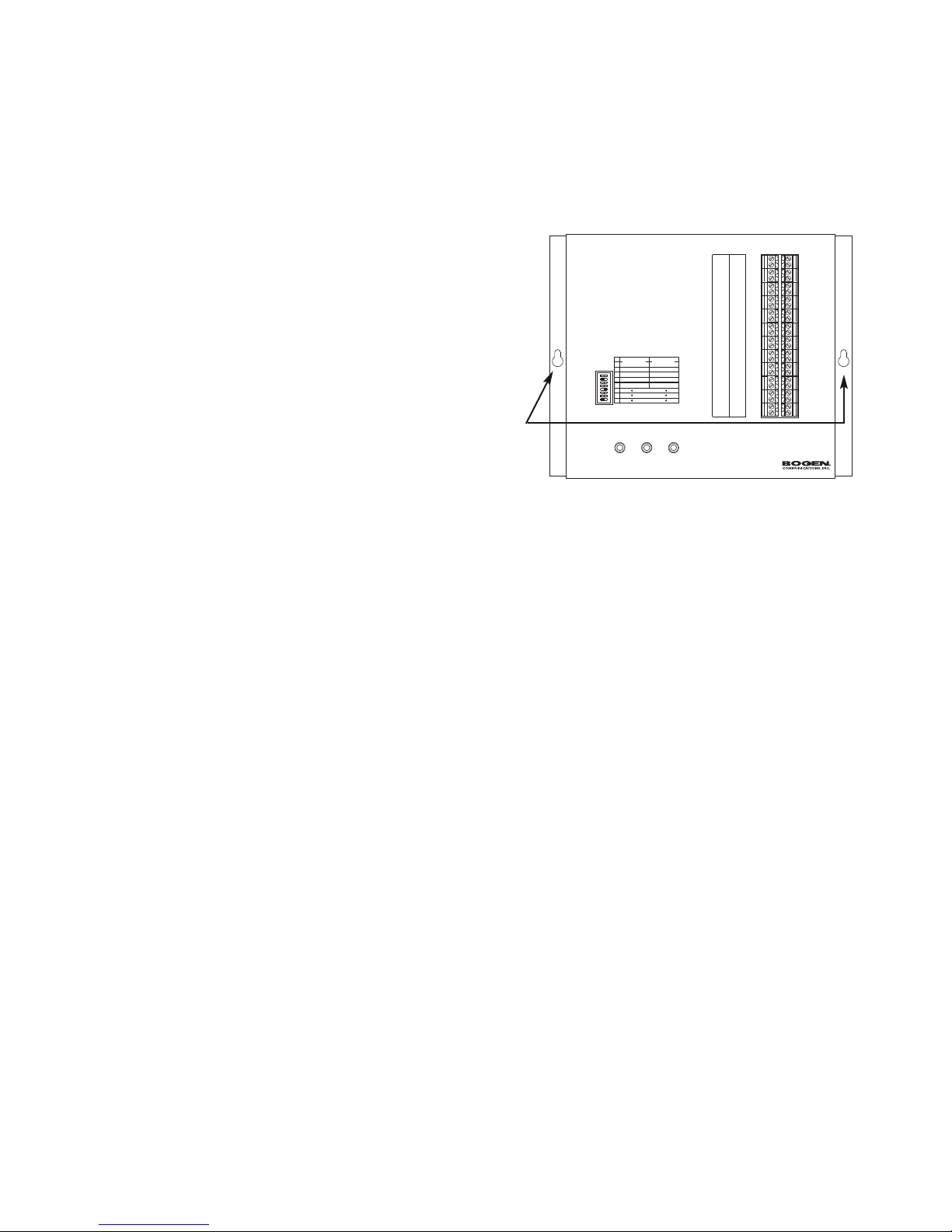

Wall-Mounting
The ZPM3 has mounting flanges with “keyhole” openings to facilitate
installation. Use suitable hardware for the type of backboard to
which the unit is mounted.
RAMSEY, N.J.
ZONE 3
ZONE 2
ZONE 1
1 WAY
2 WAY
PREANN ONPREANN OFF
CONF ON
CONF OFF
LOCK SUBFREE SUB
TALK BAT
24V
TALK BAT
48V
8
7
6
5
4
3
2
1
O l
ZONE PAGING MODULE
ZPM-3
RINGER EQUIVALENCE: 0.9B
CD23CH-10678-PX-N
FCC REGISTRATION NUMBER:
COMPLIES WITH PART 68, FCC RULES BA
RIR
Z3B Z3A
Z2B Z2A
Z1AZ1B
TBOBTBIB
TBOATBIA
PIB POB
POAPIA
POB
BMOB
POABMOA
BMSBBMSA
BMBBBMBA
MT2
MTI
NCBNOB
CMBCMA
NCANOA
NRRNRT
NRCNRC
EMI EM2
-TBGS
+TB+24V
+24V -24V
TI
T
RT
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
VOL
BGM
VOL
RING
NIGHT
VOL
TONE
O l
BA
Keyhole
Mounting
Holes
Technical Specifications
Ringer Equivalence: 0.9B
Operating Voltage: 24V DC, 350 mA minimum; Model PRSLSI Power Supply Recommended
Operating Current (Max.): 350 mA
Audio Power Capability: 100W (70V AC or 25V AC)
DTMF Tones: Signal Level: -25 dBm; Twist Limit: 10 dB; Tone Duration (min.): 40 ms;
Interdigit Pause: 40 ms
Zone Selection: Dial Pulse Speed: 8 to 20 ppm; Percent Break: 52% to 64%
Environmental: Operating Temperature: 0° to 125°F;
Operating Humidity: 0 to 95% noncondensing
Dimensions (Overall): 9" W x 7-1/4" H x 1-3/8" D (includes wall-mounting flange)
Shipping Weight: 4 lb.
Approvals: Registered under Part 68 of FCC rules

3
Connections
Loop Start Trunk
Figure 1 illustrates the connection of the ZPM3 to a Loop
Start Trunk port and optional night bell connections. See
Figure 2 if the system requires a 48V talk battery.
Ground Start Trunk
Figure 3 illustrates the connection of the ZPM3 to a Ground
Start Trunk port and optional night bell connections. See
Figure 2 if the system requires a 48V talk battery.
NOTE: The line from the GS terminal of the ZPM3 must be
connected to the PBX ground (usually the PBX AC ground) for
correct operation.
48V Compatibility
If it is necessary to supply 48V talk battery to the trunk port,
a 48V DC power supply (Bogen Model PRS48) is also
required. Connect power supplies as shown in Figure 2.
NOTE: In applications where RI & TI Terminals are connected to
R & T Terminals, a regulated power supply with very low AC ripple
must be used (PRSLSI recommended). Any ripple on the power
supply will appear as “hum” on the paging audio.
Paging Port
Figure 4 illustrates the connection of the ZPM3 to a Paging
Port. It is important that the port provide an audio pair
that does not suppress the DTMF information. Also,
the port must provide a normally-open contact closure (or
use VAR1). When using the ZPM3 with the paging port,
the talk battery and audio are separated, thus providing
virtually noiseless switching.
Station Port
Figure 5 illustrates the connection of the ZPM3 to a Station
Port. It is necessary to use a TAMB2 Telephone Access
Module in all station port applications. Refer to the
TAMB2 installation instructions to connect the TAMB2 to
a station port. If the external contact closure of the TAMB2
is in use for another function, connect the ZPM3 to the PT
and PR terminals of the TAMB2 as if it were a loop start
trunk.
NOTE: To reduce system hang-up transients, it is preferable to
connect as shown in Figure 5.
Connections to the Telephone System
ZPM3 PBX
+
C.O. LINE
(INCOMING)
LOOP START
TRUNK
NIGHT RING
CONTACT
PBX ANALOG
NIGHT LINE
T
R
SEE
NOTE 1
ZPM3
+
+
24V POWER
SUPPLY
48V POWER
SUPPLY
24V POWER
SUPPLY
= Jumper Wire
NOTE:
1. EITHER USE NIGHT RING CONTACT FROM PBX OR ACTUAL NIGHT LINE
RING SIGNAL TO ACTIVATE ZPM3 NIGHT RING FUNCTION. USING BOTH IS
NOT RECOMMENDED.
Figure 1 – Wiring Diagram, ZPM3 to Loop Start Trunk
NOTE:
1. FOR CONNECTIONS TO TELEPHONE SYSTEM, SEE FIGURES 3, 4, & 5.
Figure 2 – Wiring Diagram, 48V Talk Battery

4
ZPM3
24V POWER
SUPPLY
PBX
+
C.O. LINE
(INCOMING)
GROUND
START
TRUNK
NIGHT RING
CONTACT
PBX ANALOG
NIGHT LINE
T
R
SEE
NOTE 1
PBX
GND
ZPM3
24V POWER
SUPPLY
+
PAGING PORT
PAGE
AUDIO
T
R
CONTACT
CLOSURE
1
2
(N.O.)
ZPM3
24V POWER
SUPPLY
+
TAMB2
STATION TRUNK T
R
PT
PR
PAGE OUT
CONTACT CLOSURE NO
COM
24V DC/150mA +
TO ANALOG
STATION LINE
PRS2403
+
NOTES:
1. EITHER USE NIGHT RING CONTACT FROM PBX OR ACTUAL NIGHT LINE
RING SIGNAL TO ACTIVATE ZPM3 NIGHT RING FUNCTION. USING BOTH IS
NOT RECOMMENDED.
NOTE:
1. T & R ARE A DRY AUDIO PAIR (NO DC VOLTAGE) CAPABLE
OF PRODUCING DTMF TONES.
Figure 3 – Wiring Diagram, ZPM3 to Ground Start Trunk
Figure 5 – Wiring Diagram, ZPM3 to Analog Station Line
Figure 4 – Wiring Diagram, ZPM3 to Paging Port

5
Figure 6 –
Wiring Diagram,
Central-Amplified
System with
Page-Muted BGM
Connections
Central-Amplified Talk/Talk Back Systems with
Page Muted BGM
The configuration illustrated in Figure 6 mutes BGM in all
zones when a page is made. The installation requires a pag-
ing amplifier and, in a talk back system, a talk back amplifier.
A background music source is connected directly to the ZPM3
and level adjustments are made using the BGM LEVEL con-
trol on the ZPM3. The background music source must be able
to supply approximately 0 dBm (0.775 VRMS) across a
600-ohm load. Use shielded cable for all talk back amplifier
connections and runs to talk back zones.
Central-Amplified Talk/Talk Back Systems with
BGM to All Unpaged Zones During Pages
A second amplifier is required in the configuration illustrated
in Figure 7, which mutes background music in the paged zone
only (without muting music at any other zones). The BGM
amplifier and paging amplifier should be of equal power.
A talk back amplifier is necessary for two-way operation.
Because of the high gain of the TBA15 talk back channel,
cross talk from the high-voltage bus of the background music
amplifier may be noticeable. To minimize the cross talk, use
the 25V tap on the BGM amplifier and reduce high-frequency
BGM material by lowering the amplifier treble setting. Use
shielded cable for all talk back amplifier connections and runs
to talk back zones. Adjust the paging and BGM volume with
the volume controls on each amplifier (the ZPM3ʼs BGM
LEVEL control is not used in this application).
Central-Amplified Talk/Talk Back Systems
with Dedicated High-Power Zones
When a system requires more than 100 watts of power,
or when one or two zones require more power than the
others, dedicated amplifiers can be installed on the out-
put side of the ZPM3 for these zones. An attenuator pad
(see Figure 8) is required between the input of the am-
plifier(s) and voltage output from the zone(s). Note that
the voltage is reduced approximately 100 times (70V AC
is reduced to 0.7V AC).
Amplified Speaker Systems and BGM to
Unpaged Zones
Systems installed as shown in Figure 9 use a one-way
speaker. Background music is muted in the paged zone
only. The background music sources in this system must
have their own level control since the ZPM3ʼs BGM Level
control is not used.
When there are more than 8 amplified speakers in the sys-
tem, a low-output impedance buffer amplifier is required to
drive the speaker load and reduce volume differences be-
tween single-zone pages and All-Call pages. The Bogen
BUFEX Buffer/Expander/Volume Control should be set high
enough to drive the speakers during an All-Call page but
not so high as to overdrive the speakerʼs input and cause
distortion. When buffering is not necessary, jumpers are
used to connect terminals PIA to POA, and PIB to POB.
Connections to the Paging System
ZPM3
TALKBACK AMP (OPTIONAL)
+
TEL
LINE MUTE
GND COM 25V 70V
MUSIC
IN RING TIP GND COM 25V 70V
BGM / PAGING AMP
OUTPUT
TYP
BGM SOURCE
NOTES:
1. BACKGROUND MUSIC WILL STOP IN ALL ZONES WHENEVER A PAGE IS MADE.
2. FOR CONNECTIONS TO TELEPHONE SYSTEM SEE FIGURES 1, 3, 4, & 5.

6
ZPM3
TALKBACK AMP (OPTIONAL)
+
TEL
LINE MUTE
GND COM 25V 70V
MUSIC
IN RING TIP GND COM 25V 70V
PAGING AMP
BGM SOURCE
OUTPUT
TYP
MUSIC
IN RING TIP GND COM 25V 70V
BGM AMP
ZPM3
MUSIC
IN RING TIP GND COM 25V 70V
PAGING AMP
MUSIC
IN RING TIP GND COM 25V 70V
DEDICATED AMP
PAD
100
10K
NOTES:
1. BACKGROUND MUSIC STOPS IN ALL ZONES WHENEVER A TALKBACK
ZONE IS PAGED.
2. FOR CONNECTIONS TO TELEPHONE SYSTEM, SEE FIGURES 1, 3, 4, & 5.
NOTES:
1. FOR CONNECTIONS TO TELEPHONE SYSTEM, SEE FIGURES 1, 3, 4, & 5.
2. BACKGROUND MUSIC AND TALKBACK CONNECTIONS NOT SHOWN.
Figure 7 –
Wiring Diagram,
Central-Amplified
System with BGM
to All Unpaged Zones
Figure 8 –
Wiring Diagram, Central-Amplified
System with Dedicated Amplifier
for High-Power Zone

7
Connections
Connections to the Paging System
Bridging ZPM3 Units
ZPM3 units can be linked together to provide access to more
zones. Due to the potentially large number of inputs which
may be presented to each preceding ZPM3, buffering re-
quirements may become critical and the use of buffering am-
plifiers will have to be considered. Figure 10 shows a typical
linked system.
Note that the external contact closure of the master unit (ter-
minals NOA and CMA) is used to control the status of the
next lowest ZPM3 unit. When the master controller goes off
hook, it causes all other units to also go off hook. The first
DTMF signal to the master ZPM3 connects an audio path
from the telephone system to the ZPM3 unit on the next low-
est level. The second DTMF signal instructs the lower ZPM3
unit to connect to a specific zone. This master/slave rela-
tionship can be carried on for a large number of levels, as
long as proper buffering is used.
Talk back is possible with multiple levels of ZPM3 units, but
all talk back zones should reside within the same zone on
the master ZPM3. For example, if Zone 24 is a talk back
zone, all other talk back zones should be accessed with
numbers in the twenties, since Zone 2 of the master ZPM3
is set to two-way to allow Zone 24 to be talk back. When
using multiple ZPM3ʼs, only the master ZPM3 should be set
to supply the confirmation tone; slave ZPM3 units should be
set to supply the pre-announce tone, if desired.
ZPM3
BGM SOURCE
OUTPUT
+
24V POWER
SUPPLY
+
24V POWER
SUPPLY
+
R
T
+
R
T
+
T
R
ONE-WAY
AMPLIFIED
SPEAKERS
BUFEX
R
T
R
T
OUTPUTS
INPUTS
NOTES:
1. FOR SYSTEMS OF LESS THAN 8 AMPLIFIED SPEAKERS, THE BUFEX CAN
BE REPLACED BY JUMPERS.
2. FOR CONNECTIONS TO TELEPHONE SYSTEM SEE FIGURES 1, 3, 4, & 5.
Figure 9 – Wiring Diagram, ZPM3 in a Self-Amplified System

8
Features and Controls
Shift Change/Emergency Call
The ZPM3 provides either a shift change tone or Emer-
gency call (with alert tone) in all zones or in a zone group
containing up three user-selected zones. (The default
configuration sounds the tone in all zones. See section on
Field Programming to program the zone group.) This
feature overrides the standard paging features of the
ZPM3. The type of tone is user-selected and may consist
of a one-second burst or two dual-tone bursts. (See Field
Programming on page 11 to select the desired tone.)
See Figure 11 to wire the ZPM3 for the shift change
feature. See Figure 12 to wire the Emergency Call Fea-
ture. Note the use of a TPU paging amplifier MIC input.
The microphone used in this application is a desk-type
model with a push-to-talk switch. A contact closure (from a
desk microphone or push-button switch) is required to trig-
ger the Emergency Call. In the shift change application,
the contact closure from a clock energizes a relay which
disconnects any current page and activates the shift
change feature.
Night Bells
The night bell feature is triggered by either the high-volt-
age ring signal or a contact closure. Figures 1 and 3
show the connections for contact closure and high-volt-
age ring signal night bells. Use either the night ring con-
tact from the PBX or actual night line ring signal to
activate the night ringer (using both is not recom-
mended). The default configuration rings the night bell in
all zones; however, a zone group with up to three zones
can be field programmed – see section on Field Pro-
gramming to program the zone group.
All-Call Inhibit
Access to the standard All-Call function may be inhibited if
desired. This feature does not affect the Emergency Call
function. See section on Field Programming to inhibit
access to All-Call.
Privacy Beep
The privacy beep option introduces a 150ms tone every
15 seconds into the talk path of a two-way zone. Mute
contacts MT1 and MT2 close for the duration of the tone.
See section on Field Programming to enable/disable the
privacy beep option.
Volume Control
The TONE VOL control adjusts the volume of the pre-
announce, confirmation, error, and Shift Change/Emer-
gency Call tones. The NIGHT RING VOL control adjusts
the level of the night ringer tone (if enabled). The BGM
VOL control adjusts the volume of background music,
when the music source is connected to the ZPM3, as
shown in Figure 6. All controls are screwdriver-adjustable.
Mute Contacts
A set of normally closed contacts (MT1 & MT2), that go to
a normally open state whenever the the ZPM3 is
accessing a two-way zone, are provided. This is used to
operate the talk back muting function of talk back amplifiers.
External Contact Closure
A DPDT contact set (terminals NOB, NCB, CMB) is
available for operating external equipment and for use
in ground start, shift change, and Emergency Call appli-
cations. These contacts change state when the ZPM3
goes off-hook.
24/48V Talk Battery Selection
DIP Switches 1 and 2 are set to match the type of talk
battery supply that is being used. Both switches must
be set in the identical position.
Subzone Lockout
The subzone lockout switch, DIP Switch 3, must be set to
the ''O'' position when programming features through the
telephone. When placed in the ''I'' position, no additional
programming can be done.
Confirmation Tone
DIP Switch 4 turns the confirmation tone on (I) or off (O).
Pre-Announce Tone
DIP Switch 5 turns the pre-announce tone on (I) or off (O).
Talk/Talk Back Zone Selection
DIP Switches 6 through 8 on the top bank of the ZPM3
are used to the set the mode of the individual zones. Set
the respective zone DIP Switch to ''I'' for one-way zones
and ''O'' for two-way zones.

9
ZPM3 ZPM3 ZPM3 ZPM3
TALK BACK AMP
+
TEL
LINE
MUTE
GND COM 25V 70V
BUFEX
R
T
R
T
OUTPUTS
INPUTS
NOTES: 1. FOR CONNECTIONS OF THE MASTER ZPM3 TO THE TELEPHONE SYSTEM, SEE FIGURES 1, 3, 4, & 5. 2. FOR CONNECTIONS OF THE SLAVES TO THE PAGING SYSTEM, SEE FIGURES 6, 7, 8, & 9. 3. TALKBACK AMP CONNECTED ONLY TO ZPM3 UNITS WITH TALKBACK ZONES ASSIGNED.
Figure 10 –
Wiring Diagram, Multiple ZPM3 Configuration
MASTER SLAVE 1
SLAVE 3 - - - - - - - - - - - - - - - - - - - - - - - - - SLAVE 2

10
ZPM3
+
24V POWER
SUPPLY
TO LOOP
START
TRUNK
EXTERNAL
24V RELAY
TO NORMALLY
OPEN CONTACTS
OF SHIFT CHANGE
CLOCK
NOTE:
1. CURRENT PAGE WILL BE RESET WITH ACTIVATION OF THE SHIFT CHANGE FEATURE.
Figure 11 – Wiring Diagram, Shift Change Tone Feature
ZPM3
MUSIC
IN MIC IN GND COM 25V 70V
PAGING AMP
WMT1A
600
OHMS
C.T.
+
24V POWER
SUPPLY
TO LOOP
START
TRUNK
PUSH
TO TALK
DESK MIC
NOTE:
1. CURRENT TELEPHONE PAGE WILL BE RESET WITH ACTIVATION OF EMERGENCY ANNOUNCEMENT.
Figure 12 – Wiring Diagram, Emergency Call Feature with Desk-Type Microphone

11
Field Programming
Field Programming
IMPORTANT: The Subzone Lockout Switch (DIP
Switch 3) must be set to Off (O) for Field Programming.
When power is first applied, the following default settings
are loaded:
• Paging Zone Groups 1, 2, and 3: Cleared and produce
no action when accessed
• Night Bell: Sounds in all Zones
• Shift Change/Emergency Call: Sounds in all Zones
• Shift Change /Emergency Call Tone: Set to produce two
dual-tone bursts
• Privacy Beep Feature: Disabled – no privacy beep
• All-Call Inhibit: All-Call Enabled
NOTE: If batteries are installed, it may be necessary to reset the
unit in order to institute default settings. See the section on
Resetting with Battery Backup on Page 12
.
Programming Zone Groups
The ZPM3 allows for three Paging Zone Groups (Zone
Groups 1, 2, and 3), each one consisting of up to three
user-selected zones. A night bell zone group (Zone Group
4) can be programmed to ring the night bell in up to three
zones. A Shift Change/Emergency Call Zone Group (Zone
Group 5) can be programmed to sound the Shift
Change/Emergency tone in up to three zones. Use the
following procedure to program zone groups.
1. Access the ZPM3 by dialing the trunk access number or
station access number. Listen for the confirmation tone
(if enabled).
2. Press and wait for the program tone (short beep).
3. Select the zone group to be programmed by pressing
the corresponding key for paging zone
groups 1, 2, or 3, respectively, to assign zones to a
night ringer zone group (instead of sounding in all zones),
or to assign zones to a Shift Change/Emergency
Call Zone Group (instead of sounding the shift change
tone or providing Emergency All-Call with alert tone to all
zones).
4. Press the keys corresponding to the desired zones (1-3)
to reside in the zone group up to three zones (if less than
3 zones are to be included, see note below).
5. Press and wait for a short beep, then hang up.
NOTE: To enter less than 3 zones, follow step 4 above but fill the
unused zone group position with the last zone selected (i.e., to
enter zones 1 & 2, dial 1-1-2). The ZPM3 records the last three
zone selections chosen no matter how many digits were pressed
during the programming procedure. This also makes it possible
to override any incorrect zone selections made during the pro-
gramming process.
Incorrect selection of zones for a zone group can be changed
during programming, however, the zone group number must be
correctly selected from the start. If the programming procedure
is started but you do not wish to complete it, hang up. If the #
key was not pressed a second time (Step 5), none of the selec-
tions will be committed to memory. If an illegal selection is made
during the programming procedure, a beeping error tone will be
heard in the handset – the ZPM3 must be put back on-hook and
the programming process restarted. If the ZPM3 sounds an error
tone immediately after pressing the # key for the first time, check
to see that the Subzone Lockout (DIP Switch 3 is in the OFF (O)
position.
Enable/Disable Privacy Beep
1. Access the ZPM3 by dialing the trunk access number or
station access number. Listen for the confirmation tone
(if enabled).
2. Press and wait for the program tone (short beep).
3. Enable the privacy beep by pressing .
4. Disable the privacy beep by pressing .
5. Press and wait for a short beep, then hang up.
Select Shift Change/Emergency All-Call Tone
1. Access the ZPM3 by dialing the trunk access number or
station access number. Listen for the confirmation tone
(if enabled).
2. Press and wait for the program tone (short beep).
3. Select the one-second tone burst by pressing
4. Select the two dual-tone bursts by pressing
5. Press and wait for a short beep, then hang up.
All-Call Inhibit
1. Access the ZPM3 by dialing the trunk access number or
station access number. Listen for the confirmation tone
(if enabled).
2. Press and wait for the program tone (short beep).
3. Inhibit All-Call paging by pressing .
4. Enable All-Call paging by pressing .
5. Press and wait for a short beep, then hang up.
5
, or
4
321
0
1 1
6
1
6
#
#
#
#
0
2 1
6
2
6
#
#
#
#
.
.
0
3 1
6
3
6

12
Installation
The battery backup requires four (4) AA size nickel cad-
mium (NiCd) batteries, with an amp-hour rating of 450
mAhr or higher. To install the batteries, remove the four
screws that secure the cover of the unit. Use needle nose
pliers to carefully squeeze in the locking tabs on the four
plastic standoffs that mount the PPC board. Gently pull
the board off of each of the standoffs and place it aside.
Insert the 4 batteries as shown on the battery holder.
Check that the battery clip is securely attached to the bat-
tery holder. Align the main PC board with the 4 standoffs
and carefully press the board until all 4 standoffs latch.
Replace the cover and mount the unit.
Charging
New batteries should be fully charged before using the
battery backup feature. The ZPM3 provides a constant
trickle charge which will fully charge batteries in approxi-
mately 48 hours (batteries should last 5-7 years). A green
LED illuminates to indicate that the charging system is
operative; it does not indicate the condition of the batteries.
No damage will occur to the ZPM3 or the batteries if there
should be a power outage during this initial charging
period, but the integrity of the programmed features
cannot be guaranteed. Remove all power before replac-
ing batteries. Once the batteries have been removed,
user-programmed features are erased.
NOTE: Batteries should be disconnected if the ZPM3 is to be
left unpowered for more than one day.
Resetting the Battery Backup
If for some reason, such as extended power outages, it
should become necessary to reset the ZPM3, do the fol-
lowing. Unplug the 24V power supply to remove the pri-
mary power. Locate the battery backup reset access hole
at the top left of the unit. Using a suitable screwdriver,
press the small black button next to the green LED. Plug
the power supply back in and re-program the user features.
Paging a Zone
Access the ZPM3 by dialing the trunk access number or
station access number. Listen for the confirmation tone
(if enabled). Dial the number of the zones desired (1 to 3).
Paging All Zones (All-Call)
Access the ZPM3 by dialing the trunk access number or station
access number. Listen for the confirmation tone (if enabled).
Dial (0) for All-Call.
Paging a Zone Group
Access the ZPM3 by dialing the trunk access number or
station access number. Listen for the confirmation tone (if
enabled). Dial (*) (1) for zone group 1 (*) (2) for zone group
2 or (*) (3) for zone group 3.
NOTE: Zone Groups 4 (Night Bell Zone Group) and 5 (Shift
Change/Emergency Call Zone Group) cannot be accessed
through the telephone. These groups are only activated by the
night bell and shift change/emergency call features respectively.
Battery Backup System Operation

13
K1 K1
K13
NCA CMA NOA
NCB CMB NOB MT1 MT2
EXTERNAL
CONTACTS
MUTE
CONTACT
EM1 EM2
NRT
NRR
NRC1 NRC2
GS
+TB
T T
R R
-TB
TI
RI
BMBA
BMBB
BMOA
BMOB
POA
POB
POA
POB
TBOA
TBOB
PIA PIB
TBIA TBIB
Z1B
Z1A
Z2B
Z2A
Z3B
Z3A
-24V +24V +24V
BMSA
BMSB
BACK-UP
RESET
K1
K2
K3
K4
K5
K6
BATTERY
BACK-UP
VOLTAGE
REGULATOR
MICRO-
CONTROLLER
LOOP
CURRENT
DETECTOR
TONE
GENERATOR
DTMF
DECODER
NIGHT RING
TRIGGER
AND RING
DETECTOR
TALK BAT
SEL
TALK BAT
SEL
300 300
300 300
.01
.01
.68
.68
300
300
1.5
50V
1.5 50V
+
+
K3 K3
K2
K2
K2
10K BGM
VOL
TONE
VOL
NIGHT
RING
VOL
K2
K2
K3
K3 K3
K4 K5 K6
NOTES: 1. ALL RELAYS SHOWN IN “ON HOOK” (HOLD) STATE. 2. EXTERNAL CONTACTS (K1) REVERSE STATE WHEN UNIT GOES OFF HOOK, AND DURING
NIGHT RING AND EMERGENCY/SHIFT CHANGE FEATURE OPERATION.
3. K2 REVERSES STATE WHEN UNIT GOES OFF HOOK. 4. K3 REVERSES STATE WHEN PAGING TO A TALKBACK ZONE. 5. MUTE CONTACT (K13) IS NORMALLY CLOSED EXCEPT DURING TALKBACK ZONE ACCESS. 6. K4-K12 REVERSE STATE WHEN THAT CORRESPONDING ZONE IS ACCESSED. 7. UNIT BECOMES ACTIVE WHEN LOOP CURRENT DETECTOR SENSES CURRENT FLOW
INTO THE RI TERMINAL, OR WHEN NIGHT RING OR EMERGENCY/SHIFT CHANGE FEATURE IS ACTIVATED.
Figure 13 –
ZPM3 Functional Block Diagram

50 Spring Street, Ramsey, NJ 07446, U.S.A.
Tel. [phone] • Fax: [phone]
www.bogen.com
The Bogen ZPM3 Zone Paging Module is warranted to be free from defects in material and workmanship for two (2) years from the date of
sale to the original purchaser. Any part of the product covered by this warranty that, with normal installation and use, becomes defective (as
confirmed by Bogen upon inspection) during the applicable warranty period, will be repaired or replaced by Bogen, at Bogen’s option, pro-
vided the product is shipped insured and prepaid to: Bogen Factory Service Department, 50 Spring Street, Ramsey, NJ 07446, USA. Repaired
or replacement product will be returned to you freight prepaid. This warranty does not extend to any of our products that have been subjected
to abuse, misuse, improper storage, neglect, accident, improper installation or have been modified or repaired or altered in any
manner whatsoever, or where the serial number or date code has been removed or defaced.
THE FOREGOING LIMITED WARRANTY IS BOGEN’S SOLE AND EXCLUSIVE WARRANTY AND THE PURCHASER’S SOLE AND
EXCLUSIVE REMEDY. BOGEN MAKES NO OTHER WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, AND ALL IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED AND EXCLUDED
TO THE MAXIMUM EXTENT ALLOWABLE BY LAW. Bogen's liability arising out of the manufacture, sale or supplying of products or their
use or disposition, whether based upon warranty, contract, tort or otherwise, shall be limited to the price of the product. IN NO EVENT SHALL
BOGEN BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, LOSS OF
PROFITS, LOSS OF DATA OR LOSS OF USE DAMAGES) ARISING OUT OF THE MANUFACTURE, SALE OR SUPPLYING OF PROD-
UCTS, EVEN IF BOGEN HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSSES. Some States do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives
you specific legal rights, and you may also have other rights which vary from State to State.
Products that are out of warranty will also be repaired by the Bogen Factory Service Department – same address as above or call 201-934-8500.
The parts and labor involved in these repairs are warranted for 90 days when repaired by the Bogen Factory Service Department. All shipping
charges in addition to parts and labor charges will be at the owner's expense. All returns require a Return Authorization number. For most
efficient warranty or repair service, please include a description of the failure.
12/2008
Limited Warranty; Exclusion of Certain Damages
