FOREWORD __________________ _
The operator manual and the Snow-
mobile Safety Handbook have been pre-
pared
to acquaint the owner I operator
or passenger
of a new snowmobile with
the various vehicle controls, mainte-
nance and safe operating instructions.
Each
is indispensable for the proper use
of the product, and should be kept with
the vehicle at all times.
Should you have any questions pertain-
ing
to the warranty and its application,
please consult the "Often Asked Ques-
tion" section of this manual, or your au-
thorized dealer.
This manual uses the following sym-
bols.
• WARNING: Identifies
an instruc-
tion which,
if not followed, could
cause serious personal injuries includ-
ing possibility of death.
..,- CAUTION: Denotes an instruction
T which, if not followed, could se-
verely damage vehicle components.
0 NOTE: Indicates supplementary
information needed to fully
com-
plete an instruction.
• WARNING: The engines and the
corresponding components iden-
tified
in this manual should not be uti-
lized
on product(s) other than those
mentioned
on the cover page of this
manual.
Although the mere reading of such in-
formation does
not eliminate the haz-
ard, your understanding of the informa-
tion will promote its correct use.
The information, illustrations and
com-
ponents/system descriptions contained
in this manual are correct at time of pu-
blication. Bombardier Inc. however,
maintains a policy of continuous impro-
vement of its products without impos-
ing upon itself any obligation to install
them on products previously manufac-
tured.
Bombardier Inc. reserves the right at
any time to discontinue or change spe-
cifications, designs, features, models or
equipment without incurring obligation.
The illustrations
show the typical cons-
truction
of the different assemblies and,
in all cases, may not reproduce the full
detail or exact shape
of the parts
shown, however, they represent parts
which have the same or a similar func-
tion.
Most specifications are given in both
metric and customary units. Where pre-
cise accuracy
is not required, some
conversions are rounded
to even num-
bers for easier use.
A shop manual can be obtained
for
complete service, maintenance and re-
pair information.
..,-CAUTION: Several components
T of this vehicle are built with
parts dimensioned
in the metric sys-
tem. Some fasterners are metric and
must not
be replaced by customary
fasteners
or vice versa. Mismatched
or incorrect fasteners could cause
damage to the vehicle
or possible per-
sonal injury.

SAFETY MEASURES _____ _
Observe the following
precautions:
• Throttle mechanism should be check-
ed for free movement before starting
engine.
• The snowmobile engine can be
stopped by activating the emergen-
cy cut-out or tether switches or turn-
ing
off the key.
• Clean and check operation
of the
headlight, tail light and brake light.
• Engine should
be running only when
belt guard and/or pulley guard
is
secured in place.
• Never run the engine
without drive
belt installed. Running
an unloaded
engine can prove to
be dangerous.
• Never run the engine when the track
is raised off the ground.
• It can be dangerous to run engine
with the hood removed.
• Gasoline
is flammable and explosive
under certain conditions. Always
manipulate
in a well ventilated area.
Do
not smoke or allow open flames
or sparks
in the vicinity. If gasoline
fumes are noticed while driving, the
cause should
be determined and cor-
rected
without delay.
• Maintain your vehicle
in top mechan-
ical condition at all times.
• Your snowmobile
is not designed to
be driven or operated on black top,
bare earth, or other abrasive sur-
faces.
On such surfaces abnormal
and excessive wear
of critical parts
is inevitable.
• Your snowmobile
is not designed to
be operated on public streets, road
or highways.
In most States and Pro-
vinces, it
is considered an illegal
operation.
• Installation
of other than standard
equipment, including ski-spreaders,
bumpers, pack racks, etc., could
severely affect the stability and safe-
ty
of your vehicle. Avoid adding on
accessories
that alter the basic ve-
hicle configuration.
• Whenever the vehicle
is parked out-
doors, overnight or for a long peri-
od, it
is suggested to protect it against
the inclemency
of the weather with
a snowmobile cover.
• Do not lubricate throttle and/or brake
cables and housings.
• Only perform procedures
as detailed
in this manual. Unless otherwise spe-
cified, engine should be turned
OFF
for all lubrication and maintenance
procedures.
• These vehicles are designed for the
driver only. No provisions have been
made for a passenger.
• Should removal
of a nylon lock nut
be required when undergoing repairs/
dissassembly always replace by
new
ones. Tighten as specified in the ap-
plicable Shop Manual.
PLEASE READ AND UNDERSTAND
ALL WARNINGS AND CAUTIONS
IN
THIS MANUAL AND ON THE VEHICLE.
THIS MANUAL SHOULD REMAIN WITH THE VEHICLE AT
THE TIME OF RESALE.
2 ________________________ __

INDEX ________________________ _
THE 1987 "LIMITED WARRANTY"
OFTEN ASKED QUESTIONS.
LISTING OF AREA DISTRIBUTORS.
HOW TO IDENTIFY YOUR SNOWMOBILE
CONTROLS/INSTRUMENTS
Throttle lever, brake lever, parking brake lever, parking brake restraining
device, ignition
switch, light switch, headlamp dimmer switch, emergency
cut-out switch, tether cut-out switch, rewind starter handle, primer, gear
shift lever, speedometer, trip meter reset button, access door latch, fuel
4
6
8
9
gauge/tank cap, hood opening, seat compartment, fuse holders, hitch 10
BREAK-IN PERIOD
Engine and blet break-in, 10 hour-inspection, inspection check list 14
GAS & OIL
Recommended gasoline, recommended oil, gas mixture ratio, gas mixing
procedure, gas/oil mixing charts .
16
PRE-START CHECK
Check points ............ . 18
STARTING PROCEDURE
Manual starting, electric starting, before riding, emergency starting. 18
LUBRICATION
Frequency, steering mechanism, bogie wheels, rear axle, gearbox oil level,
drive pulley, driven pulley . . . . . . . . . . . . . . . . . . .
20
MAINTENANCE
Chart, belt guard/pulley guard removal, drive belt removal and installation,
drive belt condition,
new drive belt, brake condition, brake adjustment, brake
light
switch adjustment, spark plugs, battery, suspension condition, sus-
pension adjustment, track condition, track tension and alignment, drive pul-
ley, steering mechanism, steering adjustment, muffler attachments, engine
head nuts, engine
mount nuts, carburetor adjustment, front hood louvers,
air silencer box, fan belt, drive chain tension, headlamp beam aiming, bulb
replacement, general inspection . . . . . . . . . . . . . . . . .
22
STORAGE
Track, suspension, ski assembly, controls, gearbox, drive pulley, driven pul-
ley, engine and primer lubrication, fuel tank and carburetor, battery, chas-
sis, general inspection . . . . . . . . . . . . . . . . .
33
PRE-SEASON PREPARATION
Pre-season preparation chart.
TROUBLE SHOOTING .... .
TOOLS ............. .
SPECIFICATIONS . .. .
WIRING DIAGRAMS ...................... .
37
38
40
41
43
44
51 METRIC INFORMATION GUIDE
------------3

THE 1987 SNOWMOBILE
LIMITED WARRANTY----------
1 -PERIOD
BOMBARDIER® INC. as manufacturer, warrants FROM THE DATE OF FIRST
CONSUMER SALES, every
1987 BOMBARDIER snowmobile, sold as NEW AND
UNUSED, and predelivered by
an authorized BOMBARDIER dealer for a period of:
• 12 consecutive months.
2 - WHAT BOMBARDIER WILL DO
BOMBARDIER will repair and/o.r replace, at its option, components defective
in material and/or workmanship (under normal use and service,) with a genuine
BOMBARDIER
component without charge for parts or labour, at any authorized
BOMBARDIER dealer during said warranty period.
3- CONDITION TO HAVE WARRANTY WORK PERFORMED
Present to the servicing dealer, the hard copy of the BOMBARDIER Warranty
Registration card or proof of purchase received by the customer from the sel-
ling dealer
at time of purchase.
4 - WARRANTY TRANSFER
This warranty is transferable to subsequent owner(s) for remainder of warran-
ty period from original date of sale.
5- EXCLUSIONS- ARE NOT WARRANTED
• Normal wear on all items such as, but not limited to:
-drive belts -bulbs
-slider shoes -runners on skis
-spark plugs
• Replacement parts and/or accessories
which are not genuine BOMBARDIER
parts and/or accessories.
• Damage resulting from installation
of parts other than genuine BOMBARDIER
parts.
• Damage caused by failure
to provide proper maintenance as detailed in the
Operator's Manual. The labour, parts and lubricants costs of all maintenance
services, including tune-ups and
adjustments will be charged to the owner.
• Vehicles designed and/or used
for racing purposes.
• All optional accessories installed on
the vehicle.
(The normal
warranty policy for parts and accessories, if any, applies).
• Damage resulting
from accident, fire or other casualty, misuse, abuse or ne-
glect.
• Damage resulting
from operation of the snowmobile on surfaces other than
snow.
• Damage resulting from
modification to the snowmobile not approved in writ-
ing by BOMBARDIER.
4 ______________________ ___

• Losses incurred by the snowmobile owner other than parts anJ labour, such
as,
but not limited to, transportation, towing, telephone calls, taxis, or any
other incidental or consequential damage.
6 - BATTERY WARRANTY:
• 12 consecutive months. (Pro-rated)
100% warranty coverage will start on the date the snowmobile was pur-
chased and run
to the following April 30th. The remainder of the 12 month-
period will be pro-rated as follows:
50% from April 30th to December 1st.
-
40% from December 1st to December 31st.
-
30% from January 1st to end of warranty.
7 - EXPRESSED OR IMPLIED WARRANTIES
This warranty gives you specific rights, and you may also have other le-
gal rights which may vary from state to state, or province to province.
Where applicable this warranty is expressly in lieu of all other expressed
or implied warranties of BOMBARDIER, its distributors and the selling
dealer, including any warranty of merchantability or fitness for any parti-
cular purpose; otherwise the implied warranty is limited to the duration
of this warranty. However, some states or provinces do not allow limi-
tations on how long an implied warranty lasts, so the above limitation
may not apply.
Neither the distributor, the selling dealer, nor any other person has been
authorized to make any affirmation, representation or warranty other than
those contained in this warranty, and if made, such affirmation,
representation or warranty shall not be enforceable against BOMBAR-
DIER or any other person.
Some states or provinces do not allow the exclusion or limitation of inci-
dental or consequential damages, so the above limitation or exclusion
may not apply.
BOMBARDIER INC. reserves the right to modify its warranty policy at
any time, being understood that such modification will not alter the war-
ranty conditions applicable to vehicles sold while the above warranty is
hi effect.
8 - CONSUMER ASSISTANCE
If a servicing problem or other difficulty occurs, we suggest the following:
1. Try to solve the problem at the dealership with the Service Manager or Owner.
2. If this fails, contact your area distributor listed in the Operator's Manual.
3. Then
if your grievance still remains unsolved, you may write to us:
Bombardier Inc.
Service
Department
Recreational Products Division
Valcourt (Quebec), Canada, JOE 2LO
February
1986
Bombardier Inc.
Valcourt (Quebec). Canada, JOE 2LO
®*Trademarks of Bombardier Inc.
----------------------- 5

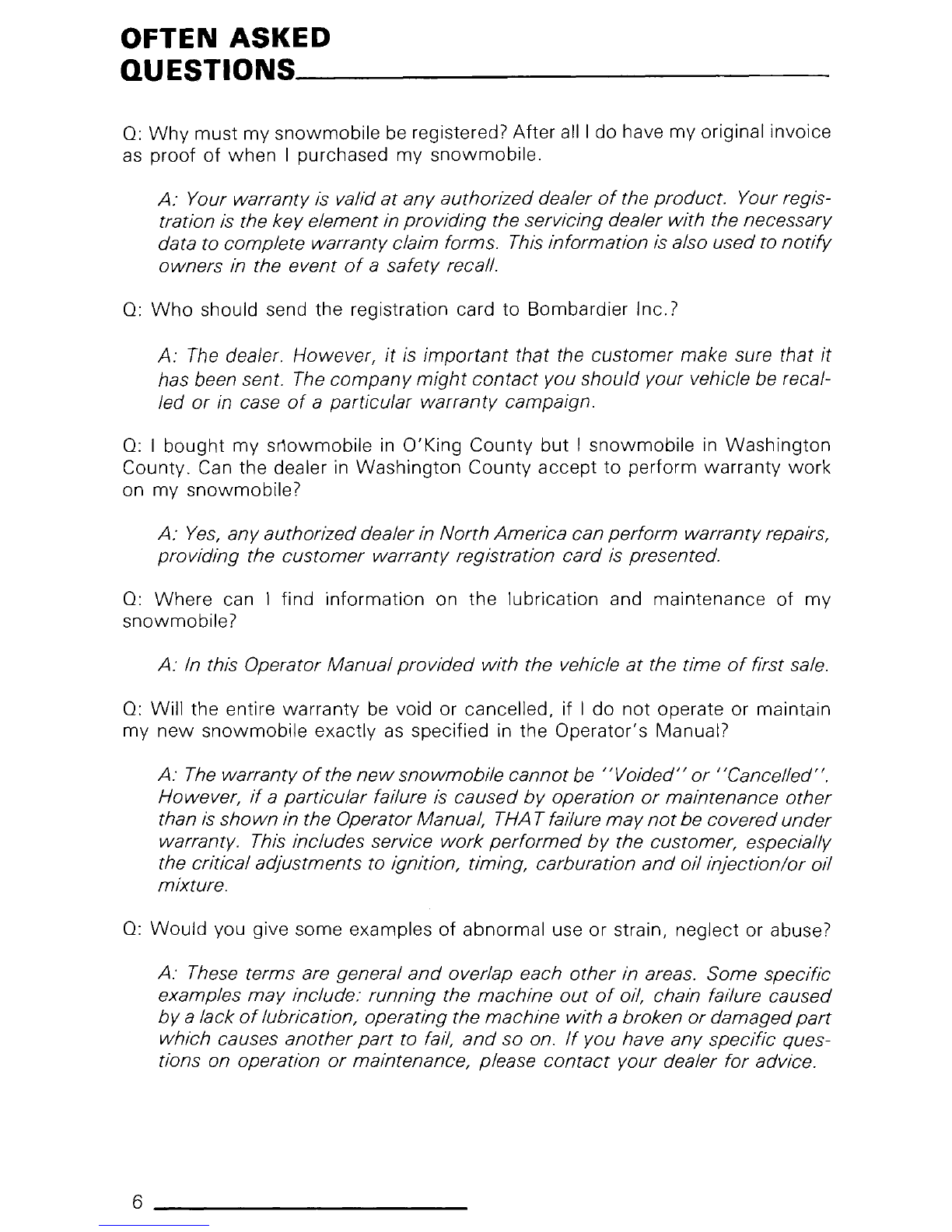

OFTEN ASKED
QUESTIONS ________________________ _
0: Why must my snowmobile be registered? After alii do have my original invoice
as proof of when I purchased my snowmobile.
A: Your warranty is valid at any authorized dealer of the product. Your regis-
tration is the key element in
providing the servicing dealer with the necessary
data to complete warranty claim forms. This information is also used to
notify
owners in the event of a safety recall.
0: Who should send the registration card to Bombardier Inc.?
A: The dealer. However, it is important that the customer make sure that it
has been sent. The company might contact you should your vehicle be recal-
led
or in case of a particular warranty campaign.
0: I bought my snowmobile in O'King County but I snowmobile in Washington
County. Can the dealer
in Washington County accept to perform warranty work
on my snowmobile?
A: Yes, any authorizeddealerin North America can perform warranty repairs,
providing the customer warranty registration card is presented.
0: Where can I find information on the lubrication and maintenance of my
snowmobile?
A: In this Operator Manual provided with the vehicle at the time of first sale.
0: Will the entire warranty be void or cancelled, if I do not operate or maintain
my new snowmobile exactly as specified in the Operator's Manual?
A: The warranty of the new snowmobile cannot be "Voided" or "Cancelled".
However, if a particular fat!ure is caused by operation or maintenance other
than is shown in the OperatorManual, THATfat!ure may not be covered under
warranty. This includes service work performed by the customer, especially
the critical adjustments to ignition, timing, carburation
and ot! injection/or ot!
mixture.
0: Would you give some examples of abnormal use or strain, neglect or abuse?
6
A: These terms are general and overlap each other in areas. Some specific
examples
may include: running the machine out of ot!, chain fat!ure caused
by a lack of lubrication, operating the machine with a broken or damaged part
which causes another part to fat!, and so on. If you have any specific ques-
tions on operation
or maintenance, please contact your dealer for advice.

0: What costs are my responsibility during the warranty period?
A: The customer's responsibility includes all costs of normal maintenance ser-
vices,
non-warranty repairs, accidents and collision damage, as well as oils,
and spark plugs, and incidental or consequential damages costs as explained
in the warranty.
0: Are "Genuine" Bombardier replacement parts used in warranty repairs cove-
red by warranty?
A: Yes. When installed by an authorized dealer, any "genuine" Bombardier
part used in warranty repairs assumes the remaining warranty that exists on
the machine.
0: If I sell my snowmobile within the warranty period, will the new owner qualify
for the balance of the warranty?
A: Yes, provided the unit has already been registered with the manufacturer.
Note that the change of ownership card in this manual should be completed
and sent to Bombardier Inc.
0: How can I receive the best owner assistance?
A: The satisfaction and goodwill of the owners of Bombardier products are
of primary concern to yourdealer and BombardierInc. Normally, any problems
thatarise in connection with the sales transaction
or the operation of yoursnow-
mobile
will be handled by yourDealers Sales or Service Departments. It is reco-
gnized, however, that despite the bestintentions
of everyone concerned, misun-
derstandings
will sometimes occur. If you have a problem that has not been
handled to your satisfaction through normal channels, we suggest that you
discuss your problem with a member of dealership management. Frequently,
complaints are the result of a breakdown in communications and can quickly
be resolved by a member of the dealership management. If the problem already
has been
reviewed with the Sales Manager or Service Manager, contact the
Dealer himself or the General Manager.
________________________ 7

LISTING OF AREA
DISTRIBUTORS
CANADIAN DISTRIBUTORS
Quebec Branch
1350 Nobel
Boucherville, Quebec, J4B 1A1
1514) 655-6121
Province of Quebec
Ontario Branch
230 Bayview Drive
Barrie, Ontario, L4N 4Y8
[phone]
Province of Ontario
Technical office
P 0 Box
7060
Riverview, New Brunswick, E1 B 1 VO
1506) 386-6117
Atlantic Region
BROOKS EQUIPMENT LIMITED
1616 King, Edward Street
P
0. Box 985
Winnipeg, Manitoba, R3C 2V8
1204)
633-7247
British Columbia, Manitoba, Saskatchewan,
Alberta, Yukon
CHARLES
R. BELL LIMITED
Newfoundland, Labrador
Offices
-Riverside Drive
P.O. Box
1050
Corner Brook, Newfoundland, A2H 6J3
1709) 634-3533
- 81 Kenmount Road
P.O. Box
8127
St-John's, Newfoundland, A1B 3N 1
1709)
722-6700
HUDSON'S BAY CO. LTD.
165 Hymus Blvd
Pointe-Claire, Quebec,
H9R 1 G2
1514) 697-8500
North-West Territories, Franklin District &
Keewatin
8
AMERICAN DISTRIBUTORS
BOMBARDIER CORPORATION
All States (excluding Alaska)
SERVICE OFFICES
-East Main Street Road
Malone, New York 12953
1518) 483-4411
Technical office
(506)
386-6117
- 4505 West Superior Street
P 0 Box
16106
Duluth, Minnesota 55816-016
1218) 628-2881
- P 0 Box
1569
Idaho Falls, Idaho, 83403
1208) 529-9510
NATIONAL SALES OFFICE
-O'Hare Lake Plaza
2350 Devon Avenue
Suite
150
Des Plaines, Illinois 60018
1312) 298-9540
MILLER EQUIPMENT AND RECREATIONAL
CENTER
1 049 Whitney Road
Anchorage, Alaska 99501
1907)
274-9513
Alaska

HOW TO IDENTIFY
YOUR
SNOWMOBILE----------
The main components of your snowmo-
bile (engine, track(s) and frame) are
identified by different serial numbers. It
may sometimes become necessary to
locate these numbers for warranty pur-
poses or to trace your snowmobile
in
the event of theft.
ENGINE
SERIAL
NUMBER
AOl 7002010
VEHICLE SERIAL NUMBER
A017005005
Vehicle serial number meaning:
0000 00000
1----r
Model no. No de vehicule
A000000013
0 NOTE: We strongly recommend that you take note of
all the serial numbers
on your vehicle and supply them to your insurance company. It will surely
help
in the event a snowmobile is stolen.
_______________________ 9

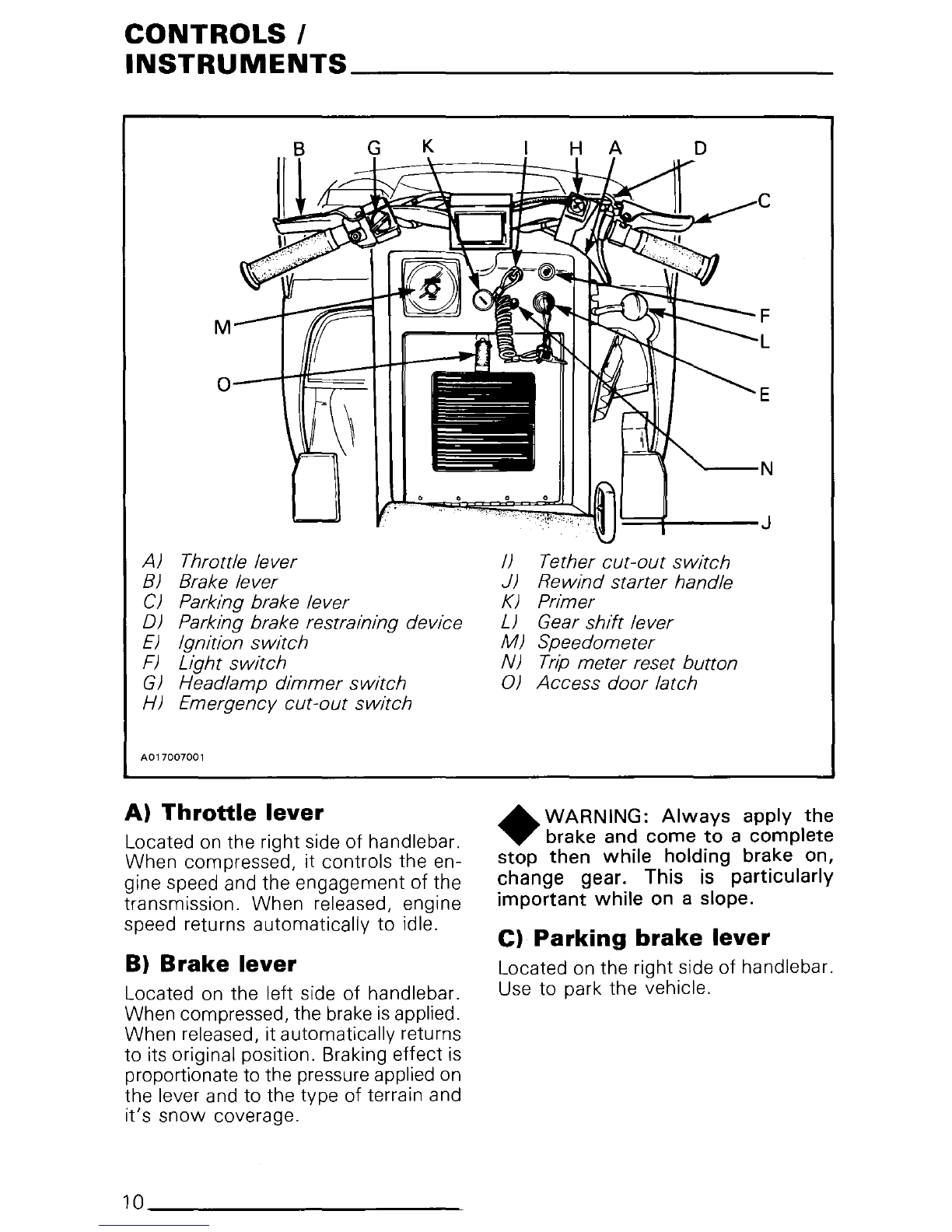

CONTROLS I
INSTRUMENTS ________________________ _
M
0
AJ Throttle lever
8) Brake lever
CJ Parking brake lever
DJ Parking brake restraining device
EJ Ignition switch
FJ Light switch
G) Head/amp dimmer switch
HJ Emergency cut-out switch
A017007001
A) Throttle lever
Located on the right side of handlebar.
When compressed, it controls the en-
gine speed and the engagement of the
transmission. When released, engine
speed returns automatically to idle.
B) Brake lever
Located on the left side of handlebar.
When compressed, the brake
is applied.
When released, it automatically returns
to its original position. Braking effect
is
proportionate to the pressure applied on
the lever and to the type of terrain and
it's snow coverage.
10 ______________________ ~
/} Tether cut-out switch
J) Rewind starter handle
KJ Primer
LJ Gear shift lever
MJ Speedometer
NJ Trip meter reset button
OJ Access door latch
•WARNING: Always apply the
brake
and come to a complete
stop then while holding brake on,
change gear. This
is particularly
important while
on a slope.
C) Parking brake lever
Located on the right side of handlebar.
Use to park the vehicle.

To lock:
2° Turn 1o Strongly press
A008006001

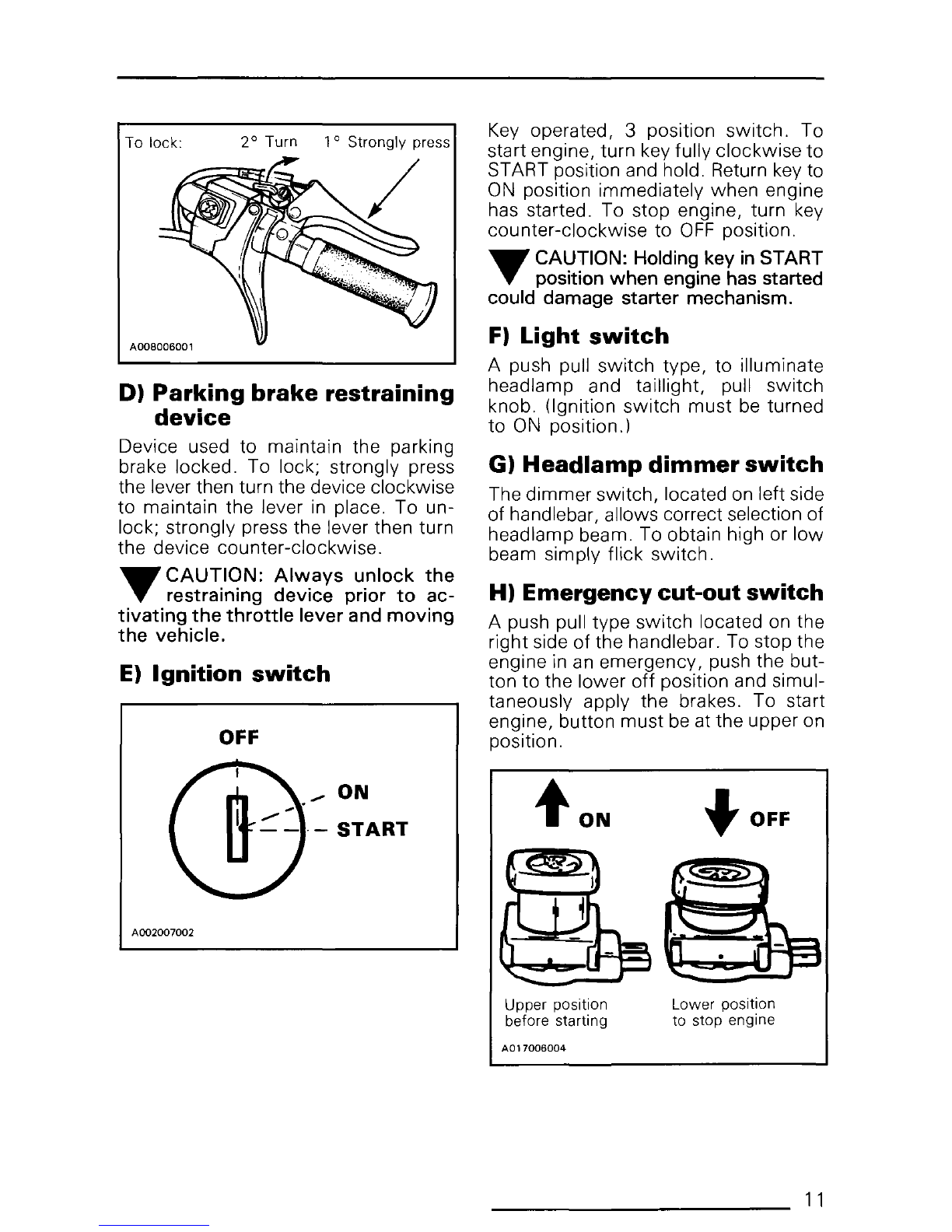

D) Parking brake restraining
device
Device used to maintain the parking
brake locked. To lock; strongly press
the lever then turn the device clockwise
to maintain the lever
in place. To un-
lock; strongly press the lever then turn
the device counter-clockwise.
,..-CAUTION: Always unlock the
T restraining device prior to ac-
tivating the throttle lever and moving
the vehicle.
E) Ignition switch
OFF
A002007002
Key operated, 3 position switch. To
start engine, turn key fully clockwise to
START position and hold. Return
key to
ON position immediately when engine
has started. To stop engine, turn key
counter-clockwise to
OFF position.
,..-CAUTION: Holding key in START
T position when engine has started
could damage starter mechanism.
F) Light switch
A push pull switch type, to illuminate
headlamp and taillight, pull switch
knob. (Ignition switch must
be turned
to
ON position.)
G) Headlamp dimmer switch
The dimmer switch, located on left side
of handlebar, allows correct selection of
headlamp beam. To obtain high or
low
beam simply flick switch.
H) Emergency cut-out switch
A push pull type switch located on the
right side of the handlebar. To stop the
engine in
an emergency, push the but-
ton to the lower
off position and Simul-
taneously apply the brakes. To start
engine, button must
be at the upper on
position.
Upper position
before starting
A017006004
+OFF
Lower position
to stop engine
11

•

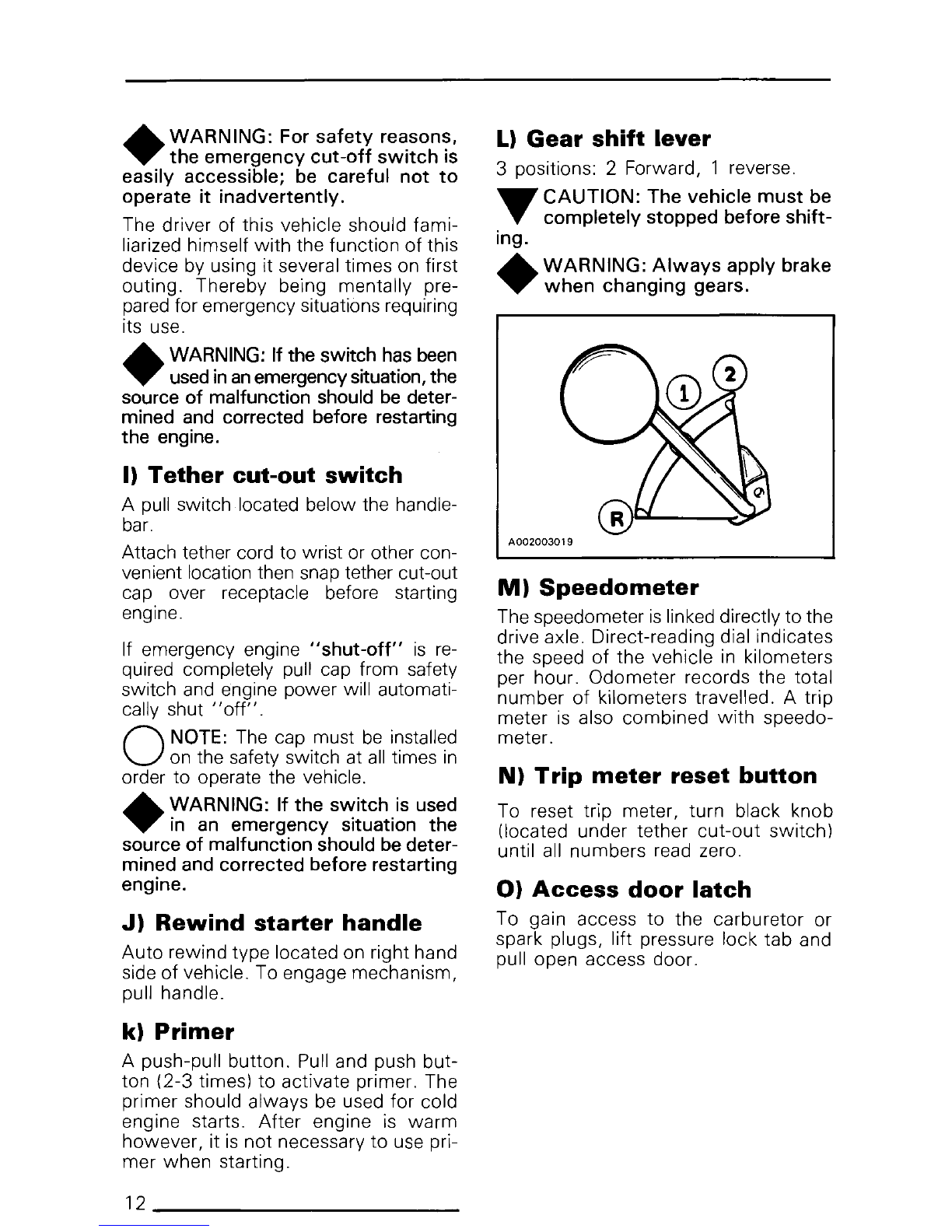

WARNING: For safety reasons,
the emergency cut-off switch is
easily accessible; be careful not to
operate it inadvertently.
The driver of this vehicle should fami-
liarized himself with the function
of this
device by using it several times on first
outing. Thereby being mentally pre-
pared for emergency situations requiring
its use.
• WARNING:
If the switch has been
used in an emergency situation, the
source of malfunction
should be deter-
mined
and corrected before restarting
the engine.
I) Tether cut-out switch
A pull switch located below the handle-
bar.
Attach tether cord to wrist or other con-
venient location then snap tether cut-out
cap over receptacle before starting
engine.
If emergency engine "shut-off"
is re-
quired completely pull cap from safety
switch and engine power will automati-
cally shut
"off".
0 NOTE: The cap must
be installed
on the safety switch at all times in
order to operate the vehicle.
• WARNING: If the switch
is used
in an emergency situation the
source of malfunction should
be deter-
mined and corrected before restarting
engine.
J) Rewind starter handle
Auto rewind type located on right hand
side
of vehicle. To engage mechanism,
pull handle.
k) Primer
A push-pull button. Pull and push but-
ton (2-3 times) to activate primer. The
primer should always
be used for cold
engine starts. After engine
is warm
however, it
is not necessary to use pri-
mer when starting.
12
________________________________________ ____
L) Gear shift lever
3 positions: 2 Forward, 1 reverse.
-.r CAUTION: The vehicle must be
T completely stopped before shift-
ing.
•
WARNING: Always apply brake
when changing gears.
A002003019
M) Speedometer
The speedometer is linked directly to the
drive axle. Direct-reading dial indicates
the speed of the vehicle
in kilometers
per hour. Odometer records the total
number of kilometers travelled. A trip
meter
is also combined with speedo-
meter.
N) Trip meter reset button
To reset trip meter, turn black knob
(located under tether cut-out switch)
until all numbers read zero.
0) Access door latch
To gain access to the carburetor or
spark plugs, lift pressure lock tab and
pull open access door.

A017007002
To adjust locking device turn nut in
required direction.
Fuel gauge/tank cap
• WARNING: Never
use a lit match
or open flame to check fuel level.
Unscrew fuel tank cap and withdraw
dipstick to check fuel level.
Hood opening
• WARNING:
It is dangerous to
run engine with hood opened, re-
moved or unfastened.
Unlatch cab by turning both handles
toward front
of vehicle, remove fuel
tank cap, gently lift hood then discon-
nect junction block. Remove hood from
vehicle.
Seat compartment
Remove backrest and tilt seat. Ideal
location for spare plugs, belt, rope, etc.
0
NOTE: Emergency materials should
be wrapped in foam or similar ma-
terial. This will prevent possible damage
to breakable items when travelling over
rough or bumpy terrain.
Fuse holders
Starting system is protected with a 30
amperes rated fuse.
Fuse holder is lo-
cated near the starter. If engine does
not start, check fuse condition and if
necessary replace.
Instruments are protected with a 15
amperes rated fuse.
Fuse holder is lo-
cated inside the console near the igni-
tion switch. If instruments stop operat-
ing, check fuse condition and if neces-
sary replace.
Hitch
Fixed on the rear bumper, the hitch has
two attachment points. A hook type and
a plate type. A hair pin is supplied to
lock the hook type attachment.
•WARNING:
When towing a sled
or trailer, always ensure to lock
the hook or plate type attachment
with a hair pin.
Trailers or sleds towed behing a snow-
mobile should always
be loaded with
the lowest possible center
of gravity.
Use a rigid
tow bar when pulling a tow
sled behind your snowmobile. When
you
are pulling passengers in a trailer or
tow sled, use moderate speed and avoid
rough terrain for their safety. Also, have
all passengers get out of a towed vehi-
cle and walk across
all roads.
______________________ 13

BREAK-IN PERIOD ______ _
Engine
With Bombardier-Rotax snowmobile
engines, a break-in period
is required
before running the vehicle at full throttle.
Engine manufacturer recommendation
is
10 to 15 operating hours. During this
period, a richer mixture
is needed (i.e. 40
parts of gas for 1 part of BLIZZARD oil.
Maximum throttle should not exceed
314,
however, brief full acceleration and speed
variations contribute to a good break-in.
Continued wide open throttle accelera-
tions, prolonged cruising speeds, and
lugging
are detrimental during the break-
in period.
0 NOTE:
For the break-in period on-
ly, 450 ml (16 oz) of Bombardier
Snowmobile Injection
oil should be added
to gas for the first full fuel tank filling.
This will assure additional protection
during the initial engine break-in.
.,., CAUTION: Remove and clean
T spark plugs after engine break-in.
Belt
A new drive belt requires a break-in
period of 25
km (15 miles).
10-HOUR INSPECTION
As with any precision piece of mechan-
ical equipment, we suggest that after the
first 10 hours of operation or 30 days
after the purchase, whichever comes
first, that your vehicle
be checked by your
dealer. This inspection will give you the
opportunity to discuss the unanswered
questions you may have encountered
during the first hours of operation.
Remember that it
is easier to remedy at
this time than to allow the snowmobile
to operate until a possible failure occurs.
The
10 hour inspection is at the ex-
pense of the vehicle owner.
14 ______________________ __

1 0-HOUR INSPECTION CHECK LIST
v
Engine timing
Fan belt tension
Spark plugs condition
Carburetor adjustment
Engine head nuts
Engine mount nuts
Muffler attachment
Gearbox oil level
Chain
tension
Battery electrolyte level
Brake
operation and pad or lining condition
Ski alignment (runner condition)
Steering arm retorque to: 42 N•m (31 lbf•ft)
Handlebar bolt retorque to 42 N•m (31 lbf•ft)
Pulley alignment and drive belt condition
Track condition, tension and alignment
Lubricate (steering, suspension, driven pulley, etc.)
Electrical wiring (loose connections, stripped wires, damaged
insulation),
tightened all loose bolts, nuts and linkage
Operation
of lighting system (HI I LO beam, brake light, etc.),
test operation of emergency cut-out switch and tether switch
We recommend that you have your dealer sign this inspection list.
Date of 10 hour inspection
Dealer signature
________________________ 15

GAS & OIL _________ _
Oil must be added to the gasoline in pre-
measured amounts then both
oil and
gasoline should
be thoroughly mixed toge-
ther before fueling the tank.
Recommended gasoline
Use regular leaded or unleaded gasoline
available from
all service stations.
'1lr CAUTION: Never experiment with
~ different fuel or fuel ratios. Never
use naphtha, methanol or similar
products.
• WARNING: Never 'top up' the
gas
tank before placing the vehicle in a
warm area. At certain temperatures,
gasoline will expand
and overflow. Al-
ways wipe off any gasoline spillage
from the snowmobile.
Recommended oil
Use "BLIZZARD OIL" (P/N 496 0135
00-500 ml) available from your dealer.
This type
of oil will flow at temperatures
as low as minus 40°C (-40°F).
It
is a blend of specially selected base
oils and additives
which provides out-
standing lubrication, engine cleanliness
and minimum spark plug fouling.
If" BLIZZARD OIL" is unavailable, sub-
stitute
with "Bombardier injection oil"
(P/N 496 0133 00-1 liter).
'1lr CAUTION: Never use outboard
T or straight mineral oils.
Gas mixture ratio
The importance of using the correct gas
mixture cannot be overstressed. An
incorrect gas ratio results
in serious en-
gine damage. Recommended gas ratio
is 50:1 (40: 1 during break-in period).
16 ______________________ _
Sl UNITS
500 ml oil to 25 liters= 50:1
IMPERIAL UNITS
16 oz oil to 5 imp. gals= 50:1
or
500 ml oil to 5 112 imp. gals= 50:1
U.S. UNITS
12 oz oil to 5 U.S. gals= 50:1
0 NOTE: To facilitate gas mixing, oil
should be kept at room tempera-
ture.
Gas mixing procedure
To mix the gasoline and oil always use
a separate clean container. Never mix
directly in your snowmobile tank. For
best results, acquire
two containers,
either plastic or metal.
Draw from one
until
empty then use the second one.
•
WARNING: Gasoline is flamma-
ble and explosive under certain
conditions. Always manipulate in a
well ventilated area. Do not smoke
or
allow open flames or sparks in the vici-
nity. If gasoline fumes are noticed
while driving, the cause should
be de-
termined and corrected without delay.
Never add gas while the engine
is run-
ning. Avoid skin contact with gas at
below freezing temperatures.

1. Pour approximately 4 liters (one gal-
lon)
of gasoline into a clean contain-
er.
A000000003
2. Add the full amount of oil required.
A000000004
3. Replace the container cap and shake
the container thoroughly.
A000000005
3 & 5 •
~Ill
~
4. Add the remainder of the gasoline.
5. Once again thoroughly agitate the
container. Then using a funnel with
a fine mesh screen to prevent the
entry
of foreign particles, pour the
mixture into the snowmobile tank.
• WARNING: To prevent gas spill-
age in
the engine compartment,
a funnel must always
be used when fill-
ing the gas tank.
0 NOTE: When using pre-mixed
gas, always shake the container
thoroughly
as the oil has a tendency to
settle.
FUEL/OIL MIXING CHARTS
(50 to 1 ratio)
METRIC (SI)
22
25
~-:::~: ;:=:t:·:t;: :;~:::;:~:;: :~:::: ~:::::~:;:::~;:;:;~::;:;~:~=t= :;:;t: ;:;~:- ·=l·"· -~·· ·t~l
24 23
20" 1-+++++~1-++-+-++++-H~t--l";'iH
::::;IDIWIIil''''~'
GAS
14
15
1-+++++~1-++-t-¥+-++-HI-+t--f.'H
(liter) ,
3
1-+++++~1-+1--!7'1-+++~1-+t--fiH
, ~~ij~i~Hfi~i~i
11
10
GAS
limp. gal.)
50 100 150 200 250 300 350 400 450 500
OIL(ml)
IMPERIAL
4~11·'''"
2~
·:~~
5 6.5 10
1516
OIL limp. oz)
UNITED-STATE
5 ., ... ,,,, ... ···. ,,. ,.. . .. , '"' ''"· .• ....
4
GAS
3
ttEt~~~EEtl~
(U.S. gal.) I=
2 .,,,, ,,., ...
5 1Ci 13
OIL IU.S. oz)
AOOOOOOOOS
________________________ 17

PRE-START CHECK _____ _
Check points
• ACTIVATE THE THROTTLE CON-
TROL
LEVER SEVERAL TIMES to
check that it operates easily and
smoothly. The throttle control lever
must return to idle position when
released.
• Check gas level.
• Check that the ski and tracks are not
frozen to the ground or snow surface
and that the steering operates freely.
STARTING
• Activate the brake control lever and
make sure the brake fully applies be-
fore the brake control lever touches
the handlebar grip.
• Verify that the path ahead
of the ve-
hicle
is clear of bystanders and
obstacles.
Clean and check operation of the head-
light, taillight and brake light.
• WARNING:
Only start your snow-
mobile once
all components are
checked
and functioning properly.
PROCEDURE __________________________ _
Test throttle control lever.
Check that the emergency cut-out
switch
is in the middle ON position.
A01 7006004
t
Upper position
before starting
engine
ON
Ensure the tether cut-out cap is in posi-
tion and that the cord
is attached to
your clothing.
Activate primer (2 to 3 times).
0 NOTE: Priming
is not necessary
when the engine
is warm.
18 ____________________ __
Manual starting
Insert the key in the ignition and turn to
ON position.
Grasp manual starter handle firmly and
pull slowly until a resistance
is felt then
pull vigorously. Slowly release the re-
wind starter handle.
• WARNING: Do not apply throttle
while starting.
Electric starting
Insert key in ignition switch.
~CAUTION: Never operate your
T snowmobile with the battery re-
moved or disconnected.
Turn ignition key clockwise until starter
engages. Release key immediately
when engine has started. If engine does
not start on first try, key must be tur-
ned fully back to
OFF each time.
