BonSayOn S102 User manual

BonSayOn Product Manual
Preface
Introduction
Caution
Description
Specification
Wear the Glasses
Adjusting the Nose Pad
Chang the Lenses
Illustration of Button Function
Pairing
How to use
Dual Pairing
Table of Operation
Instruction of Battery Charge
Q&A
Product Service
Electromagnetic safety
1
1
1
2
3
5
7
7
8
9
10
11
12
14
14
4
6
B

Preface
Introduction
Caution
BonSayOn products are proudly produced with high
tech and fashion merged together. Please read the
manual in details for using correctly and comfortably.
Completely different from the conventional microphone
which picks up the sound or voice through air
BonSayOn products adopt the newly developed nasal
bone conduction microphone by picking up the sound
through bone or solid material instead of air
Through high-quality Bluetooth communication, the
speaker s voice sensed by the nasal bone conduction
chip is quite clear like face-to-face talking with whom
you are familiar. The most outstanding feature is that
no or little background noise is added into the human
voice. The clear conversation through BonSayOn
products always never stops in any noisy environment
Please enjoy the noiseless communication with
BonSayOn fashion products.
1. This product is humidity proof but not water proof
or ust proof. Do not use it in water or dust
environment to avoid the damage as well as
shortening the lifetime of the product
2. Temperature range
3. In order to guarantee communication quality,
do not cover the product with metal
4. For the sake of product surface and accessories
intact please avoid rubbing the product with hard
objects.
,
,.
'
.
,-
-
.
-10℃~ ℃
.
,
-
：
d
50
BonSayOn
BonSayOn
1

5. Please adopt the qualified accessories which
have authenticated by NeoVictory Company so
as to ensure smooth and normal operation.
6. All accessories have been officially certified In
order to guarantee the product functioning
normally please do not use the accessories not
officially certified
Anti UV
Fit safety standards CNS
V EDR Standby about hours
Talking about hours, Music: about 5
hours.
Bluetooth connection to mobile phone and
computer for music MSN Skype
Support A DP for superior quality music play
Communication range meter Barrier free
Touch nose small and smooth
Special adjustable nose pad design for
wearing comfort
.
,
.
7. When using the earphone, your can not access
outside sound very well. Do not use the
earphone where it can endanger your safety.
Description
Sunglasses
Bluetooth
Nasal bone conduction microphone
- 400
( 15067)
2.1+ , ： 50 ,
：6
,, .
2.
：10 ( - )
,.
.
BonSayOn
BonSayOn
2

Specification
Microphone type
Bluetooth standard
Bluetooth operation
mode
Transmission range
Earphone
Battery
.0
-
NeoV Nasal bone conduction
microphone Version 2
Hand free Profile
X Output mW
Bluetooth V EDR with
A DP function
High quality sound output
2.1+
2
(190 /3.7 )， :
2
-
(2 : )A DP Advanced Audio Distribution Profile
2.402 ~2.480 ,
:10 ( - )
2, :10
GHz GHz
Max Barrier free
meter
32Ω
Li-polymer Battery
mA V charge time
about hours.

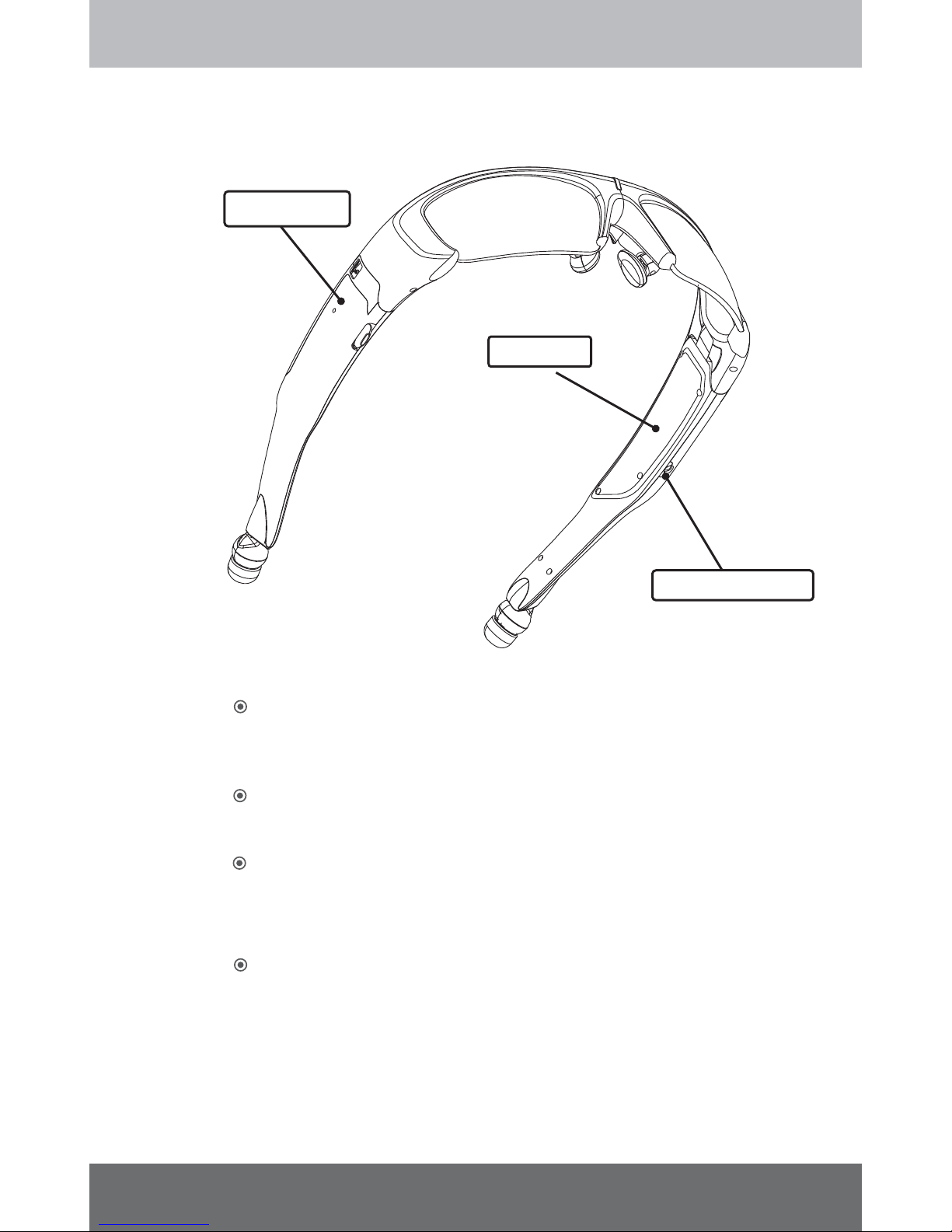

Adjustable Nose Pad
Button
Charge Jack
Indicator(Blue)
/Charge(Red)
Earphone
Screw of Adjusting Nose Pad
Battery
BonSayOn
BonSayOn
3

Music play time
Talk time
Idle
Size
Weight
Operation condition
Battery charger
standard
Standard accessories
5
0
170
68
-10℃~50℃， 0~90%
About hours
hours
mmX155mmX45mm
g
humidity
About hours
About
6
5
1.
2.
Input AC V Hz
Output DC V MAX A
Cleaning potch, Ear
plug(three specs), Indoor and
night drive lens, screwdriver

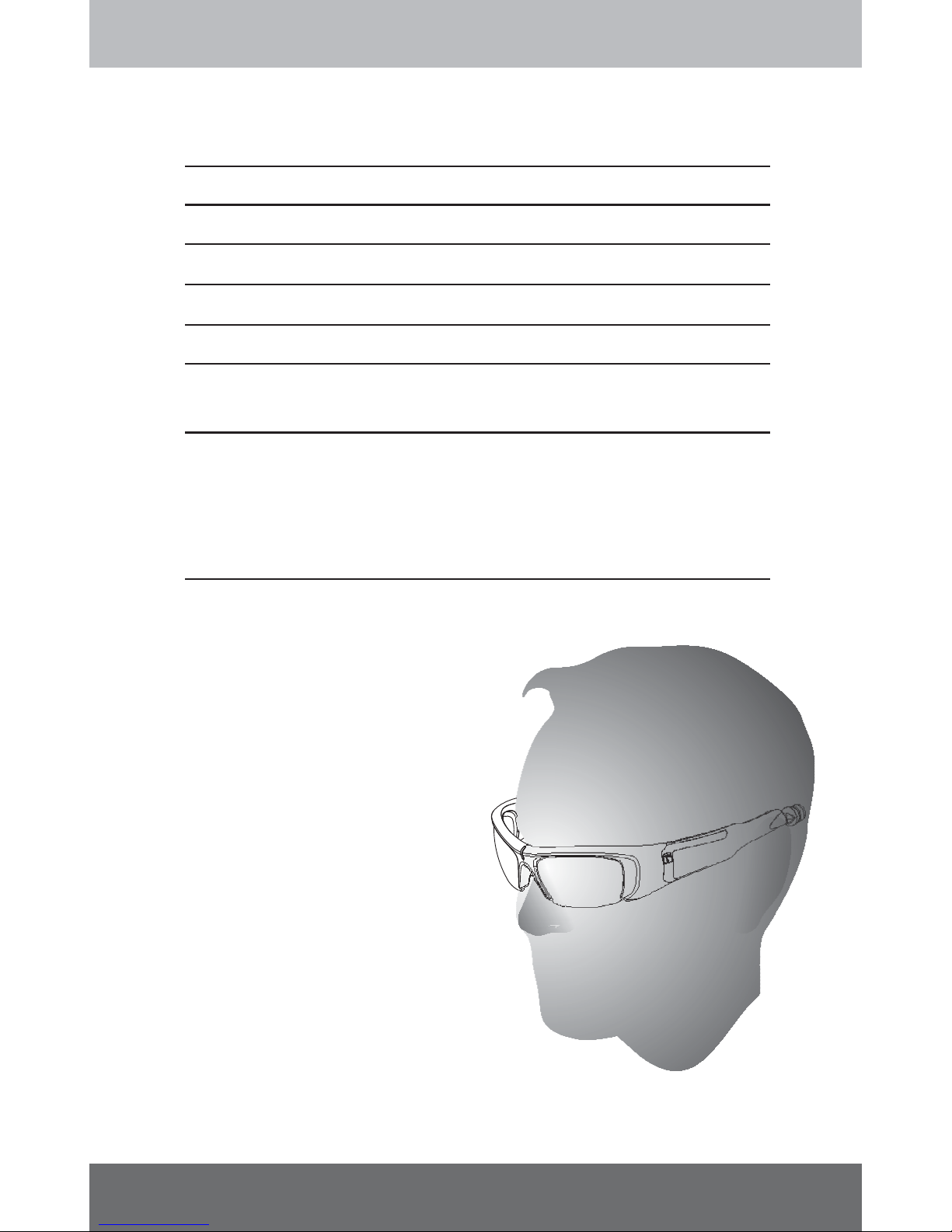

Put on the sunglasses
and adjust them to
your comfort
Adjust the nose pads
to fit the nose for high
quality communication
and a low amount of
background noise while
using this product
: 110/220 50/60
:5 0.6
.
.
,,Manual Battery charger
Warranty,
Wear the Sunglasses
(
)
Refer to the Adjust the Nose
Pads section
BonSayOn
BonSayOn
4

3.
4.
Pull out the earphone to get a suitable wire length
(four steps within the wire).
Pull out the earphone to the end and release it
quickly, it will return to the socket automatically.
Push down the earphone to fix it into the socket.
How to Get a Suitable Wire Length
How to Return the Earphone
1 2 3
123Get a suitable wire
length
Rotate and Pull
it out
Hold the earphone
Ka!
1 2 3
123
Pull again softly and
release quickly
It will return
to the socket
automatically
Pull out it to the end
Adjust the Nose Pads
1.
2.
Loosen the screw
counterclockwise
with the attached
screwdriver for 2-3
cycles.
Adjust the angle of
nose pads to fit your
nose. Hold the stand
to fix the angle and
then tighten the screw
clockwise.
BonSayOn
BonSayOn
5

Insert the lens
1.
2.
3.
4.
Insert the protruding left
side of the lens.
Grasp the right side and
then bend up lightly to
insert the lens into the
frame.
Adjust the lens to make
sure it is completely
stationary.
For the other side follow the
exact above instructions in
reverse.
Change the Lenses
Pull out the lens
1.
2.
3.
4.
Take off the glasses and
put the front side toward to
yourself.
Grasp the right side and
then bend up lightly to
make the lens go out from
the frame.
Pull out the lens from left
side to right side.
For the other side follow the
exact above instructions in
reverse.
BonSayOn
BonSayOn
6

Pairing
Turn on the Bluetooth communication of the
device mobile phone or computer connected
to the product
Long press button U until the blue and red LED
flashes quickly to turn on the product
Search the product by using the Bluetooth
of the device mobile phone or computer
The identification code or password is
Turn off the product first after communication
ends then turn off the device connected to the
products
()
.
.
,
.
().
“0000”.
Illustration of Button Function
Short press :
Long press :
Press button less than 1 second
Press button about 2 seconds
Button F
(Push Forward)
Button U
(Push Up)
Button B
(Push Backward)
BonSayOn
BonSayOn
7

How to Use
Talk mode:
Music mode:
/
.
.
.
.
.
.
.
.
/
Answer End a call: Short press button U once.
Increase volume: Short press button B once
Long press button B increases volume until
upper limit
Decrease volume: Short press button F once
Long press button F decreases volume until
lower limit
Switch a call between the sunglasses and a
cellphone: Long press uttonU .
Increase volume: Short press button B once
Long press button B increases volume until
upper limit
Decrease volume: Short press button F once
Long press button F decreases volume until
lower limit
Last trace: Short press button F twice.
Next trace: Short press button B twice.
Stop/Play: Short press button U once.
Answer End a call while listening music: Short
press button U once.
b
Note: Volume has steps12 .
Do not need to pair again to a paired device,
just turn it on.(Blue LED flash)
Press button U to listen music when the
product have been paired.
Long press button U for 5 seconds to turn off
the product.
(Depends on the cell phone)
BonSayOn
BonSayOn
8

Standby mode:
(connected with a cell phone)
(Two seconds later: appears beep tone. Three beep tones mean
high level, two beep tones mean medium level, one beep tone
means low level.)
Depends on the cell phone
Reject a call Long press Button U once.
Redial: Long press button U once.
Voice dialing: Short press button B twice
Battery power level Short press button F twice
The product supports dual pairing. It can be
connected with two cell phones at the same
time and answer a call in turn.
：
.
:.
:Note Check if the cell phone has the voice dialing function.
Record the voice pattern through the sunglasses before using
this function.
()
Dual Pairing
BonSayOn
BonSayOn
9

Status Function Operaton
Turn on Long press botton U for 3 seconds
Turn on and search device Long press botton U for 5 seconds
Reject a call Long press botton U once
Redial Long press botton U once
Battery power display ShortpressbottonFtwice
Voice dailing ShortpressbottonBtwice
Answer/End a call Short press botton U once
Volume decrease ShortpressbottonFonce
Volume increase Short press botton B once
Switch a call Long press botton U once
Volume decrease ShortpressbottonFonce
Volume increase ShortpressbottonBonce
Last Trace Short press botton F twice
Next Trace ShortpressbottonBtwice
Pause/Resume/Answer a call
Short press botton U once
ON Turn off Long press botton U for 5 seconds
OFF
Standby
Tal k
Music
Table of Operation Function
BonSayOn
BonSayOn
10

Charge as soon as possible when the warning
sound appears on phone call or playing music.
The warning sound indicates power shortage.
Use the certified battery charger provided by
NeoVictory Company
The red LED is on during charging battery and
goes out when charging done Pull out the
charger when finish charging
Battery breakdown or lifetime ends Red LED
flashes Return it to the authorized maintenance
company within warranty period otherwise buy
a new battery.
.
.
.
：
.
,
Advice Do not use the product during charging.：
Indicator
Charge Jack
Instruction of battery charge
Battery
BonSayOn
BonSayOn
11

A First make sure the Bluetooth existing in the
device mobile phone or computer linked to
BonSayOn product and activate its Bluetooth to
search BonSayOn The search time is not definite
so please be patient to wait until BonSayOn
product is shown on the screen of the device
Finally key in identification code to start
using BonSayOn product
A It would be power shortage please charge
immediately so as to maintain battery quality A
new battery must be charged first until the red
light goes out If the problem is still unsolved
please contact with authorized maintenance
service station
A Check the Bluetooth on line list in the device
Pleas read your Bluetooth operation instructions
linked to BonSayOn product Delete most of the
names on the online list except BonSayOn s to
avoid linking other products
QA&
Q Why is BonSayOn product unable to link
Bluetooth
Q Why is the Bluetooth unable to switch on
or disconnect soon after online
Q Why is Bluetooth auto disconnected or
unable to use after linking successfully
：
?
：,
()
,
.,
.
, 0000
.
：
?
：,
.
.,
.
:-
?
:
(.)
.
.
“”
“”
'
BonSayOn
BonSayOn
12

A: BonSayOn goggles is equipped with
Bluetooth chip made by the world first brand
company. It can connect to most of the Bluetooth
devices but not all the Bluetooth devices due to
the variety of Bluetooth protocols made by
different companies.
A: The cell phone manufacturers usually
implement somewhat different button operation
software, resulting in partial operation
malfunction. Please touch the play button on
your cell phone to continue playing the music on
BonSayOn
Q: Why cannot BonSayOn goggles connect to
the device with Bluetooth protocols?
Q: Why cannot play the music again by using
the buttons on BonSayOn after picking up a
call or pause the music playing?
CSR
.
BonSayOn
BonSayOn
13

Product Service
Electromagnetic safety
All products made by Neovictory Company are
warranted for one year count from the purchase
date against malfunction induced by the defects of
parts and manufacture under normal use This
service is not applied to goods which have been
subject to accidents negligence improper
installation or misuse NeoVictory Company
responsibility under this service is limited only
to the replacement of parts and no other cost
Should a malfunction occur which is covered by this
service please contact with NeoVictory Company
authorized maintenance service station
By using EMF Tester to measure the
electromagnetic field (EMF) of the general cell
phones in comparison to BonSayOn's,
BonSayOn's EMF magnitude is about 0.2 mG
(standby) or 0.7-0.8 mG (dialogue), which is far
below the general cell phones', about 10 mG
(standby) or 15 mG (dialogue) in the same certain
testing conditions. The restricted human EMF
exposure is about 2 mG for the medical
requirement, and some Europian countries even
set the restricted EM level at 0.7 mG. In
conclusion, the electromagnetic safety of
BonSayOn is far much higher than cell phones'.
(
)
.
,,
.
.
,
.
BonSayOn
BonSayOn
14

Product Warranty
(Please keep this warranty for free maintenance in one year after purchase.)
Name Phone
Product Name Mobile phone
Serial Number Purchase Date
Address
Exclusivity
：：
：：
：：
：
:
e mail-：@
1. Disassembling hitting and soaking in water or abnormal use
2. Physical or electronic disturbance the misuse of power source
unstable power source very close to magnetic material or other
artificial factors.
,, , .
,,
,
3. The breakage of serial number, date code, product tag warranty
lost etc
4. Irresistible external factors Earthquake seaquake war, etc
5. The damage or burning of the product would be made by using the
charger not certified by NeoVictory Company.
6. Without NeoVictory stamp or the incorrect purchase date warranty
is invalid automatically
,
,.
,,.
,
：
.

NEOVICTORY TECHNOLOGY CO., LTD.
Tel. [phone] Fax.[phone]
[phone]
www neovictory com E mail [e-mail]
70165 5622
..-：
Tel. Fax.[phone]
2F, No.562, Dongning Rd., East Dist., Tainan City 70165, Taiwan(R.O.C)

BonSayOn S102
FCC ID : X5HS102
Model Name : S102
Brand Name : BonSayOn

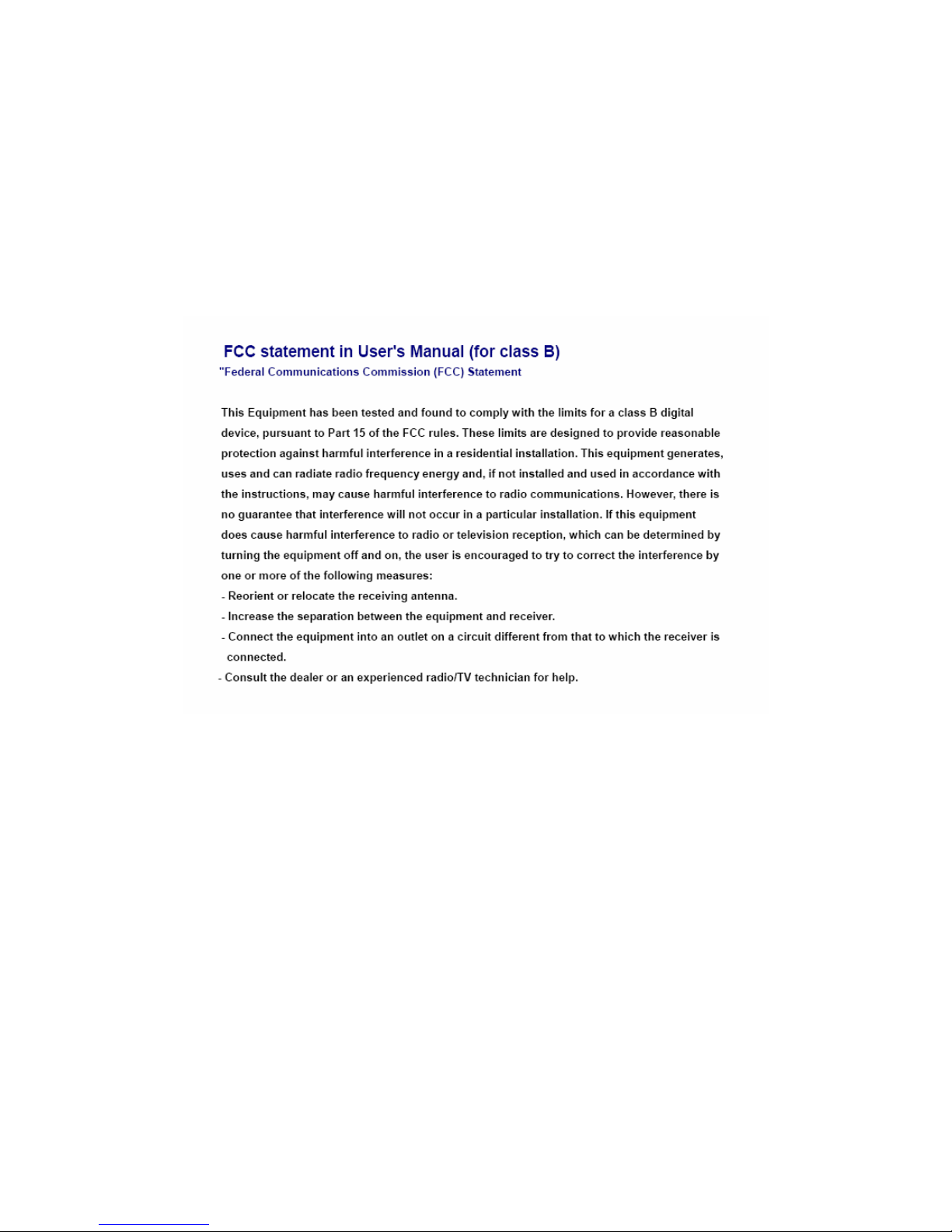

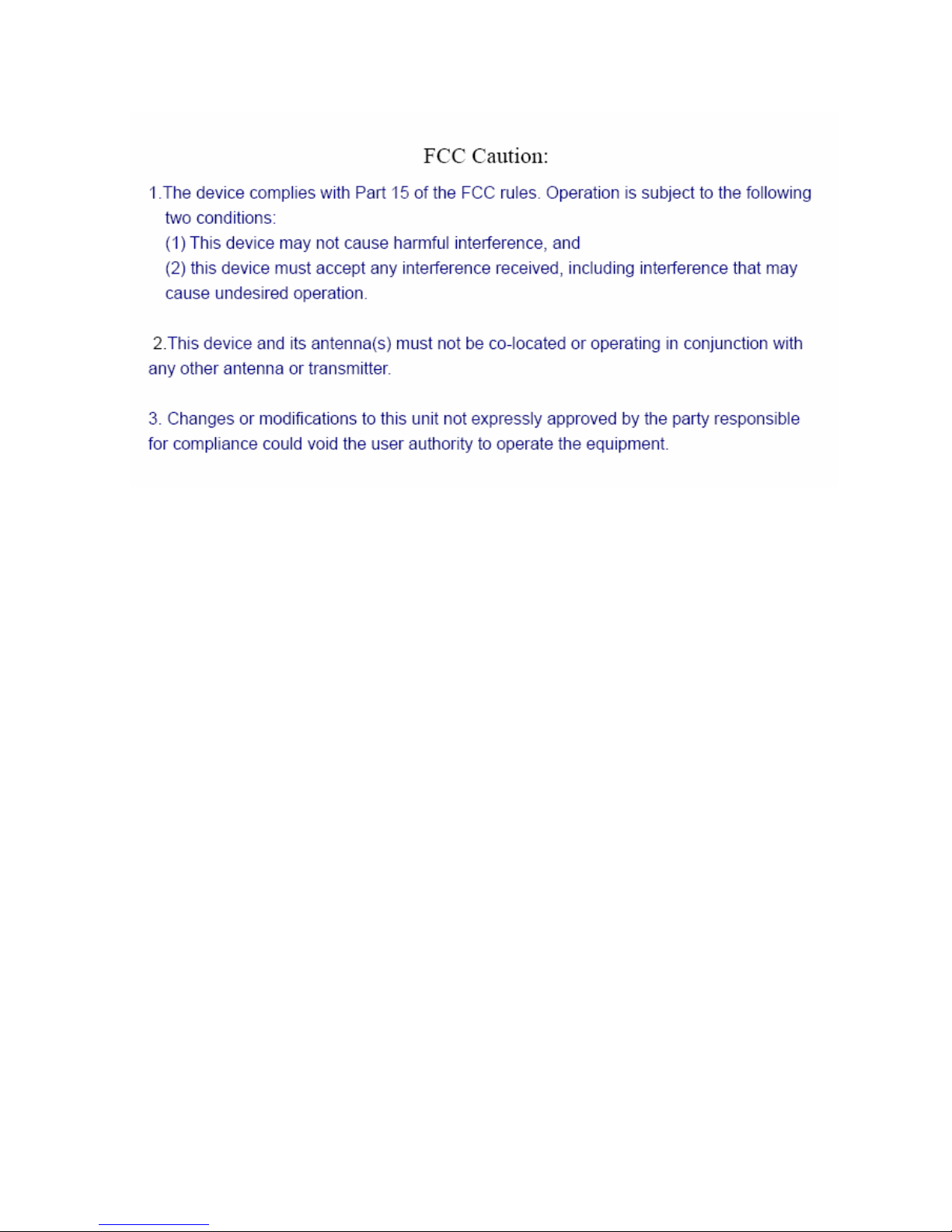

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
