MAD Gaze Ares User manual

User Manual
Version 1.0

1. Package Content 5-6
2. Overview 7-8
3. Charging 9
4. Built-in Battery Precautions and
Supplementary Information 10
5. Operation 11-13
6. Image Regulation 14
7. Download MAD Gaze Connector application
for Android phones 15
8. First time using MAD Gaze Connector 16
8.1 Account Activation 17
Contents

8.2 Login Account 18
8.3 MAD Gaze Connector Main Page 19
8.4 MAD ID for Device Login 20
8.5 Wi-Fi Connection 21-22
8.6 Bluetooth Connection 23-24
8.7 Remote Control Mode 25
9. Sleep Mode 26
10. Warranty 27-28
11. Limited Warranty Policy 29-30
12. Cautions 31-39

5
Package Content
1
e
a d c
f b

6
Package Content (Cont.)
a. Ares Smartglass
b. Slip-resistant Ear Grip
c. Nosepad
d. Micro-USB to USB
Cable
Athletic Headband
Glasses Pouch
e
ad
c
f
b
e.
f.

7
Overview
2
Optical Trackpad
Microphone Front Camera
Head-up Display

8
Power Button*
Speaker
Battery
* Hold the power button for 5 seconds until the
screen lights up, indicates successful power on

9
After unboxing MAD Gaze Ares smartglass, charge for at least 6 hours
before use. Aligning the charger metal connection point with the one on
MAD Gaze main body. After ensuring the two points are aligned, gently
connect them together. When the HUD screen is on, the device will start
charging.
3Charging

10
4.1 This product is equipped with a built-in battery, users should not
replace it by themselves. Unauthorized replacement or attempt in forcing
the product to open will void the product warranty and might lead to
safety hazards. The device contains no user-serviceable parts.
4.2 Contact the Customer Services Department of our company at
[email protected] for repairing services if necessary.
4.3 Please charge according to the instructions stated in the guide.
4Built-in Battery Precautions and
Supplementary Information

11
The two icons at the top-left
corner of MAD Gaze Ares
main interface are, from left
to right, Voice Command and
Live-stream. When the icon
turns BLUE, the function that
icon represents is activated.
Prolonged function on will
consume more energy, turn o
the function if it is not in use.
Main interface
5Operation

12
Control - Tracking Ball Control
MAD Gaze Ares is equipped with an optical trackpad, this optical
trackpad, consists of a substantial button and touch-sensitive panel.
5.1 Swiping or light touching on
the surface of the panel can perform
the function of ENTER, ESCAPE or
DRAGGING.
5.2 Single click means (ENTER)
5.3 Double click and swipe on the
optical trackpad means DRAGGING.
5.4 Extended press serves the
(HOME) function of MAD Gaze Ares,
press this button in any interface can
back to main interface.
5.5 Double
tap means
(ESCAPE).

13
When you are at the main interface and the voice command mode is
on, you can voice out the application name to activate the installed
application. (E.g. photo, video, live, connector, setting, translate, chatting,
album, GPS, etc.) If you are in a noisy environment, voice recognition
might be aected, you may wish to use the optical trackpad, to check
up and click on the icon on the application list. The voice input
function can only be adopted in the main interface, it will automatically
be disabled when entering the application interface.
Control - Voice command

14

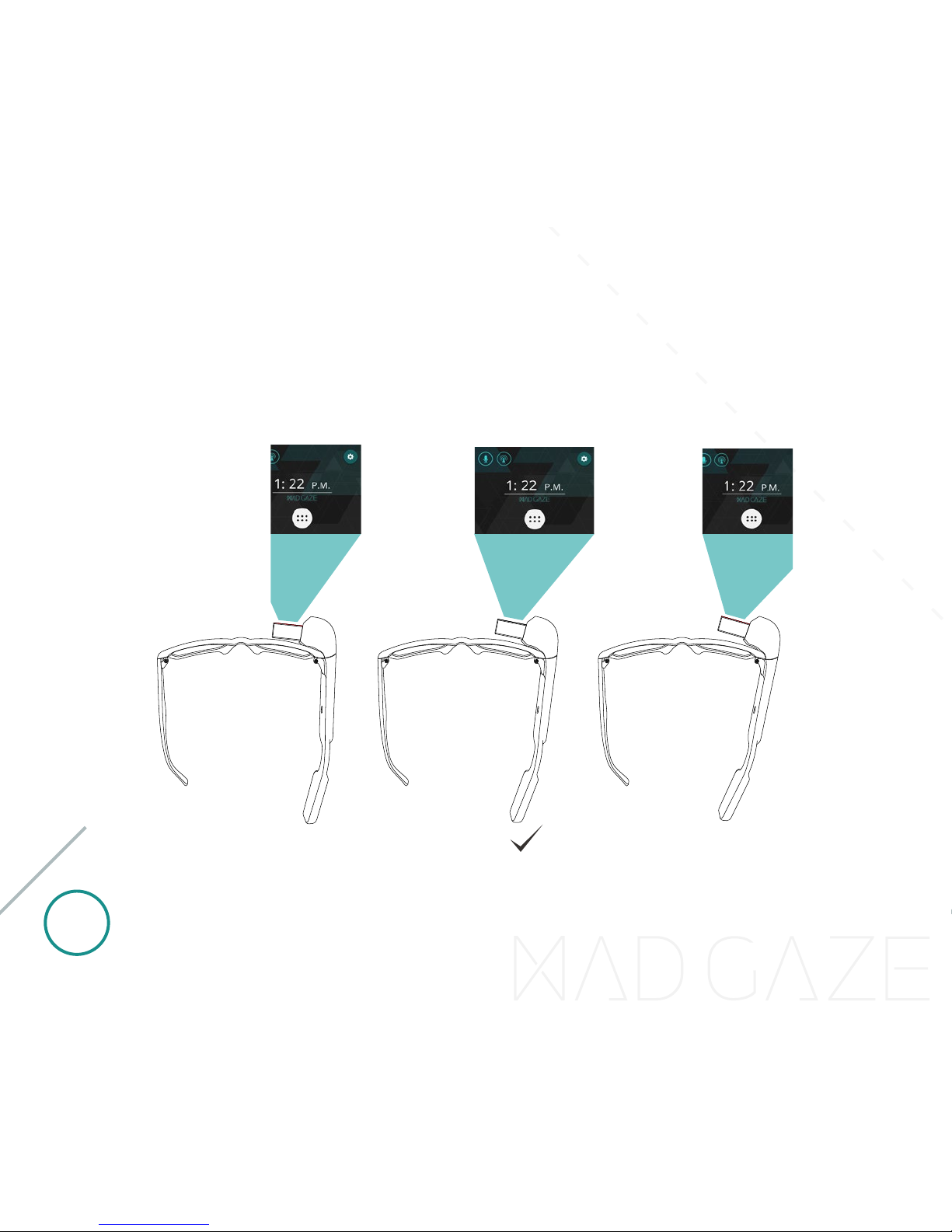

Angle too small Angle too large
Angle just fit
Image Regulation
6

15
Download MAD Gaze Con-
nector application for An-
droid phones
7
You can download the MAD Gaze Connector Android app via any of the
following methods:
7.1 Scan the QR code in the user guide with any QR code scanner app,
or access http://www.madgaze.com/ares/support with any smart phone
browsers and download MAD Gaze Connector.
7.2 You may also download MAD Gaze Connector through any Android
smartphone app platform.

16
8First time using MAD Gaze
Connector 8.1 Click “Register”.
8.2 Fill in your email
address.
8.3 Enter and re-
enter password .
8.4 Fill in your
username, rst and last
name.
8.5 Click and choose
your district in the pull
down menu, then ll in
your contact number.
8.6 Fill in your date
of birth.
8.7 Click and choose
your gender, default
language and
nationality.
*On nishing registration, you will receive an
email for account activation in your mailbox.

17
8.1 Account Activation
8.1.1 Go and check the mailbox of the
registered email.
8.1.2 Click on the activation link provided in
the email.
8.1.3 The system will redirect to the login
page in MAD Gaze Connector.

18
8.2.1 Enter Username.
8.2.2 Enter Password.
8.2.3 After logging in, you will be directed
to MAD Gaze Connector main page.
8.2 Login Account
Forget password?

19
8.3 MAD Gaze Connector Main Page
8.3.1 MAD ID for Device Login
8.3.2 Wi-Fi Set Up
8.3.3 Bluetooth Connection
8.3.4 Remote Control Mode

20
8.4 MAD ID for Device Login
8.4.1 Click on it and a MAD ID QR
code will appear.
8.4.2 Scan the QR code with the
Connector Scanner in MAD Gaze Ares.
8.4.3 Device login procedure
completes.
*On nishing the device login
procedure, the one-year warranty that
comes with your smartglass will be
automatically activated.
If you have more than one MAD Gaze
smartglass, please repeat the above
procedure for device login.
