Borg & Overstrom T2 User manual

Borg & OverströmGB01
Dispense Options
Contents
NOTE: This booklet to be left with
appliance following installation
Component/Feature Overview
Operation
Functions & Controls
General Safety
CO2 Bottle Installation
Fault Finding
User Guide
Chilled AmbientSparkling
T2/T2+ Tap systems

This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision
The unit should be isolated from the electricity supply before removal of any covers. Great care must be employed
when working with high pressure carbon dioxide, and in no cases should the maximum operating pressure of
0.4MPa (4 bar) be exceeded.
- The appliance is not suitable for installation in an area where a water jet could be used.
- The appliance has to be placed in a horizontal position
WARNING: Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
This appliance is intended to be used in household and similar applications such as:-
 -Staffkitchenareasinshops,ofcesandotherworkingenvironments;
- Farm houses and by clients in hotels, motels and other residential type environments
 -Bedandbreakfasttypeenvironments;
- Catering and similar non-retail applications
A-weighted emission sound pressure level is below 70 dB(A)
Safety

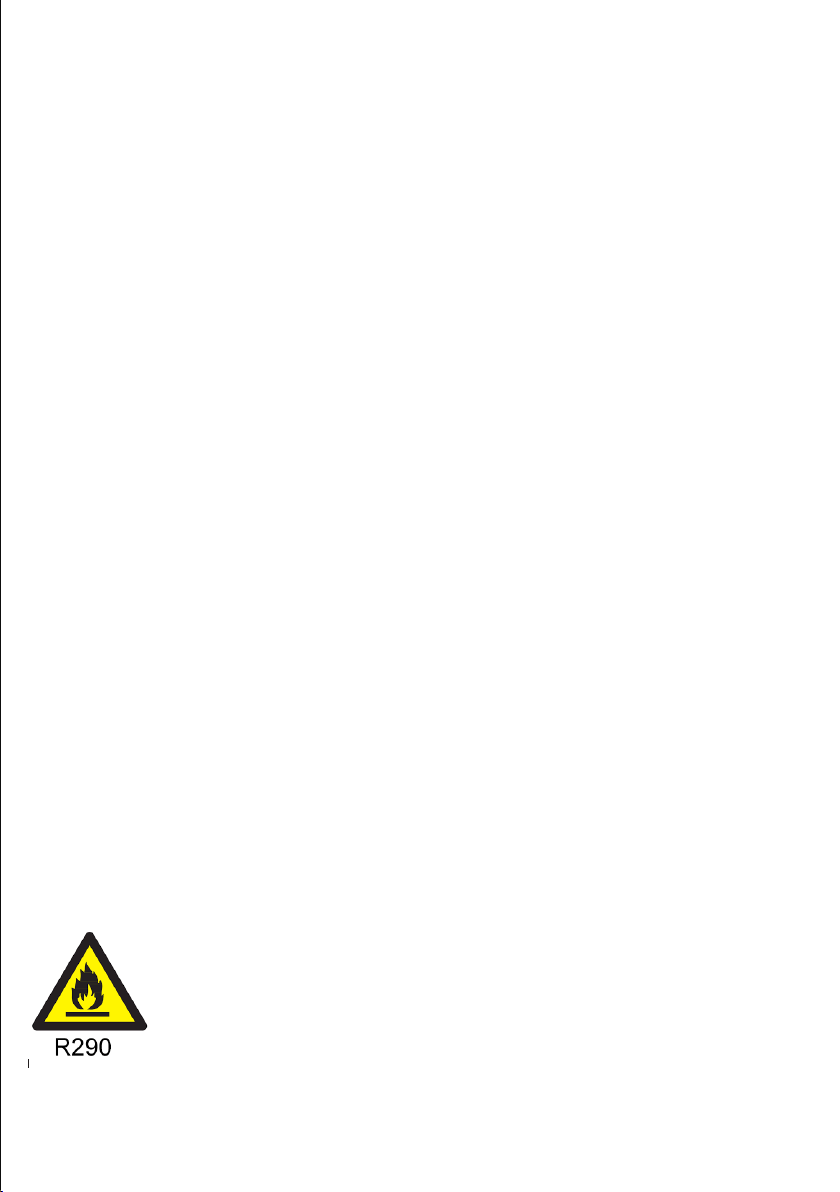

R290 is a refrigerant-grade propane used on a wide range of commercial refrigeration
and air conditioning units. A highly pure propane, it has a low environmental impact
and nominal global warming potential (GWP), meaning it possesses no qualities that
can destroy the ozone layer. R290 also is the preferred hydrocarbon alternative of the
EnvironmentalProtectionAgency(EPA),substitutingmoreharmfuluorocarbonrefrigerants
like R22, R134a, R404a and R502.
Units with R290 can only be maintained and repaired by authorized technicians who are
properlytrainedandcertied.

Component/Feature Overview
Contents:
1 no T2 Tap
1 no Top Plate with Control Panel
1 no Drip Tray
1 no 1.0m x 6mm Insulated Water Pipe
1 no Connector Cable
1 no Waste Drain Pipe
1 no Fixings Set
Main Body
Faucet
Control Panel
T2 Tap
Drip Tray
Tap Mounting Plate
Connector Cable
Please Note:
Mains Installation Kit & Filters are
supplied as extra items according
to individual ordering requirement.
Water Inlet
Top Panel
Unit Carry Handle
Side Panel
Front Panel
Chilled Water Outlet
Power Connection
On/Off Switch
*Sparkling versions only
Contents:
1 no ProCore or ProCore+ Unit
1 no 2.0m Power Cord Set
1 no Co2 Regulator with Gauge & Connection tube*
1 no Ventilation Ducting Kit
ProCore™ Undercounter
CO2 Inlet*
Tap Connection
Easy-t Ventilation
Base
Ventilation Chimney

eco !
Operation
Basic Functions
Tap Control Panel
Dispensing from unit:
Press and hold dispense icon and release to nish dispense
‘eco’ Mode:
‘eco’ mode symbol illuminates when unit is in ‘eco’ mode, to awaken unit press and hold any dispense icon. The
Unit will activate ‘eco’ mode in the below instances
• Dispense inactivity
• Low room light level
Warning Symbol
‘Warning triangle’ symbol will illuminate and ash upon a fault. The number of ashes relates to a particular fault.
Refer to the Instruction & Operation manual to diagnose.
‘eco’ Mode Symbol
Drip Tray
Chilled Dispense
Warning Symbol
Ambient Dispense
Sparkling Dispense
Unit Carry Handle

Installation Requirements
• Identify a suitable location for the ProCore unit. It should be positioned within 1.0m of the faucet, and within 2.0m
of suitable services connections. Allow enough space to t the ventilation ducting system.
• The ProCore unit must be installed in accordance with the relevant requirements of:
• The appropriate building regulations by application of either The Building Regulations (England and
Wales), The Building Regulations (Scotland) or The Building Regulations (Northern Ireland). In territories
other than those listed the local regulations in force must be complied with.
• The Water Supply (Water Fittings) Regulations (England, Wales and Northern Ireland) or The Water
Byelaws in Scotland.
• The unit must not be installed where it is liable to freeze. If the unit is thought to be frozen it must not be switched
on. It should be allowed to thaw and must then be thoroughly inspected to ensure it is undamaged.
• Water: Mains potable water – internally regulated to 0.3MPa (3 bar)
• Minimum to maximum ambient room operating temperature: 5°C - 35°C
• CO2: Food Grade CO2 to be supplied
• Min mains pressure 0.05MPa (0.5 bar)
• Electricity: 5A supply – Earth Leakage Protected
• Waste Drain Connection
CO2 Bottle Installation - Sparkling Versions Only
2
13
OFF 58 PSI
4
Unpack CO2 Regulator and t
elbow tting to spigot outlet. Attach the regulator to the
CO2 bottle, ensuring the small
pressure relief vent in the stem
is facing away from you or
anyone else. Ensure the regulator
is closed. Hand tighten securely.
Connect the assembled CO2
bottle and regulator to the CO2
inlet using a ¼” pipe.
Stand the cylinder in a suitable
place. We recommend between
3.5 - 4 bar (58 PSI) (max). Do
not exceed 4 bar pressure.

Sanitisation Guide
Please note that this sanitisation  uid contains an active caustic/alkaline agent.
Always use responsibly and with care remembering that due to it’s alkaline nature
unnecessary concentrated/prolonged contact with materials,
including metals, can cause damage.
Always rinse all contact surfaces after with clean water.
Avoid skin contact and wear protective gloves when handling sanitisation  uids.
In the event of any skin contact,  ush immediately with clean, cold water.
5 sec
2Ltr
5 sec
1
11 21 31 4
1
51 61 71 8
1
91 10 1 11 1 12
1
13 1 14 1 15 1 16
1
17 1 18 1 19 1 20
Sanitisation Guide
To be completed by a technician or service provider

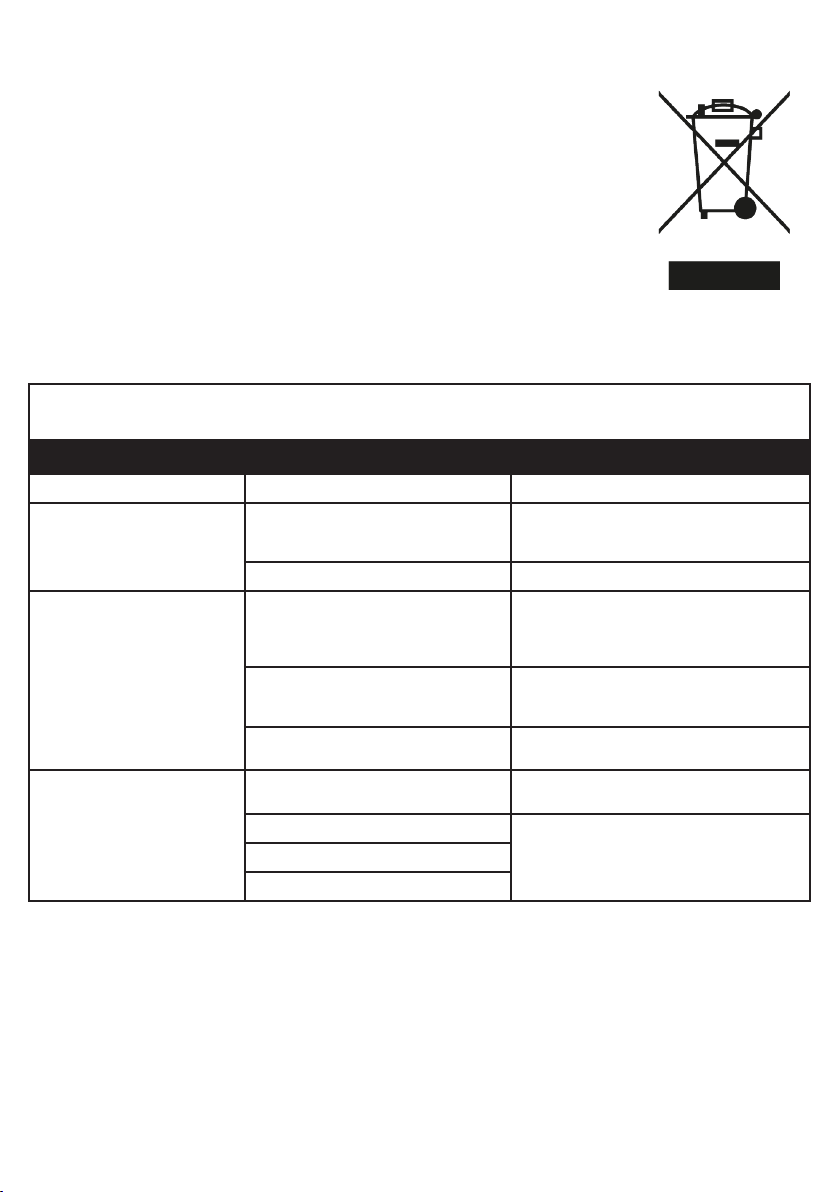

Waste Electrical Products:
- The WEEE symbol indicates that this item contains electronic components which must be
collected and disposed of separately.
- Never dispose of electrical waste in general municipal waste. Collect and dispose of
such waste separately.
- Make use of the return and collection systems availble to you, or your local recycling
programme. Contact your local authority or place of purchase to nd out what schemes
are available.
- Electrical and electronic equipment contains hazardous substances which, when diposed
of incorrectly, may leak into the ground. This can contribute to soil and water pollution
which is hazardous to human health; and endangers wildlife.
- It is essential that consumers look to re-use or recycle electrical or electronic waste to avoid
it going to landll sites or incineration without treatment.
Basic Troubleshooting
Problem/Report Possible Cause Suggested Action
No Water Dispensing Water Pressure Regulator Contact your distributor
No Sparkling Water -
If applicable
No CO2 pressure Check CO2 bottle, regulator and non- return
valve. Supply pressure should be 58 psi (3.5-
4bar), replace as necessary
Carbonator Tank Not Filling Contact your distributor
Poor Quality Carbonation -
If applicable
Air in Carbonator Tank Isolate the power supply and operate the spar-
kling water tap until gas is expelled. Allow gas
to expel for 5 seconds. Switch on power supply
and allow the tank to rell
Residue in Carbonator Tank After prolonged use, a surface lm can develop
within the carbonator tank. Refer to cleaning
and sanitising instructions
Carbonator Tank is Overlled If pump runs continuously, contact your
distributor
Warm Drinks Insufcient cooling air ow through the fridge Check that the ventilation kit has been installed
correctly.
Compressor not running Contact your distributor
PCB not operating
Fridge failure

Customer services:
[e-mail]
call [phone]
For full distributor
service manual visit:
www.borgandoverstrom.com/manual/t2
General Safety
- Always place the dispenser in its vertical position,
on a surface which can capably support its weight.
- During use this machine must remain in
its upright position.
- Adequate ventilation must be allowed for - we
recommend using the supplied ventilation ducting kit.
- Keep the machine away from sunlight, heat and moisture.
- The environment where this machine is installed must be
free of dust and corrosive/explosive gases.
© Copyright Borg & Overström. This guide is printed by Borg & Overström
and shall not be reproduced or copied in anyway. Ref: 701652 v.2
