Bosch PGL985UC - 36" Gas Cooktop User manual

Internet:: http://www.bosch-hausgeraete.de
Cod. 9000057398 A
5551 McFadden Avenue, Huntington Beach, CA 92649
800/944-2904 • BSH Home Appliance Corp.
2002 Litho in U.S.A.
Robert Bosch Hausgeraete GmbH
EN Operating instructions
FR Mode d’emploi
ES Instrucciones de funcionamiento

Dear Customer,
We thank and congratulate you on your choice.
This practical, modern and functional appliance has been built with
top quality materials. These materials have been subjected to
thorough quality control in the manufacturing process, and
meticulously tested in order for this appliance to meet your every
need, achieving perfect cooking.
Therefore, we ask you to read and follow these simple instructions
in order to guarantee unbeatable results from the first use. This
manual contains important information, not only for use of the
appliance, but safety and maintenance as well.
During transport, our products are protected by efficient packaging
materials. However, we have reduced our packaging to the bare
essentials. The materials are all completely recyclable. Just like us,
you can help protect the environment. To do so, we recommend
you dispose of these materials in the recycling facility nearest you.
Waste oil should not be poured down the sink drain, as this has a
negative impact on the environment. Place it in a closed container
and dispose of it at a collection point. If this is not possible, dispose
of it with standard domestic waste (as it will be taken to a controlled
landfill, and though this is not the best solution, at least water
pollution will be avoided). Present and future generations will
appreciate it.
Before you get rid of an old appliance, make sure you render it
inoperable. Next, deliver it to a recyclable material collection facility.
Your local government can provide you with the necessary information
on the nearest collection facility.
1

FOR YOUR SAFETY 3
Important information for installation and usage
Important instructions
For your safety
Before set-up
For appliance usage

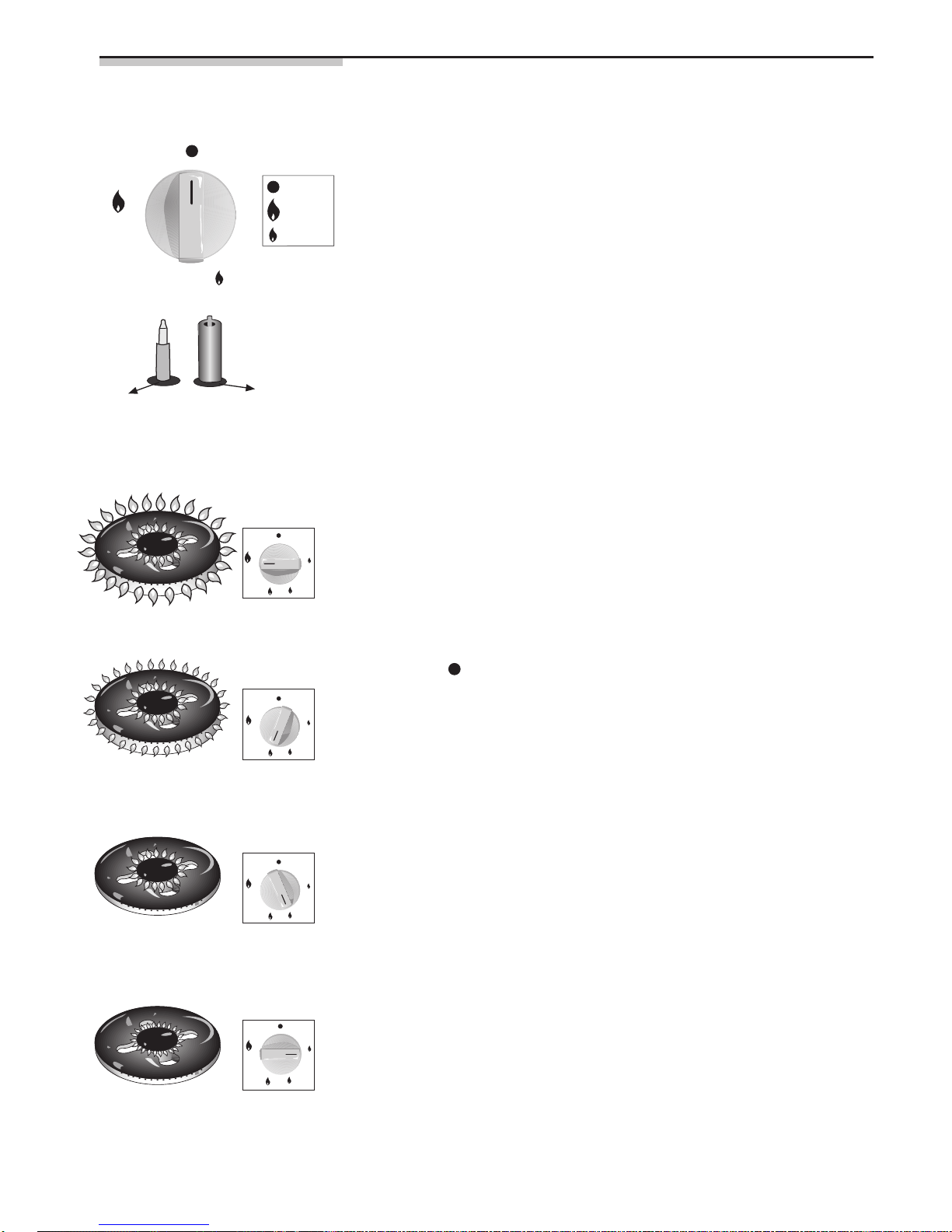

Gas burners
Cooking tips
Appropriate cooking utensils

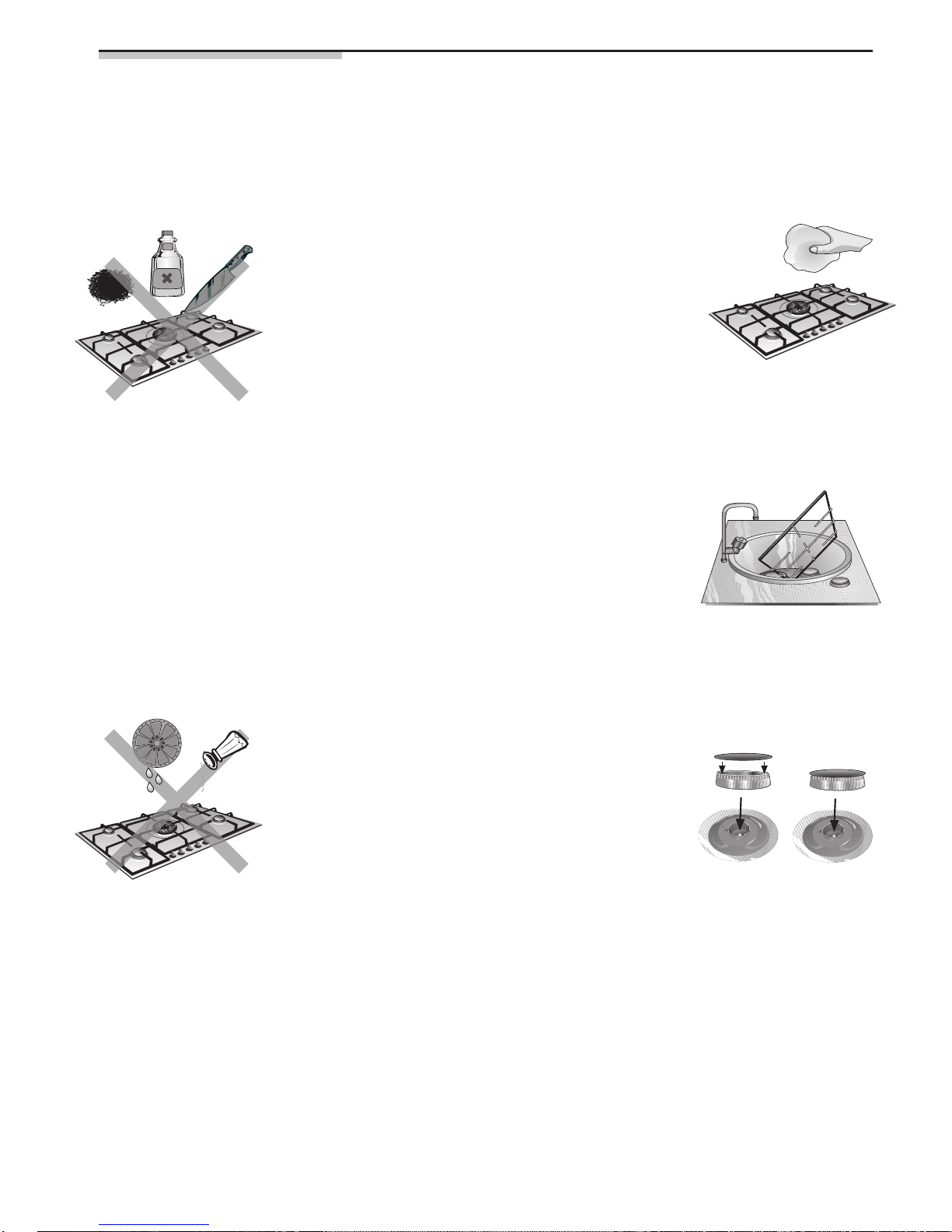

Steel: cleaning and care
Home troubleshooting
Installation instructions
Fitting measurements
Electrical connection
Change of gas type: from natural gas to propane
Convert the pressure regulator: from 6” W.C. to 10” W.C.
Warranty conditions
Cooktop usage warnings
This is what your new cooktop looks like
Installing the cooktop on the kitchen unit:
6
4
9
6
9
11
12
10
12
13
14
15
16
18
19
16
20
21
2

For your safety
building.
PLEASE READ THE INSTRUCTIONS BEFORE CONTINUING
IMPORTANT: Keep these instructions for the local electrical inspector to use.
OWNER: Keep these instructions for future use.
may result causing property damage,
personal injury or death.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
is not followed exactly, a fire or explosion
WARNING: If the information in this manual
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
switch.
Do not touch any electrical
Do not use any phone in your
Immediately call your gas supplier
from a neighbor's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the fire department.
the gas supplier.
by a qualified installer, service agency or
Installation and service must be performed
INSTALLER: Leave these instructions next to the unit for the owner.
3

and usage
1-For safety reasons, do not allow the flames
to extend beyond the edge of the cooking
appliance.
2-Remember that the appliance heats up
when in use. Remember to use common
sense.The absence of a flame does not
mean that the appliance parts are no longer
hot.
3-For safety reasons, this appliance should
4-Make sure the power supply is
disconnected before dismantling the
appliance.
6-Do not block the combustion or ventilation
air flow.
7-Maintain a minimum distance of 762 mm
installed in the upper part.
8 - The gas pressure regulator supplied with
10 - Important:When using an especially
large pan, leave a minimum space of 50 mm
(2") to prevent damage to countertops of
wooden, plastic or other non-heat resistant
materials. Never leave hot oil or grease
unattended.
ve must be disconnected from the gas supply
9 - The appliance and its individual shutoff val-
of the system at test pressures in excess of
piping system during any pressure testing
isolated from the gas supply piping system
by closing its individual manual shutoff valve
during any pressure testing of the gas supply
piping system at test pressures equal to or
3.5 kPa (1/2 psig).The appliance must be
less than 3.5 kPa (1/2 psig).
installation
Important information for
not be used for room heating purposes.
5-Do not store combustible materials,
such as gasoline, other vapors and
inflammable liquids near the appliance.
the appliance must be installed in the gas
piping line.
grease unattended.
(30") between the gas cooktop and cabinets
11 - Make the caution about leaving oil or
If a burner goes out and gas escapes, open
windows and doors. Wait until gas dissipates
before using the appliance.
•
•
If you smell gas, your installer has not done
connections are not perfectly light, you can
have a small leak and, therefore, a faint smell.
Finding a gas leak is not a "do-it-yourself"
procedure. Some leaks can only be found with
the burner control in the ON position and this
must be done by a qualified service technician.
a proper job of checking for leaks. If the
•
•
Always turn hood ON when cooking at high
heat or when flambeing food (i.e. Crepes
Suzette, Cherries Jubilee, Peppercorn Beef
Flambe').
Use high heat settings on the cooktop only
when necessary. To avoid bubbling and
splattering, heat oil slowly on no more than
a low-medium setting. Hot oil is capable of
causing extreme burns and injury.
•
Never move a pan of hot oil, especially a
deep fat fryer. Wait until it is cool.
See Warning, page. 3.
4

For US installations only:
This installation must comply with local
Gas Code,ANSI Z 223.1/NFPA 54, current
edition.
If an external electrical source is used, the
appliance must be electrically grounded in
exists, the National Electrical Code
ANSI/NFPA 70, current edition.
For Canada installations only:
The installation must comply with CAN 1-
B149.1 and .2- Installation Codes for Gas
When installed, the appliance must be
electrically grounded in compliance with local
legislation, or if none exists, in compliance
with CSA Standard C22.1-Canadian Electrical
Code, Part I (current).
This appliance has been tested in
accordance with ANSI/CSA Z21.1 Standard
for household Cooking Appliances (USA)
and CAN 1.1-M81 (Canada)
codes, or if none exists, the National Fuel
compliance with local codes, or if none
Burning Appliances and or local codes.
WARNING: NEVER use this appliance
as a space heater to heat or warm the
room. Doing so may result in carbon
monoxide poisoning and overheating of
For Massachusetts installations:
qualified or licensed by the state, province
or region where this appliance is being
1. Installation must be performed by a
installed.
2. Shut-off valve must be a "T" handle gas
cock.
longer than 36 inches.
3. Flexible gas connector must not be
the oven.
12-
Do not clean the appliance while it is still
hot. Some cleaners produce noxious fumes
when applied to a hot surface. Wet clothes or
sponges can cause burns from steam.
proper operation.
After a spill or boilover, turn off the burner and
allow the cooktop to cool. Clean around the bur-
ner and burner ports. After cleaning, check for
flat bottoms large enough to cover the surface
unit. This appliance is equipped with one or
more surface units of different size. Proper rela-
tionship or cookware to heating element or
burner will also improve efficiency.

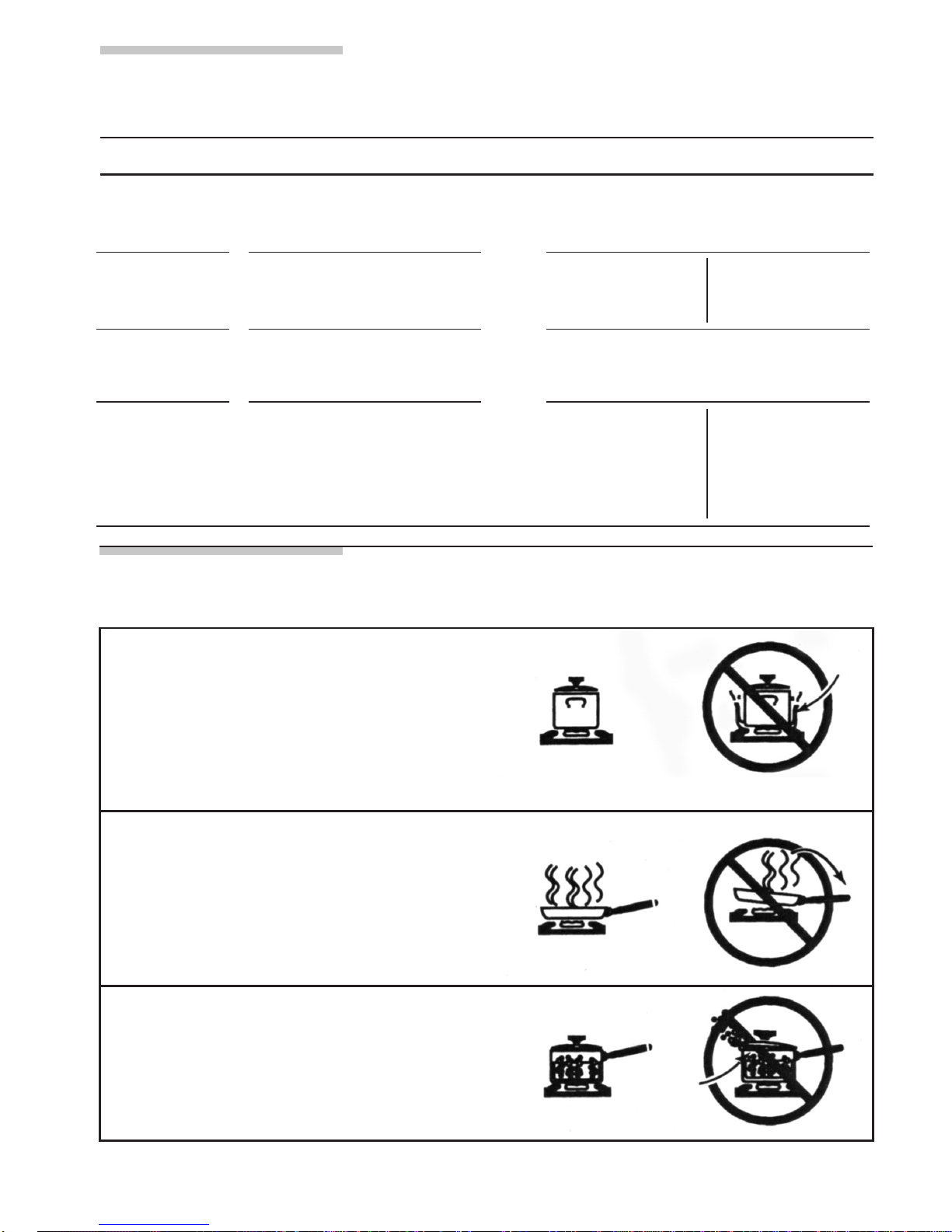

Use Proper Pan Size. The use of undersized
cookware will expose a portion of the heating
element or burner to direct contact and may result
in ignition of clothing. Select cookware having
safety of the appliance, use of high-pressure
steam jet cleaning apparatus is forbidden.
The name plate is affixed to the
underside of the appliance.
13-To avoid compromising the electrical
5

Important instructions
Carefully read this Operation and Maintenance
As its user, you are responsible for the proper
maintenance and use of this appliance in your
home.
When using cooking appliances, the following
basic safety precautions must be observed:
• Ensure proper installation and service.
Follow the installation instructions provided with
this product. Only a qualified technician can perform
Do not use the appliance if damaged.
• Have the installer show you where the gas
shut-off valve is located, to know how and where
• Do not repair or replace any part of the
appliance unless it is specifically recommended
in this manual. All remaining service must be
performed by a qualified technician.
• It is prohibited to leave children alone or
without adult supervision in an area where
appliances are in use. It is prohibited for anyone
to sit or stand on any part of the appliance.
• Do not place objects that may attract
store objects. Inflammable materials can ignite
and plastic objects can melt or catch fire.
• Extinguish flames with a properly fitted lid,
baking sheet or other metal tray. Next, attempt to
shut off the gas burner. Use caution and avoid
burns. If flames are not extinguished immediately,
evacuate the premises and notify the fire
department.
not touch any cooking surface that remains hot.
that the curtains can not be blown or moved over
could trigger a fire.
For your safety
to shut off the gas mains to the cooktop.
the installation and grounding of the cooktop.
children's interest on or behind the cooktop.
If children climb up the appliance to retrieve
such objects, they could be seriously injured.
the cooktop, make sure that the cables do
• If the cooktop is near a window, ensure
or near the burners of the cooktop, as this
parents or legal guardians to ensure that they
are instructed in safe practices by qualified
persons.
Manual before using your new cooktop.
• Do not use any part of the cooktop to
When children become old enough to operate
the appliance, it is the legal responsibility of the
• To prevent carbon monoxide build-up, do not
block appliance air vents.
• Do not use aluminium foil or protective liners
to line any part of an appliance, especially sur-
face unit drip bowls or oven bottom. Installation
of these liners may result in a risk of electric
shock or fire.
• Do not allow children to use this appliance
and pets should not be left alone or unattended
in the area where the appliance is in use. They
whether or not the appliance is in use.
unless closely supervised by an adult. Children
play in its vicinity,
should never be allowed to
• Do not allow aluminum foil, plastic, paper or
cloth to come in contact with a hot burner or
grate. Do not allow pans to boil dry.
• When connecting electrical appliances near
appliance generates
intense heat and can
increase the risk of
accidents.
tions will reduce the risk
of burns, electrocution,
fire and personal injury.
cooktop, as this
care when using this
Proceed with maximum
WARNING: These precau-
6

• This appliance has been designed for the
Spillovers will cause smoke and grease spills that
can ignite.
• Do not heat food containers without
opening them. An accumulation of pressure can
trigger the explosion of the container.
• While cooking, adjust the burner control so
of the pot or pan. Do not allow the flame to
extend beyond it.
to cause burns.
• Never leave the cooktop unattended.
SURROUNDING AREA. They heat up enough
THE BURNER GRATES OR THE IMMEDIATE
use the cooktop to heat a room.
that the hot flame only touches the bottom
• When using the cooktop: DO NOT TOUCH
cooking of food. For safety reasons, never
• Use only dry oven mitts. Wet or damp oven
mitts can cause steam burns when applied to hot
surfaces. Do not use towels or other voluminous
linen products as oven mitts. Do not allow oven
• For your personal safety, wear the proper
clothing. Do not wear loose garments, or any
with drooping sleeves while using this appliance.
Some synthetic fabrics may easily catch fire and
should not be worn while cooking.
mitts to touch the hot grates of the burners.
In the event
that personal clothing catches fire, drop and roll
immediately to smother the flames.
• Never allow clothing, baking mitts or other
inflammable materials to come into contact
cause personal injury.
with a burner or the grate of this appliance,
until they have cooled. The fabric can ignite and
or to remain close to these objects,
d) Use an extinguisher ONLY if:
1) You know you have a Class ABC extinguisher,
and you already know how to operate it.
2) The fire is small and contained in the area
where it started.
that personal clothing catches fire, drop and roll
3) The fire department is being called.
c) DO NOT USE WATER, including wet dishcloths
or towels - a violent steam explosion will result.
• This appliance is intended for normal family
household use only. It is not approved for outdoor
use. See the Warranty. If you have any
questions, contact the manufacturer.
• WARNING: To prevent flare-ups all grates
must be properly positioned on the cooktop
whenever the cooktop is in use. Each of the
feet must be placed into the corresponding dim-
ples in the cooktop. Do not use a grate if
damaged.
• Do not heat or warm unopened food contai-
ners. Build-up of pressure may cause the contai-
ners to burst and cause injury.
WARNING-TO REDUCE THE RIS OF A
GREASE FIRE: K
a) Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on
low or medium settings.
b) Alway turn hood ON when cooking at high
Cherries Jubilee, Peppercorn Beef Flame).
should not be allowed to accumulate on fan or filter.
c) Clean ventilating fans frequently. Grease
d) Use proper pan size. Always use cookware
appropriate for the size of the surface element.
heat or when flambeing food (i.e. Crepes Suzette,
cooking fires.
Smother flames from food fires other than grea-
se fires with baking soda. Never use water on
Have an appropriate fire extinguisher ava -
i
lable, nearby, highly visible and easily acce-
WARNING-TO REDUCE THE RISK OF INJURY
TO PERSONS IN THE EVENT OF A GREASE
FIRE, OBSERVE THE FOLLOWING:
a) SMOTHER FLAMES with a close-fitting lid,
cookie sheet, or metal tray, then turn off the burner.
BE CAREFUL TO PREVENT BURNS. If the flames
do not go out immediately.
EVACUATE AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN- You may
be burned.
ssible near oven.
• Use caution so that the currents triggered by
the forced ventilation openings or fans do not blow
the inflammable material toward the flames, or
push them so that they extend beyond the edges
of the pot or pan.
4) You can fight the fire with your back to an exit.
7

• To reduce the risk of burns, ignition of
inflammable materials and unintentional spills,
point the handles of the utensils inward, so
that they do not hang over adjacent working areas,
handle of the pot or pan firmly, to prevent it from
moving.
cool before handling it. Prevent the formation of
every use.
• In order for the burners to ignite and operate
Consult the care and maintenance section.
• Never pick up a burning pot, as this could
cause burns.
products produce harmful vapors if applied to a
hot surface. Follow the instructions provided by
the cleaning product manufacturer.
cool before using any aerosol cleaning product
heat, the chemical products that produce the
disconnect the electrical power supply before
carrying out maintenance operations on this unit.
kitchen.
cover damages caused by non-adherence to
modifications.
grease build-up. Clean the cooktop following
• Clean the cooktop with care. Avoid steam
• Ensure that all the cooktop control
knobs are set to off and that the cooktop is
on or around the cooktop. In the presence of
• Install a smoke detector in or around the
• The warranty for this appliance does not
• GREASE IS INFLAMMABLE. Let hot grease
the metal pieces.
•
these instructions or by any non-authorized
cooking areas or the edge of the cooktop.
the necessary service. Technicians must
Only authorized technicians can carry out
spraying action can ignite or trigger corrosion of
to clean the cooktop while hot. Some cleaning
burn risks: do not use a sponge or damp cloth
• When stirring or turning food, hold the
properly, keep the burner ports clean.
The burner ports must be cleaned follow ing a
a spill or when the burner does not ignite, even
if the electrical lighters click.
• Hidden surfaces may have sharp edges.
Use caution when reaching behind or under
appliance.
•Never modify or alter the construction of
the appliance. For example, do not remove leve-
ling legs, panels, wire covers or anti-tip
brackets/screws.
• Install a gas shutoff valve near the appliance.
It must be easily accessible in an emergency.
• To eliminate the risk of burns or fire by rea-
ching over heated surface units, cabinet storage
space located above the surface units should be
avoided. If cabinet storage is to be provided, the
risk can be reduced by installing a hood that pro-
jects horizontally a minimum of 5 inches beyond
the bottom of the cabinet.
• Always use cooking utensils with flat
bottoms big enough to cover the burner. If
smaller utensils are used, part of the flame can
remain exposed and set clothing on fire.
In order to guarantee the electrical safety of the
appliance, only authorized technicians can perform
the necessary repairs.
The right to make technical modifications is
reserved.
• During maintenance procedures, remove
power and the plug from the outlet and shut
off the gas supply.
of gas cooking fuel generates some by-products,
• California, Proposition 65, Danger: The burning
known by the State of California to cause cancer or
nesses to warn customers of potential exposure
cooking with gas.
which are on the list of substances which are
to such substances.
reproductive harm. California law requires busi-
ding to the instructions contained in this booklet
se substances, always operate this unit accor-
To minimize exposure to the-
and provide good ventilation to the room when
8

Remove the packaging from the appliance
and dispose of it as per local laws. Remember
that there are other accessories in addition to
packaging materials. Keep packaging materials
Check the condition of the appliance before
installing it, to ensure that it has suffered no
damage during transport.
its first start-up in compliance with the
regulations of the gas supplier companies and
the appliance to the current supply.
The appliance's serial number is indicated on
the control slip annexed to this manual. For
warranty purposes, keep this note together
with the usage and assembly instructions.
Carefully read the assembly and usage
instructions before starting up the appliance.
Thoroughly clean the appliance and
accessories when using them for the first time.
This will eliminate any "new" scents and any
remaining dirtiness (see cleaning and care
chapter).
The use of this gas burning appliance produces
a formation of heat and humidity in the area
of use. Make sure that the area has proper
ventilation conditions.
Before the first
start-up
For appliance usage
BURNER
9”
9” 10”
6” 8”
Auxiliary 5” 6”
Keep the ventilation channels open.
Prolonged use of the appliance with several
or all cooking units may require additional
ventilation, such as opening a window or a
door or more intensive extraction of air with
an extraction hood.
3
opened.
The use of spit-roasters, pans or grilling
stones simultaneously by more than one
burner is prohibited, as the accumulation of
heat could damage the appliance.
If large pots are used, a minimum separation
of approximately 50 mm (2") should be kept
between the pot and peripheral inflammable
materials. A minimum separation of some
50 mm (2") should be kept between the
control dial or control panel and the pot or
the control panel.
set the stovetop to the minimum setting.
This will reduce the risk of suffering burns
while working near open flames; in addition
to saving gas, thus favoring the environment.
If there is a fault in the current supply, do
not use the appliance.
If the appliance does not work properly,
contact the technical service.
and plastic bags out of the reach of children.
Only authorized technical personnel must
install and connect the appliance before
To guarantee good combustion, the
room in which the appliance is installed
must have a minimum volume of 1240 cft
(35 m ) and must possess a door that
local.
opens outdoors or a window that can
Ø MINIMUM PAN SIZE Ø MAXIMUM PAN SIZE
pan. The cooking pot must not touch
Large triple-flame burner (Center)
Rapid burner (Left front)
Semi-rapid
(Right front)
(Right rear)
(Left front)
Turn the control dials to before connecting
If pots or pans are removed temporarily,
9

looks like
Burner
7,000 Btu/hr
Grease splash tray
Control knobs
Large triple-flame
burner
for up to
15,300 Btu/hr
Burner
5,500 Btu/hr
Burner
7,000 Btu/hr
Burner
10,000 Btu/hr
This is what your new Cooktop
Grates
10

The gas burners
There are indications to show which burner each control knob
operates. Fig. 1.
To light a burner, press the chosen control knob and turn it
toward the left, holding it in the maximum setting for a few
seconds until the burner is lit, then release it, and adjust to the
desired setting. If it does not light, repeat the procedure.
to light. Therefore, keep them as clean as possible. This
cleaning should be performed with a small brush, considering
feature, use a lighter or a match to light the burner.
to prevent gas flow if the burners are accidentally extinguished.
Figure 2.
To turn on and activate this innovative system, proceed in
the same way, but keeping the control knob pressed down
until ignition takes place, the flame appears and does not
extinguish.
If ignition does not take place, repeat the procedure, keeping
the control knob pressed down 1-5 seconds.
To turn it off, turn the control knob to the right to the correct
position . When carrying out this procedure, the ignition
system may activate again. This is completely normal.
Triple flame burners and large triple flame burners are very
practical and convenient for cooking with "paella" pans, Chinese
Woks (all sorts of Asian dishes), etc.
The use of the appliance produces heat and humidity in the
site where it is installed. Ensure that the kitchen has good
ventilation. Keep ventilation channels open or install a
mechanical ventilation system (extraction hood).
Prolonged use of the appliance with several or all cooking units
may require additional ventilation, such as opening a window
(without causing air currents) or increasing the power of
mechanical ventilation if it exists.
Figure1
Figure 2
Thermocouple
Figure 3
The outer ring burns at
minimum power, the inner ring
burns at full power.
The inner ring burns
at full power, the outer ring
is turned off.
The inner ring burns
at minimum power, the outer
ring is turned off.
Both rings (inner and outer)
burn at full power.
If your cooktop is not fitted with this automatic lighting
Your cooktop may be equipped with safety thermocouples
If your cooktop is equipped with a large triple flame burner,
The direct impact of the flame on the enamel may cause an
orange-coloured flame in the Large, triple-flame burner.
between the maximum and minimum flames.
that make it possible to adjust to the necessary setting
Your modern, functional cooktop has progressive gas valves
Working description Fig. 3.
possible to select from a wide array of power settings.
interior and exterior flame. This revolutionary system makes it
it will have a valve facilitating independent control of the
:Off
: Hi
: Low
CAUTION - All igniters spark when any single burner is
turned ON. Do not touch any of the burners when the
cooktop is in use.
Ignitor
If the ignitor are dirty, this makes the burner harder
that the ignitor can not withstand any sharp blows.
11

Very high High Medium Low
Cooking
recommendations
Large
triple-flame
burner
Rapid
Semi-rapid
Auxiliary
Boiling, cooking, roasting,
browning, "paellas" and
Asian dishes (Wok).
Reheating and keeping food warm:
ready and pre-cooked meals.
Defrosting.
omelettes and fried dishes. Rice, “bechamel”
(sauce) Steaming: fish
and vegetables.
Steamed potatoes, fresh Reheating and keeping food warm:
pre-cooked meals, preparing delicate
casseroles.
Cooking: casseroles, rice
pudding and caramel. Defrosting and
slow cooking:
legumes, fruits
and frozen
products.
Melting: butter,
chocolate and
gelatin.
Appropriate cooking utensils
Match Pan Diameter to Flame Size
- The flame should be the same size the
flames can lick up the sides of the pan.
small pans with high flame settings as the
bottom of the pan or smaller. Do not use
Use Balanced Pans
- Pans must sit level on the cooktop grate
without rocking.
- Center pan over burner.
Use a lid That Fits Properly
- A well-fitting lid shorten the cooking time.
Steaks,
and stew.
vegetables and pasta.
12

Cooking warnings
should not touch the sides of
Do not cook without a lid, or
if the lid moves, as this causes
a partial energy loss.
irregular bottoms as they
lengthen cooking time and
increase energy consumption.
off-center over the burner, as
tipping could result.
the control knobs, which, once
centered over the burner,
could touch the knobs or be
close enough to them that the
temperature of that area in-
creases, possibly causing
damage.
Always use appropriate
This will prevent excessive
consumption of gas and
Always use the lid.
Use only pots, pans and
casseroles with flat, thick
bottoms.
the burner.
NO YES
directly on top of the burners.
Do not use excessive weights
heavy objects.
Never use two burners or
heat sources to heat a single
Avoid using roasting grilles,
earthen pots, etc. for
extended periods at
maximum power.
positions before using the
appliance.
the grate.
Make sure that the grates
and burner covers
are in the correct
Do not use small pots on
large burners. The flame
the pot.
Do not use pots with
pots for each burner.
staining of the pots.
Center the pot over
Do not place the pot
Do not use large-diameter
pots on the burners near
Never place pots Place the pot over
pot.
or strike the cooktop with
Handle pots carefully when
they are on the cooktop.
13

Steel usage rules:
cleaning and care
Due to the high temperatures that the ring lid of your triple flame burner, and stainless steel
areas such as the grease splash tray and the outer perimeter of the burners, etc. must withstand,
they will become discoloured over time. This is NORMAL. Clean them after every use using
products appropriate for stainless steel.
presence of water droplets or wet areas at the beginning of cooking can cause possible points
of enamel deterioration.
Stainless steel cleaning products should not be used in the area surrounding the control knobs.
The (printed) symbols may be wiped off.
DO NOT use abrasive
products, sharp objects,
steel wool, knives, etc. to
remove hardened
remains of food on the
supports, burners or
DO NOT use steam
cleaning machines on the
could damage it.
DO NOT leave acidic
liquids (lemon juice,
vinegar, etc.) on the
Once the appliance has
cooled, clean it with a
sponge, soap and
water.
Remove all spilt liquids
immediately. This will
save unnecessary efforts.
To keep the burners and
pan supports clean, they
must be regularly
cleaned, submerging
them in soapy water and
scrubbing them with a
non-metallic brush so that
the holes and slots are
perfectly clear to provide
proper flame. Always dry
the burner covers and the
become wet.
After cleaning and drying
the burners, ensure that
the lids are properly
placed atop the burner
flame diffuser.
If the appliance has
Monoblock burners, en-
sure that they are perfect-
ly dry before their next
use.
NO YES
grates if they have
After washing the grates, dry them completely before cooking with them again. The
If the grates of your cooktop have rubber pads, use precaution when cleaning them,
as they could come off, leaving the grate unprotected and leading to scratching of the
cooktop.
cooktop.
cooktop, as they
cooktop, pan
If your cooktop has a
the metal.
the joint where it meets
similar device to clean
use a knife, scraper or any
glass panel, DO NOT
electrical cooktops.
14

Home troubleshooting
You do not always need to call the technical assistance
service. In many cases, you can solve problems on your own.
The following table contains useful advice.
Important:
Only authorized personnel from our Technical Service can perform
the necessary tasks relative to the gas and electrical systems.
What's wrong? Cause Probable Solution
The general electrical
system is malfunctioning -Defective fuse.
tripped or a fuse has blown.
- Check the fuse in the
general fuse box, and replace
it if faulty.
- Check the general incoming
cabinet for a tripped automatic
not work -There is food or cleaning
product residue between the
-The burners are wet.
correctly.
- The space between the
-Dry the burner covers carefully.
- Ensure that the covers have
been correctly set.
The flames on the
burners are not uniform -The different parts of the burner
have been set incorrectly.
- The grooves on the burners'
- Correctly set the various parts.
- Clean the grooves on the
burners' gas outlets.
-The burners may not be totally
dry. - Proceed with thorough drying
(take special care with
monoblock burners).
The gas flow does not
appear to be normal or
no gas comes out
-The gas mains are turned off
through a mid-pipe valve.
- If the gas comes from a gas
bottle, it may be empty.
- Open possible mid-pipe
valves.
-Replace the gas bottle with a
full one.
There is a smell of gas
in the kitchen area
-There may be a leak from the
coupling to the gas bottle.
- Ensure that the coupling has
been made correctly.
The safeties of the
various burners do not
work
- The control knob has not been
held down long enough.
-The grooves on the burners' gas
outlets are dirty.
- Once the burner is lit, keep
the control knob pressed for a
few more seconds.
- Clean the grooves on the
burners' gas outlets.
-The automatic circuit breaker has
circuit breaker or blown fuse.
gas outlets are dirty.
-A gas valve has been left on. -Check to see if any gas valve
is on.
The electric ignitor does
ignitor and the burner.
-The burner caps are not set
cleaned carefully.
ignitor and the burner must be
15

Thoroughly follow the general safety instructions
as well as the important information.
Before using the appliance, an authorized
technician must install and connect it. Additionally,
this technician must ensure that the power supply
and gas connections work properly.
The technician performing the installation is
responsible for the perfect operation of the
appliance in its place of installation.
The technician must show the user how to
disconnect the electricity and gas when necessary.
PRECAUTION: Before
connecting the appliance,
ensure that the local
connection conditions as
well as the gas type and
pressure and the current
supply voltage match
the appliance's settings.
It is necessary for all tasks related with installation,
Before connecting up the appliance to the
installation, first check that it has been adjusted
for the type of gas that is to be supplied. Our
It is obligatory for the place where the appliance
is to be installed to have standard ventilation.
IMPORTANT INFORMATION
Thus, it is necessary for the combustion gases to
as the dimensions of the hole to be cut in the
kitchen unit.
The panels located above the work surface, next
inflammable material. The stratified coatings and
the adhesive that fixes them must be heat-resistant
to prevent possible deterioration.
Electrical cables must not come into contact with
heat zones.
The power cable must be fastened to the kitchen
unit to keep it from touching the hot parts of the
It is mandatory for appliances with any electrical
component to be grounded.
The installation of this appliance must be performed
a well-ventilated site.
Read these instructions before installing or using
the appliance.
Handle the appliance with care during the entire
installation process. Avoid any blows to the
appliance.
In the event that these recommendations are not
observed, the installation technician will be
responsible for any damage caused, and the
manufacturer will be exempt from all responsability.
on the kitchen unit:
Fitting measurements
1 - Minimum distances (mm). Cut a gap of the
required size in the work surface. Fig. 1 a-b
Follow the installation instructions for hoods.
2 - The wood fibres that have been used to make
when they come into contact with moisture.
under the kitchen unit work surface.
Installation instructions
Check the dimensions of the cooktop as well
to the cooktop, must be made of non-
oven or cooktop.
Installing the cooktop
with the gas type indicated on the name plate.
be vented outside.
in accordance with the codes in force and only in
adjustment and adaptation to LP gas to
be performed by authorized personnel, and that
the codes in force, as well as the requisites of
the gas companies, be respected.
cooktops are delivered from factory fit to work
Before you begin, turn off the gas and
electricity supply to the appliance.
the cabinets tend to swell quickly
Therefore, we recommend to coat the cut
surfaces, to protect them from steam or
condensed water that could be deposited
If required by the National Electrical Code (or Ca-
nada Electrical Code), this appliance must be ins-
talled on a separate branch circuit.
Before installing, turn power OFF at the service
panel. Lock service panel to prevent power from
being turned ON accidentally.
Installer-show the owner the location of the circuit
breaker or fuse. Mark it for easy reference.
16

The seal ensures that the entire work seepage.
If this item has not been fitted in the factory,
remove the pan supports and the gas burner
covers and diffusers from your cooking hob,
adhesive
appliance
hob,
Depending on the model, the clips and the
may already be fitted; if this is the case, do not
remove them under any circumstance.
and turn it upside down.Now fit the
surface
will be watertight, and prevents water
seal
supplied with the onto the lower edge
of the cooking Fig. 2a,remove the clips from
the attached accessories bag and screw them
into the lower points designed for this purpose,
Fig. 2 b.
3 -
watertight seal (lower edge of the cooktop)
Place the cooktop in the middle of the
opening where it is to be inserted into the kitchen
unit.
Once the hob is fitted you should turn the clip
and tighten the screw as shown in Fig. 2b. For
disassembly, unscrew the clip and proceed in the
reverse manner.
If the oven is not installed under the cooktop,
place a separator of non-flammable material to
prevent access to the lower part of the cooktop.
To install the cooktop over an oven, check the
dimensions given in the installation manual.
A- Minimum 6” (152 mm)
B- Minimum 6” (152 mm)
C- Minimum 30” (762 mm)
D- Minimum 2” (51 mm)
E- Minimum 36” (915 mm)
F- Minimum 18” (458 mm)
191/4”
min. 6”
min. 213/16”
min. 71/4”
Requirements for the cabinet
A
D
E
C
B
F
Figure 1a
Appliance installation
IMPORTANT INFORMATION
Figure 1b
331/2”
13/4”
11/16”
191/4”
331/2”
11/16
”
Maximum depth of cabinets installed above
cooktop: 13" (330 mm.) Figure. 2a
Figure. 2b
Figure. 2c
17

Connect the regulator Figure 3 (2) to the manifold
Figure 3 (1) as shown by the arrow on the regulator,
applying teflon to the threads.
Connect the pressure regulator to the gas grid
IMPORTANT INFORMATION
Ensure that a bag containing component 2 is
supplied with the appliance. If this component
is missing, call our Technical Service. Use the
parts we supply to complete the gas
connection.
Connection using a metal pipe. In this case, contact
between this tube and the moving parts of the
kitchen unit (for example, a drawer) and its passage
through areas that could be blocked, must be
avoided.
The manufacturer accepts no responsibility for
leaks or connections carried out by the installation
technician.
Figure 3
1
2
The voltage and total power must be checked on
the specifications plate. This appliance must be
grounded.
Always ensure that all connections have been
The electrical connection (CA 110-127 V) is
established by a connection cable with a grounding
contact plug connected to a grounded outlet to
which there must be access after installation of
The current supply connection cable must be at
least of the JT 3x18 AWG/UL/CSA variety, or
should be heat-resistant (at least 105 ºC / 221 ºF).
Do not tamper with the inside of the appliance.
If this is necessary, call our technical assistance
service.
Electrical connection
Before connecting the power cable to the wall
off valve and the pressure regulator. Figure 3.
using a flexible gas line fitting between the shut-
the gas cooktop.
the control knobs of the burners are set to "off".
outlet, make sure the gas shut-off valve and all
authorised specialist.
The mains connecting cable must only be
purchased through and connected by an
Tighten the appliance regulador to 15 to 22 ft-lbs of
torque. Never tighten to more than 26 ft-lbs of tor-
resistant to the action of LP gas.
made in accordance with code requirements.
Thoroughly follow the requisites of the local
electric power company.
All gas connections must be tested for leaks using
an appropriate liquid solution. Never use a flame
to test for gas leaks.
grounding prong from
this plug.
Do not cut or remove the
grounded receptacle.
directly into a properly
and should be plugged
against shock hazard
plug for your protection
a three prong grounding
appliance is equipped with
WARNING: this
que. Always use an approved pipe joint compound
,
Leak testing of the appliance shall be conducted
according to manufacturer
s instructions.
The gas connection must be in a place that permits
access to the manual shut-off valve and that, if
necessary, is visible upon opening the kitchen
cabinet door.
Ensure that the gas supply is cut off through the
manual shut-off valve before connecting the
appliance.
All operations relative to installation, adjustment
and adaptation to another gas type must be carried
out by authorized personnel from our Technical
requisites of the gas companies must be complied
with.
the local connection conditions, as well as the gas
type and pressure match the settings of the
appliance.
Service, and the codes in force, as well as the
4 - Before connecting the appliance, ensure that
18
