Bosch GHP 5-55 User manual

Robert Bosch Power Tools GmbH
70538 Stuttgart
GERMANY
www.bosch-professional.com
1 609 92A 3EU (2019.05) O / 73
GHP
5-55 | 5-65 | 5-65X | 5-75 | 5-75X | 500X
en Original instructions
cn 正本使用说明书
tw 原始使用說明書
ko 사용 설명서 원본
th หนังสือคู่มือการใช้งานฉบับต้นแบบ
id Petunjuk-Petunjuk untuk
Penggunaan Orisinal
vi Bản gốc hướng dẫn sửdụng
OBJ_DOKU-43813-002.fm Page 1 Wednesday, May 17, 2017 10:49 AM

2 |
1 609 92A 3EU | (17.5.17) Bosch Power Tools
English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3
中文 . . . . . . . . . . . . . . . . . . . . . . 页13
中文 . . . . . . . . . . . . . . . . . . . . . . 頁 20
한국어 . . . . . . . . . . . . . . . . . . . . . . . . 페이지 27
ภาษาไทย. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . หน้า 35
Bahasa Indonesia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Halaman 43
Tiếng Việt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Trang 52
OBJ_BUCH-2396-003.book Page 2 Wednesday, May 17, 2017 10:53 AM

English | 3
Bosch Power Tools 1 609 92A 3EU | (17.5.17)
English
Safety Notes
Symbols on the machine
Read all safety warnings and
all instructions. Failure to fol-
low the warnings and instruc-
tions may result in electric shock, fire
and/or serious injury.
General hazard safety alert.
Never direct the
water jet at peo-
ple, animals, the
unit or electric
components.
Warning: High pressure jets can be dan-
gerous if subject to misuse.
According to the applicable
regulations, the appliance
must never be used on the
drinking water network with-
out a system separator. Use a separa-
tor as per IEC 61770 Type BA.
Water flowing though a system sepa-
rator is considered not drinkable.
For self priming use special suction
kit 3 m long (F 016 800 335).
User qualification and personal
protection
This machine can be used by people
with reduced physical, sensory or
mental capabilities or lack of experi-
ence and knowledge if they have
been given supervision or instruction
concerning use of the machine in a
safe way and understand the hazards
involved.
The unit must not be operated by chil-
dren or juveniles. Children should be
supervised to ensure that they do not
play with the unit.
The unit may only be used by author-
ised persons who have received
training or have demonstrated their
ability to operate the unit.
Wear personal protective
equipment (PPE) e. g. safety
goggles, dust mask etc. to pro-
tect against water, particles and/or aer-
osols sprayed back from parts. Do not
inhale aerosols if self-priming from ex-
ternal sources. Such water can contain
disease-causing agents.
Do not use the appliance within the
range of persons unless they also
wear protective clothing.
Connecting to the mains
The voltage indicated on the rating
plate must correspond to the voltage
of the power source.
The operating voltage is 230 V AC,
(for non-European countries 220 V or
240 V, as applicable).
This is a class I unit and may only be
connected to properly earthed power
sources.
The electric supply installation shall
be made by a qualified electrician and
comply with IEC 60364-1.
We recommend that this equipment
is only connected into a socket which
is protected by a circuit-breaker that
would be actuated by a 30 mA residu-
al current.
OBJ_BUCH-2396-003.book Page 3 Wednesday, May 17, 2017 10:53 AM

4 | English
1 609 92A 3EU | (17.5.17) Bosch Power Tools
Requirements for extension cords
and plugs
Warning: Inadequate extension cords
can be dangerous. The extension
cord must have an earth wire. Exten-
sion cord, plug and socket must be of
waterproof construction, protected
against splashed water and intended
for outdoor use. If in doubt, contact a
qualified electrician or the nearest
Bosch Service Centre.
The following wire dimensions are
recommended: Up to 20 m length,
2.5 mm2 wire diameter, up to 50 m
length 4.0 mm2 wire diameter.
If your plug is not suitable for your
socket outlets, it should be cut off
and an appropriate plug fitted in its
place by an authorized customer ser-
vice agent. In case of electric plug
with internal fuse, the replacement
plug should have the same fuse rat-
ings as the original plug. The severed
plug must be disposed of to avoid a
possible shock hazard and should
never be inserted into a mains socket
elsewhere.
Products sold in GB only: Your prod-
uct is fitted with an BS 1363/A ap-
proved electric plug with internal fuse
(ASTA approved to BS 1362).
Remove the plug from socket when-
ever the machine is left unattended
for any period.
Do not touch the plug or socket with
wet hands.
Do not pull plug while operating the
device.
The connection between supply cord
and extension cord must kept dry and
off the ground 60 cm above.
Do not use the unit, if the power sup-
ply cord or important parts, e. g.
high-pressure hose, power gun or
safety devices are damaged.
Do not run over, crush or pull the
power supply cord or extension cord,
otherwise it may be damaged. Pro-
tect the cable from heat, oil and sharp
edges.
Water connection
Observe the regulations of your water
supply company.
The appliance should never be used
on the drinking water supply without
a back flow valve. Water which has
passed the back flow valve is regard-
ed as undrinkable.
High-pressure hose
High-pressure hoses, fittings and
couplings are important for the safety
of the appliance. Use only hoses, fit-
tings and couplings recommended by
the manufacturer.
A damaged high-pressure hose can
burst and must be replaced immedi-
ately. Never pull the hose over sharp
edges. Don’t pull if the hose is entan-
gled.
Use of detergents
Only use detergents recommended
by the manufacturer. Comply with
the application, disposal and warning
instructions of the detergent manu-
facturers.
OBJ_BUCH-2396-003.book Page 4 Wednesday, May 17, 2017 10:53 AM

English | 5
Bosch Power Tools 1 609 92A 3EU | (17.5.17)
We recommend that the detergents
are not used undiluted. The products
are safe to use as they contain no ac-
ids, alkalis or substances which are
detrimental to the environment. We
recommend that the detergents are
kept out of the reach of children. If
detergent comes into contact with
the eyes, wash immediately with
plenty of water and if swallowed con-
tact a doctor immediately.
Do not use solvent-containing liq-
uids, undiluted acids, acetone or sol-
vents! This includes petrol, paint thin-
ners, heating oil. The sprayed vapour
is highly flammable, explosive and
toxic.
Observe before use
The operator must use the unit in ac-
cordance with the regulations.
He/she must take local conditions in-
to account and be aware of other peo-
ple, especially children, when operat-
ing the unit.
Before use, check that the unit and
operating equipment are in perfect
condition and are safe to operate. Do
not use the unit if it is not in perfect
condition.
The unit must be positioned on its
supports vertical or horizontal on sol-
id ground.
All current-conducting components
in the working area must be protect-
ed against splashed water.
The water jet from the high-
pressure nozzle produces a sig-
nificant recoil at the gun. There-
fore hold the gun and spray lance firmly
with both hands.
Do not direct the water jet at the
machine itself.
Do not direct the jet against
yourself or others in order to
clean clothes or footwear.
The gun trigger must not be tempo-
rarily or permanently fixed in the
open position during operation.
Metal parts may become hot after
prolonged usage, if necessary wear
protective gloves.
High pressure washing during storm,
excessive rain etc. must be avoided,
especially when there is a risk of light-
ning.
The appropriate safety regulations
must be observed when using the unit
in dangerous areas (e. g. petrol sta-
tions). It is forbidden to operate the
unit in potentially explosive locations.
Materials containing substances
which are hazardous to your health
(e.g. asbestos) must not be sprayed.
Vehicle tyres/tyre valves may
only be cleaned from a mini-
mum distance of 30 cm in order
to avoid damages by the high-pressure
jet. The first indication of damage is the
discolouration of the tyre. Damaged ve-
hicle tyres/tyre valves are dangerous to
life.
Observe before maintenance
Switch off the unit and pull out the
mains plug prior to all maintenance
and care.
Repairs may only be carried out by
authorised Bosch Service Centres.
OBJ_BUCH-2396-003.book Page 5 Wednesday, May 17, 2017 10:53 AM

6 | English
1 609 92A 3EU | (17.5.17) Bosch Power Tools
Accessories and spare parts which
have been approved by Bosch must
be used. Original accessories and
spare parts guarantee that the unit
can be operated safety and without
any breakdowns.
Symbols in manual
The following symbols are important for reading and under-
standing the operating instructions. Please take note of the
symbols and their meaning. The correct interpretation of the
symbols will help you to use the machine in a better and safer
manner.
Intended Use
This product is intended for professional use of cleaning areas
around houses and objects, cleaning of tools, vehicles and
boats, if the appropriate accessories such as cleaning agents
approved by Bosch for this product are used.
Intended use is related to operation within 0°C and 50°C am-
bient temperature.
Product Features
The numbering of the product features refers to the illustra-
tions on the graphics pages.
1Trigger
2Trigger safety lock
3Power gun
4Lance screw connector coupling
5Stainless steel spray lance
6Nozzle
7Pressure hose fitting (power gun)
8Handle
9Additional storage space
(GHP 5-55/GHP 5-65/GHP 5-75)
10 Top lance holder
11 Main switch
12 Bottom lance holder
13 Connection for high pressure hose
(GHP 5-55/GHP 5-65/GHP 5-75)
14 Water inlet connection
15 Auxiliary lifting handle
16 Transport wheels
17 Foot pedal
18 Detergent gauge
19 Detergent hose
20 Rubber foot
21 Storage
22 Rear lifting handle
23 Cable holder
24 Hose reel handle
(GHP 500 X/GHP 5-65 X/GHP 5-75 X)
25 Hose reel
(GHP 500 X/GHP 5-65 X/GHP 5-75 X)
26 Pressure adjustment knob
(GHP 5-75/GHP 5-75 X)
27 Pressure gauge
(GHP 5-75 X)
28 High pressure hose
(GHP 5-55/GHP 5-65/GHP 5-75)
Accessories shown or described are not part of the standard deliv-
ery scope of the product. A complete overview of accessories can
be found in our accessories program.
Technical Data
Symbol Meaning
Movement direction
Reaction direction
Weight
On
Off
Lo Low pressure
Hi High pressure
Accessories
Pressure washer GHP 5-55 GHP 500X GHP 5-65 GHP 5-65X GHP 5-75 GHP 5-75X
Article number 3 600 ... J10 4.. J10 9.. J10 5.. J10 6.. J10 7.. J10 8..
Rated power kW 2.2 2.2 2.4 2.4 2.6 2.6
Supply temperature max. °C 50 50 50 50 50 50
Rated flow rate l/h 500 500 485 485 560 560
Rated pressure MPa 11.5 11.5 13.0 13.0 14.0 14.0
Starting cycles generate brief voltage drops. Interference with other equipment/machines may occur in case of unfavourable mains system conditions.
Malfunctions are not to be expected for system impedances below 0.32 ohm.
OBJ_BUCH-2396-003.book Page 6 Wednesday, May 17, 2017 10:53 AM

English | 7
Bosch Power Tools 1 609 92A 3EU | (17.5.17)
Connecting to the water supply
(see figure F)
Note: Rated output pressure can only be achieved, if the flow
rate at the water input is sufficient. The flow rate is sufficient
if a 10 litre bucket can be filled in less than 1 minute.
CAUTION: Permanent operation with lack of water at the wa-
ter input can damage the pump.
NOTE: For a sufficient water supply use a short hose with a di-
ameter not thinner than 1/2" (13 mm). Hoses longer than
10 m should have a diameter of 3/4" (19 mm). Open the wa-
ter tap completely. All connections must be tight. Clean the
water filters periodically (see chapter Maintenance).
– It is recommended to use always an external water filter
(accessory). Check water filter for tight assembly.
– If necessary, screw on an hose adapter (not supplied with
the machine).
– Connect a suitable water hose, best with 1/2" (13 mm) or
3/4" (19 mm) diameter.
– Open the water tap completely and check all connections
for tightness.
Connecting to the mains (see figure G)
NOTE: Rated output pressure is only available, if the machine
is connected to a stable mains voltage. Using a long connec-
tion cable with a thin wire cross section, an uncoiled cable
drum, operating other machines concurrently at the same cir-
cuit or voltage fluctuations outside accessible tolerances im-
pede motor starting or result in low output pressure.
Bleeding high-pressure washer and
hoses (see figure G)
NOTE: Bleed the unit each time the water hose is connected
to the water tab according the following procedure:
Leave the main switch at OFF (0) position.
Disconnect the lance from the gun.
– As soon the trigger of the gun is operated, air and water ex-
its noisily. Hold the trigger until water exits steadily from
the gun. Release the trigger.
– Reconnect the lance.
– Switch on the machine for operation.
– Press the safety release and operate the trigger of the gun.
Max. operating pressure MPa 13.0 13.0 16.0 16.0 18.5 18.5
Rated Flow l/h 520 520 520 520 570 570
Maximum inlet pressure MPa 1 11111
Kickback force at the gun to the
maximum pressure N 19.71 19.71 20.46 20.46 24.37 24.37
Motor insulation Class F Class F Class F Class F Class F Class F
Motor protection IPX5 IPX5 IPX5 IPX5 IPX5 IPX5
Autostop function 
Pressure gauge –––––
Pressure adjusting knob –––– 
Hose reel –––
Net impedance Ω
Sound pressure level
Uncertainty
dB(A)
dB(A)
78
=2.5
78
=2.5
78
=2.5
78
=2.5
77
=2.3
77
=2.3
Sound power level
Uncertainty
dB(A)
dB(A)
92
=2.5
92
=2.5
92
=2.5
92
=2.5
91
=2.3
91
=2.3
Vibration total value
Uncertainty
m/s2
m/s2
=1,841
=1.5
=1,841
=1.5
=1,841
=1.5
=1,841
=1.5
=1,841
=1.5
=1,841
=1.5
Sound power level dB(A) 95 95 95 95 94 94
Weight according to EPTA-
Procedure 01:2014 kg 22.0 24.8 23.5 25.0 26.7 28.2
Protection class /I/I/I/I/I/I
Serial number See serial number (rating plate) on pressure washer.
Pressure washer GHP 5-55 GHP 500X GHP 5-65 GHP 5-65X GHP 5-75 GHP 5-75X
Starting cycles generate brief voltage drops. Interference with other equipment/machines may occur in case of unfavourable mains system conditions.
Malfunctions are not to be expected for system impedances below 0.32 ohm.
OBJ_BUCH-2396-003.book Page 7 Wednesday, May 17, 2017 10:53 AM
– – 0.32 0.32 0.32 0.32

8 | English
1 609 92A 3EU | (17.5.17) Bosch Power Tools
Use with alternative water sources
(see figure I)
This high-pressure washer will self prime and can draw water
from water tanks and natural water sources. It’s IMPORTANT
that the water is clean and both BOSCH inlet filter and exter-
nal filter are clear and fitted to the machine (see chapter Main-
tenance).
Open tanks/containers and natural
water sources (see figure I)
Use the Self Priming accessory kit comprising:
– Inlet strainer with non return valve
– 3 m reinforced supply hose
– Universal coupling to the pressure washer
This enables the pressure washer to draw water up to 0.5 m
above the water level in the source in approximately 25 – 50
seconds.
Fully immerse the 3 m hose into the water to
displace the air in the hose. Connect the 3 m
hose to the power washer and make sure that
the inlet strainer remains under water.
Run the pressure washer with the lance disconnected until a
steady flow of water appears from the high pressure hose.
Stop if this has not been achieved within 25 – 50 seconds and
check all the connections. Switch off and connect the lance
and nozzle to operate.
It is important that hose and couplings are of good quality and
are tightly connected, and that the seals are undamaged and
properly inserted. Loose connections can impede the priming
(drawing in).
Water Tanks with outlet connections
(see figure I)
When connecting the pressure washer to a water tank with a
suitable tap outlet, first connect the supply hose (not provid-
ed) to the tank outlet, open the tap to allow the water to dis-
place all the air in the hose and then connect to the pressure
washer.
Use of detergents (see figure J)
Only use detergents recommended by the manufactur-
er. Comply with the application, disposal and warning
instructions of the detergent manufacturers.
Pull out the suction hose at the rear and put it into a bottle
withdetergent (not supplied with).
Pull the nozzle of the lance into low pressure position.
Switch on the gun. After a few seconds foam exits at the noz-
zle.
Ajust the knob at the rear to dose the quantity.
Turn the nozzle left/right to adjust the water jet.
Troubleshooting
Problem Possible Cause Corrective Action
Motor refuses to start Plug not connected Connect plug
Mains socket faulty Use another socket
Fuse faulty/blown Replace fuse
Extension cable damaged Try without extension cable
Motor protector has activated Allow to cool for 15 minutes
Frozen Wait for pump/water supply hose/acces-
sory to thaw
Motor stops Fuse faulty/blown Replace fuse
Wrong mains voltage Check that mains voltage corresponds to
specifications on the model tag
Motor protector has activated Allow to cool for 15 minutes
Fuses blow Fuses incorrectly rated Change to a mains supply higher than the
pressure washer amp consumption
Motor starts but no pressure Nozzle partly blocked Clean nozzle
OBJ_BUCH-2396-003.book Page 8 Wednesday, May 17, 2017 10:53 AM

English | 9
Bosch Power Tools 1 609 92A 3EU | (17.5.17)
Draining Machine after use
(see figure L)
Disconnect the water hose from the water tap.
Disconnect the lance from the gun.
Direct the gun to the ground and switch on the machine for
operation.
Operate the trigger of the gun and drain all water from the sys-
tem.
CAUTION: Do not run the machine longer the 25 seconds.
Store the high-pressure washer in a dry place.
CAUTION: Scaling and frost damages are not covered under
warranty. Remaining water in the machine will freeze at tem-
peratures below 0 °C and destroy the pump. Within climate
zones where temperature can reach 4 °C or below, the ma-
chine must be drained after last use if being stored prior to the
cold season.
Maintenance and Service
Maintenance
Stop, remove plug from the power supply and discon-
nect from water supply.
Note: To ensure long and reliable service, carry out the follow-
ing maintenance regularly.
Check for obvious defects such as loose fixings, and worn or
damaged components.
Motor sounds but fails to start Insufficient power supply Check that the voltage of the mains pow-
er supply line is the same as that on the
plate
Voltage loss due to use of extension cable Check characteristics of extension cable
Appliance not used for a long period of
time Contact your Bosch Service Centre
Problems with TSS (Total Stop System)
device Contact your Bosch Service Centre
Pressure pulsating Air in the inlet water supply hose/pump Allow pressure washer to run with open
spray handle and nozzle at low pressure
until regular working pressure is obtained
Inadequate water supply Check that the water supply corresponds
to specifications. The minimum specifica-
tion for the water supply hose is 1/2" or
13 mm diameter
Water filter blocked Clean water filter
Water supply hoses squeezed Straighten out kinked water supply hoses
High pressure hose too long Remove high pressure extension hose.
Retry (extension hose max. 7 m)
Pressure too low, but steady
Note: Several types of accessory will
normally deliver a lower pressure
Nozzle worn Change the nozzle
Start/stop valve worn Activate trigger five times in quick suc-
cession
Motor starts up but with restricted or no
working pressure
No water supply Connect water supply
Water filter clogged up Clean the water filter
Nozzle clogged up Clean nozzle
The pressure washer starts irregularly by
itself
Pump/spray gun leaky Contact your Bosch Service Centre
Water leaks from machine Leaking pump A slight water leak is permissible; in case
of excessive leak, contact Bosch Service
Centre
No detergent taken in Adjustable nozzle on high pressure
setting
Set nozzle on low pressure setting
Detergent too dense Dilute with water
High pressure hose extension being used Fit original hose
Deposits or restriction in detergent
circuit
Flush with clean water and eliminate any
restrictions. If the problem persists,
contact your Bosch Service Centre.
Problem Possible Cause Corrective Action
OBJ_BUCH-2396-003.book Page 9 Wednesday, May 17, 2017 10:53 AM

10 | English
1 609 92A 3EU | (17.5.17) Bosch Power Tools
Check that covers and guards are undamaged and correctly
fitted. Carry out necessary maintenance or repairs before us-
ing.
We recommend to service the product every 200 (GHP 5-55,
GHP 5-65, GHP 5-65 X, GHP 500 X)/300 (GHP 5-75, GHP 5-
75 X) hours of running time with the authorised Bosch Ser-
vice Centre.
Clean the filters periodically once a week. Mention cleaning
with vinegar can remove scales faster. Keep it immersed in
vinegar for 30 mins. (see figures M – N)
Clean the nozzle.
Grease the O rings. (see figure O)
After-sales Service and Application Service
www.bosch-professional.com
In all correspondence and spare parts orders, please always
include the 10-digit article number given on the type plate of
the machine.
Cambodia
Robert Bosch (Cambodia) Co., Ltd
Unit 8BC, GT Tower, 08th Floor, Street 169,
Czechoslovakia Blvd, Sangkat Veal Vong
Khan 7 Makara, Phnom Penh
VAT TIN: 100 169 511
Tel.: [phone]
Tel.: [phone]
www.bosch.com.kh
People’s Republic of China
China Mainland
Bosch Power Tools (China) Co., Ltd.
567, Bin Kang Road
Bin Jiang District 310052
Hangzhou, P.R.China
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
www.bosch-pt.com.cn
HK and Macau Special Administrative Regions
Robert Bosch Co. Ltd.
21st Floor, 625 King’s Road
North Point, Hong Kong
Customer Service Hotline: [phone]
Fax: [phone]
E-Mail: [email protected]
www.bosch-pt.com.hk
India
Bosch Service Center
69, Habibullah Road, (Next to PSBB School), T. Nagar
Chennai–600077
Phone: [phone]
Bosch Service Center Rishyamook
85A, Panchkuin Road
New Delhi–110001
Phone: [phone]
Bosch Service Center
79, Crystal Bldg., Dr. Annie Besant Road, Worli
Mumbai–400018
Phone: [phone] /
[phone] / [phone]
Indonesia
PT Robert Bosch
Palma Tower 10th Floor
Jalan RA Kartini II-S Kaveling 6
Pondok Pinang, Kebayoran Lama
Jakarta Selatan 12310
Tel.: [phone]
www.bosch-pt.co.id
Malaysia
Robert Bosch Sdn. Bhd.(220975-V) PT/SMY
No. 8A, Jalan 13/6
46200 Petaling Jaya
Selangor
Tel.: [phone]
Toll-Free: 1800 880188
Fax: [phone]
E-Mail: [email protected]
www.bosch-pt.com.my
Pakistan
Robert Bosch Middle East FZE – Pakistan Liaison Office
2nd Floor Plaza # 10, CCA Block, DHA Phase 5
Lahore, 54810
Phone: [phone]
Email: [email protected]
Philippines
Robert Bosch, Inc.
28th Floor Fort Legend Towers,
3rd Avenue corner 31st Street,
Fort Bonifacio, Global City,
1634 Taguig City
Tel.: [phone]
Fax: [phone]
www.bosch-pt.com.ph
Singapore
Powerwell Service Centre Ptd Ltd
Bosch Authorised Service Centre (Power Tools)
4012 Ang Mo Kio Ave 10, #01-02 TECHplace
Singapore 569628
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
www.powerwellsc.com
www.bosch-pt.com.sg
OBJ_BUCH-2396-003.book Page 10 Wednesday, May 17, 2017 10:53 AM

English | 11
Bosch Power Tools 1 609 92A 3EU | (17.5.17)
Thailand
Robert Bosch Ltd.
Liberty Square Building
No. 287, 11 Floor
Silom Road, Bangrak
Bangkok 10500
Tel.: [phone]
Fax: [phone]
Robert Bosch Ltd., P. O. Box 2054
Bangkok 10501
www.bosch.co.th
Bosch Service – Training Centre
La Salle Tower Ground Floor Unit No.2
10/11 La Salle Moo 16
Srinakharin Road
Bangkaew, Bang Plee
Samutprakarn 10540
Tel.: [phone]
Fax: [phone]
Vietnam
Branch of Bosch Vietnam Co., Ltd in HCMC
Floor 10, 194 Golden Building
473 Dien Bien Phu Street
Ward 25, Binh Thanh District, Ho Chi Minh City
Tel.: [phone]
Fax: [phone]
Hotline: [phone]
www.bosch-pt.com.vn
Armenia, Azerbaijan, Georgia, Kyrgyzstan, Mongolia,
Tajikistan, Turkmenistan, Uzbekistan
TOO Robert Bosch Power Tools, After Sales Service
Rayimbek Ave., 169/1
050050, Almaty, Kazakhstan
Service Email: [email protected]
Official Website: www.bosch.com, www.bosch-pt.com
Bahrain
Hatem Al Juffali Technical Equipment Establishment.
Kingdom of Bahrain, Setra Highway, Al Aker Area
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Egypt
Unimar
20 Markaz kadmat
El tagmoa EL Aoul – New Cairo
Phone: [phone]
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Iran
Robert Bosch Iran
3rd Floor, No 3, Maadiran Building
Aftab St., Khodami St., Vanak Sq.
Tehran 1994834571
Phone: [phone]
Iraq
Sahba Technology Group
Al Muthana airport road
Baghdad
Phone: [phone]
Phone Dubai: [phone]
Email: [email protected]
Jordan
Roots Arabia – Jordan
Nasser Bin Jameel street, Building 37 Al Rabiah
11194 Amman
Phone: [phone]
Email: [e-mail]
Kuwait
Al Qurain Automotive Trading Company
Shuwaikh Industrial Area, Block 1, Plot 16, Street 3rd
P.O. Box 164 – Safat 13002
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Lebanon
Tehini Hana & Co. S.A.R.L.
P.O. Box 90-449
Jdeideh
Dora-Beirut
Phone: [phone]
Email: [e-mail]
Libya
El Naser for Workshop Tools
Swanee Road, Alfalah Area
Tripoli
Phone: [phone]
Oman
Malatan Trading & Contracting LLC
P.O. Box 131
Ruwi, 112 Sultanate of Oman
Phone: [phone]
Email: malatanpower[email protected]
Qatar
International Construction Solutions W L L
P. O. Box 51, Doha
Phone: [phone]
Fax: [phone]
Email: [email protected]
Saudi Arabia
Juffali Technical Equipment Co. (JTECO)
Kilo 14, Madinah Road, Al Bawadi District
Jeddah 21431
Phone: [phone] Ext. 1528
Fax: [phone]
Email: ro[email protected]m.sa
OBJ_BUCH-2396-003.book Page 11 Wednesday, May 17, 2017 10:53 AM

12 | English
1 609 92A 3EU | (17.5.17) Bosch Power Tools
Syria
Dallal Establishment for Power Tools
P.O. Box 1030
Aleppo
Phone: [phone]
Email: [e-mail]
United Arab Emirates
Central Motors & Equipment LLC, P.O. Box 1984
Al-Wahda Street – Old Sana Building
Sharjah
Phone: [phone]
Fax: [phone]
Email: [email protected]
Yemen
Abualrejal Trading Corporation
Sana’a Zubiery St. Front to new Parliament Building
Phone: [phone]
Fax: [phone]
Email: [email protected]
Ethiopia
Forever plc
Kebele 2,754, BP 4806,
Addis Ababa
Phone: [phone]
Email: [e-mail]
Ghana
C.WOERMANN LTD.
Nsawam Road/Avenor Junction, P.O. Box 1779
Accra
Phone: [phone]
Kenya
Robert Bosch East Africa Ltd
Mpaka Road P.O. Box 856
00606 Nairobi
Nigeria
Robert Bosch Nigeria Ltd.
52–54 Isaac John Street P.O. Box
GRA Ikeja – Lagos
Republic of South Africa
Customer service
Hotline: [phone]
Gauteng – BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
KZN – BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
Western Cape – BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
Bosch Headquarters
Midrand, Gauteng
Tel.: [phone]
Fax: [phone]
E-Mail: rbsa-hq.pt[email protected]
Tanzania
Diesel & Autoelectric Service Ltd.
117 Nyerere Rd., P.O. Box 70839
Vingunguti 12109, Dar Es Salaam
Phone: [phone]
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: [phone]
Fax: [phone]
Inside New Zealand:
Phone: [phone]
Fax: [phone]
Outside AU and NZ:
Phone: [phone]
www.bosch-pt.com.au
www.bosch-pt.co.nz
Environmental Protection
Chemicals dangerous to the environment must not be allowed
to enter the ground, ground water or ponds, streams, etc.
For the use of cleaning agents, observe the instructions on the
package and the prescribed concentration exactly.
For the cleaning of motor vehicles the local regulations should
be observed: Do not allow oil sprayed off to enter into the
ground water. Recycle raw materials instead of waste dispos-
al.
Disposal
The pressure washer, accessories and packaging should be
sorted for environmental-friendly recycling.
Do not dispose of pressure washers into household
waste!
OBJ_BUCH-2396-003.book Page 12 Wednesday, May 17, 2017 10:53 AM

中文 | 13
Bosch Power Tools 1 609 92A 3EU | (17.5.17)
Only for EC countries:
According to the European directive 2012/19/EU for Waste
Electrical and Electronic Equipment and its implementation
into national law, electrical and electronic equipment that are
no longer usable must be collected separately and disposed
of in an environmentally correct manner.
Subject to change without notice.

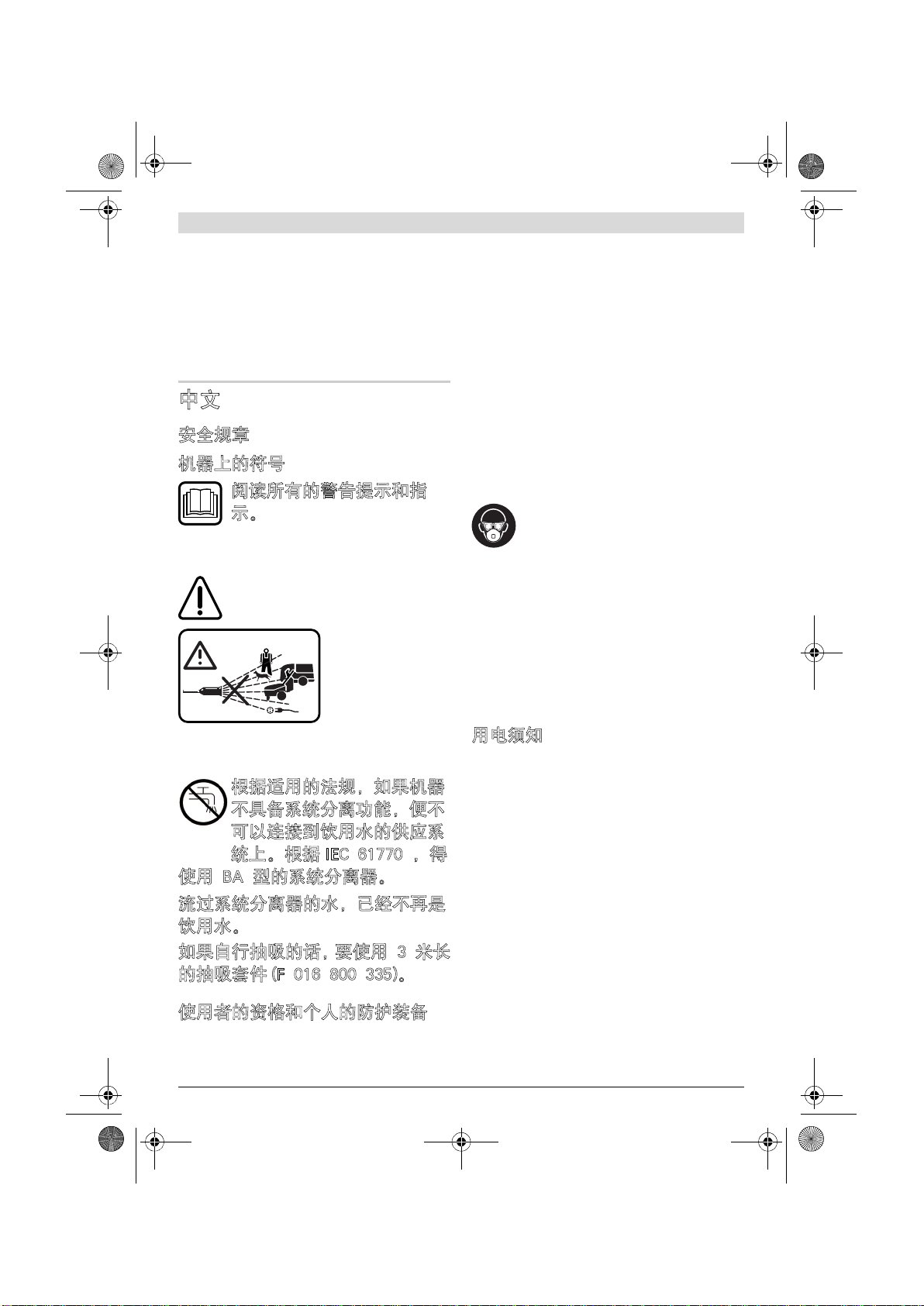

中文
安全规章
机器上的符号
阅读所有的警告提示和指
示。 如未确实遵循警告提示
和指示，可能导致电击，火
灾并且 / 或其他的严重伤害。
一般性警告。
不可以把喷射
出的水流朝向
人、动物、机
器或电动零件。
注意：如果使用不当，高压水柱可
能造成危险。
根据适用的法规，如果机器
不具备系统分离功能，便不
可以连接到饮用水的供应系
统上。根据 IEC 61770 ，得
使用 BA 型的系统分离器。
流过系统分离器的水，已经不再是
饮用水。
如果自行抽吸的话，要使用 3 米长
的抽吸套件 (F 016 800 335)。
使用者的资格和个人的防护装备
在生理、感官、精神上受限制，
或缺乏操作经验与使用知识的人
也可以使用本机器，前提是必须
有人监督他们使用，或是有人指
导他们如何安全地操作本机器，
并让他们了解使用本机器时可能
发生的危险。
本机器不可以交给儿童或年轻人
使用。看顾好儿童并确保儿童不
会玩弄机器。
本机器只能由接受过处理与操作
培训的人员，或是能够提出相关
的机器操作证明的人使用。
穿戴个人的防护装备。例如
护目镜，防尘口罩等，以避
开回溅得水花，颗粒和 /
或气溶胶。不可吸入气溶胶。如果
从外部的水源吸水，水中可能含有
致病的物质。
如果有旁人在附近逗留则不可以
使用高压清洁机，除非他们也穿
戴了个人的防护装备。
用电须知
电源的电压必须和机器铭牌上提
供的电压一致。
操作电压为 230 V AC （在非欧
盟国家，电压可能是 220 V 或
240 V ）。
绝缘等级I的机器只能连接在按照
规定且正确接地的电源上。
电力供应必须由合格的电工遵循
IEC60364-1 来执行。
最好将机器插在配备了 30 mA
剩于电流保护开关的插座上。
OBJ_BUCH-2396-003.book Page 13 Wednesday, May 17, 2017 11:10 AM

14 | 中文
1 609 92A 3EU | (17.5.17) Bosch Power Tools
有关延长线和插头的规定
延长线必须有接地线。插头和延
长线的接头必须能够防水，防泼
溅水，而且也要适合户外使用。
如有疑问，请询问合格的电工或
就近联系博世的服务代表。
延长线的截面积必须符合以下的
规格： 最大 20 米长 2,5 毫米 2，
最大 50 米长 4,0 毫米 2。
如果电源线的插头不适合电源插
座，必须由经过授权的客服代表
切除插头，并装上合适的插头。.
原始插头如果有内置的保险丝，
更换的插头也必须具备与原来插
头等值的保险丝。必须丢弃切下
的插头以防止电击，不可以将它
插在任何一个插座上。
只适用于在英国销售的机器：这
些机器配备了符合 BS1363/A 规
定的插头，该插头有内置保险丝
(ASTA- 根据 BS1362 的规定所批
准 )。
即使您只是暂时离开机器，也要
从插座上拔出插头。
不要用潮湿的手触摸插头和插
座。
操作机器时不要拉扯插头。
电源线和延长线之间的连接装备
必须保持干燥，连接装备不能放
在地上（ 60 厘米的离地距离）。
如果电线或重要的零件，例如高
压软管、喷射枪或安全装备等损
坏了，便不可以使用机器。
不可以辗过、压过电线或延长
线，也不可以拉扯它们。这样会
损坏电线。电线必须远离高温、
油垢和锋利的边缘。
用水须知
请注意贵国供水单位的规定。
把机器连接在饮用水源上时，务
必在机器上安装逆流阀。通过逆
流阀的水则不适合饮用。
高压软管
高压软管，节流装备和连接装备
都攸关机器的安全性能。只能使
用机器制造厂商推荐的软管，节
流装备和连接装备。
损坏的高压软管可能会破裂，必
须立即更换。拉扯高压软管时务
必避开锋利的边缘。不要强行拉
扯被吞噬的高压软管。
使用清洁剂
只能使用机器制造商推荐的清洁
剂。并确实遵循机器制造商提出
的使用说明、废弃处理建议和警
告提示。
我们建议，只能使用稀释过的清
洁剂。这些清洁剂是安全产品，
既不含酸，碱也没有会危害环境
的材料。我们建议您，将清洁剂
放在孩子够不着的地方。万一眼
睛接触到清洁剂，立即用清水彻
底冲洗眼睛，如果误食了清洁剂
请即刻就医。
不可以吸汲含有溶解剂的液体、
未稀释的酸性液体、丙酮或溶解
OBJ_BUCH-2396-003.book Page 14 Wednesday, May 17, 2017 10:53 AM

中文 | 15
Bosch Power Tools 1 609 92A 3EU | (17.5.17)
剂， 例如汽油、颜料稀释剂或柴
油等。因为它们的喷雾极度易
燃，容易爆炸并且有毒。
正式启用前的注意事项
操作者务必按照规定使用机器。
并且要注意操作现场的实际状
况。工作时务必顾虑到旁人，尤
其是儿童。
正式操作之前，先检查机器和附
件是否一切正常，是否会危害操
作安全。如果发现任何故障则不
可以使用机器。
确定高压清洁机不管在纵向面或
横向面，都是摆放在平坦的地面
上。
做好工作场所中所有会导电零件
的防水措施。
从喷嘴喷射出的水柱可能使
喷射枪强烈反弹。因此要用
双手握牢喷射枪。
勿将水柱朝向高压清洁机。
不可以使用水流清洗自己的
或别人的衣服、鞋子。
不论是暂时或持续性的，都不可
以让喷射枪的扳机，卡牢在 "ON"
的位置。
长时间使用后，金属零件可能变
烫。如果必要的话得戴上防护手
套。
在风暴或大雨期间不可以使用高
压清洁机，尤其是可能有闪电来
袭时。
在危险的场所 （例如加油站）使
用本机器，务必遵守有关的安全
规定。不可以在有爆炸危险的场
所使用本机器。
不要处理含有有害物质的表面
（例如，石棉）。
为了避免高压水流造成伤
害，清洁汽车轮胎和阀门时
至少要保持 30 公分的距
离。如果轮胎受损了，首先会出现
轮胎变色的情形。受损的轮胎 / 阀
门都可能造成生命危险。
维修前的注意事项
进行任何清洁和维修的工作之前
先关闭机器并拔出电源线的插
头。
维修的工作只能交给博世授权的
维修工厂执行。
只能使用制造厂商规定的附件和
备件。使用原厂的附件和原厂的
备件才能够确保机器的正常功
能。
说明书中的符号
以下的符号可以帮助您正确地使用本机器。请详细阅读
各符号及它们的代表意思。正确了解各符号所代表的意
思，可以帮助您更有把握更安全地操作本机器。
符号 含义
移动方向
反应方向
重量
开启
关闭
OBJ_BUCH-2396-003.book Page 15 Wednesday, May 17, 2017 10:53 AM

16 | 中文
1 609 92A 3EU | (17.5.17) Bosch Power Tools
按照规定使用机器
只要使用了符合规定的附件 （例如博世指定的清洁
剂），便可以使用本机器从事专业性的清洁工作，它可
以清洁户外的空地和放在户外的物体。也能够清洗工
具、车辆和船。
合适的操作环境温度位在摄氏 0 °C 度和 50 °C 度之
间。
插图上的机件
机件的编号和详解图上的编号一致。
1板机
2 板机的锁定键
3喷射枪
4 喷射枪枪杆接头
5 不锈钢喷射枪枪杆
6 喷嘴
7 高压软管的接头 ( 喷射枪 )
8 手柄
9 额外储存空间
(GHP 5-55/GHP 5-65/GHP 5-75)
10 喷射枪枪杆的上支架
11 电源开关
12 喷射枪枪杆的下支架
13 h 针对高压软管的接头
(GHP 5-55/GHP 5-65/GHP 5-75)
14 供水系统
15 附加提柄
16 搬运用滚轮
17 脚踏板
18 针对清洁剂的计量螺旋
19 清洁剂的吸管
20 橡胶脚垫
21 储物空间
22 背面的把手
23 电线夹
24 软管绞盘曲柄
(GHP 500 X/GHP 5-65 X/GHP 5-75 X)
25 软管绞盘
(GHP 500 X/GHP 5-65 X/GHP 5-75 X)
26 压力设定装备
(GHP 5-75/GHP 5-75 X)
27 压力计
(GHP 5-75 X)
28 高压软管
(GHP 5-55/GHP 5-65/GHP 5-75)
图表或说明上提到的附件，并不包含在基本的供货范围中。 本公
司的附件清单中有完整的附件供应项目。
技术数据
Lo 较低的压力
Hi 较高的压力
附件
符号 含义
高压清洁机 GHP 5-55 GHP 500X GHP 5-65 GHP 5-65X GHP 5-75 GHP 5-75X
物品代码 3 600 ... J10 4.. J10 9.. J10 5.. J10 6.. J10 7.. J10 8..
额定输入功率 kW 2,2 2,2 2,4 2,4 2,6 2,6
进口温度最大 °C 50 50 50 50 50 50
额定流量 l/h 500 500 485 485 560 560
额定压力 MPa 11,5 11,5 13,0 13,0 14,0 14,0
最大工作压力 MPa 13,0 13,0 16,0 16,0 18,5 18,5
流量 l/h 520 520 520 520 570 570
最大进口压力 MPa 111111
最大压力下枪身的反冲力 零线 19,71 19,71 20,46 20,46 24,37 24,37
马达绝缘 等级 F 等级 F 等级 F 等级 F 等级 F 等级 F
马达的防护种类 IPX5 IPX5 IPX5 IPX5 IPX5 IPX5
自动关机功能 
压力计 ––––– 
压力设定 ––––
软管绞盘 –––
开动电动工具时，电压会突然下降。如果电源网络状况不佳，可能会干扰其它机器。 在电源阻抗小于 0,32 欧姆时不会产生干扰。
OBJ_BUCH-2396-003.book Page 16 Wednesday, May 17, 2017 10:53 AM

中文 | 17
Bosch Power Tools 1 609 92A 3EU | (17.5.17)

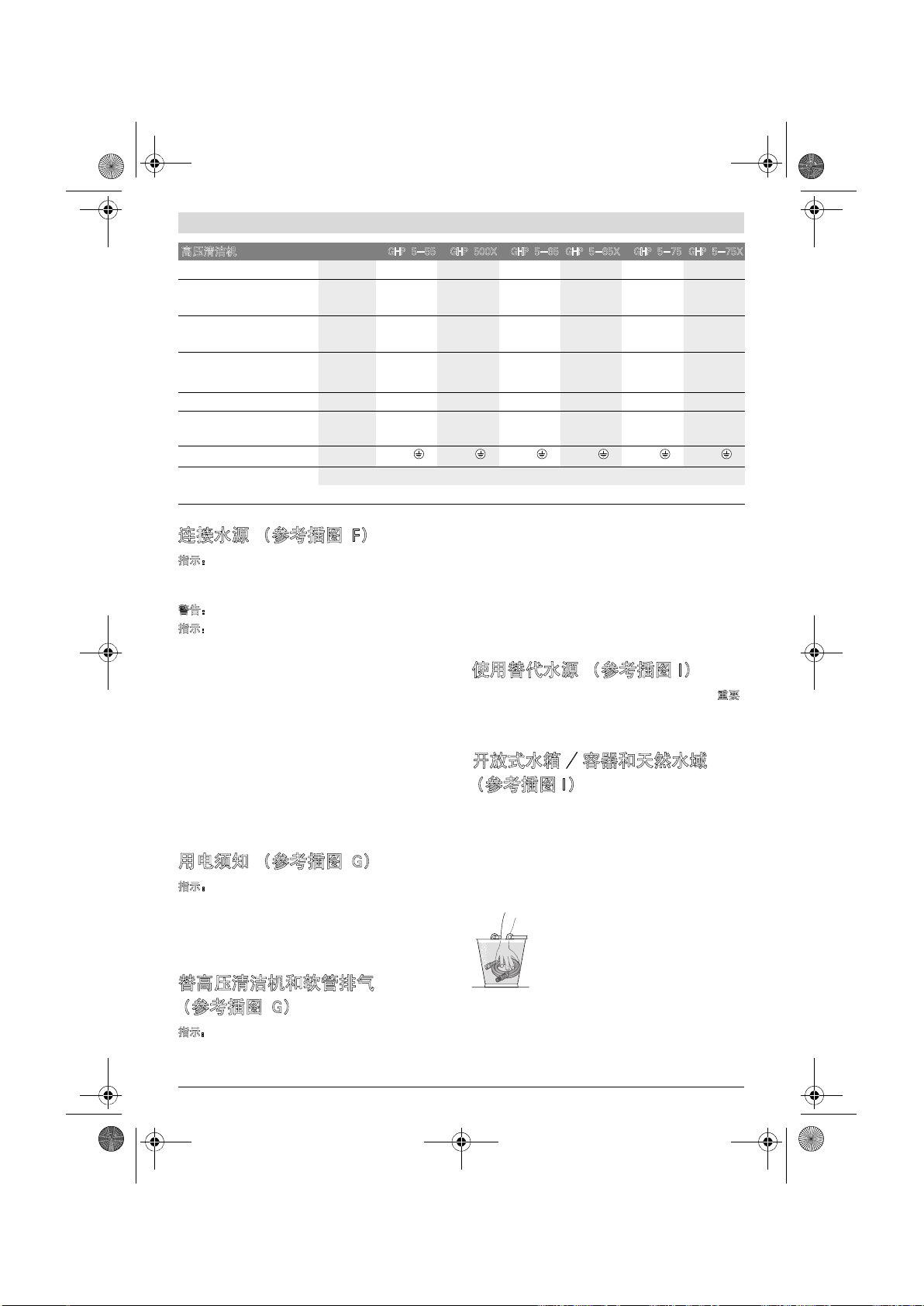

连接水源 （参考插图 F）
指示： 要达到额定压力，在水流进口必须有充足的水
量。如果水流能在一分钟内填满一个 10 公升的水桶 ,
则代表水供应量是足够的。
警告： 连续操作时如果缺水，可能会损坏泵。
指示： 为了确保充足的供水，要尽可能选用短的软管，
软管的直径不可以少于 13 毫米 (1/2”)。如果软管的
长度超过 10 公尺，它的直径则必须为 19 毫米
(3/4”)。完全拧开水龙头。确保所有的接头都已经紧密
结合。定期清洗滤网 （请参阅维修）。
–请务必使用外置的滤网 （供货范围）。确保滤网的密
封性。
–如有必要，得安装软管转接器 （不包含在供货范围
中 ）。
–连接合适的软管，尽可能使用直径 13 毫米（1/2“）
或 19 毫米 （3/4”）的软管。
–完全打开水龙头，检查所有的接头是否有渗漏的情
况。
用电须知 （参考插图 G）
指示： 只有当高压清洁机被连接到稳定的电源上之后，
机器才能达到额定的功率。以下各因数可能阻碍电机的
起动，或减弱高压的效率：延长线过长而它的截面积却
过小，没有卷好的电缆卷筒，在一个电源上连接多个同
时运作的机器设备或是超出容许极限的电压波动。
替高压清洁机和软管排气
（参考插图 G）
指示： 每次将高压清洁机连接在水源上之后 , 必须根据
以下的步骤为它排气：
将电源开关拧转到 AUS (0) 的位置。
拆下喷射枪上的枪杆。
–一旦扣动了扳机，便可以听见空气和水从喷射枪流出
的声音。按住扳机，直到水顺畅流出为止。松开扳
机。
–安装枪杆。
–使用电源开关开动高压清洁机。
–启动锁定键，接着扣下喷射枪上的扳机。
使用替代水源 （参考插图 I）
高压清洁机可以从水箱或天然水源吸水。吸水时最重要
的是，只能抽吸洁净的水，既要安装内部也要安装外部
的滤网并确认滤网的清洁 （参见维修章节）。
开放式水箱 / 容器和天然水域
（参考插图 I）
使用自吸配件，它是由以下部件组成：
–吸汲滤网有逆止阀
–3 米增强软管
–高压清洁机的通用联结器
有了这些配件，高压清洁机可以将水吸到离水面 0.5 米
处。这个过程可能需要约 25 至 50 秒。
将 3 米软管完全浸在水中，以便排除空
气。把 3 米长的软管连接到高压清洁机
上，并确保吸汲滤网仍然位在水中。
取出喷射枪并让高压清洁机运行，直到从高压清洁机中
流出的水流顺畅为止。如果过了 25 – 50 秒后仍然没有
水流出 , 则要关闭机器并检查所有的接头。如果水顺利
流出，先关闭高压清洁机，并在正式操作之前装上喷射
枪和枪杆。
电力网电阻 Ω
声压水平
不确定系数
分贝
分贝
78
=2,5
78
=2,5
78
=2,5
78
=2,5
77
=2,3
77
=2,3
声功率水平
不确定系数
分贝
分贝
92
=2,5
92
=2,5
92
=2,5
92
=2,5
91
=2,3
91
=2,3
振动总值
不确定系数
米/秒2
米/秒2
=1,841
=1,5
=1,841
=1,5
=1,841
=1,5
=1,841
=1,5
=1,841
=1,5
=1,841
=1,5
声功率水平 分贝 95 9595959494
重量符合 EPTA-Procedure
01:2014 公斤 22,0 24,8 23,5 25,0 26,7 28,2
绝缘等级 /I /I /I /I /I /I
序列号码 参考序列号码 ( 型号铭牌 ) 在高压清洁机上
高压清洁机 GHP 5-55 GHP 500X GHP 5-65 GHP 5-65X GHP 5-75 GHP 5-75X
开动电动工具时，电压会突然下降。如果电源网络状况不佳，可能会干扰其它机器。 在电源阻抗小于 0,32 欧姆时不会产生干扰。
OBJ_BUCH-2396-003.book Page 17 Wednesday, May 17, 2017 10:53 AM
– – 0,32 0,32 0,32 0,32

18 | 中文
1 609 92A 3EU | (17.5.17) Bosch Power Tools
软管和联结器的品质非常重要，另外软管和联结器务必
要紧密结合，密封件不可以有毁损，而且要将软管垂直
的插入联结器中。如果连接不紧密会影响吸力。
配备出水龙头的水箱
（参考插图 I）
如果将高压清洁机连接在有出水龙头的水箱上，必须先
将软管 （不包含在供货范围中）装在龙头上，并打开龙
头以便排出软管中的空气，然后再把软管连接到高压清
洁机上。
使用清洁剂 （参考插图 J）
只能使用机器制造商推荐的清洁剂。并确实遵循机器制
造商提出的使用说明、废弃处理建议和警告提示。
拉出位在机器后面的吸管并将它放入装了清洁剂的瓶子
里 （不包含在供货范围中）。
向外拉出喷嘴 (= 较低的压力 )。
扣动扳机。在很短的时间内喷嘴会冒出泡沫。
在高压清洁机背面的清洁剂计量螺旋上设定好清洁剂的
量。
转动喷嘴以便调整水柱。
寻找故障的原因
症状 可能的原因 补救方法
马达无法起动 未插上插头 插好插头
插头故障了 使用完好的插头
保修丝断了 更换保险丝
延长线故障了 拿掉延长线再试一次
马达防护功能被启动了 让马达冷却约 15 分钟
结冰了 让泵、水管或配件解冻
马达停止转动 保修丝断了 更换保险丝
电压不符 检查电压，电压必须和机器铭牌上的
规定一致
马达防护功能被启动了 让马达冷却约 15 分钟
保险丝断了 保险丝太弱 把机器连接在别的电源系统，该系统
的保险丝必须能够承担 高压清洁机的
功率
马达继续运转，但是没有压力 喷嘴有一部分被堵塞了 清洁喷嘴
马达发出声音但是不运作 电压不足 检查电源的电压是否和机器铭牌上的
规定一致
因为使用延长线导致电压太低 检查所使用的延长线是否是合适的
长期未使用机器 请向授权的博世顾客服务处求助
自动停止功能出现问题 请向授权的博世顾客服务处求助
压力不均匀 水管中或泵中有空气 打开喷射枪和水龙头，将喷嘴调整到
低压位置并让高压清洁机不断运转至
恢复到均匀的工作压力为止
水源供应不正常 检查水管的规格是否符合技术数据上
的要求。允许使用的最小水管是 1/2
英寸或直径 13 毫米的水管
滤网堵塞了 清洁滤网
水管被压住或弯折了 摆好水管
高压软管太长 拆下高压软管 - 延长件，最大的水管
长度是 7 米
压力均匀但是太弱
指示 : 特定的配件会造成低压
喷嘴磨损了 更换喷嘴
起 / 停阀磨损了 连续 5 次快速地按下板机
马达在运转，但是压力受限，或是无
操作压力
未连接水源 连接好水源
滤网阻塞了 清洁滤网
喷嘴阻塞了 清洁喷嘴
高压清洁机自动起动 泵或喷射枪不紧密 请向授权的博世顾客服务处求助
OBJ_BUCH-2396-003.book Page 18 Wednesday, May 17, 2017 10:53 AM

中文 | 19
Bosch Power Tools 1 609 92A 3EU | (17.5.17)
使用完毕后要倒空高压清洁机
（参考插图 L）
从水龙头卸下软管。
拆下喷射枪上的枪杆。
将喷射枪朝下并开动高压清洁机。
扣动扳机并清空整个系统。
警告： 不要让高压清洁机 , 在缺水的情况下运行超过
25 秒。
高压清洁机要存放在干燥的地方。
警告： 霜害不包含在保修的范围内。当温度低于 0 ℃
时 , 高压清洁机内残余的水会结冻并损坏泵。在温度低
于 4 ℃的地区，必须在寒冷的季节到来前，在最后一次
使用空高压清洁机之后，排空机器。
维修和服务
维修
在机器上进行任何维护、修理的工作之前必须先拔出
插头和连接水管。
指示： 定期执行以下的维修工作，以延长机器的使用寿
命和确保操作安全。
检查机器是否有明显的缺陷，例如松脱的接头和已经磨
损或损坏的部件。
检查盖子和防护罩是否完好，安装方式是否正确。必要
时得在使用机器前执行维护或修理的工作。
我们建议您 , 每经过 200 (GHP 5-55, GHP 5-65,
GHP 5-65 X, GHP 500 X) 至 300 (GHP 5-75,
GHP 5-75 X) 个工作小时，便要将本产品送到博世授权
的服务中心进行维修。
定期每周清洗一次滤网。使用醋可以更快速地去除沉淀
的石灰。此时要把滤网浸泡在醋中，浸泡时间约 30 分
钟。 ( 参考插图 M – N)
清洁喷嘴。
在 O 形圈上涂润滑脂。 （参考插图 O）
顾客服务处和顾客咨询中心
www.bosch-professional.com
查询和购买备件时，务必提供机器铭牌上标示的 10 位
数物品代码。
有关保证，维修或更换零件事宜，请向合格的经销商查
询。
中国大陆
博世电动工具 （中国）有限公司
中国 浙江省 杭州市
滨江区滨康路 567 号
邮政编码：310052
免费服务热线： 4008268484
传真：[phone]
电邮：[e-mail]
www.bosch-pt.com.cn
羅伯特 · 博世有限公司
香港北角英皇道 625 號 21 樓
客戶服務熱線：[phone]
傳真：[phone]
電郵：[email protected]
網站：www.bosch-pt.com.hk
制造商地址：
Robert Bosch Power Tools GmbH
罗伯特 · 博世电动工具有限公司
70538 Stuttgart / GERMANY
70538 斯图加特 / 德国
环保须知
不可以让有害生态环境的化学物品残留在地面、地下
水、池塘和河流中。
使用清洁剂时，务必详阅包装上的使用说明，以及注意
规定的使用浓度。
清洗车辆时，必须兼顾贵国的有关法规：避免让冲刷下
来的油垢流入地下水中。
机器漏水 泵不紧密 微量漏水是可容许的，如果漏水量加
大得接洽顾客服务中心
无法吸清洁剂 把喷嘴调整在高压 把喷嘴调整在低压 （拉出）。
清洁剂太粘稠 用水稀释
高压软管被加长了 连接原厂软管
清洁剂的循环管道中有残留物或管道
变窄了
使用干净的水冲洗以便打通管道。如
果问题仍然无法解决，得向博世的客
服中心寻求建议
症状 可能的原因 补救方法
OBJ_BUCH-2396-003.book Page 19 Wednesday, May 17, 2017 10:53 AM

20 | 中文
1 609 92A 3EU | (17.5.17) Bosch Power Tools
处理废弃物
必须以符合环保要求的方式回收再利用高压清洁机、配
件和包装材料。
不可以将高压清洁机丢入一般的家庭垃圾中！
只针对欧盟国家：
根据针对废旧电器和电子设备的欧洲法规 2012/19/EU
以及被纳入国家法律来执行的相关规定；必须分开收集
坏损的电气和电子用品，并以符合环保要求的方式回收
再利用。
保留修改权。
中文
安全規章
機器上的符號
閱讀所有的警告提示和指
示。 如未確實遵循警告提示
和指示，可能導致電擊、火
災並且 / 或其他的嚴重傷害。
一般性警告。
不可以把噴射
出的水流朝向
人、動物、機
器或電動零件。
注意：如果使用不當，高壓水柱可
能造成危險。
根據適用的法規，如果機器
不具備系統分離功能，便不
可以連接到飲用水的供應系
統上。根據 IEC 61770 ，得
使用 BA 型的系統分離器。
流過系統分離器的水，已經不再是
飲用水。
如果自行抽吸的話，要使用 3 米長
的抽吸套件 (F 016 800 335)。
使用者的資格和個人的防護裝備
在生理、感官、精神上受限制，
或缺乏操作經驗與使用知識的人
也可以使用本機器，前提是必須
有人監督他們使用，或是有人指
導他們如何安全地操作本機器，
並讓他們了解使用本機器時可能
發生的危險。
本機器不可以交給兒童或年輕人
使用。看顧好兒童並確保兒童不
會玩弄機器。
本機器只能由接受過處理與操作
培訓的人員，或是能夠提出相關
的機器操作證明的人使用。
穿戴個人的防護裝備。例如
護目鏡，防塵口罩等，以避
開回濺得水花，顆粒和 /
或氣溶膠。不可吸入氣溶膠。如果
從外部的水源吸水，水中可能含有
致病的物質。
如果有旁人在附近逗留則不可以
使用高壓清潔機，除非他們也穿
戴了個人的防護裝備。
用電須知
電源的電壓必須和機器銘牌上提
供的電壓一致。
操作電壓為 230 V AC （在非歐
盟國家，電壓可能是 220 V 或
240 V ）。
絕緣等級I的機器只能連接在按照
規定且正確接地的電源上。
OBJ_BUCH-2396-003.book Page 20 Wednesday, May 17, 2017 10:53 AM
