Boss Audio Systems BV9968BI User manual

12
Full iPod Control
WITH DUAL FRONT AND REAR USB
AND SD MEMORY CARD PORT
AND FRONT PANEL AUX INPUT
()
WITH DUAL FRONT AND REAR USB
AND SD MEMORY CARD PORT
AND FRONT PANEL AUX INPUT
()
Full iPod Control
BV9968BI
BV9968BI

INSTRUCTIONS
INSTRUCTIONS
ACCESSORY
DVD Parental control function：The default set
for DVD is #8 adult, which means all grades of
DVD can be read without entering password.To
change the default grade,you need to follow the
below procedure: Press SETUP button on the
remote, display will show the system set up menu
and the submenu,select password and enter
0000, you will be able to choose the DVD
grade as default.
DVD Parental
control function
DVD Parental control function Accessory Quantity
Wire
USB Cable
Keys 2PCS
1PC
1PC
Remote controller
Warranty card
1PC
2PCS

INSTRUCTIONS INSTRUCTIONS
PANEL ARRANGEMENT
85
This unit is with switchable frequency.
You can switch from USA frequency to Europe frequency by following the
below steps:
Step1. In main menu, press setup icon to enter the setup interface.
Step2. Press the Radio icon,and insert password 123456, then press “OK”,
the menu from which you can select the radio frequency will show.
Step3. Press “Radio region” and select the desired frequency by pressing the "up"
and "down" arrow, then press it and setting is finished.
1
2
3
20 4 5 6 7 8 9 10 11 12 13 14 15
16
17
18
19

INSTRUCTIONS
BASIC FUNCTION
9.MIC Input
Bluetooth MIC input.
3
6. SEEK Knob/( / )/ (SEEK+/SEEK-)/(SEEK/SEEK)(Speed forward/backward/Select station/song)
In radio mode, press/rotate the knob to select station upward/backward. Long press/rotate the knob to
automatically scan station.
In playback mode, short press/rotate the knob to select song upward/backward,long press/rotate it to
achieve speed forward/backward function.
INSTRUCTIONS
WIRING DIAGRAM
This player is equipped with ISO standard connector, please follow below instruction:
● Yellow – 12 V Constant
● Black – Ground wire
● Blue - Power Antenna / Remote Amp Turn On
● Orange – Back-Up Camera Trigger (+) ● Pink – Parking Brake (-)
● White/White black - Left front speaker (+/-)
● Purple/Purple black - Right rear speaker (+/-)
● Green/Green black - Left rear speaker (+/-)
● Red - ACC ON (+12V) ● Grey/Grey black - Right front speaker (+/-)
TROUBLE SHOOTING
PROBLEM CAUSE SOLUTION
After ignition switch
off ,setting
information all lose
Reset information and save
Change battery or fuse
Cannot power on
Change fuse same as the old one
Some factors cause MPU
wrong operation
Press RES button on the panel by
penpoint, then, power on
Poor performance
of radio station
Connot load disk There is a disk inside Remove disc before inserting another one
Weak signal Move the car to another place, then research
Cannot play disc
Disc is scratched Change new disc
Put wrong side of disc into
the unit Insert in the disk with sign side up
Clean lens by lens clean disc
Lens is dirty
Cannot switch
language/subtitle There is only one language/
subtitle in disc
If disc is not with multi-language/subtitle,
it cannot switch language/subtitle
No image Other factors cause MPU
wrong operation Press [RES] button on the panel by
penpoint, then, power on
Cannot watch
image during
driving
It’s not allowed to watch image
during driving
Park the car in a safe place, put the car stall
in “ P ” postion, pull up the hand brake,
parking brake wire must be grounded
Check fuse
4
5
7 Dual (front and rear)USB
Warning :You can only use either front or rear USB at a time.Never connect both front
and rear USB at the same time! This could cause malfunctions.
8
Bluetooth
iPod

INSTRUCTIONS
14
15
16
17
19
INSTRUCTIONS
20
10
11
12
13
18

INSTRUCTIONS INSTRUCTIONS
REMOTE CONTROL FUNCTION
28
28 DSP
Click icon on setup interface to access audio setting interface, as shown in
diagram:
right(PIC 1)
Audio setting
You can turn on or turn off the existing functions on audio setting interface.
Steering wheel setting
II.Connect anode and cathode of direction control wire of the car with anode and cathode of
direction control wire of this device, and press the buttons on steering wheel one by one
and record the corresponding sequence and functions.
III. Click the button of steering wheel needs to be allotted so as to select the corresponding
setting function, such as volume +.
I. Click icon on setup interface so as to access steering wheel setting interface.
IIII. Buttons on steering wheel shall display the corresponding functions, such as volume + .
To reset functions, click [Reset] icon, all the settings set before shall be cleared, repeat
procedures 3~4 for resetting.
To modify function settings, repeat procedures 3~4.

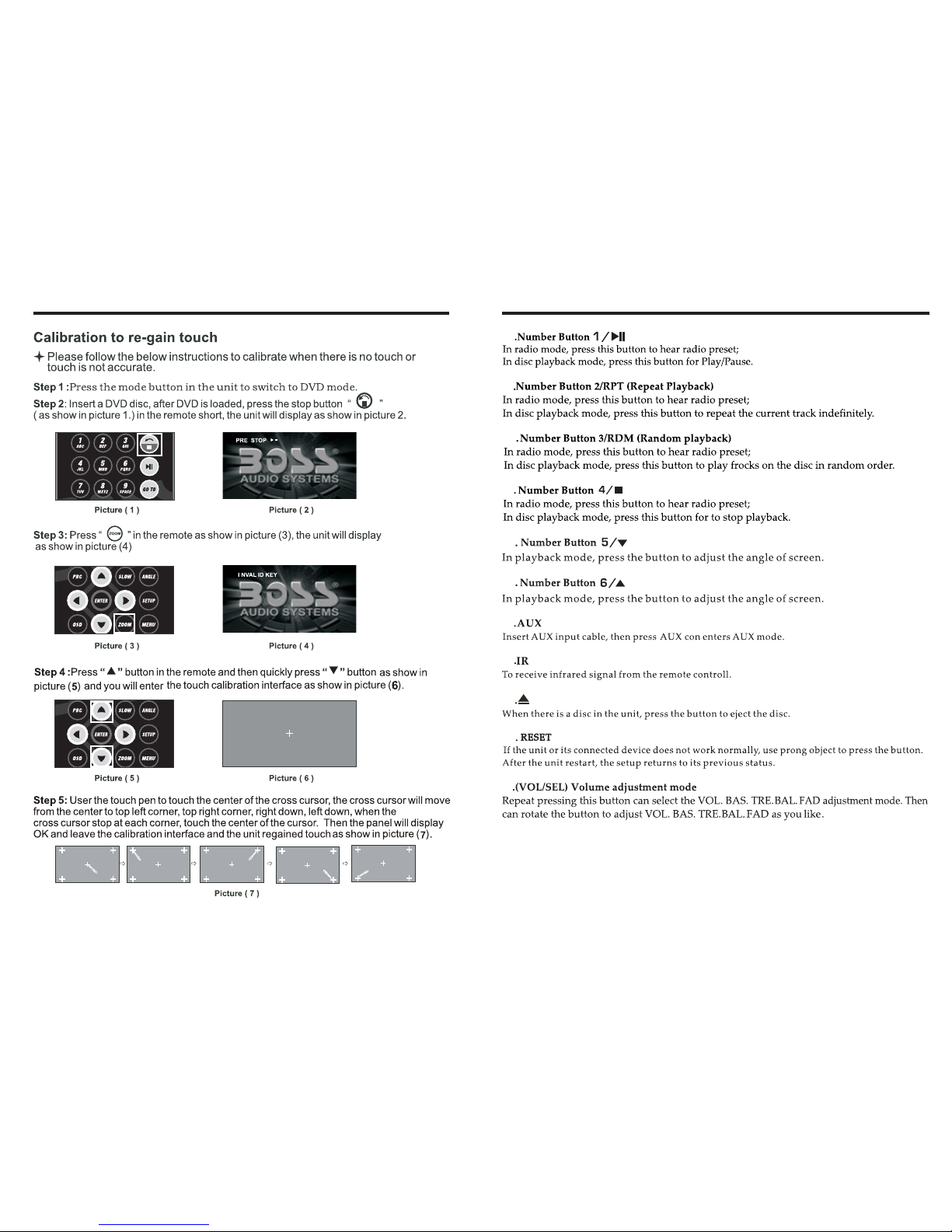

Touch calibration
If touch calibration error occurs, you can adjust the touch coordinate by “Touch calibration”.
Click icon on setup interface, input password [888888] to confirm to access touch
calibration interface, as shown in below diagram:
Touching methods
Use touch pen to click the center of “+” icon, and move along with center of “+” icon so as
to calibrate the screen. It shall automatically save data and exit after screen calibration.
Please accurately click all positions on screen, or the accuracy of touch calibration shall be
affected.
PIC 1
CLASSIC
5.SEEK+ ( )/ SEEK- ( )button
In normal playback MP3, USB, SD songs,
press this button to previous song or next
song.

INSTRUCTIONS INSTRUCTIONS
Press this button to show the time.
28.DSP
Access setup interface
Click [Setup] icon on main interface to access setup interface.
General setting
Click icon on setup interface to access general setting interface, as shown in below
PIC 1 diagram:
In general setting interface, you can select to turn on or turn off the existing functions.
You can set wallpaper and opening picture you like and check version number of DV/DC,
click icon to browse up/down.
PIC 3
PIC 2PIC 1
Wallpaper selection
Click icon on wallpaper bar , direction icon shall pop up, click it to
select wallpaper.
Opening picture
Click icon on opening picture bar , direction icon shall pop up, click it
to select opening picture.
Time setting
Click
PIC 2diagram:
icon on setup interface to access time setting interface, as shown in below
Click icon on time bar time setting interface shall display, as shown in
below PIC 3 diagram:
Click icon beside hour and minute to separately set hour and minute.
Video setting
Click
(PIC 5) diagram:
icon on setup interface to access video setting interface, as shown in right
At video setting interface, you can adjust brightness, contrast, saturation and hue of the video.
Language Setup
During use, you can select your familiar language to display menu by language setup.
Click icon on setup interface to access language setting interface, as shown in right
(PIC 4) diagram:
Click the corresponding icon on the language bar desired to be set so as to switch
the language type, when there are more than 3 languages, direction icon shall pop up,
click it to select your familiar language.
PIC 4 PIC 5
21.UP, DOWN, LEFT, RIGHT, ENTER button
When playing MP3, USB, SD returns to song
menu, up, down selections can be up / " "
button or down / " " key to select up and
down, select and press " " key to confirm.
The selected tracks can be played. Press the
left or right arrow keys to " " or " " key, can
be on the next page function operation.

INSTRUCTIONS INSTRUCTIONS
External input operation
Connect the video input plug with external video input jack, and connect the audio input
plug with external audio input jack.
Touch [Input] icon on main interface to access external input interface.
Audio You can adjust the
You can adjust the speaker volume by adjusting the front and back,left and right column.
volume, bass, pitch for input audio.
Video You can adjust the brightness, contrast, saturation and hue for input video.
You can also choose the video standard mode.
NO VIDEO SIGNAL
Other functions
Rearview function
In any running state, the video signal can switch to reverse video state when reversing the
car, and the system shall return to its initial running state after reversing the car.
Do not rely on CCD system completely, please make sure you use direct eyesight while
driving.Back rearview system only assists in driving. As the distance range of rearview
system is limited, completely relying on the rearview system during driving may cause
accidents.
Reverse field simulation Rearview backup image
Warning
iPod function operation
Connect to iPod first, touch [iPod] icon on main interface to access iPod interface, as
shown in below diagram.
Turn on/off Host
Insert/Eject USB storage device
1. Connect a USB recorded with media information to the unit by a USB connecting cable.
2. When there is a need to eject the USB device, exit the USB device playback screen
first, and then take out the device.
Insert/eject SD card
1. Insert a SD card recorded with media information into the SD card slot in the unit
correctly until it is locked.
2. When pulling out the SD card, exit SD card playing state first, then press the SD card
and it shall pop up after unlocking.
Enter/exit
Insert a USB storage device or SD card to automatically play data contained in it. If the
unit has connected with a USB device or SD card, touch[ USB ]icon in the main interface
to enter into the external storage playback interface; Touch[ SD ]icon to enter into the SD
card playback interface. During playback, touch the top center area of the screen to pop
up the touch menu, operate touch menu to perform various playback controls.
When there is a USB device/SD card connected,
the unit can conduct the playback of audio/video/
image files in the USB device/SD card.
USB/SD Card function operation
Play
After SD card/USB removable device being read out, the operation methods are similar
to disk operation methods.
When the ignition switch is put in ACC or ON position,Press[ ] button on the front panel
to turn on the unit.After the host starts, hold [ ]button for 3 seconds , the host will turn off.
Access main interface
Touch the function icons so as to access the
corresponding function operations.
In the other mode, click on the interface to return the icon will switch to the main interface. Play/Pause
Stop Previous Song/next Song
Fast forward play/Fast backward play
Back to the
main interface
Volume adjustment knob

INSTRUCTIONS INSTRUCTIONS
Bluetooth Function Operation
Operation methods:
Set the host to be matching state, and open the Bluetooth of your mobile phone and use
the mobile phone to search device, the mobile phone shall prompt to match password with
the Bluetooth when it has searched the Bluetooth device.
Input Bluetooth password (0000) to the mobile phone and confirm. The mobile phone
shall prompt whether authorize to this device,please select [Yes]. Phone and Bluetooth
shall automatically connect within 20 seconds. Under any working mode, the host shall
convert to Bluetooth state if there is an incoming call. And the host shall restore to current
mode after hanging up.
When the Bluetooth device matches with this device, the connection status shall display
“Connected”, otherwise, it shall display “No connection”.
Touch icon to exit bluetooth interface.
Touch [ Bluetooth ] icon in the main interface to enter the bluetooth interface.
Enter/exit
Pair/link
To use Bluetooth hand-free function, make connection first, i.e. match the host with the
Bluetooth mobile phone.
PIC 3
PLAY/PAUSE
next song
previous song
Bluetooth volume
Click to access Bluetooth volume interface as below PIC 3:
Dialing
You can dial on mobile phone directly or input phone number through the number buttons
on the screen, click to delete if there is input error.
After input the phone number, click to make a call, and click to hang up the phone.
Click during a call so as to switch the voice between car speaker and mobile phone.
Received calls: Touch this button to check all the phone numbers of received calls.
Dialed numbers: Touch this button to check all the dialed phone numbers.
Missed calls: Touch this button to check all the phone numbers of missed calls.
Click to access call records interface as below PIC 2:
Call records
PIC 2PIC 1
Radio Function Operation
Enter/exit
Touch [ RADIO ] icon in the main interface to enter into the radio interface.
Touch icon to return to main interface, and then touch other function icons so as to exit
radio mode.
Click [BND] icon so as to switch among AM1, AM2 bands.FM1,FM2, FM3,
Band selection
Search/Save radio stations
FM band can save 18 radio stations (Six stations for FM1/FM2/FM3), AM band can save
12 radio stations (Six stations for AM1/AM2).
Short press [Scan] icon to browse the stored radio stations.
Scan radio
Short press icon to manually fine-tune radio stations upward/downward.
Long press icon to automatically search and save radio stations.
Sound setting
Click [EQ] icon can switch to different sound mode.
Mute on/off
Click [Mute] icon to turn on/off mute function
TFT on/off
Click icon to turn off TFT, and then click the screen area so as to turn on TFT.
Click icon so as to slide screen angle.

INSTRUCTIONS INSTRUCTIONS
Access next menu
Touch it to access the next menu interface.
Time setting
Touch this button to access time setting interface.
Stereo on/off
Touch it so as to turn on/off stereo.
Return to root menu
Touch this icon, it shall return to root menu of disk in DVD state and access PBC
menu playing in VCD state. All chapters in the disk shall be displayed on the interface,
touch the chapter icon directly for playing.
Access title menu
Press this button to return to title menu of the disk. Directly click menu bar at title
menu interface for playing.
Language selection
Touch this button to select language.
Digit keyboard
Touch this button and digit keyboard shall appear, click number buttons directly to
select tracks for playing.
Randomly play
Touch this button to instantly play each song. Press again to back to the normal play.
Zoom in/Zoom out image
Touch this button to zoom in /zoom out the image.
Repeat play
During VCD playing, this function only works when PBC is off.
Disc Function Operation
PIC 1
x
00
00:01:44 00:09:43
TT 1/5 CH 1/1
VOL
x
00
00:01:44 00:09:43
TT 1/5 CH 1/1
VOL
Do not insert two discs or more.
Eject disc
(1) Click button on the panel to eject the disc.
(2) If a disc has not been took away 15 seconds after it is ejected, system will
automatically take in the disc but not play.
Play/eject disc
Play disc
Insert the disc into the disc slot with the printing surface up, system will detect the disc
and automatically take it in to read and play.
During playback of disc, touch the middle lower area of the screen to pop up the touch
menu, operate the touch menu to perform various playback controls.(PIC 1)
DVD/VCD disc playback
CD Disc Playback
After a CD is inserted, system shall access disc reading state immediately.
When there is a disc in the device, click [Disc] at the main interface so as to access disc
reading state.
After the disc being read out, system shall automatically play in sequence.
Play/pause
Touch the button to pause, retouch it to continue to play.
Stop
Touch the button to enter into prestop status.
Touch the button to select the previous/next song.
The previous/next song
Touch Menu Function Description
Fast forward/backward
Consecutively touch this button to select the speed of fast-forward/fast-backward.
Volume adjustment button
Touch this button and volume adjustment modulation shall pop up, touch button to
adjust the volume.
MP3/JPEG/MPEG4 disk playing
When the disc contains readable files, such as MP3/JPEG/MPEG4 files, it shall be
automatically read out and played after slipping into DVD player.
During playing, touch the screen area and the touch menu shall pop up. Operate the
touch menu for various playing.
In playing state, touch this button to start repeat play function: Chapter repeat
Title repeat repeat all Off.
BOSS AUDIO CAR STEREOS CAR AUDIO SYSTEMS
