bouncepad Static 60 User manual

Mount Washer
M4 Split washer
M4 Wing Nut
Mount Washer
M4 Split washer
M4 Locking Nut
7mm Spanner
Sheet Code: BP-IM-029_REV2
Release Date: 28/10/2019
Copyright 2016 Spotspot Ltd. (T/A
Bouncepad) all rights reserved.
Condential, no part of this publication
may be reproduced or transmitted in any
form without the written permission of the
copyright holder.
Static60
Mounting
Arm
Faceplate
Case
Fixings Kit
Tablet Set-up Kit
Follow steps A if “Fixing
from below”.
A
Follow steps B if “Fixing
from Above”.
BLocate and screw the Socket
screws into the Static60 as
shown
Secure the arm to the
surface. Locking Nuts
oer higher security.
Go to step 1.
A3
A4 A5
Using the Mounting
washer, mark the drill
hole locations as shown.
A1
Front
Using the Mount Plate,
mark the drill hole
locations as shown.
B1
Mount Plate
Front
4x Ø2.5mm
1x Ø16.0mm
Surface
Mounting Kit 25mm
Metric Imperial
1"
Maximum Mounting
surface thickness :
34mm
Metric Imperial
1 5/16"
Minimum Mounting
surface thickness :
4x Ø5.0mm
Drill each hole -
using the specied
drill size.
A2
Ø5.0mm Drillbit
Ø16.0mm Holesaw
1x Ø16.0mm
Mount Washer
Front
In the Box
Static 60

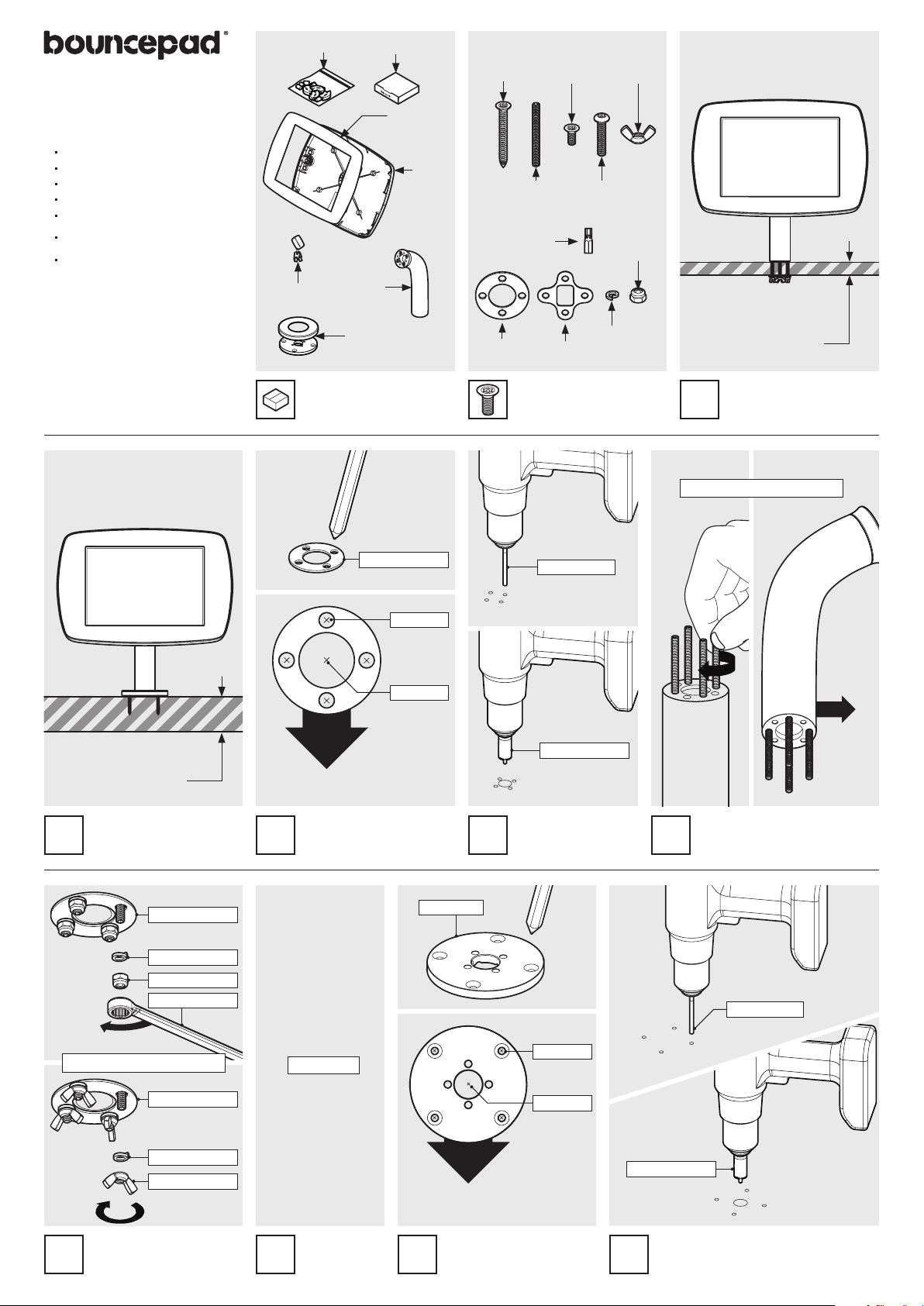

Assembly Instructions
Tools Required:
Pencil
Electric Drill
16mm
Holesaw
*if routing the tablet
cable through your
mounting surface
7mm Spanner *or adjustable spanner
2.5mm Drillbit *if xing from above
5.0mm Drillbit *if xing from below
Pair of Keys
4x No.8
Countersunk,
Self tapping
Screw
4x M4x40mm
Socketset
screw
4x M4x20mm
Buttonhead
screw
4x M4x10mm
Countersunk
Screw
8x M4 Split
Washer
4x M4
Locking
Nut
1x Case
Washer
1x Mount
Washer
4x M4
Wing Nut
Tighten screw(s) using hand tools, using electric
tools may damage your Bouncepad.
*see overleaf
Tighten screw(s) using hand tools, using electric
tools may damage your Bouncepad.
Drill each hole - using the specied
drill sizes.
B2
Ø2.5mm Drillbit
Ø16.0mm Holesaw
Fixings List
* Due to the modular nature of our product range
you may receive additional xings in the xings kit
Socket Driver
1x T20 Pin
Torx Driver Bit

Locate & lock the
Faceplate onto the
Bouncepad Case.
6
Secure the Static60 to
the surface with the 4x
countersunk xings.
B5
Join the Static60 & Mount Plate in the
orientation shown.
B3 Locate the
Cover onto
the Static60. B4
Mount Plate Cover
Locate and attach the
Bouncepad Case to the
Static60 as shown.
1
M4 Split Washer
Case Washer
M4x20mm Buttonhead screw
Adhere the Mount Cover
onto the Mount Plate
with the adhesive tabs.
Go to step 1.
B6
B7
Front
Front
Install the Tablet Setup Kit. Each
kit is specic per tablet device and
Bouncepad Case.
3
1x Cable Clip
4x Tablet Supports 4x Corner Pieces
Feed the tablet cable
through the Bouncepad
Case & Static60.
4Place the tablet into the
Case and connect to
power.
5
Tighten screw(s) using hand tools, using electric
tools may damage your Bouncepad.
Tighten screw(s) using hand tools, using electric
tools may damage your Bouncepad.
Tighten screw(s) using hand tools, using electric
tools may damage your Bouncepad.
M4x10mm
Countersunk
Screw
No.8
Countersunk, Self
tapping Screw
Unlock & remove the
Faceplate from the
Bouncepad Case.
2
7Installation is now
complete.
*We recommend recording the key number so
you can purchase additional keys in the future.
Key number here
T20 Pin Torx Driver Bit
