SS-2N/AST/STD
SS-2N/AST/WH
Express® Lavatory System SS-Series
Table of Contents
Pre-Installation Information . . . . . . . . . . . . . . . . .2
Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Supplies Required . . . . . . . . . . . . . . . . . . . . . . . .4
Dimensions............................... 4–5
Rough-Ins ...................................6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . .7–10
Metering Air Valve Troubleshooting . . . . . . . . . .11
Vernatherm Mixing Valve Troubleshooting . . . . .12
Stop/Check Valve Troubleshooting. . . . . . . . . . .13
Cleaning and Maintenance for Terreon® . . . . . .13
Soap Dispenser Maintenance . . . . . . . . . . . . . .14
Express Lavatory Systems are ADA and TAS compliant
A
D
A
•
C
O
M
P
L
I
A
N
T
SS-2N/AST/STD/LSD-2
SS-2N/AST/WH/LSD-2

SS-2N/AST/STD, SS-2N/AST/WH Installation
212/11/07 Bradley Corporation • 215-1498 Rev. E; ECN 07-814
IMPORTANT!
Read this entire installation manual to ensure proper installation. When finished with the
installation, file this manual with the owner or maintenance department. Compliance and
conformity to local codes and ordinances is the responsibility of the installer.
Separate parts from packaging and make sure all parts are accounted for before discarding
any packaging material. If any parts are missing, do not begin installation until you obtain the
missing parts.
Make sure that all water supply lines have been flushed and then completely turned off
before beginning installation. Debris in supply lines can cause valves to malfunction.
Turn OFF electrical power to the electrical outlets, then unplug all electrical units prior to
installation. Electrical power MUST remain off until unit and optional water heater have
been plumbed. After installation is complete, turn on the water supply first, then turn on the
electrical power.
Hardware supplied by installer must be appropriate for wall construction. Wall anchors must
have a minimum pull-out rating of 1,000 lbs. Follow appropriate dimensions for standard or
juvenile height based on configuration and required rim height. Overtightening fasteners can
damage the Terreon®material. Use caution when tightening bowl and sprayhead fasteners.
Product warranties may be found in the “Products” section on our Web site at www.
bradleycorp.com.
Installation
THIS
SIDE
UP
Packing List
•
•
•
•

Installation SS-2N/AST/STD, SS-2N/AST/WH
Bradley Corporation • 215-1498 Rev. E; ECN 07-814 12/11/07 3
Components
#8-32 x 3/4"
ROUND HEAD
MACHINE SCREW
(160-276)
BRACKET
(140-950)
#8 WASHER
OPTIONAL WATER HEATER
EX95TMLB, 240/208 volts
(269-1767)
EX100TMLB, 277 volts
(269-1768)
#8 NUT
BOLT 5/16-18
160-371
SCREW 10-24
160-386
WASHER
142-002BJ
LOCKWASHER
142-002BK
NUT 5/16-18
161-036
SCUFF BASE PANEL
GRAY (185-034)
PUTTY (185-034A)
COAL (185-034B)
SCUFF PANEL FASTENERS (160-450)
WASHERS (142-002CA)
(4) PLACES
SCUFF FRAME S17-326
USED WITH STANDARD
HEIGHT FRAME ONLY
MAIN FRAME
S17-325
PANEL
FASTENERS
(160-450)
WASHERS
(142-002CA)
(6) PLACES
ACCESS PANEL
GRAY (186-1455)
PUTTY (186-1455A)
COAL (186-1455B)
SPRAYHEAD COVER
(PART NUMBER VARIES WITH
COLOR OF UNIT. CONTACT
YOUR LOCAL BRADLEY REP.
FOR ASSISTANCE).
SPRAYHEAD BODY
(PART NUMBER VARIES WITH
COLOR OF UNIT. CONTACT
YOUR LOCAL BRADLEY REP.
FOR ASSISTANCE).
BOWL
(PART NUMBER VARIES
WITH COLOR OF UNIT.
CONTACT YOUR LOCAL
BRADLEY REP. FOR
ASSISTANCE).
P-TRAP (POLYPROPYLENE)
(269-1697)
OPTIONAL P-TRAP
(CHROME-PLATED BRASS)
(S29-094)
#8-32 SCREW
(160-319)
STRAINER
(P16-075)
DRAIN PLUG
(P16-072)
1/8" RUBBER
WASHER
(125-001DP)
TAILPIECE
(129-056)
DRAIN
ASSEMBLY
1/4"-20 x 1/2"
PAN HEAD
SCREW (qty. 2)
(160-389)
1/4"-20
WASHER
(qty. 2)
(142-002DB)
BOWL MOUNTING
HARDWARE

SS-2N/AST/STD, SS-2N/AST/WH Installation
412/11/07 Bradley Corporation • 215-1498 Rev. E; ECN 07-814
Supplies Required:
• (6) 3/8" wall anchors, bolts and 1" min. O.D. washers to mount main frame and bowl to wall (minimum pull-out rating of 1,000 lbs.)
• STD. HEIGHT ONLY: (2) 3/8" wall anchors, bolts and 1" min. O.D. washers to mount scuff base to wall
• 1/2" NPT hot/cold or tempered supply piping and 1-1/2" NPT drain piping
• (2) 1/2" NPT street elbows
• OPTIONAL: 240/208-volt or 277-volt electrical box for electric tankless water heater
Dimensions - Front and Top Views
15"
(381MM)
8-5/8"
(219mm)
8"
(203mm)
RADIUS
50"
(1270mm)
38-1/4"
(972mm)
21-1/4"
(540mm)
30"
(762mm)
36"
(914mm)
7"
(178mm)
10"
(254mm)
RADIUS
15"
(381MM)
38-1/4"
(972mm)
30"
(762mm)
36"
(914mm)
7"
(178mm)

Installation SS-2N/AST/STD, SS-2N/AST/WH
Bradley Corporation • 215-1498 Rev. E; ECN 07-814 12/11/07 5
34"
(864mm)
30"
(762mm)
31"
(787mm)
10-1/4"
(260mm)
27"
686mm)
WALL-HUNG
MOUNTED AT
JUVENILE HEIGHT
AGES 6 THROUGH 12
WALL-HUNG
MOUNTED AT
STANDARD HEIGHT
32"
(813mm)
11-1/4"
(286mm)
28"
(711mm)
WALL-HUNG
MOUNTED AT
TAS HEIGHT
GRADES PRE-K
THROUGH 5 OR 6
WALL-HUNG
MOUNTED AT
TAS HEIGHT
GRADES 6
THROUGH 8 OR 9
26"
(660mm)
9-1/4"
235mm)
30"
(762mm)
8-5/8"
(219mm)
13-1/4"
(337mm)
21-1/8"
(537mm)
3" (76mm)
11-1/2"
(292mm)
34"
(864mm)
30"
(762mm)
STANDARD HEIGHT
SCUFF BASE
STANDARD
HEIGHT ONLY
8-5/8"
(219mm)
13-1/4"
(337mm)
21-1/8"
(537mm)
11-1/2"
(292mm)
8-5/8"
(219mm)
21-1/8"
(537mm)
11-1/2"
(292mm)
8-5/8"
(219mm)
21-1/8"
(537mm)
11-1/2"
(292mm)
8-5/8"
(219mm)
21-1/8"
(537mm)
11-1/2"
(292mm)
38-1/2"
(978mm)
35-1/2"
(902mm)
34-1/2"
(876mm) 36-1/2"
(927mm)
38-1/2"
(978mm)
A
D
A
C
O
M
P
L
I
A
N
T
A
D
A
C
O
M
P
L
I
A
N
T
A
D
A
C
O
M
P
L
I
A
N
T

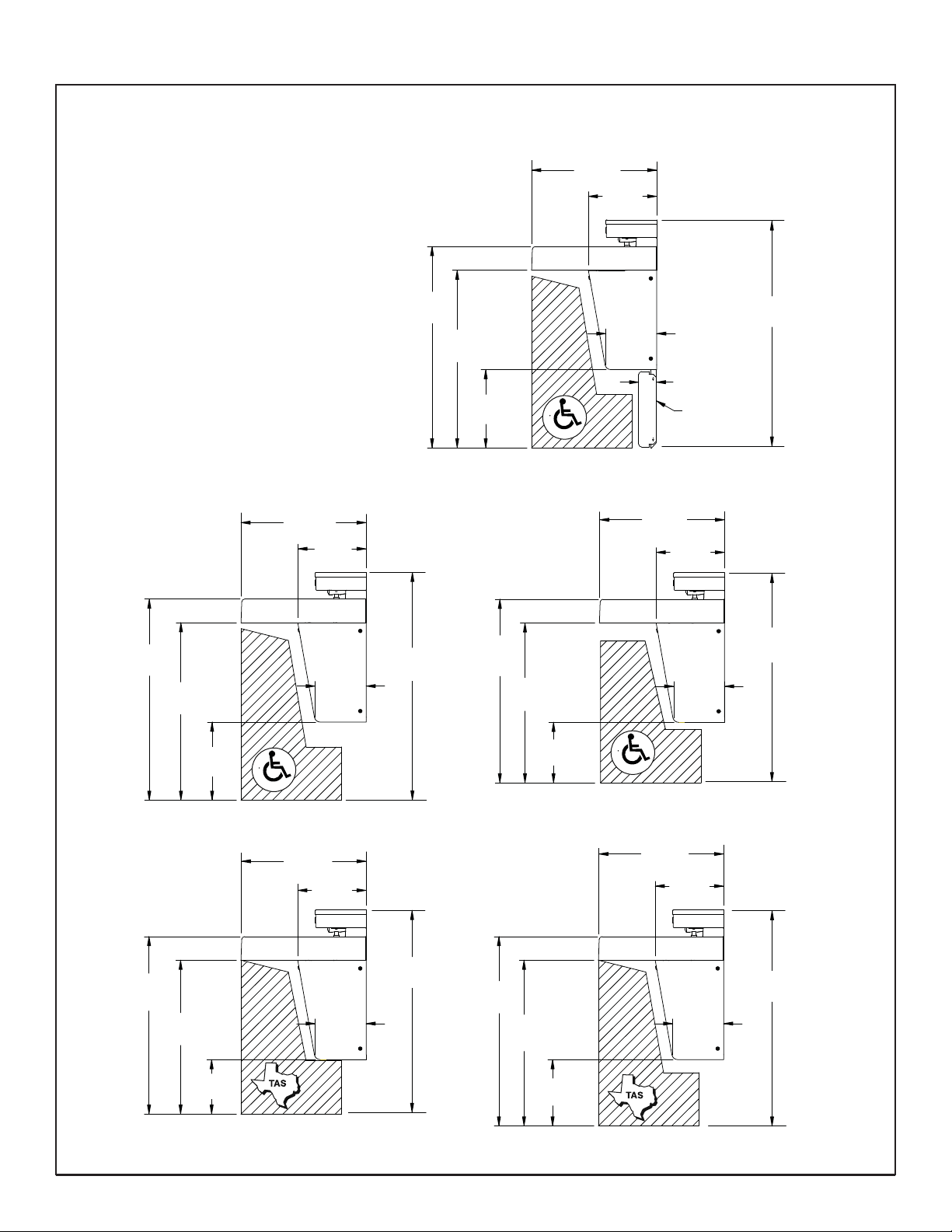

Dimensions - Side Views

SS-2N/AST/STD, SS-2N/AST/WH Installation
612/11/07 Bradley Corporation • 215-1498 Rev. E; ECN 07-814

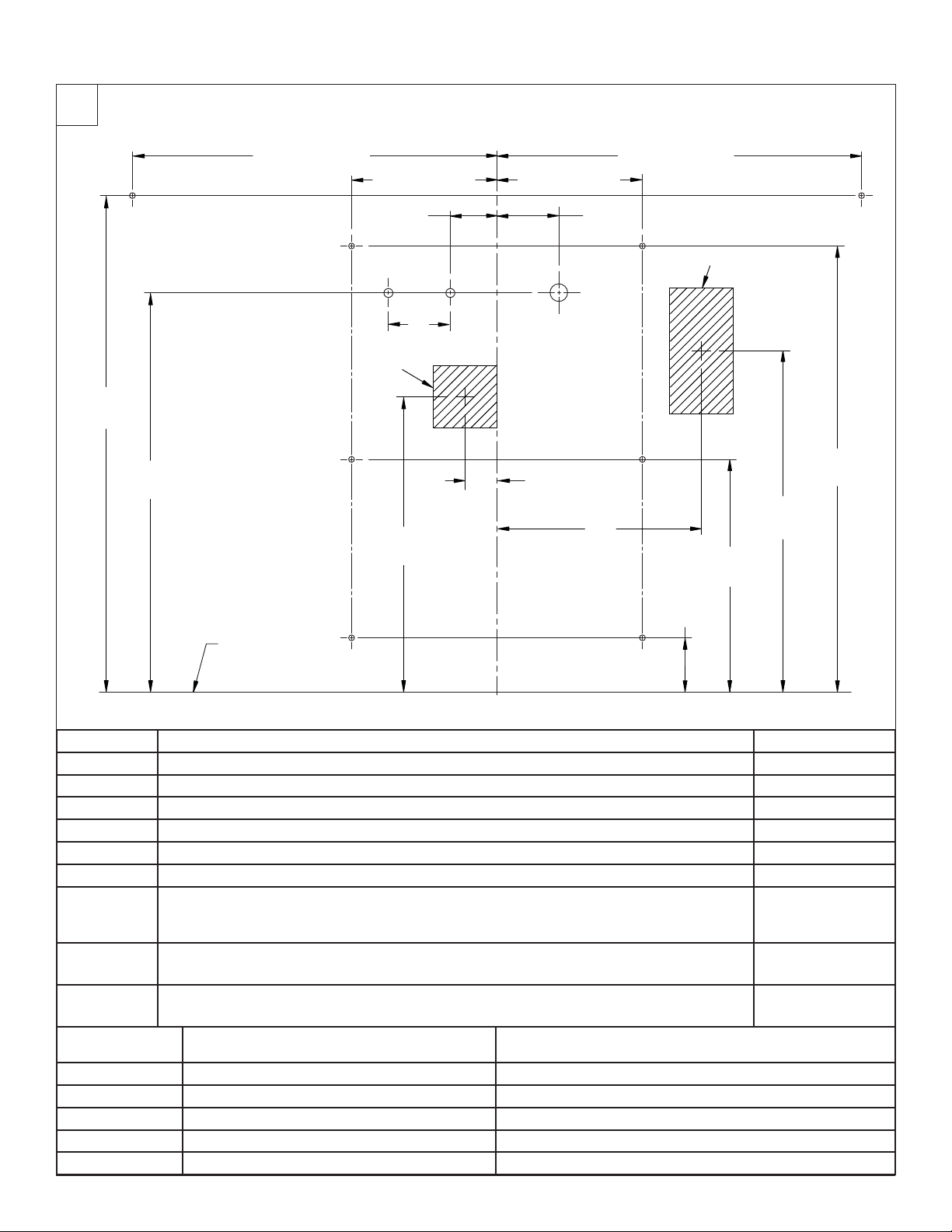

1Rough-Ins
3-1/2"
(89mm)
25-3/4"
(654mm)
32"
(813mm)
28-3/4"
(730mm)
23-1/2" (597mm)
9-3/8" (238mm)
G
4"
(102mm)
3"
(76mm)
15"
(381mm)
A, F A, F
B
BB
B
CC
D1 D2
E
H
FLOOR
22"
(559mm)
19"
(483mm)
23-1/2" (597mm)
9-3/8" (238mm)
4"
(102mm)
13"
(330mm)
2"
(51mm)
CODE DESCRIPTION QTY.
A 3/8" Wall Anchors with a minimum pull-out force of 1,000 lbs. for Bowl 2
B 3/8" Wall Anchors with a minimum pull-out force of 1,000 lbs. for Mainframe 4
C 3/8" Wall Anchors for Base Frame, Standard Frame option only, minimum pull-out force not required 2
D1 1/2" NPT Cold Supply, stub-out 2" from wall 1
D2 1/2" NPT Hot or Tempered Supply, stub-out 2" from wall 1
E 1-1/2" NPT Drain, stub-out 2" from wall 2
F
On the bowl back, measure the distance between the 3/4" bowl mounting holes. Divide this measurement
in half. Measure and mark this dimension on the wall to the left and the right of the centerline. Install two
3/8" wall anchors with a minimum pull-out rating of 1,000 lbs (supplied by installer) at locations marked.
2
GWater Heater Option #1: Rough-in appropriate electrical supply per local code (recommended location for
240/208v or 277v electrical box [4" long x 4" wide x 8" high] shown) 1
HWater Heater Option #2: Rough-in appropriate electrical supply per local code (recommended location for
240/208v or 277v electrical box [4" long x 4" wide x 4" high] shown) 1
RIM HEIGHT VERTICAL HEIGHT ADJUSTMENTS FOR CODES
A–E, H, C and W FIXTURE STYLE
34" None Standard Height
34" None Wall-Hung
32" Subtract 2" TAS, Grades 6 through 8 or 9
31" Subtract 3" Juvenile Height
30" Subtract 4" TAS, Pre-K through Grades 5 or 6

Installation SS-2N/AST/STD, SS-2N/AST/WH
Bradley Corporation • 215-1498 Rev. E; ECN 07-814 12/11/07 7
SCUFF PANEL
STANDARD HEIGHT
FRAME ONLY
SCUFF BASE FRAME
STANDARD HEIGHT
FRAME ONLY

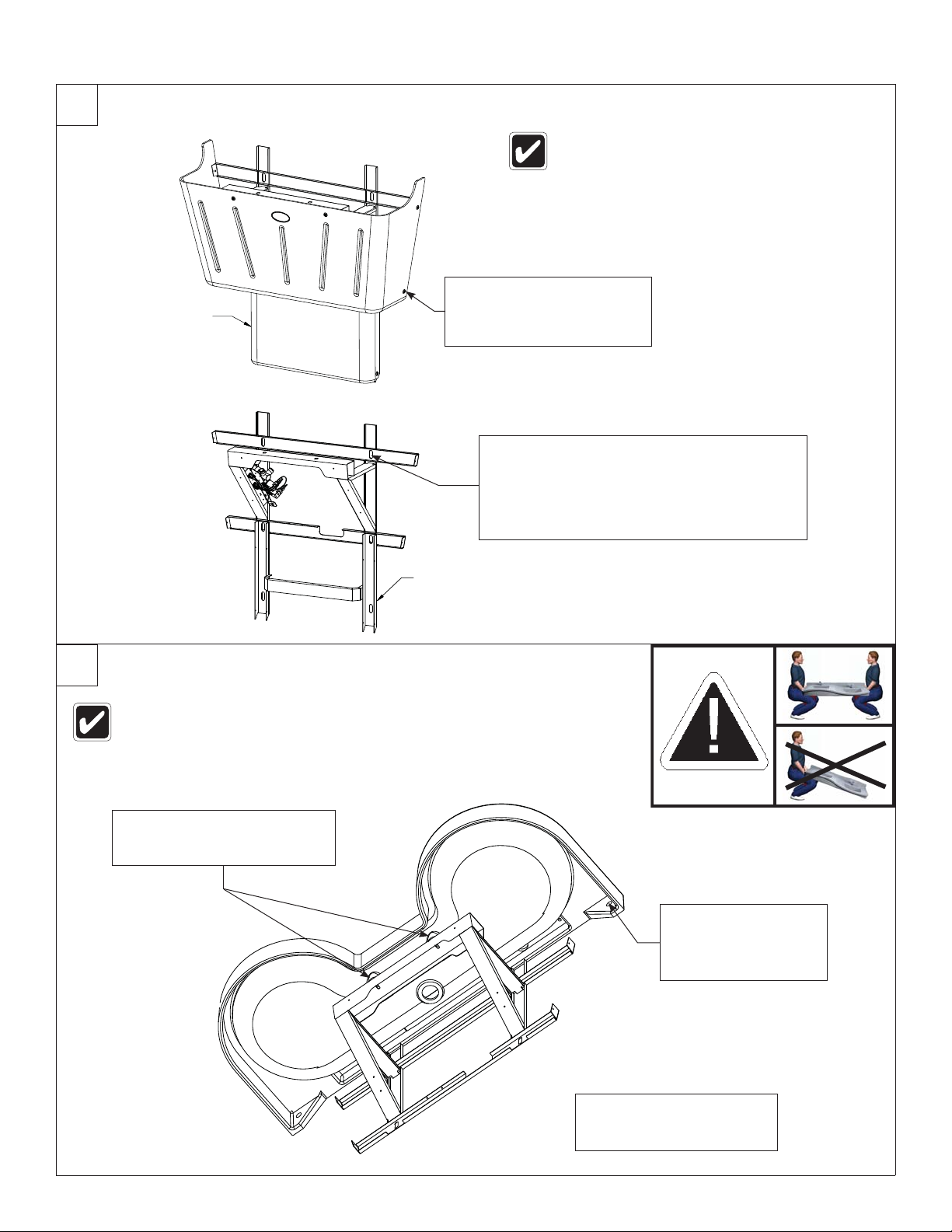

2Mount Frame to Wall
3Install Bowl
Anchoring the frame to a wall that is not
flat may cause the frame to bend, making
it difficult to reinstall the access panels. If
necessary, use shims to compensate for
wall distortion.
Once you have positioned the frame such that it is
level and flat against the wall or shimmed , mount the
frame to the wall at four places using 3/8” bolts and 1”
min. O.D. washers.
NOTE: When mounting the standard height frame,
mount the scuff base to the wall at the same time
using two additional 3/8” bolts and washers.
B
AUsing a T20 torx key, remove
the fasteners securing the
access panel to the main
frame, and remove the panel.
The sprayhead body has slotted holes for adjusting the fit-up with the bowl and wall.
The tailpiece on the waste tee has been rotated upward for shipping purposes. Turn
the tailpiece down to its proper position before installing the bowl.
Secure the bowl to the
wall anchors with 3/8”
bolts and 1” min. O.D.
washers, two places.
Do not overtighten.
B
Attach the bowl to the frame with
1/4”-20 x 1/2” pan-head screws
and washers. Do not tighten.
A
Tighten the pan-head screws
Do not overtighten.
C

SS-2N/AST/STD, SS-2N/AST/WH Installation
812/11/07 Bradley Corporation • 215-1498 Rev. E; ECN 07-814
4a Connect the Supply — Hot and Cold Supply
4b Connect the Supply — Single Tempered Supply
The letter “H” on the Vernatherm™ Mixing
Valve indicates hot water supply inlet.
Loosen but do not remove
the two mounting screws
holding the valve bracket
to the frame.
Slide the valve bracket up
and lift it from the frame.
A
Connect one end of each
hose to the Vernatherm™
valve (one on the hot side,
one on the cold side).
Connect the other swivel
end to the stop/check valves.
C
Using a thread sealer, thread
the stop/check valves onto the
hot and cold wall stub-outs.
B
Loosen but do not remove the two
mounting screws holding the valve
bracket to the frame.
Slide the valve bracket up and lift
it from the frame.
A
Connect one end of flexible hose
to the tempered line adapter.
Connect the other swivel end to
the stop/check valve.
C
Using a thread sealer,
thread the stop/check
valve onto the tempered
wall stub-out.
B

Installation SS-2N/AST/STD, SS-2N/AST/WH
Bradley Corporation • 215-1498 Rev. E; ECN 07-814 12/11/07 9

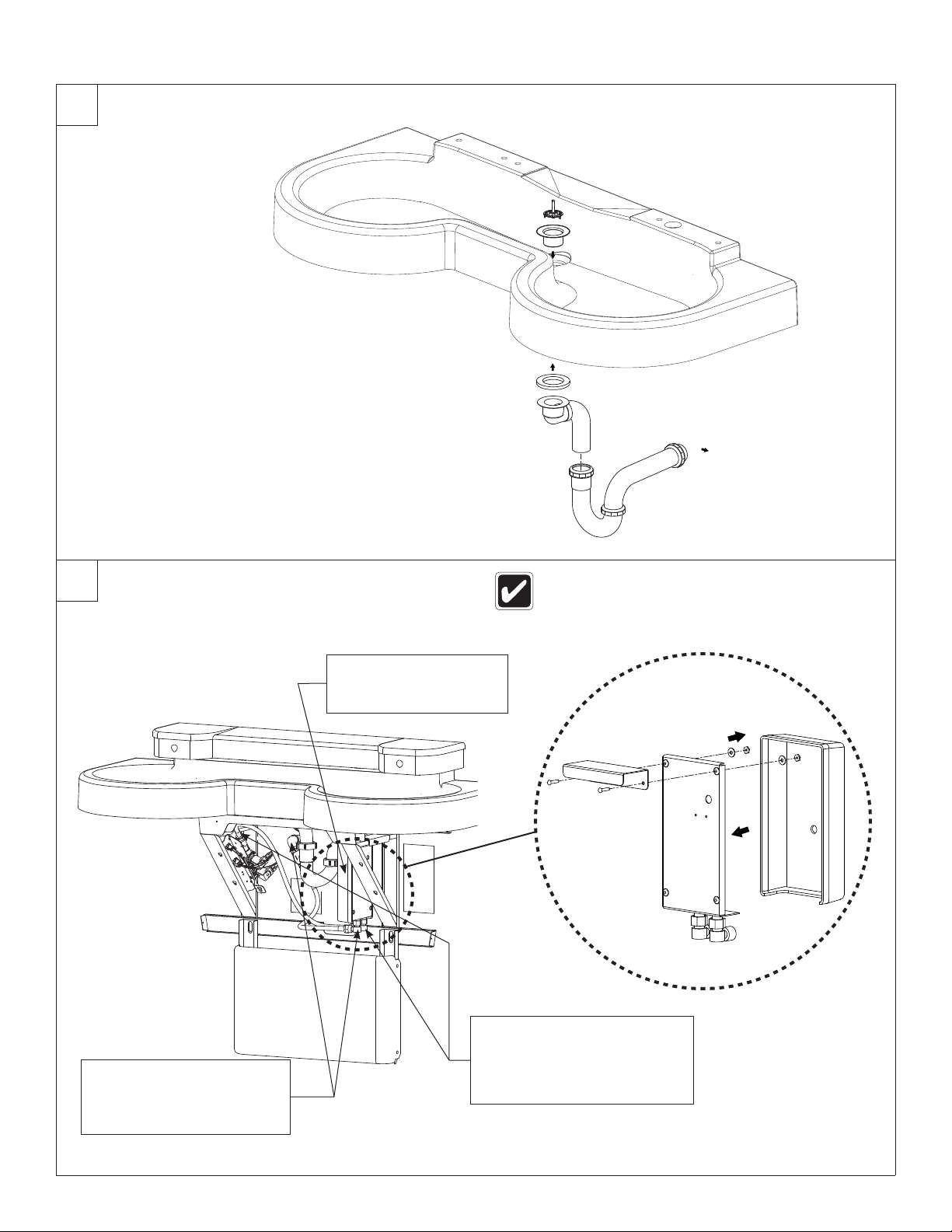

6Optional Electric Tankless Water Heater
5Install the Drain
240/208 or 277 voltage is required for hot water heater.
Refer to the installation manual provided with the hot
water heater for further installation information.
Connect the 1/2" flexible
hose from the cold water
supply stub-out to the hot
water heater inlet.
B
Connect the 1/2" flexible
hose from the hot water
heater outlet to the supply
inlet on the solenoid valve
assembly.
C
Hang the water heater
on the right side frame
member.
A
To Drain
Stub-Out

SS-2N/AST/STD, SS-2N/AST/WH Installation
10 12/11/07 Bradley Corporation • 215-1498 Rev. E; ECN 07-814
1/4" Tube
Connector
(169-890)
Spring
(135-065)
U-Cup
(125-099)
Piston
(119-227A)
Duckbill
(198-010)
Actuator
Body
(118-279)
Push Button
(S08-324)
Bracket, SSN
Push Button
(140-956)
Aerator
(S05-180)
#8 Screw
(160-396)
Nut, 1/2"-14 NSPM
(110-115)
7Connect Supply and Tubing
Sprayhead Components
Reinstall the valve bracket. Turn on the water supply to the Express®and check for leaks. Push the operating buttons of each
station until all the air is purged from the lines and water is flowing smoothly. Reinstall the access panel.
C
Push Button Assembly
• To access push button assembly: Remove the Phillips-head screws located in the bottom of the sprayhead body and lift
the Terreon cover/shelf off.
•To reinstall sprayhead cover/shelf: Position the cover/shelf on the sprayhead body and secure it to the sprayhead body
using the screws provided.
Loosen the compression nuts.
Push the matching color 1/8" tubes
firmly into the tube connectors until
they are fully seated.
Tighten the compression nuts by hand.
B
Loosen the compression nuts.
Push the sprayhead supply tubes firmly
into the tube connectors until they are
fully seated.
Tighten the compression nuts by hand.
A

Installation SS-2N/AST/STD, SS-2N/AST/WH
Bradley Corporation • 215-1498 Rev. E; ECN 07-814 12/11/07 11
Turn off water supplies to the unit before troubleshooting.
Troubleshooting – Metering Air Valve
Problem Cause Solution
Valve will not
shut off.
Timing
mechanism is
clogged.
Clean and inspect timing mechanism:
1. If compressed air is available, blow water and debris from timer cover of timing mechanism.
2. Turn adjusting screw out all the way. Clean and inspect screw and valve body.
3. Turn adjusting screw in to desired cycle time.
Valve will not
turn on.
Water is not
being supplied
to unit.
Open all stops on mixing valve.
Water pressure
is over 80 PSI.
Install a pressure reducing valve.
Failed
diaphragm/
magnet
assembly.
Unscrew the valve clamp nut on valve. Remove valve cover. Gently press the diaphragm. The
valve should activate. If not, replace the diaphragm/magnet assembly.
Timing can not
be adjusted for
more than 5
seconds.
There is an air leak. Check the valve assembly:
1. Check all tubing and fittings for proper assembly.
2. Tighten cap and nut on 1/8" tubing.
Pushbutton
does not work
properly.
Air volume may
not be sufficient to
operate valve.
Check for leaks and lubricate U-cup:
1. Check all fittings for air leaks.
2. Disassemble pushbutton and lubricate U-cup seal (see pushbutton assembly diagram on page 9).
Water is
dripping
from the
streamformers.
Debris has
accumulated
on valve seat or
orifices.
Clean and inspect valve seat:
1. Remove screws and disassemble metering valve.
2. Clean valve seat and inspect for deep gouges or scratches. Replace valve body if necessary.
3. Remove any debris clogging off-center hole in rubber diaphragm.
1
2
14
13
12
10
11
15
13
5
4
3
9
7
8
6
Item Qty. Description
1 1 Diaphragm
2 1 Armature
3 1 Spring
4 1 AST 4 Valve Upper Body
5 1 Spring
6 1 Magnet/Diaphragm Assembly
7 1 AST 4 Valve Cover
8 1 AST 4 Valve Clamp Nut
9 1 AST 4 Valve Timer Assembly
10 2 O-Ring
11 1 AST 4 Valve Timer Cover
12 3 Screw, #8 x 7/8"
13 1 Compression Nut, 1/8" Tube
14 1 Compression Nut, 1/4" Tube
15 1 O-Ring

SS-2N/AST/STD, SS-2N/AST/WH Installation
12 12/11/07 Bradley Corporation • 215-1498 Rev. E; ECN 07-814
Before attempting to troubleshoot the valve or disassemble the
components, check for the following conditions:
• If stop/check valves are used, make sure that they are fully open.
• Make sure that the hot and cold inlet pipes are connected
properly, and that there are no cross-connections or leaking
stop/check valves.
• Make sure water heater output is at least 20° F above the set
temperature.
Close shut-off valves prior to disassembly and reopen the valves
after inspection and repair is complete.
Troubleshooting – Vernatherm™Thermostatic Mixing Valve: Part no. S01-524
9
6
5
4
3
2
1
7
8
Strainer
(173-028)
Valve Body
Spring
Thermostat
Piston
Stem
O-Ring
O-Ring
Cap
Nut 3/8-24
Hex Jam
10
Seal Cup
11
Item Qty. Description
5 1 Thermostat
7 1 O-Ring
8 1 O-Ring
Repair Kit S65-259
Strainer
173-028
Tempered Line Adapter Option: Part no. S39-685
(replaces S01-524 if tempered line is used)
Problem Cause Solution
External
leaks in the
system.
O-rings
have been
damaged.
Replace O-rings. Contact your Bradley representative to order Repair Kit no. S65-259.
Improper water
temperature or
temperature
fluctuation.
Thermostat is
slowly failing
or not working
at all.
Check the thermostat for proper operation:
1. At room temperature (80° F or less) remove the cap and thermostat.
2. Place the thermostat into a container with 115° F water. The pushrod should pop out of the
thermostat approximately 1/10". If pushrod does not pop out, replace the thermostat. Contact your
Bradley representative to order Repair Kit no. S65-259.
Valve
temperature
is not properly
set
Adjust the temperature using a blade screwdriver: Turn the adjustment stem counterclockwise to
increase the temperature or clockwise to decrease the temperature.
Limited
water flow.
Dirt and
debris have
built up in
the valve or
strainer.
1. Ensure hot and cold supplies are connected to the mixing valve and that they have sufficient water
flow.
2. Remove and clean the strainer. If it needs to be replaced, Contact your Bradley representative to
order Bradley part no. 173-028.
3. Check the piston for smooth movement:
A. Remove the valve’s cap and thermostat.
B. Push down on the piston; if the piston does not move freely, clean it as outlined below:
• Remove the thermostat. Lift the piston out with a needle-nose pliers and remove the spring.
• Any brass and stainless steel cleaner may be used. If a suitable cleaner is insufficient to
remove debris, use a 400-grit sandpaper to polish and hone the piston and valve body).
• Snap the spring into the piston (it will detent); reassemble into the valve body. Retest the
piston.
C. If, after a thorough cleaning, the piston does not move freely, the piston must be replaced.
Contact your Bradley representative to order Repair Kit no. S65-259.

Installation SS-2N/AST/STD, SS-2N/AST/WH
Bradley Corporation • 215-1498 Rev. E; ECN 07-814 12/11/07 13
Stop/Check Valve Troubleshooting
Problem Cause Solution
Water dribbles or
does not flow from the
sprayhead.
Stop/Check
Valves may not be
functioning properly.
1. Close the stops and inspect the valves that supply water to the
lavatory system.
2. Inspect the stop/check valves to see that they have been properly
installed.
3. Remove the flexible hoses from the stop/check valves and inspect
the strainers. Clean strainers, if necessary.
Sprayhead delivers
ONLY hot OR cold water.
Stop/Check
Valves may not be
functioning properly.
1. Close the stops and inspect the valves that supply water to the
lavatory system.
2. Inspect the stop/check valves to see that they have been properly
installed.
3. Remove the flexible hoses from the stop/check valves and inspect
the strainers. Clean strainers, if necessary.
4. Inspect the thermostatic mixing valve for proper installation and
connection to hot and cold supplies.
Cleaning and Maintenance for Terreon®
Material Description: Terreon®is an NAHB Certified densified solid surface material composed of polyester resin and is
resistant to chemicals, stains, burns and impact. Surface damage can be easily repaired with everyday cleansers or fine grit
abrasives.
Routine Cleaning: Clean daily or as often as conditions require using a standard commercial or household cleaner such as
Formula 409®or Windex®.
Stubborn Stains: Remove tough stains with Ajax®, Comet®, or Soft-Scrub®and a green Scotch-Brite®pad or lightly sand in
a circular motion with 240 grit wet/dry sandpaper. The finish can be renewed with a maroon Scotch-Brite®pad.
Special Situations for Material
Scratches: Remove scratches with a green Scotch-Brite®pad. The finish can then be renewed with a maroon Scotch-Brite®
pad, followed by a white Scotch-Brite®pad or 30-micron sandpaper.
Hard Water Deposits: Remove hard water deposits with a mild solution of vinegar and water. Always rinse the unit
thoroughly after cleaning.
Restoring the surface: Use Hope’s®Solid Surface cleaner and polish to refresh and protect the Terreon®Solid Surface
material. Bradley recommends additional care and maintenance for the darker colored Terreon®, for complete instructions on
this additional maintenance refer to Bradley technical document #1505.
Do not use strong acid or alkaline chemicals and cleansers to clean Terreon®. If these chemicals come in
contact with the surface, wipe them off immediately and rinse with soapy water. Avoid contact with harsh
chemicals such as paint remover, bleach, acetone, etc. Avoid contact with hot pans and objects.
Repair Kits: Terreon®repair kits are available. Contact your Bradley representative or distributor for part numbers and pricing
Repair kits are made to order and have a shelf life of 30 days.
Terreon®is a unique, cast solid surface material. Aggregate flow and distribution as well as shades of color can vary
from product to product creating natural characteristics.
Brand Names: Use of brand names is intended only to indicate a type of cleaner. This does not constitute an endorsement,
nor does the omission of any brand name cleaner imply inadequacy. Many products named are regional in distribution, and
can be found in local supermarkets, department and hardware stores, or through your cleaning service. It is emphasized that
all products should be used in strict accordance with package instructions.

SS-2N/AST/STD, SS-2N/AST/WH Installation
14 12/11/07 Bradley Corporation • 215-1498 Rev. E; ECN 07-814
Fill Soap Dispenser
Clean Soap Dispenser
Do not use abrasive cleansers to clean the soap tank. Abrasive cleaners can damage the surface.
Regular cleaning of the soap dispenser is recommended to ensure optimum performance and maximum service life. Cleaning
the soap dispenser monthly to remove soap residue, dirt, and other accumulations should become a regular part of your
washroom cleaning routine and general maintenance program.
Clean exterior: Use warm water and soap to clean the exterior of the soap dispenser. Dry with a soft cloth.
Clean interior: Inspect the interior of the tank for residue or coagulation of soap. If necessary, clean the tank according to
the following procedure:
1. Pour out any remaining soap in the tank.
2. Full the tank half-full of hot water and shake the tank to dislodge the soap residue.
3. Empty the water from the container and repeat steps 1 and 2 until the soap container is clean.
If rinsing alone does not remove the soap residue, place a small chain (24 inches long) into the tank with hot water and shake
the container until the chain dislodges the residue. Then remove the chain and rinse out the tank.
Clean internal components: Pump hot water through the soap dispenser until a clean flow of water comes out of the valve.
To change soap, pour out all of the soap from the dispenser. Rinse the dispenser with hot water several times until all residue
is removed. Pump the valve until clean water appears. Rinse the dispenser with ethyl alcohol; air dry before refilling.
The soap valve will dispense vegetable/coconut oil liquid soaps, synthetic detergents, viscous lotion soaps, and antiseptic solutions.
A 10-15% concentration is recommended for vegetable or coconut oil liquid soaps. Before filling, rinse out each soap tank with
hot water to remove packing dust. Shake water out thoroughly and allow to dry. DO NOT OVERFILL!
Filler
Hole
#10 Screw
Leaf Spring will engage when
soap tank is pushed into place.
S65-291 (Gray)
includes:
S65-291A (Putty)
includes:
S65-291B (Coal)
includes:
Gray Tank w/Valve
(S11-220)
Putty Tank w/Valve
(S11-220A)
Coal Tank w/Valve
(S11-220B)
Leaf Spring
(S39-350)
Leaf Spring
(S39-350)
Leaf Spring
(S39-350)
Screw
(160-385)
Screw
(160-385)
Screw
(160-385)
Soap Tank Kits
Soap Valve Repair Kit (S65-258)
(includes Nut, Spring, Washer and Plunger)
Soap Blank
Gray (133-143)
Putty (133-143A)
Coal (133-143B)
