Bradley TouchTime MG Series User manual

Installation
P.O. Box 309
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
[phone]
bradleycorp.com
MG-2 TouchTime®
Express®Lavatory System - MG Series
with TouchTime Metering
Table of Contents
Pre-Installation Information................................................2
Supplies Required .............................................................2
Dimensions.....................................................................3-4
Rough-Ins ..........................................................................5
Mount the Frame ...............................................................6
Install the Bowl ..................................................................6
Connect the Supply ...........................................................7
Install the Drains................................................................8
Connect the Electrical and Tubing.....................................8
Adjust the TouchTime Module ...........................................9
Mount TouchTime Modules ...............................................9
Adjust the Temperature....................................................10
Components ...............................................................11-12
TouchTime®Assembly and Solenoid Valve Access ........12
Cleaning and Maintenance..............................................13
Troubleshooting ..........................................................14-15
215-1480 Rev. K; ECO 19-00-022
© 2019 Bradley
Page 1 of 15 7/10/2019

MG-2 TouchTime Installation
27/10/2019 Bradley • 215-1480 Rev. K; ECO 19-00-022
Pre-Installation Information
Barrier-free and ADA compliant - standard height mounting
The MG-2 TouchTime®Express®Lavatory System must have a rim height no higher than 34" above finished floor to be compliant
with Americans with Disabilities Act (ADA). When mounted at 34" rim height, the MG-2 TouchTime Express Lavatory System
meets ADA, ANSI and UFAS requirements for barrier-free clearances, reaches and controls. Always check local codes and
ordinances for compliance.
Barrier-free and ADA compliant - juvenile height mounting
The MG-2 TouchTIme Express Lavatory System must have a rim height no higher than 30" above finished floor to be compliant
with Americans with Disabilities Act (ADA) Accessibility Guidelines for Buildings and Facilities: Building Elements Designed for
Children’s Use; Final Rule.
Texas Accessibility Standards compliant
The MG-2 TouchTime Express Lavatory System meets Texas Accessibility standards (TAS) for barrier-free clearances, reaches
and controls. Always check local codes and ordinances for compliance.
TouchTime switch and solenoid
Each sprayhead is controlled by a TouchTime switch, enabling each user to activate a single flow of water. Each valve uses less
than half the maximum of hot water allowed by the ANSI/ASHRAE/IESNA 90.1-1989 Standard.
Supplies required for installation
• (8) 3/8" wall anchors, bolts and washers to mount frame and bowl to wall (minimum pull-out rating of 1,000 lbs.)
• 1/2" Nominal copper tubing for hot and cold supplies and 1-1/2" NPT drain piping
• 120V/220V 50/60Hz power source using Bradley supplied 120VAC/12V DC plug-in adapter
WARNING
Make sure that all water supply lines have been flushed and then completely turned off before beginning
installation. Debris in supply lines can cause valves to malfunction.
Turn OFF electrical power to the electrical outlets, then unplug all electrical units prior to installation. Electrical
power MUST remain off until installation is complete. After installation is complete, turn on the water supply
first, then turn on the electrical power.
Hardware supplied by installer must be appropriate for wall construction. Wall anchors must have a
minimum pull-out rating of 1,000 lbs. Follow appropriate dimensions for standard or juvenile height based on
configuration and required rim height. Overtightening fasteners can damage the Terreon® material. Use caution
when tightening bowl and sprayhead fasteners.
IMPORTANT
Read this entire installation manual to ensure proper installation. For optional soap dispenser, refer to
installation instructions for Express Lavatory System MG-Series document 215-1585. When finished with the
installation, file this manual with the owner or maintenance department. Compliance and conformity to local
codes and ordinances is the responsibility of the installer. Product warranties may be found under "Products"
on our Web site at www.bradleycorp.com.
Separate parts from packaging and make sure all parts are accounted for before discarding any packaging
material. If any parts are missing, do not begin installation until you obtain the missing parts.

Installation MG-2 TouchTime
Bradley • 215-1480 Rev. K; ECO 19-00-022 7/10/2019 3
MG-2 TouchTime Express®Lavatory System Dimensions
54"
(1372)
42"
(1067)
15"
(381)
27"
(686)
47"
(1194)
(mm)
(mm)
*Subtract 4" from vertical dimensions for compliance with ADA guidelines for children’s use.
22"
(559)
*39"
(991)
*33½"
(851)
*29½"
(749)
*17½"
(445)
21½"
(546)
9½"
(241)
(mm)
15"
(381)

MG-2 TouchTime Installation
47/10/2019 Bradley • 215-1480 Rev. K; ECO 19-00-022

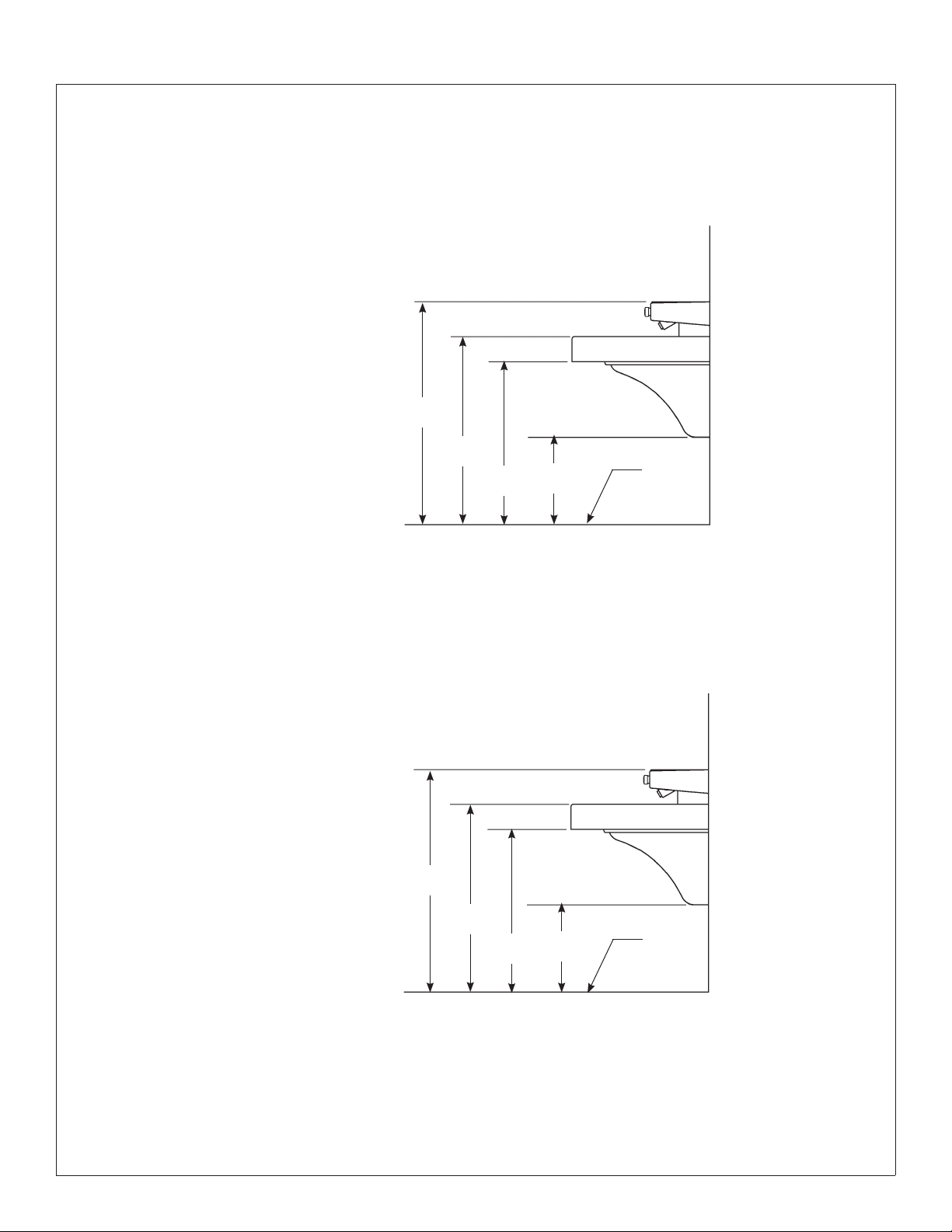

Dimensions continued . . .
TAS Juvenile Height
Grades 6 thru 8 or 9
TAS Juvenile Height
Grades Pre-K thru 5 or 6
37½"
(952)
32"
(813)
28"
(711)
16"
(406)
FLOOR
35½"
(902)
30"
(762)
26"
(660)
14"
(356)
FLOOR
(mm)
(mm)

Installation MG-2 TouchTime
Bradley • 215-1480 Rev. K; ECO 19-00-022 7/10/2019 5

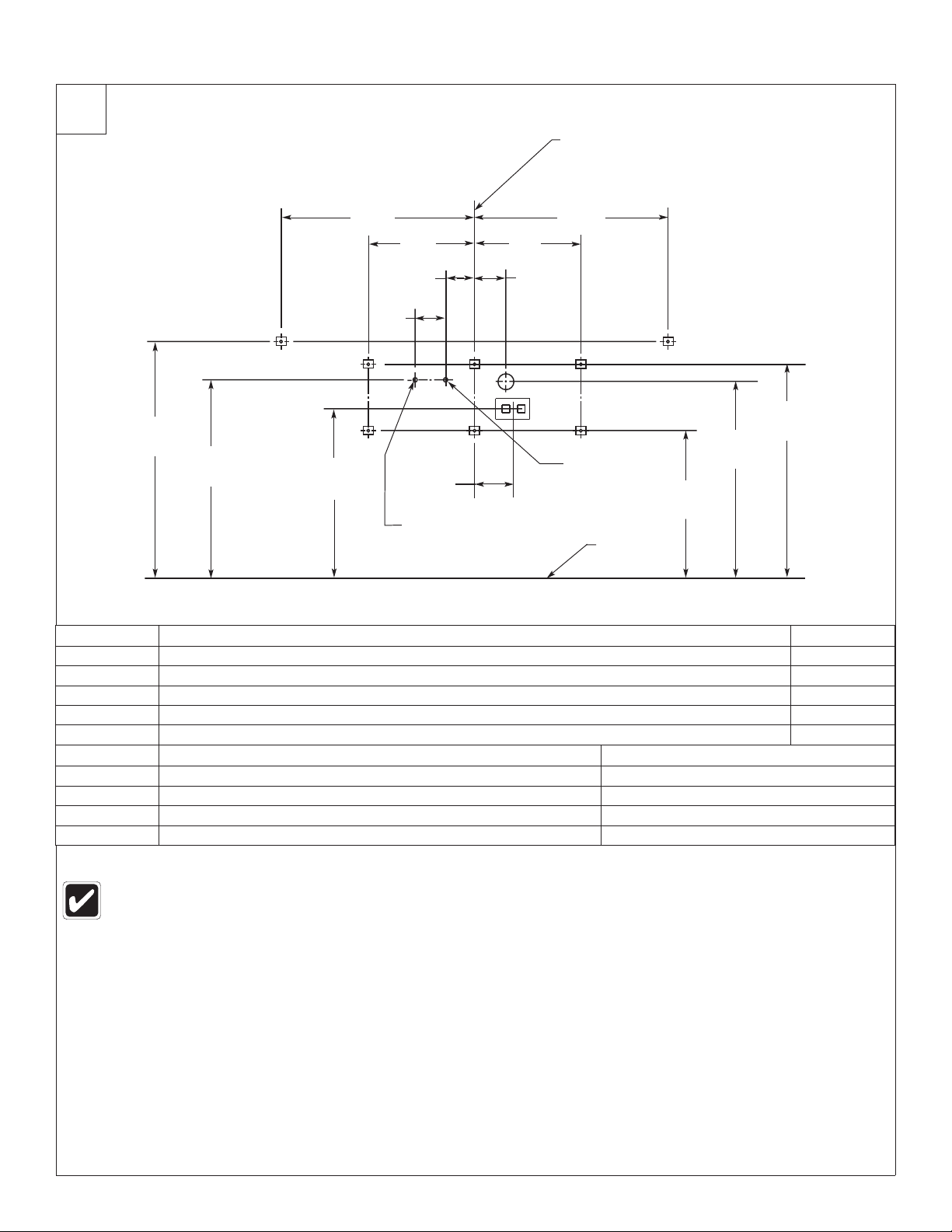

Rough-Ins
1
CODE DESCRIPTION QTY.
A3⁄8" Wall Anchors with a minimum pull out force of 1,000 lbs. 8
B½" Nominal Copper Tubing for Hot Supply, Stub-Out 2" from Wall 1
C½" Nominal Copper Tubing for Cold or Tempered Supply, Stub-Out 2" from Wall 1
D1½" NPT Drain, Stub-Out 2" from Wall 1
E110V GFCI Protected Electrical Outlet. I.R. and TouchTime Only 1
Rim Height * Vertical Height Adjustments Fixture Style
33½" None Standard Height
32" Subtract 1½" TAS, Grades 6 through 8 or 9
29½" Subtract 4" Juvenile Height
30" Subtract 3½" TAS, Pre-K through 5 or 6
The Express®Lavatory System with TouchTime Metering (model MG-2 TouchTime) must have a rim height no
higher than 34" above finished floor to be compliant with Americans with Disabilities Act (ADA). When mounted
at 33½" rim height, the MG-2 TouchTime Express®meets ADA, ANSI and UFAS requirements for barrier-free
clearances, reaches and controls. Always check local codes and ordinances for compliance.
*31½"
(800MM)
*26"
(660MM)
HOT
SUPPLY
COLD OR
TEMPERED
SUPPLY
14"
(356MM)
CENTERLINE OF FIXTURE
25½"
(648MM)
A
B C D
*19½"
(495MM)
D
A
4"
(102MM)
A A A
A
E
A
*223⁄8"
(568MM) 5"
(127MM)
FLOOR
*25¾"
(654MM)
*28¼"
(718MM)
A
25½"
(648MM)
14"
(356MM)
4"
(102MM)
4"
(102MM)

MG-2 TouchTime Installation
67/10/2019 Bradley • 215-1480 Rev. K; ECO 19-00-022
Loosen, but do not
remove the bottom
panel screws.
ARemove the top access panel
screws and washers and
remove the access panel.
B
Once you have positioned
the frame such that it is level
and flat against the wall or
shimmed, use the 3/8" bolts
and washers (6 places) to
mount the frame to the wall.
C
Anchoring the frame to a wall that is not flat may cause the
frame to bend, making it difficult to reinstall the access panels.
If necessary, use shims to compensate for wall distortion.
Mount the Frame
2
Secure the bowl to the wall anchors
with two 3/8" bolts and washers. Do
not overtighten bolts.
B
Attach the front of the bowl to the frame
using the two ¼-20 x ½" pan-head screws
and washers provided. Do not tighten
screws at this time.
A
Tighten the screws to secure the bowl assembly to
the frame. Do not overtighten.
If necessary, adjust sprayhead body to fit closely
to the wall by adjusting the sprayhead mounting
bolts. Refer to the components illustration for bolt
locations.
C
Install the Bowl
3
If the fixture has a soap option, refer to the soap system installation
manual (215-1585) before installing the bowl assembly.

Installation MG-2 TouchTime
Bradley • 215-1480 Rev. K; ECO 19-00-022 7/10/2019 7

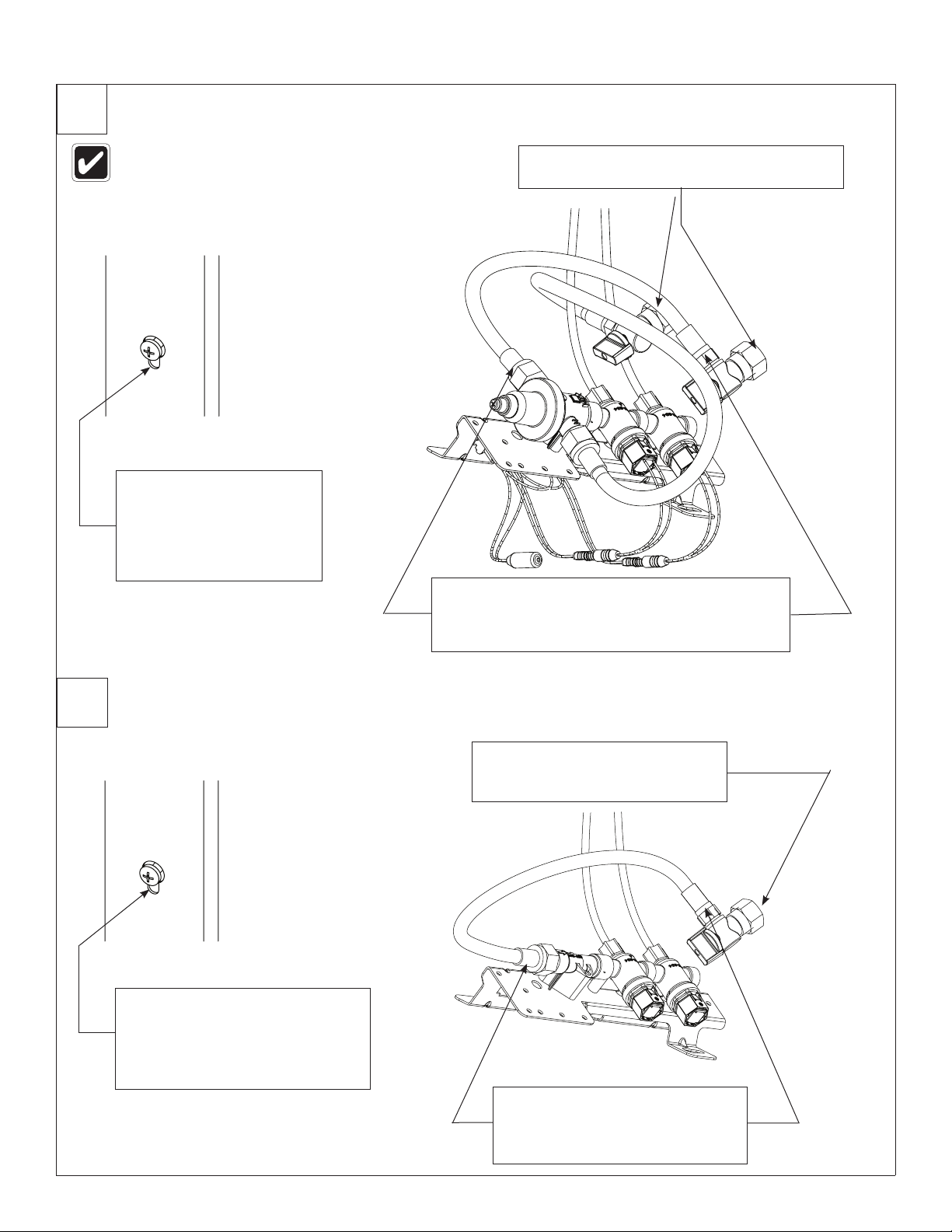

Loosen but do not remove
the two mounting screws
holding the valve bracket to
the frame.
Slide the valve bracket up
and lift it from the frame.
A
Connect one end of each hose to the Navigator valve
(one on the hot side, one on the cold side).
Connect the other swivel end to the stops.
C
Attach the stops onto the hot and cold wall stub-
outs.
B
Connect the Supply - Hot and Cold Supply
4a
The letter “H” on the Navigator Mixing
Valve indicates hot water supply inlet.
Loosen but do not remove the two
mounting screws holding the valve
bracket to the frame.
Slide the valve bracket up and lift it
from the frame.
A
Connect one end of flexible hose to
the tempered line adapter.
Connect the other swivel end to the
stop.
C
Attach the stops onto the wall stub-
out.
B
Connect the Supply - Single Tempered Supply
4b

MG-2 TouchTime Installation
87/10/2019 Bradley • 215-1480 Rev. K; ECO 19-00-022
Install the Drains
5
Connect the Electrical and Tubing
6
WARNING The Express activation must be connected with the 120VAC/12V DC plug-in adapter provided.
Not using the provided adapter can cause personal injury and will result in damage to the
electronics.
Green Supply Tube
(From Sprayhead)
Red Supply
Tube (From
Sprayhead)
Loosen the compression nuts.
Push the sprayhead supply tubes firmly into the
tube connectors until they are fully seated.
Tighten the compression nuts by hand.
A
TouchTime
Module
Compression
Nut
Left Button Right Button
Plug-In Adapter
(261-147A)
Activation of the push button takes place only when it
is released, thereby preventing “hold open” activation.
Connect splitter
connector to
TouchTime module.
B
Connect button
connector to
TouchTime module.
C
Splitter
Connect wall
adapter to splitter.
D
To Drain
Stub-Out

Installation MG-2 TouchTime
Bradley • 215-1480 Rev. K; ECO 19-00-022 7/10/2019 9
Adjusting the TouchTime Module
7
The TouchTime module is set at the factory with the selector
switch in position 5. This provides a 11 second time out period.
To adjust the TouchTime module to a different
time out period, turn the selector switch to
the desired time out setting (4 through 9 for
no flush, A though F for 24 hours flush) as
indicated on the module label.
A
The 24 hour flush function will activate water flow for a period
of 60 seconds any time there has been no activation within the
past 24 hours. This function is used to help clear stagnant water
from the plumbing system and can provide some measure of
prevention against the formation of bacteria in supply pipes.
Pushbutton
Connectors (Can use
either one or both)
LED Indicator
Selector Switch
Power
Connection
Mount TouchTime Modules
8
Secure (2) TouchTime modules with
hook and loop fasteners to frame in
approximate locations shown.
A

MG-2 TouchTime Installation
10 7/10/2019 Bradley • 215-1480 Rev. K; ECO 19-00-022
Reinstall the valve bracket. Turn on the water supply and check for leaks. Turn on
the electrical power, trigger the TouchTime push button of each station until all air
is purged from the lines and water is flowing smoothly. Reinstall the access panel.
C
H
C

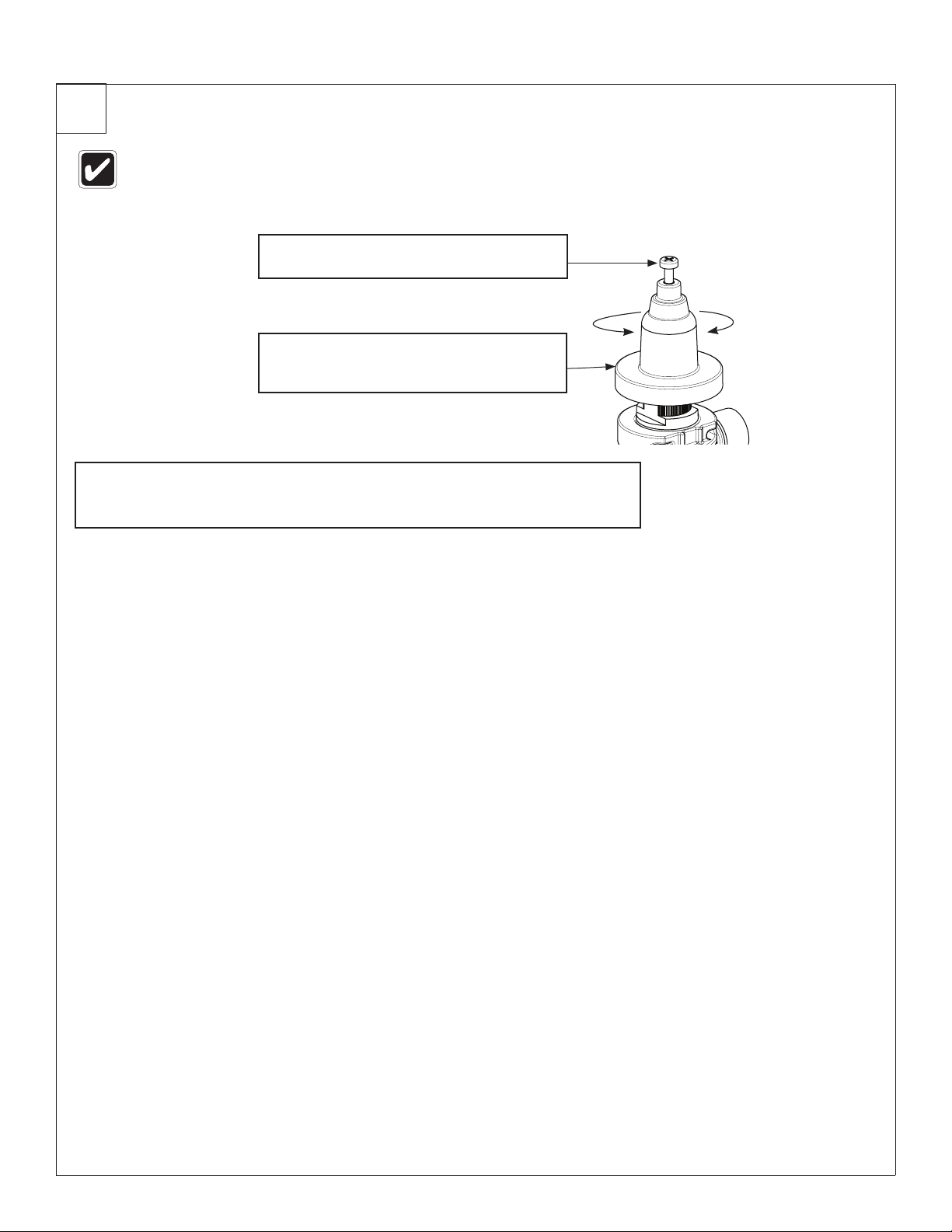

ALoosen Cap Screw about ¼" (4-6 turns)
and lift up cover (do not remove).
BUsing cover, turn cartridge gently until
desired water temperature is reached. Do
not turn past stops as this may damage
unit. Push cover down and tighten screw.
This valve is NOT factory preset. Upon installation, the temperature of this valve
must be checked and adjusted to ensure delivery of a safe water temperature.
Water in excess of 110°F (43°C) may cause scalding.
Adjust the Temperature
9

Installation MG-2 TouchTime
Bradley • 215-1480 Rev. K; ECO 19-00-022 7/10/2019 11

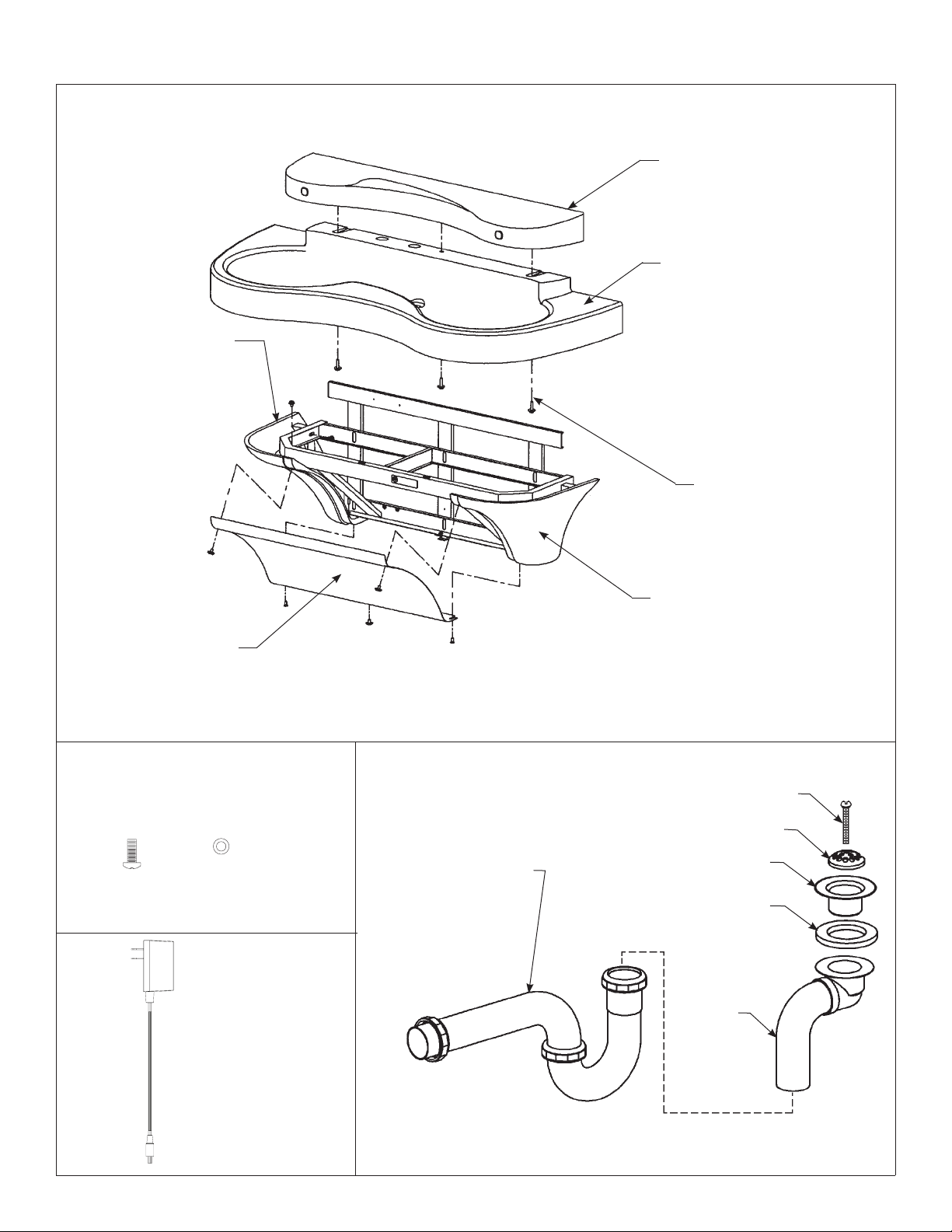

Sprayhead Mounting
Bolts (3)
DRAIN ASSEMBLY
1/8" Rubber Washer
125-001DP
#8-32 Screw
(160-319)
TAILPIECE
129-056
P-Trap
269-1697
(Polypropylene)
S29-094
(Chrome-Plated Brass)
Drain Plug
P16-072
Strainer
P16-075
1/4"-20 x 1/2"
PAN HEAD
SCREW (qty. 4)
(160-389)
1/4"-20
WASHER
(qty. 4)
(142-002DB)
BOWL MOUNTING
HARDWARE
Components
Stainless Steel
Access Panel
(MG-2-PANEL-CAPS)
Contact your local
Bradley rep for part
number.
Sprayhead Body
(MG-2-SPYD-ASSY)
Contact your local Bradley rep
for part number.
Bowl
(MG-2-BOWL-ONLY)
Contact your local
Bradley rep for part
number.
End Cap (Right)
(MG-2-PANEL-CAPS)
Contact your local
Bradley rep for part
number.
End Cap (Left)
(MG-2-PANEL-CAPS)
Contact your local Bradley
rep for part number.
Power Adapter
(261-147A)

MG-2 TouchTime Installation
12 7/10/2019 Bradley • 215-1480 Rev. K; ECO 19-00-022
TouchTime PushButton/Piezo Switch Assembly and Valve Access
To access valve:
1. Using a 5/32" Allen socket wrench, loosen, but do not remove the bottom access panel screws.
2. Remove the top three access panel screws and washers securing the panel to the frame.
3. Remove the access panel. Valve is located on left side of frame.
To remove sprayhead:
1. Remove (3) bolts located underside of bowl neck.
2. Carefully remove sprayhead from bowl.
To access sprayhead/aerators and pushbutton/piezo switch assembly:
1. Remove (2) screws and washers from the access plate assembly using a 1/8" Allen socket wrench. The access plate
assembly is located underneath the sprayhead at two places. The assembly will drop down to access the pushbutton/
piezo switch assembly, aerator and tube connector.
Mounting Location to
Bowl (3) Places
Sprayhead Body
Sprayhead Aerator
Assembly S05-166
Mechanical TouchTime and
Aerator/Access Plate Assemblies Piezo TouchTime and Aerator/
Access Plate Assemblies
S83-368
.5 GPM Aerator
(S05-142A)
160-138
S83-369
Navigator Mixing
Valve
FRAME
Valve
⁵⁄₁₆" I.D. Braided
Hose 269-1365
Components

Installation MG-2 TouchTime
Bradley • 215-1480 Rev. K; ECO 19-00-022 7/10/2019 13
Cleaning and Maintenance for Terreon®
Material Description: Terreon is a densified solid surface material composed of bio based resin and is resistant to chemicals,
stains, burns and impact. Surface can be easily repaired with everyday cleansers or fine grit abrasives. Because Terreon is a
unique cast material, its aggregate flow and distribution, and shades of color can vary from product to product creating natural
characteristics.
Routine Cleaning: For regular cleaning, use mild neutral base cleaners.
Stubborn Stains: Remove tough stains with Soft-Scrub®and a green Scotch-Brite®pad or lightly sand in a circular motion with
240 grit wet/dry sandpaper. The finish can then be renewed with a maroon Scotch-Brite pad.
Scratches: Remove scratches with a green Scotch-Brite pad. The finish can then be renewed with a maroon Scotch-Brite pad.
Hard Water Deposits: Remove hard water deposits with a mild solution of vinegar and water. Always rinse the unit thoroughly
after cleaning.
Restoring the surface: Use Hope’s
®
Perfect Countertop to refresh and protect the Terreon Solid Surface material. Dark Terreon
colors may require additional care and maintenance. For complete instructions on this additional maintenance, visit bradleycorp.com.
Repair Kits: Terreon repair kits are available. Contact your Bradley representative or distributor for part numbers and pricing.
Repair kits are made to order and have a shelf life of 30 days.
NOTICE! Do not use strong acid or alkaline chemicals and cleaners to clean Terreon. If these chemicals come
in contact with the surface, wipe them off immediately and rinse with soapy water. Avoid contact
with harsh chemicals such as paint remover, bleach, acetone, etc. Avoid contact with hot pans and
objects.
Cleaning and Maintenance for Stainless Steel
Material Description: Stainless steel is extremely durable, and maintenance is simple and inexpensive. Proper care, particularly
under corrosive conditions, is essential. Always start with the simplest solution and work your way toward the more complicated.
Routine cleaning: Daily or as often as needed use a solution of warm water and soap, detergent, or ammonia. Apply the cleaning
solution per the manufacturer's instructions and always use a soft cloth or sponge to avoid damaging the finish.
Stubborn Stains: To remove stains from stainless steel use a stainless steel cleaner and polish such as Ball®stainless steel
cleaner or a soft abrasive. Always follow the manufacturer's instructions and apply in the same direction as the polish lines.
NOTICE! Never use ordinary steel wool or steel brushes on stainless steel. Always use stainless steel wool
or stainless steel brushes.
Fingerprints and Smears: To remove fingerprints or smears use a high quality stainless steel cleaner and polish in accordance
with the manufacturer's instructions. Many of these products leave a protective coating that helps prevent future smears and
fingerprints.
Grease and Oil: To remove grease and oil use a quality commercial detergent or caustic cleaner. Apply in accordance to the
manufacturer's instructions and in the direction of the polish lines.
Precautions: Avoid prolonged contact with chlorides (bleaches, salts), bromides (sanitizing agents), thiocyanates (pesticides,
photography chemicals, and some foods), and iodides on stainless steel equipment, especially if acid conditions exist.
NOTICE! Do not permit salty solutions to evaporate and dry on stainless steel.
The appearance of rust streaks on stainless steel leads to the belief that the stainless steel is rusting. Look for the actual source of
the rust in some iron or steel particles which may be touching, but not actually a part of the stainless steel structure.
NOTICE! Strongly acidic or caustic cleaners may attack the steel causing a reddish film to appear. The use of
these cleaners should be avoided.
Brand Names
Use of brand names is intended only to indicate a type of cleaner. This does not constitute an endorsement, nor does the omission
of any brand name cleaner imply inadequacy. Many products named are regional in distribution, and can be found in local
supermarkets, department and hardware stores, or through your cleaning service. It is emphasized that all products should be used
in strict accordance with package instructions.

MG-2 TouchTime Installation
14 7/10/2019 Bradley • 215-1480 Rev. K; ECO 19-00-022
Troubleshooting – Stop Valve
Problem Cause Solution
Water just dribbles
or does not flow
from sprayhead
Water supply malfunctioning 1. Close the stops and check the valves that supply water to
the lavatory system.
2. Inspect the stop valves for proper installation.
Water sprayhead
delivers all hot or
cold water
Water supply or mixing valve
malfunctioning
1. Close the stops and check the valves that supply water to
the lavatory system.
2. Inspect the stop valves for proper installation.
3. Inspect mixing valve for proper hot and cold installation. A
red marking indicates the hot inlet.

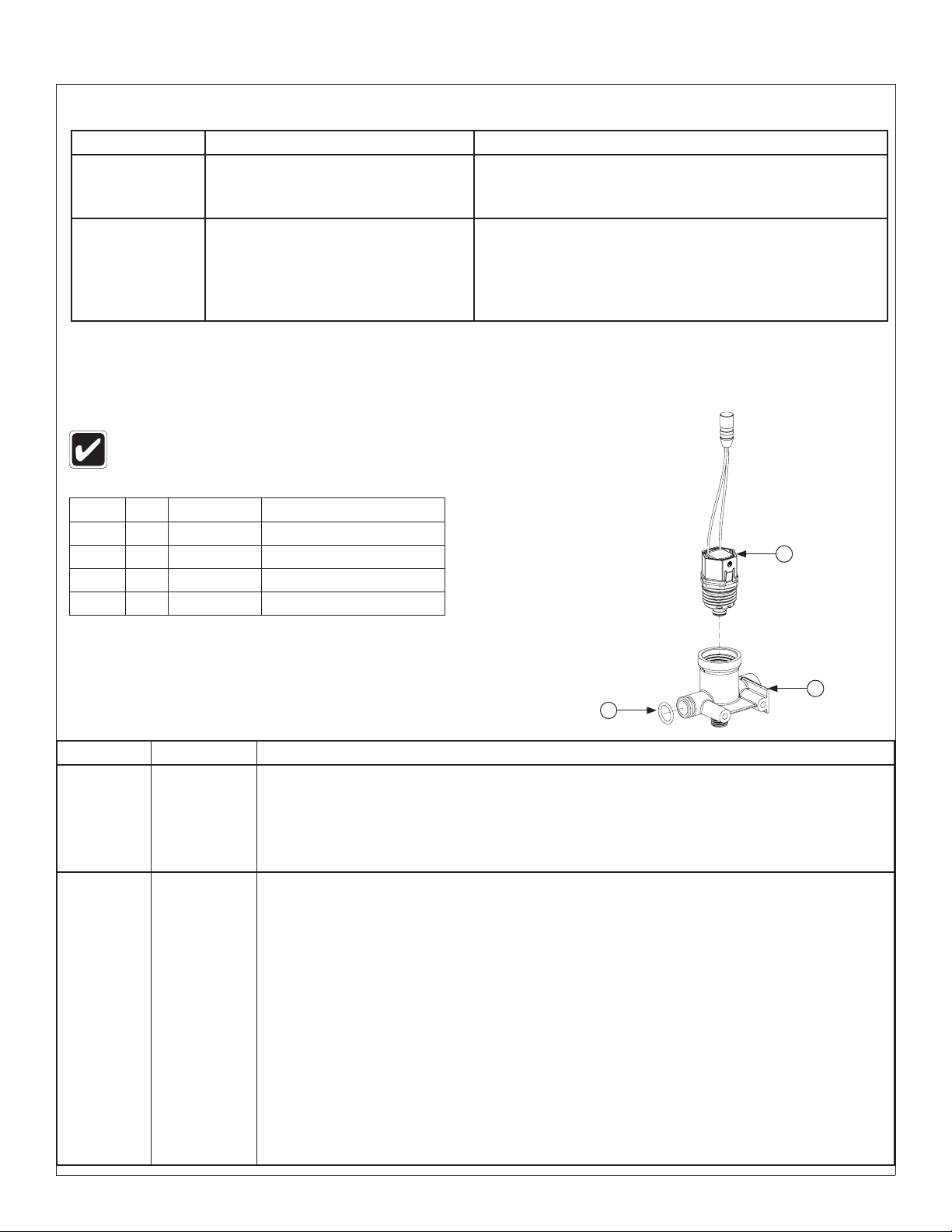

Troubleshooting – Solenoid Valve: Part nos. S07-067-DC (closed
body) & S07-067A-DC (thru body)
Problem Cause Solution
An individual
operating
station fails
to shut off
and drips.
Internal
cartridge
failure.
Replace S27-352 cartridge.
An individual
operating
station fails
to turn on.
A failed
cartridge for
the valve or
loose electrical
connection to
the terminal.
Test the station to determine the cause.
1. Disconnect the wires from the cartridge of an adjacent valve. Disconnect the wires from the
problem valve and reconnect to the adjacent valve.
2. Turn on electrical and water supplies to the unit. Activate the pushbutton/piezo switch on the
problem station, and the adjacent station should turn on.
If the adjacent station turns on and cycles normally, replace the cartridge on the problem valve.
If the adjacent valve fails to turn on, inspect the wires from the pushbutton/piezo switch and do the
following:
• make sure there are no breaks and that the fully insulated disconnect terminals are firmly
crimped in place;
• turn off the electrical and water supplies;
• reconnect to the adjacent valve and turn on the water supplies to the unit;
• activate the pushbutton/piezo switch. If the station still fails to turn on, replace the
pushbutton or piezo switch assembly.
Item Qty. Part No. Description
1 1 118-334 Valve Body, ¼" Closed
1 1 118-334A Valve Body, ¼" Thru
2 1 S27-352 12VDC Valve Cartridge
3 1 125-165 O-Ring, #2-013
Turn off water supplies to the unit before troubleshooting.
2
1
3

Installation MG-2 TouchTime
Bradley • 215-1480 Rev. K; ECO 19-00-022 7/10/2019 15
Tempered Line Adapter Option
Part no. S39-804
(replaces S59-4000 if tempered line
is used)
Strainer
(173-028)
Problem Cause Solution
External leaks. Damaged cartridge or O-rings. Replace cartridge with part number 269-1927
Improper water
temperature or
temperature
fluctuation.
Hot water supply is not 10° above desired set point. Increase hot water supply temperature
Valve temperature is not properly set. Adjust the temperature as shown on page 9, step 8.
Limited water flow. Dirt and debris have built up in the valve or strainer. 1. Check to make sure both hot and cold supplies are
connected to the Navigator mixing valve and that they
have water flow.
2. Remove cover and U-clip. Remove the cartridge and
clean the strainer. It is not required to grease cartridge,
however if desired, use silicone grease only. Do not
use grease on check valves.
Parts List
Item Part No. Description Quantity
S59-4000
1 160-463 Cap Screw 1
2 107-582 Cover 1
3 269-1927 Thermostatic Cartridge 1
4 198-014 Check Valve* 2
5 132-051 Retaining Ring* 2
6 118-319 Valve Body 1
7 146-079 U-Clip 1
* Included with Prepack S65-326
1
2
3
4
5
4
5
7
6
Thermostatic Mixing Valve Troubleshooting
Before attempting to troubleshoot the valve or disassemble the components, check for the following conditions:
• If stop valves are used, make sure that they are fully open.
• Make sure that the hot and cold inlet pipes are connected properly, and that there are no cross-connections or
leaking stop valves.
• Check the hot water heater output to make sure that it is at least 10° F above the set temperature.
Be sure to close the appropriate shut-off valves prior to disassembly of the valve and reopen the valves after inspection
and repair is complete.
