Braun D461R1 User manual

D461R1
D461R1-Manual_EN_Rev01 2022_JAN_18 Page 1 to 37
Manual
Isolating Barrier D461R1
(Revision 01)
Product Manual
Original Instructions
valid for models
D461R1.11 with 1x signal input into 1x isolated signal output
D461R1.12 with 1x signal input into 2x isolated signal output
D461R1.21 with 2x signal input into 2x isolated signal output
D461R1 View
Isolating Barrier with sensor supply
and circuit monitoring
ATEX
II (1) G [Ex ia Ga] IIC
CE 0123
CML 15ATEX2128X

D461R1-Manual_EN_Rev01 2022_JAN_18 Page 2 to 37
Table of Contents
Content Page
Table of Contents........................................................................................................................................................2
1General Information ...........................................................................................................................................4
1.1 List of Figures..............................................................................................................................................4
1.2 Functions and Application ...........................................................................................................................5
1.3 Installation ...................................................................................................................................................5
1.4 Sensor supply circuit monitoring..................................................................................................................5
1.5 Circuit Isolation............................................................................................................................................5
1.6 Ordering key for isolating barriers series D461R1… ...................................................................................6
1.7 General Certificates / Approvals ..................................................................................................................6
1.7.1 EU Declaration of Conformity .............................................................................................................7
2Hazardous protection ........................................................................................................................................8
2.1 Relevant technical Data for Hazardous Area...............................................................................................8
2.2 ATEX Certification for Intrinsic Safety of the Input Circuit............................................................................8
2.3 Explosive relevant Certificates / Approvals..................................................................................................8
2.3.1 ATEX ..................................................................................................................................................8
2.3.2 IECEx .................................................................................................................................................8
2.3.3 USA (NEC) and Canada (CEC) ..........................................................................................................8
2.3.4 EAC Ex ...............................................................................................................................................8
2.3.5 UKEX..................................................................................................................................................9
2.3.6 KCs.....................................................................................................................................................9
2.3.7 ATEX EU Type Examination Certificate ............................................................................................10
2.3.8 IECEx Certificate of Conformity ........................................................................................................14
2.3.9 NEC/CEC Certificate of Conformity ..................................................................................................18
2.3.10 EAC Ex TR CU Certificate ................................................................................................................20
2.3.11 UKEX UK Type Examination Certificate ...........................................................................................24
2.3.12 KCs Certificate..................................................................................................................................28
3Function Diagram and Connections...............................................................................................................30
3.1 Function Diagram and Connection D461R1.11 .........................................................................................30
3.2 Function Diagram and Connection D461R1.12.........................................................................................31
3.3 Function Diagram and Connection D461R1.21.........................................................................................32
4Technical Specifications..................................................................................................................................33
4.1 Technical Data of Inputs (intrinsic safe).....................................................................................................33
4.2 Technical Data of Outputs .........................................................................................................................33
4.3 Technical Data of Power Supply................................................................................................................33
4.4 Environmental conditions ..........................................................................................................................33
4.5 Protection Grade .......................................................................................................................................33
4.6 Connectors................................................................................................................................................34
4.7 Conformity to Standards............................................................................................................................34
4.8 Dimensions................................................................................................................................................35
4.9 Weight .......................................................................................................................................................35
5Safety Notes for Installation and Operation...................................................................................................36
5.1 Safety Notes for Installation.......................................................................................................................36
5.1.1 General Instructions..........................................................................................................................36
5.1.2 EMI ...................................................................................................................................................36
5.2 Safety Notes for Operation ........................................................................................................................36
5.2.1 Safety Notes on Commissioning.......................................................................................................36

D461R1-Manual_EN_Rev01 2022_JAN_18 Page 3 to 37
6Revision Notes .................................................................................................................................................37

D461R1-Manual_EN_Rev01 2022_JAN_18 Page 4 to 37
1 General Information
1.1 List of Figures
Figure 1: EU Declaration of Conformity ............................................................................................................ 7
Figure 2: ATEX EU Type Examination Certificate part 1 ................................................................................. 10
Figure 3: ATEX EU Type Examination Certificate part 2 ................................................................................. 11
Figure 4: ATEX EU Type Examination Certificate part 3 ................................................................................. 12
Figure 5: ATEX EU Type Examination Certificate part 4 ................................................................................. 13

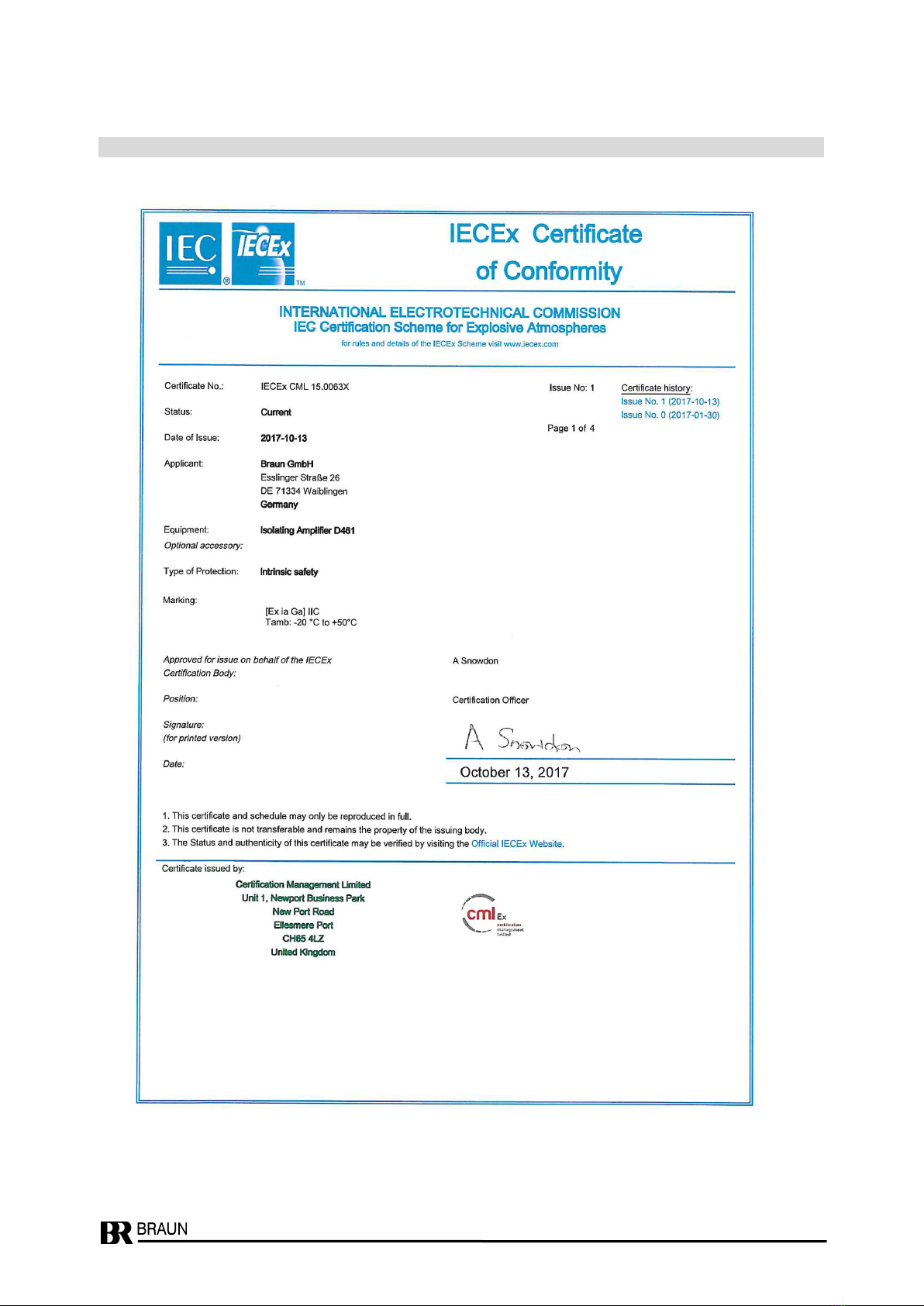

Figure 6: IECEx Certificate of Conformity part 1 ............................................................................................. 14
Figure 7: IECEx Certificate of Conformity part 2 ............................................................................................. 15

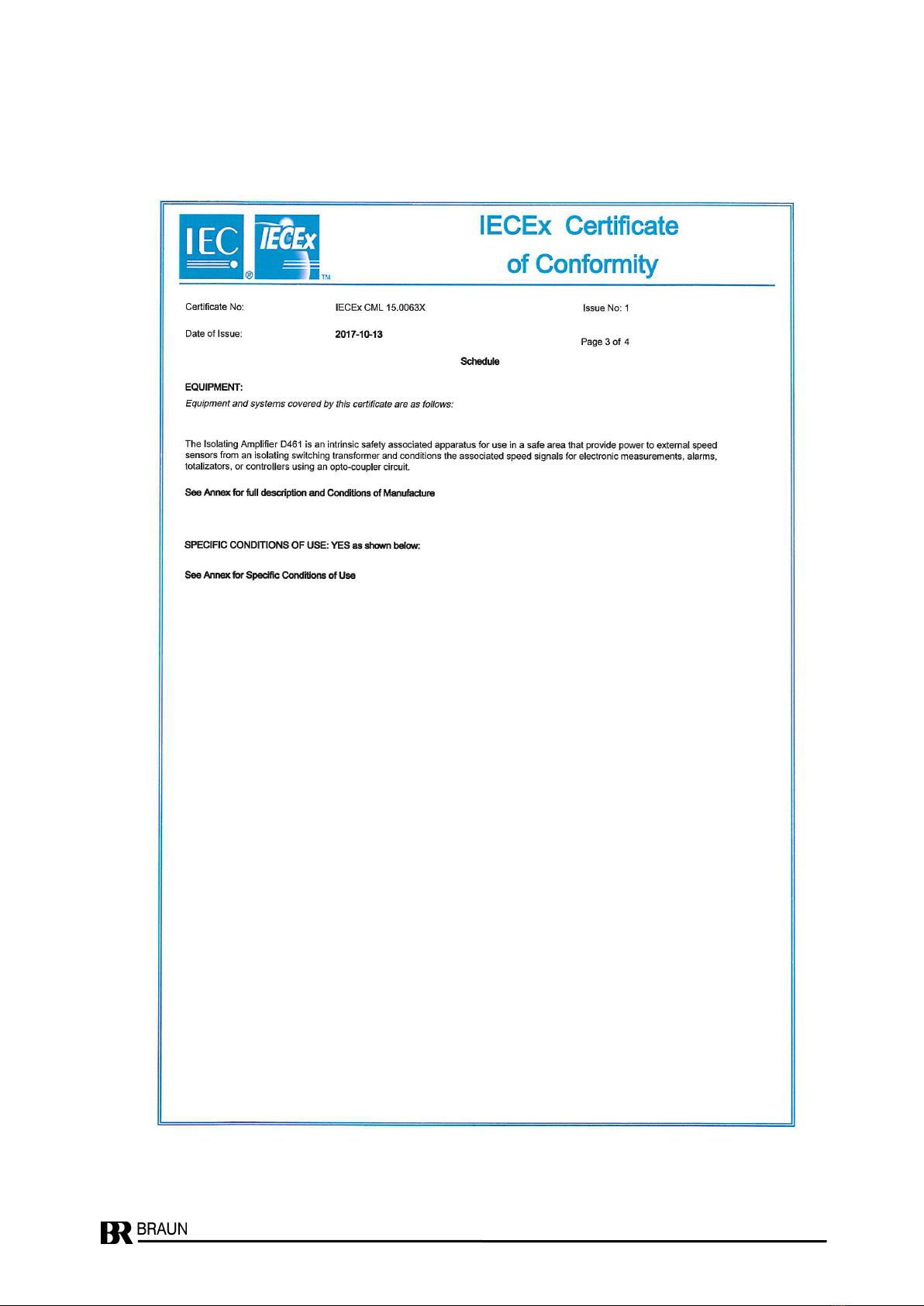

Figure 8: IECEx Certificate of Conformity part 3............................................................................................. 16
Figure 9: IECEx Certificate of Conformity part 4 ............................................................................................. 17
Figure 10: NEC/CEC Certificate of Conformity part 1 ....................................................................................... 18
Figure 11: NEC/CEC Certificate of Conformity part 2 ....................................................................................... 19
Figure 12: EAC Ex TR CU Certificate part 1..................................................................................................... 20
Figure 13: EAC Ex TR CU Certificate part 2..................................................................................................... 21
Figure 14: EAC Ex TR CU Certificate part 3..................................................................................................... 22
Figure 15: EAC Ex TR CU Certificate part 4 ..................................................................................................... 23
Figure 16: UKEX UK Type Examination Certificate part 1 ................................................................................ 24
Figure 17: UKEX UK Type Examination Certificate part 2 ................................................................................ 25
Figure 18: UKEX UK Type Examination Certificate part 3 ................................................................................ 26
Figure 19: UKEX UK Type Examination Certificate part 4 ................................................................................ 27
Figure 20: KCs Certificate part 1....................................................................................................................... 28
Figure 21: KCs Certificate part 2....................................................................................................................... 29
Figure 22: Function Diagram and Connection D461R1.11................................................................................ 30
Figure 23: Function Diagram and Connection D461R1.12 ............................................................................... 31
Figure 24: Function Diagram and Connection D461R1.21 ............................................................................... 32
Figure 25: Dimensions of unit D461R1 ............................................................................................................. 35

D461R1-Manual_EN_Rev01 2022_JAN_18 Page 5 to 37
1.2 Functions and Application
The isolating barrier establishes an intrinsic safety circuit (Ex ia) feeding the sensor, and
receiving the sensor signal. The incorporated optocoupler separates this input from the
subsequent circuit. The output of the unit repeats the input pulse signals, with inverted sequence
but enforced level, to feed electronic measurements, alarms, totalizers, or controllers.
Characteristics of the input circuit immediately match the specifications of the speed sensor
series A5S1…, which are approved as intrinsic safety devices, to be installed in a hazardous
area if properly supplied.
The barrier unit D461R1…must be placed in a safe (non-hazardous) area, or within an
explosion-proof enclosure.
A speed sensor series A5S1…, in combination with the barrier D461R1…thereby establishes an
efficient speed sensing system, to supply high-level output signals to the periphery.
Version D461R1.11
The barrier D461R1.11 incorporates one signal input for single-channel sensors and one signal
output.
Version D461R1.12
The barrier D461R1.12 incorporates one signal input for single-channel sensors and two signal
outputs. Both signal outputs repeat the input pulse signal.
Version D461R1.21
The barrier D461R1.21 incorporates two signal inputs for dual-channel sensors and two signal
outputs. The signal outputs repeat one input pulse signal each.
1.3 Installation
The barrier D461R1…is designed for indoor use (NEMA 1), e.g. within switchboards, racks or
cabinets. Screw mounting or snap-on-track (DIN 50022 / 35 mm) can be used.
Protection grade IP20.
As a special version, the barrier is available in enclosure grade IP65 (NEMA4), or in explosion-
proof enclosure (Exd II C T5).
1.4 Sensor supply circuit monitoring
The sensor supply circuit is monitored against lead break and short circuit. A fault is announced
by alarm relay. An additional transistor output is non-conductive in the case of a fault. The
transistor output can be connected to the sensor supply of a subsequent module, thus enabling
its own sensor supply circuit monitor.
1.5 Circuit Isolation
Input, output and power supply are isolated from each other.
The output circuit must not be connected to other devices having an operational voltage
exceeding 375 volts (peak).

D461R1-Manual_EN_Rev01 2022_JAN_18 Page 6 to 37
1.6 Ordering key for isolating barriers series D461R1…
D461R1. ab
Channels incorporated
a = 11 : 1x signal input into 1x isolated signal output
a = 12 : 1x signal input into 2x isolated signal output
a = 21 : 2x signal input into 2x isolated signal output
Supply voltage
b = U1 : 18…40 V AC resp. V DC
b = U2 : 85…250 V AC
Examples:
D461R1.11U2 = with 1x signal input into 1x isolated signal output for 85...250 V AC
D461R1.11U1 = with 1x signal input into 1x isolated signal output for 18...40 V AC resp. V DC
D461R1.12U1 = with 1x signal input into 2x isolated signal output for 18...40 V AC resp. V DC
D461R1.21U2 = with 2x signal input into 2x isolated signal output for 85...250 V AC
1.7 General Certificates / Approvals

D461R1-Manual_EN_Rev01 2022_JAN_18 Page 7 to 37
1.7.1 EU Declaration of Conformity
EU-Konformitätserklärung
EU Declaration of Conformity
BRAUN GmbH Industrie-Elektronik, Esslinger Str. 26, 71334 Waiblingen, Germany
erklärt in alleiniger Verantwortung, declares in its sole responsibility,
dass das Produkt:
Trennstufe
that the product:
Isolating Barrier
Typ(en), types:
D461R1…
den genannten Europäischen Richtlinien und harmonisierten Normen entspricht, is in conformity with the
listed European Directives and harmonized standards.
EU-Richtlinie(n) / EU-Directive(s)
Norm(en), Standard(s)
2014/34/EU ATEX-Produktrichtlinie
2014/34/EU ATEX Product Directive
EN 60079-0:2013+A11:2013
EN 60079-11:2012
Kennzeichnung, marking:
II (1) G [Ex ia Ga] IIC 0123
EU-Baumusterprüfbescheinigung Nr.:
EU Type Examination Certificate No:
Aussteller, notified Body:
Benannte Stelle Nr., notified Body No:
CML 15ATEX2128X
Certification Management Limited B.V. (CML)
Hoogoorddreef 15
Amsterdam, 1101 BA
The Netherlands
2776
EU-Richtlinie(n) / EU-Directive(s)
Norm(en), Standard(s)
2014/30/EU EMV-Richtlinie
2014/30/EU EMC Directive
2014/35/EU Niederspannungsrichtlinie
2014/35/EU Low Voltage Directive (LVD)
2011/65/EU RoHS-Richtlinie
2011/65/EU RoHS Directive
EN 61326-1:2013
EN IEC 61326-3-2:2018
EN 61010-1:2010+A1:2019
EN IEC 63000:2018
Diese Erklärung gilt für alle Produkte, die mit Typenschildern der oben genannten Typen versehen sind.
Zusatzbezeichnungen an Stelle von ... stehen für die spezifische Ausführung.
This declaration is valid for all products, which are provided with type labels of the types mentioned above.
Suffixes instead of ... are dummy variables for the specific model.
Unbedingte Beachtung aller Punkte der mitgelieferten Betriebsanleitung ist hierbei Voraussetzung.
Strict observance of the operation manual is an indispensable precondition, hereto.
Unterzeichnet für und im Namen der BRAUN GmbH / Signed for and on behalf of BRAUN GmbH
Waiblingen, 19-JAN-2021
_____________________________ _____________________________
Ort und Datum Albrecht Braun
Place and date Geschäftsführer
Managing Director
Figure 1: EU Declaration of Conformity

D461R1-Manual_EN_Rev01 2022_JAN_18 Page 8 to 37
2 Hazardous protection
The safety requirements as determined by EN 1127-1, as well as the corresponding national
regulations, are to be complied with regarding primary explosion protection, i.e. measures which
prevent or restrict the formation of a hazardous explosive atmosphere.
In the case of secondary hazardous protection, i.e. measures that prevent the ignition of an
explosive atmosphere surrounding electrical equipment, the series of standards applicable to
EN 60079 and the relevant national regulations must be observed.
2.1 Relevant technical Data for Hazardous Area
Approved maximum values:
Uo = 8.7 V
Io = 64 mA
Po = 384 mW
Lo = 7.9 mH (IIC)
= 38 mH (IIB)
Co = 5.9 µF (IIC)
= 50 µF (IIB)
2.2 ATEX Certification for Intrinsic Safety of the Input Circuit
II (1) G [Ex ia Ga] IIC
Marking of notified Body: CE0123
EU Type Examination Certificate: CML 15ATEX2128X
2.3 Explosive relevant Certificates / Approvals
2.3.1 ATEX
The isolating barrier series D461R1… is certified according to ATEX EC-Type Examination
Certificate No. CML 15ATEX2128X and is compliant according to ATEX Product Directive
2014/34/EU. Marking see ATEX EU Type Examination Certificate chapter 2.3.7.
2.3.2 IECEx
The isolating barrier series D461R1… is certified according to IECEx Certificate of Conformity
No. CML 15.0063X. Marking see IECEx Certificate of Conformity chapter 2.3.8.
2.3.3 USA (NEC) and Canada (CEC)
The isolating barrier series D461R1… is certified for the USA and Canada according to QPS
Certificate of Conformity No. LR 1323-2. Marking see NEC/CEC Certificate of Conformity
chapter 2.3.9.
2.3.4 EAC Ex
The isolating barrier series D461R1… is approved for EAC (Russia, Kazakhstan and Belarus
Customs Union) according to TR-Certificate No. RU С-DE.ОБ01.B.00175 and TR CU 012/2011.
Marking see EAC Ex TR CU Certificate chapter 2.3.10.

D461R1-Manual_EN_Rev01 2022_JAN_18 Page 9 to 37
2.3.5 UKEX
The isolating barrier series D461R1… is certified for UKEX according to UKEX UK Type
Examination Certificate No. CML 21UKEX2052X and are compliant according to UK statutory
requirements SI 2016 No. 1107. Marking see UKEX UK Type Examination Certificate chapter
2.3.11.
2.3.6 KCs
The isolating barrier series D461R1… is certified for South Korea according to KCs certificate
No. 21-AV4BO-0260X by KOSHA. Marking see KCs certificate chapter 2.3.12.

D461R1-Manual_EN_Rev01 2022_JAN_18 Page 10 to 37
2.3.7 ATEX EU Type Examination Certificate
Figure 2: ATEX EU Type Examination Certificate part 1

D461R1-Manual_EN_Rev01 2022_JAN_18 Page 11 to 37
Figure 3: ATEX EU Type Examination Certificate part 2

D461R1-Manual_EN_Rev01 2022_JAN_18 Page 12 to 37
Figure 4: ATEX EU Type Examination Certificate part 3

D461R1-Manual_EN_Rev01 2022_JAN_18 Page 13 to 37
Figure 5: ATEX EU Type Examination Certificate part 4

D461R1-Manual_EN_Rev01 2022_JAN_18 Page 14 to 37
2.3.8 IECEx Certificate of Conformity
Figure 6: IECEx Certificate of Conformity part 1

D461R1-Manual_EN_Rev01 2022_JAN_18 Page 15 to 37
Figure 7: IECEx Certificate of Conformity part 2

D461R1-Manual_EN_Rev01 2022_JAN_18 Page 16 to 37
Figure 8: IECEx Certificate of Conformity part 3

D461R1-Manual_EN_Rev01 2022_JAN_18 Page 17 to 37
Figure 9: IECEx Certificate of Conformity part 4

D461R1-Manual_EN_Rev01 2022_JAN_18 Page 18 to 37
2.3.9 NEC/CEC Certificate of Conformity
Figure 10: NEC/CEC Certificate of Conformity part 1

D461R1-Manual_EN_Rev01 2022_JAN_18 Page 19 to 37
Figure 11: NEC/CEC Certificate of Conformity part 2

D461R1-Manual_EN_Rev01 2022_JAN_18 Page 20 to 37
2.3.10 EAC Ex TR CU Certificate
Figure 12: EAC Ex TR CU Certificate part 1
