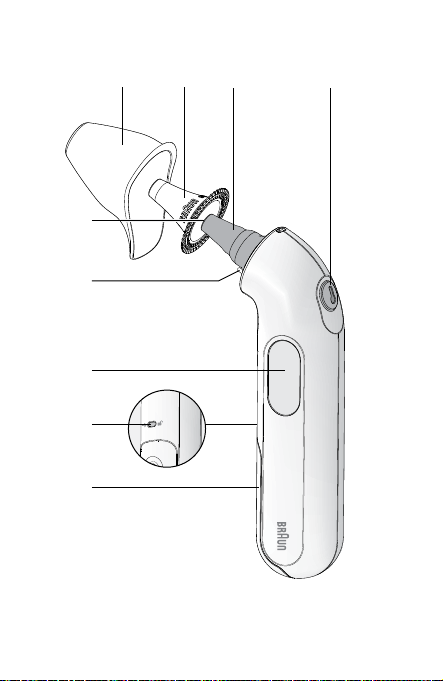

Product description
1Protective cap
2Hygienic lens lter
3Probe
4«start» button
5Probe tip (lens)
6Lens lter detector
7Display
8Battery door safety lock
9Battery door (1X 3V type CR2032 battery)
Indications for Use / Intended Use
The BraunThermoScan® 4 Ear thermometer is intended for
the intermittent measurement of human body temperature by
consumers in a home-use environment.
Warnings and precautions
Keep out of reach of children under 12 years.
NEVER use the thermometer for purposes other than those for
which it has been intended. Please follow the general safety
precautions when using on children.
NEVER immerse the thermometer into water or other liquids (not
waterproof). For cleaning and disinfecting please follow the
instructions in the “Care and cleaning”section.
DO NOT store this thermometer in temperature extremes below
-13 °F or over 131 °F (below -25 °C or over 55 °C ) or in excessive
humidity (above 95% non-condensing relative humidity).
If thermometer is stored in a location that is cooler or warmer than
where it will be used, allow it to acclimate to the room temperature
for 10 minutes before taking a measurement.
DO NOT use the thermometer if there are signs of damage on the
probe or on the thermometer itself. If damaged, DO NOT attempt
to repair the product.
English

4
NEVER insert a sharp object into the probe area or any other open
surface on the thermometer.
This thermometer consists of high-quality precision parts. DO NOT
drop the instrument. Protect it from severe impact and shock.
This thermometer must only be used with genuine Braun
ThermoScan® disposable lens lters (LF40/LF20). Other lens lters
can lead to inaccuracy.
DO NOT modify the equipment without the manufacturer’s
authorization.
To avoid inaccurate measurements ALWAYS use this thermometer
with a new, clean, disposable lens lter.
If the thermometer is accidentally used without a disposable lens
lter, clean the lens after use (see“Care and cleaning”).
Keep disposable lens lters out of reach of children.
This thermometer is intended for household use only.
Use of this thermometer is not intended as a substitute for
consultation with your physician.
Temperature elevation may signal a serious illness, especially in
neonates and infants, or in adults who are old, frail, or have a
weakened immune system. Please seek professional advice
immediately when a temperature elevation occurs on persons
that are:
• Neonates and infants under 3 months (Consult your physician
immediately if the temperature exceeds 99.4 °F [37.4 °C])
• Individuals over 60 years of age (Fever may be blunted or
absent in older individuals)
• Individuals having diabetes mellitus or a weakened immune
system (e.g., HIV positive, cancer chemotherapy, chronic
immunosuppressant treatment, splenectomy)
• Individuals who are bedridden (e.g., nursing home patient,
stroke, chronic illness, paraplegia, quadriplegia,
surgical recovery)
• A transplant recipient (e.g., liver, heart, lung, kidney)

5
This thermometer is not intended for pre-term babies or
small-for-gestational age newborn babies (birth to 4 weeks of age).
Pre-term is dened as babies born before 37 weeks of gestation.
Small-for-gestational-age is dened as a newborn baby, born at 37
weeks or later, with a weight below the 10th percentile for
newborn babies of the same gestational age.
This thermometer is not intended to interpret hypothermic
temperatures. If the device displays a temperature of 97.5°F
(36.4°C) or less with an LED backlight color of green or white, and
the individual is exhibiting atypical symptoms or behaviors,
contact your physician or health care professional.
DO NOT allow children to take their temperatures unattended.
Please consult your physician if you see symptoms such as
unexplained irritability, vomiting, diarrhea, dehydration, changes
in appetite or activity, seizure, muscle pain, shivering, sti neck,
pain when urinating, etc., even in the absence of fever.
Even in the absence of fever, those who exhibit a normal
temperature may still need to receive medical attention. People
who are on antibiotics, analgesics, or antipyretics should not be
assessed solely on temperature readings to determine the severity
of their illness.
English

6
Color-coded fever guidance
Color-coded fever guidance helps you to better understand the
meaning of your child’s temperature with the color indicated on
the display.The color-coded screen displays GREEN for a normal
temperature,YELLOW for a fever, and RED for a high fever.
Color range Reading Meaning
Green >96.3 °F - 99.4 °F
(>35.7 °C - 37.4 °C) Normal
Yellow >99.4 °F - 101.3 °F
(>37.4 °C - 38.5 °C) Fever
Red >101.3 °F
(>38.5 °C ) High Fever
Body temperature
Normal body temperature is a range. It varies by site of
measurement, and it tends to decrease with age. It also varies from
person to person and uctuates throughout the day. Therefore, it is
important to determine normal temperature ranges.
How to use your Braun ThermoScan®
Before taking the temperature, make sure the ear is free from
obstructions or excess earwax.
DO NOT attempt to take the reading without a hygienic lens lter
on – the measuring sensor must be kept protected and clean from
earwax to give accurate readings.
Change the hygienic lens lter with each use to ensure hygiene,
to keep child safe from cross-contamination and to ensure earwax
residues on the hygienic lens lter do not impact accuracy of
the reading.

7

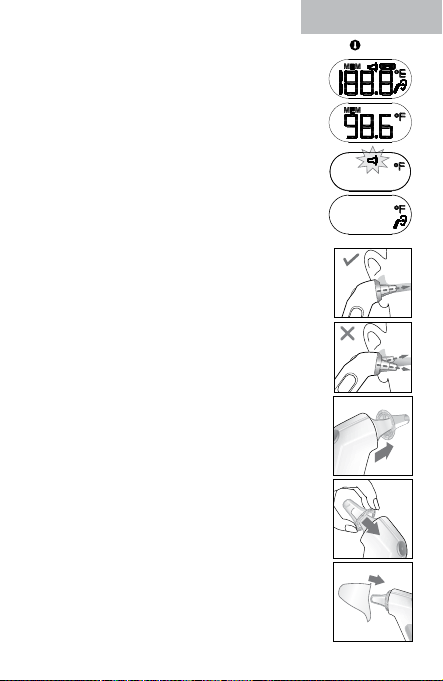

1. To turn the thermometer on, push the“start”button (4)
as shown on page 3.
During an internal self-check, the display
shows all segments.
The reading shown on the screen is the last
temperature taken.
Flashing symbol of lens lter will appear if no
lens lter is attached.Temperature can be
taken only if lens lter is mounted on
the probe.
The thermometer is ready to use after
two beeps and the non-ashing ear
icon appears.
2. Fit the probe (3) snugly into the ear canal,
then push the “start” button (4).
One beep signals normal temperature. Audio
temperature indicator will trigger 2
consecutive beeps when the reading is equal
or higher to 99.5 °F (37.5 °C) and 4 beeps if the
reading is equal or higher to 101.4 °F (38.6 °C).
The result is shown on the display (7).
3. Gently pull o the hygienic lens lter (2).
Do not use force in removing the hygienic
lens lter.
4. Put on a new, clean, hygienic lens lter by
snapping into position.
5. Place the protective cap on (1).
The BraunThermoScan® 4 Ear thermometer turns
o automatically after 60 seconds of inactivity.
The thermometer can be turned o by pressing
and holding the start button for more than
5 seconds.
English

8

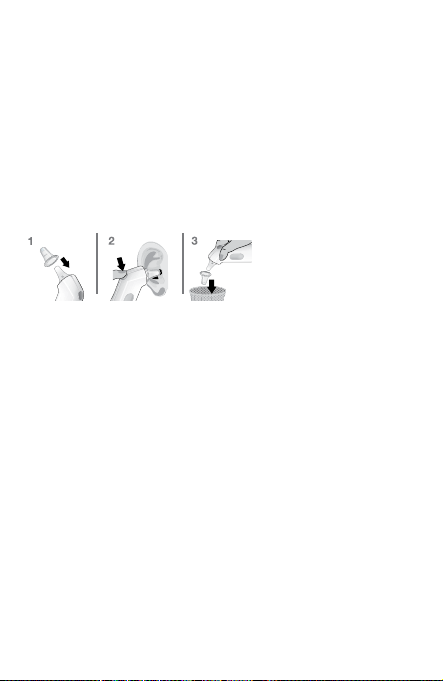

Hygienic lens filters (LF40/LF20)
Use a clean hygienic lens lter with each measurement:
1. To ensure hygienic use
2. To protect your child from cross-contamination
3. To ensure earwax residues do not impact accuracy
of the reading
Earwax and dirt on the tip of the hygienic lens lter, even a
microscopic layer, can create an obstacle between the sensor and
the infrared heat emitted by the ear and impact the accuracy
of the measurement.
Temperature taking hints
• Replace the hygienic lens lter with every use to maintain
hygiene and accuracy.
• A measurement taken in the right ear may dier from the
measurement taken in the left ear. Therefore, always take the
temperature in the same ear.
• The ear must be free from obstructions or excess earwax
build-up to take an accurate reading.
• External factors may inuence ear temperatures, including
when an individual has:
– been lying on one ear or the other
– had their ears covered
– been exposed to very hot or very cold temperatures
– been recently swimming or bathing, or
– been wearing hearing aids or headphones for an extended
period of time
In these cases, remove the individual from the situation and wait
20 minutes prior to taking a temperature.

9
• If ear drops or other ear medications have been placed in the
ear canal of one ear, take the temperature in the untreated ear.
• Nursing mothers should not take a temperature measurement
on themselves or have their temperature measured by another
individual while or immediately after nursing a baby, as nursing
can aect body temperature.
Care and cleaning
The probe tip (5) is the most delicate part of the thermometer. It
has to be clean and intact to ensure accurate readings.
If the thermometer is accidentally used without a hygienic lens
lter, clean the probe tip as follows:
Very gently wipe the surface with a cotton swab
or soft cloth moistened with alcohol.
DO NOT use cleaners other than alcohol on
the probe tip. Use of other cleaners could
damage the tip.
Once the alcohol has dried completely, a new hygienic lens lter
can be put on and a temperature measurement taken. If the probe
tip is damaged, please contact Consumer Relations.
Use a soft, dry cloth to clean the thermometer display and product
exterior. DO NOT use abrasive cleaners. NEVER submerge this
thermometer in water or any other liquid.
Store the thermometer and hygienic lens lters in a dry location
free from dust and contamination and away from direct sunlight.
Additional hygienic lens lters (LF40 /LF20) are available at most
stores selling the BraunThermoScan® 4 Ear thermometer.
English

10

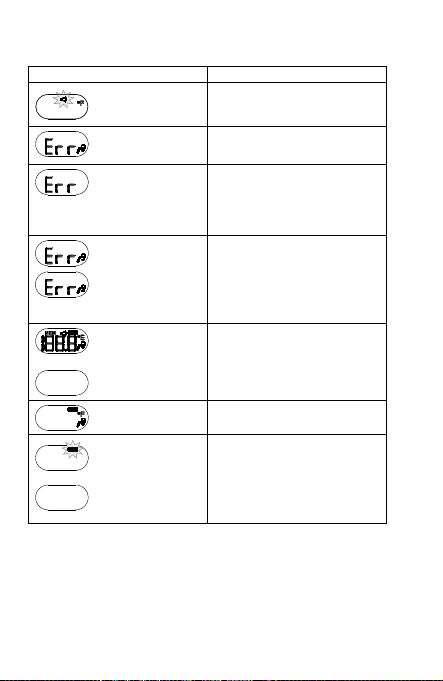

Troubleshooting
Situation Solution
No hygienic lens
lter is attached. Attach new, clean, hygienic lens lter.
Measurement
before device
stabilization.
Wait until all the icons stop
ashing.
Ambient
temperature is not
within the allowed
operating range
( 50–104 °F or
10–40 °C).
Allow the thermometer to remain
for 30 minutes in a room where
the temperature is between
50 and 104 °F or 10 and 40 °C.
HI = too high
LO = too low
Temperature taken
is not within typical
human temperature
range (93.2–108 °F
or 34–42.2 °C ).
Make sure the probe tip and lens
are clean and a new, clean,
disposable lens lter is attached.
Make sure the thermometer is
properly inserted. Then, take a
new temperature.
or
System error. Reset the thermometer
by removing the battery and then
replacing it again, wait 1 minute,
then turn on again.
Please contact Consumer
Relations (See Guarantee Card).
Battery is low. Insert new battery.
or
Battery is too low.
Device cannot be
powered on to the
ready state.
Insert new battery.

11
Changing the temperature scale
Make sure the thermometer is turned o. Press and
hold down the“start”button. Keep holding down
the “start” button and after about 3 seconds the
display will start to cycle between temperature
scales (°F or °C).
Release the start button when the desired scale is
shown.This will reset the thermometer to the new
temperature scale.
Replacing the battery
The thermometer is supplied with one 3V Lithium cell battery (type
CR2032). Insert new battery when the low battery symbol appears
on the display.
The battery door design is
intended to prevent a small child
from easily opening the battery
door to address a possible choke
hazard. Open the battery
compartment by inserting a
narrow pointed object such as a ball point pen or paperclip into the
small hole above the battery door (8). While pressing into the hole
slowly slide back the battery door with the other hand.
To close battery door align the tabs along the side of the battery
into the battery compartment and slowly slide back into position
until the door clicks into its locked position.
Do not mix alkaline, standard, or rechargeable batteries.
Calibration
This product has been calibrated at the time of manufacture. If
used according to the use instructions, periodic calibration is not
required. If at any time you question the accuracy of temperature
measurements, please contact Consumer Relations.
English

12
3 Year Limited warranty
You should rst read all Instructions before
attempting to use this product.
A. This 3 year limited warranty applies to repair or replacement of
product found to be defective in material or workmanship.This
warranty does not apply to damage resulting from commercial,
abusive, unreasonable use or supplemental damage. Defects
that are the result of normal wear and tear will not be
considered manufacturing defects under this warranty. KAZ IS
NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES OF ANY NATURE, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE ONTHIS PRODUCT IS LIMITED IN DURATION TO
THE DURATION OF THISWARRANTY. Some jurisdictions do
not allow the exclusion or limitation of incidental or
consequential damages or limitations on how long an implied
warranty lasts, so the above limitations or exclusions may not
apply to you.This warranty gives you specic legal rights, and
you also may have other rights which vary from jurisdiction to
jurisdiction. This warranty applies only to the original purchaser
of this product from the original date of purchase.
B. At its option, Kaz will repair or replace this product if it is found
to be defective in material or workmanship.
C. This warranty does not cover damage resulting from any
unauthorized attempts to repair or from any use not in
accordance with the instruction manual.
Call us toll-free at 1-800-327-7226 or
Email: [e-mail]
Please be sure to specify a model number.
NOTE: IFYOU EXPERIENCE A PROBLEM, PLEASE CONTACT
CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO
NOT RETURNTHE PRODUCT TO THE ORIGINAL PLACE OF
PURCHASE. DO NOT ATTEMPT TO OPENTHE DEVICE HOUSING
YOURSELF, DOING SO MAY VOIDYOURWARRANTY AND CAUSE
DAMAGE TO THE PRODUCT OR PERSONAL INJURY.
Model: IRT 3515

13
English
Displayed temperature range:
93.2 °F – 108 °F (34 °C – 42.2 °C)
Operating ambient
temperature range: 50 °F – 104 °F (10 °C – 40 °C)
Storage temperature: -25°C - 55°C (-13°F - 131°F)
Display resolution: 0.1°F or 0.1°C
Accuracy for displayed
temperature range: ±0.4 °F (±0.2 °C) in range 35.5-42°C
(95.9-107.6°F)
±0.5 °F (±0.3 °C) outside that temperature
range
Clinical accuracy characteristics and procedures are available
upon request.
Measuring Site: Ear
Reference Site: Oral (estimated oral temperature
is displayed)
Operating and storage
Relative humidity: ≤ 95% non-condensing
Battery life: 3 years /1000 measurements
Service life: 5 years
Warranty: 3 years
If device is not used or stored within specied temperature and
humidity ranges the technical accuracy cannot be ensured.
This infrared thermometer meets requirements established in
ASTM Standard E 1965-98 (for the thermometer system
[thermometer with lens lter]). Full responsibility for the
conformance of the product to the standard is assumed by Kaz
USA, Inc.
ASTM laboratory accuracy requirements in the display range of 37
to 39°C (98 to 102°F) for IR thermometers is ±0.2°C (±0.4°F),
whereas for mercury-in-glass and electronic thermometers, the
requirement per ASTM Standards E667-86 and E1112-86 is ±0.1°C
(±0.2°F).

14
This thermometer is specied to operate at a pressure of 1
atmosphere or at altitudes with a pressure of up to 1 atmosphere.
+40ºC
+10º
C
2
Type BF Applied
Part See instructions for use Operating temperature Hygienic lens lter: Do not
reuse
+55ºC
-25ºC
Storage
temperature
Keep it dry Manufacturer Date of
Manufacture
Subject to change without notice.
This device conforms to the following standards:
ASTM E1965-98 - Standard Specication for InfraredThermometers
for Intermittent Determination of PatientTemperature.
ISO 80601-2-56 – Medical electrical equipment – Part 2-56:
Particular requirements for basic safety and essential performance
of clinical thermometers for body temperature measurement.
ANSI AAMI IEC 60601-1 - Medical electrical equipment - Part 1:
General requirements for basic safety and essential performance.
IEC 60601-1-2 - Medical electrical equipment - Part1-2: General
requirements for basic safety and essential performance -
Collateral Standard: Electromagnetic disturbances – Requirements
and tests.
NOTE: DO NOT use this device in the presence of electromagnetic
or other interference outside the normal range specied in IEC
60601-1-2.

15
English
IEC 60601-1-11 - Medical electrical equipment - Part 1-11: General
requirements for basic safety and essential performance --
Collateral standard: Requirements for medical electrical equipment
and medical electrical systems used in the home healthcare
environment.
ISO 10993-1 - Biological evaluation of medical devices – Part 1:
Evaluation and testing within a risk management process.
ISO 15223-1 - Medical devices - Symbols to be used with medical
device labels, labeling and information to be supplied - Part 1:
General requirements.
Internally Powered Equipment
Continuous Operation
Not Protected against Ingress ofWater.
MEDICAL ELECTRICAL EQUIPMENT needs special precautions
regarding EMC. For detailed description of EMC requirements
please contact Consumer Relations.
Portable and mobile RF communications equipment can aect
MEDICAL ELECTRICAL EQUIPMENT.
This product contains batteries and recyclable electronic
waste.To protect the environment, do not dispose of it in
the household waste, but take it to appropriate local
collection points.

16

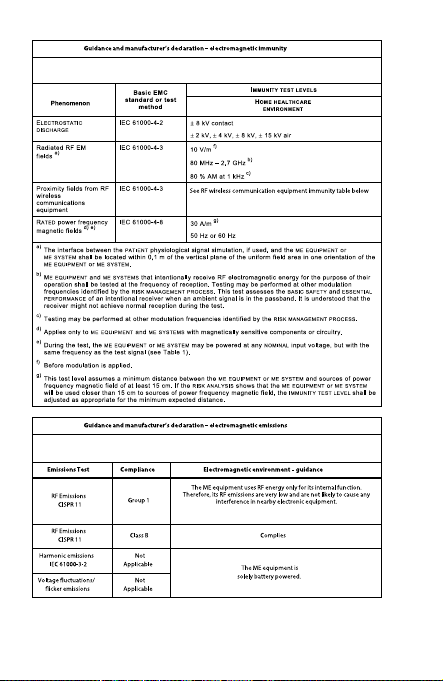

The IRT3515 is intended for use in the electromagnetic environment specied below.
The customer or the user of the IRT3515 should ensure that it is used in such an environment.
The IRT3515 equipment is intended for use in the electromagnetic environment specied below.
The customer or the user of the IRT3515 should ensure that it is used in such an environment.

17
English

18
1
6
5
7
9
8
2 3 4
