Brecknell PS25 User manual

PS25
Digital Postal Scale
User Instructions
AWT 35-501193
Issue AB

PS25 Postal Scale_u_en_501193.book
Brecknell is a trademark of the Illinois Tool Works group of companies whose ultimate parent company is
Illinois Tool Works Inc (“Illinois Tool Works”). Copyright © 2013 Illinois Tool Works. All rights reserved.
No part of this publication may be reproduced by making a facsimile copy, by the making of a copy in three dimensions of a two-dimensional
work and the making of a copy in two dimensions of a three-dimensional work, stored in any medium by electronic means, or transmitted in
any form or by any means, including electronic, mechanical, broadcasting, recording or otherwise without the prior written consent of the
copyright owner, under license, or as permitted by law.
This publication was correct at the time of going to print, however Avery Weigh-Tronix reserves the right to alter without notice the
specification, design, price or conditions of supply of any product or service at any time.

PS25 Postal Scale User Instructions 1
Table of Contents
Chapter 1 General Information and Warnings ........................................................................................ 3
About this Manual ..............................................................................................................3
Special Messages ....................................................................................................... 3
Package and Accesories ................................................................................................... 3
Warnings ............................................................................................................................ 3
Low Battery Warning, Battery Disposal and Replacement ................................................ 4
Low Battery Warning ................................................................................................... 4
Maintenance ...................................................................................................................... 4
Specifications ..................................................................................................................... 5
Chapter 2 Operation .................................................................................................................................. 6
Initial Startup ...................................................................................................................... 6
Turn on the Scale and Select Unit of Measurement .......................................................... 6
Example Screens of 0 - 2lb Range .............................................................................. 7
Example Screens of 2lb to 25lb:5.0oz Range ............................................................. 8
Tare Function ..................................................................................................................... 8
Overload Display ................................................................................................................ 9
Backlight LCD Display ....................................................................................................... 9
Connection with a PC ........................................................................................................ 9
Install / Update the USB Driver ................................................................................... 9

2 PS25 Postal Scale User Instructions

PS25 Postal Scale User Instructions 3
1 General Information and Warnings
1.1 About this Manual
This manual is divided into chapters by the chapter number and the large text at the top
of a page. Subsections are labeled as shown by the 1 and 1.1 headings shown above.
The names of the chapter and the next subsection level appear at the top of alternating
pages of the manual to remind you of where you are in the manual. The manual name
and page numbers appear at the bottom of the pages.
1.1.1 Special Messages
Examples of special messages you will see in this manual are defined below. The
signal words have specific meanings to alert you to additional information or the relative
level of hazard.
1.2 Package and Accesories
lPS25 Postal Scale
lFour AAA Batteries
lUSB Cable
1.3 Warnings
lCaution! Do not overload the scale with a weight significantly greater than
the maximum capacity list in this booklet. Normally a load over 150% of the
maximum capacity is likely to damage the scale.
lDo not keep weight on the platform continuously. Remove weight from the
platform when finished with a weight measurement.
lBatteries enclosed (if any) must not be recharged or reactivated by any
means. Do not disassemble, dismantle, thrown into a fire or short-circuited
batteries.
lThis product is for Professional use only.
DANGER!
THIS IS A DANGER SYMBOL.
DANGER MEANS THAT FAILURE TO FOLLOW SPECIFIC PRACTICES
OR PROCEDURES WILL CAUSE INJURY OR DEATH.
CAUTION!
This is a Caution symbol.
Cautions give information about procedures that, if not observed, could result
in damage to equipment or corruption to and loss of data.

4 PS25 Postal Scale User Instructions
1.4 Low Battery Warning, Battery Disposal and Replacement
1.4.1 Low Battery Warning
The PS25 is able to sense if the batteries installed have enough voltage to provide an
accurate measurement. When the battery voltage drops to or below 3.8, Lo will flash
on the display

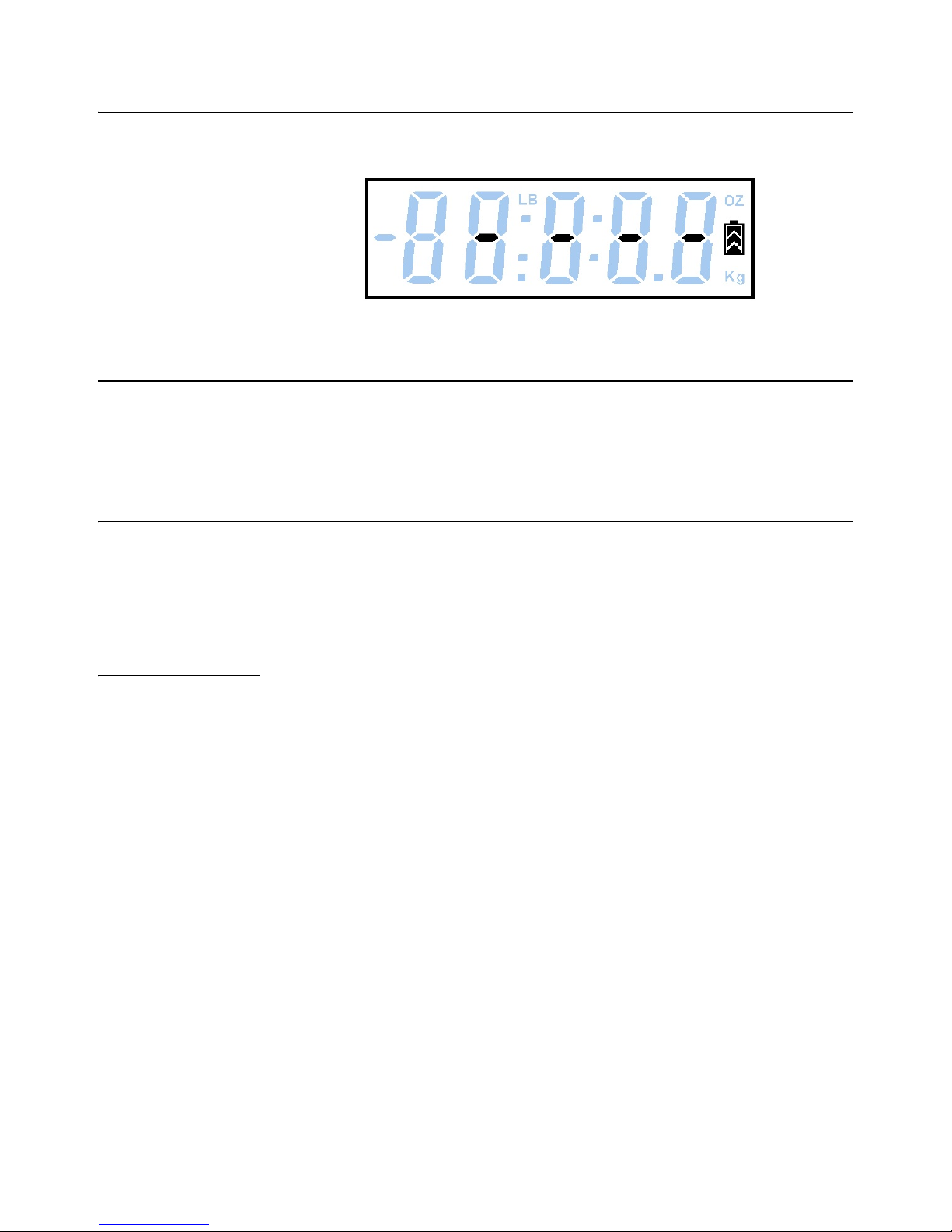

Figure 1.1 Low Battery Indication
Replace the batteries immediately as low battery condition is likely to degrade the
weight measurement and giving a poor accuracy.
1.5 Maintenance
lPlace the scale on a firm level table/desk. A firm and level surface is
preferable for correct measurement.
lThe scale should be cleaned occasionally with a slightly damp cloth. Do not
use abrasive detergents and never immerse the scale in water.
lProtect the scale against hard knocks, moisture, dust and chemicals. Keep
away from heat sources such as cooking appliances and heating radiators.
lRepairs may only be performed by Brecknell customer service or authorized
dealers. When the device ceases to function, please first check the batteries
and replace if necessary.
lWhen the scale gives an unsteady readout, please check alongside the
weighing platform to ensure that no foreign object is stuck between the
platform and main housing.
lThe scale complies with CE in Europe; and FCC in USA
DANGER!
BE SURE TO DISPOSE OF BATTERIES IN A SPECIALLY LABELED
RECYCLING CONTAINER OR TOXIC WASTE COLLECTION SITE.
CAUTION!
When the scale is not expected to be operated for several months, remove the
batteries from the compartment. Failure to do so may cause battery leakage
which will contaminate the contact causing the device to loose function.

PS25 Postal Scale User Instructions 5
1.6 Specifications
Item Specification
Capacity (max loading) 25lb:5.2oz / 11.50kg / 11490g
Operation range 0.1oz to 25lb:5.2oz , 0.01kg to 11.50kg, 10g to 11490g
Display with backlight LCD display 0.6” high digits with blue LED backlight
Power requirement AAA battery x 4, total 6VDC
Low battery warning LO will be displayed when battery drops to approximately 3.8 V
Resolution:
unit of measure: lb:oz Range: 0 ~ 2lb x 0.1oz and range 2 ~ 25lb:5.2oz x 0.2oz
unit of measure: kg Range: 0 ~ 1kg x 00.1kg and range 1 ~ 11.50kg x 0.02kg
unit of measure: g Range: 0 ~ 1000g x 5g and range 1000 ~ 11490g x 10g
Miscellaneous functions and features
Automatic zero
Tare (max tare off weight is 1lb without reducing max capacity)
Auto shutoff in 120 seconds with load and 30 seconds without load. However when
the device is plugged through USB the Auto shut-off feature is disabled.
Overload indication “----”
Unit switch: lb:oz / kg/ gram, toggle the key to select
ON/OFF switch: power on/off and tare function
Back light LCD display
A flap on the scale is used to support large envelopes that will stand on end and
holding long tubes.

6 PS25 Postal Scale User Instructions
2 Operation
2.1 Initial Startup
1. Insert the four AAA batteries in the compartment at the bottom of the scale.
2. Once the batteries are installed, the unit will immediately turn on showing the
complete LCD layout (for 2 seconds or less)
2.2 Turn on the Scale and Select Unit of Measurement
1. Place the scale on a flat surface.
2. Press the [ON/OFF/TARE] key once to turn on the scale.
2a. If the display does not show zero, press the key again to reset zero.
3. The scale defaults to the last used unit of measure (lb:oz, kg or g).
3a. If another unit of measure is preferred, press the [UNIT] key to select lb:oz, kg
or grams..

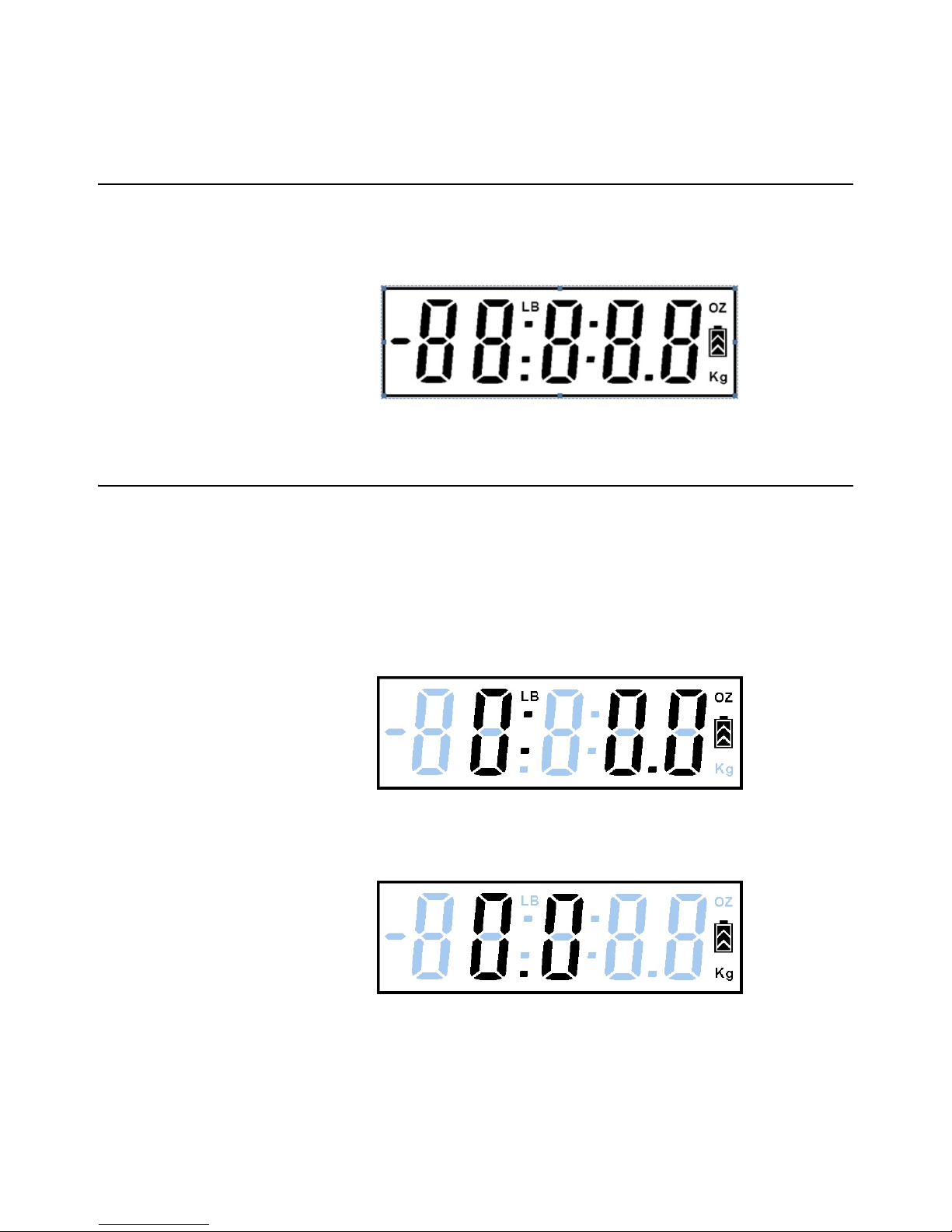

Figure 2.1 Unit of Measure: lb:oz mode
Figure 2.2 Unit of Measure: kg

PS25 Postal Scale User Instructions 7
Figure 2.3 Unit of Measure: grams
4. Place item to be weighed on the weighing platform.
4a. Lift the flap on the weighing platform if a large envelope or long tube are being
weighed.
2.2.1 Example Screens of 0 - 2lb Range
After the scale is turned on and a weight unit is selected, place objects on the platform
for weight measurement.
Figure 2.4 Example of lb:oz Display
Figure 2.5 Example of kg Display
Figure 2.6 Example of g Display

8 PS25 Postal Scale User Instructions
2.2.2 Example Screens of 2lb to 25lb:5.0oz Range

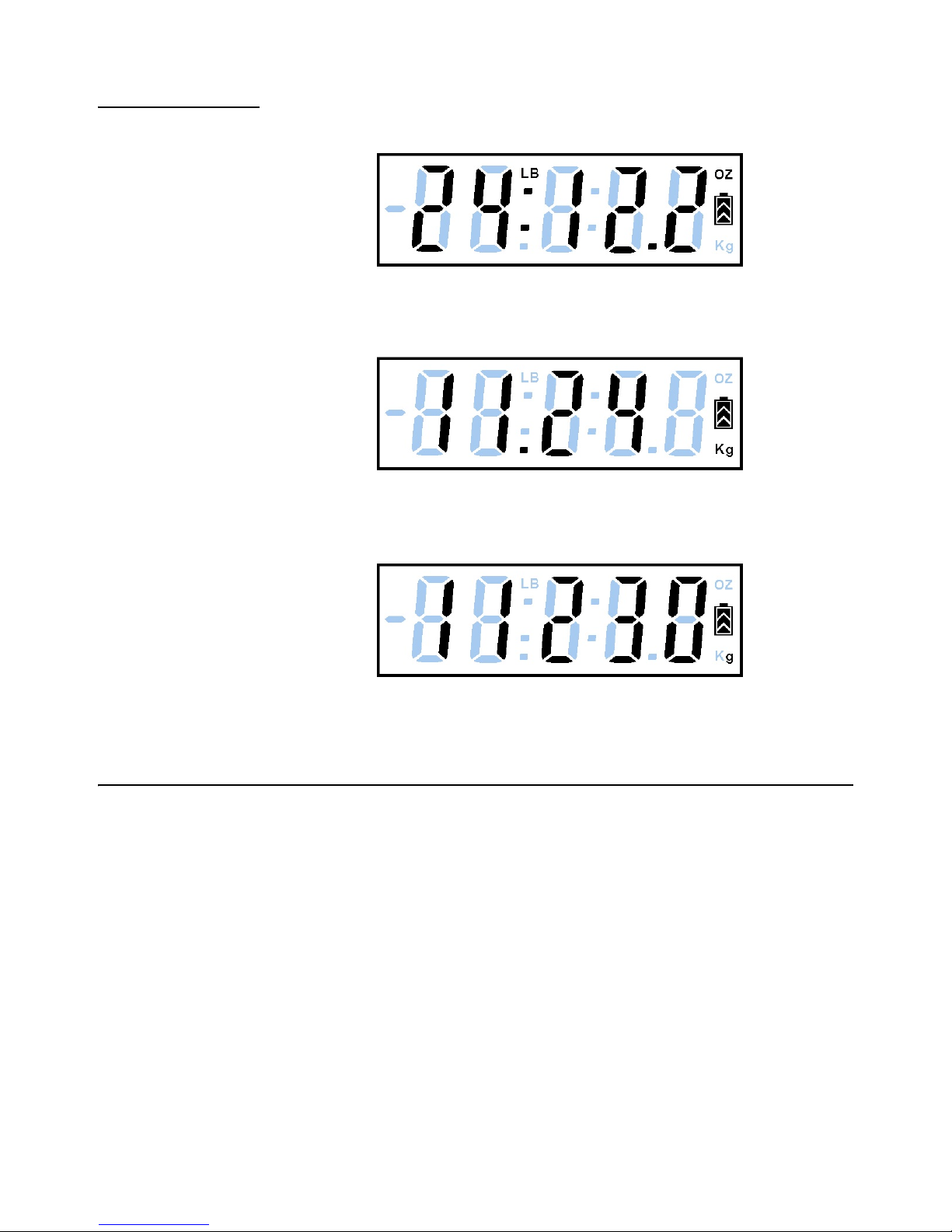

Figure 2.7 Example of lb:oz Display
Figure 2.8 Example of kg Display
Figure 2.9 Example of g Display
2.3 Tare Function
The tare function is used to eliminate the weight of a basket or tray needed to measure
the weight of several objects together.
The scale can accept a maximum tare weight of 1LB. If the tare weight is larger, the
measurement capacity will be reduced by the difference.
1. Place the tray on the platform and press the [ON/OFF/TARE] key once. The
scale will clear the weight of the tray and reset zero.
2. Place objects to be weighed into the tray.
3. Once the tray is no longer needed, press the [ON/OFF/TARE] key again to
reset the scale zero.

PS25 Postal Scale User Instructions 9
2.4 Overload Display
When loading is at or over the maximum capacity (25lb : 5.2oz / 11.50Kg / 11490g), the
LCD display will show "-- -- ".:
2.5 Backlight LCD Display
When the PS25 is turned on, the backlight will turn on simultaneously for approximately
10 seconds. The backlight will turn off if there is no change in the display and turn back
on when weight is placed on the weigh platform.
2.6 Connection with a PC
The unit can automatically connect to a PC with the enclosed USB cable. Win 7 users
can just plug in the USB and the PC will search and download necessary driver to
operate the device. In case this does not happen, please follow below procedure to
download and install the driver.
2.6.1 Install / Update the USB Driver
Use the link below to access the USB Installation Guide. The document provides
detailed installation and basic operation procedure and setup.
http://www.brecknellscales.com/downloads/Installing%20335%20USB%20Driver.pdf

10 PS25 Postal Scale User Instructions
