Breezy Exigo 30 User manual

Exigo 30
MB3197-D
USER MANUAL EN
MANUAL WHEELCHAIR

2MB3197-EN
INTRODUCTION
Congratulations on your choice of new wheelchair!
Quality and function are key concepts for all wheelchairs in the Sunrise series.
Your feedback can help us to produce an even better product.
For your own safety, and in order to get the most out of your new wheelchair, we recommend that
you read this user manual thoroughly before using the chair.
Intended use and the intended user environment
Exigo 30 is designed for both indoor and outdoor use.
The user
This wheelchair has been developed for persons with disabilities and as an aid for those who have
problems with walking. Users who can control the wheelchair by rolling, steering and braking it
themselves can use the wheelchair without an assistant. The maximum user weight is 135kg. The
user must be familiar with the contents of the user manual before driving the wheelchair.
Adjusting the wheelchair
The average wheelchair user does not exist. This is why Sunrise wheelchairs can be adjusted
according to the specific needs of the user. Settings mentioned in chapter Using the wheelchair can
be carried out by the user. All other adjustments mentioned in this User manual are to be performed
by qualified personnel or in consultation with qualified personnel.
If you are visually impaired, this document can be viewed in PDF format at
www.SunriseMedical.com or alternatively is available on request in large text.
For information about product safety notices and product recalls, go to www.sunrisemedical.eu
Please contact your local, authorised SUNRISE MEDICAL dealer if you have any questions regarding
the use, maintenance or safety of your wheelchair. In case there is no authorised dealer in your area
or you have any questions, contact Sunrise Medical either in writing or by telephone.
The management system of SUNRISE MEDICAL is certified to ISO 9001, ISO 13485 and ISO 14001.

3
MB3197-EN
NOTE:
General user advice.
Not following these instructions may result in physical injury, damage to the product or damage to the
environment!
Notice to the user and/or patient: Any serious incident that has occurred in relation to the device
should be reported to the manufacturer and the competent authority of the Member State in which
the user and/or patient is established.
B4Me special adaptations
Sunrise Medical strongly recommends that in order to ensure that your B4Me product operates, and
performs as intended by the manufacturer; all the user information supplied with your B4Me product
is read and understood, before the product is first used.
Sunrise Medical also recommends that the user information is not discarded after reading it, but it is
kept safely stored for future reference.
Medical Device Combinations
It may be possible to combine this Medical device with one or more other Medical Device or other
product. Information on which combinations are possible can be found at www.SunriseMedical.co.uk.
All combinations listed have been validated to meet the General Safety and Performance Requirements,
Annex I Nr. 14.1 of the Medical Device Regulation 2017/745.
Guidance on the combination, such as mounting, can be found at www.SunriseMedical.co.uk
INTRODUCTION

4MB3197-EN
CONTENTS
Introduction............................................................................................ 2
Contents................................................................................................. 4
The wheelchair’s parts.......................................................................... 5
Assembly and transport........................................................................ 6
Area of application ................................................................................ 7
Using the wheelchair............................................................................. 8
Adjusting the chair .............................................................................. 14
Positioning belt ................................................................................... 25
Safety.................................................................................................... 26
Safety in cars ....................................................................................... 27
Maintenance ........................................................................................ 30
Technical specifications ..................................................................... 33
Labelling ............................................................................................... 35
Accessories ......................................................................................... 36
Guarantee............................................................................................. 37

5
MB3197-EN

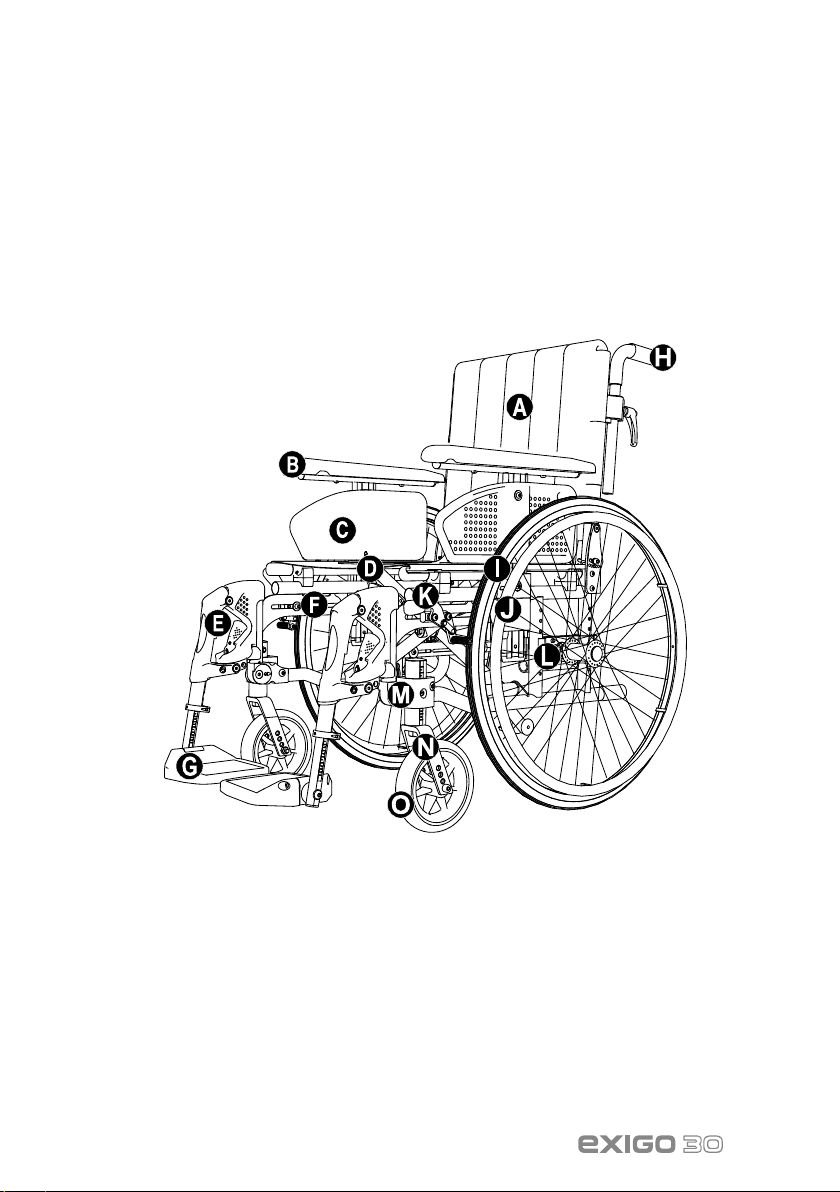

THE WHEELCHAIR’S PARTS
A. Back with back cover
B. Armrest
C. Clothes protector
D. Seat with cushion
E. Leg support
F. Frame
G. Footplate
H. Pushing handle
I. Driving wheel
J. Hand rim
K. Brake
L. Wheel block
M. Bearing housing castor
N. Castor wheel fork
O. Castor wheel
Figure 1
In order to be able to read and understand this manual it is important that you familiarise yourself with
the most common terms we use for the different parts of the wheelchair.
Have a look at the following drawing and note the relevant parts on your wheelchair.
The equipment on your wheelchair may vary somewhat from the illustration below.

6MB3197-EN
Figure 2 Figure 3
Figure 4
Assembly Figure 2
The standard version is delivered complete.
All you need to do is unfold the wheelchair and fit
the leg supports where necessary.
Unfolding the wheelchair Figure 3
To unfold the wheelchair, press down with the flat
of your hand on the cover by the seat tubing.
Note!
Do not hold around the seat tubing as your fingers
can get caught.
Put the seat cushion (accessory) into position
ensuring that it sits properly on the seat fabric.
Folding the wheelchair Figure 4
Remove the seat cushion (accessory) and pull up
the footplates or remove the leg supports before
folding the wheelchair.
Take hold of the seat cover and lift straight up.
The chair will fold together. Check that the back
cover has folded backwards.
Transport
The wheelchair is suitable for land and/or air
transport.
Parts of the wheelchair that can easily be
detached should be removed when transporting
the wheelchair.
• Armrests
• Legrests
• Rear wheels
Once the wheelchair is in the vehicle, it must
be secured with an ISO 10542 approved tie-
down system that is suited to the weight of that
particular wheelchair including any options.
See “Safety in cars” on page 27 for using Exigo
30 as a passenger seat in a motor vehicle.
ASSEMBLY AND TRANSPORT

7
MB3197-EN
AREA OF APPLICATION
Indications
The varieties of fitting variants, as well as the modular design, mean that it can be used by those who
cannot walk or have limited mobility because of:
• Paralysis
• Loss of extremity (leg amputation)
• Extremity defect deformity
• Joint contractures/joint injuries
• Illnesses such as heart and circulation deficiencies, disturbance of equilibrium or cachexia,
Neurological disease patterns, Muscle dystrophy, Hemiplegia as well as for elderly people who still
have strength in the upper body.
Contraindications
The wheelchair shall not be used without attendant in case of:
• Perception disorder
• Imbalance
• Loss of both arms, if not supported by a caregiver
• Joint contracture or joint damage on both arms
• Seating disability

8
A
MB3197-EN
Figure 5
Figure 6
Figure 7
USING THE WHEELCHAIR

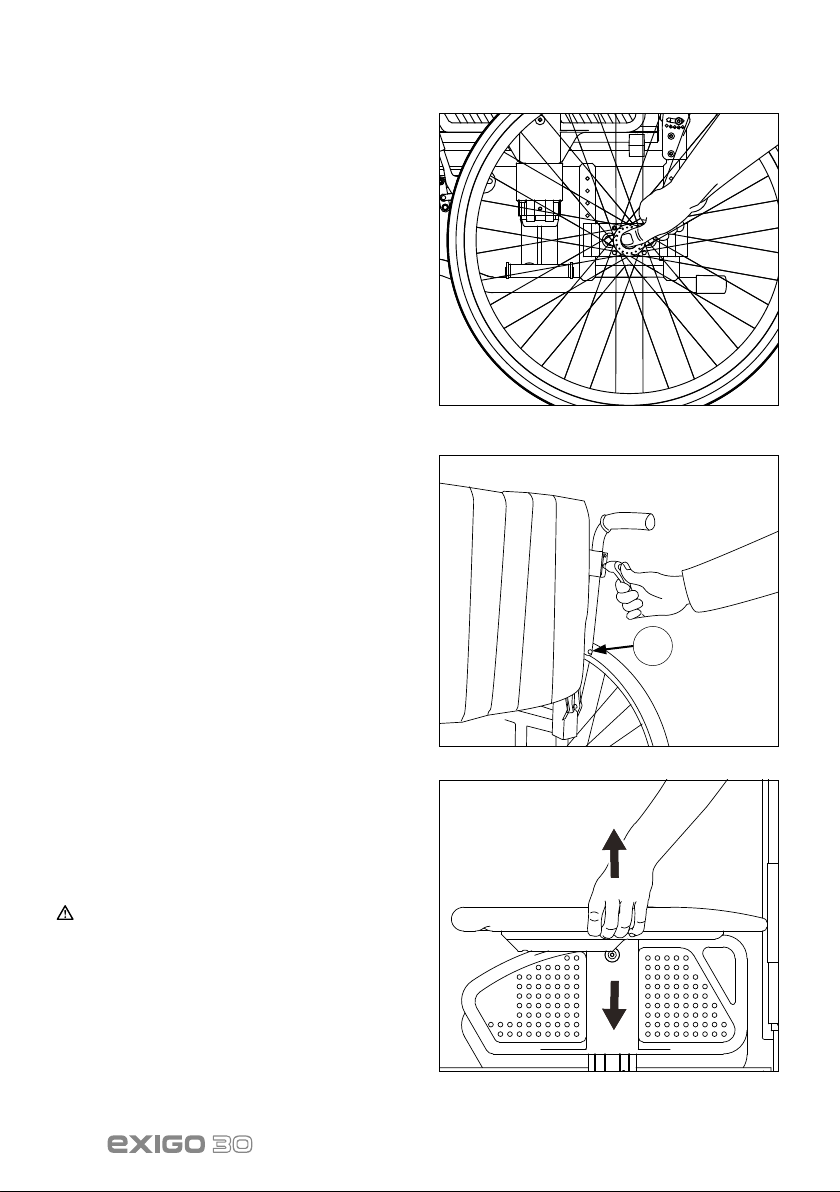

Quick-release Figure 5
The wheelchair has a quick-release catch on the
driving wheels. Press the button in the middle of
the driving wheel in order to remove or attach the
wheel.
NB
Check that the wheel is properly secured by
ensuring that the button pops out approximately
5 mm when the wheel bolt is completely in the
casing.
Height adjustable pushing handle
Figure 6
The pushing handle is adjusted by loosening the
locking handle whilst moving the pushing handle
upward or downward to the desired height. Re-
tighten the locking handle.
You can remove the pushing handle completely by
loosening the locking handle, pulling together the
spring pin (6A) and pulling up the pushing handle.
Armrests, removing and fitting
Figure7
The armrests can be removed by lifting them
straight up.
Warning!
When removing the armrest be aware of the
potential risk of getting your fingers or clothes
caught in the wheel.

9
A
MB3197-EN
Figure 8
Figure 9

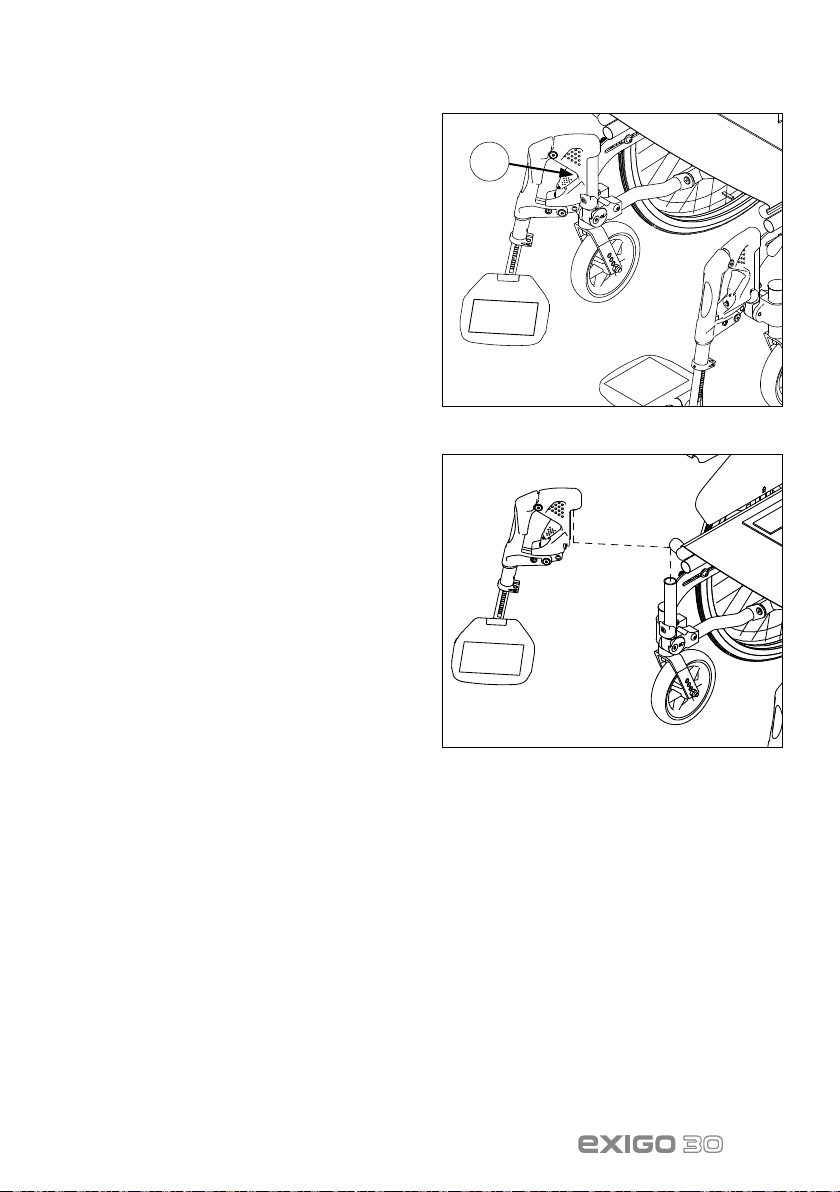

Swing out/Attach/Remove the leg
supports Figures 8 and 9
The leg supports can be swung in/out and
removed for easier movement.
The supports can be released by twisting the
handle (8A) inwards or outwards when the leg
support is swung.
After the leg support has been swung to the side,
it can be lifted straight up and completely removed
if desired. In order to attach it again, carry out
these steps in reverse order, and the handle will
automatically lock.
USING THE WHEELCHAIR

10
A
MB3197-EN
Figure 11
Figure 12
Figure 10
USING THE WHEELCHAIR
Full footplate (Standard on Exigo 30 X
wheelchairs) Figure 10
The full footplate can be split in two and tipped
up for transfers. Ensure that the footplates lock in
place when you put them back down.
The footplates lock most easily into place if they
are angled right in to each other when you put
them Back down (see figure 10).
Swing out/Attach/Remove the leg
supports (Full footplate) Figures 11
and 12
The leg supports can be swung in/out and
removed for easier movement.
The supports can be released by twisting the
handle (11A) inwards or outwards when the leg
support is swung.
After the leg support has been swung to the
side, it can be lifted straight up and completely
removed if desired. In order to attach it again,
carry out these steps in reverse order, and the
handle will automatically lock.

11
MB3197-EN
Figure 13
Using the brakes Figure 13
Push the brake lever forward and down when you
want to lock the brake.
Warning!
The brake is only designed to hold the chair when
it is stationary. Under no circumstances should it
be used as a driving brake.
Anti-tip stabiliser/Tipping bar
Figure14
The anti-tip stabiliser is put into position by pulling
it down and turning it in a downward direction
simultaneously. The anti-tip stabiliser is adjusted
as standard with a clearance to the base that
makes it possible to negotiate door thresholds etc.
Anti-tip stabiliser/Tipping bar
Figure15
The anti-tip stabiliser is put into position by pulling
it down and turning it in a downward direction
simultaneously. The anti-tip stabiliser is adjusted
as standard with a clearance to the base that
makes it possible to negotiate door thresholds etc.
The tipping bar is accessible when the anti-tip
stabiliser is up or down.
Figure 14
Figure 15
USING THE WHEELCHAIR

12 MB3197-EN
Figure 16
Figure 17
Figure 18

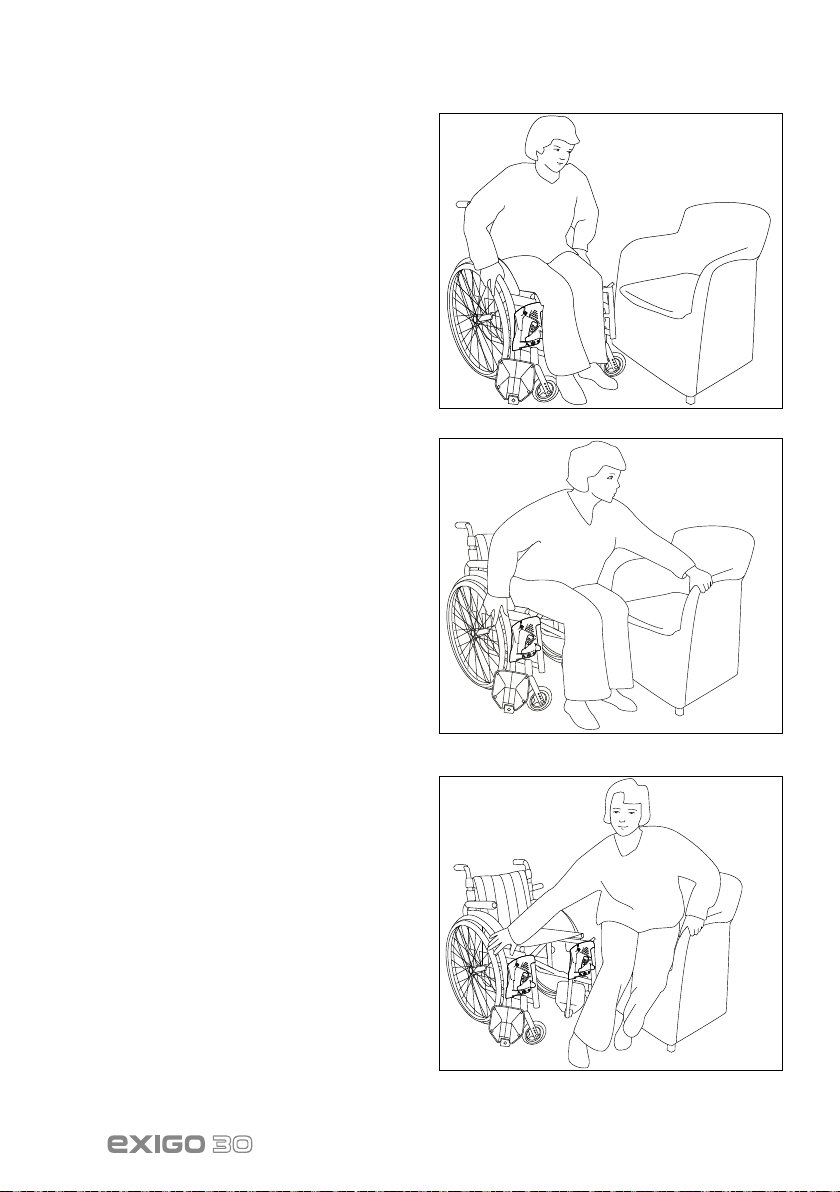

Moving in and out of the wheelchair
Figures16, 17 and 18
• Activate the brakes
• Swing the leg supports away, where applicable
• Sit far forward on the chair before moving to
another chair, bed etc.
USING THE WHEELCHAIR

13
MB3197-EN
Figure 19
Figure 20
Figure 21
Negotiating obstacles, stairs
Figures19 and 20
If the wheelchair is being lifted up/down stairs
with the user sitting in it, the recommended lifting
points should be used. These are marked on the
product.
The lifting points are the pushing handles and the
leg supports.
Warning!
Do not lift the wheelchair by the armrests!
Do not lift the wheelchair by the legrests if the
wheelchair is equipped with angle adjustable
legrests!
Note! For height adjustable pushing handles,
ensure that the handle is locked before lifting.
In order for assistants to have a better lifting
position they can alternatively lift from each side
of the chair.
Negotiating obstacles, the kerb
Figure21
When negotiating the kerb etc., swing the anti-tip
stabiliser up. Then place one foot on the tipping
bar whilst steering with the pushing handles.
Steep terrain
For frequent use in undulating terrain, we
recommend that a separate brake be fitted for the
assistant.
USING THE WHEELCHAIR

14 MB3197-EN
ADJUSTING THE CHAIR
Exigo 30 has measuring scales that help you to adjust the chair accurately
The following adjustments can be carried out quicker and more accurately using the different
measuring scales:
• Seat height – back Page 13 and 15
The scale shows the seat height in relation to the driving wheels.
• Centre of gravity Page 16
The measuring scale is numbered from 1 to 5, with 1 as the best anti-tipping position.
• Seat height – front Page 13, 14 and 17
Stepless scale from 1 to 9 to ensure equal adjustment on both castor wheels.
• Angle of castor wheels Page 17
Stepless scale to ensure equal adjustment on both castor wheels.
• Back height Page 18
The scale shows the back height from 35 cm to 45 cm.
• Back angle Page 18
The scale shows the back angle from –5° to 16°.
• Anti-tip stabiliser Page 22
The measuring scale is numbered from 1 to 5, in order to adjust the anti-tip stabiliser in relation to
the driving wheel position.
• Leg support length Page 20
Stepless scale from 1 to 9 to ensure equal adjustment on both leg supports.
• Armrest height Page 22
The scale shows the distance from the seat to the top of the armrest. From 18 cm to 24 cm for
standard armrests and 22 cm to 29 cm for high armrests.

15
MB3197-EN
Figure 22
Figure 23

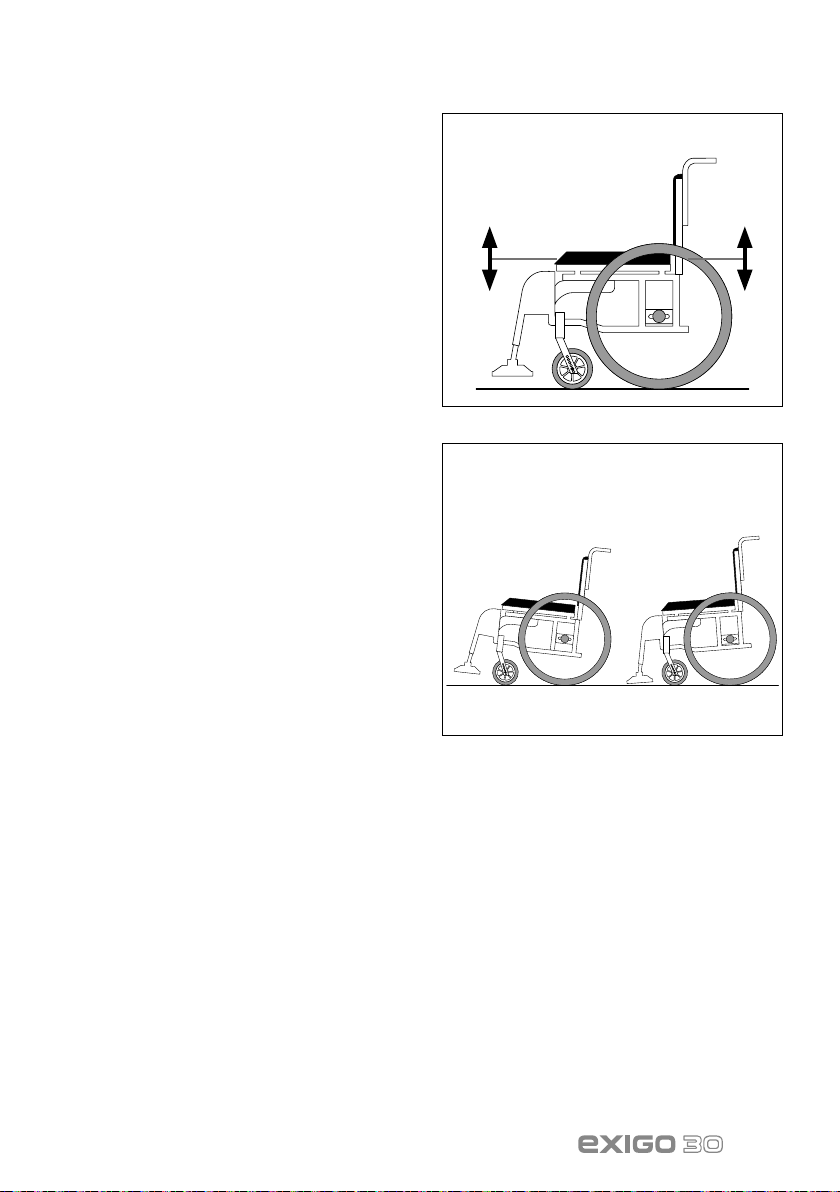

Adjusting the seat height
The seat height can easily be adjusted. You can
also change the angle of the seat by having
different heights at the front and back. By
changing the angle of the seat, you can achieve
better stability and seating comfort. The different
seat height adjustments also effect the ability to
negotiate obstacles and rolling properties of the
wheelchair.
Adjusting the seat height – back
Figures 21 and 22
The seat height at the back can be adjusted using
the methods below.
Moving the wheel block up or down
Moving the wheel block up, lowers the seat.
Moving the wheel block down, raises the seat. See
page 15.
Changing to bigger or smaller driving wheels
A bigger driving wheel increases the seat height,
whilst a smaller wheel decreases the height. The
table on page 31 shows which seat heights can be
achieved by changing to different sizes of driving
wheel.
ADJUSTING THE WHEELCHAIR

16
A
MB3197-EN
Figure 24
Adjusting the seat height – front
Figures 24
The seat height at the front can be adjusted using
the methods below.
Moving the bearing housing of the castor
wheel up or down (see page 17).
By moving the bearing housing up, the seat
is lowered, and by moving it down, the seat is
raised.
Moving the castor wheel to a higher or lower
position in the castor wheel fork.
By moving the castor wheel to a higher position
in the castor wheel fork (24A), the seat is lowered,
and by moving the castor wheel to a lower
position, the seat is raised.
Changing to bigger or smaller castor wheels
A smaller castor wheel lowers the seat height,
whilst a bigger castor wheel raises the seat
height. By changing the castor wheel, a smaller
castor wheel will give a smaller turning radius, and
thereby increase the ability to negotiate obstacles
in narrow spaces, and will also give more room
for the legs. A larger castor wheel will increase the
turning radius but will also improve the ability to
negotiate obstacles on uneven surfaces.
Changing to a longer or shorter castor wheel
fork
A shorter castor wheel fork lowers the seat
height, gives a smaller turning radius, and thereby
increases the ability to negotiate obstacles in
narrow spaces, and will also give more room for
the legs. A longer castor wheel fork increases the
seat height, and allows several alternative castor
wheels to be used.
The table on page 31 shows which seat heights
can be achieved by using the methods above.
Note! Remember to adjust the angle of the castor
wheel when changing the seat height, and to
adjust the brakes when changing the seat height
at the back.
Castor wheel fork
Castor
wheel
Bearing
housing
ADJUSTING THE WHEELCHAIR

17
A
B
MB3197-EN
Figure 25
Figure 26

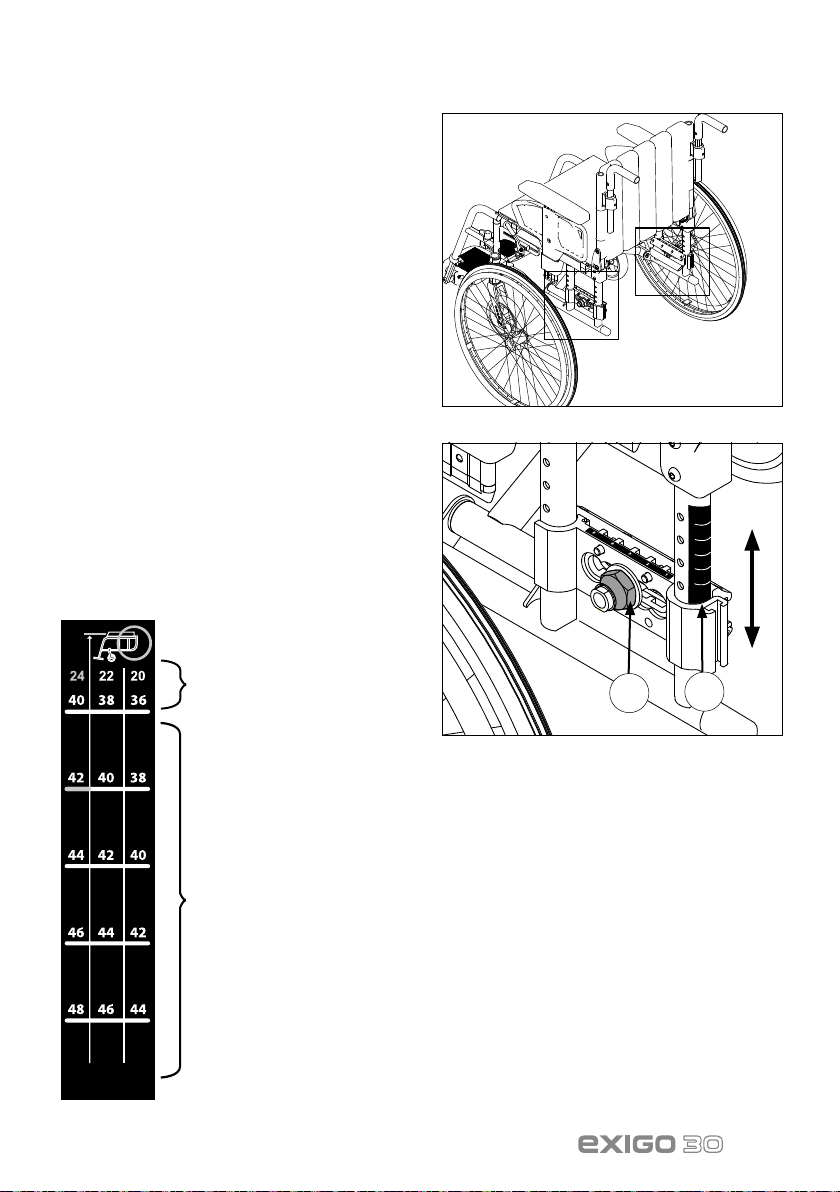

Adjusting the seat height – back
Figures 25 and 26
On the wheelchair frame you will find a measuring
scale (26A) showing the seat height in relation to
the size of the driving wheel
• Remove the driving wheel
• Loosen the screw (26B) with a 27 mm wrench
and unscrew until it stops
• Pull the inner and outer wheel block slightly
apart
• Adjust the wheel block step-by-step up or down
in accordance with the scale
• Squeeze the inner and outer wheel block
together
Note! It is important to ensure that the pins in the
wheel block go into the holes in the frame and
that the casing lies horizontally in the track before
tightening the screw.
Find the dimension of your driving wheel at the
top of the scale. The column under the wheel
dimension shows where to place the wheel block
in order to achieve the various seat heights.
Alternative driving wheel
dimensions
Seat heights that can be
achieved by the different
steps on the scale
ADJUSTING THE WHEELCHAIR

18
A
B
MB3197-EN
Figure 27
Figure 28

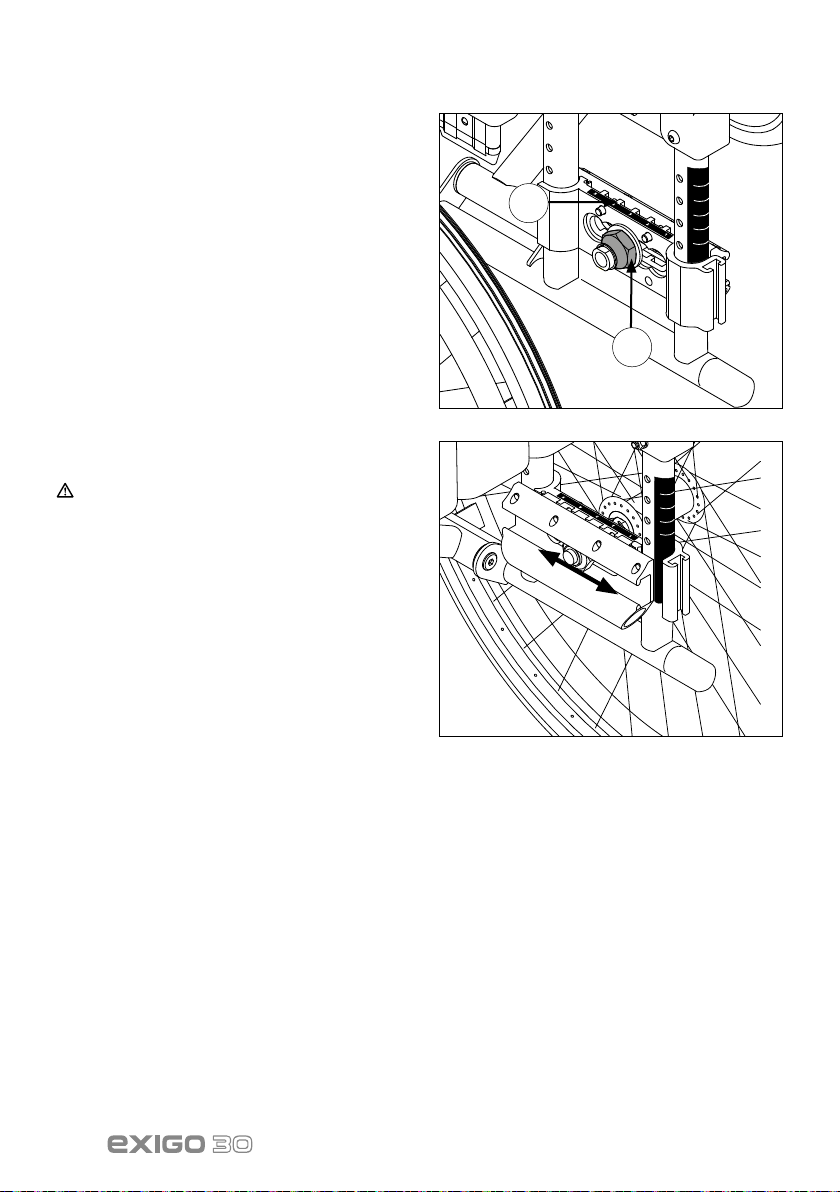

Adjusting the centre of gravity
Figures 27 and 28
The driving wheel can be adjusted to five different
positions in relation to the centre of gravity.
This is shown on the scale (27A) on the wheel
block. Position 1 represents the best anti-tipping
position.
• Loosen the screw (27B) with a 28 mm wrench,
and unscrew until it stops.
• Adjust the casing of the driving wheel forward
or backward (Figure 28).
Note!
It is important to ensure that the pins in the wheel
block go into the holes in the frame and that
the casing lies horizontally in the track before
tightening the screw.
Warning!
Remember to adjust the brakes and the anti-tip
stabiliser after you have adjusted the seat height
and centre of gravity.
Note!
When changing the height and centre of gravity,
the driving wheels should be adjusted first,
followed by the height and angle of the castor
wheels.
ADJUSTING THE WHEELCHAIR

19
A
B
A
C
B
MB3197-EN
Figure 29
Figure 30
Figure 31

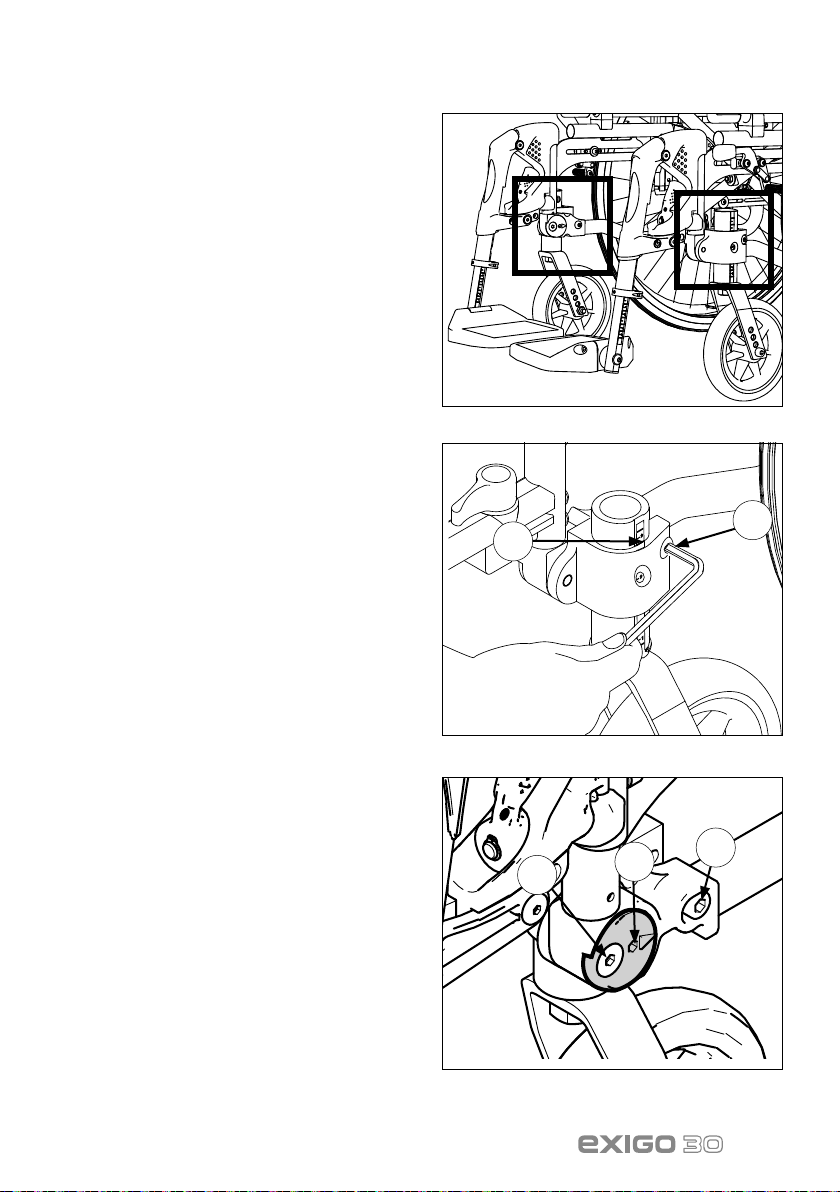

Adjusting the seat height - front
Figures 29, 30 and 31
When adjusting the height of the wheelchair, the
height of the driving wheels should be regulated
before the angle. There is a scale for adjusting
both the height and angle of the castor wheels,
which helps to achieve equal measurements on
both castor wheels.
Adjusting the castor wheel height
Figure 30
The driving wheel has a scale from 1–9 to help
achieve the same height on both castor wheels.
• Loosen screw (30A)
• Adjust to the desired height, see scale (30B)
• Re-tighten the screw
Adjusting the angle of the castor
wheel Figure 31
• Loosen screw (31A) slightly
• Loosen screw (31B)
• Place the Allen key into the rotating disk (31C)
and rotate to the desired angle. See the scale
• Tighten screw (31B). A screw locking device
such as Blue Locktite, no. 243, can be used.
• Tighten screw (31A)
When the front castor wheel is at the correct
angle, the bearing housing will be in a vertical
position (90°) to the base. This is achieved by
using a right angle to the bearing house/floor.
ADJUSTING THE WHEELCHAIR

20
15 10 50-5
A
B
B
C
A
C
MB3197-EN
Figure 32
Figure 33
Figure 34

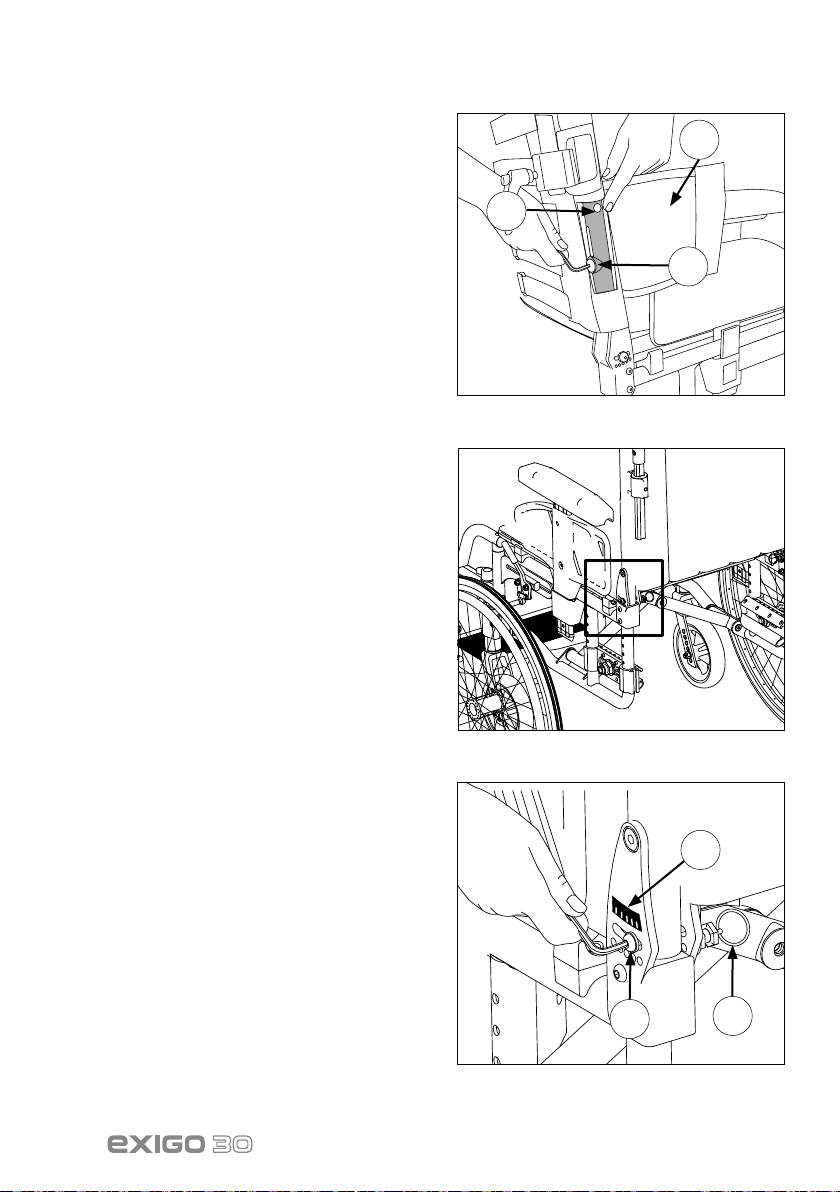

Adjusting the height of the back
Figure 32
In order to access the back tubing when adjusting
the back height, open the “lid” (32C) in the back
cover. The measuring scale (32A) shows the back
height. For easier access to the back tubing, raise
the pushing handle. The adjustment can be made
whilst the user is in the wheelchair. Additionally, it
is not necessary to remove the driving wheels in
order to adjust the back height.
• Loosen the screw in the back tubing (32B)
• Adjust to the desired back height. See the
measuring scale
• Re-tighten the screw
Adjusting the angle of the back
Figures 33 and 34
The angle of the back can be adjusted from –5° to
15°, in intervals of 5°. The scale showing the back
angle (34A) is located on the back fitting bracket.
The adjustment can be made whilst the user is
sitting in the wheelchair. Additionally, it is not
necessary to remove the driving wheels in order to
adjust the back angle.
• Loosen screw (34B) approx. 5 mm
• Pull out the lock ring (34C), adjust the angle
of the back and release the lock ring at the
desired angle
• Re-tighten screw (34B)
ADJUSTING THE WHEELCHAIR
