Breezy Nuage PLS User manual

USER MANUAL
GEBRUIKERSHANDLEIDING
BEDIENUNGSANLEITUNG
NOTICE D’UTILISATION
Seating system
Zitsysteem
Sitzsystem
Système d’assise
Nuage PLS
9011307B
NUAGE PLS
NUAGE PLS ACTIVE
NUAGE PLS ACTIVE XS

2 Nuage
English .............................................................3
Nederlands ....................................................27
Deutsch .........................................................51
Français .........................................................75

Nuage 3
© 2016 Sunrise Medical
All rights reserved.
The information provided herein may not be reproduced and/or published in any form, by print,
photoprint, microlm or any other means whatsoever (electronically or mechanically) without the prior
written authorization of Sunrise Medical.
The information provided is based on general data concerning the construction known at the time
of the publication of this manual. Sunrise Medical executes a policy of continuous improvement and
reserves the right to changes and modications.
The information provided is valid for the product in its standard version. Sunrise Medical can therefore
not be held liable for any damage resulting from specications of the product deviating from the
standard conguration. Illustrations contained in the manual may deviate from the conguration of your
product.
The information made available has been prepared with all possible diligence, but Sunrise Medical
cannot be held liable for any errors contained in the information or the consequences thereof.
Sunrise Medical accepts no liability for loss resulting from work executed by third parties.
Names, trade names, trademarks etc. used by Sunrise Medical may not, as per the legislation
concerning the protection of trade names, be considered as being available.
English

4 Table of contents Nuage
1 Introduction....................................................................................................................................6
1.1 This user manual 6
1.2 For further information 6
1.3 Symbols used in this manual 6
2 Safety ............................................................................................................................................7
2.1 Temperature 7
2.2 Moving parts 7
2.3 General safety guidelines and instructions 7
3 Product description........................................................................................................................8
3.1 Nuage PLS series 8
3.2 Positioning options and accessories 9
4 Use ..............................................................................................................................................10
4.1 Getting into and out of the seat 10
4.2 Reducing the seating system in size for transportation 10
4.3 Use as a passenger seat in a vehicle 10
4.4 Adjusting the seating system 10
5 Settings (by a professional) ......................................................................................................... 11

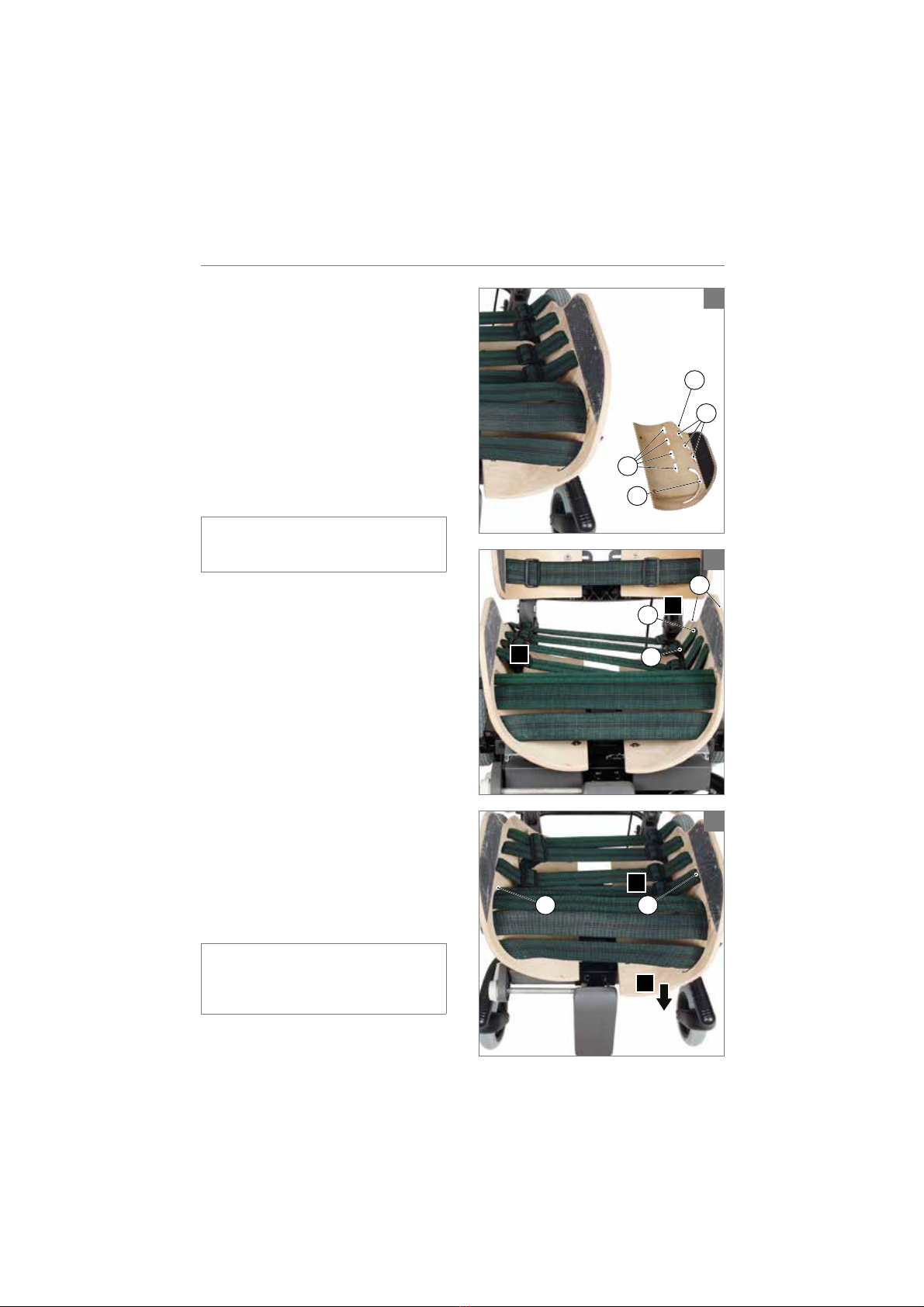

5.1 Seat webbing 12
5.2 Pelvic obliquity 12
5.3 Leg length discrepancy 12

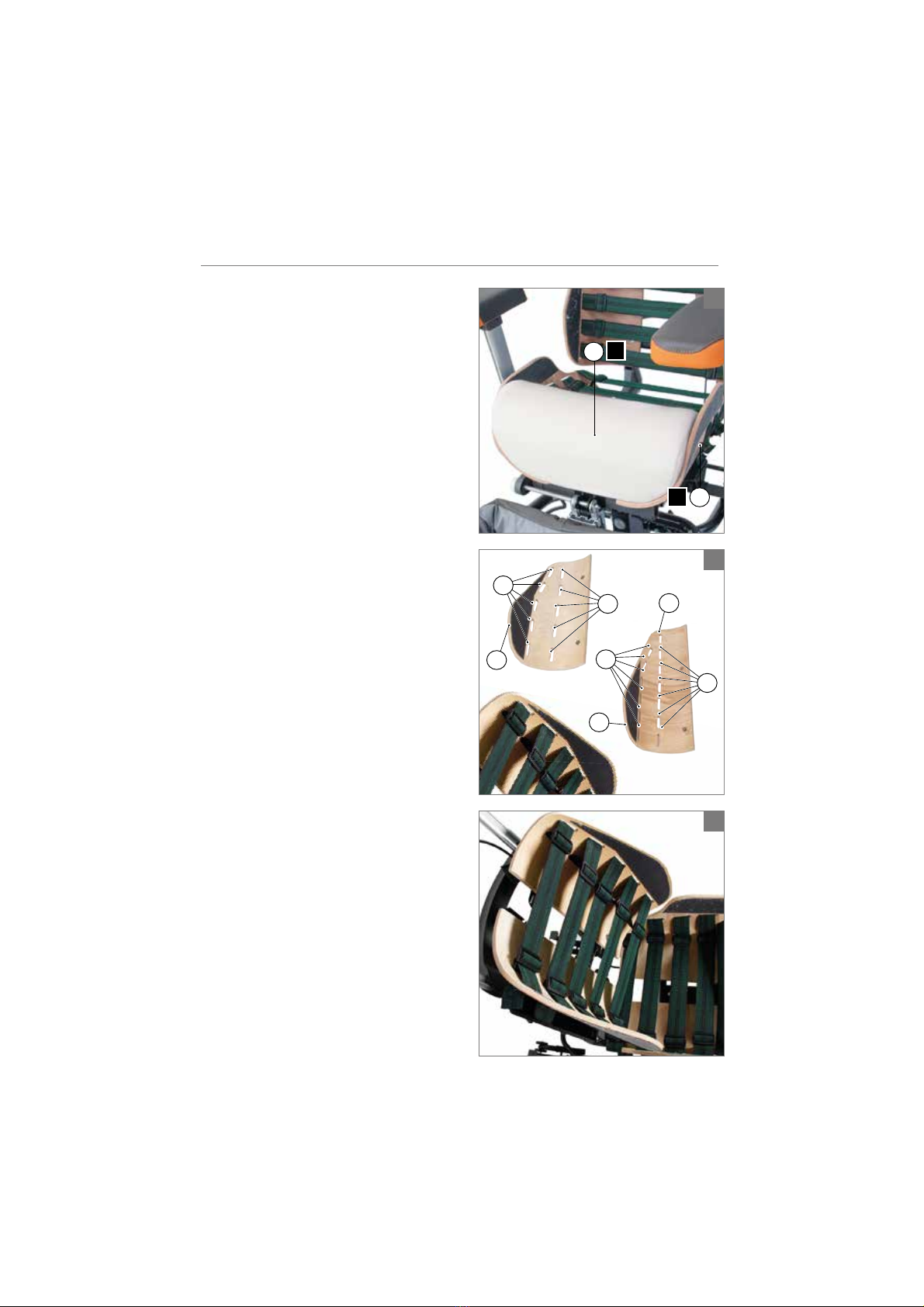

5.4 Contour cushion 13

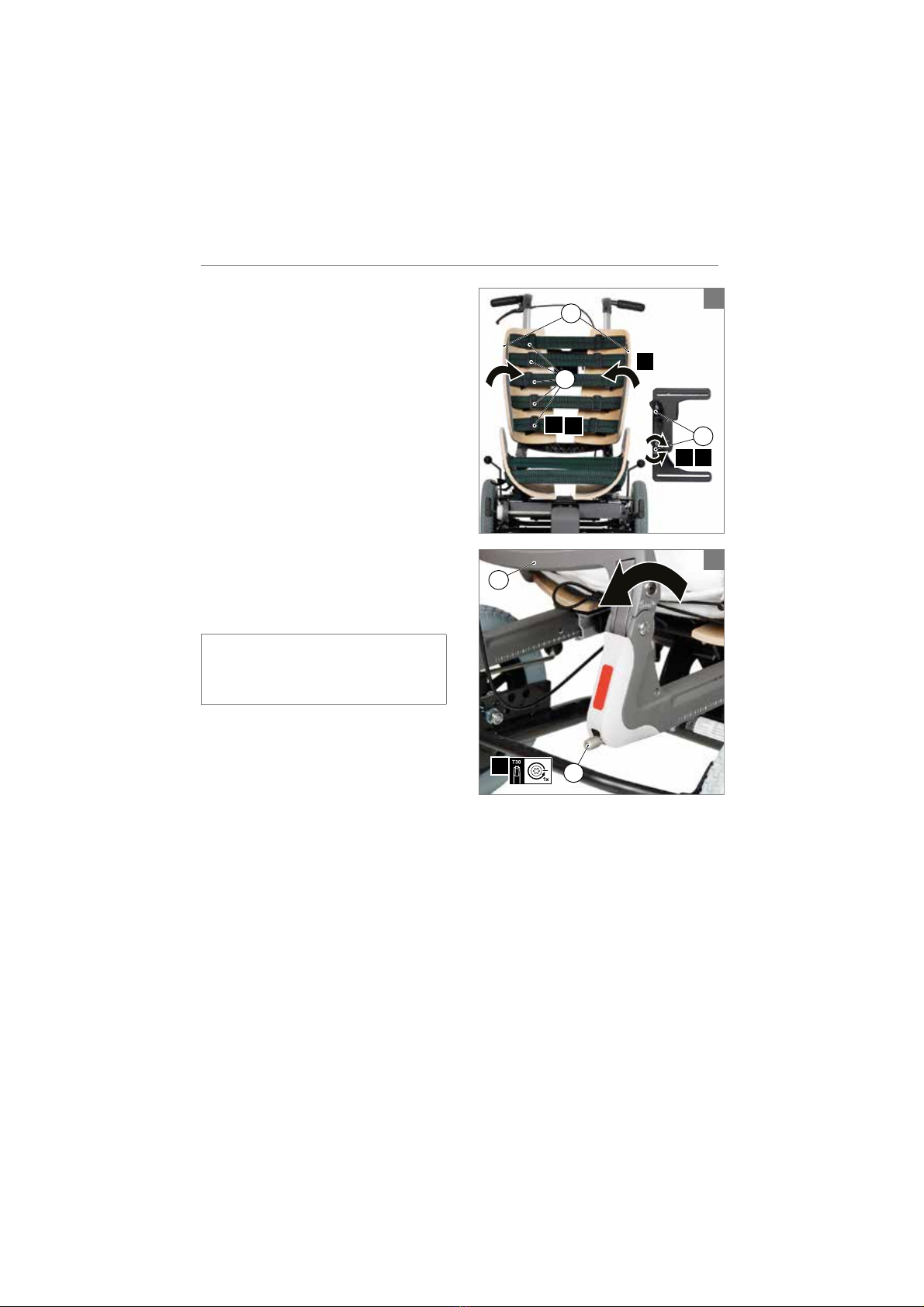

5.5 Backrest webbing 13
5.6 Dorsal obliquity 13

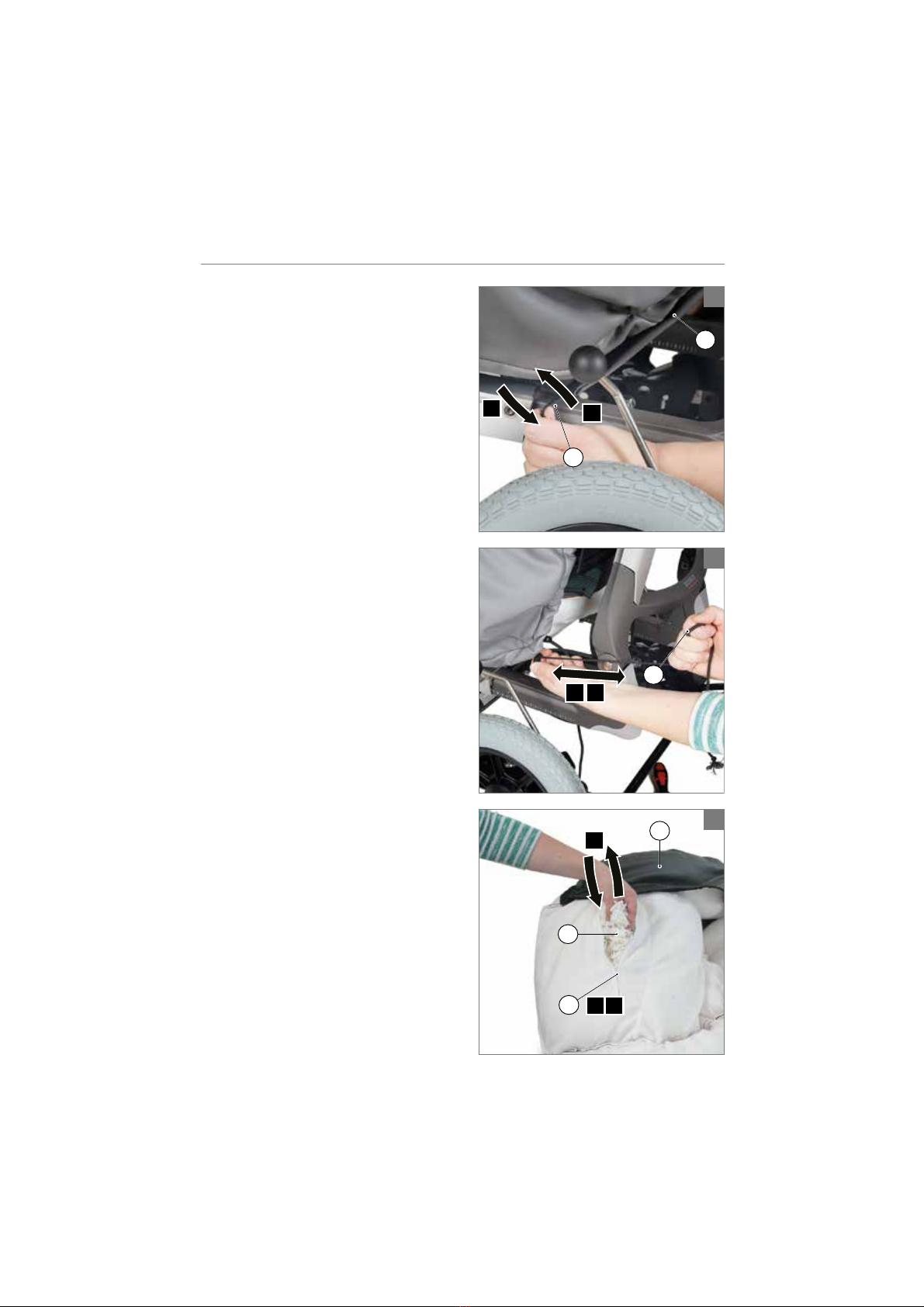

5.7 Tensioning the cover 14
. ushion lling 

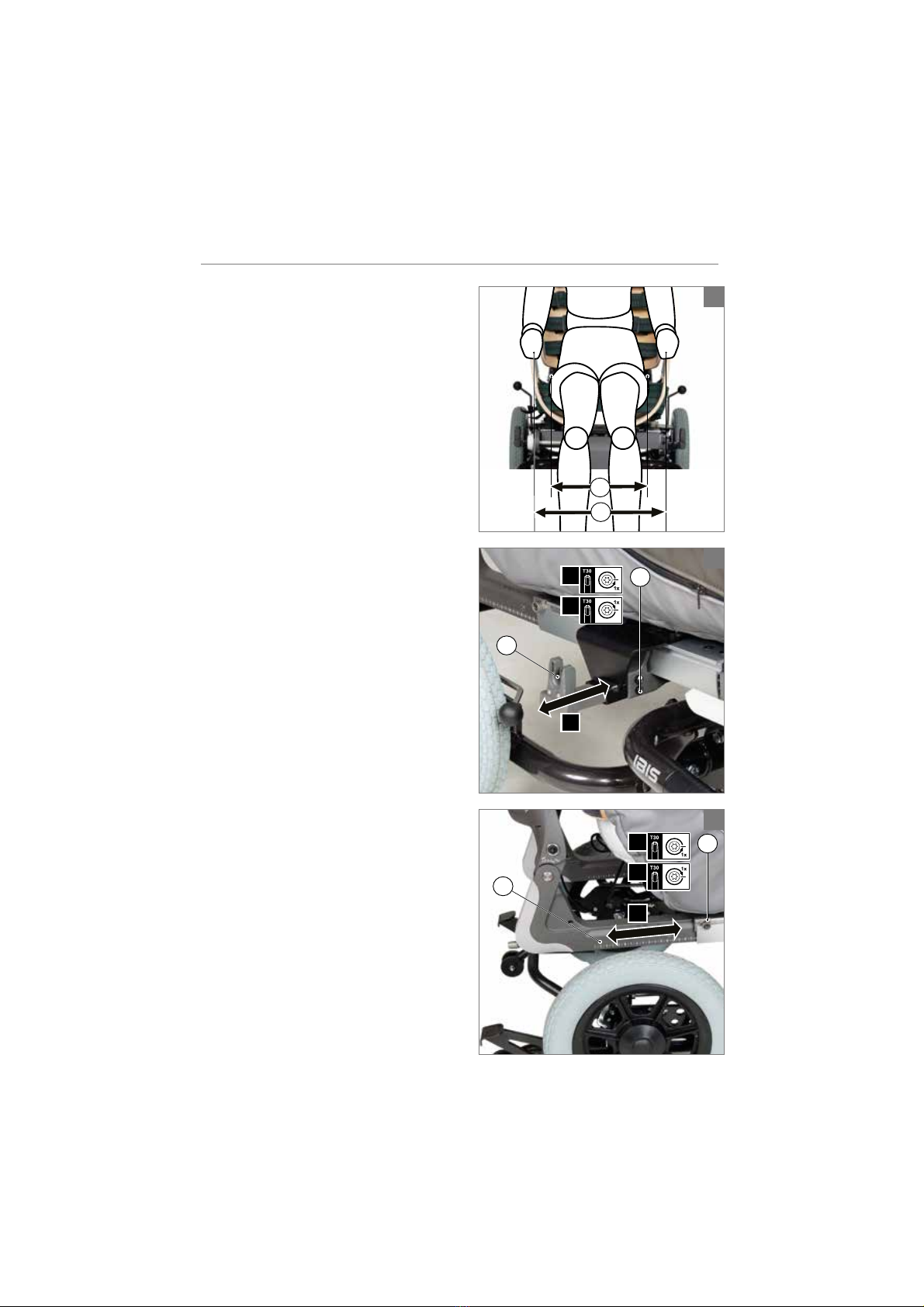

. Seat width (wheelchair specic) 
. Seat depth (wheelchair specic) 
5.11 Backrest width 16
. ackrest height (wheelchair specic) 
. unnel shape backrest shells (wheelchair specic) 
. ngle backrest shells (wheelchair specic) 
. ackrest angle (wheelchair specic) 
6 Maintenance ................................................................................................................................18
6.1 Cleaning the upholstery 18
6.2 Replacing the upholstery 18
7 Troubleshooting ...........................................................................................................................19
 Technical specications ...............................................................................................................20
8.1 CE declaration and requirements 20
8.2 Technical information 20
Table of contents

Nuage Table of contents 5
9 Warranty ......................................................................................................................................22
. enitions of terms 
9.2 Warranty period table 23
10 Labelling ......................................................................................................................................24
10.1 Markings on the seating system 24
11 Accessories .................................................................................................................................25

6 Introduction Nuage
1 Introduction
Congratulations on choosing a Nuage PLS
seating system for your tilt in space wheelchair.
All of our high-quality mobility products are
designed to enhance independence and make
your everyday life easier.
1.1 This user manual
This user manual will help you to use and
maintain your seating system safely This
user manual is a supplement to our general
wheelchair user manual.
Where necessary this user manual refers to
other manuals as shown below:
 Wheelchair: Refers to the general
wheelchair user manual.
Read this user manual and the other user
manuals referred to carefully before using
the product. If one of the user manuals was
not included with your wheelchair, please
contact your dealer immediately.
In addition to this user manual, there is also a
service manual for ualied specialists.
If you are visually impaired, this
document can be viewed in PDF format at
www.SunriseMedical.eu or alternatively is
available on request in large text.
1.2 For further information
Please contact your local, authorised Sunrise
Medical dealer if you have any questions
regarding the use, maintenance or safety of
your wheelchair. In case there is no authorised
dealer in your area or you have any questions,
contact Sunrise Medical either in writing or by
telephone.
For information about product safety
notices and product recalls, go to
www.SunriseMedical.eu
1.3 Symbols used in this manual
Note!
Pointing out possible problems to the user.
Caution!
Advice for the user to prevent damage to the
product.
Warning!
Warnings for the user to prevent personal in
jury.
Not following these instructions may result
in physical injury, damage to the product or
damage to the environment!
Symbols in illustrations
Each illustration includes icons and numbering
to indicate what needs to be done and in which
order.
Loosen by one turn with torx
Tighten by one turn with torx
Step 1, 2 etc.
An arrow, as part of an illustration, indicates
that the component in question moves or needs
to be moved in the direction indicated.
12
,

Safety 7Nuage
2 Safety
Please note all safety instructions before
starting to use the seating system.
Warning!
Always follow the instructions given next to
the warning symbols! Not following these
instructions may result in physical injury,
damage to the seating system, to the
wheelchair or to the environment. Where
possible, the warnings have been placed in
the applicable paragraphs.
2.1 Temperature
If you do not use the seating system, ensure
that it is not exposed to direct sunlight for
lengthy periods of time. Certain parts of the
seating system, such as the seat, the back and
the armrests can become hot if they have been
exposed to full sunlight for too long. This may
cause burns or allergic reactions to the skin.
2.2 Moving parts
Warning!
A seating system and wheelchair have
moving and rotating parts. Be careful:
contact with moving parts may result in
serious physical injury or damage to the
seating system or wheelchair.
2.3 General safety guidelines and
instructions
Sunrise Medical accepts no liability whatsoever
for damage or injury caused by failure to
(strictly) adhere to the safety guidelines and
instructions or else due to carelessness
during the use, service and cleaning of the
seating system. epending on the specic use
circumstances, additional safety instructions
may be required. Please contact your dealer
immediately if you observe a potential danger
during the use of the product.
Warning!
Only use the seating system as intended and
as prescribed in this manual. Do not adjust or
change the product if not promptly described.
Do not use parts or add-ons which are not
clearly marked as compatible with Nuage
seating systems.
To avoid accidents and other problems, it is
very important to pay attention to the safety
instructions as described in the user manual
of the manual wheelchair which the seating
system will be used with.
In case of possible technical malfunctioning,
please contact your dealer.

8 Product description Nuage
1
2
3
3 Product description
Nuage PLS series seating systems are
individually adjustable high comfort wheelchair
seating solutions for people with limited mobility,
trunk balance and postural control. The softly
padded seating system ‘embraces’ the body
contours for high comfort, stability, pain and
pressure relief.
The seating systems are compatible with most
common tilt in space wheelchair frames in
the market. Contact your dealer for detailed
information and installation.
Caution!
Please study this manual carefully before
using the seating system.
3.1 Nuage PLS series
The Nuage PLS series features:
Nuage PLS (gure 1)
A seating support for full body and leg support
of passive users: people with strongly reduced
trunk balance and a very limited ability for
active sitting.
Nuage PLS Active (gure 2)
A seating support for semi-passive users:
people with reduced rump balance and postural
stability. The seating system combines body
support and a stimulation of (postural) activity.
Nuage PLS Active XS (gure 3)
A seating support for semi-passive children or
small adults with reduced rump balance and
postural stability. The seating system combines
body support and a stimulation of (postural)
activity.

Product description 9Nuage
1
2
3
3.2 Positioning options and
accessories
The seating systems offer a number of
adjustment options to optimize the positioning
and support for each individual user.
With the adjustable webbing straps, the seat
and backrest contours can be accurately tted
to the body contours of the user. The seating
systems also provide asymmetrical positioning
options, for example useful in case of pelvic
obliquity.
Optional accessories are available for a
comfortable support of head, arms and legs.
See chapter 11.
The seating system and wheelchair must be
adusted by a ualied specialist. Incorrect
settings may have negative consequences for
seating posture.

10 Use Nuage
4

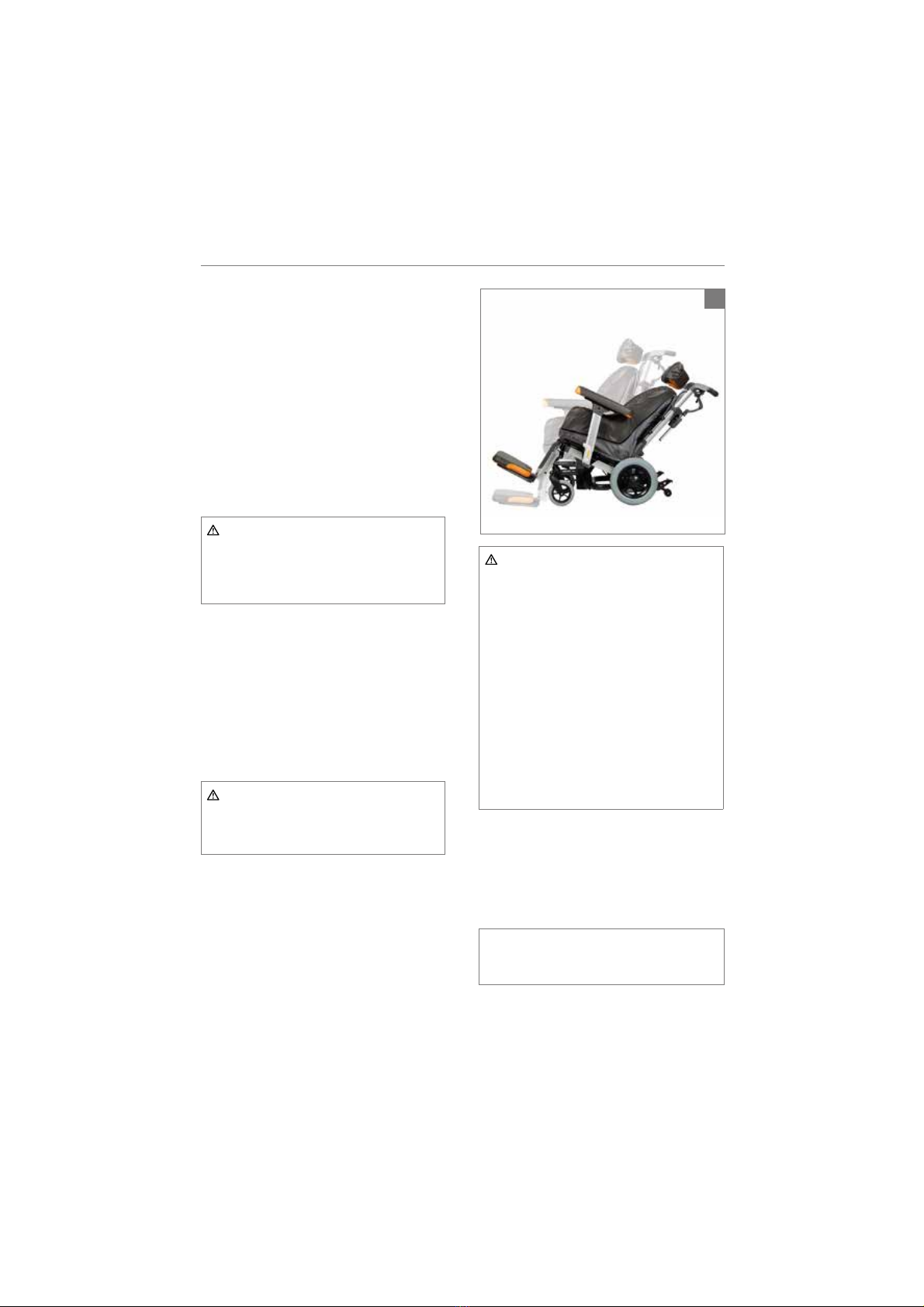

4 Use
Nuage PLS seating systems are intended
for use on tilt in space wheelchairs. The tilt
enables to easily change position. This reduces
prolonged pressure on body parts en is
therefore important for your health and comfort.
4.1 Getting into and out of the
seat
Make sure to engage the wheelchair brakes
before getting a person into or out of the seat.
Do not stand on the footplates.
Warning!
Putting your full weight on the footplates may
lead to wheelchair damage and to hazardous
situations, including the wheelchair tipping
up.
4.2 Reducing the seating system
in size for transportation
The way a seating system can be reduced in
size for transportation without a passenger
highly depends on the wheelchair frame it is
mounted on. Head rests, armrests and legrests
are usually easily removable ( Wheelchair).
Complete disassembly and reassembly is
reserved to professionals, contact your dealer.
Warning!
Store away detached components safely so
that they can not cause injury or damage, or
become damaged themselves.
4.3 Use as a passenger seat in a
vehicle
Before transporting people in a car or other
vehicle as a passenger in a wheelchair with a
Nuage PLS seating system, it is recommended
to check that compliance with all safety
regulations can be assured. Contact your
dealer for information and an assessment
of your specic situation. rofessionals can
contact Sunrise Medical for all information on
ISO 7176-19 test results.
Warning!
Please check the proper instructions on
transportation ( Wheelchair)
A wheelchair is not primarly designed to
be used as seat in a motor vehicle during
transport. Transfer to a regular car seat if
possible.
Contact your dealer to check if your
wheelchair has been crash tested according
to ISO 7176-19 (2008) in combination with
your Nuage PLS seating system.
A seating system should be inspected by
a Sunrise Medical’s representative before
reuse after an involvement in any type of
vehicle collision.
4.4 Adjusting the seating system
The adjustment possibilities and the way of
adjusting dependend on the wheelchair frame
the seating system is mounted on.
Note!
See information about wheelchair specic
adjustment options ( Wheelchair)

Settings (by a professional) 11Nuage
C
B
5
6
7
A
DE
5 Settings (by a
professional)
Seating system adjustements may vary per
brand and model of the wheelchair frame. The
wheelchair specic adustments are marked
with the addition (wheelchair specic). In
these cases, the instructions and gures
refer to adustments of a uage S on Ibis
wheelchairs with Sedeo Pro seating system.
Note!
When you do have another seating system
then Sedeo ro check the manual
( Wheelchair) or contact your dealer
Under the cover (A) of a Nuage PLS seating
system you nd a seat and backrest with
adjustable straps providing multiple adjustment
possibilities for comfortable positioning.
The plywood seat shells (), backrest shells ()
and other parts of the seating system are also
adjustable.
The seat and backrest with adustable straps
are delivered with a set of webbing straps and
adjustable webbing straps.
The webbing straps (D) are fastened to the
shells attaching the orange velcro ends to the
velcro surface on the shells.
The adjustable webbing straps (E) have sliding
buckles and double velcro ends (orange and
black).

12 Settings (by a professional) Nuage
2
G
I
1
I
H
F
G
1
2
F
G
H
8
9
10
5.1 Seat webbing
The four simple straps in the front and the four
adustable straps in the back enable to follow
the contours of buttocks and upper legs while in
the mean time providing support where needed
for an optimal seating position and stability.
1. Place the adjustable straps in recesses (F),
(G) and / or if required over the edge (H).
2. Tension adjustable straps and fasten the
velcro ends.
3. Tension further with the sliding buckles.
4. lace the simple straps in recess (I).
5. Tension and fasten the velcro ends.
Warning!
Tension the seat straps sufciently to prevent
bottoming-out.
5.2 Pelvic obliquity
1. Tension the adjustable straps in recesses (F)
and (G) or if required in recess (G) and over
edge (H).
2. se the sliding buckles and move the velcro
ends to create a different (asymmetrical)
support left and right.
5.3 Leg length discrepancy
1. Move one of the seat shells forwards. To do
so, loosen the armrestholder, slide it in the
rail towards the front of the seat and fasten
again.
2. Tension an adjustable strap from recess (G)
to recess (I). t (I) remove the sliding buckle.
Note!
Step 1 is not possible in combination with
seating systems other than Sedeo Pro /
Sedeo Original.

Settings (by a professional) 13Nuage
J
I
1
2
K
M
L
N
L
M
N
XS
11
12
13
2
G
I
1
I
H
F
G
1
2
F
G
H
8
9
10
5.4 Contour cushion
Optionally the front straps can be replaced with
a separately availabe contour cushion.
1. emove the front four webbing straps (I).
2. Place the contour cushion (J).
5.5 Backrest webbing
The six adjustable straps and one simple strap
(uage S ctive S ve adustable straps)
enable to follow the contours of the back, create
a lumbal support and give further extra support
where needed.
1. Place a simple webbing strap in the upper
recesses (K).
2. Tension strap and fasten the velcro ends.
3. Place adjustable webbing straps in recesses
(L), (M) and / or if required over the entire
edge (N).
4. Tension adjustable straps and fasten the
velcro ends.
5. Tension further with the sliding buckles.
5.6 Dorsal obliquity
1. se the sliding buckles and move the velcro
ends to create a different (asymmetrical)
support left and right.

14 Settings (by a professional) Nuage
3
S
A
R
4
2
P
O
15
24
Q
14
15
16
5.7 Tensioning the cover
1. ree the cover back ap () by detaching
the velcro ends () at the bottom of the ap
from the velcro surfaces on the seat shells.
2. Untie the elastic rope (Q) in hem of the
cover.
3. Position the cover.
4. Tension the elastic rope () and tie a knot.
5. lose the back ap () by attaching the
velcro ends (P) to the velcro surfaces on the
seat shells.
5.8 ui ig
1. Remove the cover (A).
2. Open the zipper (R).
3. dd or remove lling (S).
4. lose the zipper ().
5. Place the cover (A).

Settings (by a professional) 15Nuage
X
Y
1
2
3
T
U
V
W
1
2
3
17
18
19
3
S
A
R
42
P
O
15
2 4
Q
14
15
16
5.9 Seat width (wheelchair
ecic)
The distance between the seat shells edges
(T) and the required seat width relate as
(T) = (U) + 12 cm.
Rough adjustment
When mounting the seat, choose the screw
hole pattern that ts the reuired seat width
range: 30 to 40 cm, 40 to 50 cm or over 50 cm.
Finetuning
Further adjustment of the seat width for a
specic user takes place during a tting
session.
1. Remove the straps on one side by
detaching the velcro ends from the velcro
surfaces on the seat shells.
2. Loosen (V) on both sides.
3. Move the armrest holder (W) inwards or
outwards on both sides.
4. Fasten (V) on both sides.
5. Tension the straps and attach the velcro
ends to the velcro surfaces of the seat
shells.
5.10 Seat depth (wheelchair
ecic)
1. Loosen (X) on both sides.
2. Slide () to the front or back to create the
required seat depth.
3. Fasten (X) on both sides.

16 Settings (by a professional) Nuage
2
4
B
3
3
A
3
2
4
A
B
33
2
4
B
33
C
20
21
22
5.11 Backrest width
The seat width and backrest width are
separately adjustable, enabling to position
people with broad hips / small shoulders as well
as people with small hips / broad shoulders.
1. If reuired loosen the straps by detaching
the velcro ends on one end from the velcro
surfaces of the shells.
2. oosen bolts () half a turn with a ring key
13.
3. Slide the backrest shells () outwards or
inwards.
4. Fasten bolts (A) again.
5. Tension the straps and attach velcro ends on
the velcro surfaces of the shells.
5.12 Backrest height (wheelchair
ecic)
1. Detach the velcro ends of the cover from the
seat.
2. oosen socket screws () .
3. Slide backrest shells () up or down.
4. asten socket screws ().
5. Position the cover and fasten cover with the
velcro ends.
5.13 Funnel shape backrest shells
(eecair ecic)
1. If reuired loosen straps ().
2. oosen bolts ().
3. Slide the top of the backrest shells ()
apart / closer to each other for more / less
shoulder room.
4. asten bolts ().
5. Tension straps (D).
6. Position the cover, tie elastic rope and attach
the velcro ends to the seat.

Settings (by a professional) 17Nuage
E
2
1
3
5
4
B
D
1
F
G
23
24
2
4
B
3
3
A
3
2
4
A
B
33
2
4
B
33
C
20
21
22
5.14 Angle backrest shells
(eecair ecic)
1. If reuired loosen straps () by detaching
the velcro ends on one end from the velcro
surfaces of the shells.
2. Loosen screws for shell angle adjustment
(E).
3. Turn backrest shellls () inwards or
outwards.
4. Fasten (E) again.
5. Tension straps (D).
5.15 Backrest angle (wheelchair
ecic)
1. Turn (F) to adjust the inclination angle of the
backrest ().
Note!
Alternatively, the wheelchair can be equipped
with an optional gas spring actuated angle
adjustment ( Wheelchair).

18 Maintenance Nuage
80% Bamboo
20% PES
40°
25
26
Polyester knitted
fabric with
polyurethane layer
95° P
6 Maintenance
It is recommended that you have your seating
system serviced by your dealer once a year
or, in the case of intensive use, once every six
months.
6.1 Cleaning the upholstery
Cleaning
Clean the upholstery and covers using a
damp cloth and household soap. Then rub dry
using a soft, dry cloth. In case of persistance
stains, allow a few minutes to take effect. Use
enzymatic cleaners to remove organic (ureum)
stains and odors.
Washing
Follow the washing instructions on the covers.
See the washing instructions for the PU-coated
covers in gure . efore washing remove the
padded cushions zipped inside the cover. Allow
ample time for drying and make sure the cover
is thoroughly dried before use. See the washing
instructions for the bamboo terry covers in
gure .
Disinfecting
Disinfection is a two steps procedure: cleaning
(as described above) and decontaminating. To
decontaminate PU-coated and bamboo terry
covers, use a damp cloth and disinfecting soap.
Rinse thoroughly and rub dry using a soft, dry
cloth.
Caution!
Do not use organic solvents such as thinner,
benzine or white spirit.
Do not iron or bleach the PU-coated covers.
Do not chemically clean the bamboo terry
cover.
6.2 Replacing the upholstery
Replacing or spare PU-coated covers and
bamboo terry covers are commercially
available.

Troubleshooting 19Nuage
7 Troubleshooting
If there is a problem with your seating system,
please contact your dealer.

 Technical specications Nuage
8 ecica ecicati
8.1  ecarati a reuireet
This product complies with the I ITI  of  une 
concerning medical devices. The product also meets the following reuirements and standards. This
has been veried by independent test organizations.
Staar eitiecriti
 guieie
32  euirements as stated in ppendix  apply
N 1213
(2) Manual wheelchairs  euirements and test methods
N 121
(2)
lectrically powered wheelchairs, scooters and their chargers  euirements and
test methods
ISO 7176-19
(2)
heeled mobility devices for use as seats in motor vehicles  euirements and
test methods (commonly referred to as crash test)
.2 ecica irati
uage S seating system and uage S ctive seating system
ecriti it
Maximum user weight kg 
Seat width mm   
Seat depth mm   
ackrest height mm 
rmrest width mm   
ootplate width mm 
ootplate depth mm 
alf plate depth mm 
alf plate height mm 200
Specications may be inuenced by the wheelchair conguration and settings.
ther specications are fully wheelchair dependent.
