1 Imprint
Bresser GmbH
Gutenbergstr. 2
46414 Rhede
Germany
http://www.bresser.de
If you wish to submit a warranty claim or service request, please refer to the “Warranty” and “Service”
information in this document. Please be aware that any requests or submissions sent directly to the
manufacturer cannot be processed.
Errors excepted. Subject to technical modifications.
© 2019 Bresser GmbH
All rights reserved.
Reproduction of this document, including extracts, in any form (photocopied, printed etc.) or the use
and distribution of this document by electronic means (image file, website etc.) is not permitted without
the prior written consent of the manufacturer.
The terms and brand names of the respective companies used in this document are protected by
brand, patent or product law in Germany, the European Union and/or other countries.
2 Validity information
This documentation is valid for the products with the article numbers listed below:
7007201
Manual version: v1019
Manual description:
Manual_7007201_ClimaTemp-TB_en_BRESSER_v102019a
With any service inquiries, please state these information.
3 About this Instruction Manual
NOTICE
These operating instructions are to be considered a component of the device.
Please read the safety instructions and the operating instructions carefully before use.
Keep these instructions for renewed use at a later date. When the device is sold or given to someone
else, the instruction manual must be provided to the new owner/user of the product.
4 General safety instructions
DANGER
Risk of suffocation
Improper use of this product can result in suffocation. This is particularly dangerous for children. The
following safety information must be observed at all times.
• Keep packaging materials (plastic bags, rubber bands etc.) away from children. They can cause
suffocation.
• This product contains small parts that could be swallowed by children. There is a risk of choking!

5 / 16
DANGER
Risk of electric shock
This device has electronic parts operated via a power source (power supply and/or batteries). Im-
proper use of this product can cause an electric shock. An electric shock can cause serious or poten-
tially fatal injuries. The following safety information must be observed at all times.
• Children must only use the device under adult supervision! Only use the device as described in the
manual; otherwise, you run the risk of an electric shock.
DANGER
Risk of explosion
Improper use of this product can cause an explosion. The following safety information must be ob-
served at all times to prevent an explosion.
• Do not expose the device to high temperatures. Use only the recommended batteries. Do not
short-circuit the device or batteries, or throw them into a fire! Excessive heat or improper handling
could trigger a short-circuit, a fire or an explosion!
NOTICE
Risk of damage to property
Improper handling can result in damage to the device and/or to the accessories. Always observe the
following safety information when using the device.
• Never disassemble the device. In the event of a fault, please contact your specialist retailer. The
specialist retailer will contact the service centre and send the device for repair if necessary.
• Do not immerse the unit in water!
• Do not expose the device to impacts, vibrations, dust, constant high temperatures or excessive hu-
midity. This can result in malfunctions, short-circuits or damage to the batteries and components.
• Use only the recommended batteries. Always replace weak or empty batteries with a new, com-
plete set of batteries at full capacity. Do not use batteries from different brands or with different ca-
pacities. Remove the batteries from the unit if it has not been used for a long time.
NOTICE
Risk of voltage damage!
The manufacturer is not liable for damage related to improperly installed batteries!

6 / 16
5 Parts overview and scope of delivery
RESET
1 2 3
AAA 1.5V AAA 1.5V
1
2
13
9
12
11
10 6
5
4
7
8
14
15
20
16
17
19
18
3
A
B
Illustration1: All parts of base station (top) and wireless sensor (bottom)
1 Housing (weather station) 2 Colour display
3 SNZ/LIGHT button (set snooze function / dis-
play brightness)
4 UP/CF key (increase value or change between
°C and °F)
5 MODE button (switch between current time
and alarm time display or setting mode)
6 DOWN/RCC button (decrease value or initiate
RCC signal reception)
7 Battery compartment cover (weather station) 8 Stand, fold-out
9 Battery compartment (weather station) 10 CH button (channel selection)
11 ALARM button (enable wake-up alarm) 12 ALERT button (temperature alarm setting)
13 Wall mount fixture 14 Housing (wireless sensor)
15 Data transmission function light 16 Wall mount fixture
17 RESET button (reset all settings) 18 Slider for channel selection (set transmission
channel 1, 2 or 3)
19 Battery compartment (wireless sensor) 20 Battery compartment cover (wireless sensor)
Delivery content:
Base station (A), radio sensor (B)
Required batteries (not included):
5 pcs. batteries (Type AAA/LR03, 1.5V)

7 / 16
6 Screen display
119
17
18
20
21
16
4
3
2
5
6
7
8
10
911
14
15
13
12

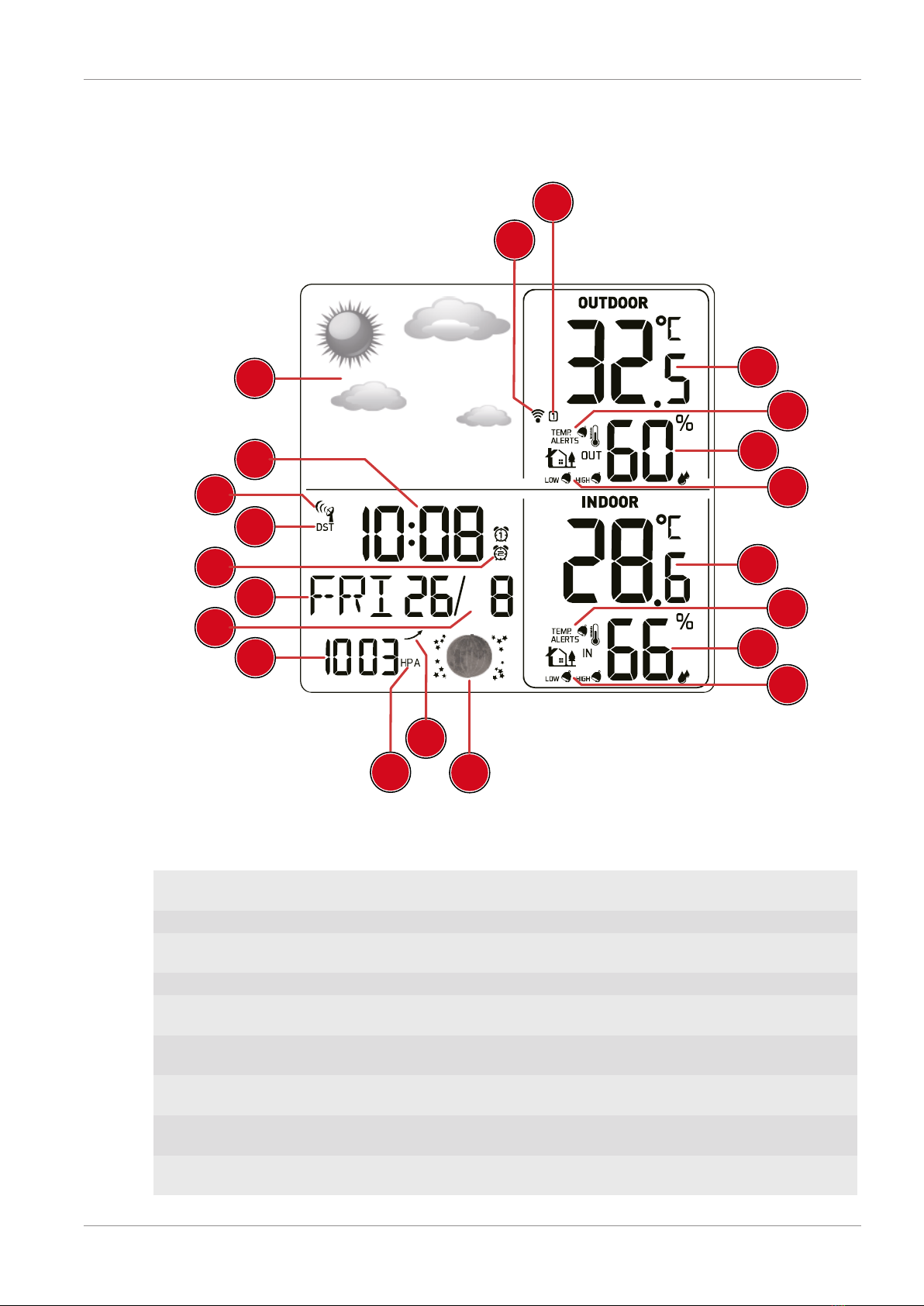

Illustration2: Screen display of the base station
1 Graphical weather forecast display (24
hours)
2 Standard: Current time, Alarm: Wake-up
time
3 Symbol for the radio signal 4 Symbol for active daylight saving time
5 Symbol for active wake-up alarm (wake-
up time 1, 2 or both)
6 Weekday information
7 Current date (day/month) 8 Current air pressure value
9 Air pressure measuring unit (in HPA) 10 Symbol for air pressure tendency (rising,
constant or falling)
11 Moon phase 12 Symbol for active maximum or minimum
indoor temperature alarm
13 Indoor humidity (in %) 14 Symbol for indoor temperature alarm
(function see 12)
15 Indoor temperature (°C or °F) 16 Symbol for active maximum or minimum
outdoor temperature alarm
17 Outdoor humidity (in %) 18 Symbol for outdoor temperature alarm
(function see 16)

8 / 16
19 Outdoor temperature (°C or °F) 20 Current wireless sensor channel (1, 2 or
3)
21 Transmission signal information (current
wireless sensor)
7 Before starting operation
NOTICE
Avoid connectivity disruptions!
To avoid connectivity disruptions between the devices, consider the following points before starting
operation.
1. Place base station (receiver) and remote sensor (sender) together as close as possible.
2. Set up power supply for the base station and wait until the indoor temperature is displayed.
3. Set up power supply for the remote sensor.
4. Position the base station and the remote sensor within the effective transmission range.
5. Ensure that the base station and remote sensor are assigned to the same channel.
When changing batteries always change batteries in the main unit as well as all remote units and re-
place them in the correct order, so the remote connection can be re-established. If either of the
devices is mains-powered, the power supply must be disconnected for a short moment also for this
device when exchanging the batteries. If batteries are exchanged in only one of the devices (i.e. the
remote sensor) the signal can’t be received or can’t be received correctly.
Note, that the effective range is vastly affected by building materials and position of the main and re-
mote units. Due to external influences (various RC devices and other sources of interference), the
maximum distance can be greatly reduced. In such cases we suggest to position the main unit and the
remote sensor at other places. Sometimes all it takes is a relocation of one of these components of a
few inches!
8 Setting up power supply
Base unit
1. Remove the battery compartment cover.
2. Insert the batteries into the battery compartment. Ensure that the battery polarity (+/-) is correct.
3. Replace the battery compartment cover.
4. Wait until the indoor temperature is displayed on the base station.
Remote sensor
5. Remove the battery compartment cover.
6. Insert the batteries into the battery compartment. Ensure that the battery polarity (+/-) is correct.
7. Move the CH slide control to the position for the desired transmission channel (setting CH1, CH2
or CH3 with screen display).
8. Replace the battery compartment cover.
NOTICE!When operating one outdoor sensor, channel 1 is recommended as the default setting.
9 Automatic time setting
After the powering it on, the unit automatically searches for the radio signal. It takes about 3-8 minutes
to complete this process.
If the radio signal is received correctly, the date and time are set automatically and the reception sym-
bol is displayed.

9 / 16
If no radio signal is received, proceed as follows:
1. Press the RCC button for approx. 2 seconds to initiate the reception of the radio signal again.
2. If no radio signal is still received, the time must be set manually.
10 Manual time setting
1. In normal display mode, press the MODE button for about 3 seconds to enter the time settings
mode.
2. Digits to be set are flashing.
3. Press UP/CF or DOWN/RCC button to change the value.
4. Press the MODE button to confirm the and switch to the next setting.
5. Settings sequence: Time zone > Hours > Minutes > Year > Month > Day > Language
6. Finally, press the MODE button to save the settings and exit settings mode.
11 Display change
In normal display mode, press the DOWN/RCC button to toggle the time display between 12-hour or
24-hour mode (AM/PM time information is displayed or hidden accordingly)
In normal display mode, press the UP/CF button to toggle between °C and °F when displaying the
temperature unit.
In normal display mode, press the CH button several times to display channels 1, 2, 3 or automatically
alternating one after another.
NOTICE!The display of values for different channels requires the connection of several suitable
wireless sensors (not included).
In normal display mode, press the ALERT button several times to display the set temperature alarm
values one after another.
12 Alarm setting
1. Press the MODE button repeatedly to select the desired alarm function: AL1 or AL2. The display
changes according to the set alarm time.
2. Press the MODE button for about 3 seconds to switch to the setting mode for the corresponding
alarm time.
3. The value to be set flashes.
4. Press the UP/CF or DOWN/RCC button to change the value.
5. Press the MODE button to confirm the and switch to the next setting.
6. Settings sequence: Hours > Minutes
7. Finally, press the MODE button to save the settings and exit settings mode.
8. In normal display mode, press the MODE button to display the desired alarm time.
9. To activate the alarm, press the ALARM button when the alarm time is selected until the corres-
ponding alarm symbol (alarm clock) is displayed.
10. To deactivate the alarm, press the ALARM button when the alarm time is selected until the corres-
ponding alarm symbol (alarm clock) is no longer displayed.
13 Snooze function
1. Press the SNZ/LIGHT button for about 3 seconds to enter the snooze time interval setting. The
preset digit flashes (03-20 minutes)
2. Press the UP/CF or DOWN/RCC button to change the value.
3. Finally, press the SNZ/LIGHT button to save the settings and exit settings mode.

10 / 16
4. When the alarm sounds, press the SNZ/LIGHT button to activate the snooze function. The alarm
will sound again at the end of the previously set time interval.
5. When the alarm sounds, press any other button to stop the alarm until the set alarm time is
reached again.
14 Receiving measurements automatically
Once the power supply is enabled, the base station will display the measurement readings for indoors.
Readings from the outdoor sensor will be displayed within 3 minutes after powering it on.
If no signal is received, proceed as follows:
Press the CH button for about 3 seconds to initate reception of measurements again.
15 HI/LO Alert
Set highest/lowest value alarm
1. In normal display mode, press the ALERT button for about 3 seconds to enter the temperature
alarm settings mode. The first value to be set flashes.
2. Press the UP/CF or DOWN/RCC button to change the value.
3. Press the ALERT button to confirm and switch to the next setting.the next setting.
4. Settings sequence: Maximum outdoor temperature value > Minimum outdoor temperature value >
Maximum indoor temperature value > Minimum indoor temperature value
5. Finally, press the ALERT button to save the settings and return to normal mode.
Enable or disable highest/lowest value alarm
6. In normal display mode, press the ALERT button repeatedly to select the desired temperature
alarm type (HIGH or LOW). The temperature alarm type is displayed below the range info (cottage
with OUT or IN).
7. When the temperature alarm is selected, press the UP/CF button to enable or disable the alarm.
When the temperature alarm is enabled, the alarm symbol (bell) appears next to the respective
temperature alarm type (HIGH or LOW).
8. The temperature alarm sounds as soon as the preset temperature is reached for the respective
range (IN or OUT).
9. Press any key to stop the alarm.

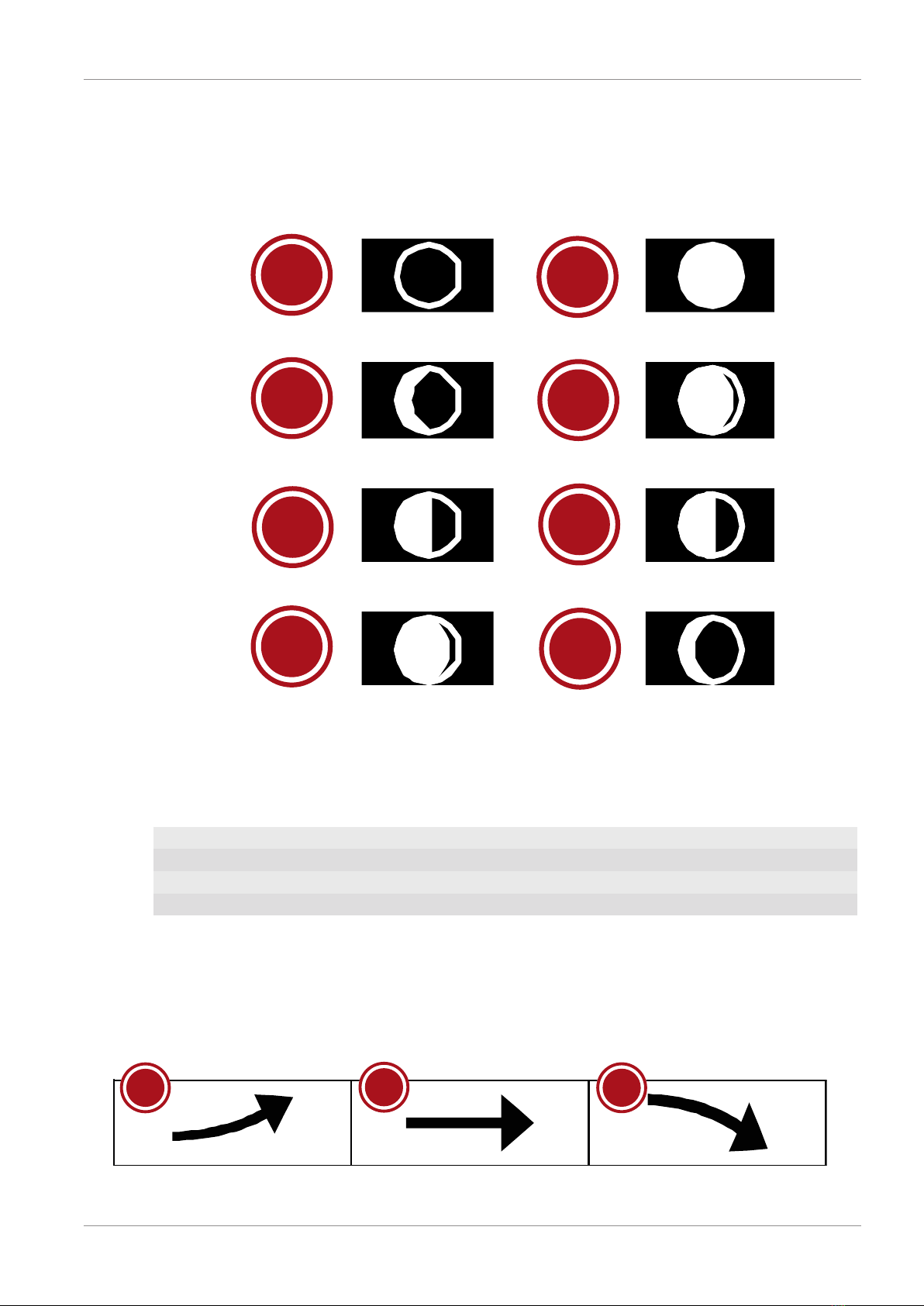

16 Moon phases
This weather station is able to display the moon phases for the northern hemisphere. Here the moon
grows from the right. This is because the sunlit side of the moon in the northern hemisphere moves
from right to left. The following table shows the representations of the moon phases.
