USER GUIDE
CUBE Carts
TVC16PAC-CK!CUBE Charging Cart AC for up to 16 devices w/Back Panel … 1.4”W Slots | Charcoal finish
TVC32PAC-CK!CUBE Charging Cart AC for up to 32 devices w/Back Panel … 1.4”W Slots | Charcoal finish
TVC16PAC-RED!CUBE Charging Cart AC for up to 16 devices w/Back Panel … 1.4”W Slots | Red finish
TVC32PAC-RED!CUBE Charging Cart AC for up to 32 devices w/Back Panel … 1.4”W Slots | Red finish
TVC16PAC-SKY!CUBE Charging Cart AC for up to 16 devices w/Back Panel … 1.4”W Slots | Sky Blue finish
TVC32PAC-SKY!CUBE Charging Cart AC for up to 32 devices w/Back Panel … 1.4”W Slots | Sky Blue finish
CAPACITY! !slot width = 1.4”
TVC16PAC-XXX!1 shelf!16 devices
TVC32PAC-XXX!2 shelves!32 devices
COMPATIBILITY Designed for various sized laptops & chromebooks, yet versatile enough to
support most tablets. Uses the device manufacturer supplied AC power cord and adapter.
OUTSIDE DIMENSIONS 30” W x 26.5”D x 37.5”H"
SLOT DIMENSIONS!1.4”W x 17”D x 12”H (fixed)"
WEIGHT!TVC16PAC-XXX!134 pounds empty"
259 pounds with 16 ea 5 lb devices"
+ an allowable 45 lbs in the bottom shelf area
TVC32PAC-XXX!143 pounds empty"
303 pounds with 32 ea 5 lb devices"
POWER MANAGER!Digital"
POWER REQUIREMENTS!120Vac, 50/60Hz, 12A
SHIPPING Ships fully assembled, ready to load devices
WARRANTY For product specific warranty information,
please visit: bretford.com/warranty
Part # 080-1016
rev April 2022
MADE IN USA
with globally
sourced products
www.bretford.com
Technical Specifications

POWER SWITCH
Located on the
top of the cart,
directly in front of
the Push Bar
POWER CORD WINDER
Located on the left side
of the cabinet, provides a
cord winder for the 7-
foot power cord
LOCKING 5” CASTERS
Allow the cart to be easily
maneuvered into small
spaces. When engaged,
lock the cart into position.
Front View
Rear View
REAR ACCESS SECURITY PANEL
Held securely in place with a key
lock. Once unlocked, the panel
easily lifts off to expose the back of
the cart, where the adapters and
cord sets are kept in cable bins.
DOOR LOCK SHROUD
Protects the padlock
during transport
WARNING:
This cart is not intended
to hold items on the top
surface. Do not place
any item weighing more
than 1 pound on the top
surface of the cart to
avoid damage.
INTEGRATED HANDLE
Handle integrated into
the top of the cart for
pushing and moving
the cart.
USER GUIDE | CUBE CARTS
SETTING THE COMBINATION LOCK
Your new CUBE Cart comes equipped with a resettable Combination Padlock. You can program the
lock with your own combination. The lock starts with 0-0-0-0. Follow the directions with the look for
changing the combination. Remember to depress the shackle before disengaging it from the lock.
General Use
STEEL CONSTRUCTION
Designed to store,
secure, transport &
charge up to 32
devices. All-steel
construction is sturdy
and provides strength
to support 32
devices.

USER GUIDE | CUBE CARTS
Device Storage & Cable Management
1. At the back of the cart, use the key from the hardware
pack to unlock the rear access panel.
2. The two keys included in the hardware pack are for the
person(s) responsible for managing the computer
adapters and cable sets, through the rear access panel.
3. Lift the rear access panel off of the chassis.
This exposes the power outlet modules for the shelves.
4. Starting in the rear of the cart with the rear access panel
panel removed, insert a power adapter in the storage bin
for the associated device storage shelf (top or bottom).
5. Measure the amount of cable necessary to reach from
the power adapter located in the bin to the front of the
cart (over the AC outlet box, from the back to the front
of the cart, through the cable management slots that are
integrated into the plastic dividers.)
6. Leave sufficient slack for the power connector to plug
into the device.
7. Plug the device AC adapter plug into one of the outlets
nearest to where the power adapter is located in the bin.
8. Repeat the above process for the total number of
devices’ power adapters & cable sets.
9. In the front of the cart, insert a device into each of the
slots, and plug in the power connector to each device.
10. Replace the Rear Access Panel and lock the panel using
the key from the Hardware Pack.
11. Place the cart near a wall outlet and plug the cart in.
12. Turn on the power switch - located in front of the push
handle
13. In the TVC32PAC-XXX CUBE Cart for 32 devices, once
the cart is turned on, the power manager begins rotating
power to the power strips every 5 minutes. This allows
efficient charging of the devices in the cart from one
single 15 amp circuit.
PLASTIC DIVIDERS
features slots for routing the computer plug cable to the
plug-in spot on the computer - high or low, left or right.
NOTE: Plastic dividers are not removable or resettable.
TVC32PAC-XXX
TVC16PAC-XXX
REAR ACCESS PANEL
Locks in position
with the keys from
the hardware pack
POWER OUTLET MODULES
16 AC outlets per shelf,
matches the quantity of
slots in the front of the cart

"WARNING": Relocating audio and/or video devices to a cart not specifically designed to
support audio and/or video devices may result in death or serious injury due to the cart
collapsing or over turning onto a child.
"WARNING": Death or serious injury may occur when children climb on a cart. A remote
control or toys placed on the cart may encourage a child to climb on the cart and as a result,
the cart may tip over on to the child.
Safe Use Instructions
•This cart may be intended for institutional use.
•The socket outlet shall be installed near the cart and shall be easily accessible.
•Make sure all devices do not exceed the maximum load rating of 12 amps.
•Power strips inside cart are intended only for charging compatible devices. Any other use may
cause overload.
•Do not move cart by pulling the power cord. Before moving cart from one room to the next,
wrap power cord around the cord winder located on the side of the cart.
•Do not plug the cart in if the switch, receptacle(s), or power cord has been damaged. Contact
Bretford or a qualified electrician before attempting to make any type of electrical repair or
parts replacement.
•Engage locking casters when cart is not in transit.
•Do not block ventilation holes on cart. Proper air flow is required for safe operation.
•Cart is not designed to be operated by a child or student. Adult operation and supervision is
recommended at all times.
•Liquids should not be stored in, set on or placed inside the cart.
•Only clean the surfaces of cart with soft dry cloth. Do not use liquid or spray or abrasive
cleansers. Use only disinfecting wipes containing no bleach.
•Product is for indoor use only.
•User can plug in up to 32 devices at one time.
•Turn power switch offbefore plugging in devices
•Turn power switch offbefore unplugging the cart.
•Do not pull the cart. Always push cart using the handles. Use extra caution on ramps and
thresholds.
•Do not plug the power cord into another extension cord or re-locatable power tap.
•Be sure to turn power switch offand unplug cart before moving to a different location.
•Ensure casters are locked before opening the cart doors.
•Be sure to lock up cart in a secure environment after every use.
•Do not share the lock combination code with any unauthorized persons.
Part # 080-1016
rev April 2022
www.bretford.com

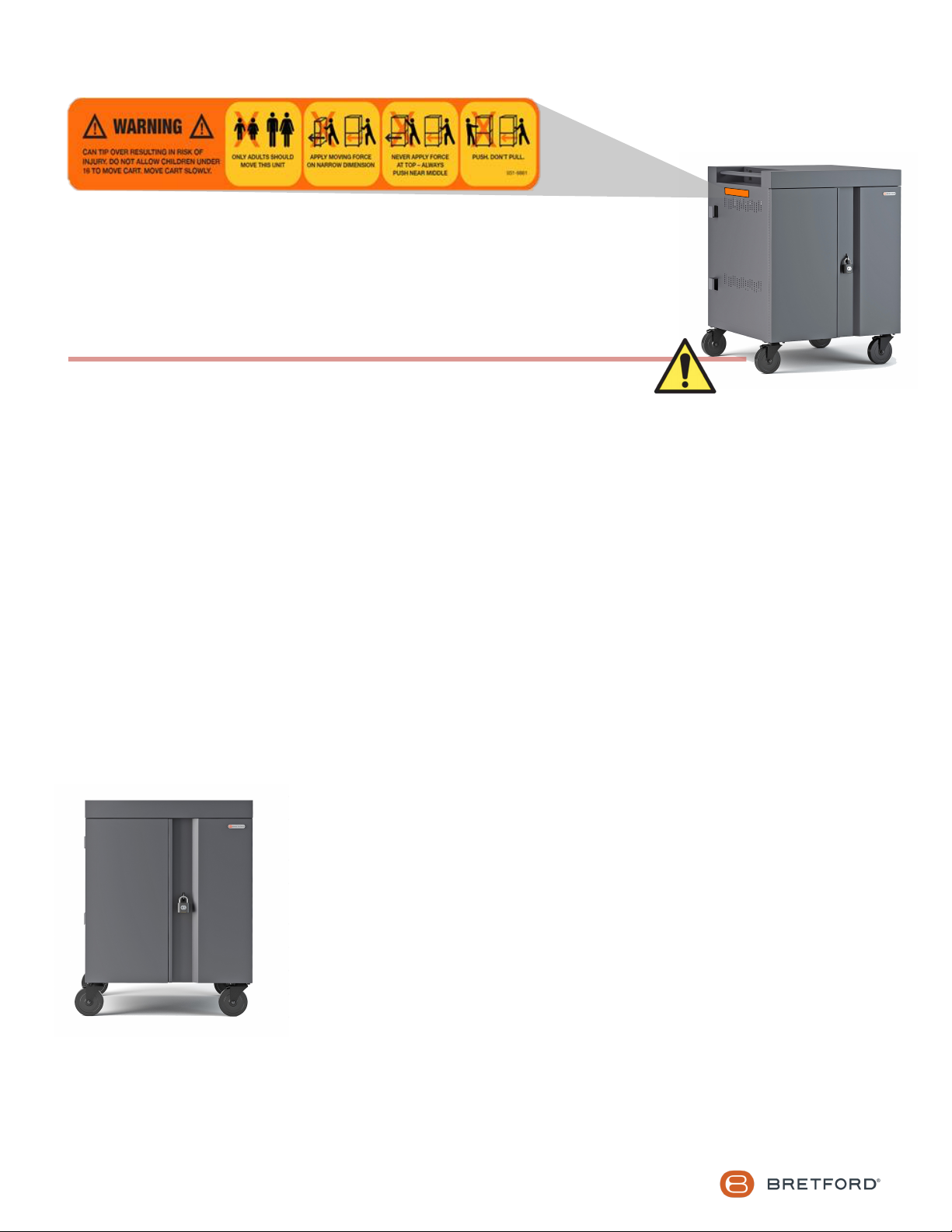

"WARNING": This Safe User Label is attached to the side of the cart, warning that
the cart may tip over if transported incorrectly, which could cause injury.
•Do not allow children under 16 to move cart. Only adults should move this cart.
•Move the cart slowly
•Apply moving force on the narrow dimension.
•Always push using the handles. Push the cart, do not pull it.
