Breville wake cup vcf042 User manual

*Cups pictured not included
®

2
Important Safety Instructions
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
This product can be used by children aged 8 years and above, and
persons who require supervision, provided:
• they are familiar with the hazards associated with the product,
and,
• they receive instruction by a competent person on how to
safely use the product.
Children must not play with the product. Cleaning and user
maintenance must not be done by children unless they are aged 8
or older and are supervised.
If the supply cord is damaged, it must be replaced by the
manufacturer,itsserviceagentorsimilarlyqualiedpersonsin
order to avoid a hazard.
This appliance is for household use only.
WARNING: The water tank cap must not be opened when the
appliance is being used. Always allow the appliance to completely
cool down before removing the water tank cap.

3
!This appliance generates heat during use. Adequate precaution must be taken to
prevent the risk of burns, scalds, res or other damage to persons or property caused
by touching the exterior whilst in use or during cooling.
!Never use this appliance for anything other than its intended use. This appliance is for
household use only. Do not use this appliance outdoors.
!Always ensure that hands are dry before handling the plug or switching on the
appliance.
!Always use the appliance on a stable, secure, dry and level surface.
!Always exercise caution when dispensing hot beverages.
!Always clean the appliance thoroughly by ushing the system with clean water.
!This appliance must not be placed on or near any potentially hot surfaces (such as a
gas or electric hob).
!Do not use the appliance if it has been dropped, if there are any visible signs of
damage or if it is leaking.
!Ensure the appliance is switched off and unplugged from the supply socket after use
and before cleaning.
!Always allow the appliance to cool before cleaning or storing.
!Never immerse any part of the appliance or power cord and plug in water or any
other liquid.
!Never let the power cord hang over the edge of a worktop, touch hot surfaces or
become knotted, trapped or pinched.
!Never leave the appliance unattended when in use.
!Never over ll the appliance.
!Never use the appliance without the drip tray or cover in place.
!Never ll the water tank with any liquid other than water. To prevent damage, never
use the appliance without water.

4

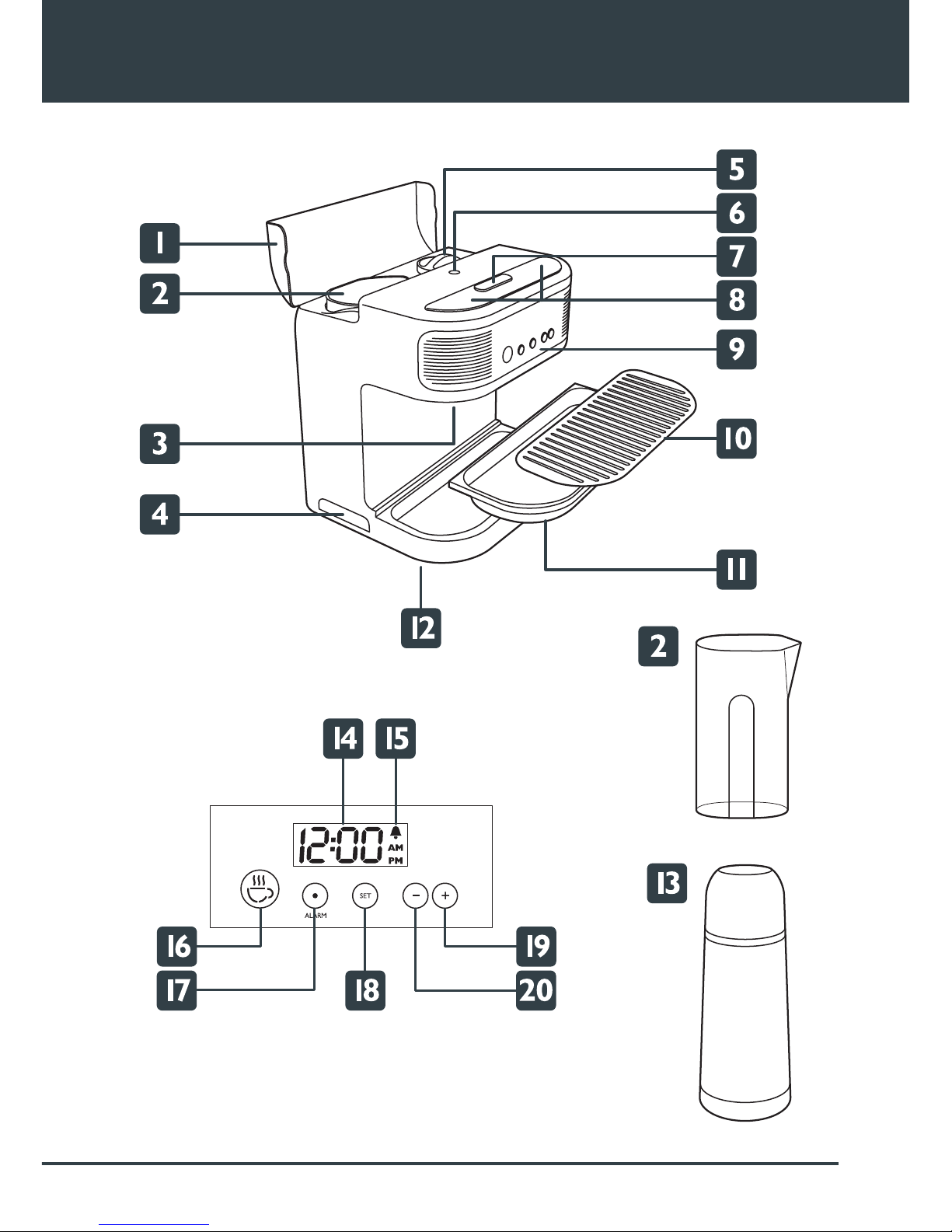

1. Rear cover
2. Water jug
3. Dispensing nozzles and dispensing lights
The dispensing lights come one when your Wake Cup is dispensing hot water.
4. Pull out tray
You can place dirty spoons and used tea bags, etc. in the pull out tray.
5. Water tank cap
The water tank cap must be retted before use.
6. Light sensor
Controls the display brightness by sensing the ambient light level.
7. Snooze/Lights button
Press for an extra 5 minutes before the alarm repeats. Also used to switch the lights
on or off at any time.
8. Gradual dawn wake up lights
The lights gradually increase their intensity to help you wake more naturally.
9. Control panel
10. Removable stainless steel drip tray cover
11. Removable drip tray
Catches drips and minor overows. No mess, just lift out and rinse it under the tap.

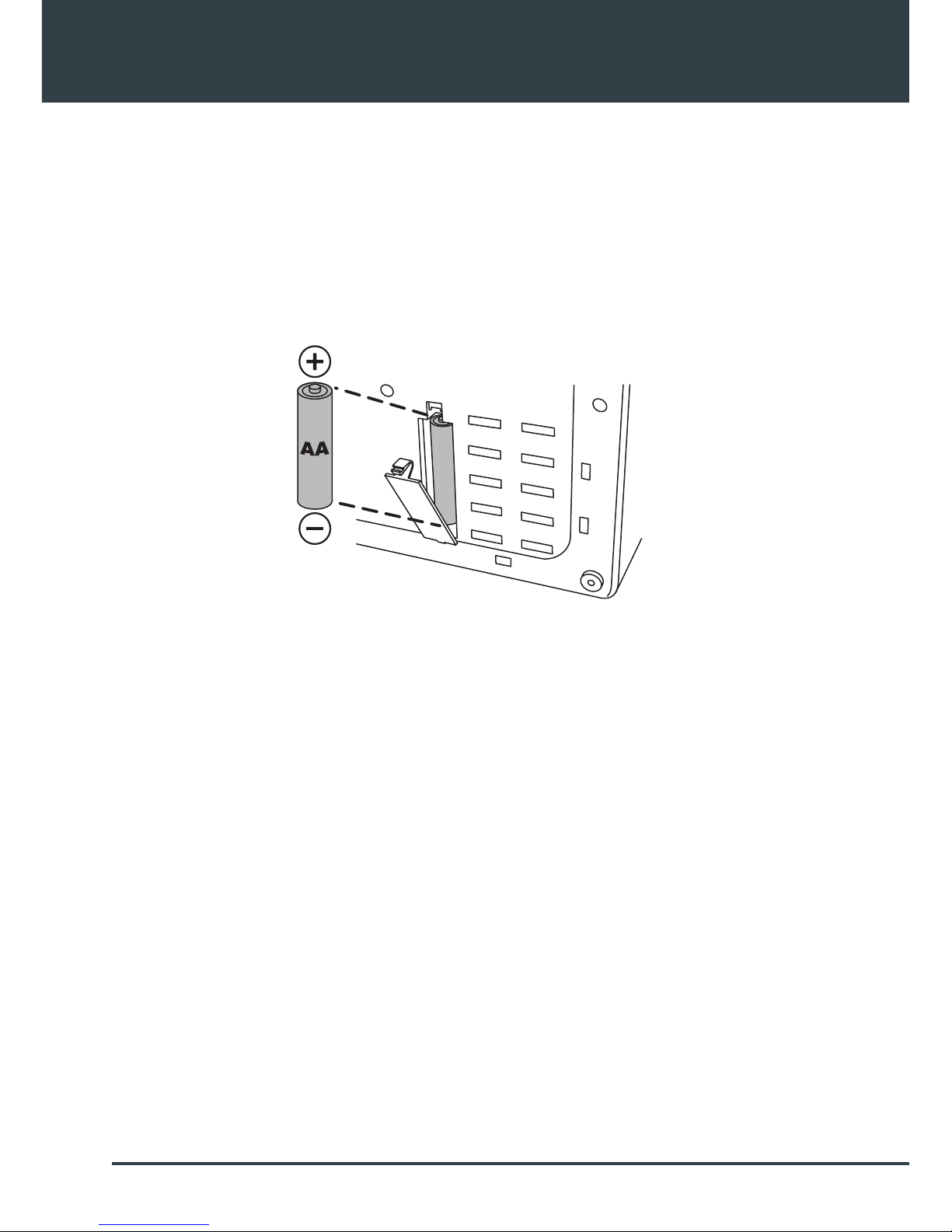

12. Clock back-up battery (underneath base)
The AA-size battery (not supplied) will back-up the clock in the event of power cuts
or if you need to unplug your Wake Cup for any reason.
13.Vacuumask
Allows you to keep your milk fresh and cool for use with your Wake Cup.
14. Display
15. Alarm icon
Lights up when setting the alarm time or when your Wake Cup is in alarm mode.
16. Dispense button
Puts your Wake Cup into alarm with dispense mode, immediate dispense mode or
cancels dispensing.
17. Alarm button
Used to enter alarm set mode and to cancel the alarm when it has started sounding.
18. Set button
Used during time and alarm programming.
19. Increase button
Used during alarm or time setting to increase values.
20. Decrease button
Used during alarm or time setting to decrease values.
Identifying the Parts

5

6

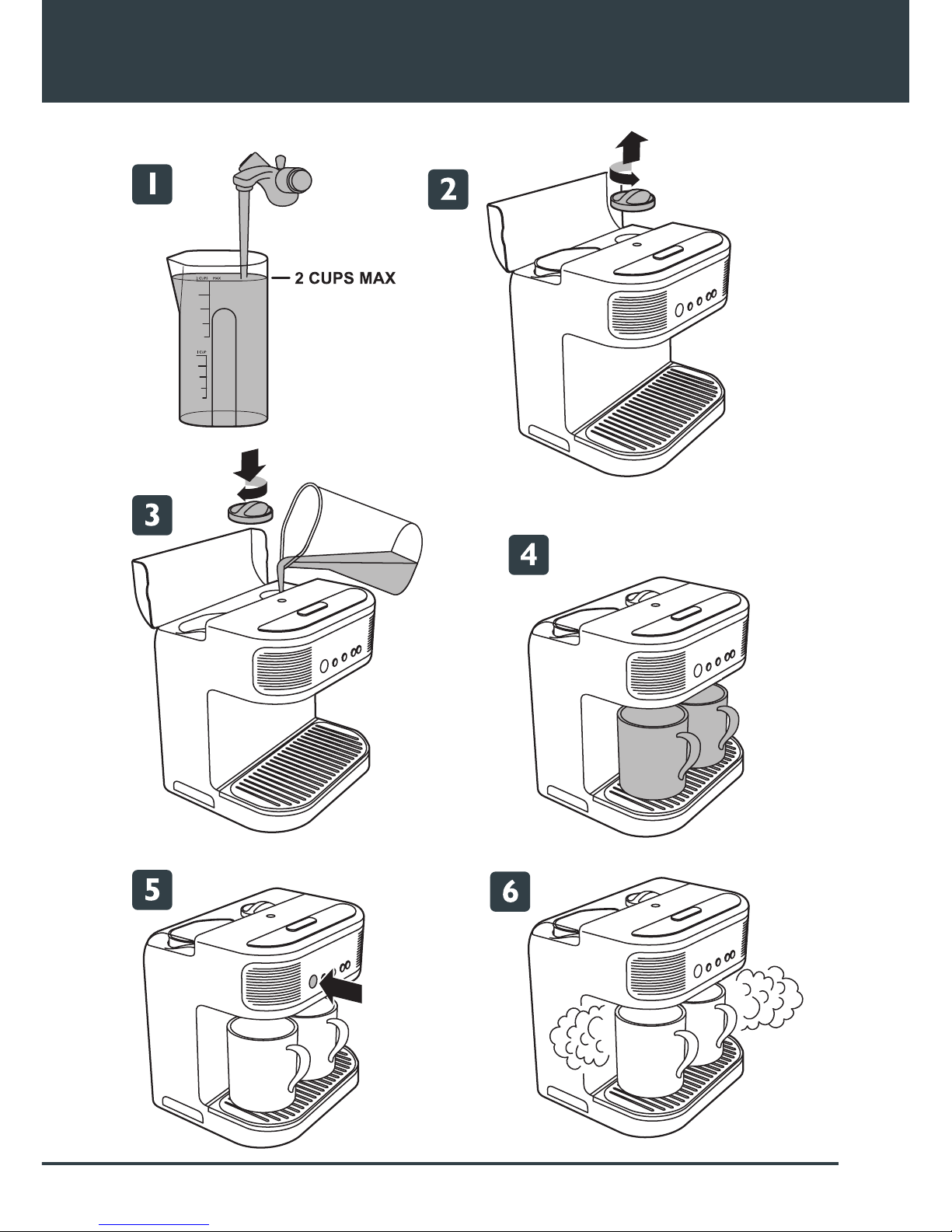

Before First Use
BeforeusingyourWakeCupforthersttime
Always position your Wake Cup in such a way that any splashing during the
dispensing cycle will not cause damage to the surrounding areas. Your Wake
Cup will become hot during use. Always use care when handling your Wake
Cup.
Remove your Wake Cup carefully from the box. Remove any packaging and promotional
material and position your Wake Cup on a dry, level, secure surface away from the edge.
Remove the water jug and wash it in warm soapy water. Rinse and dry thoroughly.
1. Remove the water jug and ll it with cold water to the 2 CUPS MAX mark.
2. Remove the water tank cap by giving it a quarter turn anticlockwise.
3. Carefully pour the water from the water jug into the water tank. Ret the water
tank cap by giving it a quarter turn clockwise. Make sure that the water tank
capiscorrectlyandsecurelytted. Connect your Wake Cup to a mains supply
socket. Your Wake Cup will sound two beeps. At this stage, it isn’t neccessary to set
the clock to the current time.
4. Place two suitable cups (not supplied) below the dispensing nozzles making sure
that each cup is positioned directly below a dispensing nozzle. Make sure that the
two cups are capable of holding all of the water used at step 1.
5. Press and hold the dispensing button until it turns red. Your Wake Cup will start to
boil the water.
6. When the water reaches boiling point, it will be dispensed into the cups below the
dispensing nozzles. Carefully discard this water.
Allow your Wake Cup to cool for a few minutes then repeat the above procedure once
more. This will remove any residues left over from the manufacturing process.
Wash your vacuum ask with warm soapy water and rinse thoroughly before use.

7

8

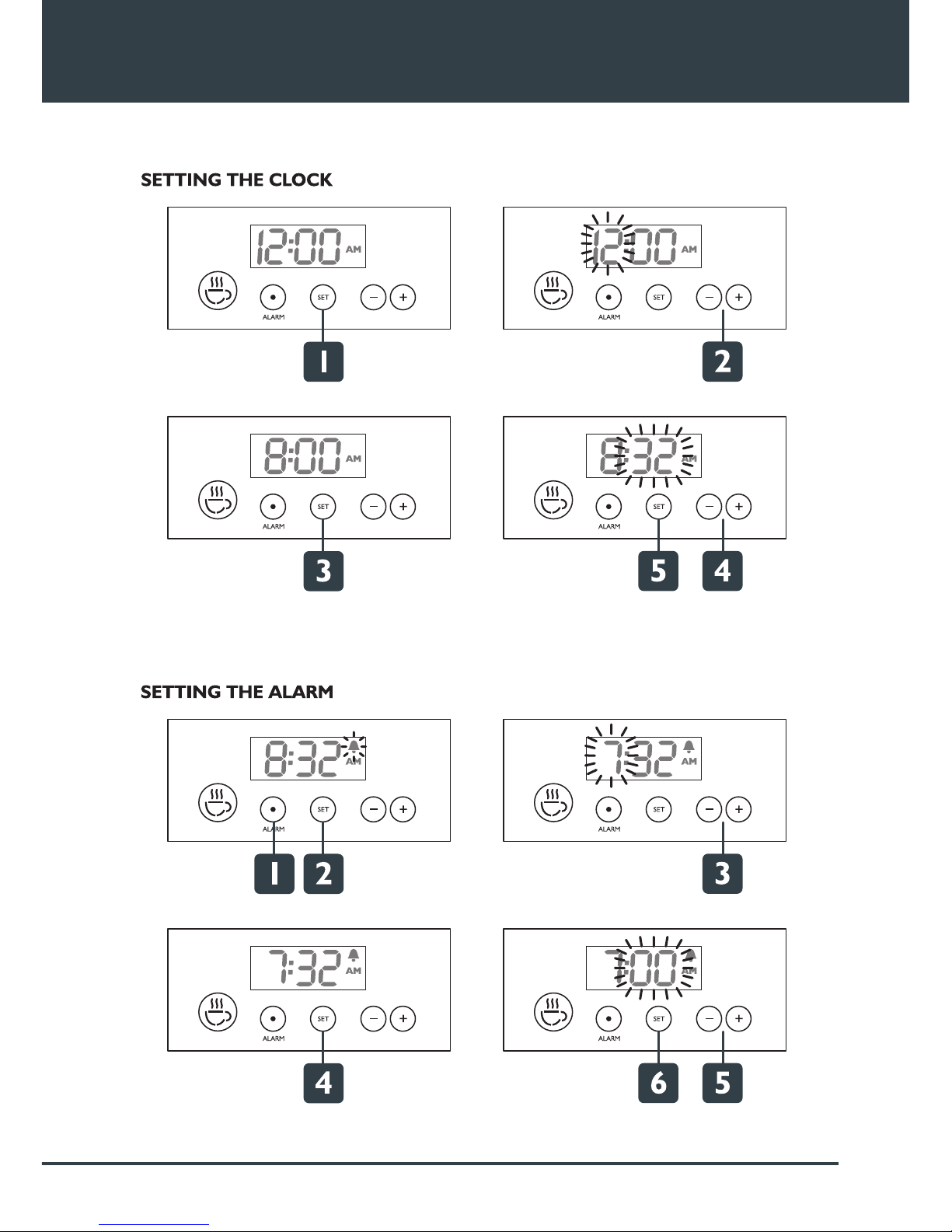

Setting the clock time or alarm time
Setting the clock
1. Press and hold the SET button for approximately 3 seconds until the hours digits
start to ash.
2. Use the + or - buttons to select the hour. Your Wake Cup uses a 12 hour clock with
an AM or PM indicator showing whether it is day time or night time. When setting
the hour, make sure that the AM or PM indication is correct.
3. Press the SET button. The minutes digits will ash.
4. Use the + or - buttons to select the minutes
5. Press the SET button. The clock is now set.
Setting the Alarm Time
1. Press the ALARM button. The alarm icon ( ) will ash.
2. Press and hold the SET button for approximately 3 seconds until the hours digits
start to ash.
3. Use the + or - buttons to select the hour. Your Wake Cup uses a 12 hour clock with
an AM or PM indicator showing whether it is day time or night time. When setting
the hour, make sure that the AM or PM indication is correct.
4. Press the SET button. The minutes digits will ash.
5. Use the + or - buttons to select the minutes
6. Press the SET button. The alarm time is now set. Note that the alarm icon ( ) will
appear in the display to show that the alarm has been set and is active. If you do
not wish the alarm to go off at the selected time, press the SET button and the
alarm icon ( ) will disappear.
You can check what time the alarm is set to go off by pressing the ALARM button. The
alarm time will be shown for a few seconds then your Wake Cup will revert back to
displaying the current time.

9

10
Alarm with dispense mode
Always position your Wake Cup in such a way that any splashing during the
dispensing cycle will not cause damage to the surrounding areas. Your Wake
Cup will become hot during use. Always use care when handling it.

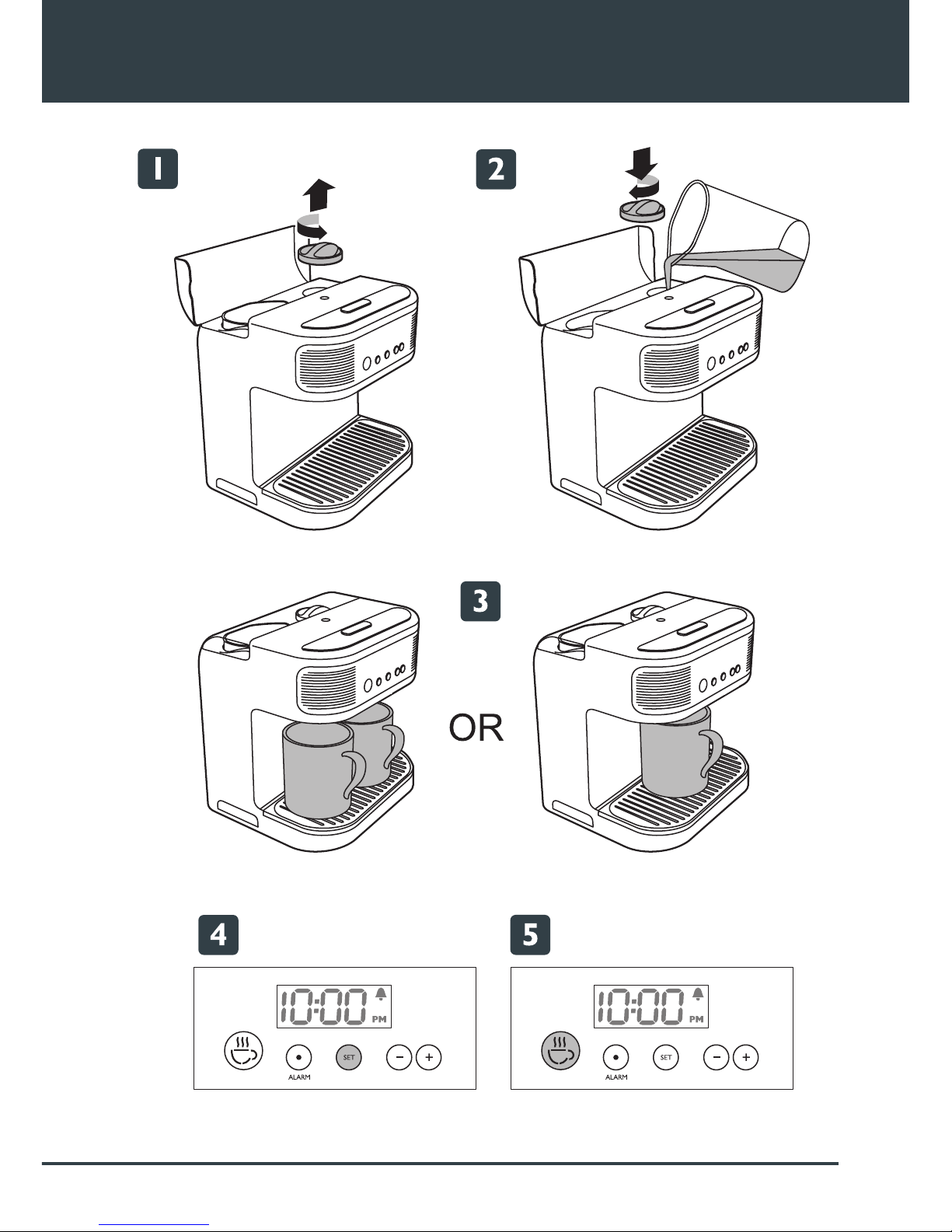

This mode will sound the alarm at a predetermined time and make up to two hot drinks.
You can make tea or coffee or one of each. Before starting, make sure that your Wake
Cup has been set to the correct time and the alarm time has been set (see page 8).
1. Remove the water jug and ll it with cold water according to the number of drinks
you intend to make and the size of cup or cups you are using—see How much
water? on page 13. Don’t ll the jug above the 2 CUPS MAX mark.
2. Remove the water tank cap and carefully pour the water from the water jug into
the water tank. Retthewatertankcapmakingsurethatit’scorrectlyand
securelytted.
3. Add a tea bag or coffee to each cup and add sugar as desired. Place the cups (not
supplied) below the dispensing nozzles. If you are using two cups, make sure that
each cup is positioned directly below a dispensing nozzle. If you are only using one
cup, place it centrally so that it is beneath both dispensing nozzles. Make sure that
the cup or cups are capable of holding all of the water used at step 1.
4. Press the SET button once. The alarm icon ( ) will appear in the display to show
that the alarm has been set and is active.
5. Press the dispense button once. It will light up blue.
1½ minutes before the alarm sounds, the lights on your Wake Cup will slowly come on
and increase in brightness. Before the alarm sounds, the dispense button will turn red and
your Wake Cup will start to boil the water. When the water reaches boiling point, it will
be dispensed into the cups below the dispensing nozzles.
Alarm and snooze function
The alarm will sound for 1 minute and repeat every 5 minutes. To stop the alarm:
• Press any of the function buttons. The alarm will not go off again until 24 hours later.
• Press the snooze/lights button. This will silence the alarm for 5 minutes. Repeat as
often as desired.
• Press the dispense button. This will stop the alarm and the dispense function. The
alarm icon ( ) will disappear from the display. The alarm will not go off again unless
you turn it back on by pressing the SET button.
To turn off the alarm (before the alarm time) so that it does not go off at all, press the
SET button. The alarm icon ( ) will disappear from the display.
Cancelling the dispense function
The dispense function can be stopped by pressing the dispense button. The button
illumination will go out. Some hot water may still be dispensed into the drip tray or
cup(s). Beware of hot water splashing from the drip tray. If boiling has already started,
allow it to continue.

11

12
Other operating modes
Alarm only mode
The alarm only mode will sound the alarm at the designated time without entering
dispense mode.
Before starting, make sure that your Wake Cup has been set to the correct time and the
alarm time has been set (see page 8).
Simply press the SET button once. The alarm icon ( ) will appear in the display to show
that the alarm has been set and is active.
1½ minutes before the alarm sounds, the lights on your Wake Cup will slowly come on
and increase in brightness.
The alarm will sound for 1 minute and repeat every 5 minutes. To stop the alarm:
• Press any of the function buttons. The alarm will not go off again until 24 hours later.
• Press the snooze/lights button. This will silence the alarm for 5 minutes. Repeat as
often as desired.
• Press the dispense button. This will stop the alarm and the alarm icon ( ) will
disappear from the display. The alarm will not go off again unless you turn it back on
by pressing the SET button.
To turn off the alarm (before the alarm time) so that it does not go off at all, press the
SET button. The alarm icon ( ) will disappear from the display.
Manual dispense mode
Always position your Wake Cup in such a way that any splashing during the
dispensing cycle will not cause damage to the surrounding areas. Your Wake
Cup will become hot during use. Always use care when handling it.
You can make tea or coffee independently of the alarm system.
1. Prepare your Wake Cup as previously described.
2. Add a tea bag or coffee to each cup and add sugar as desired. Place the cups below
the dispensing nozzles. If you are using two cups, make sure that each cup is
positioned directly below a dispensing nozzle. If you are only using one cup, place it
centrally so that it is beneath both dispensing nozzles.
3. Press and hold the dispense button until it turns red.
4. Your Wake Cup will start to boil the water. When the water reaches boiling point, it
will be dispensed into the cups below the dispensing nozzles.
Lighting
The gradual dawn wake up lights of your Wake Cup are activated 1½ minutes before
the alarm sounds when your Wake Cup is in alarm mode. The lights will stay on for 30
minutes unless they are turned off by pressing the snooze/lights button. When turned off,
the lights will fade out over 3 seconds.
You can turn the lights on or off at any time by pressing the snooze/lights button.

13
Hints and tips
How much water?
If you are unsure how much water your cups hold, use them to calibrate your water jug:
1. Fill up the cup you intend to use with water (don’t forget to make an allowance to
the water if you are going to add milk). Pour this water into the water jug and make
a note of the level.
2. If you’re going to use two cups, pour the second cup of water into the water jug and
make a note of the water level. If the 2 CUPS MAX marking is exceeded, the cups
you have chosen are probably too big for your Wake Cup. Never add more water
than the 2 CUPS MAX marking.
3. Now you know how much water to put in the water jug whenever you use these
cups.
Fresh cool milk
Don’t forget to use the supplied vacuum ask to keep your milk fresh and cool ready for
your early morning Wake Cup.
No messing about
Don’t forget you can use the pull out tray to hold any used tea bags, dirty spoons etc.

14

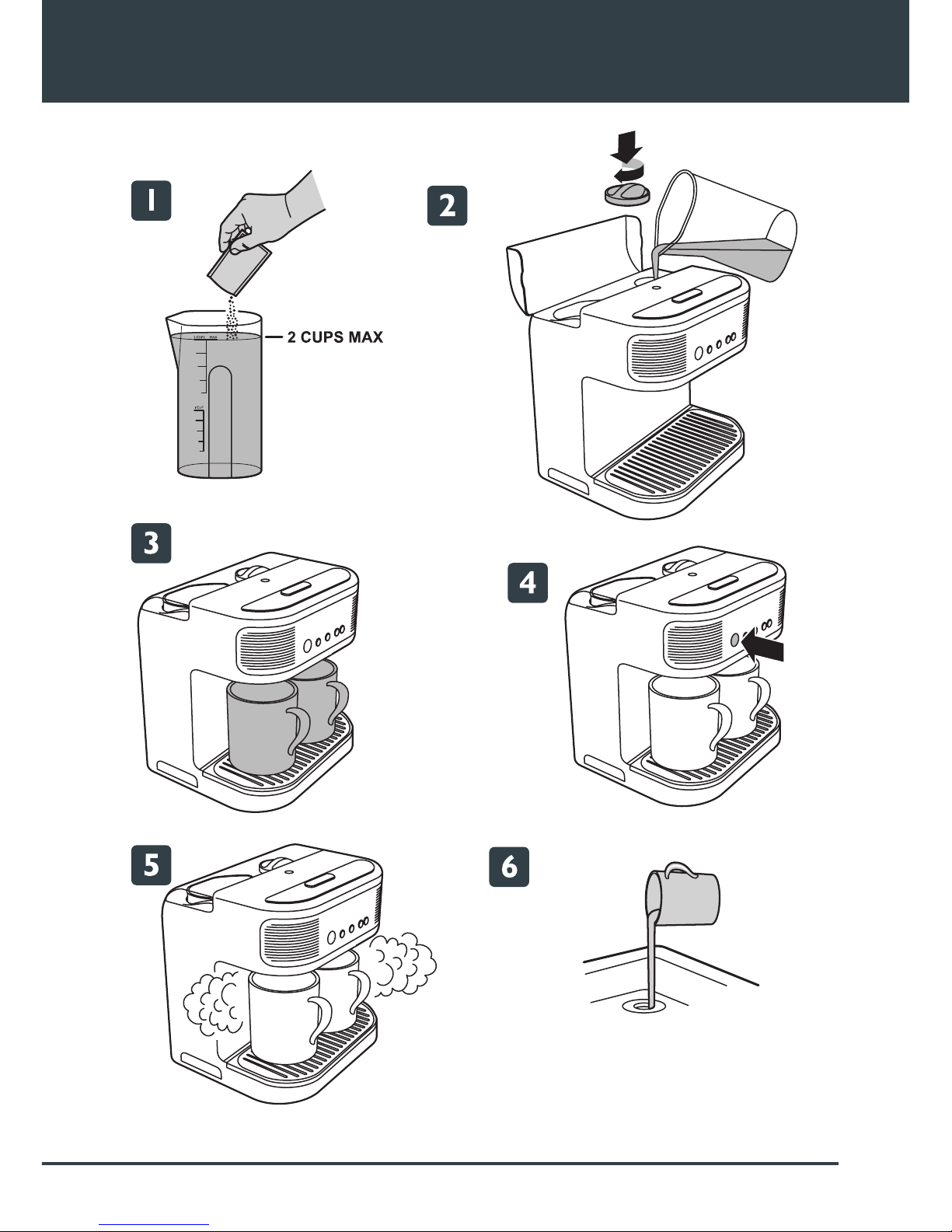

Descaling your Wake Cup
To maintain it’s performance, your Wake Cup will require descaling once every three
months or so. You may need to descale your Wake Cup more frequently if you live in a
hard water area.
1. Remove the water jug and ll it with cold water to the 2 CUPS MAX mark. Add a
citric acid based proprietary descaling product to the water and stir.
2. Remove the water tank cap by giving it a quarter turn anticlockwise. Carefully pour
the water from the water jug into the water tank. Ret the water tank cap by giving
it a quarter turn clockwise. Make sure that the water tank cap is correctly and
securelytted.
3. Place two suitable cups (not supplied) below the dispensing nozzles making sure
that each cup is positioned directly below a dispensing nozzle. Make sure that the
two cups are capable of holding all of the water used at step 1.
4. Press and hold the dispensing button until it turns red. Your Wake Cup will start to
boil the water.
5. When the water reaches boiling point, it will be dispensed into the cups below the
dispensing nozzles. Carefully discard this water.
6. Repeat steps 1 to 5 twice more this time without adding a descaling solution. This
will ush out your Wake Cup removing any descaling solution.
Descaling and Cleaning
Always switch off and unplug your Wake Cup and allow it to completely cool
before cleaning. Never immerse the unit, power cord or plug in water or any
other liquid. Do not use harsh abrasives, chemicals or oven cleaners.
Cleaning
• Clean the exterior surface of your Wake Cup with a damp cloth and then polish it
with a soft, dry cloth. Do not use steel wool pads or harsh/abrasive cleaners.
• Wash the water jug with warm soapy water. Rinse and dry thoroughly.
• Use warm water and washing-up liquid to clean your vacuum ask after use. Rinse
thoroughly with hot water. Do not immerse in water. Dry thoroughly after leaving it
to drain. Store with the stopper off. Do not put your vacuum ask in a dishwasher
• To remove difcult stains or odour ll your ask with hot water, add one teaspoon
of bicarbonate of soda and secure the cap. Soaking overnight produces excellent
results. Always rinse your ask before reusing it.

15

16
Memory back-up battery
In the event of a power cut, or if you need to unplug your Wake-Up for any reason,
the display will switch off and the clock time will be lost. By using the memory back-up
battery the clock time will be saved and will re-appear on the display once power is
restored or the unit is plugged back in.
Insert an AA-size battery (not supplied) into the battery compartment located
underneath your Wake Cup. Observe the correct polarity when inserting the battery.
Your Wake Cup will still operate with or without the memory back-up battery tted.

17
Connection to the mains supply
This appliance is tted with either a moulded or rewirable BS1363, 13 amp plug. The
fuse should be rated at 5 amps and be ASTA approved to BS1362.
If the fuse in a moulded plug needs to be changed, the fuse cover must be retted. The
appliance must not be used without the fuse cover tted.
If the plug is unsuitable, it should be dismantled and removed from the supply cord
and an appropriate plug tted as detailed below. If you remove the plug it must not be
connected to a 13 amp socket and the plug must be disposed of immediately.
The wires of the mains lead are coloured in accordance with the following code:
GREEN/YELLOW = EARTH BLUE = NEUTRAL BROWN = LIVE
The wire which is coloured GREEN/YELLOW must be connected to the terminal in
your plug which is marked with an E or by the earth symbol ( ) or coloured GREEN or
GREEN /YELLOW.
The wire which is coloured BLUE must be connected to the terminal in your plug which
is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal in your plug
which is marked with the letter L or coloured RED.
If any other plug is used, a 5 amp fuse must be tted either in the plug or adaptor or at
the distributor board.
Plug should be BS1363 approved
Fit a 5 Amp Fuse
Ensure that the outer sheath of the cable
is rmly held by the clamp
BROWN
(Live)
5 Amp Fuse
BLUE
(Neutral)
GREEN/YELLOW
(Earth)

18
After sales service
These appliances are built to the very highest of standards. There are no user
serviceable parts. Follow these steps if the unit fails to operate:
Check the instructions have been followed correctly.
Check that the fuse has not blown.
Check that the mains supply is functional.
If the appliance will still not operate, return the appliance to the place it was purchased
for a replacement. To return the appliance to the Customer Service Department, follow
the steps below:
Pack it carefully (preferably in the original carton). Ensure the unit is clean.
Enclose your name and address and quote the model number on all correspondence.
Give the reason why you are returning it.
If within the guarantee period, state when and where it was purchased and include proof
of purchase (e.g. till receipt).
Send it to our Customer Service Department at the address below:
Customer Service Department
Jarden Consumer Solutions (Europe) Limited
Middleton Road
Royton
Oldham
OL2 5LN, UK.
Telephone: [phone] Fax: [phone]
e-mail: [email protected]

19
Guarantee
Please keep your receipt as this will be required for any claims under this guarantee.
This appliance is guaranteed for 1 year after your purchase as described in this
document.
During this guaranteed period, if in the unlikely event the appliance no longer functions
due to a design or manufacturing fault, please take it back to the place of purchase, with
your till receipt and a copy of this guarantee.
The rights and benets under this guarantee are additional to your statutory rights,
which are not affected by this guarantee. Only Jarden Consumer Solutions (Europe)
Limited (“JCS (Europe)”) has the right to change these terms.
JCS (Europe) undertakes within the guarantee period to repair or replace the appliance,
or any part of appliance found to be not working properly free of charge provided that:
• you promptly notify the place of purchase or JCS (Europe) of the problem; and
• the appliance has not been altered in any way or subjected to damage, misuse,
abuse, repair or alteration by a person other than a person authorised by JCS
(Europe).
Faults that occur through, improper use, damage, abuse, use with incorrect voltage, acts
of nature, events beyond the control of JCS (Europe), repair or alteration by a person
other than a person authorised by JCS (Europe) or failure to follow instructions for use
are not covered by this guarantee. Additionally, normal wear and tear, including, but not
limited to, minor discoloration and scratches are not covered by this guarantee.
The rights under this guarantee shall only apply to the original purchaser and shall not
extend to commercial or communal use.
If your appliance includes a country-specic guarantee or warranty insert please refer
to the terms and conditions of such guarantee or warranty in place of this guarantee or
contact your local authorized dealer for more information.
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. E-mail us at [email protected] for further recycling and
WEEE information.
Jarden Consumer Solutions (Europe) Limited
Middleton Road
Royton
Oldham
OL2 5LN
UK

VCF042_Iss_5 09/13 93171-4
© 2013 Jarden Consumer Solutions (Europe) Limited
All rights reserved. Imported and distributed by Jarden Consumer Solutions (Europe) Limited,
Royton, Oldham OL2 5LN, United Kingdom.
The product you buy may differ slightly from the one shown on this carton due to continuing product development.
One (1) Year Limited Warranty—see inside for details.
Jarden Consumer Solutions (Europe) Limited is a subsidiary of Jarden Corporation (NYSE: JAH).
Made in PRC
www.breville.co.uk
®
