Brickcom VD-100A Instructions for use

Hardware User’s Manual
Megapixel Day & Night
Vandal Dome Network Camera
Quality Service Group
Vandal Dome V2 Series

Review History:
1. Separate User Manual into HW and SW.
2. Merge VD-100A-series/ VD-130Np/ VD-300Ap /VD-502A series into this
Hardware User Manual.
Product name: Network Camera (Vandal Dome series)
Release Date: 2011/09
Manual Revision: V3.0
Web site: www.brickcom.com
Email: [e-mail]
[email protected]
© 2011 Brickcom Corporation. All Rights Reserved

Table of Contents
Before You Use This Product ....................................................................................... 1
Regulatory Information ................................................................................................. 2
Chapter 1 - Package Contents ...................................................................................... 3
Chapter 2 - Vandal Dome Network Camera Overview ................................................ 4
Chapter 3 - Device Appearance Description ............................................................... 6
Chapter 4 - LED Behavior ............................................................................................. 8
Chapter 5 - Installation .................................................................................................. 9
5.1 Hardware Installation..................................................................................... 10
5.2 Camera Connection ....................................................................................... 16
5.3 System Requirements ................................................................................... 18
5.4 Software Installation ...................................................................................... 19
5.3.1 EasyConfig ........................................................................................... 27

1
Before You Use This Product
In many countries, there are laws prohibiting or restricting the use of surveillance
devices. This Network Camera is a high-performance, web-ready camera which can be
part of a flexible surveillance system. It is the user’s responsibility to ensure that the
operation of this camera is legal before installing this unit for its intended use.
Upon opening the product’s package, verify that all the accessories listed on the
“Package Contents” are included. Before installing the Network Camera, read the
warnings in the “Quick Installation Guide” to avoid misuse. When installing the Network
Camera, carefully read and follow the instructions in the “Installation” chapters to avoid
damages due to faulty assembly or installation.

2
Regulatory Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
The availability of some specific channels and/or operational frequency bands are
country dependent and are firmware programmed at the factory to match the
intended destination. The firmware setting is not accessible by the end user.

3
Chapter 1 - Package Contents
a. Network Camera
(Vandal Dome V2 Series)
b. Dry Bag, Strap Tie
c. Product CD d. Location Sticker
e. Warranty Card f. Screw Bag
g. Terminal Block h. Allen Key
i. Easy Installation Guide j. High Power PoE (Optional)
k. L-WM-01(Optional)
NOTE - (*) These are optional features. Please refer to the Product List for the
full list of optional features that are available for this product.

4
Chapter 2 - Vandal Dome Network Camera
Overview
The VANDAL DOME SERIES is a full-featured, 3-axis, fixed-dome, network camera.
With a megapixel progressive sensor and built-in IR-cut filter/ IR illuminator LEDs/
Auto Light sensor, it can provide 24-hour, indoor surveillance. The VANDAL DOME
SERIES features a wide-angle and vari-focal lens, which offers wide view coverage of
all angles.
The VANDAL DOME SERIES is designed to provide end users with high quality video
feed for an easily accessible security system. The embedded high performance
image sensor and CPU allow for each camera to stream real time, high resolution
video at 30 fps. It can transmit video using many codec compression options,
including MPEG-4/MJPEG/H.264, which reduce bandwidth and storage requirements
without compromising image quality. For easy viewing of the video feed, users can
view the live feed from anywhere through internet browsers or 3G portable devices.
Installation is simplified by the added support for Power over Ethernet which enables
each camera to receive power through the same cable as for data transmission. The
DI/DO function allows users to connect the VANDAL DOME SERIES to external alarm
and sensor devices for added security protection.
Users do not have to worry about their camera as its vandal proof enclosure protects it
from damage caused by vandalism or harsh environments. With an IP66 certified
enclosure, the VANDAL DOME SERIES is not only weather proof, but also dust and
rust resistant. By utilizing a built-in industrial fan and heater, it can perform well in
extreme temperatures.
With the included EasyConfig installation software, this series offers end-users easy
installation without the need for a strong technical background. The 3-axis
mechanical design makes the VANDAL DOME SERIES the perfect security camera
for any school, bank, or corporate office surveillance system.

5

6
Chapter 3 - Device Appearance Description
1. Below “ Device Appearance Description” is for VD-130Np/VD-502A-series
2. Below “ Device Appearance Description” is for VD-100A-series/VD-300Ap
RJ45
Connector
DIDO, A
udio
Terminal Block
Power Terminal Block
Conduit Plug and
Conduit Hole
SD/SDHC
Card Slot (*)
LENS
IR LEDs
Focus Control Bar
View Angle
Control Bar
Video
Adjustment Screw
Tilt Screw
Reset Button

7
NOTE
1. SD Card Capacity (*) - The network camera is compatible with SD/SDHC (Maximum
32GB) cards.
2. (*) These are optional features. Please refer to the Product List for the full list of
optional features available for the product.

8
Chapter 4 - LED Behavior
Function LED Behavior Description
Power LED Continuous illumination Power on
Power LED Unit Power off
Link LED Continuous illumination (Orange) Link
Link LED Blinking (Orange) Connecting
< DI/DO Diagram >

9
< Hardware Reset >
The Reset Button can be used to reboot the camera or restore it to factory default
settings. If the camera experiences a problem, rebooting the camera may correct the
problem. If the problem remains, please restore the camera to factory default
settings and reinstall the software.
To Reboot
Press and hold the Reset Button for one second using a paper clip or thin object.
Wait for the camera to reboot.
To Restore
Press and hold the Reset Button for ten seconds until the LED light turns off. When
successful restored, the LED will be blue during normal operation.
NOTE - By restoring the camera, all settings will be restored to the factory
default settings.
Reset Button

10
Chapter 5 - Installation
5.1 Hardware Installation

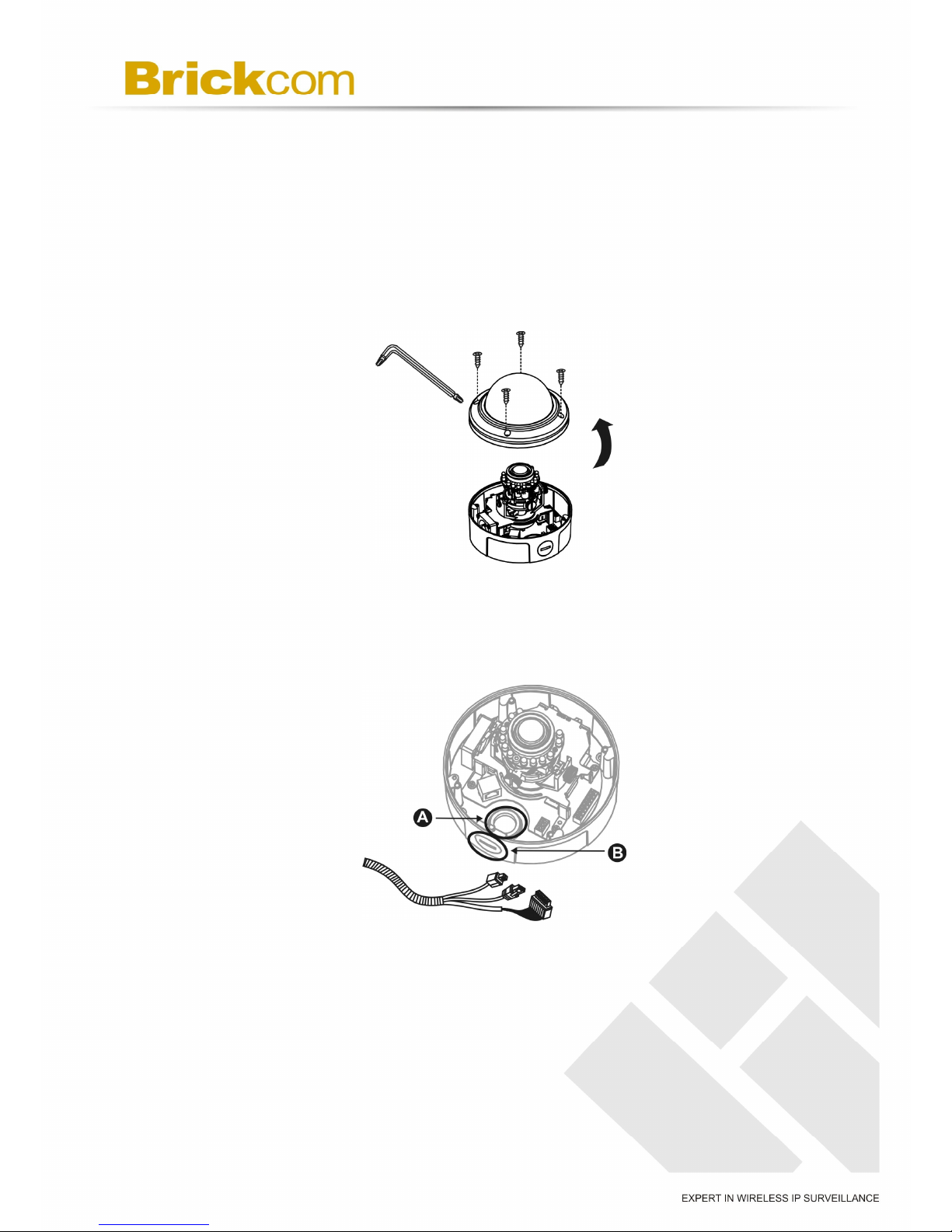

a. Remove the vandal dome cover:
Use the Allen Key to unscrew the four screws and remove the dome
cover from the camera device.
b. PoE, Power, DIDO, Audio Connection
i. Insert the PoE, DIDO, and Audio cable through conduit hole A or B.

11

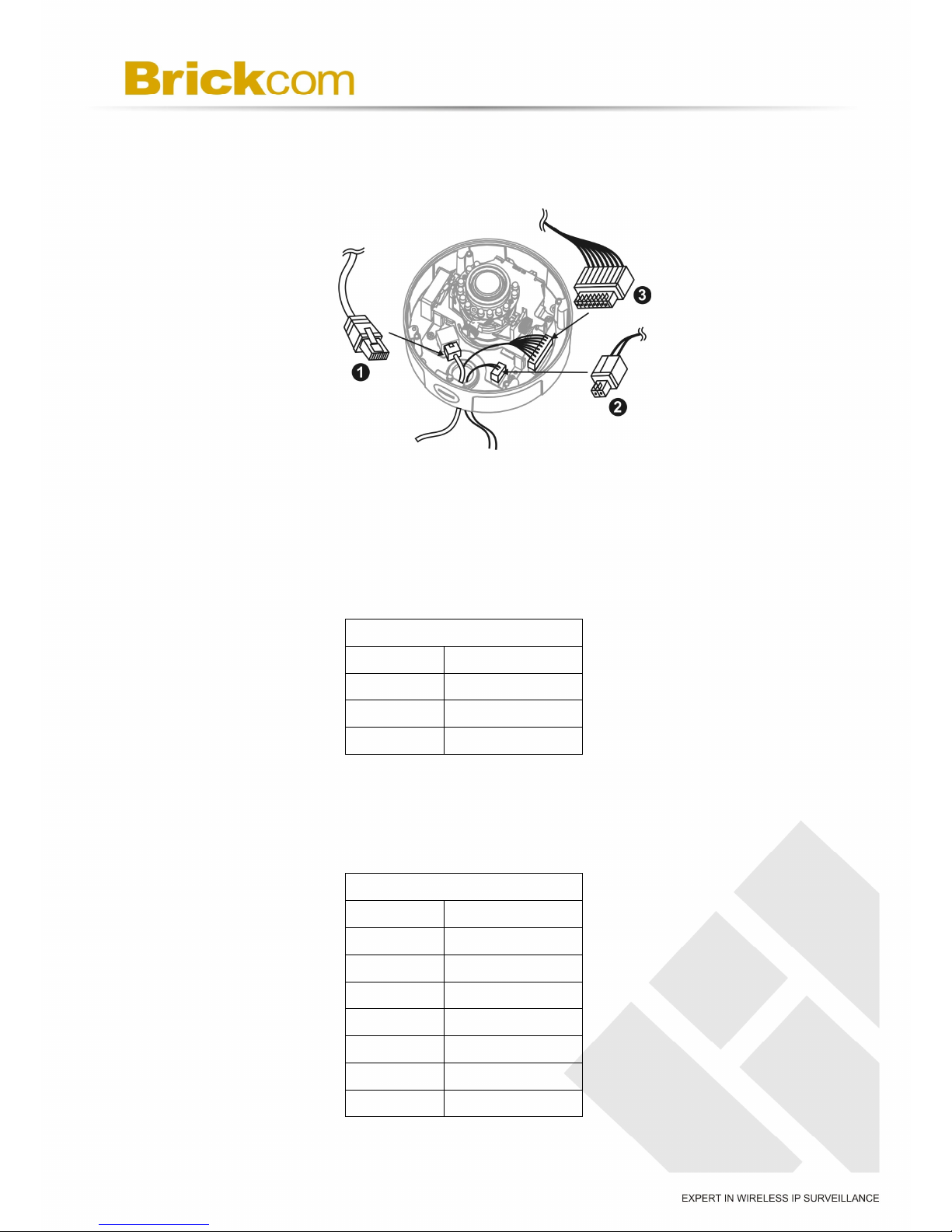

ii. Connect the PoE (1), DIDO (2), and Audio (3) Cables to their
respective terminals. See the next page for more details regarding
the DIDO and Audio connection.
1) Power over Ethernet (PoE) Connection
2) Power Adapter Connection
Please refer to the definition of the terminal blocks below. It is
also printed on the motherboard.
Terminal Block
Pin No. Function
Pin 1 48V
Pin 2 GND

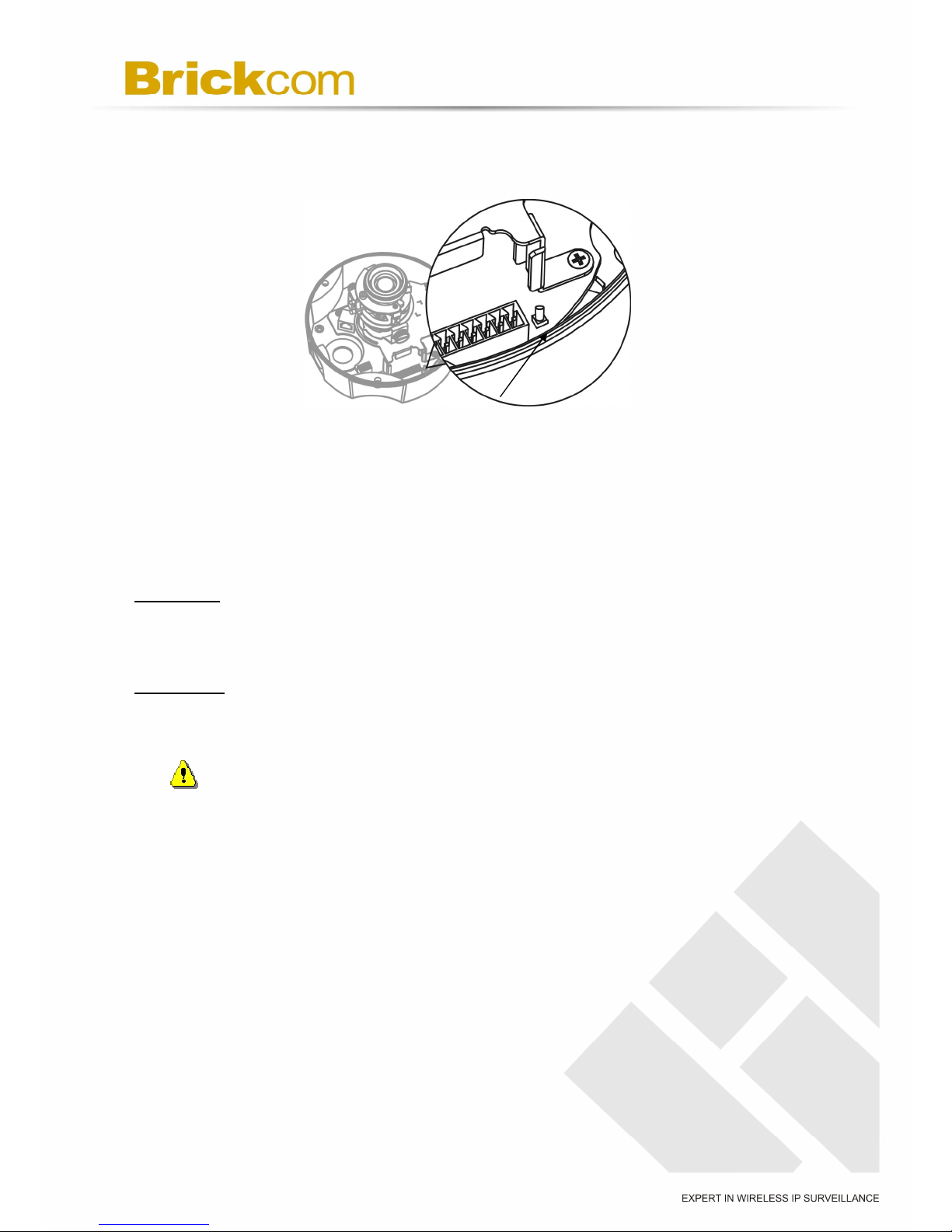

1) DIDO and Audio Connection
Please refer to the definition of the terminal blocks below. It is
also printed on the motherboard.
Terminal Block
Pin No. Function
Pin 1 5V
Pin 2 D_0
Pin 3 D_I
Pin 4 DIDO GND
Pin 5 Audio OUT
Pin 6 DGND
Pin 7 Mic/Line in

12
Pin 8 DGND

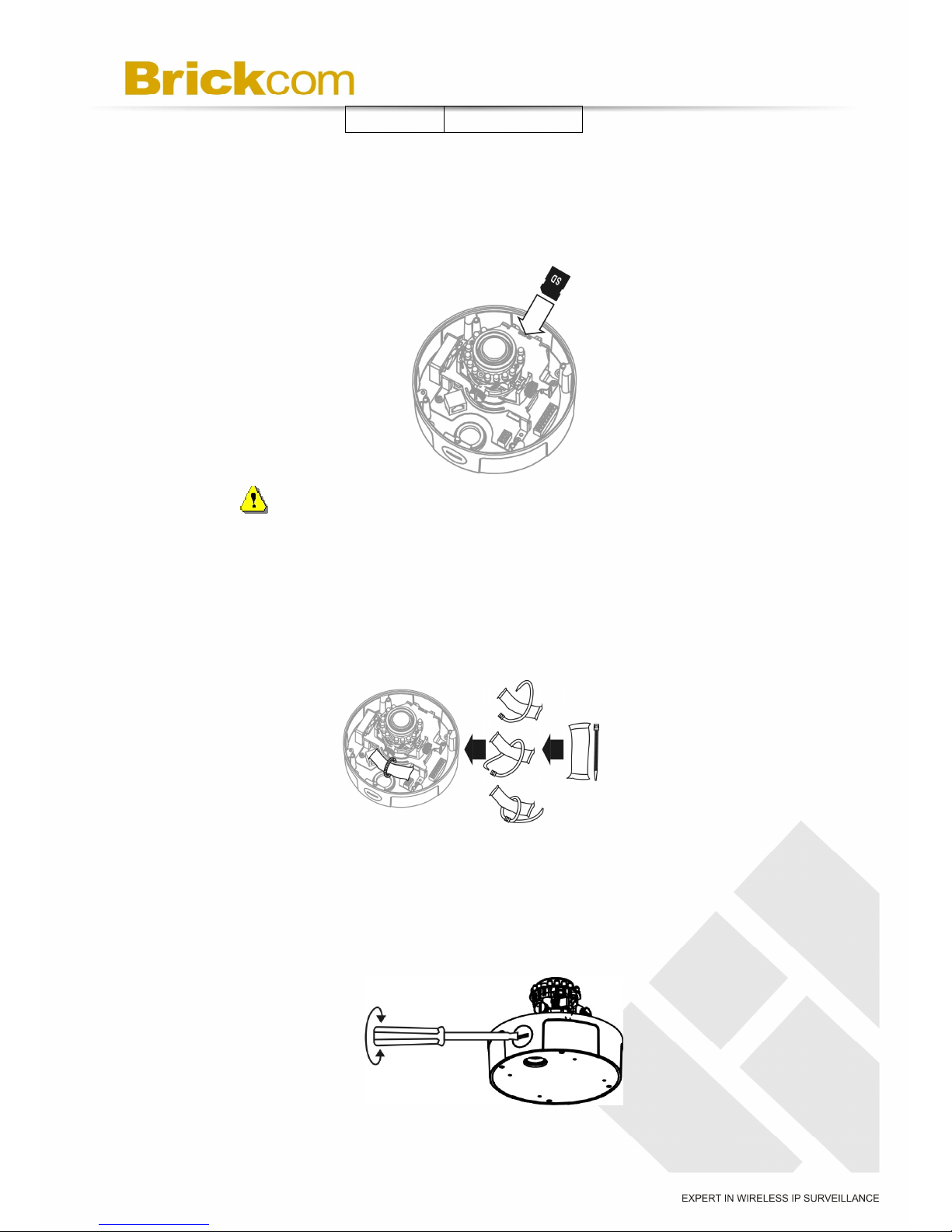

c. For SD/SDHC card (*) installation:
Insert the SD/SDHC card into the SD/SDHC card slot.
NOTE – The SD/SDHC card is not included in the product
package and needs to be purchased separately.
d. For dry bag installation:
Place the dry bag on the camera device and secure it using the strap tier
e. Open the conduit hole:
The conduit hole will allow for air to circulate through the camera
device .Use a screwdriver to unscrew either the conduit plug from the
side of the camera device

13
f. For wall installation:
i. Chose the location on the wall to place the camera. Attach the
location sticker to the desired spot.
ii. Drill four holes through the center of the four location holes on the
sticker.
iii. Hammer the four plastic anchors which are provided in the product
package into the four location holes.
iv. Mount the camera on the wall and position the four screw slots over
the plastic anchors. Insert the screws into the holes and use the
screwdriver to tighten the screws clockwise until they are secure.

14
g. For ceiling installation:
Mount the camera device on the desired location. Use the screwdriver
from the product package to tighten the four included screws clockwise
through the four holes on each side of the device as shown below. The
best place to mount the camera is into a ceiling stud.
WARNING: Do not mount the camera on a soft material. The camera may
fall and be damaged.POE, Power, DIDO, Audio Connection:
h. Adjust the Lens Focus Range and Zoom Viewing
(This function is only for VD-100A series/VD-300A)
1) Adjust the lens angle
i. The lens can be rotated to the left or right.
ii. Release the tilt screw on both side of the device to rotate the lens up
or down. After completion, tighten the tilt screw.

15
iii. Release the video adjustment screw and to adjust the lens direction.
After completion, tighten the video adjustment screw.
2) Adjust the view angle and focus range
i. Release the viewing angle controller bar and then slide it left or right
to adjust the viewing angle. After completion, tighten the viewing
angle controller.
ii. Release the focus controller bar and slide it left or right to adjust the
focus range. After completion, tighten the focus controller.
i. Complete the Installation
a. Place the dome cover on the camera device and slowly turn it until it is
in the desired position.
b. Use the Allen Key and attached four dome screws to secure the dome
cover to the camera device.

16
5.2 Camera Connection
b. Basic Connection (Without PoE)
a. Connect the camera device to the Ethernet hub using a RJ45 Ethernet
cable.
b. Connect the power adaptor to the camera device.
c. Power over Ethernet (PoE) Connection
a. Connect the camera to a PoE-enabled hub using a single Ethernet
cable.
b. Connect the camera to a non-PoE hub using the PoE Injector.

17
