Chapter 1 - Package Contents
Please check to make sure the product package contains all the accessories listed
below.
A. Camera Package Contents
a. Network Camera
(Outdoor Bullet V2 Series)
b. Shielding Cover
c. Screw bag
d. Product CD
e. Warranty Card / Easy Installation
Guide
f. 2 Water Proof Connectors
g. Dry Bag
h. High Power POE (Optional)
i. Bracket (Optional)
j. Bracket Assembly Plate (Optional)
k. Wi-Fi Dual Band Antenna package
(Optional)
l. 3G Antenna package (Optional)

7
m. Power adapter
B. Wi-Fi Antenna Package contents (Optional)
Refer to the installation guide included in the package when installing the
Wi-Fi antenna
a. Wi-Fi Dual Band Antenna
b. Extension Cable
c. Surge Arrestor Kit
d. Mount Kit

8
C. Wi-Fi Antenna Package contents (Optional)
Refer to the installation guide included in the package when installing the
3G antenna
a. 3G Antenna
b. Extension Cable
c. Surge Arrestor Kit
d. Mount Kit

9

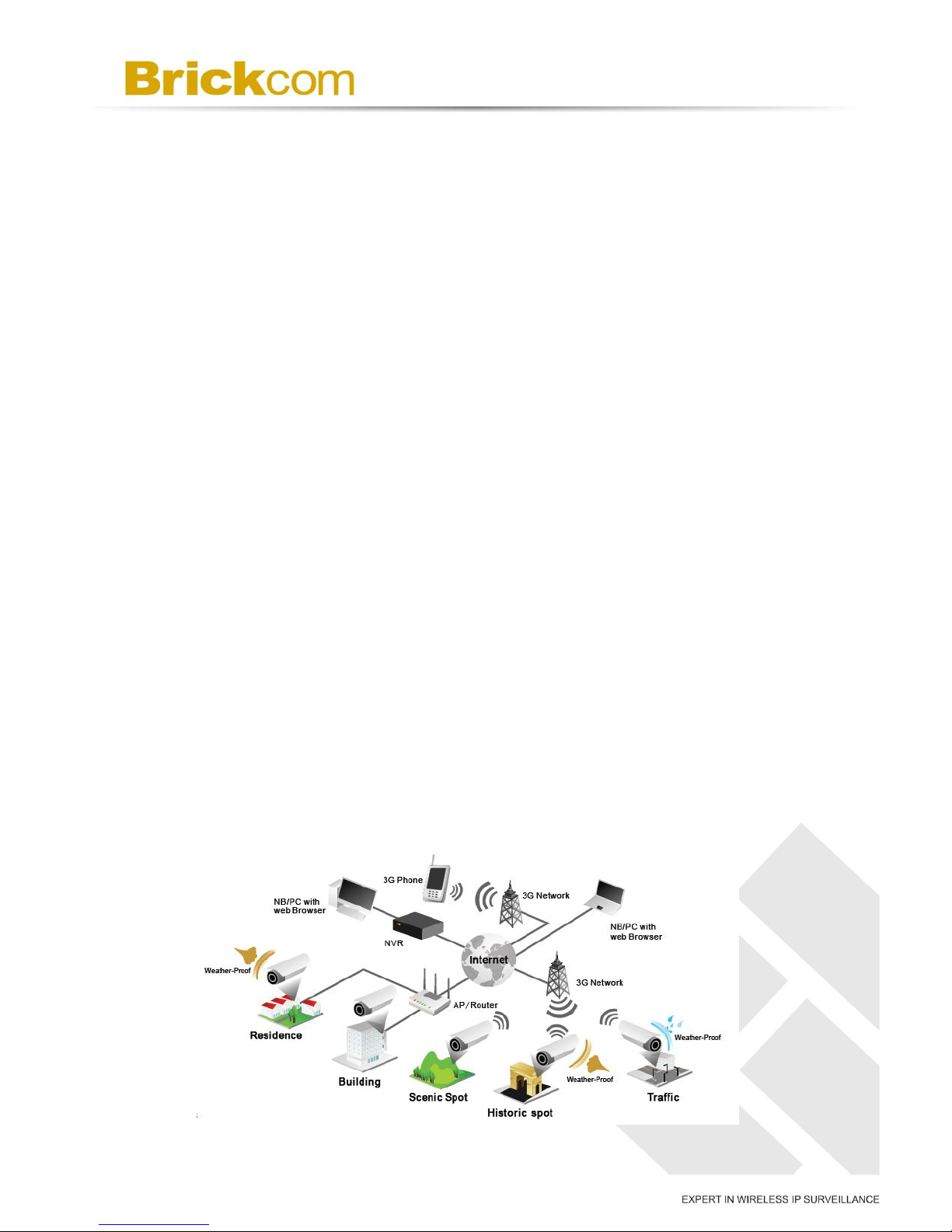

Chapter 2 - Outdoor Bullet Network
Camera Overview
The Brickcom Outdoor Bullet SERIES is an outdoor bullet network camera. It adopts
a megapixel sensor which allows the camera to deliver extremely clear and detailed
images that CCTV cameras cannot offer. To optimize use of the megapixel resolution,
the Outdoor Bullet SERIES uses efficient H.264/ MJPEG/ MPEG-4 codec
compression to deliver dual configurable video streams simultaneously at up to 30 fps.
These features make this series the perfect outdoor camera for neighborhood, school
campus, and parking lot surveillance.
The Outdoor Bullet SERIES has many user friendly features, such as the Smart Focus
capability which allows users to configure settings for excellent image quality without
difficult procedures. Support for Power over Ethernet enables the camera to use the
same cable for power and data transmission, eliminating the need to install an external
power supply.
Installation for the WOB/GOB Series models is not restricted by location or landforms.
The cameras offer various wireless options that make connecting to networks easier
by adopting the technology of IEEE 802.11 a/b/g/n and 3G SIM module. The wireless
Bullet Cameras can be set within any wireless or 3G signal coverage areas. Users
do not have to worry about the data connection failing because each camera is
equipped with a SD/SDHC memory card slot for local storage.
With an IP67 certified outdoor enclosure, the Outdoor Bullet SERIES is not only
weather proof, but also dust and rust resistant. By utilizing a built-in industrial fan and
heater, it can perform well in extreme environments.

10
Chapter 3 - Device Appearance Description

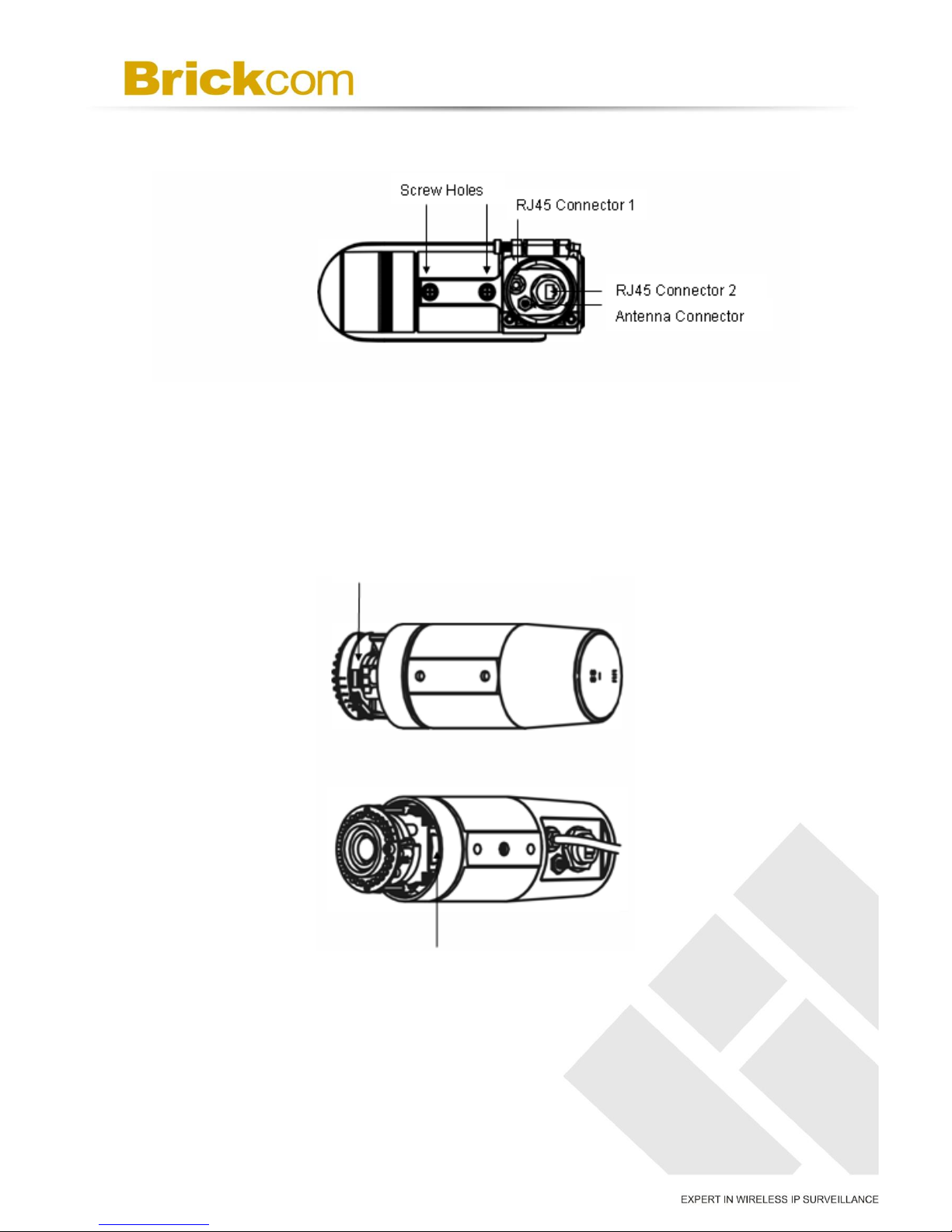

< Front Panel >
< Rear Panel >
< Top >

11
< Bottom >
< Side >
**3G SIM Card Slot only apply for GOB-100Ap/GOB-130Np/GOB-132Np/GOB-500Ap
GOB-502Ap/GOB-302Np/GOB-300Np**
Micro-SD/SDHC Card Slot
3G SIM Card Slot

12

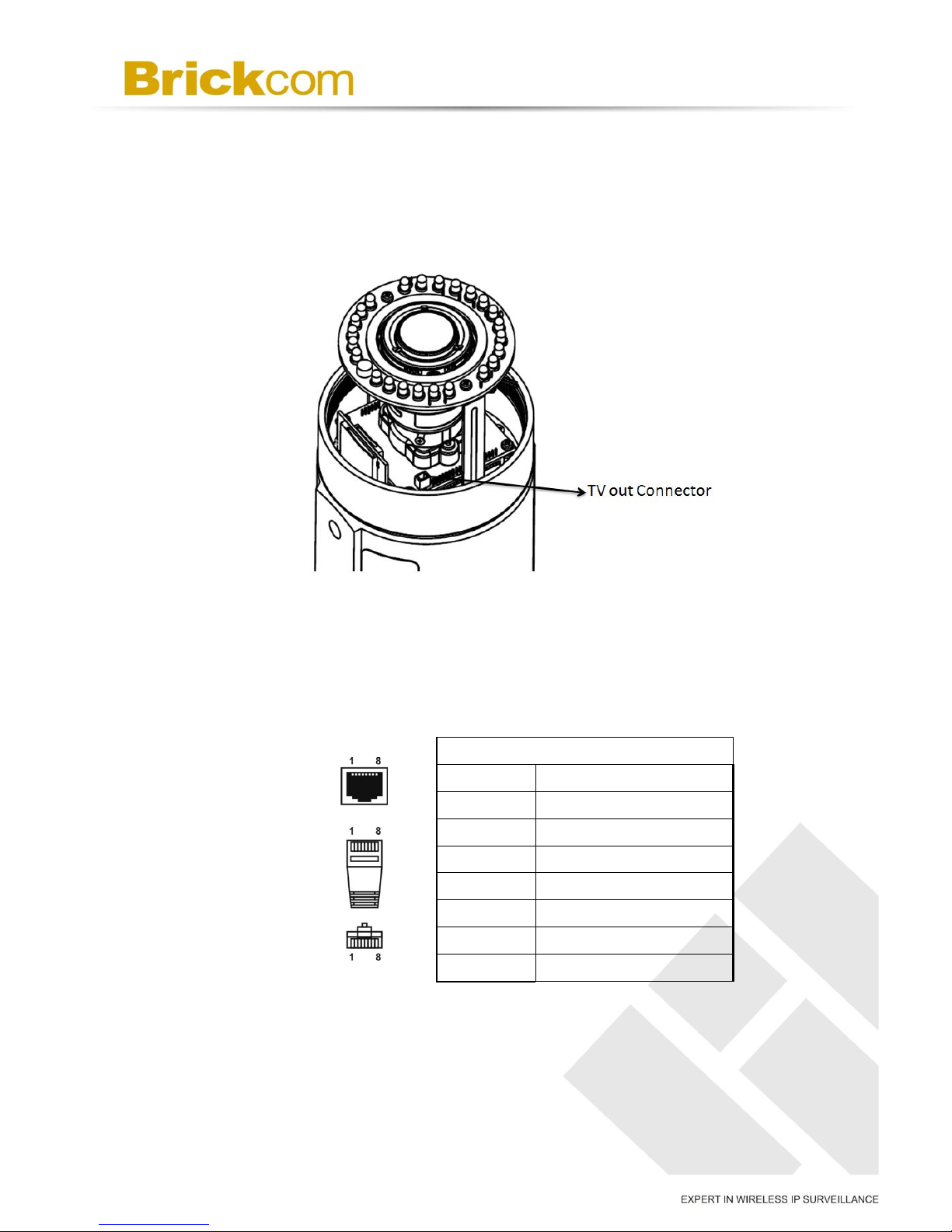

<Inside> TV out Connector
***This function only apply below models.***
OB-502A Series/OB-500A Series and OB-302N Series/OB-300NSeries
< Extension I/O Terminal Block >
The Network Camera provides an extension I/O terminal block which is used to connect
the camera with external input/output devices. The pin definitions are listed as below.
Pin No.
Pin 1
Power +4.5V
Pin 2
Digital Output
Pin 3
Digital Input
Pin 4
Ground
Pin 5
RS-485-
Pin 6
RS-485+
Pin 7
Audio-in
Pin 8
Audio-out

13
< DI/DO Diagram >

14

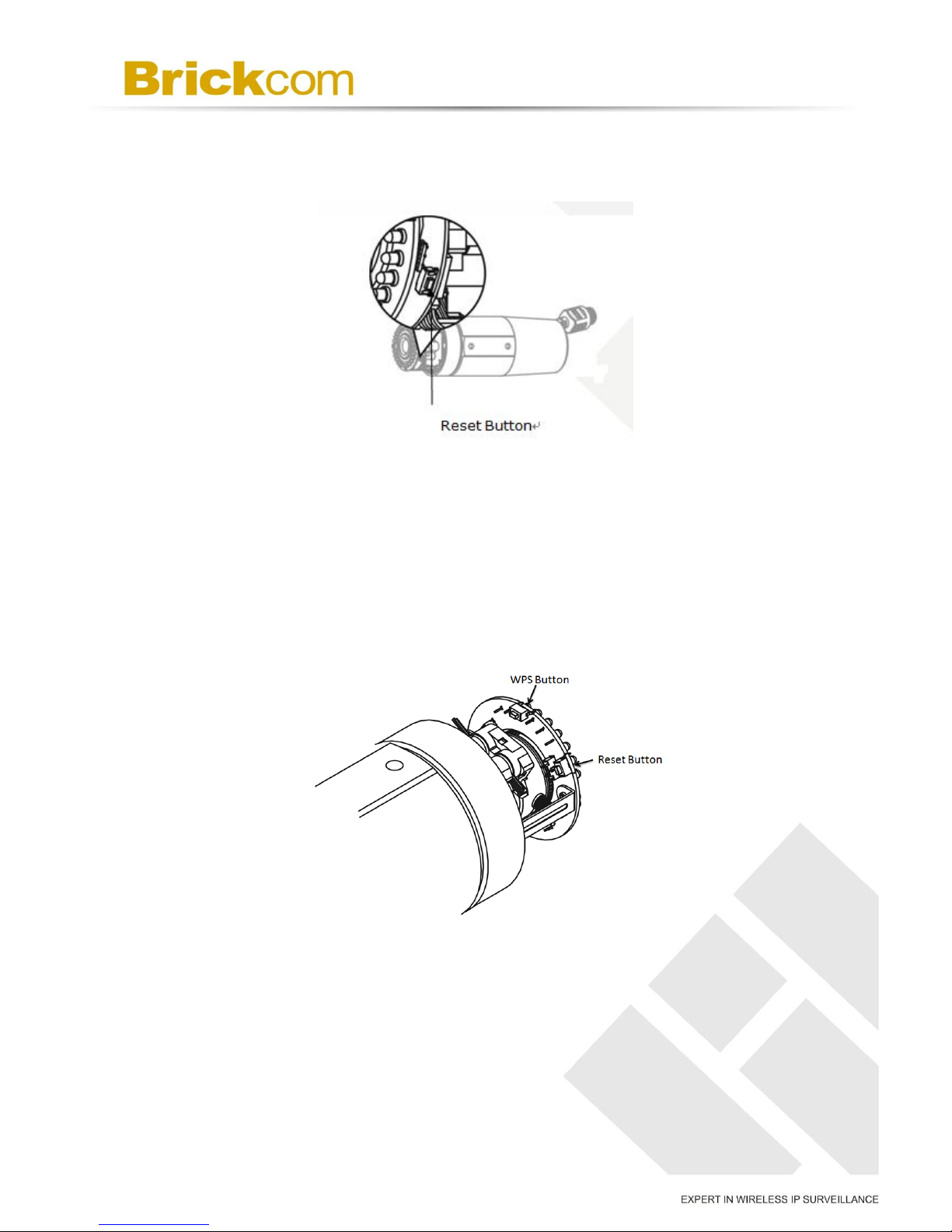

OB-100Ap Series and OB-130N Series
Reset button
OB-502A Series and OB-302N Series
Reset Button and WPS button
**WPS Button only applies for WOB-502A Series/WOB-500Ap Series /WOB-302Np
Series/WOB-300Np Series**
<Noted> WPS button for quickly link to WiFi.

15
< Hardware Reset >
The Reset Button can be used to reboot the camera or restore it to factory default
settings. If the camera experiences a problem, rebooting the camera may correct the
problem. If the problem remains, please restore the camera to factory default settings
and reinstall the software.
To Reboot
Press and hold the Reset Button for one second using a paper clip or thin object. Wait
for the camera to reboot.
To Restore
Press and hold the Reset Button for ten seconds until the LED light turns off. When
successful restored, the LED will be blue during normal operation.
NOTE - By restoring the camera, all settings will be restored to the factory
default settings.
Micro-SD/SDHC Card Capacity
The network camera is compatible with Micro-SD/SDHC (Maximum 32GB) cards.
(*) These are optional features. Please refer to the Product List for the full list of
optional features that are available for this product.

16
Chapter 4 - Installation
4.1 Hardware Installation
WARNING - Do not mount the camera on a soft material. The camera
may fall and be damaged.
A. Micro-SD/SDHC Card and 3G SIM Card Installation
a. Remove the Lens cover from the Bullet Camera.
b. Inset the Micro SD/SDHC card and 3G SIM card(*) into their
respective slots.
c. Place a dry bag onto the camera device.
d. Reattach the Lens cover and secure the cover to the top of the
camera device using two screws.

17
B. Wall Installation Using the Optional Bracket
a. Using the Bracket plate as a guide, drill three holes into the wall and
hammer the supplied plastic anchors into the three holes. Use a
screwdriver and the supplied screws to secure the plate to the wall.
b. Attach the Bracket Assembly Plate to the bottom of the camera using
two screws.
c. (1) Use the two supplied screws to secure the bracket to the side of
the camera. (2) Push back the spring on the mortise lock and hook
the camera and attached bracket onto the groove of the wall mount
bracket as shown in the diagram.
