Broadata LBO-HDMI-AD User manual

LBO-HDMI-AD
LINK BRIDGETM FIBER OPTIC
HDMIVIDEO CONVERTING
TRANSMITTER SYSTEM
BCI reserves the right to make changes to the products described herein without
prior notice or consent. No liability is assumed as a result of their use or
application. All rights reserved.
©2012 Broadata Communications, Inc.

LBO-HDMI-ADUser’s Manual
Link BridgeTM Fiber Optic HDMI Video Converting Transmitter System
Broadata Technical Support, [email protected] 3
SAFETY INSTRUCTIONS AND
COMPLIANCE DECLARATIONS
PLEASEOBSERVETHEFOLLOWINGSAFETY
PRECAUTIONSASOURPRODUCTSCONTAIN
CLASS I LASER PRODUCTS
WARNING
Do not disconnect the fiber optic connector while the unit is powered
up. Exposure to laser radiation is possible when the laser fiber optic
connector is disconnected while the unit is powered up.
Although the fiber optic connectors in this product emit only Class 1
energythatisbelowthelevelsconsideredtobe hazardous, one should
neverstare directly into a fiber optic connector or an unconnected fiber
end unless one can be certain that no exposure to laser energy could
occur.
CAUTION
This manual is intended for use by trained service personnel. The use
of controls, making adjustments, or performing operations other than
those specified may result in hazardous radiation exposure.
Thefollowinglabelorequivalentislocatedonthesurfaceoflaserproducts.
Thislabelindicatesthat the product is classified as a CLASS 1 LASER
PRODUCT.
SURGEPROTECTION DEVICERECOMMENDED
This product contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shock, lightning strikes,
etc. Use of surge protection systems is highly recommended in order
to protect and extend the life of your equipment.

LBO-HDMI-ADUser’s Manual
Link BridgeTM Fiber Optic HDMI Video ConvertingTransmitter System
Broadata Technical Support, [phone]
4
TABLE OF CONTENTS
1.0 PRODUCT DESCRIPTION .............................................5
2.0 SETUP..............................................................................8
2.1 MOUNTING......................................................................8
2.2 CABLING AND CONNECTORS......................................8
2.2.1 ELECTRICAL CABLE CONNECTIONS .......................9
2.2.1.1 HDMI VIDEO INTERFACE..........................................9
2.2.1.2 AUDIO INTERFACE ..................................................10
2.2.1.3 SERIAL DATA INTERFACE .......................................11
2.2.2 OPTICAL FIBER CONNECTION................................12
2.3 DC POWER CONNECTION.........................................14
2.4 IN-WALL POWER/FIBER WIRING INSTRUCTION.....15
3.0 OPERATION...................................................................18
4.0 MAINTENANCE AND TROUBLESHOOTING..............19
4.1 MAINTENANCE .............................................................19
4.2 TROUBLESHOOTING ..................................................19
5.0 SPECIFICATIONS..........................................................21
6.0 SERVICE PROCEDURE ...............................................23
6.1 REPLACEMENT POLICY .............................................23
6.2 RETURN AND REPAIR SERVICE .................................23
7.0 LIMITED WARRANTY....................................................24

LBO-HDMI-ADUser’s Manual
Link BridgeTM Fiber Optic HDMI Video Converting Transmitter System
Broadata Technical Support, [email protected] 5
1.0 PRODUCT DESCRIPTION
The LBO-HDMI-AD Series is a high performance, low cost, miniature,
LinkBridgeTM Fiber Optic HDMITransmissionSystem. It carries one(1)
unidirectionalHDMI video,one (1) bi-directionalstereoaudioand two(2)
RS-232throughonemultimodefiber. Thisuniquefiberoptictransmission
systemlets your digital flat paneldisplayextend up to 400m at WUXGA
(1920x1200@ 60Hz)or 720p/1080i/1080pHDTVvideo resolution. DVI
videois alsoavailable througha DVI-to-HDMI adaptercable.
Nouser adjustmentisrequired fortheLBO-HDMI-AD systemdueto the
useof advanced digital fiber optic transmissionsystem technology with
zero compression and zero bit reduction. This allows for a quick and
easy setup, offering trouble-free operation for many years to come. In
addition,the LBO-HDMI-AD transmitter (or receiver) is compatible with
our LBO Series receiver (or transmitter). This makes both fiber
transmissionand HDMI/DVI/VGA/YPbPr/SV/CV/SDI conversionin one
singlesystemsetup. TheLBO-HDMI-AD comeswith eithera standalone
miniatureenclosureoraDecorawall-platepackaging.The unitsareeasily
monitoredby power and link LED indicators.
Figures 1-1, 1-2, 1-3 and 1-4 illustrate the front and rear panels of the
LBO-HDMI-AD-TandLBO-HDMI-AD-R units.

LBO-HDMI-ADUser’s Manual
Link BridgeTM Fiber Optic HDMI Video ConvertingTransmitter System
Broadata Technical Support, [phone]
6
FRONTPANEL(STANDALONE)
REARPANEL(STANDALONE)
Power/Optical
Link LED
Audio In
Audio Out
Data
Out Data
In
HDMI In
Figure 1-2
LBO-HDMI-AD-T/R Rear Panel
Figure 1-1
LBO-HDMI-AD-T/R Front Panel
Power/Optical
Link LED
Audio In
Audio Out
Data
Out Data
In
HDMI OUT
Power
Connector
Fiber Optic
Output Connector

LBO-HDMI-ADUser’s Manual
Link BridgeTM Fiber Optic HDMI Video Converting Transmitter System
Broadata Technical Support, [email protected] 7
FRONT PANEL (WALLPLATE)
Figure 1-3
LBO-HDMI-AD-T/R-WP Front Panel
REARPANEL (WALLPLATE)
Figure 1-4
LBO-HDMI-AD-T/R-WP Rear Panel
Power
Connector
Fiber Optic
Connector
Power/Optical
Link LED
Data
Out
Data
In
Audio
Out
Audio
In
HDMI In
Power/Optical
Link LED
Data
Out
Data
In
Audio
Out
Audio
In
HDMI Out

LBO-HDMI-ADUser’s Manual
Link BridgeTM Fiber Optic HDMI Video ConvertingTransmitter System
Broadata Technical Support, [phone]
8
2.0 SETUP
LBO-HDMI-AD-T(or LBO-HDMI-AD-R) is a transmitter or receiver and
they can be paired with any DVI/HDMI centric LBO receiver (such as
LBO-DVI-R).OneLBO-HDMI-AD-Ttransmitter unitislocatedat thenear-
end and connected through one optical fiber, to the LBO-HDMI-AD-R
receiver located at the far-end of the link. Figure 2-1 depicts a typical
installationfor theLBO-HDMI-AD-T/R.
Figure 2-1
Mini-HDMI-AD-T/R Setup
2.1 Mounting
Beforeinstalling the units into your housing, make sure there is
enoughspace to pullandconnect both theelectricaland optical
cables without stressing them beyond the manufacturer’s
limitations (also known as the minimum bend radius).
2.2 Cabling and Connectors
Inorder to setupthe LBO-HDMI-AD-T/R properly,makesure to
observe the following instructions when installing the proper
cables. TheLBO-HDMI-AD-T/Rrequirestwoparts tothecabling
setup, the electrical and the optical.

LBO-HDMI-ADUser’s Manual
Link BridgeTM Fiber Optic HDMI Video Converting Transmitter System
Broadata Technical Support, [email protected] 9
2.2.1 Electrical Cable Connection
Thethree available cableconnections on theelectrical side are
for HDMI video, audio and data connections. Follow the
proceedinginstructionsin orderto properlyinstall yourelectrical
connections.
2.2.1.1 HDMI Video Interface
TheHDMIvideo connectionisthe HDMIplugconnectorsfor
videoinput and outputports. Use the following instructions
to properly connect your component video as illustrated in
Figure2-2.
1. Connect the LBO-HDMI-AD-T (Transmitter) unit’s to
HDMIvideo input port totheuser’s HDMI video source
withthe appropriate HDMIcables.
2. For the receive unit, connect the LBO-HDMI-AD-R
(Receiver)HDMI video outputports to theuser’sHDMI
video receivers with the appropriate HDMI cables
respectively, as illustrated in Figure 2-2.
Figure 2-2
Video Connection
User’s HDMI
Video Source User’s HDMI
Video Source

LBO-HDMI-ADUser’s Manual
Link BridgeTM Fiber Optic HDMI Video ConvertingTransmitter System
Broadata Technical Support, [phone]
10
2.2.1.2 Audio Interface
The audio interface supports two channel high fidelity
transmissions. Two separate mono channels or one stereo
channelistransmitted ineachdirection. Line-level audiosignals
areconnected to theLBO-HDMI-ADunits. The following steps
illustratethe installation procedures for audio devices.
To send audiosignals, label and connect onestereo audio-jack
cableto the “AUDIOOUTPUT” connector oftheline level audio
source. On the LBO-HDMI-AD unit, connect the other end of
the cables to the front panel stereo jack connector labeled
“AUDIOIN” (see Figure2-3a).
To receive audio signals, at the far-end location, label and
connect one stereo audio-jack cable to the “AUDIO INPUT”
connector of the line level audio receiver. On the
LBO-HDMI-AD unit, connect the other end of the cables to the
front panel stereo jack connector labeled “AUDIO OUT” (see
Figure2-3b).
Figure 2-3a
Audioinput to LBO-HDMI-AD unit Figure 2-3b
Audiooutput to LBO-HDMI-AD unit
User’s
Audio Output User’s
Audio Input

LBO-HDMI-ADUser’s Manual
Link BridgeTM Fiber Optic HDMI Video Converting Transmitter System
Broadata Technical Support, [email protected] 11
2.2.1.3 Serial Data Interface
EachLBO-HDMI-AD unit can be used for RS-232 interface.
RS-232 data
The LBO-HDMI-AD transmits two channels of data signals.
Followthe procedures for installing data terminal devices.
1. Label and connect one serial computer data cable to the
user’sRS-232 device.
2. Connect the other end of this cable to the front panel data
terminal block connector on the LBO-HDMI-AD (see
Figure2-4).

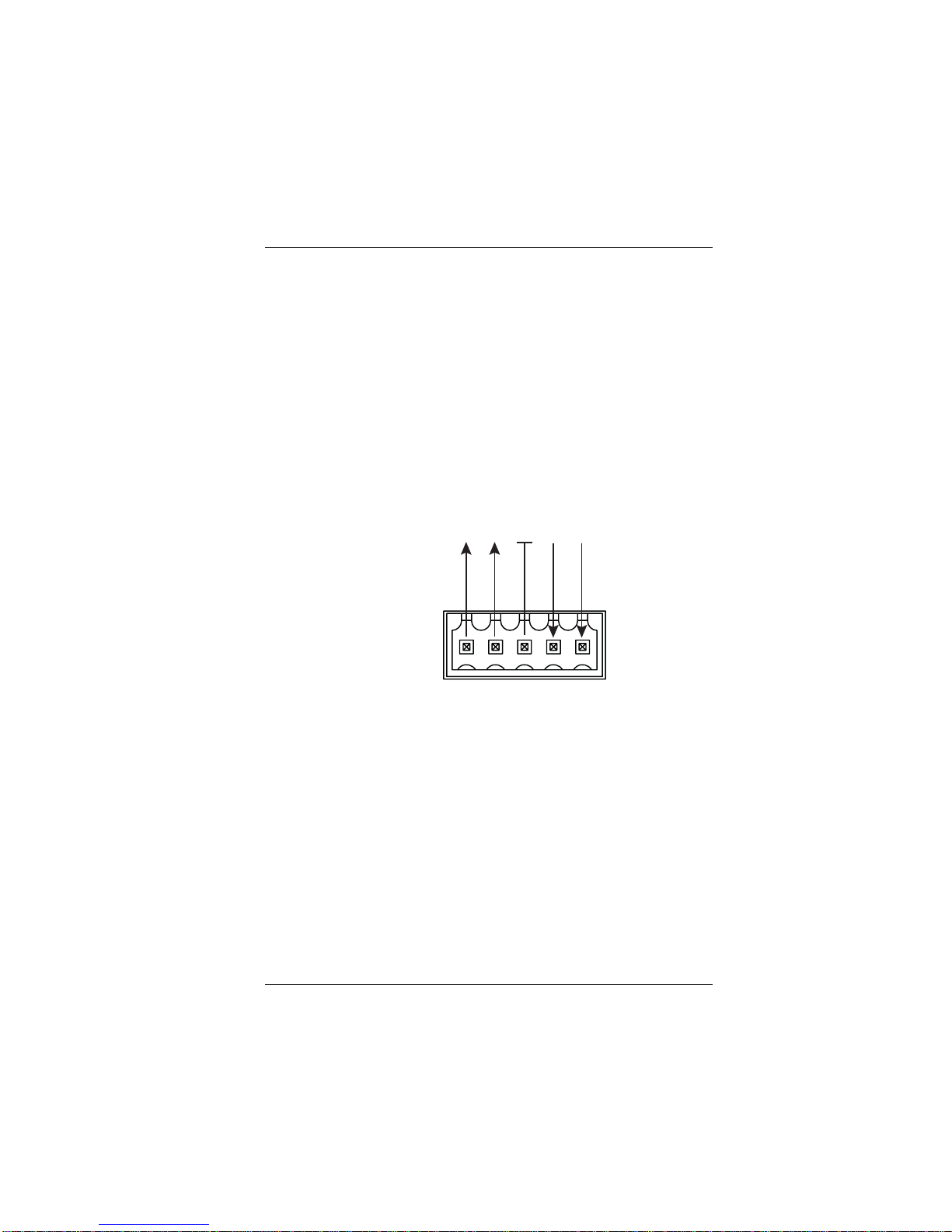

Figure 2-4
RS-232 Terminal block pinout
Ch2 Ch2Ch1 Ch1
GND
OUT IN

LBO-HDMI-ADUser’s Manual
Link BridgeTM Fiber Optic HDMI Video ConvertingTransmitter System
Broadata Technical Support, [phone]
12
2.2.2 Optical Fiber Connection
Most cable manufacturers identify individual fibers in the fiber
cable. Selectanappropriateterminated fiber. Eachunit’soptical
ports in the system are specified for use with Multimode
(62.5/125 or 50/125 micron) fiber. Follow the ensuing
instructions on installing and connecting the fiber optic links:
1. Ensure the power is off before proceeding with the fiber
optic cable installation.
2. Priorto connecting thefiber optic cables, removeand save
the dust caps from the optical port of the LBO-HDMI-AD
units. Clean the fiber optic connector and use a lint-free
cloth dampened with alcohol to thoroughly wipe the side
andend of the ferrule.
3. Connectthe fiber from one unit totheother connecting the
nearend LBO-HDMI-AD-T unit’s optical port to the far end
ofthe LBO-HDMI-AD-R unit’s optical RX portas illustrated
inFigure 2-5.

LBO-HDMI-ADUser’s Manual
Link BridgeTM Fiber Optic HDMI Video Converting Transmitter System
Broadata Technical Support, [email protected] 13

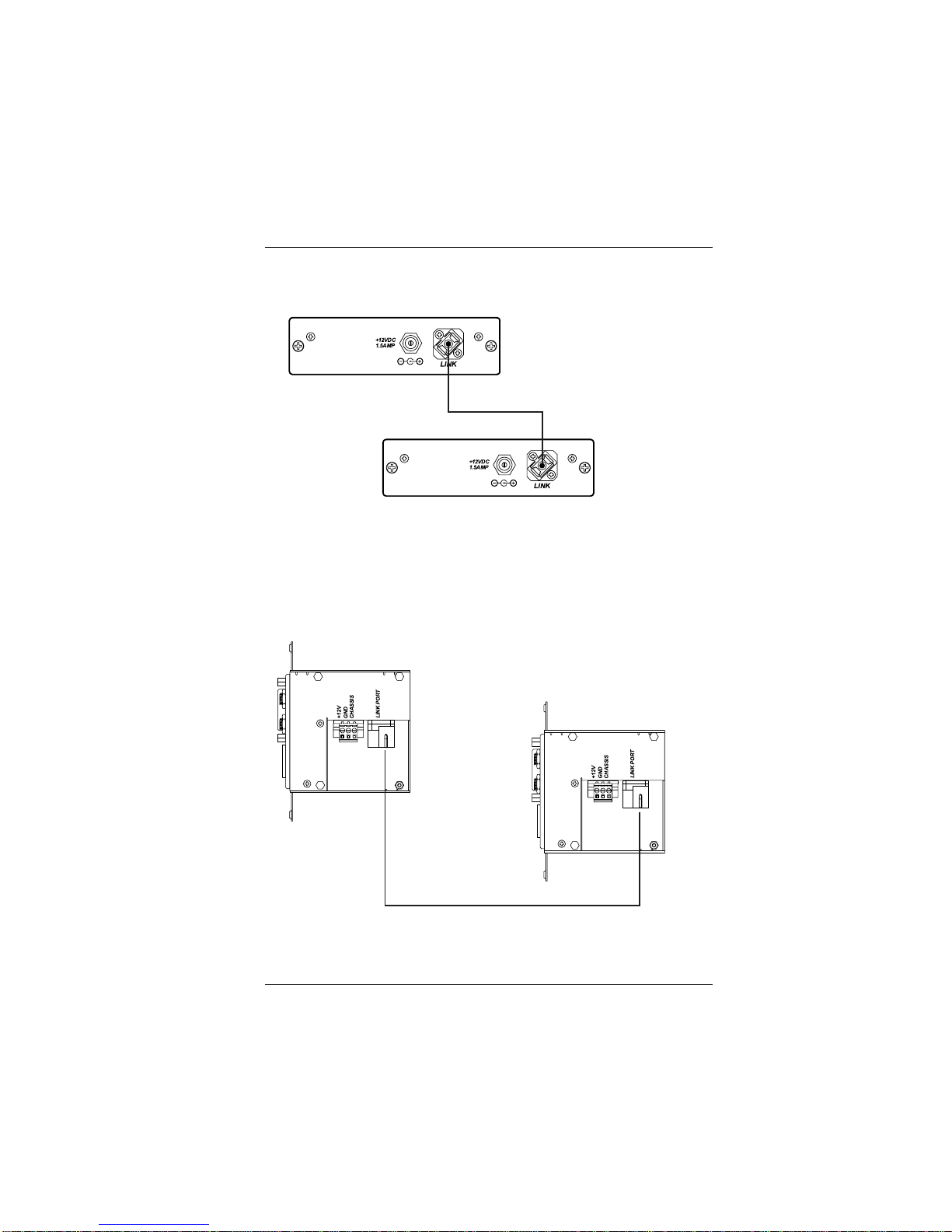

Figure 2-5
Fiber Optic Connection
LBO-HDMI-AD-T
LBO-HDMI-AD-R
LBO-HDMI-AD-T-WP
LBO-HDMI-AD-R-WP

LBO-HDMI-ADUser’s Manual
Link BridgeTM Fiber Optic HDMI Video ConvertingTransmitter System
Broadata Technical Support, [phone]
14
2.3 DC Power Connection
Congratulations! Youare nowreadytopowerup theLBO-HDMI-AD and
set up your network connection. In order to make sure that you have a
properinstallation, please observe thefollowing:
1. YourAC jack has power.
2. The12VDC power supply is working.
3. Yourelectrical system has proper grounding (this ensures
that your power supply does not suffer from voltage
variations).
4. Power Surge Protection. This is optional, but highly
recommended. AUPS system provides voltage regularity
as well as prevents spikes from occurring, thus protecting
yourLBO-HDMI-AD from sensitivevoltage conditions.
TheLBO-HDMI-ADderivespowerfromanexternal12VDCpowersupply.
This power supply is a wall mounted AC/DC adapter, 100-240 VAC,
50-60 Hz, at 1.5A. This power supply comes standard for the
LBO-HDMI-ADunless otherwise specified.
Ifyouhaveanyproblemsorconcerns,regardingtheinstallation,make
sure that you have taken the proper steps to ensure a proper power
connection. Otherwise, feel free to contact us for any questions you
mayhave.

LBO-HDMI-ADUser’s Manual
Link BridgeTM Fiber Optic HDMI Video Converting Transmitter System
Broadata Technical Support, [email protected] 15
2.4 In-Wall Power/Fiber Wiring Instruction
Thein-wall power/fiberinstallation forthe LBO-HDMI-AD-WP(wallplate
version)mustconfirmnational andlocalelectricalcodes, e.g.,ULjunction
boxes shall be used and DC power source shall not exceed product
rated range (+12VDC @ 1.5A). Follow the following steps for power/
fiberinstallation:
1. AsshowninFigure 2-6,feedbothfiberandpower cablesthrough
the opening of the wall box, and secure the cables with cable
clampsto provide strain relief.
2. Terminated fiberwithSCopticalconnectortobedirectly plugged
into the SC connector port of the LBO-HDMI-AD-WP units
(seeFigure 2-5).
3. Before connecting power wire to the LBO-HDMI-AD-WP unit,
make sure power supply is off. Prepare the Positive (+12V)
and Negative (GND or +12V return), and chassis ground
(CHASSIS to earth ground) tip of the power wire as shown in
Figure2-7to bedirectly pluggedinto thecaptive screw+12VDC
connector of the LBO-HDMI-AD-WP units (see Figure 2-6).
Make sure the polarity of the connection is correct. Insulate
any exposed wire shields to prevent short circuits.

LBO-HDMI-ADUser’s Manual
Link BridgeTM Fiber Optic HDMI Video ConvertingTransmitter System
Broadata Technical Support, [phone]
16
Figure 2-6
In-wall fiber/power cable installation
Figure 2-7
Power Connection
LBO-HDMI-AD-WP
Unit
Clamp
Power
Wire
Fiber
Cable
+12V
GND
Wall
Junction Box
CHASSIS
Link Port
+12V GND CHASSIS
+_
Captive
Screw
Connector
E

LBO-HDMI-ADUser’s Manual
Link BridgeTM Fiber Optic HDMI Video Converting Transmitter System
Broadata Technical Support, [email protected] 17
Note1: During installation, the installermay need to connect thepower
supplyoutput to an appropriate ListedNEC type cable before it
isrouted behind a wall. Simply routing the powersupply output
cable behind a wall will most likely not comply with applicable
installation requirements. Unit should only be powered by a
powersource thatis Listed(NEC) Class2 ora ListedITE Power
Supply marked/rated as LPS or Limited Power Source.
Note2: The installation shall be in accordance with the applicable
provisions of the National Electrical Code ANSI/NFPA 70,
Article 725 and the Canadian Electrical Code, Part 1,
Section 16.
Note3: The power supplyshallnot be permanently fixedto the building
structure or similar structures.
Note4: The power supply shall not be located within environmental air
handling spaces or within the wall cavity.
Note5: The power supply is to be located within the same vicinity as
theA/V processing equipment in anordinary location, Pollution
Degree 2, secured to the equipment rack within the dedicated
closet, podium or desk.

LBO-HDMI-ADUser’s Manual
Link BridgeTM Fiber Optic HDMI Video ConvertingTransmitter System
Broadata Technical Support, [phone]
18
3.0 OPERATION
After the installation procedure is completed, the units are ready for
operation. To operate the LBO-HDMI-AD units, simply apply power as
indicated in the previous sections. The following describes the LED
activity.
Table 1
LED Indicator
When power is connected, this LED turns RED.
When power and optical link are on, this LED
turns GREEN
PWR/LINK
LED Indicator Description

LBO-HDMI-ADUser’s Manual
Link BridgeTM Fiber Optic HDMI Video Converting Transmitter System
Broadata Technical Support, [email protected] 19
4.0 MAINTENANCE AND TROUBLESHOOTING
4.1 Maintenance
Thereis no operator maintenance other thenkeepingthe units
clean. However,observe the following light indicators to make
sure that the unit is working properly:
4.2 Troubleshooting
If the LBO-HDMI-AD units do not operate properly after
installation,checkfor: possiblecablebreaks,looseconnections,
and incorrect cable connections. If a problem exists on the
fiber link, please check your fiber connectors for improperly
cleaned fiber cables and connectors. If problems persist that
maybe fiber related, contact BCI at1-800-214-0222for further
assistance.
For electrical problems, perform the following troubleshooting
procedures:
1. If the POWER indicator is OFF, check for the following:
a. The line cord is plugged into the unit and your outlet
haspower.
2. If the POWER indicator is ON, but the Optical Link
indicator is OFF, check for the following:
a. Makesure theappropriate (Multimode)fibers arebeing
used.
b. Fiberand fiber connectors are not broken.
c. For each unit, the transmit (TX) fiber is connected to
theother unit’s receiver(RX).
3. If the POWER indicator and Optical Link indicator are
ON, but the audio/video channels are not operating,
then:

LBO-HDMI-ADUser’s Manual
Link BridgeTM Fiber Optic HDMI Video ConvertingTransmitter System
Broadata Technical Support, [phone]
20
a. Checktosee thattheattached userequipmentisturned
on.
b. Both ends of the link are connected to the
corresponding equipment and to the same
correspondingchannel port.
c. Cable connections at both the video/audio channels
are securely fastened to each connector. Turn the
power off, then back on to reset the link.

LBO-HDMI-ADUser’s Manual
Link BridgeTM Fiber Optic HDMI Video Converting Transmitter System
Broadata Technical Support, [email protected] 21
5.0 SPECIFICATIONS
Video
Resolution Upto 1080p@60Hzor
1620x1200@60Hz
Connector HDMIFemale Plug
Protocol DDC/EDID/HDCPCapable
Audio
ChannelCapacity 2
OperatingMode Unbalanced(StereoAudio),
Bi-directional
Input/OutputImpedance 10k/50 Ohms(StereoAudio)
Max.Input/Output Level 5dBu/4Vpp
(StereoAudio)
MagnitudeFreq. Response 20Hz to 20kHz @ -3dB
THD+N >70 @ 1k Hz (StereoAudio)
Connector 3.5mmStereo Jack
Serial Data
ChannelCapacity 2
SignalFormat RS-232
DataRate Up to57.6kbaud
Connector TerminalBlock
Optical
FiberType Multimode
NumberofFibers 1
Connector SC
