Broadata LINK BRIDGE LBC-HDMI-R-SCL User manual

LBC-HDMI-R-SCL
LINK BRIDGETM HDMI
SCALER SYSTEM
BCI reserves the right to make changes to the products described herein without prior
notice or consent. No liability is assumed as a result of their use or application. All
rightsreserved.
©2013 Broadata Communications, Inc.

LBC-HDMI-R-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [email protected] 3
SAFETY INSTRUCTIONS AND
COMPLIANCE DECLARATIONS
PLEASE OBSERVE THE FOLLOWING SAFETY
PRECAUTIONS
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shock, lightning strikes,
etc. Use of surge protection systems is highly recommended in order
to protect and extend the life of your equipment.

LBC-HDMI-R-SCLUser’s Manual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [phone]
4
TABLE OF CONTENTS
1.0 PRODUCT DESCRIPTION ..............................................5
2.0 OPERATION CONTROLS AND FUNCTIONS .................6
2.1 FRONT PANEL .................................................................6
2.2 REAR PANEL ...................................................................7
3.0 ON SCREEN DISPLAY.....................................................9
3.1 MAIN MENU SELECTION ................................................9
3.2 DISPLAY ...........................................................................9
3.3 COLOR ...........................................................................10
3.4 AUDIO .............................................................................11
3.5 SETUP............................................................................12
3.6 INFORMATION................................................................13
4.0 CONNECTOR PIN ASSIGNMENT .................................14
4.1 IR PINASSIGNMENT .....................................................14
4.2 RS-232 PIN ASSIGNMENT.............................................15
5.0 MAINTENANCE AND TROUBLESHOOTING ...............16
5.1 MAINTENANCE ..............................................................16
5.2 TROUBLESHOOTING ...................................................16
6.0 SPECIFICATIONS...........................................................18
7.0 SERVICE PROCEDURE ................................................19
7.1 REPLACEMENT POLICY ..............................................19
7.2 RETURN AND REPAIR SERVICE .................................19
8.0 LIMITED WARRANTY ....................................................20
9.0 APPENDIX A...................................................................21
10.0 APPENDIX B .................................................................22

LBC-HDMI-R-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [email protected] 5
1.0 PRODUCT DESCRIPTION
The LB-HDMI-R-SCL video scaler with LAN/IR/RS-232/Bidirectional
PoHovera singleCAT5e/6/7 receiver,canreceiveuncompressedaudio/
videooverasinglerunofCAT5e/6/7 cable upto100mwithBidirectional
PoH (Power Over HDBaseT) feature. The system supports various
methodsofcontrolthat can be accomplished through on-panel buttons,
IR remote, RS-232 and the On Screen Display (OSD). The device
provides full range of output resolutions up to 1080p for HDTV timing
and WUXGA for PC timing.
Features
• Supports full range HDTV and PC output resolutions up
to 1080p and WUXGA
• Receive HDMI signal and scale up to HD output
• Receive uncompressed data over a single 100m CAT5e/6/7
cable
• 5Play™ convergence: Video,Audio, LAN, Bidirectional PoH &
Control (IR & RS-232 bypass)
• Supports IR, Remote control, RS-232 (bypass) and on-panel
controls
• SupportsOSD(On ScreenDisplay)selectionanddisplay system
information
• Includes a 24V DC power to or 24V received from compatible
PoH Transmitter through CAT5e/6/7 cable
• Supports Ethernet transmission rate up to 100Mbps
• Supports HDMI, Optical (S/PDIF) audio sampling rate up to
48kHz
Package Contents
• HDMI/CAT5e/6/7toHDMIwith LAN/IR/RS-232/BidirectionalPoH
Receiver
• IR Extender x 1
• IR Blaster x 1
• 24 V/2.7A DC power adapter
• IR Remote Control
• UserManual

LBC-HDMI-R-SCLUser’s Manual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [phone]
6
2.0 OPERATION CONTROLSAND FUNCTIONS

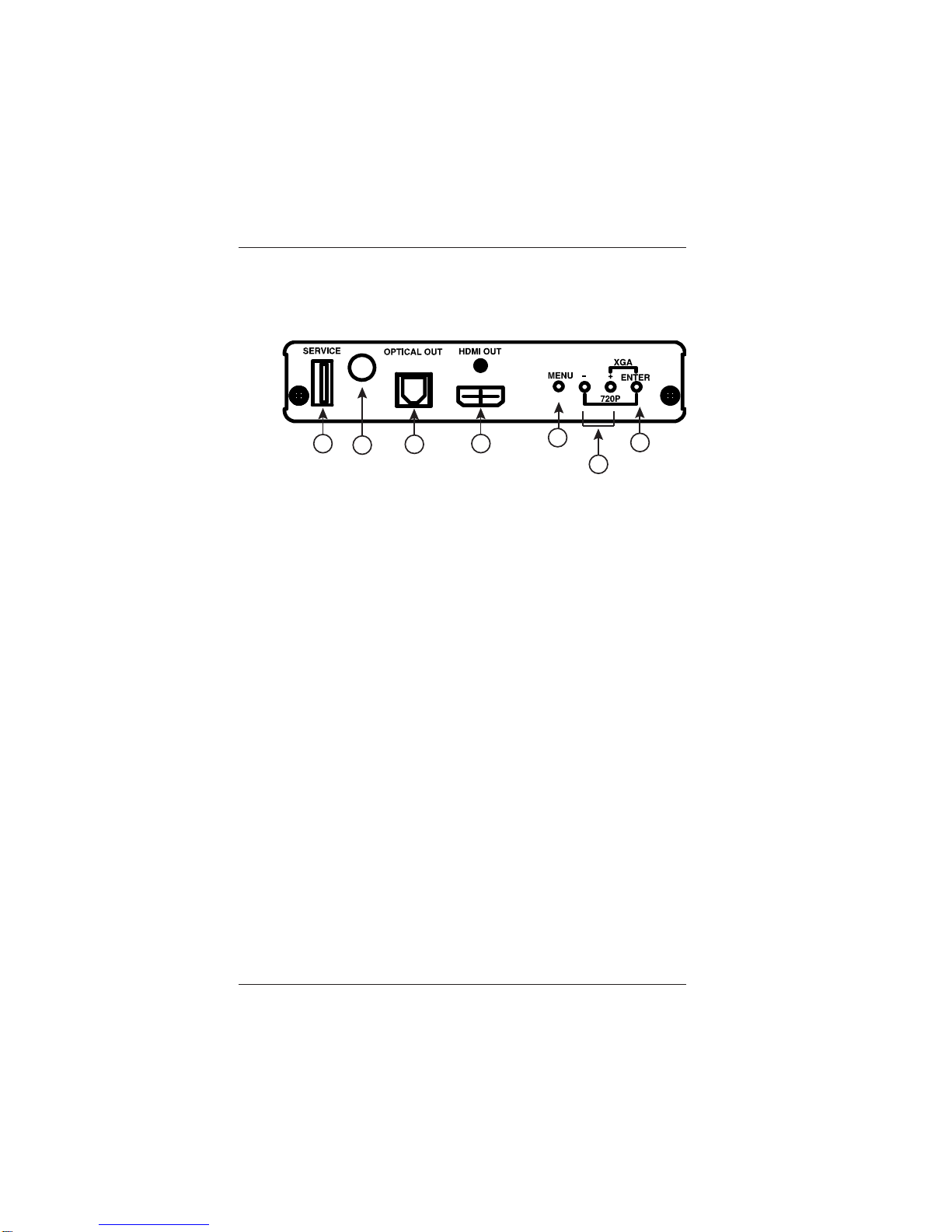

2.1 Front Panel
1. SERVICE:
This port is reserved for firmware update only.
2.IR:
IR Receiver window (accepts the remote control signal of this
deviceonly).
3. OPTICALOUT:
Connect to an amplifier or active speaker with optical cable for
audiooutput.
4. HDMI OUT:
This slot is to connect with HDMI TV/Monitor.
5. MENU:
Press this button to enter into the OSD menu.
6. +/- :
Press these buttons to scroll up and down through the OSD
menu.
7. Enter:
Press this button to confirm the selection. Press this button
together with [–] key to switch output timing to 720p@60
instantly.Pressthisbuttontogetherwith [+] key to switch output
timing to XGA(1024x768) instantly.
12345
67

LBC-HDMI-R-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [email protected] 7
2.2 Rear Panel
1. Power LED:
ThisLEDwill illuminate whenthedeviceisconnectedtoa power
supply.
2. DC 24V:
Plug the 24 V DC power supply into the unit and connect the
adaptor to an AC outlet. Only one side of power is needed to
activate both Transmitter and Receiver when both obtain the
PoHfunction.
3. RS-232 OUT:
This slot is to connect with D-Sub 9-pin cable from device
equipment for receiving RS-232 commands. Commands are
listed inAppendix B.
4. LAN:
Connect to an active network for LAN sharing of a total
transmission rate up to 100Mbps. Or when a compatible LAN
equipped Transmitter is connected to an active network, this
allowsthenetwork access(includinginternetaccess ifavailable)
to be shared between the Transmitter and Receiver. Connect
anyEthernet equippeddevicee.g.a SmartTVorgames console
to the LAN port for that device to share the network internet
access.Note: DO NOT connect LAN cable with any of the
CAT5e/6/7port.Doingsomaytriggerpowershutdown
andruin the device
5. IR Blaster:
Connect to the supplied IR Blaster cable for IR signal
transmission. Place the IR Blaster in direct line-of-sight of the
equipment to be controlled.
12345679
8

LBC-HDMI-R-SCLUser’s Manual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [phone]
8
6. IR Extender:
Connect to the supplied IR Receiver cables for IR signal
reception. Ensure that remote being used is within the direct
line-of-sight of the IR Extender.
7. MODE LED:
This LED will illuminated when the power is connected.
8. Link LED:
This LED will illuminate when the slot has been connected to
theTransmitter and theTransmitter has connected with sources
that shows image on screen.
9. CAT5e/6 IN:
Connect to the Transmitter unit with a Single CAT5e/6/7 cable
for receiving all data signals.

LBC-HDMI-R-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [email protected] 9
3.0 ON SCREEN DISPLAY (OSD) MENU
3.1 Main Menu Selection
Display, Color, Audio, Factory Reset, Informaiton

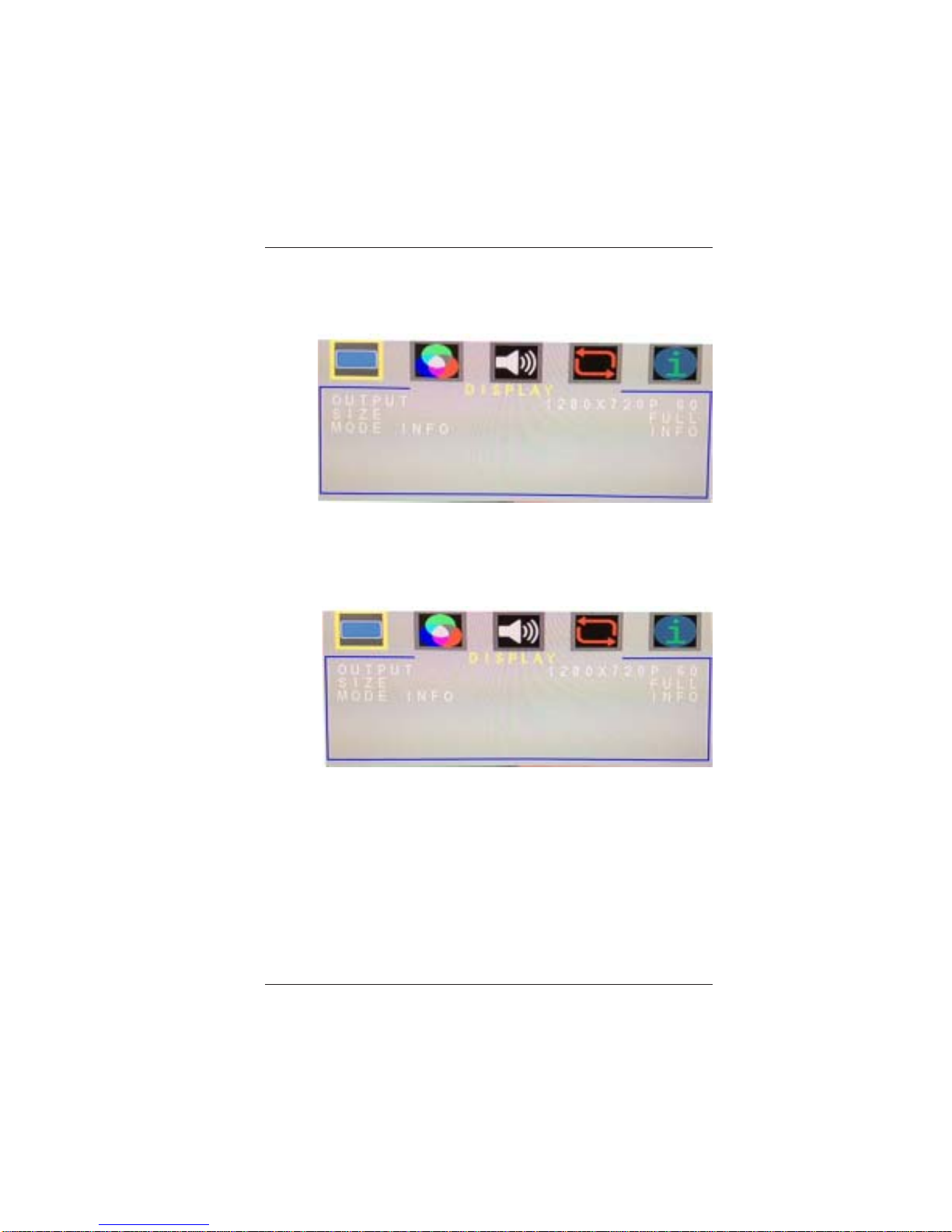

3.2 DISPLAY: Output, Size, Mode Info
OUTPUT: 640x480 60, 800x600 60, 1024x768 60, 1360x768 60,
1280x72060, 1280x80060, 1280x102460, 1440x90060, 1400x1050
60, 1680x1050 60, 1600x1200 60, 1920x1080 60, 1920x1200 60,
720x480P 60, 1280x720P 60 (Factory Default upon reset),
1920x1080I 60, 1920x1080P 60 (setting upon shipment), 720x576P
50, 1280x720P 50, 1920x1080I 50, 1920x1080P 50
SIZE: OVERSCAN, FULL (Factory Default upon reset),
UNDERSCAN, LETTERBOX, PANSCAN, ASPECT RATIO (setting
upon shipment), UNDER 2, UNDER 1
MODE INFO: INFO, ON, OFF

LBC-HDMI-R-SCLUser’s Manual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [phone]
10
3.3 COLOR: Color, Contrast, Brightness, Hue,
Saturation, Sharpness, NR
COLOR
RED: 0 ~ 1023 of Red Color Level
GREEN: 0 ~ 1023 of Green Color Level
BLUE: 0 ~ 1023 of Blue Color Level
RED OFFSET: 0 ~ 1023 of Red Color Level
GREEN OFFSET: 0 ~ 1023 of Green Color Level
BLUE OFFSET: 0 ~ 1023 of Blue Color Level
CONTRAST: 0 ~ 60 of Contrast Level
BRIGHTNESS: 0 ~ 60 of Brightness Level
HUE: 0 ~ 60 of Hue Level
SATURATION: 0 ~ 60 of Saturation Level
SHARPNESS: 0 ~ 30 of Sharpness Level
NR: OFF (Factory Default upon reset), LOW,
MIDDLE,HIGH

LBC-HDMI-R-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [email protected] 11

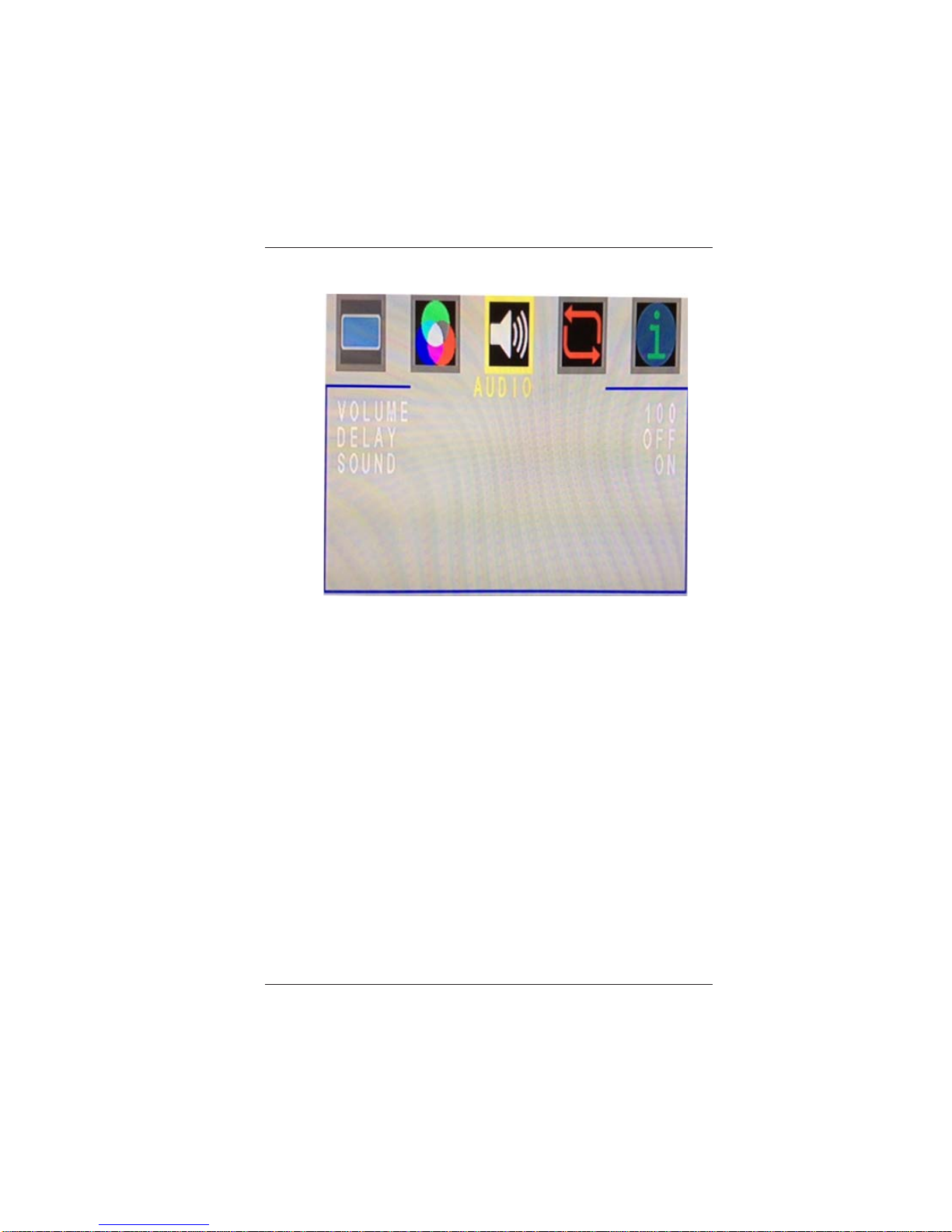

3.4 AUDIO
VOLUME: 0 ~ 100
DELAY: OFF, 40ms, 110ms, 150ms
SOUND: ON, MUTE

LBC-HDMI-R-SCLUser’s Manual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [phone]
12

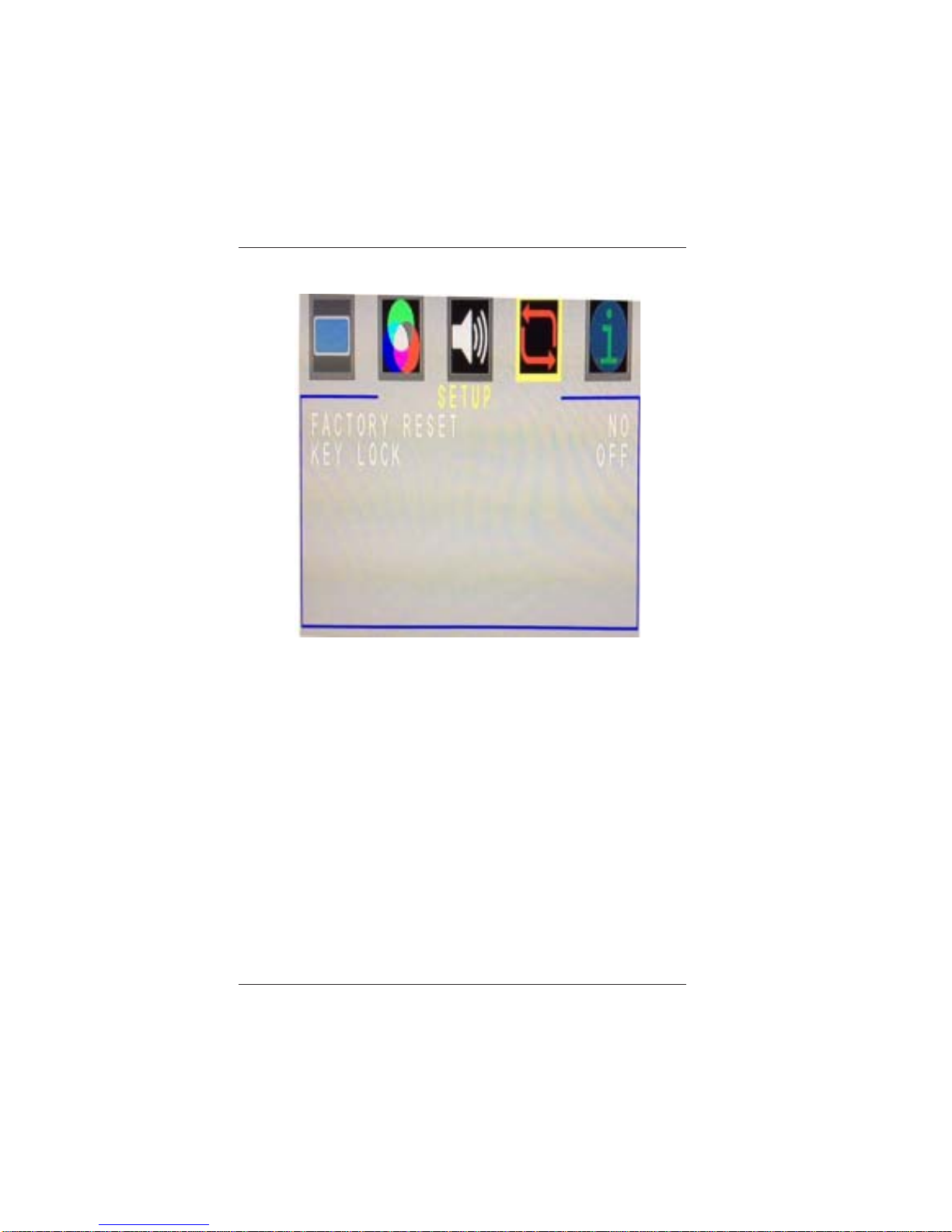

3.5 SETUP: Factory Reset, Keylock
FACTORY RESET: YES, NO
KEY LOCK: OFF, ON

LBC-HDMI-R-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [email protected] 13

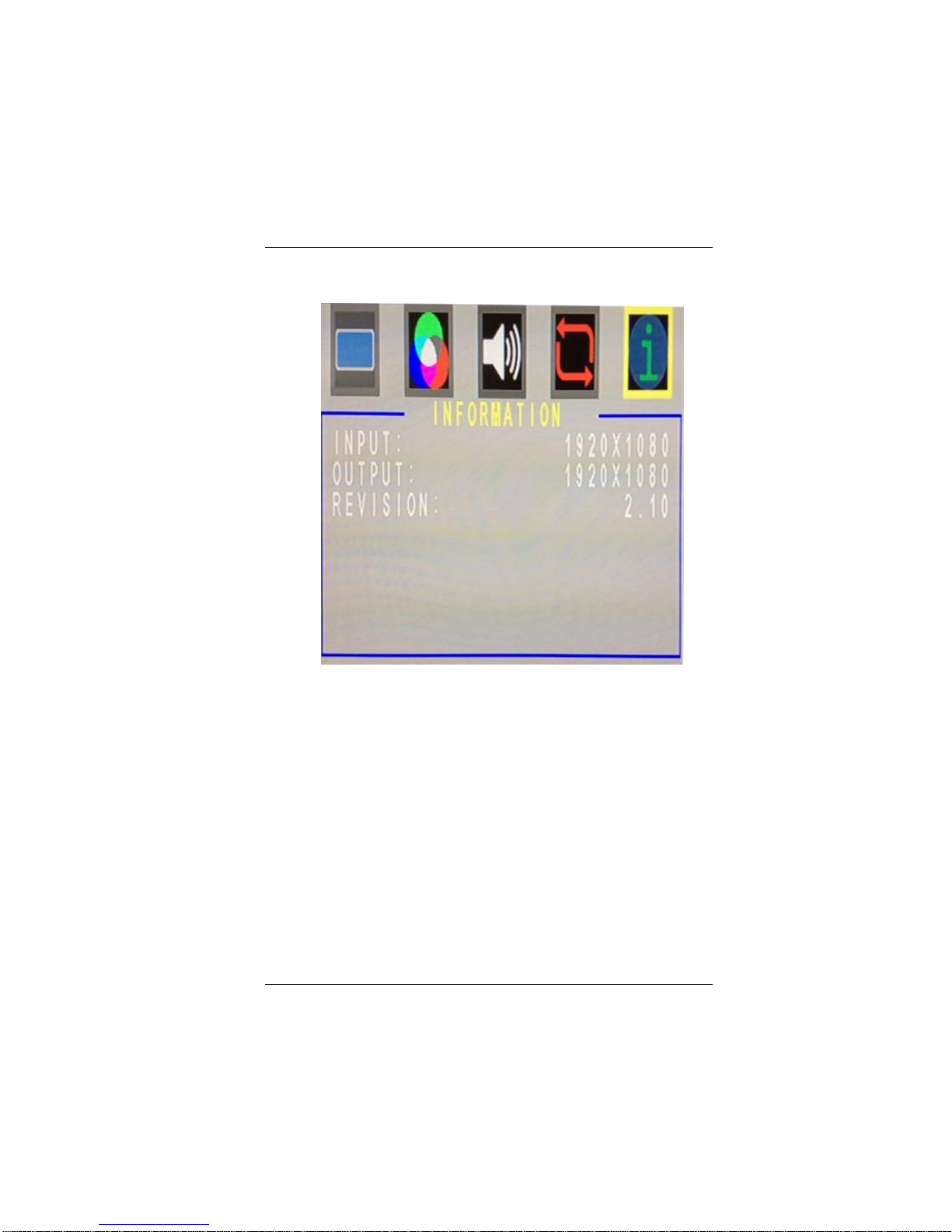

3.6 INFORMATION: Input, Output, Revision
INPUT: Input Resolution Displayed
OUTPUT: Output Resolution Displayed
REVISION: FirmwareRevision Displayed

LBC-HDMI-R-SCLUser’s Manual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [phone]
14
4.0 CONNECTOR PIN ASSIGNMENT

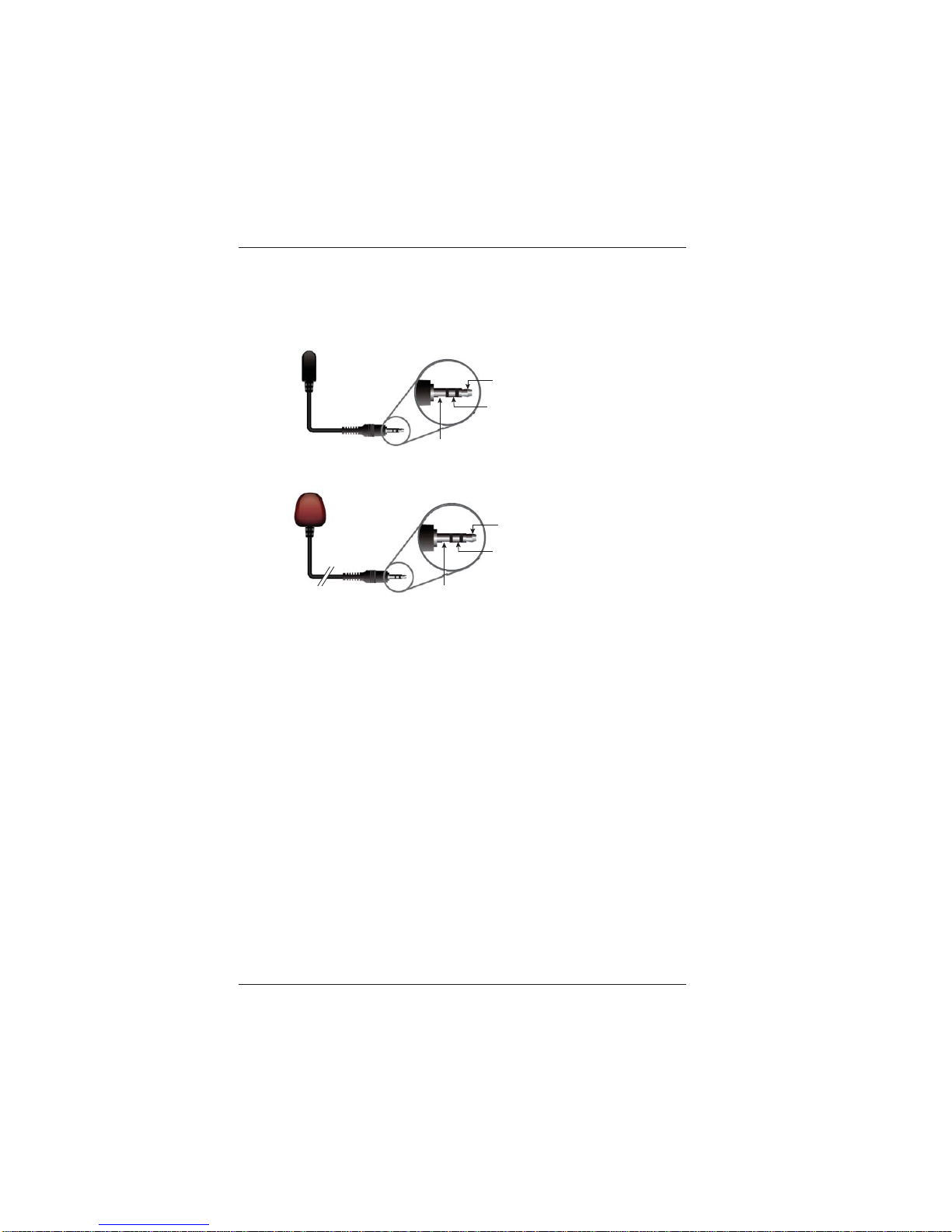

4.1 IR Pin Assignment
IR Blaster Power 5V
IR Blaster Signal
NC
IR Receiver
IR Signal
Power
Grounding
Figure 4-1
IR Blaster and IR Extender Pin Assignment

LBC-HDMI-R-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [email protected] 15
4.2 RS-232 Pin Assignment
Baud Rate: 9600bps
Data Bit: 8 bits
Parity:None
Flow Control: None
Stop Bit: 1
Table 1
RS-232 Pin Assignment
Note: The RS-232 command set is shown in theTable ofAppendix B.

LBC-HDMI-R-SCLUser’s Manual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [phone]
16
5.0 MAINTENANCE AND TROUBLESHOOTING
5.1 Maintenance
Thereis no operator maintenance otherthen keeping the units
clean. However, observe the followinglight indicators to make
sure that the unit is working properly:
5.2 Troubleshooting
If the LBC-HDMI-R-SCL units do not operate properly after
installation,checkforpossible cable breaks, loose connections,
and incorrect cable connections. If problems persist that may
be fiber related, contact BCI at 1-800-214-0222 for further
assistance.
For electrical problems, perform the following troubleshooting
procedures:
1. If the POWER indicator is OFF, check for the following:
a. The line cord is plugged into the unit and your outlet
has power.
2. If the POWER indicator is ON, but the Link indicator is
OFF, check for the following:
a. Make sure the appropriate cables are being used.
b. Cable and cable connectors are not broken.
c. For each unit, the transmit (TX) cable is connected to
the other unit’s receiver (RX).
3. If the POWER indicator and Link indicator are ON, but
the channels are not operating, then:
a. Checktoseethatthe attacheduserequipmentis turned
on.
b. Bothendsofthelinkareconnectedtothecorresponding
equipmentandtothesamecorrespondingchannelport.

LBC-HDMI-R-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [email protected] 17
c. Cable connections at both channels are securely
fastened to each connector. Turn the power off, then
back on to reset the link.

LBC-HDMI-R-SCLUser’s Manual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [phone]
18
6.0 SPECIFICATIONS
EthernetSpeed 100 Mbps
OutputVideoBandwidth 165MHz/ 1.65 Gbps
InputVideoBandwidth 300MHz / 10.2Gbps
Input Port 1×CAT5e/6/7, 1×IR Extender
Output Port 1×HDMI, 1×IR Blaster, 1×Optical,
1×RS-232, 1×LAN
CAT5e/6/7 Output Cable Up to 100 Meters
Supports InputResolution HD: Up to 1080p@60 Hz
PC: Up to WUXGA (RB)
SupportsOutputResolution Up to WUXGA & 1080p (Refer to
AppendixAfor supported resolutions
AudioSamplingRate Up to 48 kHz or LCPM 2CH
CAT5e/6/7 Resolutions HD: Up to 1080p@60 Hz
Support PC: Up to WUXGA (RB)
IRFrequency 30~50kHz
Dimensions 145 mm (W)×192 mm (D)×30 mm (H)
Chassismaterial Metal
BoxColor Black
OperatingTemperature 0 oC~40 oC / 32 oF~104 ÚF
RelativeHumidity 20 ~ 90 % RH (non-condensing)
Power Supply 110–240vAC 50/60 Hz, 24v
@ 2.7 A DC
PowerConsumption 14W

LBC-HDMI-R-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [email protected] 19
7.0 SERVICE PROCEDURE
7.1 Replacement Policy
Standard products found defective on arrival (DOA) will be
replaced,basedon availability, within 24to48 hours anywhere
in the U.S. Please call Customer Service at 800-214-0222 for
information.
7.2 Return/Repair Service
The LBC-HDMI-R-SCL System contains no user serviceable
components.If youhavea problemwithyour unit,pleasecontact
the Customer Service Department. To facilitate our return/
repair processing please contact Broadata Communications,
Inc. to obtain a Return MaterialAuthorization (RMA). Please
includethe following information:
• Productmodel number
• SerialNumber
• Complete description of problem
• Hardwareinstallation description
BroadataCommunications, Inc.
2545 West 237th Street, Suite K
Torrance, CA 90505
1-800-214-0222
[phone]
[phone] (Facsimile)
e-mail:[email protected]
Website: www.broadatacom.com

LBC-HDMI-R-SCLUser’s Manual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [phone]
20
8.0 LIMITED WARRANTY
Broadata Communications, Inc. (BCI) warrants, for a period of one
yearfromdateofshipment,eachproduct sold shall be free from defects
in material and workmanship. BCI will correct, either by repair, or at
BCI’s election, by replacement, any said products that in our sole
discretion prove to be defective and are returned to the manufacturing
location within 30 days after such defect is ascertained. All warranties
are limited to defects arising under normal use and do not include
malfunctionsorfailure resulting frommisuse,abuse,neglect,alterations,
electrical power problems, usage not in accordance with product
instructions, improper installation, or damage determined by BCI to
havebeen caused by the Buyeror repairmade by a third party. Limited
warrantiesgranted on products are tothe initial customer end-user and
arenot transferable. OURLIABILITYUNDERTHISWARRANTYSHALL
IN ANY CASE BE LIMITED TO THE INVOICE VALUE OF THE
PRODUCTSOLDANDBCISHALLNOTBE LIABLETOANYONEFOR
CONSEQUENTIALORINCIDENTALDAMAGESARISING FROMTHE
USE OF ITS PRODUCTS OR THE SALE THEREOF. We make NO
WARRANTY AS TO THE MERCHANTABILITY OF ANY GOODS, OR
THAT THEY ARE FIT FOR ANY PARTICULAR PURPOSE OR END
APPLICATION NOR DO WE MAKEANY WARRANTY, EXPRESSED
OR IMPLIED OTHER THANAS STATED ABOVE.

LBC-HDMI-R-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [email protected] 21
9.0 APPENDIX A: SUPPORTED INPUT RESOLUTIONS
