1.0 PRODUCT DESCRIPTION
TheLB-H/V-T-SCLvideo scaler with LAN/IR/RS-232/Bidirectional PoH
(Power over HDBT) over Single CAT5e/6/7 transmitter can send
uncompressed audio/video over a single run of CAT5e/6/7 cable up to
100 m. The system supports various ways of control that can be done
through on-panel buttons, IR remote, RS-232, and OSD (On Screen
Display menu). The device provides full range of output resolutions
through CAT5e/6/7 up to 1080p for HDTV timing and WUXGA(RB) for
PCtiming.
Features
• SupportsHDMI/PC or YPbPr input scaler to full rangeof HDTV
andPC/Component output resolutionsthrough CAT5e/6/7
•Transmission of uncompressed data over a single
100 m/328 ft CAT5e/6/7 cable
• 5Play™ convergence: Video,Audio, LAN, Bidirectional PoH &
Control (IR & RS-232 bypass)
• Supports HDMI/VGA input auto-switch feature, when VGA or
HDMI with active signal is connected, the signal will be sent
to the compatible HDBaseT receiver automatically (AUTO
SCAN set to ON)
• Supports IR, Remote control, RS-232 (bypass) and on-panel
controls for HDMI/PC input switching
• Supports OSD (On Screen Display) selection and display
systeminformation
• Provides 24V DC power to or received from compatible PoH
Receiverthrough CAT5e/6/7
• Supports Ethernet transmission rate up to 100Mbps
Package Contents
• HDMI/PC to CAT5e/6/7 with LAN/IR/RS-232/
BidirectionalPoHTransmitter
• IR Extender x 1
• IR Blaster x 1
• 24 V/2.7 A DC Power Adaptor
• Remote control (CR-128)
• UserManual

LBC-H/V-T-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [phone]
6
2.0 OPERATION CONTROLSAND FUNCTIONS
2.1 Front Panel
1. SERVICE:
This port is reserved for firmware update only.
2.IR:
IR Receiver window (accepts the remote control signal of this
deviceonly).
3. HDMI:
Connect to source equipment such as DVD/Video player for
sendingthe video signal.
4. PC:
ConnectwithPC/Laptopsourceequipmentforsignalinputwith
D-Sub 15 pin cable.
5. AUDIO:
Connect to audio source equipment for L/R stereo audio input
with 3.5mm jack.Audio embeds with PC source only.
6. MENU:
Press this button to enter into the OSD menu.
7. INPUT & HDMI/PC LED:
PresstoselectHDMIorPC source input. When in HDMI mode
the LED will illuminate in Red, when in PC mode the LED will
illuminatein Green.
8. +/- :
Press these buttons to scroll up and down through the OSD
menu.
12345689
7

LBC-H/V-T-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [email protected] 7
9. Enter:
Press this button to confirm the selection. Press this button
together with [–] key to switch output timing to 720p@60
instantly. Press this buttontogetherwith[+]keytoswitchoutput
timing to XGA(1024x768) instantly.
2.2 Rear Panel
1. Power LED:
This LED will illuminate when the device is connected to a
power supply.
2. DC 24V:
Plug the 24 V DC power supply into the unit and connect the
adaptor to an AC outlet. Only one side of power is needed to
activate both Transmitter and Receiver when both obtain the
PoHfunction.
3. RS-232 OUT:
This slot is to connect with D-Sub 9-pin cable from device
equipmentfor receiving RS232commands.
4. LAN:
Connect to an active network for LAN sharing of a total
transmission rate up to 100Mbps. Or when a compatible LAN
equipped Transmitter is connected to an active network, this
allowsthenetwork access(includinginternetaccess ifavailable)
to be shared between the Transmitter and Receiver. Connect
anyEthernet equippeddevicee.g.a SmartTVorgames console
to the LAN port for that device to share the network internet
access.
12345689
7

LBC-H/V-T-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [phone]
8
Note: DO NOT connect LAN cable with any of the
CAT5e/6/7port.Doingsomaytriggerpowershutdown
andruin the device
5. IR Blaster:
Connect to the supplied IR Blaster cable for IR signal
transmission. Place the IR Blaster in direct line-of-sight of the
equipment to be controlled.
6. IR Extender:
Connect to the supplied IR Receiver cables for IR signal
reception. Ensure that remote being used is within the direct
line-of-sight of the IR Extender.
7. MODE LED:
This LED will illuminated when the power is connected.
8. Link LED:
This LED will illuminate when the slot has been connected to
theTransmitterandtheTransmitterhas connected withsources
that shows image on screen.
9. CAT5e/6 OUT:
Connectto the Receiver unitwith a SingleCAT5e/6/7 cable for
transmitting all data signals.

LBC-H/V-T-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [email protected] 9
2.3 Remote Control
1. INPUT:
Press this button to switch HDMI/PC input source instantly.
2. EXIT:
Pressthis buttontoexitthemenuorescapethecurrent selection
underOSD.
3. MENU:
Press this button to enter into the OSD menu.
4. RESET:
Press this button to set the device back into the factory default
setting
5. AUTOADJUST:
Pressthis buttontooptimize thepositioningof thepicture(picture
centering) on the screen.
6. ENTER & 

:
PressEnter to confirm theselection or press the arrow buttons
to scroll in the OSD selections.
1
23
45
6

LBC-H/V-T-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [phone]
10
3.0 ON SCREEN DISPLAY (OSD) MENU
3.1 Main Menu Selection
Display, Color, Audio, Factory Reset, Informaiton

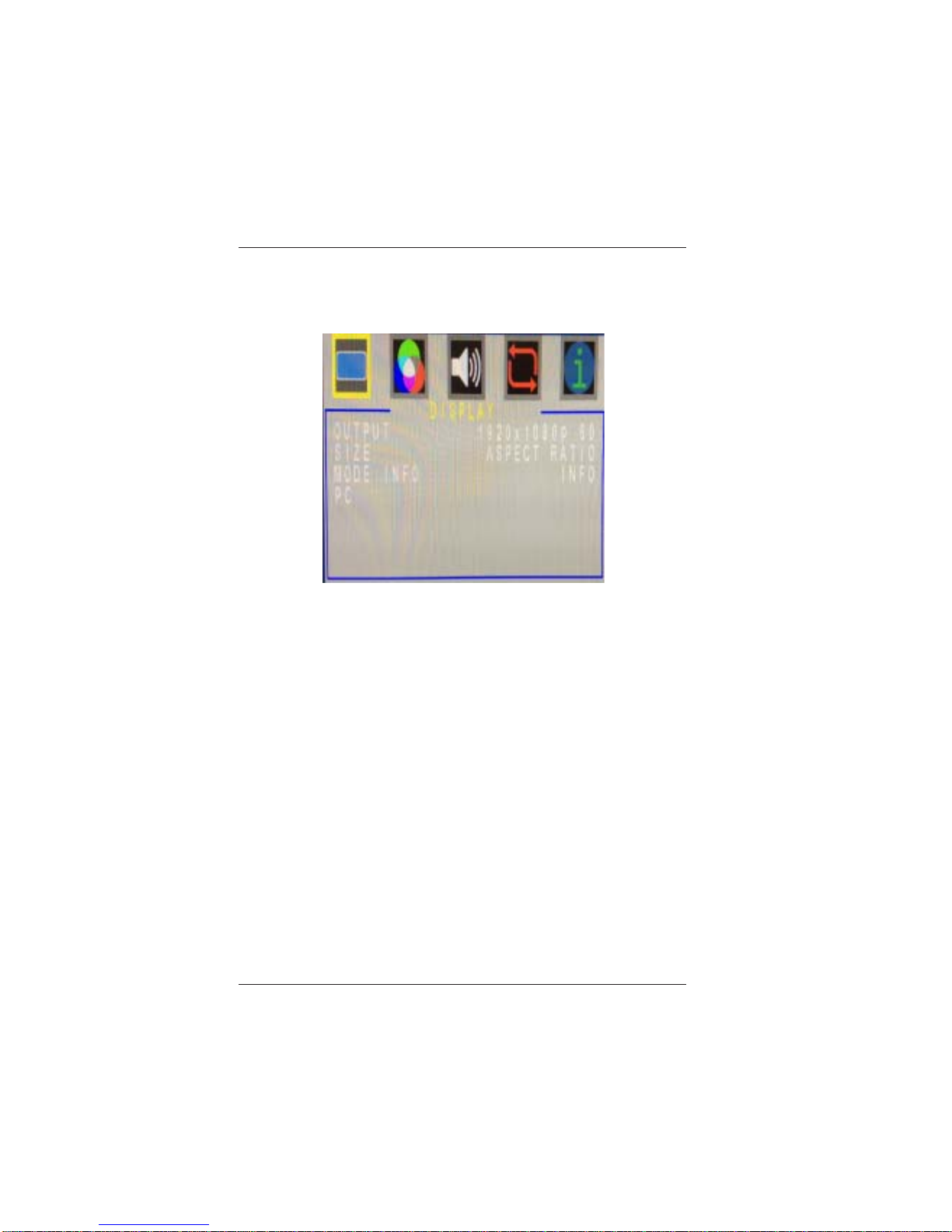

OUTPUT: 640x480 60, 800x600 60, 1024x768 60 , 1360x768
60, 1280x720 60, 1280x800 60, 1280x1024 60,1440x900 60,
1400x105060, 1680x1050 60, 1600x1200 60, 1920x1080 60,
1920x1200 60, 720x480P 60, 1280x720P 60 (Factory Default
upon reset), 1920x1080I 60, 1920x1080P 60 (setting upon
shipment), 720x576P 50, 1280x720P 50, 1920x1080I 50,
1920x1080P50
SIZE: OVERSCAN, FULL (Factory Default upon reset),
UNDERSCAN, LETTERBOX, PANSCAN, ASPECT RATIO
(setting upon shipment), UNDER 2, UNDER 1
MODE INFO: INFO, ON, OFF

LBC-H/V-T-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [email protected] 11
3.2 PC
AUTO SETUP: NO, YES
H-POSITION: 0 ~ 60 (30)
V-POSITION: 0 ~ 60 (30)
PHASE: 0 ~ 31 (15)
CLOCK: 700 ~ 2300
WXGA/XGA: WXGA, XGA
RESET: NO, YES

LBC-H/V-T-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [phone]
12
3.3 COLOR: Color, Contrast, Brightness, Hue,
Saturation, Sharpness, NR
COLOR
RED: 0 ~ 1023 of Red Color Level
GREEN: 0 ~ 1023 of Green Color Level
BLUE: 0 ~ 1023 of Blue Color Level
RED OFFSET: 0 ~ 1023 of Red Color Level
GREEN OFFSET: 0 ~ 1023 of Green Color Level
BLUE OFFSET: 0 ~ 1023 of Blue Color Level
CONTRAST: 0 ~ 60 of Contrast Level
BRIGHTNESS: 0 ~ 60 of Brightness Level
HUE: 0 ~ 60 of Hue Level
SATURATION: 0 ~ 60 of Saturation Level
SHARPNESS: 0 ~ 30 of Sharpness Level
NR: OFF (Factory Default upon reset), LOW,
MIDDLE,HIGH

LBC-H/V-T-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [email protected] 13

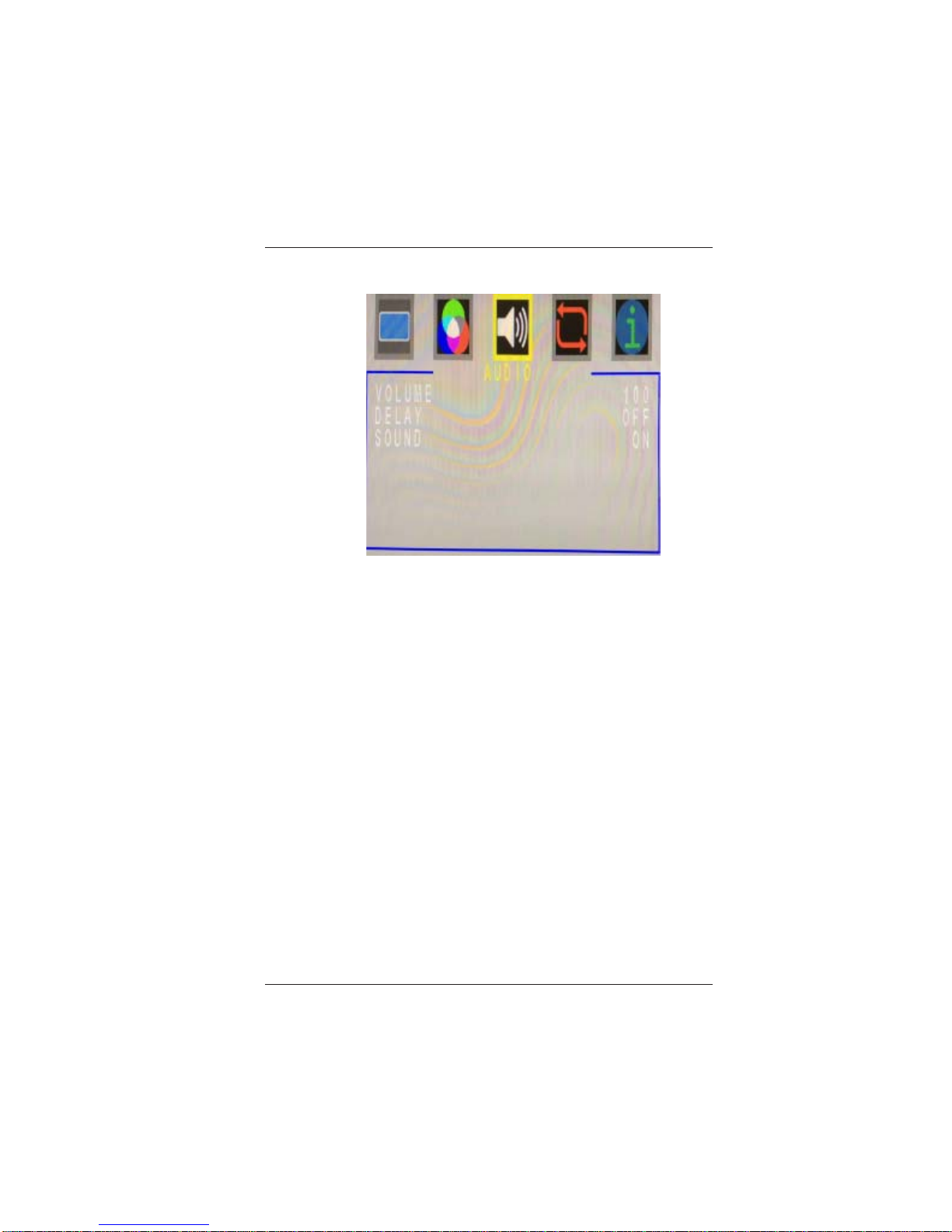

3.4 AUDIO
VOLUME: 0 ~ 100
DELAY: OFF, 40ms, 110ms, 150ms
SOUND: ON, MUTE

LBC-H/V-T-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [phone]
14
3.5 SETUP: Factory Reset, Keylock,Auto Scan, PC
Type
FACTORY RESET: YES, NO
KEY LOCK: OFF, ON
AUTO SCAN: OFF, ON
PC TYPE: PC, YPbPr
3.6 INFORMATION: Input, Output, Revision
INPUT: Input Resolution Displayed
OUTPUT: Output Resolution Displayed
REVISION: FirmwareRevision Displayed

LBC-H/V-T-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [email protected] 15
4.0 CONNECTOR PIN ASSIGNMENT

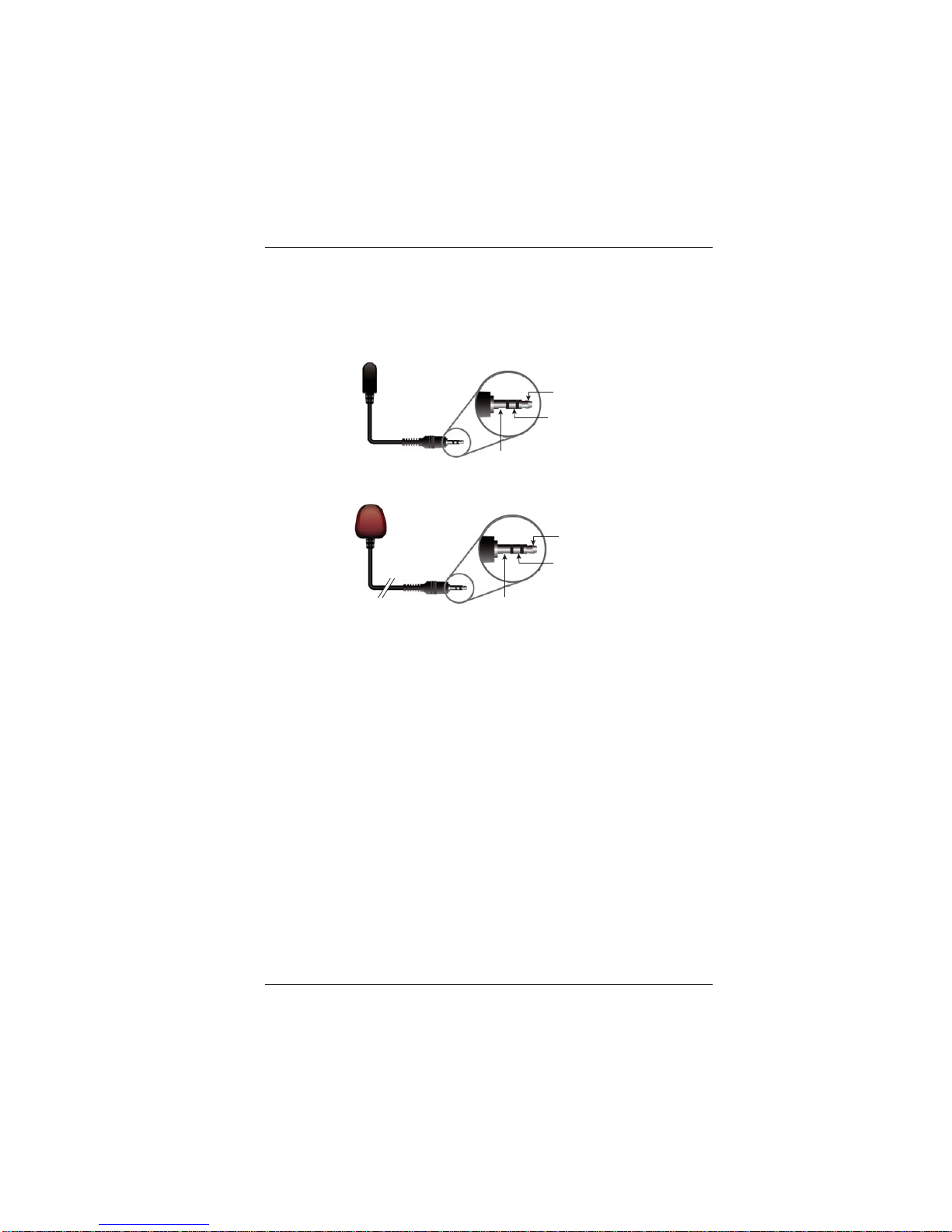

4.1 IR Pin Assignment
IR Blaster Power 5V
IR Blaster Signal
NC
IR Receiver
IR Signal
Power
Grounding
Figure 4-1
IR Blaster and IR Extender Pin Assignment

LBC-H/V-T-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [phone]
16

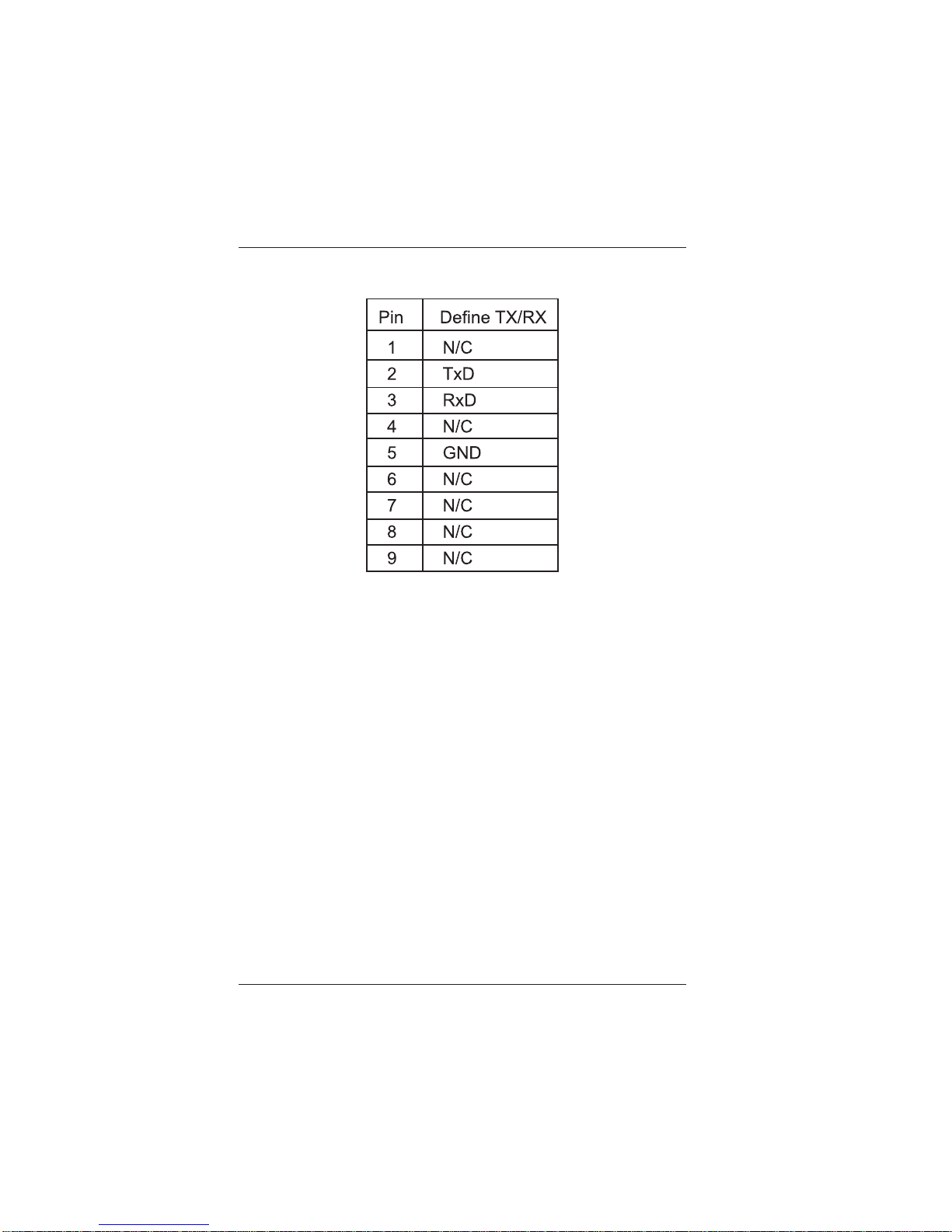

4.2 RS-232 Pin Assignment
The Baud Rate for sending serial commands to the
LBC-H/V-T-SCL. (Refer toAppendix B for all available
commands)
Baud Rate: 9600bps
Data Bit: 8 bits
Parity:None
Flow Control: None
Stop Bit: 1
Table 1
RS-232 Pin Assignment

LBC-H/V-T-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [email protected] 17
5.0 MAINTENANCE AND TROUBLESHOOTING
5.1 Maintenance
Thereis no operator maintenance otherthen keeping the units
clean. However,observethe following light indicatorsto make
sure that the unit is working properly:
5.2 Troubleshooting
If the LBC-H/V-T-SCL units do not operate properly after
installation,checkforpossible cable breaks, loose connections,
and incorrect cable connections. If problems persist that may
be fiber related, contact BCI at 1-800-214-0222 for further
assistance.
For electrical problems, perform the following troubleshooting
procedures:
1. If the POWER indicator is OFF, check for the following:
a. The line cord is plugged into the unit and your outlet
has power.
2. If the POWER indicator is ON, but the Link indicator is
OFF, check for the following:
a. Make sure the appropriate cables are being used.
b. Cable and cable connectors are not broken.
c. For each unit, the transmit (TX) cable is connected to
the other unit’s receiver (RX).
3. If the POWER indicator and Link indicator are ON, but
the channels are not operating, then:
a. Checktoseethatthe attacheduserequipmentis turned
on.
b. Bothendsofthelinkareconnectedtothecorresponding
equipmentandtothesamecorrespondingchannelport.

LBC-H/V-T-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [phone]
18
c. Cable connections at both channels are securely
fastened to each connector. Turn the power off, then
back on to reset the link.

LBC-H/V-T-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [email protected] 19
6.0 SPECIFICATIONS
EthernetSpeed 100 Mbps
OutputVideoBandwidth 165MHz/ 1.65 Gbps
InputVideoBandwidth 300MHz / 10.2Gbps
Input Port 1 x HDMI, 1 x PC or YPbPr,
1 x 3.5mm Phone
Jack (L/R) , 1 x RS-232, 1×LAN,
1 x IR Extender
Output Port 1×CAT5e/6, 1×IR Blaster
CAT5e/6/7 Output Cable Up to 100 Meters
Supports InputResolution HD: Up to 1080p@60 Hz
PC or YPbPr: Up to WUXGA (RB)
SupportsOutputResolution Up to WUXGA & 1080p (Refer to
AppendixAfor supported resolutions)
CAT5e/6/7 Resolutions HD: Up to 1080p@60 Hz
Support PC: Up to WUXGA (RB)
IRFrequency 30~50kHz
Dimensions 145 mm (W)×192 mm (D)×30 mm (H)
Chassismaterial Metal
BoxColor Black
OperatingTemperature 0 oC~40 oC / 32 oF~104 oF
RelativeHumidity 20 ~ 90 % RH (non-condensing)
Power Supply 110 – 240v AC 50/60 Hz, 24v
@ 2.7 A DC
PowerConsumption 17W

LBC-H/V-T-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [phone]
20
7.0 SERVICE PROCEDURE
7.1 Replacement Policy
Standard products found defective on arrival (DOA) will be
replaced,basedon availability, within 24to48 hours anywhere
in the U.S. Please call Customer Service at 800-214-0222 for
information.
7.2 Return/Repair Service
The LBC-H/V-T-SCL System contains no user serviceable
components.If youhavea problemwithyour unit,pleasecontact
the Customer Service Department. To facilitate our return/
repair processing please contact Broadata Communications,
Inc. to obtain a Return MaterialAuthorization (RMA). Please
includethe following information:
• Productmodel number
• SerialNumber
• Complete description of problem
• Hardwareinstallation description
BroadataCommunications, Inc.
2545 West 237th Street, Suite K
Torrance, CA 90505
1-800-214-0222
[phone]
[phone] (Facsimile)
e-mail:[email protected]
Website: www.broadatacom.com

LBC-H/V-T-SCLUser’sManual
LinkBridgeTM HDMIScalerSystem
Broadata Technical Support, [email protected] 21
8.0 LIMITED WARRANTY
Broadata Communications, Inc. (BCI) warrants, for a period of one
yearfromdateofshipment,eachproduct sold shall be free from defects
in material and workmanship. BCI will correct, either by repair, or at
BCI’s election, by replacement, any said products that in our sole
discretion prove to be defective and are returned to the manufacturing
location within 30 days after such defect is ascertained. All warranties
are limited to defects arising under normal use and do not include
malfunctionsorfailure resulting frommisuse,abuse,neglect,alterations,
electrical power problems, usage not in accordance with product
instructions, improper installation, or damage determined by BCI to
havebeen caused by the Buyerorrepairmade by a third party. Limited
warrantiesgranted on products are tothe initial customer end-user and
arenot transferable. OURLIABILITYUNDERTHISWARRANTYSHALL
IN ANY CASE BE LIMITED TO THE INVOICE VALUE OF THE
PRODUCTSOLDANDBCISHALLNOTBE LIABLETOANYONEFOR
CONSEQUENTIALORINCIDENTALDAMAGESARISINGFROMTHE
USE OF ITS PRODUCTS OR THE SALE THEREOF. We make NO
WARRANTYAS TO THE MERCHANTABILITY OF ANY GOODS, OR
THAT THEY ARE FIT FOR ANY PARTICULAR PURPOSE OR END
APPLICATION NOR DO WE MAKEANY WARRANTY, EXPRESSED
OR IMPLIED OTHER THAN AS STATED ABOVE.
