Broadata Link Bridge LB-H/DH-SCL User manual

LB-H/DH-SCL
LINK BRIDGETM
HDMI SCALER SYSTEM
BCI reserves the right to make changes to the products described herein without
prior notice or consent. No liability is assumed as a result of their use or
application. All rights reserved.
©2013 Broadata Communications, Inc.

LB-H/DH-SCL User’s Manual Link
BridgeTM HDMI Scaler System
Broadata Technical Support, [email protected] 3
SAFETY INSTRUCTIONSANDCOMPLIANCE DECLARATIONS
PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS AS OUR
PRODUCTS CONTAIN
CLASS I LASER PRODUCTS
WARNING
Thisproductisa CLASSILASERPRODUCT onlywhentheunitsareconnected
with a fiber optical cable. Do not disconnect the fiber optic connector while
the unit is powered up. Exposure to laser radiation is possible when the
laser fiber optic connector is disconnected while the unit is powered up. It
should be noted that when the fiber is disconnected, the product will have
CLASSIMINVISIBLELASERRADIATION.
Although the fiber optic connectors in this product emit only Class 1 energy
that is below the levels considered to be hazardous, one should never stare
directly into a fiber optic connector or an unconnected fiber end unless one
can be certain that no exposure to laser energy could occur.
CAUTION
Only service personnel are intended to access the interior of the units. It
should be cautioned that CLASS 3 INVISIBLE LASER RADIATION WHEN
OPEN, AVOID EXPOSURE TO THE BEAM. The use of controls, making
adjustments, or performing operations other than those specified may result
in hazardous radiation exposure. This product has operating wavelengths
at 778nm, 800nm with average -0.5dB to 0dBm optical power per wavelength,
825nm, 911nm, and 980nm. The laser is operated in pulse mode within 1
KHz frequency and ¼ duty cycle.
The following label or equivalent is located on the surface of laser products.
This label indicates that the product is classified as a CLASS 1 LASER
PRODUCT.
SURGEPROTECTION DEVICERECOMMENDED
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lightning strikes, etc. Use of
surge protection systems is highly recommended in order to protect and
extend the life of your equipment.

LB-H/DH-SCL User’s Manual Link
BridgeTM HDMI Scaler System
Broadata Technical Support, [phone]
4
TABLE OF CONTENTS
1.0 PRODUCT DESCRIPTION ............................................. 5
2.0 OPERATION CONTROL AND FUNCTIONS ................. 7
2.1 FRONT PANEL ................................................................. 7
2.2 REAR PANEL .................................................................... 8
3.0 OSD MENU....................................................................... 8
3.1 MAIN MENU SELECTION ............................................... 8
3.2 FINETUNE ........................................................................ 9
3.3 COLOR ............................................................................. 9
3.4 MAIN MENU SELECTION ............................................. 10
3.5 AUDIO.............................................................................. 10
3.6 OSD ................................................................................. 11
3.7 FACTORY RESET .......................................................... 11
3.8 INFORMATION ............................................................... 11
4.0 RESET FUNCTIONALITY ............................................. 12
5.0 MAINTENANCE AND TROUBLESHOOTING ............. 13
5.1 MAINTENANCE .............................................................. 13
5.2 TROUBLESHOOTING .................................................. 13
6.0 SPECIFICATIONS .......................................................... 14
7.0 SERVICE PROCEDURE................................................ 15
7.1 REPLACEMENT POLICY.............................................. 15
7.2 RETURN AND REPAIR SERVICE ................................. 15
8.0 LIMITED WARRANTY .................................................... 16
9.0 APPENDIX B: SUPPORTED INPUT RESOLUTIONS 17

LB-H/DH-SCL User’s Manual Link
BridgeTM HDMI Scaler System
Broadata Technical Support, [email protected] 5
1.0 PRODUCT DESCRIPTION
This is a compact yet versatile HDMI to HDMI Scaler Box, which has
available options of both optical or HDBaseT receiver inputs. It accepts
HDMI input and scales the video to an HDMI output (at a number of
selectableresolutions)with additional Toslinkandanalog audiooutputs.
This Scaler has a comprehensive OSD (On Screen Display) menu that
allows user to select a variety of output resolutions and adjust for best
picturequality. Itis idealforusingbetweenanincompatibleHDMI source
and display by changing picture resolution and frame rate of HDMI source
to match the native resolution of the HDMI display. Using the
LB-H/DH-SCL product allows the user or integrator to feel safe that any
input device in the system will be compatible with the destination display
or other destination hardware.
Figure 1-1(a) shows the LB-H/DH-SCL unit with optional single fiber input
receiver. Figure 1-1(b) shows the LB-H/DH-SCL unit with optional
HDBaseTinputreceiver.
Features
•Scales any PC (VGA ~ WUXGA) /HD (480i ~ 1080p)resolutions
to/from another PC/HD resolutions.
•Automatically detect the factory setting of the connected display
and output the corresponding resolution and refresh rate, when
the NATIVE output is selected.
•Supports 50/60Hz frame rate conversion.
•Supports 3-D motion video adaptive, 3-D de-interlacing, and
3:2 / 2:2 pull-down detection and recovery.
•Provides output picture adjustment on contrast, brightness, hue,
saturation, sharpness, RGB level, and scan size.
•Supports high resolution input/output:
PC:VGA, SVGA,XGA,SXGA,UXGA,WXGA,WSXGA,WUXGA
HDTV: 480i, 576i, 480p, 576p, 720p, 1080i, and 1080p
•Supports digital and analog audio input and output.
Package Contents
1 LB-H/DH-SCL Scaler
1 PowerAdaptor,12VDC
1 User Manual

LB-H/DH-SCL User’s Manual Link
BridgeTM HDMI Scaler System
Broadata Technical Support, [phone]
6
Figure 1-1(a)
LB-H/DH-SCL unit with optional single fiber input receiver.
Figure 1-1(b)
LB-H/DH-SCL unit with optional HDBaseT input receiver.

LB-H/DH-SCL User’s Manual Link
BridgeTM HDMI Scaler System
Broadata Technical Support, [email protected] 7
2.0 OPERATION CONTROLS AND FUNCTIONS
2.1 Front Panel
1. HDMI OUTPUT: Connect the HDMI output port to the HDMI
input port of your display.
2. TOSLINKOUTPUT: Connect thedigitalaudiooutputport tothe
input port of your digital audio equipment such as amplifier, or
receiver, using fiber optic cable.
3. AUDIO OUTPUT: Connect the analog audio output port to the
input port of your analog audio equipment such as speakers.
4. MENU Button:
a. Press the MENU button to bring up OSD operation menu
(see Section 3.0 OSD Operation for reference.)
b. When in the OSD menu mode, use MENU button as an OK
key to confirm the selection.
5. +/- Buttons:
a. On the first tier of OSD menu, use + and - buttons to
scroll up/down the highlighted bar for selection.
b. Once the desired option is selected, use + and - buttons
to toggle between setting values.
6. AUDIOINPUT: Connecttheanalogaudioinputporttotheoutput
port of your source equipment such as DVD player or Set-Top-
Box.
7. HDMI INPUT: Connect the HDMI input port to the HDMI output
port of your sourceequipment such as DVD player or Set-Top-
Box.
8. Optional Power Supply: Plug the 12VDC power supply into the
unit and connect the adaptor to AC wall outlet.

LB-H/DH-SCL User’s Manual Link
BridgeTM HDMI Scaler System
Broadata Technical Support, [phone]
8
2.2 Rear Panel
DC 12V: Plug the power adaptor included in the package and
connect it to the AC wall outlet for power supply.
3.0 ON SCREEN DISPLAY (OSD) MENU

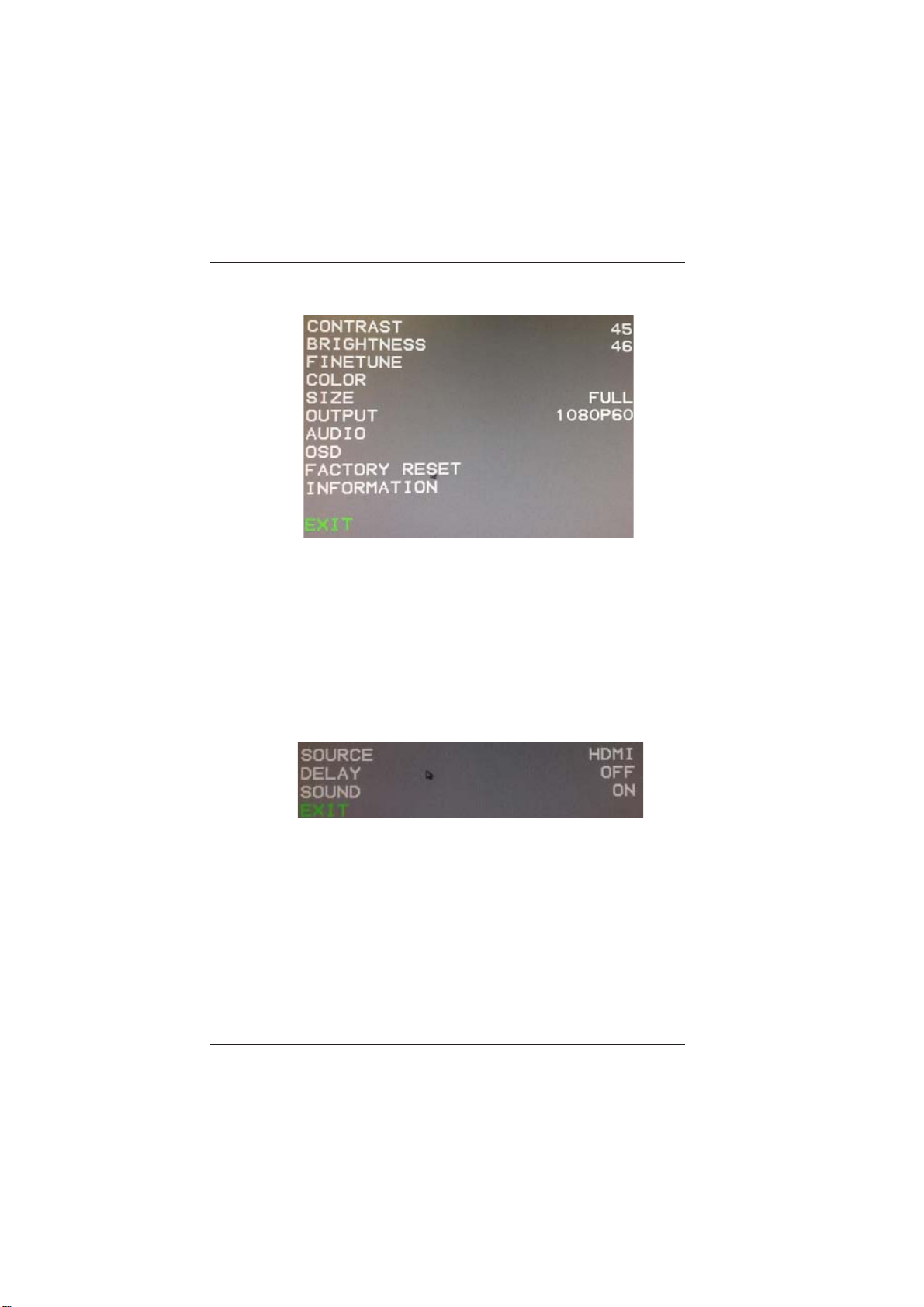

3.1 Main Menu Selection
Contrast: 0~100 of Contrast Level
Brightness: 0~100 of Brightness Level

LB-H/DH-SCL User’s Manual Link
BridgeTM HDMI Scaler System
Broadata Technical Support, [email protected] 9

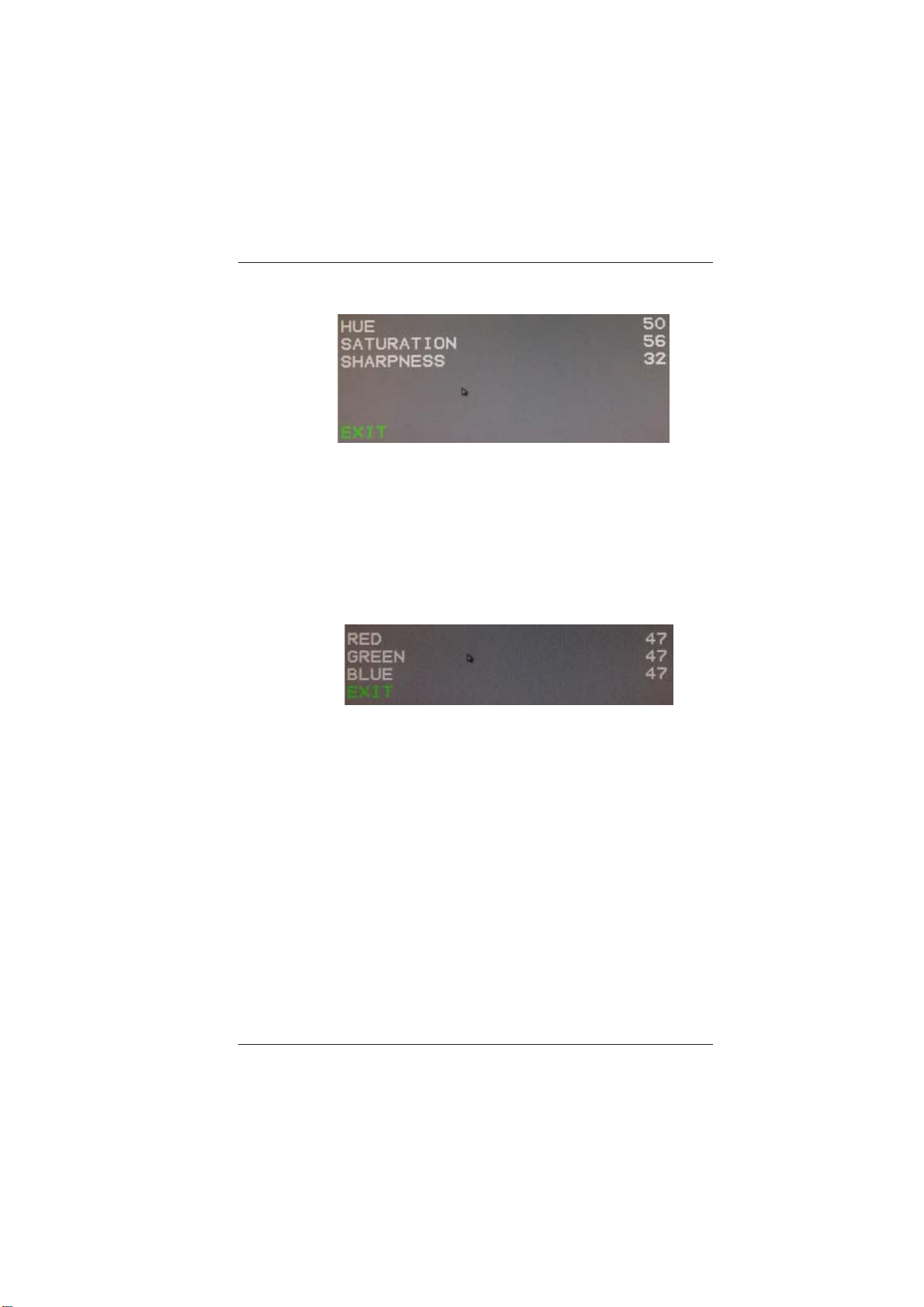

3.2 Finetune: Hue, Saturation, Sharpness
Hue: 0~100 of Hue Level
Saturation: 0~100 of Saturation Level
Sharpness: 0~100 of SharpnessLevel
3.3 Color: Red, Green, Blue
Red: 0~100 of Red Color Level
Green: 0~100 of Green Color Level
Blue: 0~100 of Blue Color Level

LB-H/DH-SCL User’s Manual Link
BridgeTM HDMI Scaler System
Broadata Technical Support, [phone]
10
3.4 Main Menu Selection
Size: Full, Overscan, Underscan, Letterbox, Panscan,
Aspect Ratio
OUTPUT: Native,VGA, SVGA,XGA,SXGA,UXGA,480i,480p,
720p@60Hz, 1080p@50Hz, WXGA, WSXGA,
WUXGA
3.5 Audio: Source, Delay Sound
Source: HDMI, Optical, L/R
Delay: Off, 40mn, 110ms, 150ms
Sound: On, Mute

LB-H/DH-SCL User’s Manual Link
BridgeTM HDMI Scaler System
Broadata Technical Support, [email protected] 11

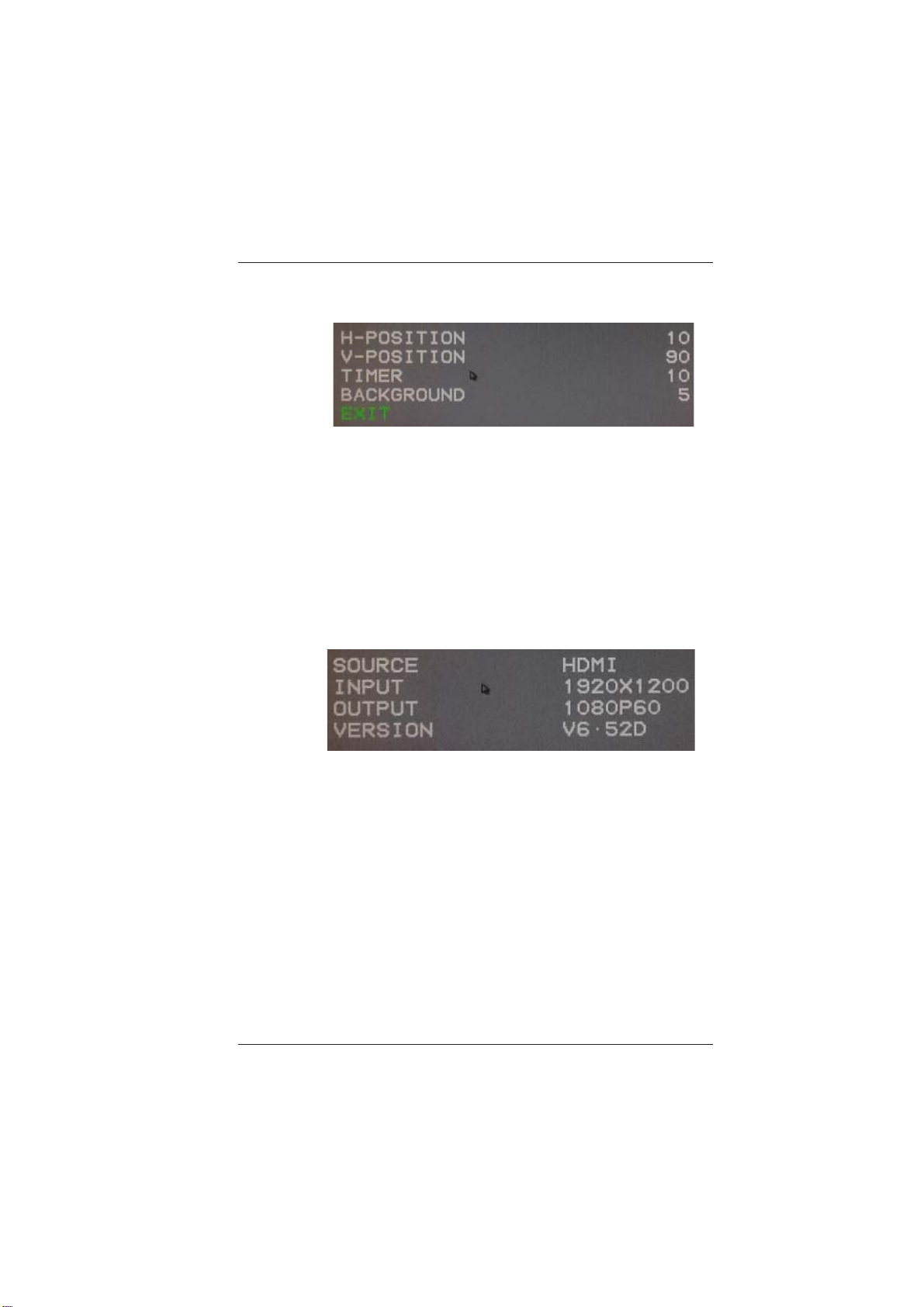

3.6 OSD: H-Position, V-Position, Timer, Background
H-Position: 0~100 of OSD Horizontal Position
V-Position: 0~100 of OSD Vertical Position
Timer: 0~100 of OSD Screen Time
Background: 0~100 of OSD Transparency Level
3.7 Factory Reset: Yes
3.8 Information: Source, Input, Output, Version
Source: Input Interface
Input: Input Resolution
Output: Output Resolution
Version: Firmware Version

LB-H/DH-SCL User’s Manual Link
BridgeTM HDMI Scaler System
Broadata Technical Support, [phone]
12
4.0 RESET FUNCTIONALITY
To reset the unit, press and hold the MENU button then re-plug the DC
power into the unit to set the unit back to factory default, with output
resolution as NATIVE. This feature is also useful when the output is
scaled to a resolution not supported by the connected TV/monitor so no
picture is shown, because the NATIVE resolution can guarantee the
proper (might not be the best) output.

LB-H/DH-SCL User’s Manual Link
BridgeTM HDMI Scaler System
Broadata Technical Support, [email protected] 13
5.0 MAINTENANCE AND TROUBLESHOOTING
5.1 Maintenance
There is no operator maintenance other then keeping the units
clean.
5.2 Troubleshooting
If the LB-H/DH-SCL units do not operate properly after
installation, check for possible cable breaks, loose connections,
and incorrect cable connections. If a problem exists on the
fiber link, please check your fiber connectors for improperly
cleaned fiber cables and connectors. If problems persist that
may be fiber related, contact BCI at 1-800-214-0222 for further
assistance.
For electrical problems, perform the following troubleshooting
procedures:
1. If the POWER indicator is OFF, check for the following:
a. The line cord is plugged into the unit and your outlet
has power.
2. If the POWER indicator is ON, but the units are not
working, check for the following:
a. Makesuretheappropriate(Multimode) fibersare being
used.
b. Fiber and fiber connectors are not broken.

LB-H/DH-SCL User’s Manual Link
BridgeTM HDMI Scaler System
Broadata Technical Support, [phone]
14
6.0 SPECIFICATIONS
Frequency Bandwidth 165MHz
Input Port 1 x HDMI, 1 x 3.5mm Phone Jack
Output Port 1 x HDMI, 1 x 3.5mm Phone Jack,
1 x Toslink
Optional Optical Input SC connector/Single Multimode
Fiber
OptionalHDBTInput RJ45 connector/ Single CAT5e/6
cable
Supports Input Resolution Up to WUXGA & 1080p
(Refer toAppendix Afor supported
resolutions)
Supports Output Resolution Up to WUXGA & 1080p
(Refer toAppendix Afor supported
resolutions)
Dimensions 4.17" x 4.1" x 1.1"
Chassis material Metal
Box Color Black
OperatingTemperature 0o~ 50o
RelativeHumidity 0 ~ 95% RH (non-condensing)
Power Supply 110 – 240v AC 50/60 Hz, 12v @
1.5ADC
Power Supply V / A DC (US/EU standards,
CE/FCC/ULcertified)

LB-H/DH-SCL User’s Manual Link
BridgeTM HDMI Scaler System
Broadata Technical Support, [email protected] 15
7.0 SERVICE PROCEDURE
7.1 Replacement Policy
Standard products found defective on arrival (DOA) will be
replaced, based on availability, within 24 to 48 hours anywhere
in the U.S. Please call Customer Service at 800-214-0222 for
information.
7.2 Return/Repair Service
The Link Bridge LB-H/DH-SCL System contains no user
serviceable components. If you have a problem with your unit,
please contact the Customer Service Department. To facilitate
our return/repair processing please contact Broadata
Communications, Inc. to obtain a Return MaterialAuthorization
(RMA). Please include the following information:
• Product model number
• Serial Number
• Complete description of problem
• Hardware installation description
Broadata Communications, Inc.
2545 West 237th Street, Suite K
Torrance, CA 90505
1-800-214-0222
[phone]
[phone] (Facsimile)
e-mail:[email protected]
Website: www.broadatacom.com

LB-H/DH-SCL User’s Manual Link
BridgeTM HDMI Scaler System
Broadata Technical Support, [phone]
16
8.0 LIMITED WARRANTY
Broadata Communications, Inc. (BCI) warrants, for a period of one year
from date of shipment, each product sold shall be free from defects in
material and workmanship. BCI will correct, either by repair, or at BCI’s
election, by replacement, any said products that in our sole discretion
prove to be defective and are returned to the manufacturing location
within30daysaftersuchdefectis ascertained. Allwarranties arelimited
to defects arising under normal use and do not include malfunctions or
failureresulting frommisuse, abuse,neglect, alterations,electricalpower
problems, usage not in accordance with product instructions, improper
installation, or damage determined by BCI to have been caused by the
Buyer or repair made by a third party. Limited warranties granted on
products are to the initial customer end-user and are not transferable.
OUR LIABILITY UNDER THIS WARRANTY SHALL IN ANY CASE BE
LIMITEDTOTHEINVOICE VALUEOFTHEPRODUCTSOLDAND BCI
SHALL NOT BE LIABLE TO ANYONE FOR CONSEQUENTIAL OR
INCIDENTALDAMAGESARISINGFROMTHEUSEOFITSPRODUCTS
OR THE SALE THEREOF. We make NO WARRANTY AS TO THE
MERCHANTABILITY OFANY GOODS, OR THAT THEYARE FIT FOR
ANY PARTICULAR PURPOSE OR END APPLICATION NOR DO WE
MAKE ANY WARRANTY, EXPRESSED OR IMPLIED OTHER THAN
AS STATED ABOVE.

LB-H/DH-SCL User’s Manual Link
BridgeTM HDMI Scaler System
Broadata Technical Support, [email protected] 17
9.0 APPENDIX A: SUPPORTED RESOLUTIONS
INPUT RESOLUTIONS
PC VGA@(60/72/75/85Hz),SVGA@(56/60/72/75/85Hz),XGA@(60/
70/75/85Hz), SXGA@(60/75/85Hz), UXGA@60Hz,
WXGA@60Hz,WSXGA@60Hz, WUXGA@60Hz
TV 480i, 480p, 576i, 576p, 720p@(50/60Hz), 1080i@(25/30Hz),
1080p@(50/60Hz)
OUTPUT RESOLUTIONS
PC VGA@(60/72/75/85Hz),SVGA@(56/60/72/75/85Hz),XGA@(60/
70/75/85Hz), SXGA@(60/75/85Hz), UXGA@60Hz,
WXGA@60Hz,WSXGA@60Hz, WUXGA@60Hz
TV 480i, 480p, 576i, 576p, 720p@(50/60Hz), 1080i@(25/30Hz),
1080p@(50/60Hz)

LB-H/DH-SCL User’s Manual Link
BridgeTM HDMI Scaler System
Broadata Technical Support, [phone]
18

LB-H/DH-SCL User’s Manual Link
BridgeTM HDMI Scaler System
Broadata Technical Support, [email protected] 19

LB-H/DH-SCL User’s Manual Link
BridgeTM HDMI Scaler System
Broadata Technical Support, [phone]
20

LB-H/DH-SCL User’s Manual Link
BridgeTM HDMI Scaler System
Broadata Technical Support, [email protected] 21
