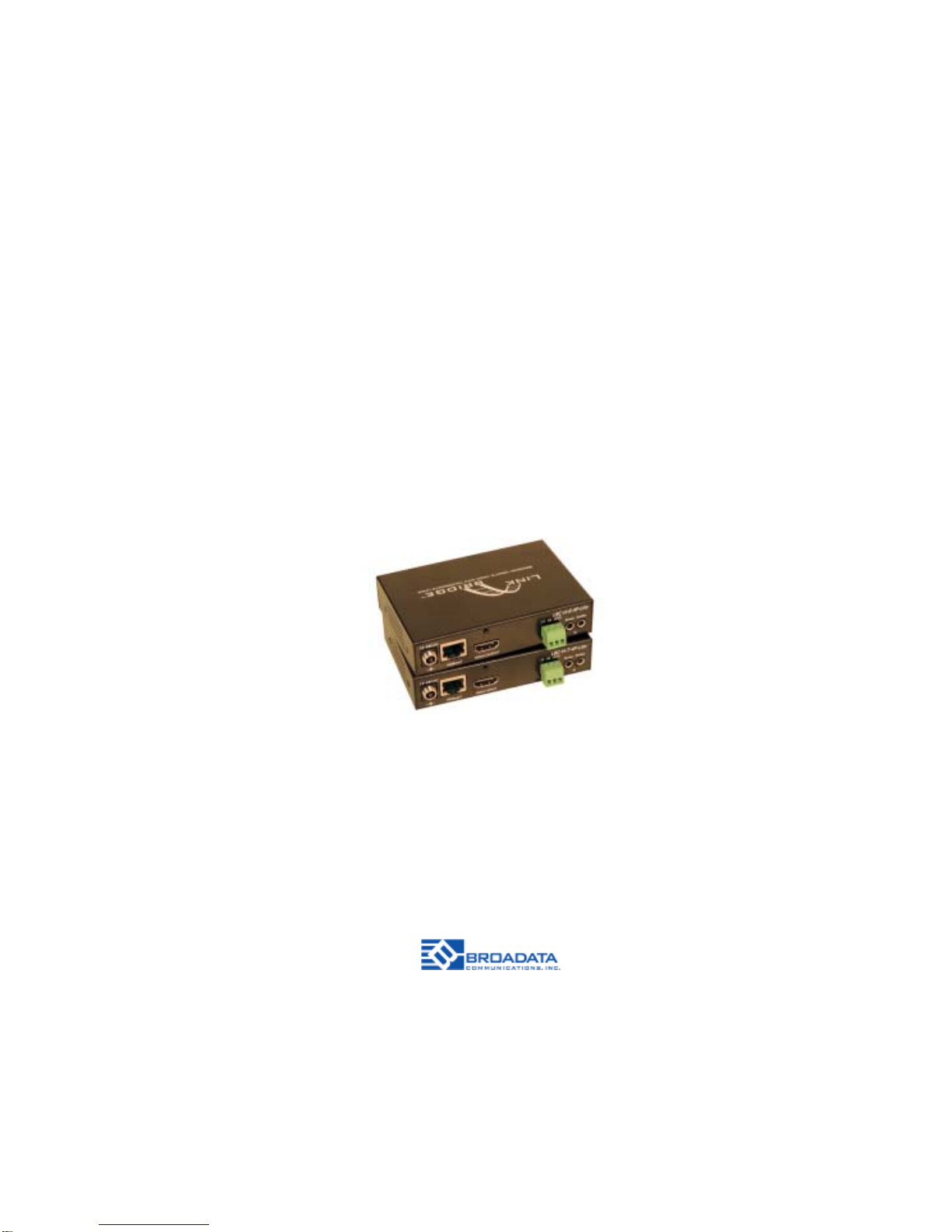

Broadata LBC-H-T/R-4P-LITE User manual

LBC-H-T/R-4P-Lite
LINK BRIDGETM HDBASET
HDMI EXTEDER 4 PLAY LITE
BCI reserves the right to make changes to the products described herein without
prior notice or consent. No liability is assumed as a result of their use or
application. All rights reserved.
©2015 Broadata Communications, Inc.

LBC-H-T/R-4PLiteUserManual
Link BridgeTM HDBaseTHDMIExtender,4Play Lite
Broadata Technical Support, [email protected] 3
SAFETY INSTRUCTIONS AND
COMPLIANCE DECLARATIONS
PLEASEOBSERVETHEFOLLOWINGSAFETY
PRECAUTIONS
SURGEPROTECTION DEVICERECOMMENDED
This product contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shock, lightning strikes,
etc. Use of surge protection systems is highly recommended in order
to protect and extend the life of your equipment.

LBC-H-T/R-4PLiteUserManual
Link BridgeTM HDBaseTHDMIExtender, 4 Play Lite
Broadata Technical Support, [phone]
4
TABLE OF CONTENTS
1.0 PRODUCT DESCRIPTION .............................................5
2.0 OPERATION CONTROLS AND FUNCTIONS ...............6
2.1 TRANSMITTER FRONT AND REAR PANELS...............6
2.2 RECEIVER FRONT AND REAR PANELS .......................7
3.0 IR......................................................................................8
3.1 IR BLASTER CABLE PINASSIGNMENT........................8
3.2 IR RECEIVER CABLE PINASSIGNMENT ......................8
4.0 MAINTENANCE AND TROUBLESHOOTING .................9
4.1 MAINTENANCE ................................................................9
4.2 TROUBLESHOOTING .....................................................9
5.0 SPECIFICATIONS...........................................................11
6.0 SERVICE PROCEDURE ................................................12
6.1 REPLACEMENT POLICY ..............................................12
6.2 RETURN AND REPAIR SERVICE .................................12
7.0 LIMITED WARRANTY ....................................................13

LBC-H-T/R-4PLiteUserManual
Link BridgeTM HDBaseTHDMIExtender,4Play Lite
Broadata Technical Support, [email protected] 5
1.0 PRODUCT DESCRIPTION
• Extend HDMI Signals up to 70 meters Over One CAT 5e/6
Cable
• UltraHD(4K2K)andHDTVvideoresolutionsup to 720p/1080i/
1080p@60Hz
• FullyUncompressedVideo &Audio Provides Zero Loss of
Quality
• SupportsTrue DDC/EDID/HDCPTransmission Over One
EthernetCable
• Video/Audio+IR+RS232, Over 1 CAT 5e/6 Cable
• Bi-directional PoC (Power over Cable)

LBC-H-T/R-4PLiteUserManual
Link BridgeTM HDBaseTHDMI Extender, 4 Play Lite
Broadata Technical Support, [phone]
6
2.0 OPERATION CONTROLS AND FUNCTIONS
2.1 Transmitter Front and Rear Panels
1. Act:Blinkingwhenworknormally
2. HDMI:Stableonwhen withHDCP,blinkingwhenwithoutHDCP
3. Pwr: Stable on when power up
4. HDBT:BlinkingwhenHDBTconnectwithoutvideosignal, stable
onwhenvideo active
5. Power: Connect to 24V DC adapter here to power up device
6. HDBaseT:ConnectCatfromheretoacompatiblereceiver
7. HDMI Input: Connect to HDMI resource
8. RS232: Connect to PC or control system to program control
command
9. IR: Connect to IR emitter or sensor
Front
Act
Pwr HDBT
HDMI
12
34
Rear
Sensor Emitter
IR
Tx GRx
RS232HDMI INPUTHDBaseT
LBC-H-T-4P-Lite
12-28V/1A
56789

LBC-H-T/R-4PLiteUserManual
Link BridgeTM HDBaseTHDMIExtender,4Play Lite
Broadata Technical Support, [email protected] 7
2.2 Receiver Front and Rear Panels
1. Act:Blinkingwhenworknormally
2. HDMI:Stable onwhenwith HDCP,blinkingwhen withoutHDCP
3. Pwr: Stable on when power up
4. HDBT:BlinkingwhenHDBTconnectwithoutvideosignal,stable
onwhenvideo active
5. Power: Connect to 24V DC adapter here to power up device
6. HDBaseT:ConnectHDBaseTsourcehere
7. HDMI Output: Connect to display
8. RS232: Connect to a display for control
9. IR: Connect to IR emitter or sensor
Front
Act
Pwr HDBT
HDMI
12
34
Rear
Sensor Emitter
IR
Tx GRx
RS232HDBaseT HDMI OUTPUT
LBC-H-R-4P-Lite
12-28V/1A
56789

LBC-H-T/R-4PLiteUserManual
Link BridgeTM HDBaseTHDMI Extender, 4 Play Lite
Broadata Technical Support, [phone]
8

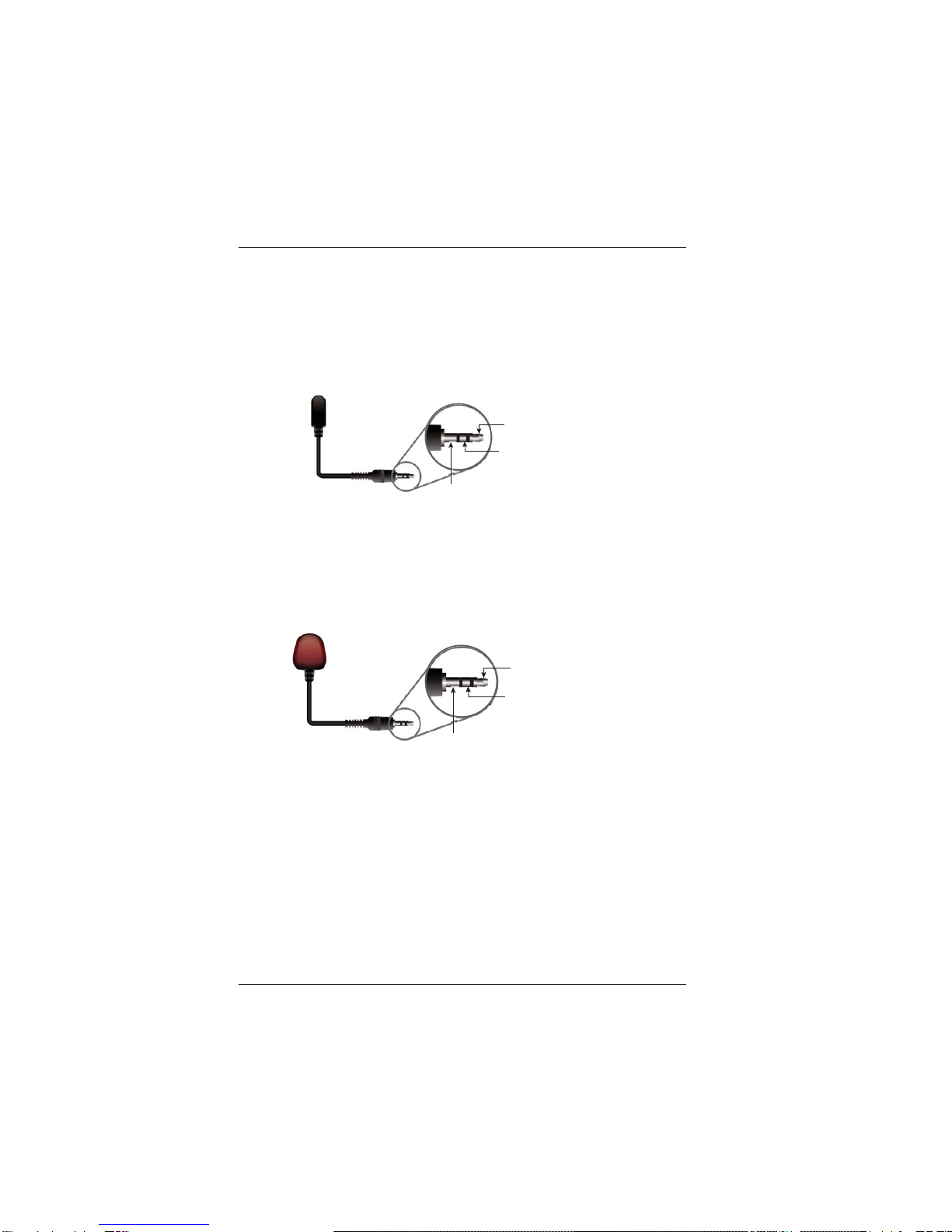

3.0 IR
3.1 IR Blaster Cable PinAssignment
3.3 IR Receiver Cable PinAssignment
IR Blaster Power 5V
IR Blaster Signal
NC
IR Receiver
IR Signal
Power 5V
Grounding

LBC-H-T/R-4PLiteUserManual
Link BridgeTM HDBaseTHDMIExtender,4Play Lite
Broadata Technical Support, [email protected] 9
4.0 MAINTENANCE AND TROUBLESHOOTING
4.1 Maintenance
Thereisnooperatormaintenanceotherthen keeping the units
clean. However,observethefollowinglightindicatorsto make
sure that the unit is working properly:
4.2 Troubleshooting
If the LBC-H-4P-Lite units do not operate properly after
installation,checkfor possiblecablebreaks,loose connections,
and incorrect cable connections. If problems persist that may
be fiber related, contact BCI at 1-800-214-0222 for further
assistance.

LBC-H-T/R-4PLiteUserManual
Link BridgeTM HDBaseTHDMI Extender, 4 Play Lite
Broadata Technical Support, [phone]
10
5.0 SPECIFICATIONS
VIDEO/AUDIO SPECIFICATIONS
HDMI Version 1.4 with 3D, 4k×2k support
VideoResolution Upto4K2K@30Hz
Protocol DDC/EDID/HDCPCapable
VideoBandwidth 300MHz / 10.2Gbps
AudioOperatingMode StereoAudio
AudioSamplingRate 32KHz to 192KHz
HDMI/AudioConnector HDMIFemale plug
DATA
SerialControl RS232
DataRate Upto57.6Kbaud
Connector Terminal block
IRControl Infrared
DataRate 30 - 50KHz
In/OutConnectors 3.5mmStereo
HDBT TRANSMISSION
CableType CAT5e/6 or higher
NumberofCables 1
Connector/Distance RJ-45 / Up to 100m
PHYSICAL
DimensionsStandalone 4.57”(W)x 2.95”(D) x 0.99”(H)
PowerConsumption +24VDC @ 0.5Amps (Max.)
OperatingTemperature 0 to +40oC
Humidity 20to90%RH,Non-Condensing

LBC-H-T/R-4PLiteUserManual
Link BridgeTM HDBaseTHDMIExtender,4Play Lite
Broadata Technical Support, [email protected] 11
6.0 SERVICE PROCEDURE
6.1 Replacement Policy
Standard products found defective on arrival (DOA) will be
replaced,basedonavailability, within 24 to48hoursanywhere
in the U.S. Please call Customer Service at 800-214-0222 for
information.
6.2 Return/Repair Service
The LBC-H-4 Play Lite System contains no user serviceable
components.If youhaveaproblemwithyourunit,pleasecontact
theCustomerServiceDepartment. Tofacilitateourreturn/repair
processing please contact Broadata Communications, Inc. to
obtain a Return MaterialAuthorization (RMA). Please include
thefollowinginformation:
• Productmodelnumber
• SerialNumber
• Completedescriptionofproblem
• Hardwareinstallationdescription
BroadataCommunications,Inc.
2545 West 237th Street, Suite K
Torrance,CA 90505
1-800-214-0222
[phone]
[phone](Facsimile)
e-mail:[email protected]
Website:www.broadatacom.com

LBC-H-T/R-4PLiteUserManual
Link BridgeTM HDBaseTHDMI Extender, 4 Play Lite
Broadata Technical Support, [phone]
12
7.0 LIMITED WARRANTY
Broadata Communications, Inc. (BCI) warrants, for a period of one
yearfromdateof shipment, eachproductsoldshall be freefromdefects
in material and workmanship. BCI will correct, either by repair, or at
BCI’s election, by replacement, any said products that in our sole
discretion prove to be defective and are returned to the manufacturing
location within 30 days after such defect is ascertained. All warranties
are limited to defects arising under normal use and do not include
malfunctionsorfailureresultingfrommisuse, abuse,neglect,alterations,
electrical power problems, usage not in accordance with product
instructions, improper installation, or damage determined by BCI to
havebeencausedbytheBuyer or repair madebyathirdparty. Limited
warrantiesgrantedonproductsareto the initial customer end-user and
arenot transferable. OURLIABILITYUNDERTHISWARRANTYSHALL
IN ANY CASE BE LIMITED TO THE INVOICE VALUE OF THE
PRODUCTSOLDAND BCISHALLNOTBE LIABLETOANYONEFOR
CONSEQUENTIALORINCIDENTALDAMAGESARISINGFROMTHE
USE OF ITS PRODUCTS OR THE SALE THEREOF. We make NO
WARRANTYAS TO THE MERCHANTABILITY OF ANY GOODS, OR
THAT THEY ARE FIT FOR ANY PARTICULAR PURPOSE OR END
APPLICATION NOR DO WE MAKE ANY WARRANTY, EXPRESSED
OR IMPLIED OTHER THANAS STATEDABOVE.

LBC-H-T/R-4PLiteUserManual
Link BridgeTM HDBaseTHDMIExtender,4Play Lite
Broadata Technical Support, [email protected] 13

LBC-H-T/R-4PLiteUserManual
Link BridgeTM HDBaseTHDMI Extender, 4 Play Lite
Broadata Technical Support, [phone]
14

BroadataCommunications,Inc.
2545 West 237th Street, Suite K
Torrance,CA 90505
1-800-214-0222
[phone]
[phone](Facsimile)
e-mail:[email protected]
Website:www.broadatacom.com
60000-LBC-H-4P-Lite
