Broadata LBC-HDBT2-T/R-48 User manual

LBC-HDBT2-T/R-48
LINK BRIDGE™HDBASET 2.0
HDMITRANSMISSION WITH
48V POH OVER 100M
BCI reserves the right to make changes to the products described herein without prior
notice or consent. No liability is assumed as a result of their use or application. All
rightsreserved.
©2015 Broadata Communications, Inc.

LBC-HDBT2-T/R-48UserManual
Link BridgeTM HDBaseT 2.0 HDMI Transmission w/48V PoH over 100m
Broadata Technical Support, [email protected] 3
SAFETY INSTRUCTIONS AND
COMPLIANCE DECLARATIONS
PLEASEOBSERVETHEFOLLOWINGSAFETY
PRECAUTIONS
SURGEPROTECTION DEVICERECOMMENDED
This product contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shock, lightning strikes,
etc. Use of surge protection systems is highly recommended in order
to protect and extend the life of your equipment.

LBC-HDBT2-T/R-48UserManual
Link BridgeTM HDBaseTHDMI 2.0 Transmission w/48V PoH over 100m
Broadata Technical Support, [phone]
4
TABLE OF CONTENTS
1.0 PRODUCT DESCRIPTION .............................................5
2.0 OPERATION CONTROLS AND FUNCTIONS ...............6
2.1 TRANSMITTER FRONT PANEL......................................6
2.2 TRANSMITTER LEFT AND RIGHT PANELS..................7
2.3 RECEIVER FRONT PANEL .............................................8
2.4 RECEIVER LEFT AND RIGHT PANELS..........................9
3.0 SERIAL CONTROL ........................................................10
3.1 IR BLASTER CABLE PINASSIGNMENT......................10
3.2 IR RECEIVER CABLE PIN ASSIGNMENT ....................10
4.0 MAINTENANCE AND TROUBLESHOOTING ...............11
4.1 MAINTENANCE ..............................................................11
4.2 TROUBLESHOOTING ....................................................11
5.0 SPECIFICATIONS...........................................................13
6.0 SERVICE PROCEDURE ................................................14
6.1 REPLACEMENT POLICY ..............................................14
6.2 RETURN AND REPAIR SERVICE .................................14
7.0 LIMITED WARRANTY ....................................................15

LBC-HDBT2-T/R-48User Manual
Link BridgeTM HDBaseT 2.0 HDMI Transmission w/48V PoH over 100m
Broadata Technical Support, [email protected] 5
1.0 PRODUCT DESCRIPTION
• Compliant to HDBaseT 2.0 specs
•Extend HDMI Signals up to 100 meters Over One CAT 5e/6
Cable
•SupportsFullHDTVVideoResolutionsup to 4K2K@30Hz
•FullyUncompressed Video&AudioProvidesZeroLossofQuality
•SupportsTrueDDC/EDID/HDCPTransmission
•Video/Audio+IR+Data+Ethernet+USB+ARC,Over1
CAT 5e/6 Cable
•48V PoH from transmitter (PSE) to receiver (PD)
•TX-PSE (providing power), RX-PD (receiving power)
•HDMI 1.4 and HDCP 2.2 compliant
•Supports both RS232 and IR Control Data

LBC-HDBT2-T/R-48User Manual
Link BridgeTM HDBaseTHDMI 2.0 Transmission w/48V PoH over 100m
Broadata Technical Support, [phone]
6
2.0 OPERATION CONTROLS AND FUNCTIONS
2.1 Transmitter Front Panel
1. DC 48V and POWER LED: Plugthe48VDCpower supply into
the unit and connect the adaptor to anAC outlet and the LED
willilluminate.
2. AUDIO IN L/R: Connectwithaudiosourceequipmentsuchas
PCorCDplayerforaudiosignalsendingto Receiver’sAUDIO
OUT L/R.
3. IR IN 2: Connect to the supplied IR Extender cable for IR
signalreception.Ensurethat remote beingusediswithinthe
direct line- of-sight of the IR Extender.
4. IR OUT 1: Connect to the supplied IR Blaster Cable for
IRsignaltransmission.PlacetheIR Blaster in direct line-
of-sight of the equipment to be controlled.
5. USB: Connect from PC or Laptop for data transmit to or
control from the Receiver’s USB slots.
6. RS-232 IN TX/RX: ConnecttoaPCor Laptop with3-pinRelay
cableforthe transmission ofRS-232commands.For receiving
command from Receiver side, the TX and Rx pin must be
reversed.
7. UPDATE:Thisisreserved forfirmwareupdate useonly.Switch
thisdeep switch to left for firmware update use, under normal
operation, leave the switch on right. Update procedure may
be done from the same RS-232 port for both Transmitter and
Receiver.
123456
DC 48V POWER IR IN2 IR OUT1 USB UPDATE RS-232 IN
TX RX
+
-

AUDIO IN
LR
7

LBC-HDBT2-T/R-48User Manual
Link BridgeTM HDBaseT 2.0 HDMI Transmission w/48V PoH over 100m
Broadata Technical Support, [email protected] 7

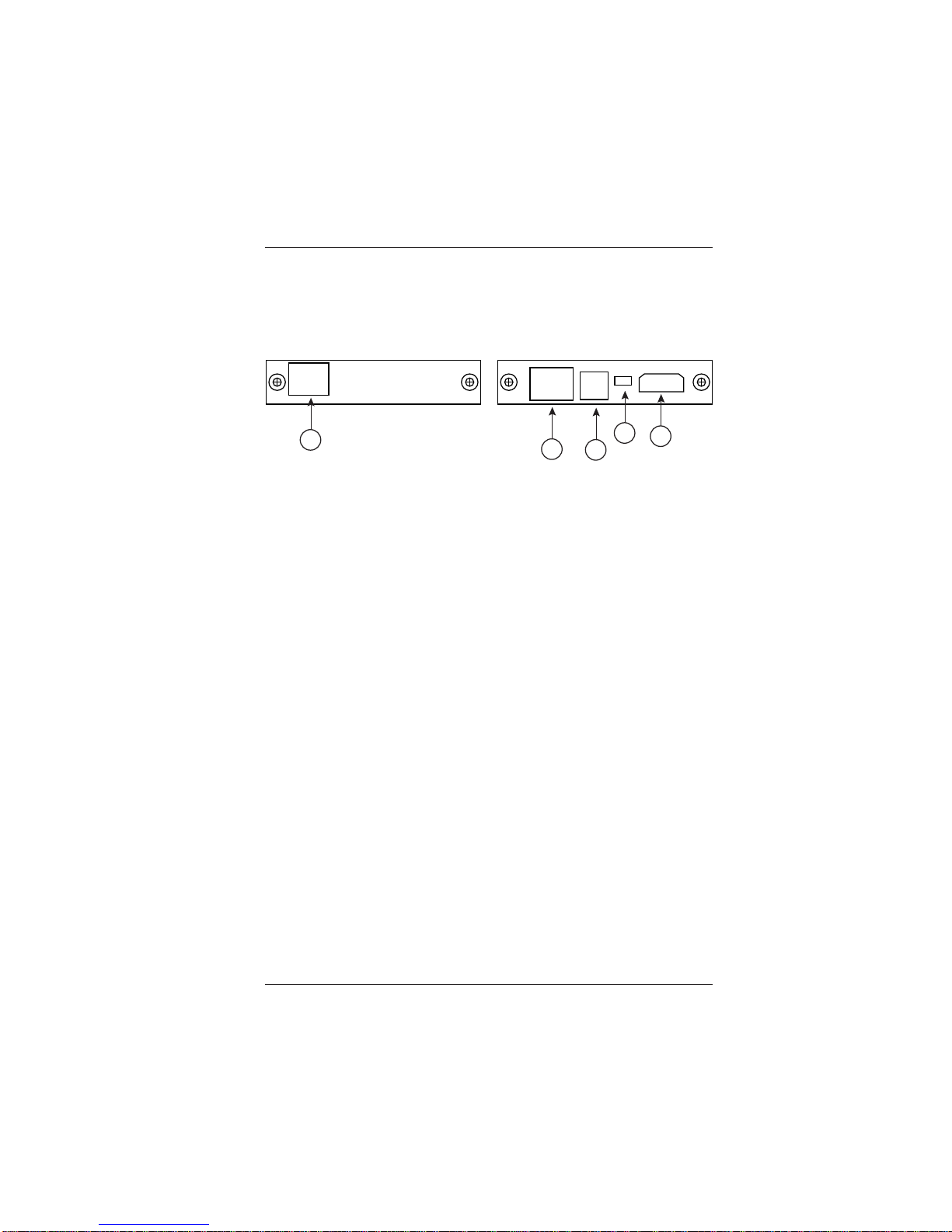

2.2 Transmitter Left and Right Panels
1. CAT5e/6/7 OUT: Connect to the Receiver unit with a single
CAT5e/6/7 cable for transmission of all data signals. Under
properconnectionthegreen LED will illuminatetoindicatePoE
activated.TheyellowLEDwillilluminatetoindicatesuccessful
connection between Transmitter and Receiver, when it blink
irregularly it represent the link error or when not illuminate it
means no link with Reciever.
2. LAN: Connecttoaninternet or networkconnection.Theyellow
LEDwillilluminateto represent the linkwithReceiverissteady,
when it blink irregularly it represent the link error or when not
illuminate it means no link with Receiver. The green LED will
illuminate to represent the Ethernet speed is with 100Mbit/s.
3. OPT. OUT: Connect to speaker for audio signal output from
Receiver’s OPTICALIN.
4. ARC OUT OFF/ON SWITCH: Switchthisdipswitch to allows
ARC (Audio Return Channel) function to be activate or not.
Switch to OFF to disableARC function. Switch to ON allows
Receiver’s HDMI output audio to be routed back and output
to both HDMI IN and Optical OUT on the transmitter side.
Note:WhenARCswitchtoON,dependingonthe connected
devicesoftheHDMIOUT & Optical in,theARCinput/output
transmissiondistancemaybevaried.It is suggested to use
cable within 2 meters long to ensure the best audio quality.
5. HDMI IN: Connect to HDMI source equipment such as a DVD
or Blu-ray player.
CAT5e/6/7 OUT HDMI IN
OPT.
OUTLAN ARC OUT OFF ON
Left Right
12345

LBC-HDBT2-T/R-48User Manual
Link BridgeTM HDBaseTHDMI 2.0 Transmission w/48V PoH over 100m
Broadata Technical Support, [phone]
8
2.3 Receiver Front Panel
1. POWERLED: ThisLEDwillilluminatewhendevice isconnected
with power supply.
2. AUDIO OUT L/R: Connect to speaker with RCA input
for audio signal output.
3. IR IN 1: Connect to the supplied IR Extender cable for IR
signalreception.Ensurethat remote beingusediswithinthe
direct line-of-sight of the IR Extender.
4. IR OUT 2: Connect to the supplied IR Blaster cable for
IR signal transmission. Place the IR Blaster in direct
line-of-sight of the equipment to be controlled.
5. USB: Connect to USB peripheral devices such as printer,
keyboard, flash driver or …etc. for data receiving or sending
back to Transmitter.
6. RS-232 OUT TX/RX: Connect to the device that is to be
controlled via 3-pin Relay cable by RS-232 commands. For
sendingcommandtoTransmitterside,theTXandRxpinmust
be reversed.
7. UPDATE: Thisisreserved forfirmwareupdateuseonly.Switch
this deep switch to left for firmware update use, under normal
operation,leavetheswitch on right. Updateproceduremaybe
done from the same RS-232 port for both Transmitter and
Receiver.
1234567
POWER AUDIO OUT IR IN1 IR OUT2 USB UPDATERS-232 OUT
TX RX

LR
USB

LBC-HDBT2-T/R-48User Manual
Link BridgeTM HDBaseT 2.0 HDMI Transmission w/48V PoH over 100m
Broadata Technical Support, [email protected] 9

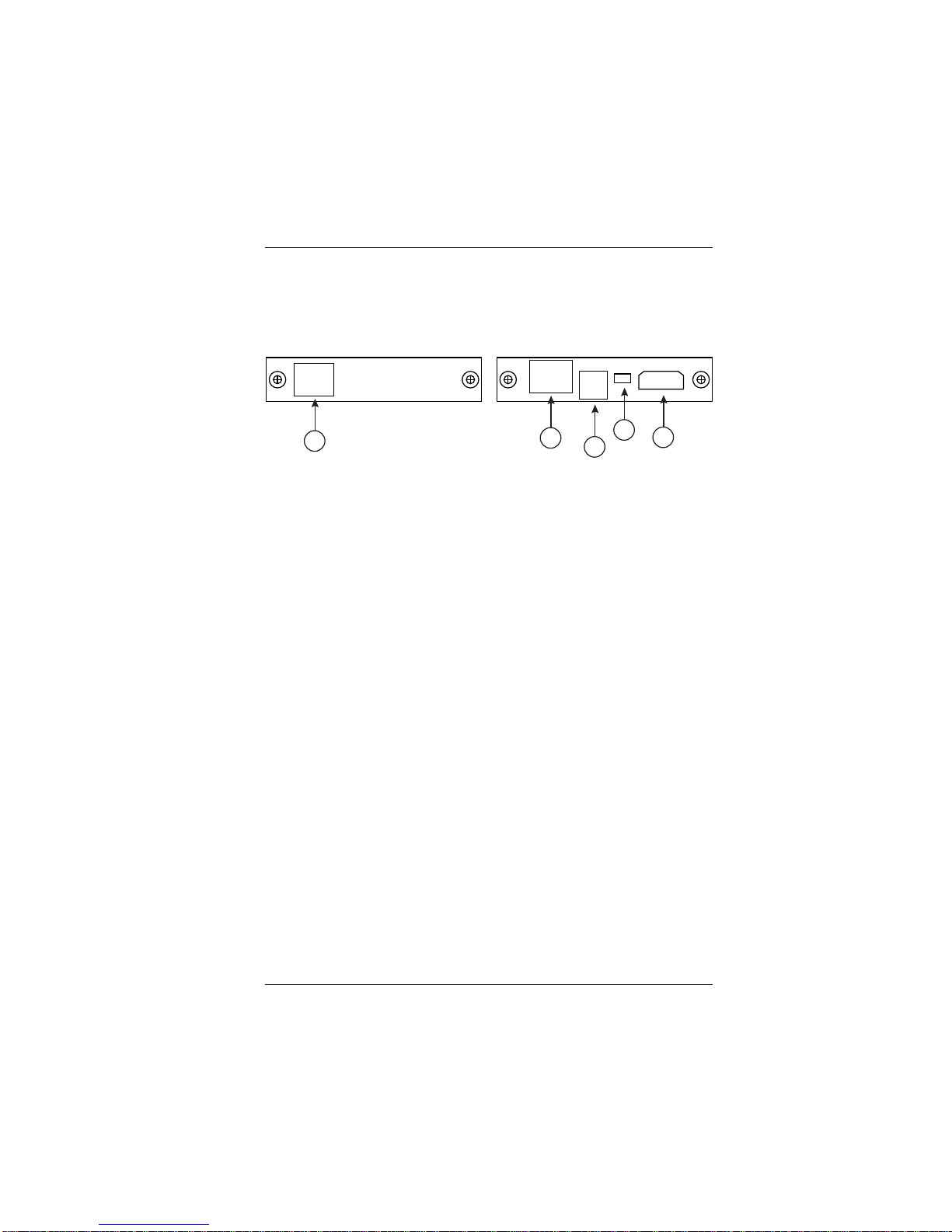

2.4 Receiver Left and Right Panels
1. CAT5e/6/7 IN: Connect to the Transmitter unit with a single
CAT5e/6/7 cable fortransmissionofall datasignals.Theyellow
LEDwillilluminate to representthelinkfrom Receiver issteady,
whenitblinksirregularlyitrepresentsthelink error or when not
illuminated it means no link with Receiver. The green LED will
illuminate to represent the PoE function active.
2. LAN: Connect to a PC or Laptop to the internet or network
connection. The yellow LED will illuminate to represent the
link with Transmitter is steady, when it blink irregularly it
representthelinkerror or when not illuminateitmeansnolink
withReceiver.ThegreenLEDwillilluminatetorepresentthe
Ethernet speed is with 100Mbit/s.
3. OPT. IN: Connect to audio source equipment such as DVD
or Blu-ray player for audio signal sending to Transmitter’s
OPTICALOUT.
4. ARC IN or OPT. IN SWITCH: Switch this switch toselectARC
channel.SwitchtoARC in to use HDMI OUT’saudioorswitch
to Optical IN to use Optical 1’s audio.
Note: Depending on the connected devices of the HDMI
OUT & Optical in, the ARC input/output transmission
distance may be varied. It is suggested to use cable within
2 meters long to ensure the best audio quality.
5. HDMIOUT: Connectto aHDMIequippedTV/monitorfordisplay
of the HDMI input source signal.
CAT5e/6/7 IN HDMI OUT
OPT.
INLAN OPT.
IN ARC
IN
12345
Left Right

LBC-HDBT2-T/R-48User Manual
Link BridgeTM HDBaseTHDMI 2.0 Transmission w/48V PoH over 100m
Broadata Technical Support, [phone]
10

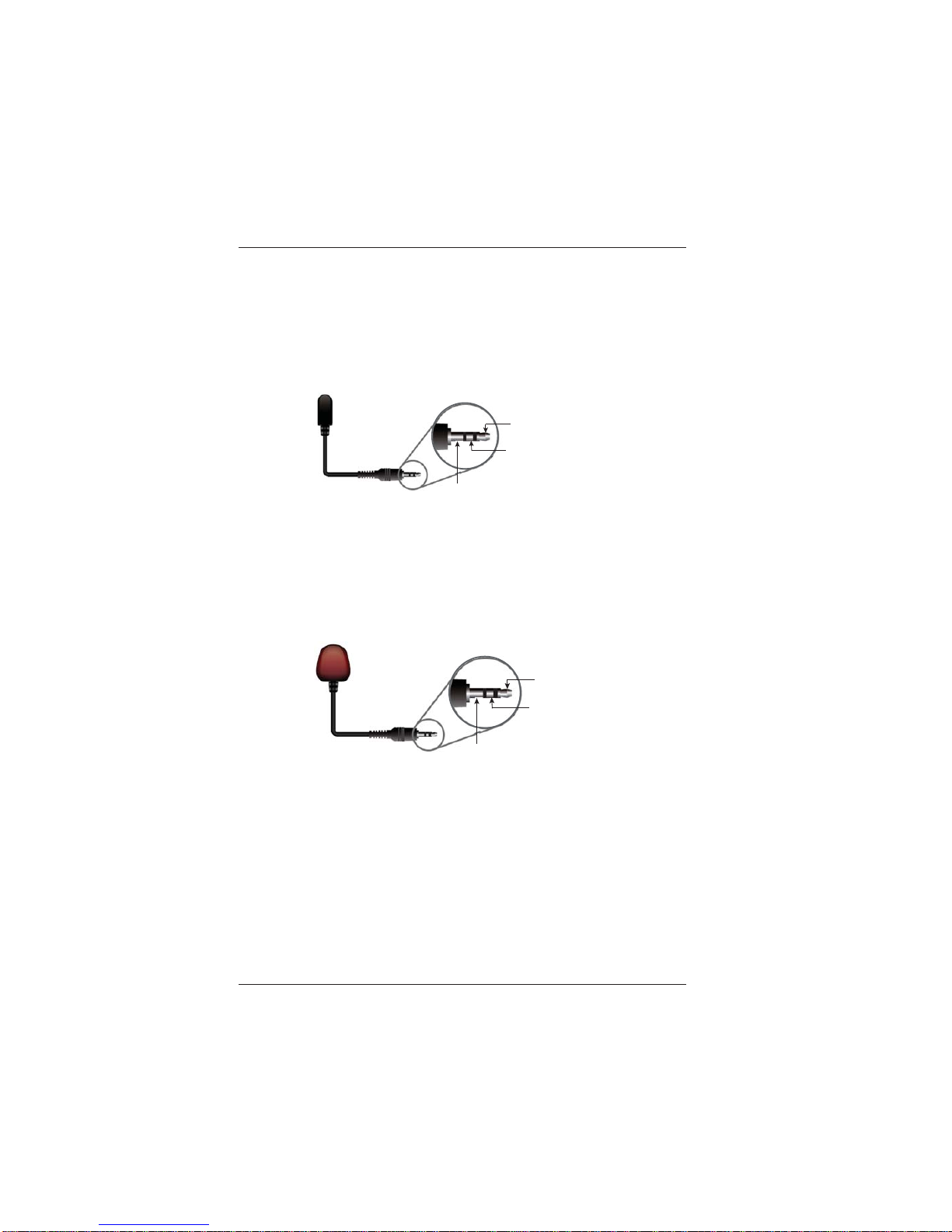

3.0 SERIAL CONTROL
3.1 IR Blaster Cable PinAssignment
3.2 IR Receiver Cable PinAssignment
IR Blaster Power 5V
IR Blaster Signal
NC
IR Receiver
IR Signal
Power 5V
Grounding

LBC-HDBT2-T/R-48User Manual
Link BridgeTM HDBaseT 2.0 HDMI Transmission w/48V PoH over 100m
Broadata Technical Support, [email protected] 11
4.0 MAINTENANCE AND TROUBLESHOOTING
4.1 Maintenance
Thereisnooperatormaintenanceother then keeping the units
clean. However, observe thefollowinglightindicatorstomake
sure that the unit is working properly:
4.2 Troubleshooting
If the LBC-HDBT2-T/R-48 units do not operate properly after
installation,checkfor possiblecablebreaks, looseconnections,
and incorrect cable connections. If problems persist that may
be fiber related, contact BCI at 1-800-214-0222 for further
assistance.

LBC-HDBT2-T/R-48User Manual
Link BridgeTM HDBaseTHDMI 2.0 Transmission w/48V PoH over 100m
Broadata Technical Support, [phone]
12
5.0 SPECIFICATIONS
VIDEO/AUDIO
HDMI Version 1.4 with 3D, 4k×2k support
VideoResolution Up to 4K2K @ 30Hz
Protocol DDC/EDID Capable, HDCP 2:2
VideoBandwidth 300MHz / 10.2Gbps
AudioFormats Supports up to 7.1CH & Dolby
TrueHD, DTS-HD MasterAudio
AudioSamplingRate 32KHzto192KHz
HDMI/AudioConnector HDMIFemaleplug
DATA
SerialControl RS232
Data Rate Up to 115.2Kbaud
Connector Terminalblock
IRData Rate 30 - 50KHz
In/OutConnectors 3.5mm Stereo
ETHERNET
EthernetSpeed 100 Mbps
LANConnector RJ45
HDBTTRANSMISSION
Cable Type CAT 5e/6 or higher
Number of Cables 1
Connector/Distance RJ-45 / Up to 100m
PHYSICAL
Dimensions 7.09”(W) x 3.15”(D) x 0.63”(H)
PowerConsumption +48VDC @ 0.9 Amps (Max.)
Operating Temperature 0 to +40oC
Humidity 20 to 90% RH,Non-Condensing

LBC-HDBT2-T/R-48User Manual
Link BridgeTM HDBaseT 2.0 HDMI Transmission w/48V PoH over 100m
Broadata Technical Support, [email protected] 13
6.0 SERVICE PROCEDURE
6.1 Replacement Policy
Standard products found defective on arrival (DOA) will be
replaced,basedonavailability,within24to48hours anywhere
in the U.S. Please call Customer Service at 800-214-0222 for
information.
6.2 Return/Repair Service
TheLBC-HDBT2-T/R-48Systemcontainsno user serviceable
components.If youhave aproblem withyourunit,pleasecontact
the Customer Service Department. To facilitate our return/
repair processing please contact Broadata Communications,
Inc. to obtain a Return MaterialAuthorization (RMA). Please
includethefollowinginformation:
• Productmodelnumber
• SerialNumber
• Complete description of problem
• Hardwareinstallationdescription
BroadataCommunications,Inc.
2545 West 237th Street, Suite K
Torrance, CA 90505
1-800-214-0222
[phone]
[phone] (Facsimile)
e-mail:[email protected]
Website: www.broadatacom.com

LBC-HDBT2-T/R-48User Manual
Link BridgeTM HDBaseTHDMI 2.0 Transmission w/48V PoH over 100m
Broadata Technical Support, [phone]
14
7.0 LIMITED WARRANTY
Broadata Communications, Inc. (BCI) warrants, for a period of one
yearfromdateof shipment, eachproductsoldshall be freefromdefects
in material and workmanship. BCI will correct, either by repair, or at
BCI’s election, by replacement, any said products that in our sole
discretion prove to be defective and are returned to the manufacturing
location within 30 days after such defect is ascertained. All warranties
are limited to defects arising under normal use and do not include
malfunctionsorfailureresultingfrommisuse,abuse,neglect,alterations,
electrical power problems, usage not in accordance with product
instructions, improper installation, or damage determined by BCI to
havebeencausedbytheBuyer or repairmadebyathirdparty. Limited
warrantiesgrantedonproductsareto the initial customer end-user and
arenot transferable. OURLIABILITYUNDERTHISWARRANTYSHALL
IN ANY CASE BE LIMITED TO THE INVOICE VALUE OF THE
PRODUCTSOLDANDBCISHALLNOTBELIABLETOANYONEFOR
CONSEQUENTIALOR INCIDENTALDAMAGESARISINGFROMTHE
USE OF ITS PRODUCTS OR THE SALE THEREOF. We make NO
WARRANTY AS TO THE MERCHANTABILITY OF ANY GOODS, OR
THAT THEY ARE FIT FOR ANY PARTICULAR PURPOSE OR END
APPLICATION NOR DO WE MAKE ANY WARRANTY, EXPRESSED
OR IMPLIED OTHER THANAS STATED ABOVE.

LBC-HDBT2-T/R-48User Manual
Link BridgeTM HDBaseT 2.0 HDMI Transmission w/48V PoH over 100m
Broadata Technical Support, [email protected] 15

LBC-HDBT2-T/R-48User Manual
Link BridgeTM HDBaseTHDMI 2.0 Transmission w/48V PoH over 100m
Broadata Technical Support, [phone]
16

BroadataCommunications,Inc.
2545 West 237th Street, Suite K
Torrance, CA 90505
1-800-214-0222
[phone]
[phone] (Facsimile)
e-mail:[email protected]
Website: www.broadatacom.com
60000-LBCHDBT2T/R48
