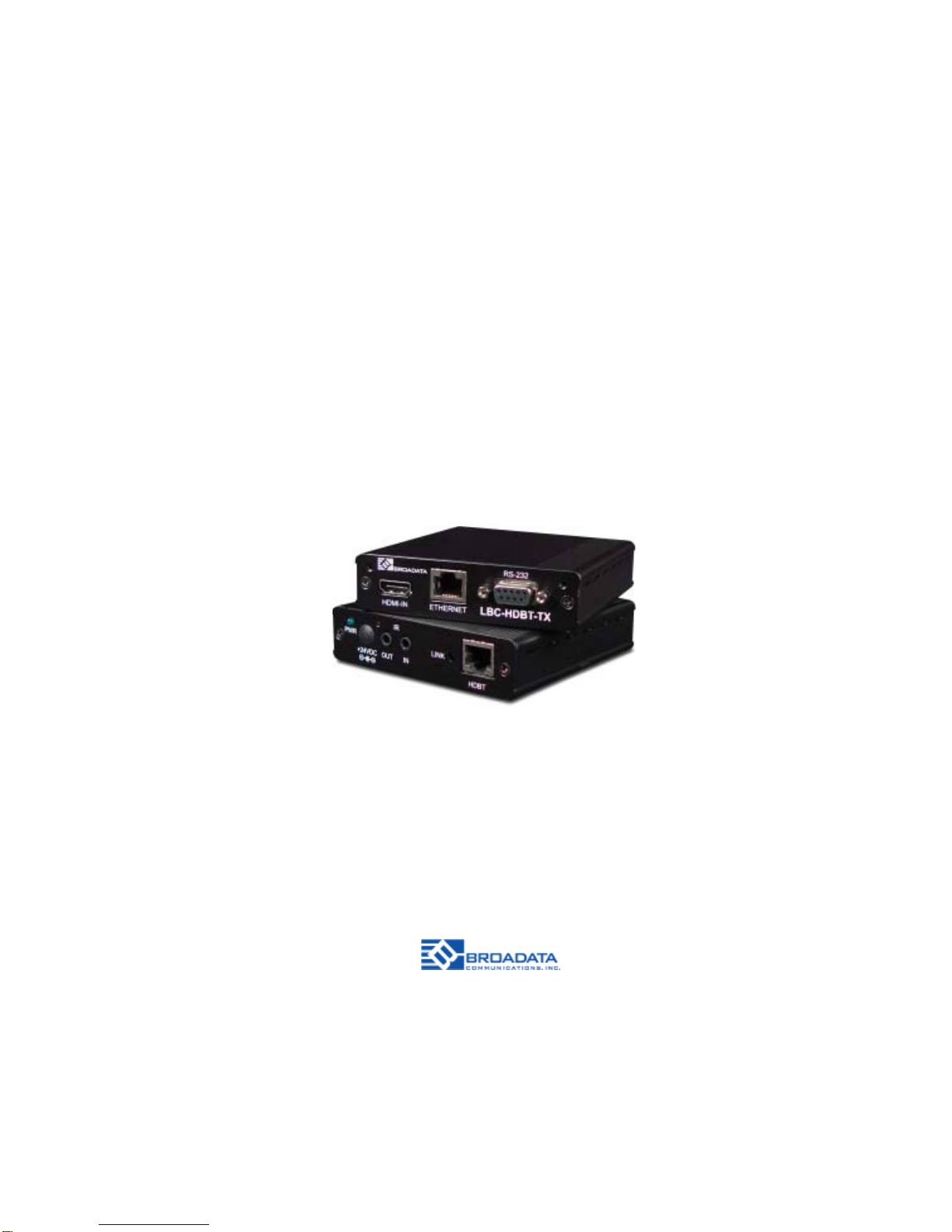

Broadata LBC-HDBT User manual

LBC-HDBT
LINK BRIDGETM HDBASET
HDMITRANSMITTER SYSTEM
BCI reserves the right to make changes to the products described herein without
prior notice or consent. No liability is assumed as a result of their use or
application. All rights reserved.
©2013 Broadata Communications, Inc.

LBC-HDBTUser’s Manual
LinkBridgeTM HDbaseT HDMI Transmission System
Broadata Technical Support, [email protected] 3
SAFETY INSTRUCTIONS AND
COMPLIANCE DECLARATIONS
PLEASEOBSERVETHEFOLLOWINGSAFETY
PRECAUTIONS
SURGEPROTECTION DEVICERECOMMENDED
This product contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shock, lightning strikes,
etc. Use of surge protection systems is highly recommended in order
to protect and extend the life of your equipment.

LBC-HDBTUser’s Manual
LinkBridgeTM HDbaseT HDMI Transmission System
Broadata Technical Support, [phone]
4
TABLE OF CONTENTS
1.0 PRODUCT DESCRIPTION .............................................5
2.0 OPERATION CONTROLS AND FUNCTIONS ...............6
2.1 TRANSMITTER FRONT AND REAR PANELS...............6
2.2 RECEIVER FRONT AND REAR PANELS .......................7
3.0 SERIAL CONTROL..........................................................8
3.1 D-SUB 9 PIN ASSIGNMENT ...........................................8
3.2 IR BLASTER CABLE PIN ASSIGNMENT.......................9
3.3 IR RECEIVER CABLE PIN ASSIGNMENT ....................9
4.0 MAINTENANCE AND TROUBLESHOOTING..............10
4.1 MAINTENANCE .............................................................10
4.2 TROUBLESHOOTING ..................................................10
5.0 SPECIFICATIONS..........................................................12
6.0 SERVICE PROCEDURE ...............................................13
6.1 REPLACEMENT POLICY .............................................13
6.2 RETURN AND REPAIR SERVICE.................................13
7.0 LIMITED WARRANTY ....................................................14

LBC-HDBTUser’s Manual
LinkBridgeTM HDbaseT HDMI Transmission System
Broadata Technical Support, [email protected] 5
1.0 PRODUCT DESCRIPTION
TheLBC-HBT-Tx/Rxwith HDMIvideo andRS-232over SingleCAT5e/6
transmitterand receiver set can send uncompressed audio/video over
asinglerun of CAT5e/6 cable up to 100mwithPoC (Power over cable)
featureand the added benefitofcontrol through the built-inRS-232and
IR ports and a bi-directional LAN connection.
Features
• HDMI 1.4 with 3D, 4k×2k support, HDCP & DVI Compliant
• SupportsCECbypass
• Simultaneoustransmissionof uncompressed data over a
single100m/328 ftCAT5e/6 cable
• Uncompressedvideo 1080p, 60 Hz, 36-bit
• Audiosupportup to 7.1CH & Dolby TrueHD, DTS-HD
• 5Play™convergence: HDMI, LAN, Bidirectionlal PoC and
Control(IR & RS-232)
• InstallationFriendly
Package Contents
• 1×HDMI to CAT5e/6 (with LAN/IR/RS-232/Bidirectionlal PoC)
Transmitter
• 1×CAT5e/6 to HDMI (with LAN/IR/RS-232/Bidirectionlal PoC)
Reciever
• 1×IRBlaster
• 1×IRReceiver
• 1×24V/1.25ADC PowerAdaptor
• OperationManual

LBC-HDBTUser’s Manual
LinkBridgeTM HDbaseT HDMI Transmission System
Broadata Technical Support, [phone]
6
2.0 OPERATION CONTROLS AND FUNCTIONS
2.1 Transmitter Front and Rear Panels
1. HDMI In: ConnecttoHDMI sourceequipmentsuchasa DVDor
Blu-rayplayer.
2. LAN: Connectto an internetornetworkconnection.
3. RS-232 In: Connect to a PC or laptop with D-Sub 9 pin male
cableforthe transmission of RS-232 commands.
4. Power LED: This blue LED will illuminate when the device is
connected to a power supply.
5. DC 24V:Plugthe24VDCpower supplyintotheunitandconnect
theadaptor to anAC outlet.Onlyone side ofpowerneeds to be
connectedto activate both transmitterandreceiver.
6. IR 1 Blaster: Connect to the supplied IR blaster cable for IR
signaltransmission. PlacetheIR blaster indirect line-of-sight of
theequipmentto be controlled.
7. IR 2 Extender: Connect tothe suppliedIRreceivercablesforIR
signal reception. Ensure that remote being used is within the
directline-of-sight of the IRextender.
ETHERNETHDMI-IN
LBC-HDBT-TX
RS-232
12
3
LINK
HDBT
OUT IN
IR
PWR
+24VDC
4567
89
Front
Rear

LBC-HDBTUser’s Manual
LinkBridgeTM HDbaseT HDMI Transmission System
Broadata Technical Support, [email protected] 7
8. Link LED: The yellow LED will illuminate when both the input
andoutputsignals are connected.
9. CAT5e/6Out:Connectto therecieverunitwithaSingle CAT5e/6
cable for tranmission of all data signals.
2.2 Receiver Front and Rear Panels
1. HDMI Out: Connecttoa HDMI equippedTV/monitor for display
of the HDMI input source signal.
2. LAN: Connect to a PC or Laptop to the Internet or network
connection.
3. RS-232 Out: Connect to the device that is to be controlled (via
D-Sub9 pin female cable) by RS-232 commands.
4. Power LED: This blue LED will illuminate when the device is
connected to a power supply.
5. DC 24V:Plugthe24VDCpower supplyintotheunitandconnect
theadaptor to anAC outlet.Onlyone side ofpowerneeds to be
connectedtoactivate both transmitter and receiver.
6. IR 2 Blaster: Connect to the supplied IR blaster cable for IR
signal transmission. Place the IR blaster in direct line of sight
of the equipment to be controlled.
HDMI-OUT ETHERNET
RS-232
LBC-HDBT-RX
12
3
Front
LINK
HDBT
OUT IN
IR
PWR
+24VDC
4567
89
Rear

LBC-HDBTUser’s Manual
LinkBridgeTM HDbaseT HDMI Transmission System
Broadata Technical Support, [phone]
8
7. IR 1 Extender: Connect to the supplied IR receiver cables for
IRsignal reception. Ensurethatremote being used iswithin the
directline-of-sightoftheIRextender.
8. Link LED: The yellow LED will illuminate when both the input
andoutput signals are connected.
9. CAT5e/6 In: Connect to the transmitter unit with a Single
CAT5e/6 cable for tranmission of all data signals.
3.0 SERIAL CONTROL
3.1 D-Sub Pin Assignment
Pin
1
2
3
4
5
6
7
8
9
Define TX/RX
N/C
TxD/RxD
RxD/TxD
N/C
GND
N/C
N/C
N/C
N/C

LBC-HDBTUser’s Manual
LinkBridgeTM HDbaseT HDMI Transmission System
Broadata Technical Support, [email protected] 9
3.2 IR Blaster Cable PinAssignment
3.3 IR Receiver Cable Pin Assignment
IR Blaster Power 5V
IR Blaster Signal
NC
IR Receiver
IR Signal
Power 5V
Grounding

LBC-HDBTUser’s Manual
LinkBridgeTM HDbaseT HDMI Transmission System
Broadata Technical Support, [phone]
10
4.0 MAINTENANCE AND TROUBLESHOOTING
4.1 Maintenance
Thereisno operator maintenance other then keeping theunits
clean. However, observe the following light indicators tomake
sure that the unit is working properly:
4.2 Troubleshooting
Ifthe LBC-HDBTunitsdo notoperateproperly afterinstallation,
check for possible cable breaks, loose connections, and
incorrect cable connections. If problems persist that may be
fiber related, contact BCI at 1-800-214-0222 for further
assistance.
For electrical problems, perform the following troubleshooting
procedures:
1. If the POWER indicator is OFF, check for the following:
a. The line cord is plugged into the unit and your outlet
haspower.
2. If the POWER indicator is ON, but the Link indicator is
OFF, check for the following:
a. Makesure the appropriate cables are beingused.
b. Cableand cable connectors are notbroken.
c. For each unit, the transmit (TX) cable is connected to
theother unit’s receiver (RX).

LBC-HDBTUser’s Manual
LinkBridgeTM HDbaseT HDMI Transmission System
Broadata Technical Support, [email protected] 11
3. If the POWER indicator and Link indicator are ON, but
the channels are not operating, then:
a. Checkto seethatthe attacheduserequipmentisturned
on.
b. Both ends of the link are connected to the
corresponding equipment and to the same
correspondingchannel port.
c. Cable connections at both channels are securely
fastened to each connector. Turn the power off, then
back on to reset the link.

LBC-HDBTUser’s Manual
LinkBridgeTM HDbaseT HDMI Transmission System
Broadata Technical Support, [phone]
12
5.0 SPECIFICATIONS
VIDEO/ AUDIO SPECIFICATIONS
HDMI Version 1.4 with 3D, 4k×2k support
VideoResolution Up to 4K2K@30Hz
Protocol DDC/EDID/HDCPCapable
VideoBandwidth 300MHz / 10.2Gbps
AudioOperating Mode StereoAudio
Audio Formats Supports up to 7.1CH & Dolby TrueHD,
DTS-HDMasterAudio
AudioSamplingRate 32KHz to 192KHz
HDMI/AudioConnector HDMI Femaleplug
DATA
SerialControl RS232
DataRate Upto 57.6Kbaud
Connector DB9Serial
LANConnector RJ45
IRControl Infrared
DataRate 30 - 50KHz
In/OutConnectors 3.5mm Stereo
EthernetSpeed 100Mbps
HDBTTRANSMISSION
CableType CAT 5e/6orhigher
Numberof Cables 1
Connector/Distance RJ-45 / Up to 100m
PHYSICAL
DimensionsStandalone 4.03”(W)x 3.95”(D) x 0.98”(H)
PowerConsumption +24VDC @ 1.25Amps (Max.)
OperatingTemperature 0 to +40oC
Humidity 20to 90% RH, Non-Condensing

LBC-HDBTUser’s Manual
LinkBridgeTM HDbaseT HDMI Transmission System
Broadata Technical Support, [email protected] 13
6.0 SERVICE PROCEDURE
6.1 Replacement Policy
Standard products found defective on arrival (DOA) will be
replaced,based on availability,within 24 to 48 hours anywhere
in the U.S. Please call Customer Service at 800-214-0222 for
information.
6.2 Return/Repair Service
The LBC-HDBT System contains no user serviceable
components.Ifyouhaveaproblemwithyourunit,please contact
theCustomerServiceDepartment. Tofacilitateourreturn/repair
processing please contact Broadata Communications, Inc. to
obtain a Return MaterialAuthorization (RMA). Please include
thefollowing information:
• Productmodel number
• SerialNumber
• Completedescription of problem
• Hardwareinstallation description
BroadataCommunications,Inc.
2545 West 237th Street, Suite K
Torrance, CA 90505
1-800-214-0222
[phone]
[phone] (Facsimile)
e-mail:[email protected]
Website:www.broadatacom.com

LBC-HDBTUser’s Manual
LinkBridgeTM HDbaseT HDMI Transmission System
Broadata Technical Support, [phone]
14
7.0 LIMITED WARRANTY
BroadataCommunications, Inc. (BCI) warrants,fora period of oneyear
from date of shipment, each product sold shall be free from defects in
materialandworkmanship. BCI will correct, either by repair, or at BCI’s
election, by replacement, any said products that in our sole discretion
prove to be defective and are returned to the manufacturing location
within30 daysaftersuchdefect isascertained. Allwarranties arelimited
todefects arising under normal use and do not include malfunctions or
failureresultingfrommisuse,abuse, neglect,alterations, electricalpower
problems,usagenotinaccordance with product instructions, improper
installation,ordamagedetermined by BCI to have been caused by the
Buyer or repair made by a third party. Limited warranties granted on
products are to the initial customer end-user and are not transferable.
OUR LIABILITY UNDERTHIS WARRANTY SHALLINANYCASE BE
LIMITEDTOTHEINVOICEVALUE OFTHEPRODUCTSOLDANDBCI
SHALL NOT BE LIABLE TO ANYONE FOR CONSEQUENTIAL OR
INCIDENTALDAMAGESARISINGFROMTHEUSEOFITSPRODUCTS
OR THE SALE THEREOF. We make NO WARRANTY AS TO THE
MERCHANTABILITYOFANY GOODS,ORTHATTHEYAREFITFOR
ANY PARTICULAR PURPOSE OR ENDAPPLICATION NOR DO WE
MAKE ANY WARRANTY, EXPRESSED OR IMPLIED OTHER THAN
AS STATEDABOVE.

LBC-HDBTUser’s Manual
LinkBridgeTM HDbaseT HDMI Transmission System
Broadata Technical Support, [email protected] 15

LBC-HDBTUser’s Manual
LinkBridgeTM HDbaseT HDMI Transmission System
Broadata Technical Support, [phone]
16

BroadataCommunications,Inc.
2545 West 237th Street, Suite K
Torrance, CA 90505
1-800-214-0222
[phone]
[phone] (Facsimile)
e-mail:[email protected]
Website:www.broadatacom.com
60000-LBC-HDBT
