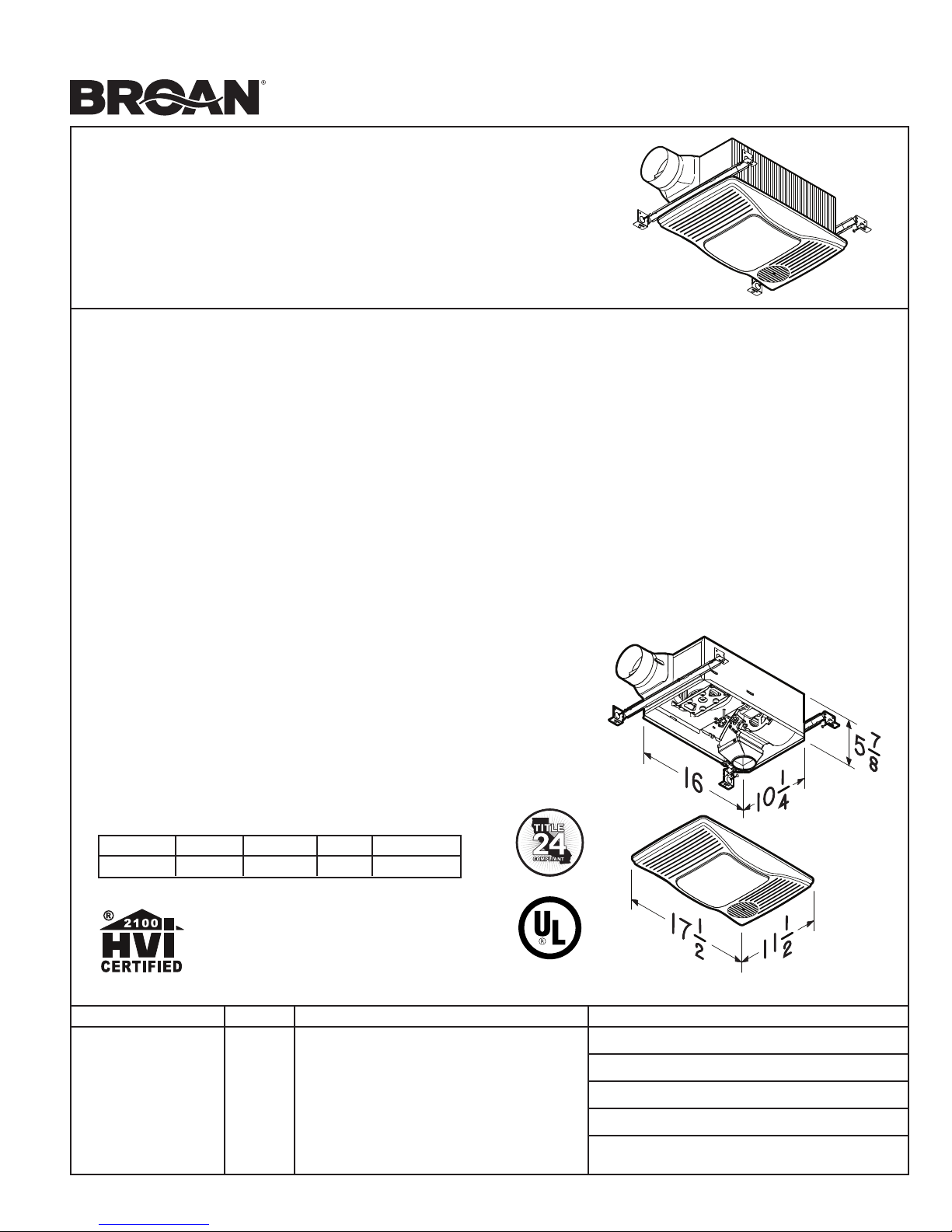

SPECIFICATION SHEET
Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
FEATURES
GRILLE & LIGHTING:
•White polymeric grille
•Snap-in light diffusing lens
•Energy efcient lighting - uses one 27-watt (max.) high
efciency GU24 based uorescent lamp
VENTILATOR:
•Resilient anti-vibration mounts
•Plug-in, permanently lubricated motor
•High performance blower wheel
HEATER:
•1500 watts, with metal blower wheel for efcient, even heating
• Rotatable heater grille - direct heat where needed
•Plug-in, permanently lubricated motor - functions independent
of ventilator
HOUSING:
•Rugged galvanized steel housing
•Polymeric, 4" round damper/duct connector
•5-7/8" height allows for 2" x 6" (nominal) joist installations
•Sturdy, easy, four-point mounting direct to joist
•Hanger bars allow housing to be positioned anywhere
between 16" to 24"-on-center joists
•Suitable for use in insulated ceilings (Type I.C.).
•Use Model 66V (Ivory) / 66W (White) Three Function Control
NOTE: This product must be mounted in a at ceiling only.
Installation in ceilings 9-foot high or less will provide maximum
comfort. Do not mount this product in a wall.
80A 99044120A
TYPICAL SPECIFICATION
Combination unit shall be Broan Model 100HFL.
Unit shall have galvanized steel housing and adjustable
mounting brackets.
Unit must be rated to handle a 27-watt (max.), GU24
based uorescent lamp.
Fan, heater, and light shall be separately controllable.
Motor shall be permanently lubricated.
Heater to deliver 1500 Watts of fan-forced heat.
Air delivery shall be no less than 100 cfm and sound
levels no greater than 2.0 sones . All air and sound
ratings shall be certied by HVI.
Unit shall be UL listed.
Combination unit to be suitable for use in insulated
ceilings. (Type I. C.)
MODEL 100HFL
VENTILATION FAN
WITH LIGHT AND HEATER
HVI-2100 CERTIFIED RATINGS comply with new testing technologies
and procedures prescribed by the Home Ventilating Institute, for
off-the-shelf products, as they are available to consumers. Product
performanceis ratedat 0.1in.staticpressure,basedontestsconducted
in a state-of-the-art test laboratory. Sones are a measure of humanly-
perceived loudness, based on laboratory measurements.
SPECIFICATIONS
VOLTS AMPS SONES CFM DUCT
120 14.0 * 2.0 100 4" Round
* Requires a dedicated 20-Amp circuit.
