Multi-Functional Display
MASS-STREAM™ D-6400
User Manual
USERTAG
Measure :
Capacity :
Fluid :
MASS-STREAM™
ln/min
ln/min
2
25.00
0.00
O2

2Multi-Functional Display • 9.17.164B • 2023-02
Table of Contents
Table of Contents
1 Safety information ........................................................... 3
1.1 General safety information 3
1.2 Scope of this manual 3
1.3 Illustrations 3
2 Operation ......................................................................... 3
2.1 Display overview 3
2.1.1 Navigation 3
2.2 Password protection 3
2.3 Restore factory settings 3
3 Menu overview.................................................................. 4
3.1 Main Menu 4
3.2 Security Menu 5
© 2023Bronkhorst Instruments GmbH - All rights reserved
Bronkhorst Instruments GmbH reserves the right to modify or improve its products
and documentation without prior notice.
Bronkhorst® is a registered trademark of Bronkhorst High-Tech B.V. All other
trademarks are the property of their respective owners.

Safety information
3Multi-Functional Display • 9.17.164B • 2023-02
1 Safety information
1.1 General safety information
Please read this document and all other applicable documents
carefully before installing and operating the product.
All instructions must be observed. Failure to comply with instructions may
result in material damage and personal injury, including danger to life.
1.2 Scope of this manual
This manual covers the operation of the MASS-STREAM™ D-6400 using the
integrated display (optional).
▶Please read the Instruction Manual MASS-STREAM™ D-6400 before
energizing and operating the instrument.
The latest version of the manual can be downloaded from the Bronkhorst®
website.
▶For the web address, see the back of this document.
1.3 Illustrations
The illustrations used in this manual are intended as general instructions for
correct operation.
The illustrations may slightly dier from the actual situation due to certain
product types or factory congurations.
2 Operation
All custom settings persist after unplugging the main connector or
after a power loss.
When navigating through the menu, the digital communication via
RS232 or eldbus interface remains fully accessible.
2.1 Display overview
USERTAG
Measure :
Capacity :
Fluid :
MASS-STREAM™
ln/min
ln/min
2
25.00
0.00
O2
1
2
3
4
5
6
7

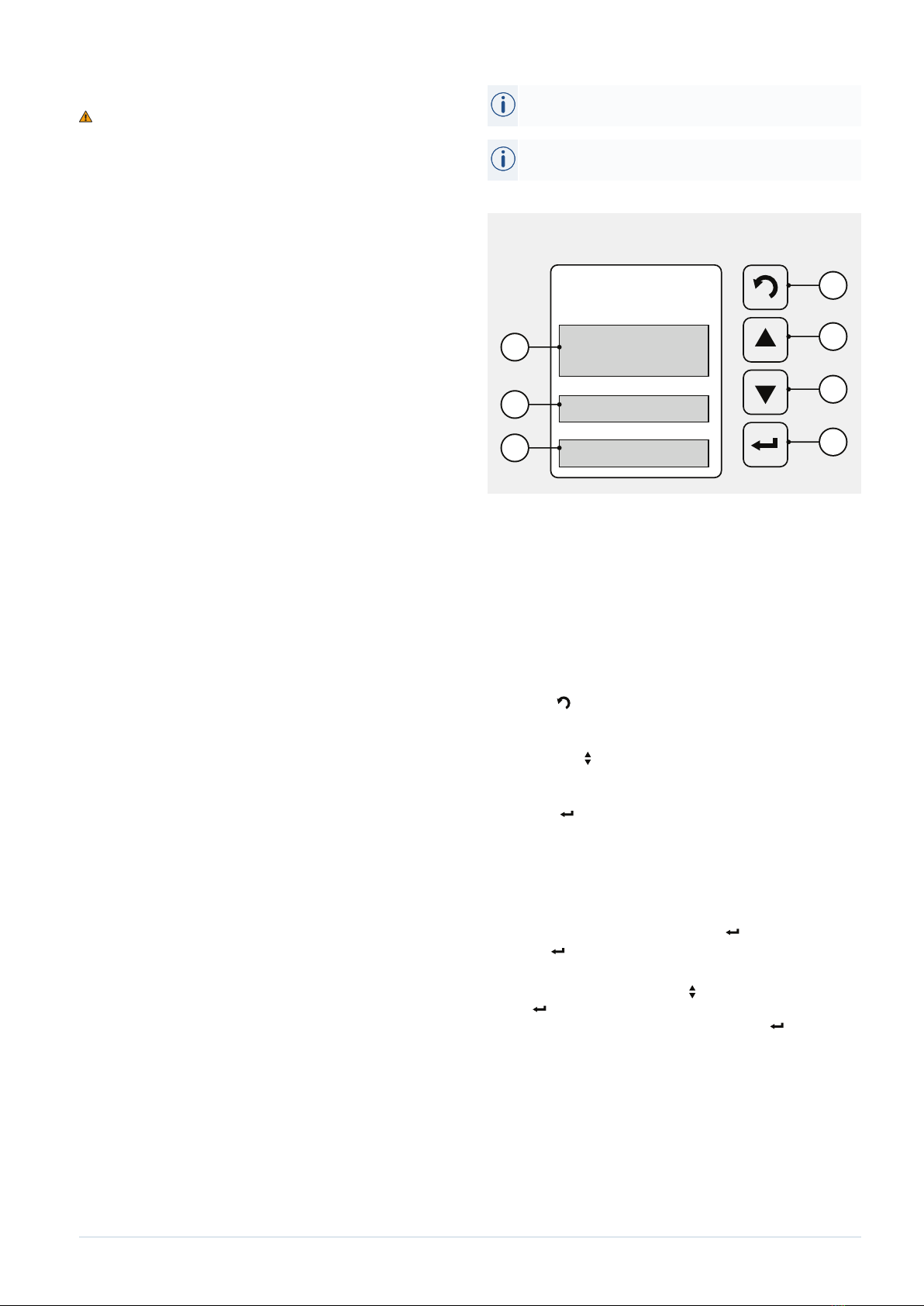

Fig.1. Display - standard view
1. Info lower data eld
2. Info middle data eld
3. Info top data eld
4. Back button
5. Up button
6. Down button
7. Enter button
2.1.1 Navigation
The buttons have the following functions:
Back Button [4]
• Return/ back
• Cycle through pre-settings in the lower data eld
Up/Down button [5 + 6]
• Navigating the menu items
• Selecting elds and characters
Enter button [7]
• Enter selected menu item
• Conrm selection/changes
2.2 Password protection
A password upon delivery protects the device from unauthorized operation
and data entry via the local navigation buttons.
Factory default password is: ‘abc’ followed by 5 x (blanks).
▶Press the button to activate the screen.
When prompted with the password dialog.
▶Select the correct character using the buttons.
▶Press to conrm, and move to the next position.
▶After entering the last character of the password: press to conrm.
The default password can be changed in Special Mode ((» 3.2, page 5).
The password is up to 8 characters long, and only may contain the following
characters:
• Small letters - a ... z
• Capital letters - A ... Z
• Numbers - 0 ... 9
2.3 Restore factory settings
The factory settings can be restored in the submenu Advanced (» Tab.6, page
5).

Menu overview
4Multi-Functional Display • 9.17.164B • 2023-02
3 Menu overview
Access to the Main Menu (settings menu), and the submenu
Advanced can be disabled in the Security Menu (» § 3.2, page 5).
Many functions can be set and selected in the display menu of the product.
A limited feature set is also available in Bronkhorst® FlowWare software (e.g.
FlowDDE, FlowSuite).
3.1 Main Menu
In the Main Menu all basic functions can be set or activated in several
submenu’s:
• Readout: readout settings and uid selection, » Tab.1
• Controller: controller characteristics, » Tab.2
• Counter: counter settings, » Tab.3
• Alarm: alarm settings, » Tab.4
• Setup: product info, display and bus settings, » Tab.5
• Advanced: sensor settings, auto zero and restore factory settings,
» Tab.6
To enter the Main Menu from the standard view:
▶Press the button.
If prompted with the password dialog:
▶Enter the password to enter the Main Menu (» 2.2, page 3).
▶Use the buttons and the button to navigate and change the
settings.
▶To return to the standard view: press the button several times.
Readout menu Display FlowWare
Readout
- Actual
- Percentage

uid selection
uid
- Gas 1
- Gas ...
- Gas 8
 
capacity kg/s Read Only 
- User dened number Read Only 
Tab.1. Menu - Readout menu
Controller menu Display FlowWare
speed x
- User dened number  
slope sec
- User dened number  
mode
- analog input
- bus/rs232
- rs232
- fb ana slave
- analog slave
- fb slave
- valve open
- valve closed
- control idle
- setpoint 100%
- setpoint 0%
 
pid controller
pid-Kp x
- User dened number  
pid-Ti sec
Controller menu Display FlowWare
- User dened number  
pid-Td sec
- User dened number  
response
open from zero
- User dened
number

normal step
- User dened
number

stable situation
- User dened
number

Tab.2. Main - controller menu
Counter menu Display FlowWare
Mode
- up
- o
- up to limit

Reset
- automatic
- manual

Unit
- ln - uls
- m3s - m3n
- dm3s - dm3n
- ls - uln
-cm3s - cm3n
-mls - mln
- mm3s - mm3n

Limit
- User dened number 
Setpoint step
- no
- yes

Setpoint %
- User dened number 
Tab.3. Main - counter menu
Alarm menu Display FlowWare
Mode
- o
- power-up
- response
- min/max

Reset
- automatic
- manual

Min Alarm %
- User dened number 
Max Alarm %
- User dened number 
Delay sec
- User dened number 
Setpoint step
- no
- yes


Menu overview
5Multi-Functional Display • 9.17.164B • 2023-02
3.2 Security Menu
In the Security Menu the password can be changed, and several menu items
from the Main Menu can be hidden or password protected. For these items,
one of the following access modes can be set:
• password: menu item is password protected
• disabled: menu item is hidden.
• enabled: menu item is available (no password prompt).
To enter the Security Menu from the standard view:
▶Press buttons simultaneously until prompted with the password
dialog.
▶Enter the password to enter the Security Menu (» 2.2, page 3).
▶Use the buttons and the button to navigate and change the
settings.
▶To return to the standard view: press the button several times.
Security menu Display FlowWare
Edit setpoint
- password
- disable
- enable

Reset counter
- password
- disable
- enable

Reset alarm
- password
- disable
- enable

Settings menu
- password
- disable
- enable

Advanced
- password
- disable
- enable

New password
- User dened 
- Conrm 
Tab.7. Security menu
Alarm menu Display FlowWare
Setpoint %
- User dened number 
Tab.4. Main - alarm menu
Setup menu Display FlowWare
Info
Usertag
- User dened data 
Serial Read Only
Model Read Only
Firmw instr Read Only
Customize
Info top 
- usertag
- serial

Info middle 
- capacity
- counter
- valve
- setpoint

Setpoint 
- step
- cursor

Readout digits
- 1 ... 5
Display
Brightness 
- 0 ... 9 
Screensaver 
- on
- o

Delay min 
- 01 ... 99 
Bus
- Bus Read Only
Bus type, if applicable Read Only
- Node address 
- User dened number 
Tab.5. Main - setup menu
Advanced menu Display FlowWare
Sensor
dyn lter
- User dened number 
stat lter
- User dened number 
Autozero
- cancel
- start auto zero

Restore
- cancel
- start restore

Tab.6. Main - advanced menu
