Brookstone Large Charging Valet User manual

KEEP HANDHELD DEVICES CHARGED AND READY
Large Charging Valet
651596_INS_Large Charging Valet_Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
e-Pad®

1
Table of conTenTs
WarningsandCautions..................................................2-5
LocationofPartsandControls.............................................6
USBChargingTipReferenceChart.......................................7-8
ChargingStationOperation.............................................9-11
CareandMaintenance....................................................11
Warranty.............................................................13-14

2
caUTIon
• TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER.
THERE ARE NO SERVICEABLE PARTS INSIDE.
• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS UNIT TO RAIN OR MOISTURE.
The lightning flash with arrow-head symbol within an equilateral triangle
is intended to alert the user to the presence of uninsulated “dangerous
voltage” within the unit’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the unit.
IMPoRTanT safeTY InsTRUcTIons
All of the safety and operating instructions should be read, adhered to and followed
before the unit is operated.
save These InsTRUcTIons
651596_INS_Large Charging Valet_Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk

IMPoRTanT safeTY InsTRUcTIons
All the safety and operating instructions should be read, adhered to and followed
before the unit is operated.
DanGeR
To reduce the risk of electric shock, burns, fire or injury:
1. Always unplug the unit from the electrical outlet immediately after using.
2. Do not use while bathing or in a shower.
3. Do not place or store the unit where it can fall or be pulled into a tub or sink.
4. Do not place in or drop into water or other liquid.
5. Do not reach for a unit that has fallen into water. Unplug it immediately.
6. Care should be taken so that objects do not fall and liquids are not
spilled onto the unit.
3

4
WaRnInG
1. Combined amp load on all outlets at any one time must not exceed
1875 watts. The maximum combined amp load is 3A/5V.
2. Do not plug more than the specified total number of watts into the plug.
3. Do not run the cord through doorways or holes in ceilings, walls or floors.
4. Ensure your device is turned off before connecting it to the outlet.
5. Fully insert the plug into the outlet.
6. Do not remove, bend or modify the metal prongs or pins of any cord.
7. Do not use excessive force to make connections.
8. Do not connect a three-prong plug to a two-hole cord.
9. Inspect the unit thoroughly before each use. Do not use if damaged.
10. Avoid using this unit in wet, oily, outdoor or high-temperature conditions.
11. If the circuit breaker “pops” due to a power overload, unplug the cord,
remove the excess power, then reset.
12. To avoid overheating, ensure the cord is uncoiled and knot-free when
in use. Do not cover the cord with any material.
13. Use only the grip on the plug to pull the plug out of a receptacle.
Never pull the plug out by the cord.
14. Do not connect refrigerators, air conditioners or other large appliances
to this unit.
651596_INS_Large Charging Valet_Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk

5
15. Do not attempt to repair the unit yourself.
16. Keep away from water and do not use when wet.
17. Keep children and pets away from the cord.
18. Do not plug one extension cord into another.
19. Do not drive, drag or place objects over the cord. Do not walk on the cord.
20. Unplug all the cords when not in use and store them inside the unit.

6
locaTIon of PaRTs anD conTRols
1. Rear Tray Cover (removable)
2. Front Tray
3. Drawer
4. Change Tray (removable)
5. 4-Port USB Power Hub
6. Access Hole
7. Adapter (A/C Adapter)
8. USB Connecting Tips
(shown on next page)
1
2
3
7
6
4
651596_INS_Large Charging Valet_Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
5

7

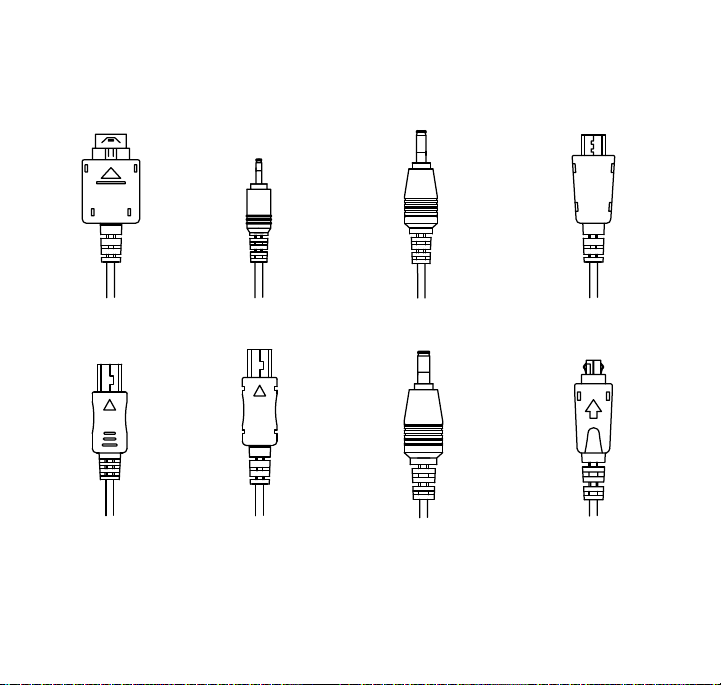

Usb chaRGInG TIP RefeRence chaRT
The tips* shown on this page fit the referenced devices—and more!
*Additional items (older and newer versions of the devices listed above) may
work with the included tips. Tips included in this kit are subject to change.
LG/Chocolate Sprint/Nokia Old Version Nokia Micro USB & Nokia
Luna & Moto V8, V9
Moto Black
& Mini USB
HTC &
Mini USB
PSP Palm Treo

8
Usb chaRGInG TIP RefeRence chaRT
Sprint®......................................2.5mm
OldNokia ...................................3.5mm
LG®Phones(Choc) ..........................LG
RazrTM (Storm) ...............................MicrominiUSB
BlackBerry®(Tour/Bold) . . . . . . . . . . . . . . . . . . . . . Micro mini USB
BlackBerry®6200-7200 .....................MiniUSB
HTC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Mini USB
AnyMiniUSBDevice ........................MiniUSB
Motorola®...................................MiniUSB
Motorola®VSeries...........................MiniUSB
Sony®PSP..................................4.0mm
Palm® TreoTM .................................PalmStandard
iPhone®and iPod®devices are supported with the original charging cable.
651596_INS_Large Charging Valet_Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk

chaRGInG sTaTIon oPeRaTIon
CHARGING STATION SET-UP
1. Remove the unit’s REAR TRAY COVER from the top of the MAIN UNIT
and remove the ADAPTER, 4-PORT USB POWER HUB and all the
CHARGING TIPS from the inner compartment and unwrap.

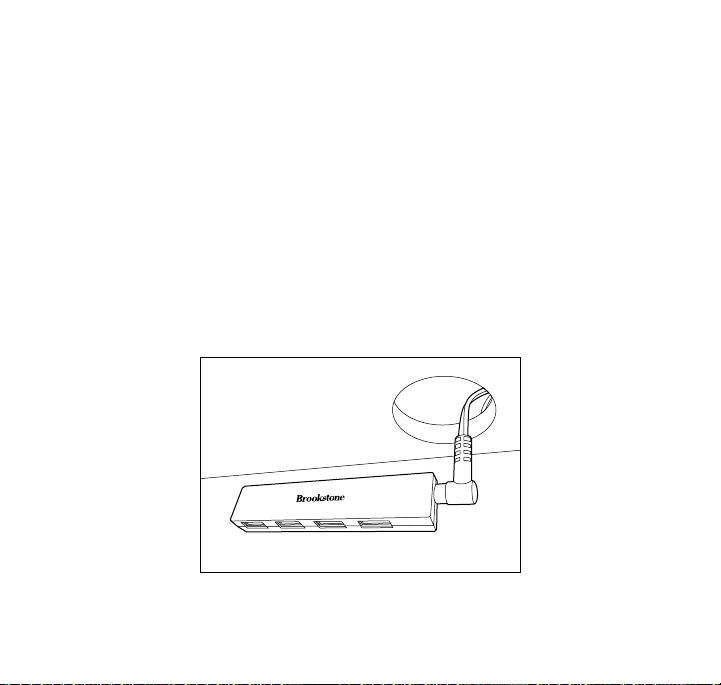

2. Run the small end of the ADAPTER cord through the ACCESS HOLE and
into the LARGE COMPARTMENT of the MAIN UNIT.
3. Plug the small end of the ADAPTER into the 4-PORT USB POWER HUB
which you have placed back on the inside of the LARGE COMPARTMENT.
9
