BRUSTOR Holiday at Home B200-ODL User manual

0. OVERVIEW
1. PLACING THE SUPPORTS
1.a Stand Alone
1.b Wall Fixation
2. PLACING THE VERTICAL POLES
3. MOUNTING THE CROSS MEMBERS
4. ADJUSTING THE CONSTRUCTION
4.a Levenless
4.b Perpendicularity
5. LOUVRE MOTOR
5.a Motorcable
5.b Programming the Receiver
6. LOUVRES
6.a Placing the Louvres
6.b Louvres with LED-strip
6.c Connecting Louvremotor
6.d Connecting the louvres
7. SCREENS
7.a Rollertubes
7.b Motorcable
8. DRAIN
9. SCREENGUIDES
9.a Guides Leadrail
9.b PVC-Guides
10. ADJUSTING THE ENDPOSITIONS
11. SCREEN COVER
12. PLACING THE RAIN GUTTERS
12.a Corner Piece
12.b Rain Gutter
13. FINISHING
13.a Drain
13.b reinforcement
13.c Rain Sensor
13.d Cover Vertical Poles
13.e Sealing 60mm + Extension Rain Gutter
14. WARRANTY CERTIFICATE
01
02
02
03
04
04
08
08
08
09
09
10
11
11
12
14
14
15
15
16
17
18
18
18
19
19
21
21
22
22
22
23
23
23
24
25

E1E2
E4E3
SCREEN W1
SCREEN L2
SCREEN W2
SCREEN L1
M
E1E2
SCREEN W1
SCREEN L2
SCREEN W2
SCREEN L1
M
E3 E2
SCREEN W2
SCREEN L1
SCREEN W1
SCREEN L2
M

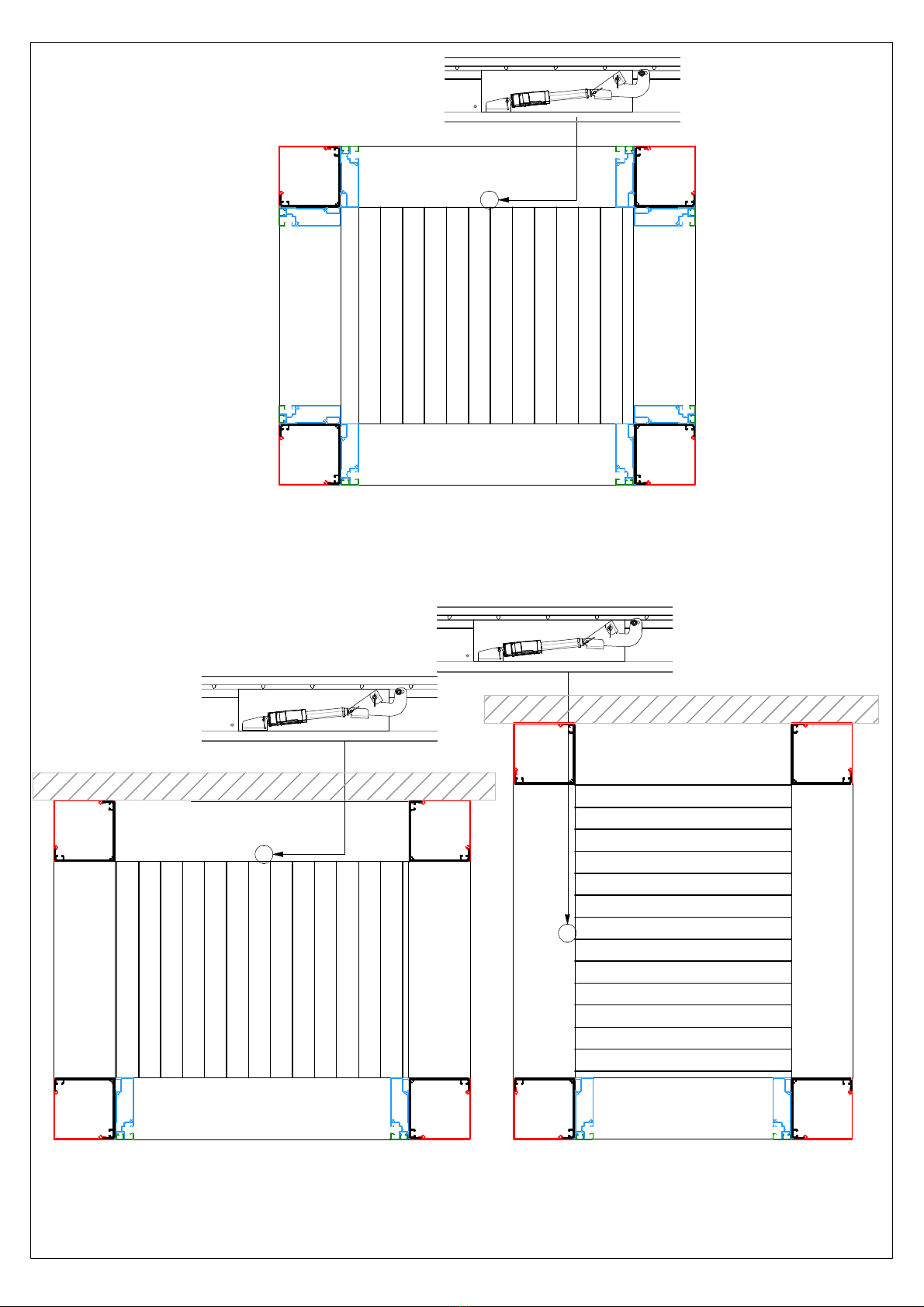

STAND ALONE
WALL FIXATION TYPE L
WALL FIXATION TYPE W

OL-B200(XL)-01
Groundanchor
Pole Support (standard)
Floorplate 20x20
Vertical pole
(pre-assembled screenguide)
Cover vertical pole
Fixation for groundanchor
Drain
(Tube D50 not
delivered)
Reinforcement
Screen
Top cover vertical pole
Corner drain
Rain gutter
Louvres
Louvre holder + cover
Motor control unit
(Pre-assembled)
Single Couple

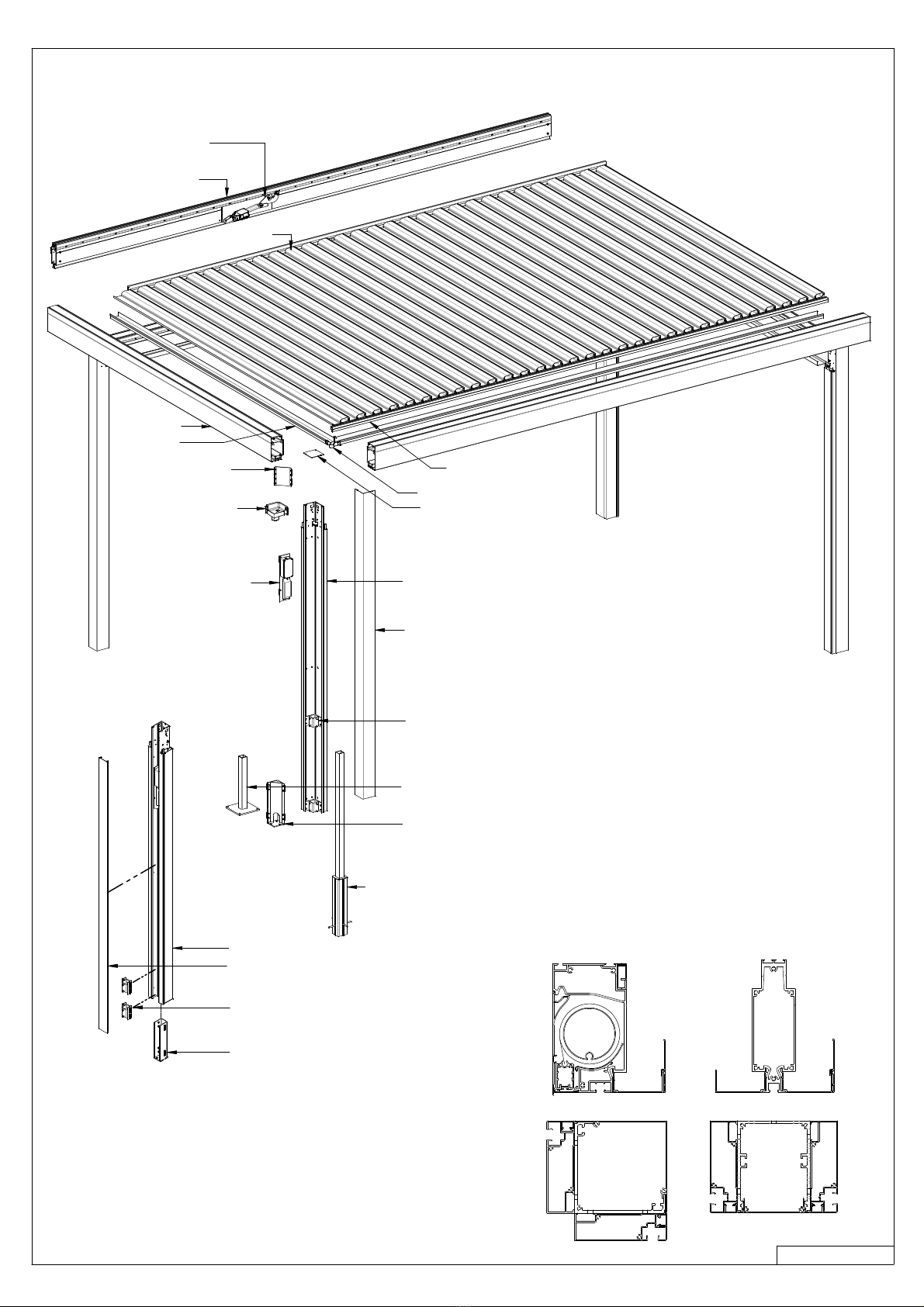

0. OVERVIEW
Pole Support coupled unit (standard)
Cover vertical coupling pole
(pre-assembled screenguide)
Vertical coupling pole
Support for ground anchor
or floor plate for coupling pole
Horizontal coupling profile
› Check if all parts are present, and check if the dimensions are as ordered
Assembled motor
(premounted)

OL-B200(XL)-02

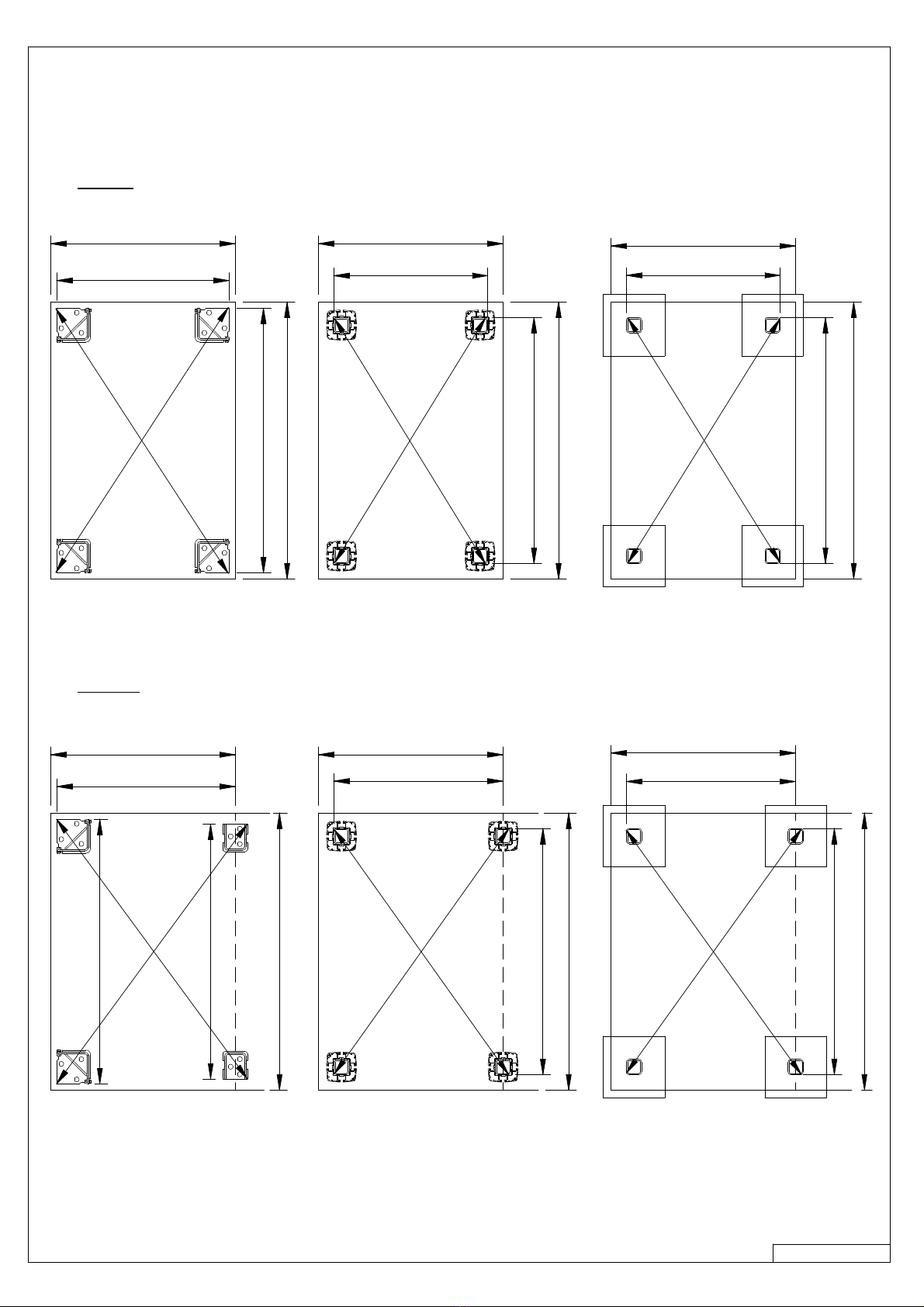

1. PLACING THE SUPPORTS
W
L
L - 10MM
W - 10MM
=
=
W
L
W
L
L - 90MM
W - 90MM
L - 90MM
W - 90MM
=
=
=
=
Pole Support Ground Anchor Floorplate 20x20
W
L
W
L
W - 45MM
L
L - 90MM
W - 45MM
L - 90MM
W
=
=
=
=
Pole Support Ground Anchor Floorplate 20x20
L - 10MM L - 40MM
W - 5MM
=
=
SINGLE
COUPLE
› Place the supports as indicated on the following drawings.
› Check the diagonals, the difference should not be more than 5mm.
1.a STAND ALONE

OL-B200(XL)-03
L
w
W - 250MM
H-100MM
H
125MM 125MM
5MM
L
W
W - 250MM125MM 50MM
5MM
50MM
SINGLE
COUPLE

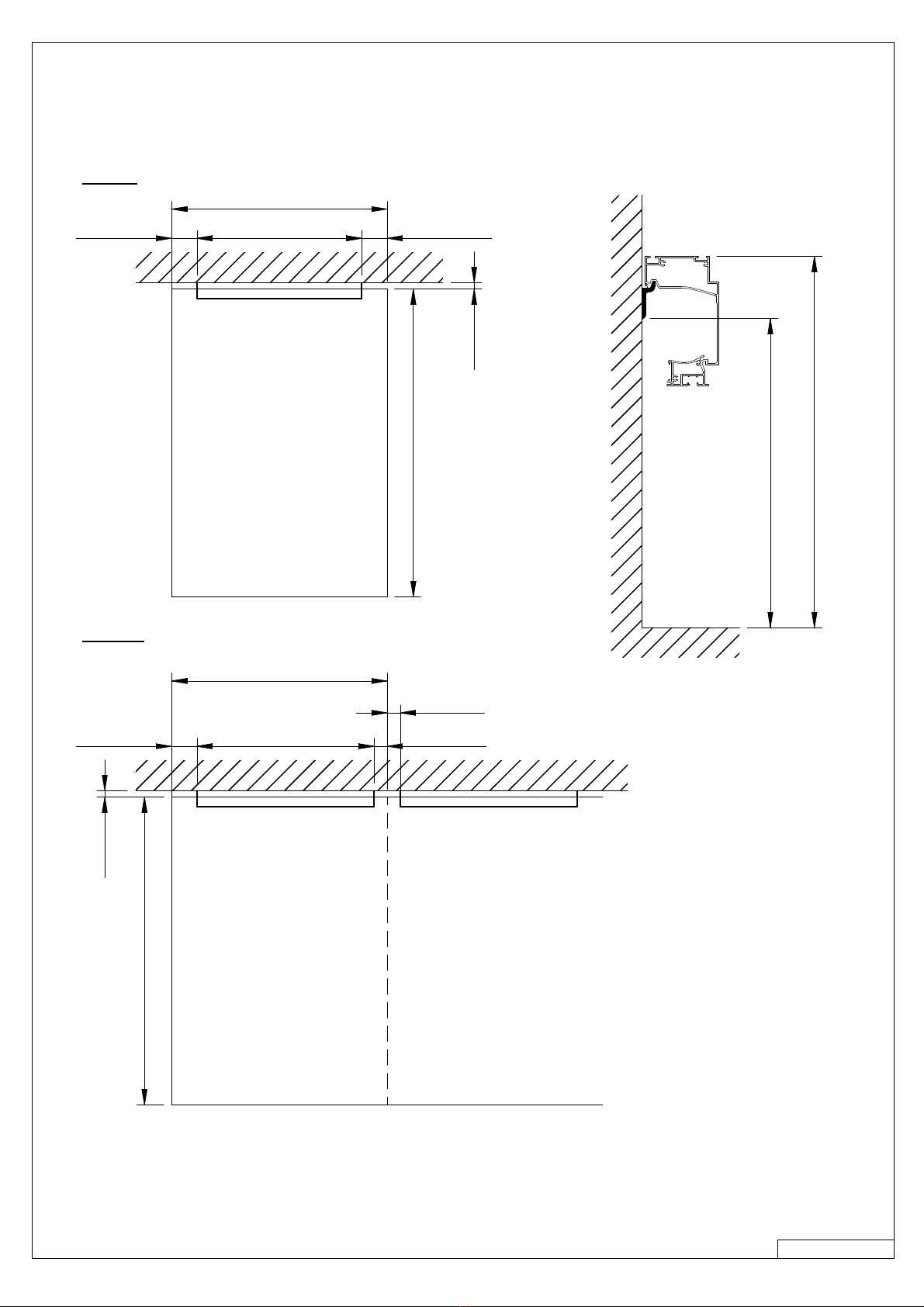

1.b WALL FIXATION
› Use the dimensions mentioned above, but add 5mm next to the wall.

OL-B200(XL)-04

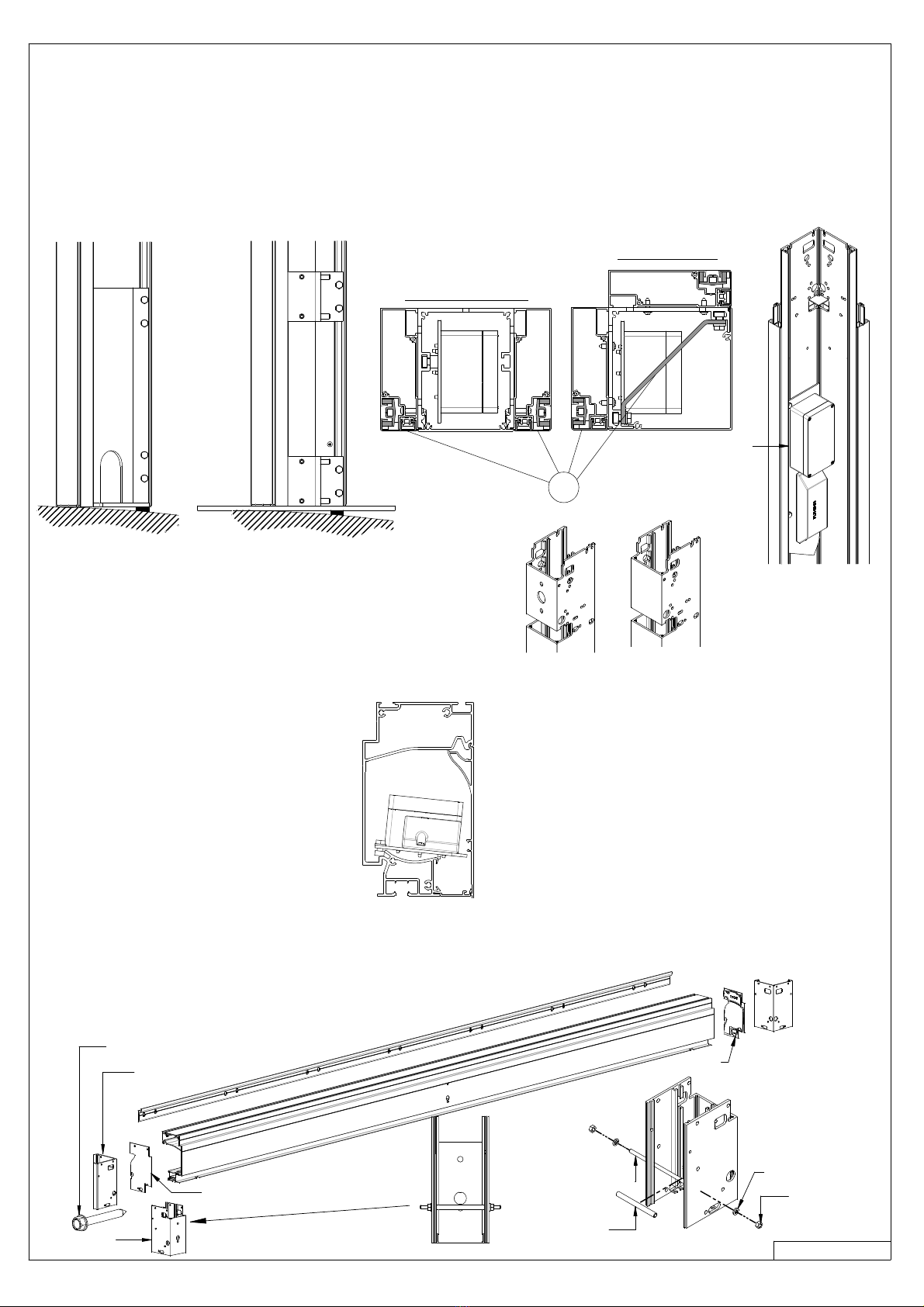

2. PLACING THE VERTICAL POLES
› In case of wallfixation, screw the short poles on to the side of the cross members.
› For a coupled unit prepare the junction part, as shown on the drawing below.
› Hook the cross members on to the walladapter.
2 x 4 DIN7504K 6.3x50
Pole Support
1
SINGLE POLE
COUPLING POLE
Single Pole
Coupling pole Tube 6x8x86
Threaded rod M6x130
› If a frame is ordered without poles, wiring can be installed in one of the horizontal profiles.
Coupling profile Door profile
Front view 3D-view

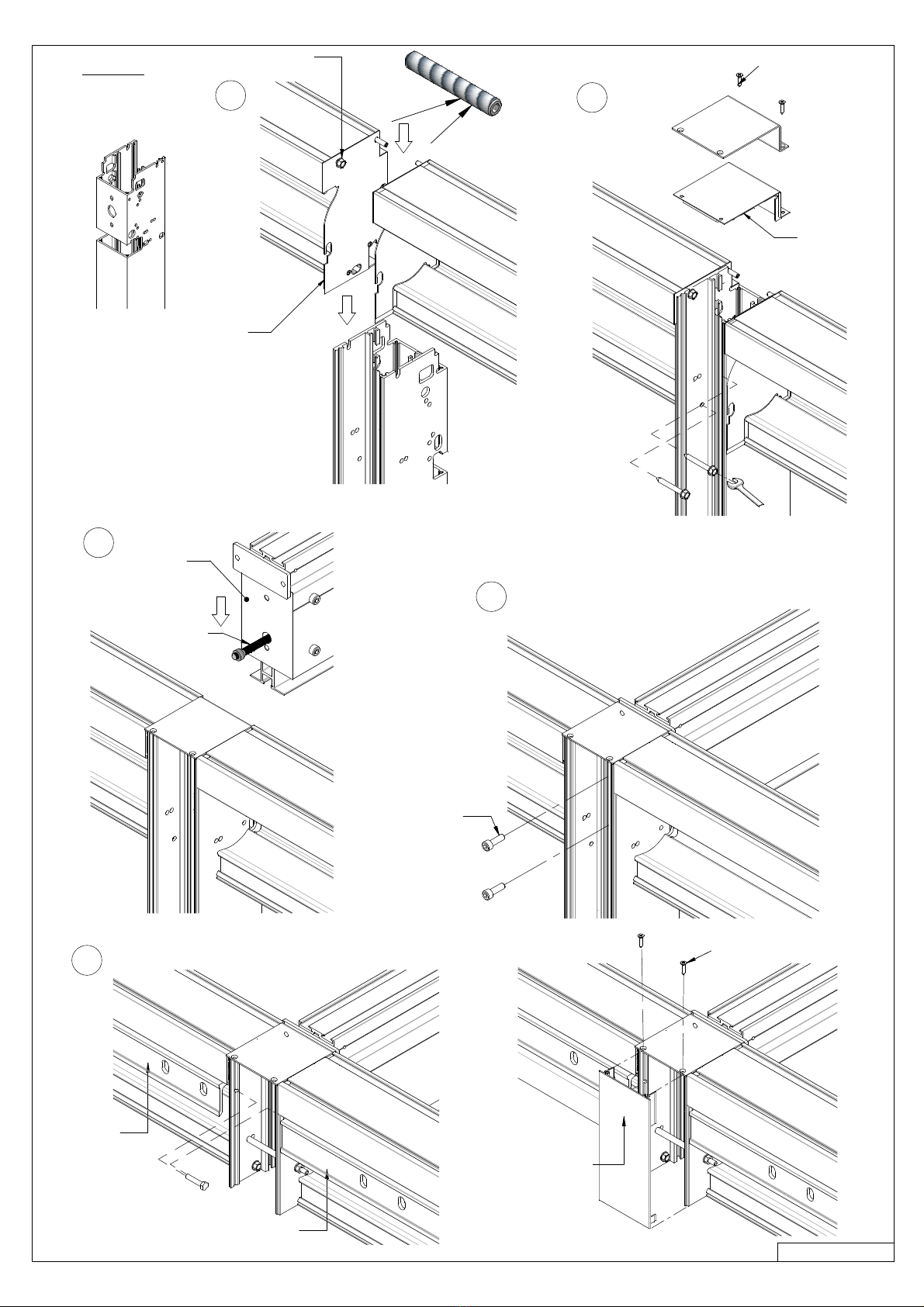

3. MOUNTING THE CROSS MEMBERS
› Remove the Pole supports from the vertical poles, also remove the premounted screenguides, and the reinforcement (1).
› Attach the pole supports or floorplates onto the floor.
› Check the dimenions from the previous page again, before fastening the bolts.
› Place the vertical pole over the supports.
› Make sure that the pole is mounted perfectly vertical.
› If necessary fill up the bumps.
› One of the poles contains the electrical supply for the louvremotor and, possibly, the led lights.
Make sure this pole is placed on the right position (according to your order).
Floorplate 20x20
Groundanchor
Electrical
supply
DIN 934 M6
washer DIN 125 M6
gasket
gasket

OL-B200(XL)-05
SINGLE
ROOF IN 2 PARTS
› Hook the middleguide between the 2 screenboxes
› Secure both sides of the middleguide with 2 bolts (M8x25).
› Remove the rollertubes from the screens.
› On both ends of the screen, screw the two upper screws in the profile (6.3x50) (1 screw if coupled).
› Do not fasten them completely, leave 10 to 15mm free space.
› Hook the cross members on to the vertical poles (1).
› Completely tighten both screws.
› Screw the two lower screws in the profile (2).
› Place the cross member with the premounted louvremotor on the right place (according to your order).
the drain should be installed on the oppisite side of motor.
› In case of wallfixation, secure the cross member by mounting a bolt on both sides of the screen (3).
SW10
4x
123
Wall fixation
DIN 912 M8x25
Motorkabel
gasket
10 a 15
gasket

OL-B200(XL)-06
Coupling profile
COUPLE
Walladapter
Walladapter
12
3
1
2
M6 x 40 4.2 x 19
6.3 x 50
+ silicone
Motorcable
2 x DIN 912 M8x25
Coverplate couple pole
wall fixation
4.2 x 19
gasket
gasket
cover
gasket

OL-B200(XL)-07
Door profile
DOOR PROFILE
1
SW10
4x
M6 x 40
› Remove the rollertubes from the screens.
› Foresee 1 screw (6.3x50) + 1 shredded rod M6 x 40 at the side of the door profile.
› Do not fasten them completely, leave 10 to 15mm free space.
› Hook the cross members on to the door profile(1).
› Fasten the screw 6.3x50 completely.
› Screw the two lower screws in the profile (2).
› Secure the coverplate on the doorprofile with 2 screws (4.2x19) (3).
2
4.2 x 19
3
› If the louvers are installed perpendicular to the side with the door, a louverholder must be installed, there are 2 possible
positions P1 or P2:
› Choose P1 if the motor is installed at side of the door then the louvreholders are to be installed on the highest position.
› Choose P2 if the motor is installed at the opposite side of the door side, then the louvreholders must be installed at the
lower position.
6.3 x 50
P1
P2
Zelfdraadtappende schroef 4.2x13
gat boren niet nodig
P1
P2
B200 B200XL
81
87
gasket
gasket
cover

OL-B200(XL)-08
L1
L1
L2
L2
L3
L3
Pole Support
Zijzicht
Bovenzicht
4 ADJUSTING THE CONSTRUCTION
› Check the top side of the construction with a laser or a level.
› If necessary, adjust the construction.
› Move the vertical poles upward untill the top side of the contruction is completely level.
› If necessary use some provisional filling.
4.a LEVELNESS
› Check the perpendicularity trough the following dimension (L1 ± 2mm !).
› Also check the diagonals of the top side.
› If necessary, the pole supports allow a small adjustment.
4.b PERPENDICULARITY
› Once everyting has been adjusted, tighten all the bolts.
› Remove the provisional filling.
Floorplate 20x20
groundanchor

OL-B200(XL)-09
optie 1
optie 2
PVC
SINGLE
› Guide the cable in the direction of the wiring box.
› Store the motorcable behind the lip of the PVC fabric support profile.
ROOF IN 2 PARTS

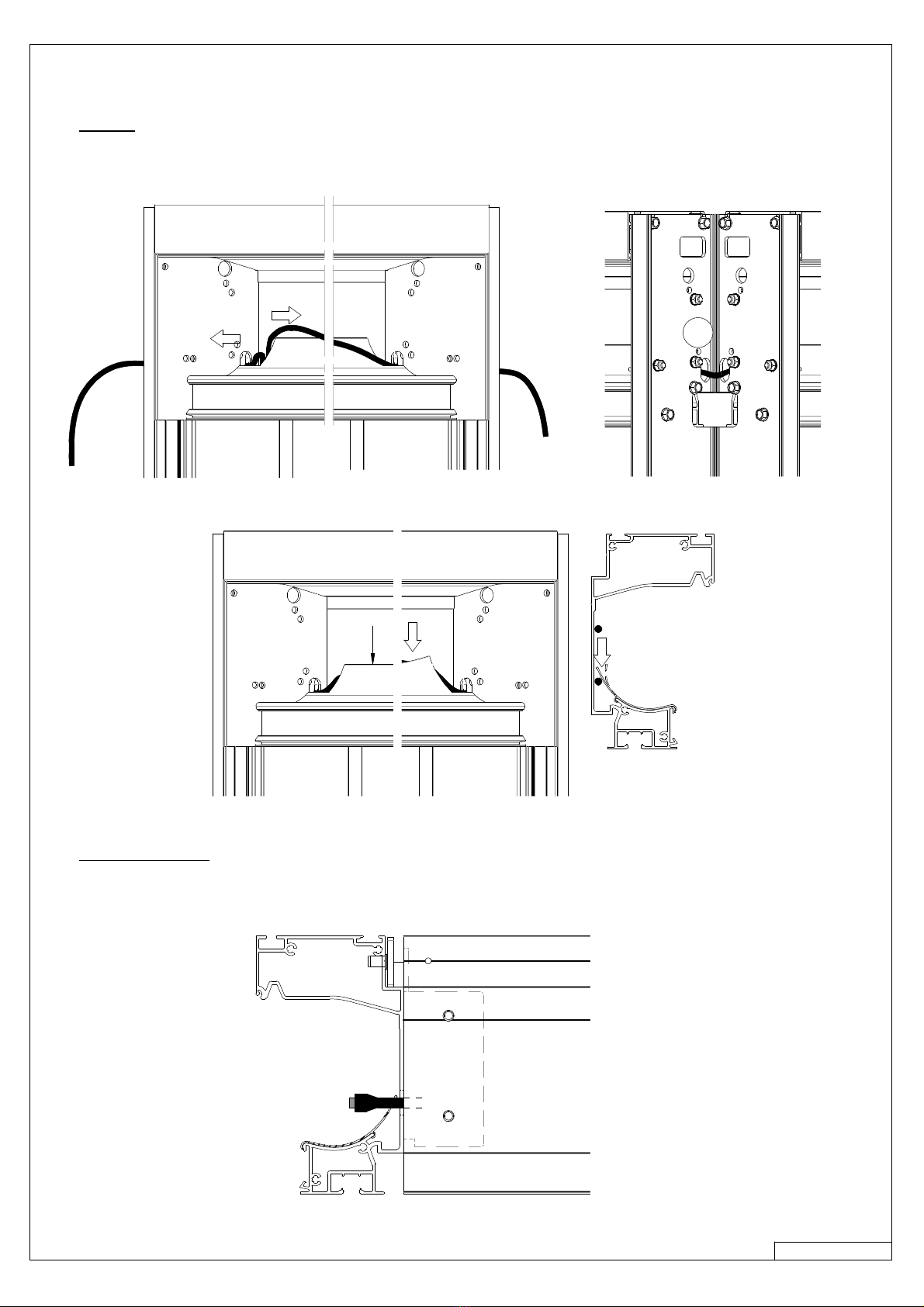

5.a MOTORCABLE
3
5. LOUVRE MOTOR
› Place the cable of the louvremotor as shown on the following drawing.
› Depending on the position of the motor to the electrical supply, choose option 1 or 2.
› If necessary, the cable can be diverted inside the vertical poles (nr 3).
› Hide the cable behind the PVC fabric protection

OL-B200(XL)-10
5.b PROGRAMMING THE RECEIVER
› Connect the louvremotor and the power as shown on the instructions at the end of this manual.
› Open the wiring box labelled “ MOTOR” and program the receiver and handset as shown underneath.
SINGLE KOPPEL
1
2

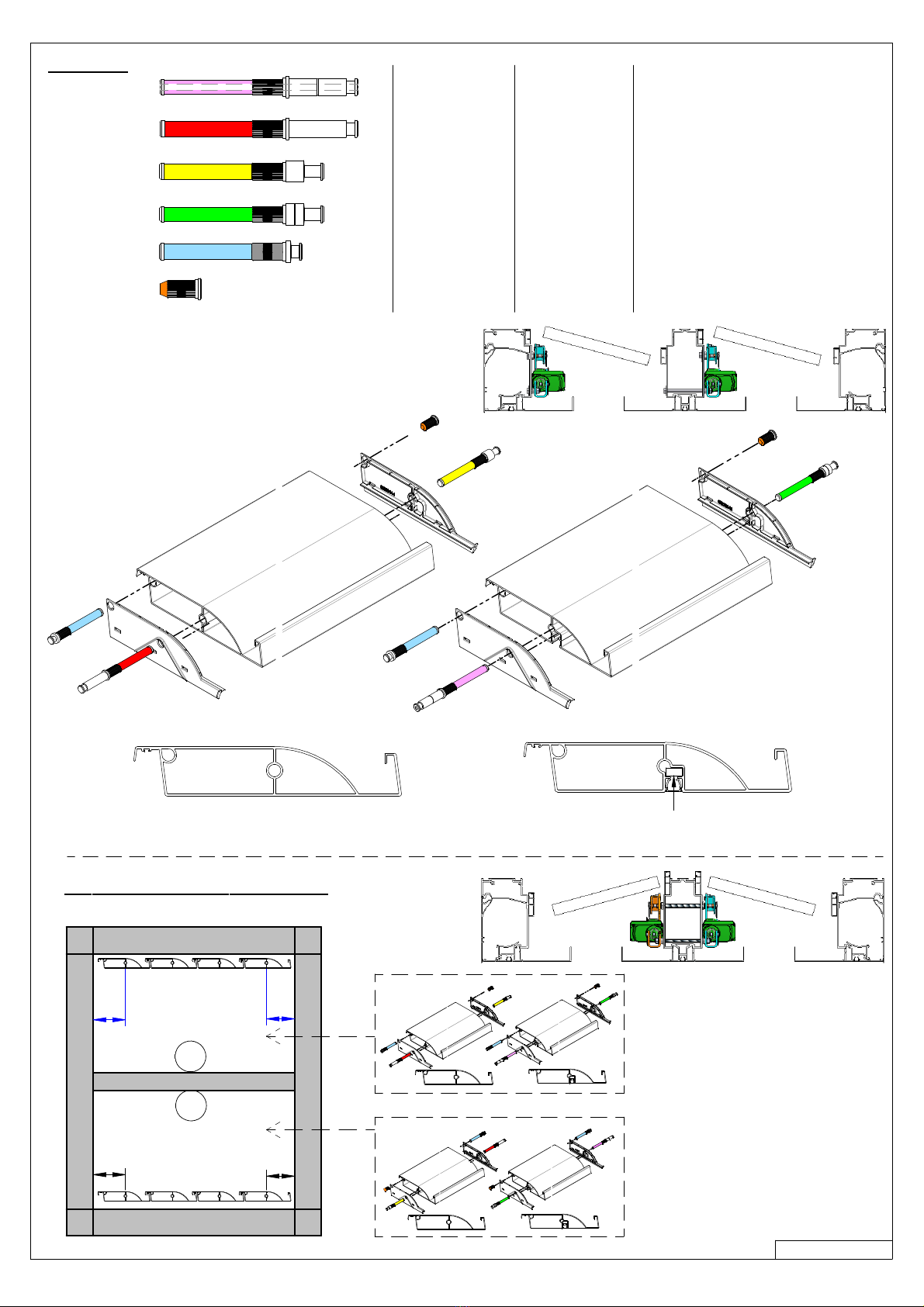

6.a PREPARING AND PLACING THE LOUVRES
› Foresee every louvre of a water guide (Louvre XL = 2 Pieces).
› Place the axle in the louvres using a hammer.
6 LOUVRES
B200
LED
- White
Flat LED
x
x
x
x
xx

OL-B200(XL)-11
B200XL
LED
- White
- RGB
Flat LED
x
x
x
x
xx
xx
B200XL - DOUBLE ROOF
134
204
116
186
134
204
116
186
L2
L1
W2 W1
M
M

OL-B200(XL)-12
SINGLE
› Equip every axle with a plastic bearing.
› Place the louvres in the gaps in the louvreholder.
› The longest axles should be mounted in the highest louvreholder.
6.b LOUVRE WITH LED-STRIP
› Place the louvre as described above.
› Put the cable in the louvreholder (1).
› Then put the cable through the hole so it ends up in the vertical pole (2).
Louvreholder
Louvreholder
Louvreholder
2
1
2
4900 u 210
4970 u 210
5040 u 210
5080 u 160
29
99
99
99
29 29
29 29
B200 B200XL
› Place two or three louvres on both sides.
› Attach the "first louvres" to the crossmembers W1 and W2.
› Place the rest of the louvres.

OL-B200(XL)-13
› Place the louvre as described above.
› Put the cable in the louvreholder. First along the L-side, than further along the W-side.
› Pass the cables of the LED-strip(s), through a hole in the vertical pole.
COUPLE / ROOF IN 2 PARTS
› When the electrical supply was mounted inside one of the vertical poles on the lower side,
then guide the cable through one of the screens.
› Depending on the length of the cable, it may be necessary to add an extra piece of cable.
4
4
Louvreholder
Louvreholder

OL-B200(XL)-14
6.c CONNECTING LOUVREMOTOR
› Place the third louvreholder on top of the long axles, and move the motor until it is possible to make a connection.
6.d CONNECTING THE LOUVRES
› Turn the louvres one by one with the small axle upward, and hook it in the third louvreholder.
› When all louvres are mounted in all three louvreholders, put the covers on the louvreholders and secure them with three
screws.
SW13
1
11
2
22
4x DIN7504 4.2x13
1
11
2
22
4x DIN7504 4.2x13
B200 B200XL
B200
B200XL
› For ease of installation, you can turn the cover in place in stead of sliding.

OL-B200(XL)-15

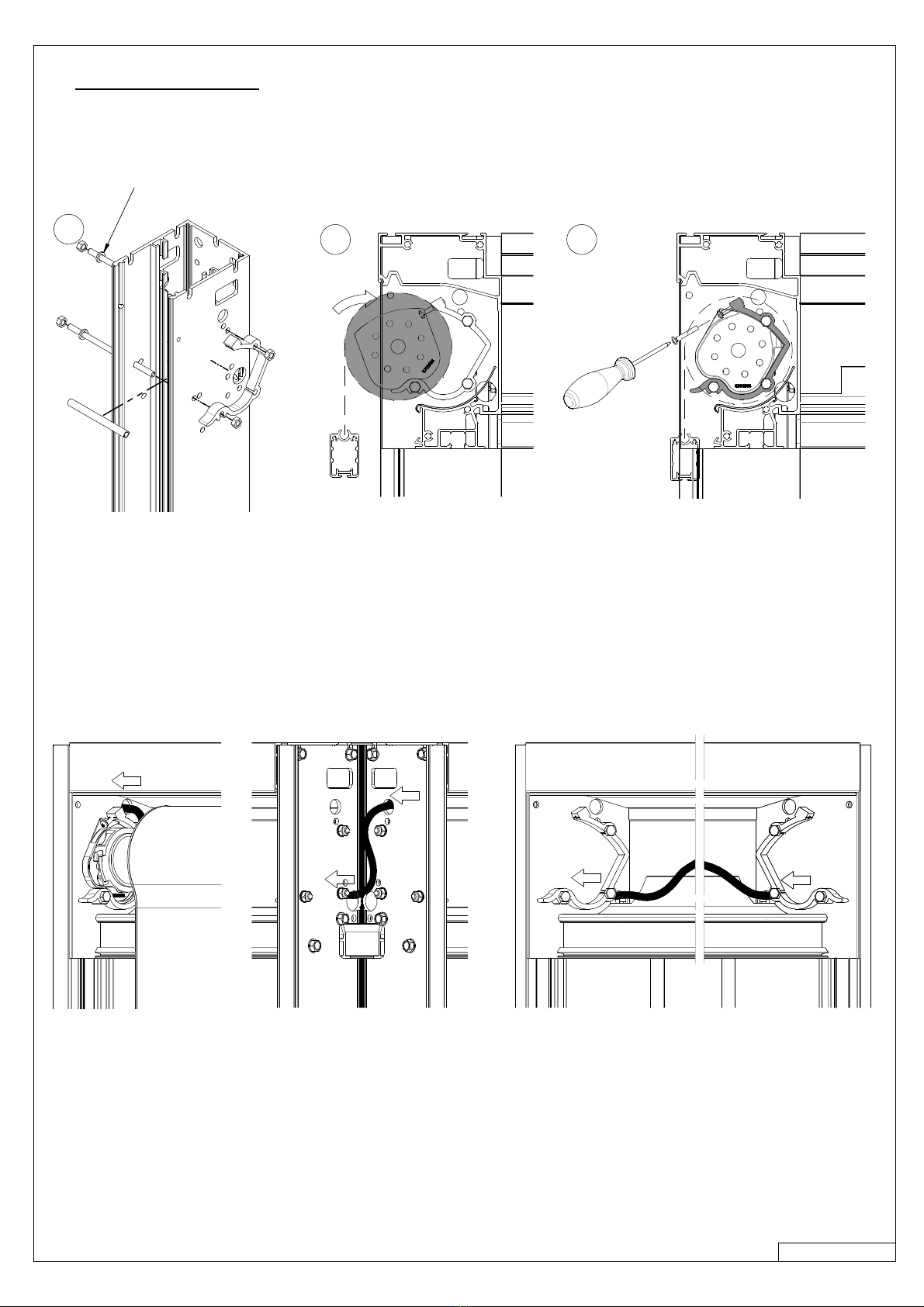

7. SCREENS
220V
1
1
2
2
7.a ROLLERTUBES
1 2 3
› The rollertube support can be installed in 2 different ways depending on the type of fabric, see drawing underneath.
› When mounting the rollertube supports, you should first drill through the gaskets
SINGLE
› If there are 3 or 4 screens, start with the screenswith the longest distance from the electrical supply.
(number 1 on the following diagram)
› Attach the rollertube supports to the vertical poles (3 x M6x25) (1).
› Insert the screens as shown below (2), and secure them on both sides (M4x20) (3).
Sergé
PVC (without window)
PVC with window Rolas diameter 100MM
drill through
the gaskets

OL-B200(XL)-16
› Fix the rollertube support on the vertical poles as shown underneath.
› Do “not” use a ring on the side where the rollertube support is installed.
› Two rollertube supports can be installed at each pole.
› Tilt the screen in the brackets as shown on the drawing (2), and secure them at both ends (M4x20) (3).
COUPLE / DOORPROFILE
2 3
Ring, only needed if
no rollertube support has to be installed
1
7.b MOTORCABLE
1
2322
› Place the cable as shown below.
› numbers 2 and 3 only count for the most distant screens (number 1 on the diagram on top of the previous page).
› Hide the cable behind the PVC fabric protection.
› In some cases it may be necessary to hide the cable behind its own rollertube !
1

OL-B200(XL)-17
Cable louvremotor
Cable screenmotor (nr 2 on previous page)
Cable screenmotor (nr1 on previous page)
Cable screenmotor (nr 1 on previous page)
Cable screenmotor (nr 2 on previous page)
8. DRAIN
› After installing all the motors, the vertical pole with the electrical supply should look like this:
› The number of cables depend on the numbers of screens that have been installed.
› The connection of the cables will be explained later on.
› Place in one or more vertical pole a support for the drain.
› If possible, place the drain on the opposite side of the louvremotor. 1drain / 15m².
› Tighten all bolts.
› The water evacuation pipe can not be installed in a door profile.
SINGLE KOPPEL
