Brymen BM061 User manual

USER'S
MANUAL
BM061
BM062
BM063
BM065
Compact AC/DC
Clamp-on
Multimeter Series

1
1) SAFE Y
This manual contains information and warnings that must be followed for operating the
instrument safely and maintaining the instrument in a safe operating condition. If the
instrument is used in a manner not specified by the manufacturer, the protection
provided by the instrument may be impaired.
The meter protection rating, against the users, is double insulation per IEC61010 1 2nd
Ed., EN61010 1 2nd Ed., UL61010 1 2nd Ed., CAN/CSA C22.2 No. 61010 1, 2nd Ed.,
IEC61010 2 032, EN61010 2 032, UL61010B 2 032 and CAN/CSA C22.2 No.
61010 2 032 04:
Category CAT III 600V AC & DC.
PER IEC61010 OVERVOL AGE INS ALLA ION CA EGORY
OVERVOLTAGE CATEGORY II
Equipment of OVERVOLTAGE CATEGORY II is energy consuming equipment to be
supplied from the fixed installation.
Note – Examples include household, office, and laboratory appliances.
OVERVOLTAGE CATEGORY III
Equipment of OVERVOLTAGE CATEGORY III is equipment in fixed installations.
Note – Examples include switches in the fixed installation and some equipment for
industrial use with permanent connection to the fixed installation.
OVERVOLTAGE CATEGORY IV
Equipment of OVERVOLTAGE CATEGORY IV is for use at the origin of the
installation. Note – Examples include electricity meters and primary over current
protection equipment.
ERMS IN HIS MANUAL
WARNING identifies conditions and actions that could result in serious injury or even
death to the user.
CAUTION identifies conditions and actions that could cause damage or malfunction
in the instrument.

2
WARNING
To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture. The meter is intended only for indoor use.
To avoid electrical shock hazard, observe the proper safety precautions when working
with voltages above 60 VDC or 30 VAC rms. These voltage levels pose a potential
shock hazard to the user.
Keep your hands/fingers behind the hand/finger barriers (of the meter and the test
leads) that indicate the limits of safe access of the hand held part during measurement.
Inspect test leads, connectors, and probes for damaged insulation or exposed metal
before using the instrument. If any defects are found, replace them immediately.
This Clamp on meter is designed to apply around or remove from uninsulated
hazardous live conductors. But still, individual protective equipment must be used if
hazardous live parts in the installation where measurement is to be carried out could be
accessible.
CAUTION
Disconnect the test leads from the test points before changing meter functions.
IN ERNA IONAL ELEC RICAL SYMBOLS
!
!!
!
Caution ! Refer to the explanation in this Manual
Caution ! Risk of electric shock
Earth (Ground)
Double Insulation or Reinforced insulation
Fuse
AC Alternating Current
DC Direct Current
Application around and removal from hazardous live conductors is permitted
2) CENELEC Directives
The instruments conform to CENELEC Low voltage directive 2006/95/EC and
Electromagnetic compatibility directive 2004/108/EC

3
3) PRODUC DESCRIP ION
Note: Top of the line model is used as representative for illustration purposes. Please
refer to your respective model for function availability.

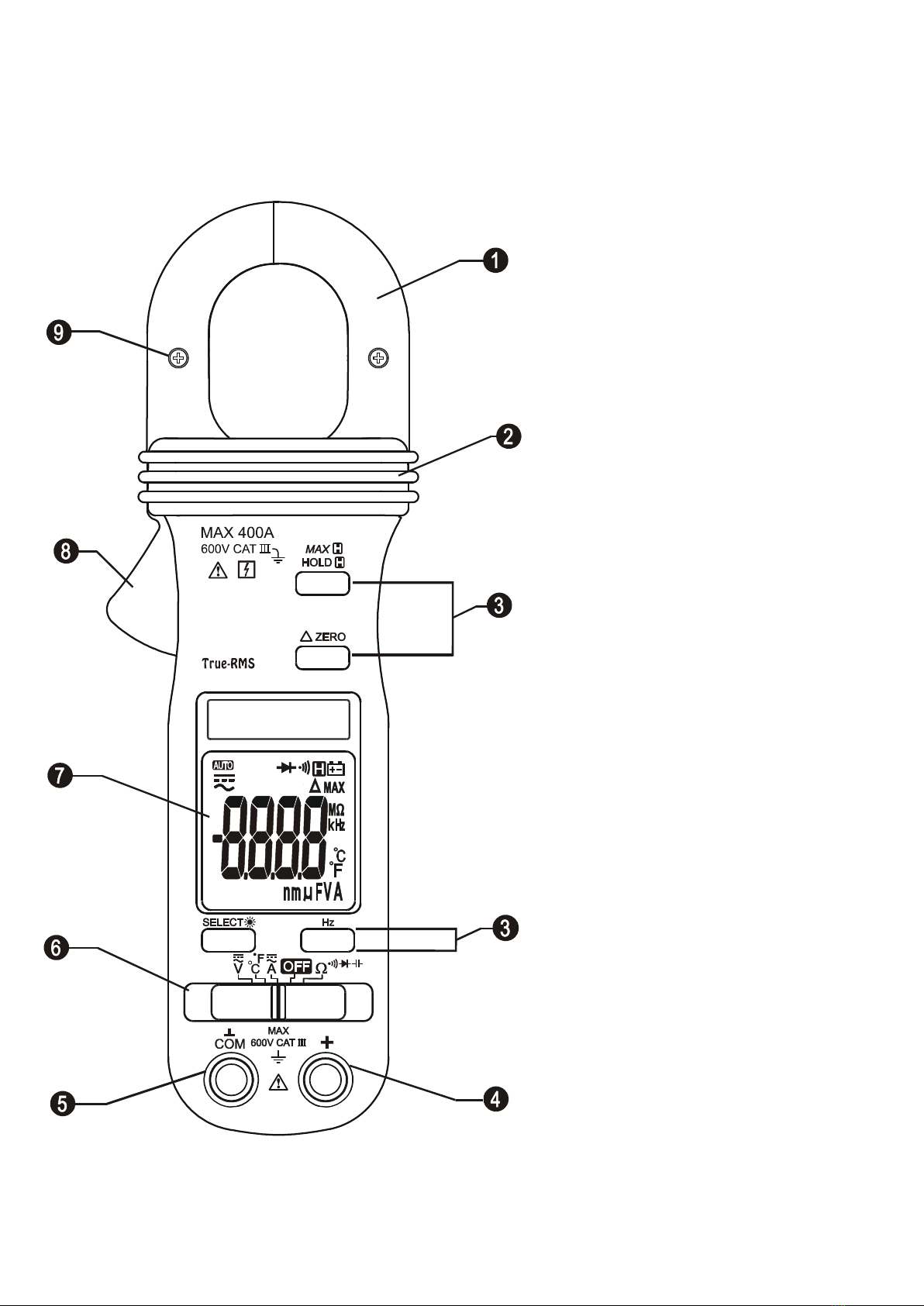

1) Hall effect Clamp Jaw for AC
& DC current magnetic field pick
up
2) Hand/Finger Barrier to
indicate the limits of safe access
of the meter during
measurement
3) Push buttons for special
functions & features
4) Input Jack for all functions
EXCEPT non invasive ACA &
DCA current functions
5) Common (Ground reference)
Input Jack for all functions
EXCEPT non invasive ACA &
DCA current functions
6) Slide switch Selector to turn
the power ON/OFF and Select a
function
7) 3 3/4 digits 4000 counts LCD
display
8) Jaw trigger for opening the
clamp jaw
9) DCA direction for + polarity as
well as Jaw center Indicator, at
where best ACA & DCA
accuracy is specified

4
4) OPERA ION
CAUTION: Before and after hazardous voltage measurements, test the voltage
funct on on a known source such as l ne voltage to determ ne proper meter funct on ng.
DC Voltage, AC Voltage, Hz Frequency functions
Set slide switch to Voltage function position. Inputs are made through the test leads
terminals. For Models 063 & 065, slide switch on defaults at AC voltage. Press
SELEC button momentarily to select DC voltage. For Models 061& 062, separate
ACV & DCV slide switch positions are being used.
Press the Hz button momentarily to activate Hz Frequency. The Hz trigger level is
determined by the selected function range from where the Hz function is activated. In
ACV function, activating the Hz function during significant measurements can get the
most appropriate trigger level to avoid electrical noises in most cases. Electrical noise
may cause unstable Hz reading. Activating the Hz function at AC 4.000V range (before
making significant measurements) can get lower trigger level (higher sensitivity). Hz
reading may show zero when the sensitivity is insufficient.

5
Note: DC 400.0mV range is designed with 1000MΩ high input impedance for least
current drain in measuring small signals, and can cope better with most commercially
available voltage output transducers/adapters. The non zero display reading is normal
when the meter inputs are open circuit, which will not affect actual measurement
accuracy. The meter will show close to zero readings when the inputs are shorted.
Open input is actually a floating condition, which is not a zero volt input condition.
ACA & DCA Current clamp-on function
Inputs are made through the clamp jaws for non invasive ACA & DCA current
measurements.
CAUTION (Appl cat on and removal of the Clamp-on meter)
Press the jaw trigger and clamp the jaws around only one single conductor of a circuit
for load current measurement. Make sure the jaws are completely closed, or else it will
introduce measurement errors. Enclosing more than one conductor of a circuit will
result in differential current measurement (like identifying leakage current). Locate the
conductor(s) at the Jaws center as much as possible to get the best measuring
accuracy. The jaw “+” mark indicates current flow direction on DCA positive readings.

6
For removal, press the jaw trigger and remove the jaws from the conductor(s).
Note: In DCA measurements, hysteresis of the jaws (after measuring high DC currents)
may introduce non zero residual readings. Relative Zero mode should be used
each time to offset the residual readings, if any, for more accurate measurements.
Adjacent current carrying devices such as transformers, motors and conductor wires
will affect measurement accuracy. Keep the jaws away from them as much as possible
to minimize influence.
Ω
ΩΩ

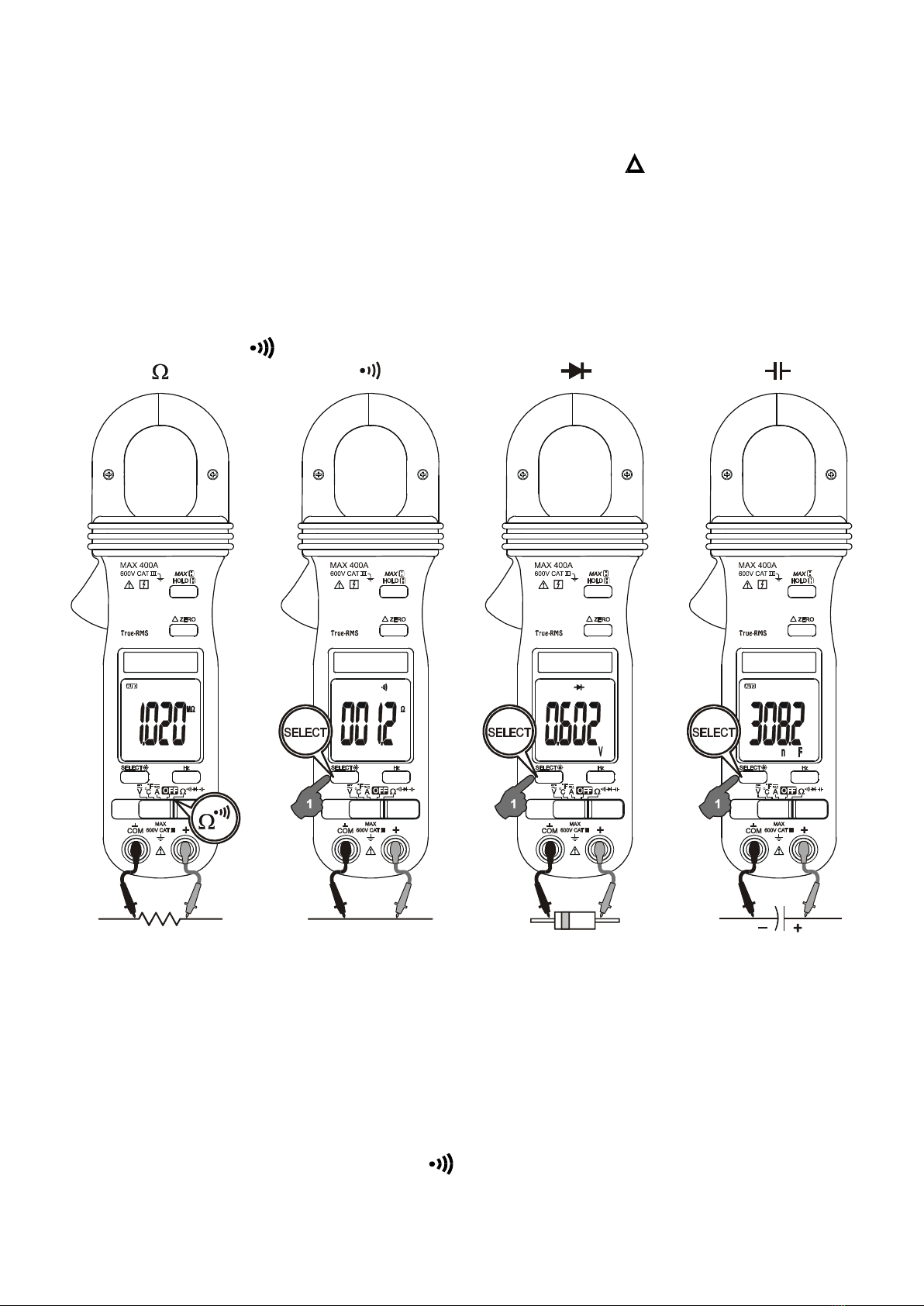

Ω Resistance, and Continuity functions
CAUTION
Using Resistance, Continuity or Diode function in a live circuit will produce false results
and may damage the instrument. In many cases the suspected component must be
disconnected from the circuit to obtain an accurate measurement reading
Inputs are made through the test leads terminals. Slide switch on defaults at Ω. Press
SELEC button momentarily to select Continuity function which is convenient for
checking wiring connections and operation of switches. A continuous beep tone
indicates a complete wire.

7
Diode test function
Inputs are made through the test leads terminals. Slide switch on defaults at Ω. Press
SELEC button momentarily 2 times to select Diode test function. Normal forward
voltage drop (forward biased) for a good silicon diode is between 0.400V to 0.900V. A
reading higher than that indicates a leaky diode (defective). A zero reading indicates a
shorted diode (defective). An OL indicates an open diode (defective). Reverse the test
leads connections (reverse biased) across the diode. The digital display shows OL if
the diode is good. Any other readings indicate the diode is resistive or shorted
(defective).
Capacitance function
Inputs are made through the test leads terminals. Slide switch on defaults at Ω. Press
SELEC button momentarily 3 times to select Capacitance function. Relative zero
mode can be used to zero out the parasitic capacitance of the leads and the internal
protection circuitry of the meter when measuring low capacitance in the order of Pico
Farad (pF).
CAUTION
Discharge capacitors before making any measurement. Large value capacitors should
be discharged through an appropriate resistance load

8
emperature function (Model 065 & 063 only)
Be sure to insert the banana plug type K temperature bead probe Bkp60 with correct
polarities. Slide switch on defaults at degree C (Celsius). Press SELEC button
momentarily to select degree F (Fahrenheit). You can also use a plug adapter Bkb32
(Optional purchase) with banana pins to type K socket to adapt other type K standard
mini plug temperature probes.
HOLD
The Hold feature freezes the display for later viewing. Press the HOLD button
momentarily to toggle to the Hold feature. The annunciator “ ” turns on.
MAX
The max feature compares and displays the measured maximum value as fast as

9
30ms with auto ranging capability. It allows the meter to capture in rush currents in
current functions. Press and hold the MAX button for 1 second or more to toggle to
the max feature. The annunciators “MAX” and “ ” turn on.
Relative Zero mode
Relative Zero mode allows the user to offset the meter consecutive measurements
with the displaying reading as the reference value. The display will now show readings
relative to the stored reference value. That is, display = reading stored value. Press
the button momentarily to toggle to the relative zero mode. The annunciator “ ”
turns on. The meter also enters manual ranging mode where available. The
annunciator “ ” turns off.
Display Backlight (Model 065 & 062 only)
Press the SELEC button for 1 second or more to toggle the display backlight on and
off.
Auto Power Off (APO)
When the meter is on, the Auto Power Off (APO) feature will switch the meter to sleep
mode automatically after approximately 30 minutes of neither slide switch nor push
button operations to extend battery life. To wake up the meter from APO, press any
push button momentarily or set the slide switch to the OFF position and then slide back
on again. Always set the slide switch to the OFF position manually when the meter is
not in use.
5) MAIN ENANCE
WARNING
To avoid electrical shock, disconnect the meter from any circuit, remove the test leads
from the input jacks and turn OFF the meter before opening the case. Do not operate
with open case.
rouble Shooting
If the instrument fails to operate, check batteries and test leads etc., and replace as
necessary. Double check operating procedure as described in this user’s manual
If the instrument voltage resistance input terminal has subjected to high voltage
transient (caused by lightning or switching surge to the system) by accident or
abnormal conditions of operation, the series fusible resistors will be blown off (become
high impedance) like fuses to protect the user and the instrument. Most measuring

10
functions through this terminal will then be open circuit. The series fusible resistors
and the spark gaps should then be replaced by qualified technician. Refer to the
LIMITED WARRANTY section for obtaining warranty or repairing service.
Cleaning and Storage
Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives
or solvents. If the meter is not to be used for periods of longer than 60 days, remove
the batteries and store them separately
Battery replacement
The meter uses standard 1.5V AAA Size (NEDA 24G or IEC R03) battery X 2; or 1.5V
AAA Size (NEDA 24A or IEC LR03) alkaline battery X 2.

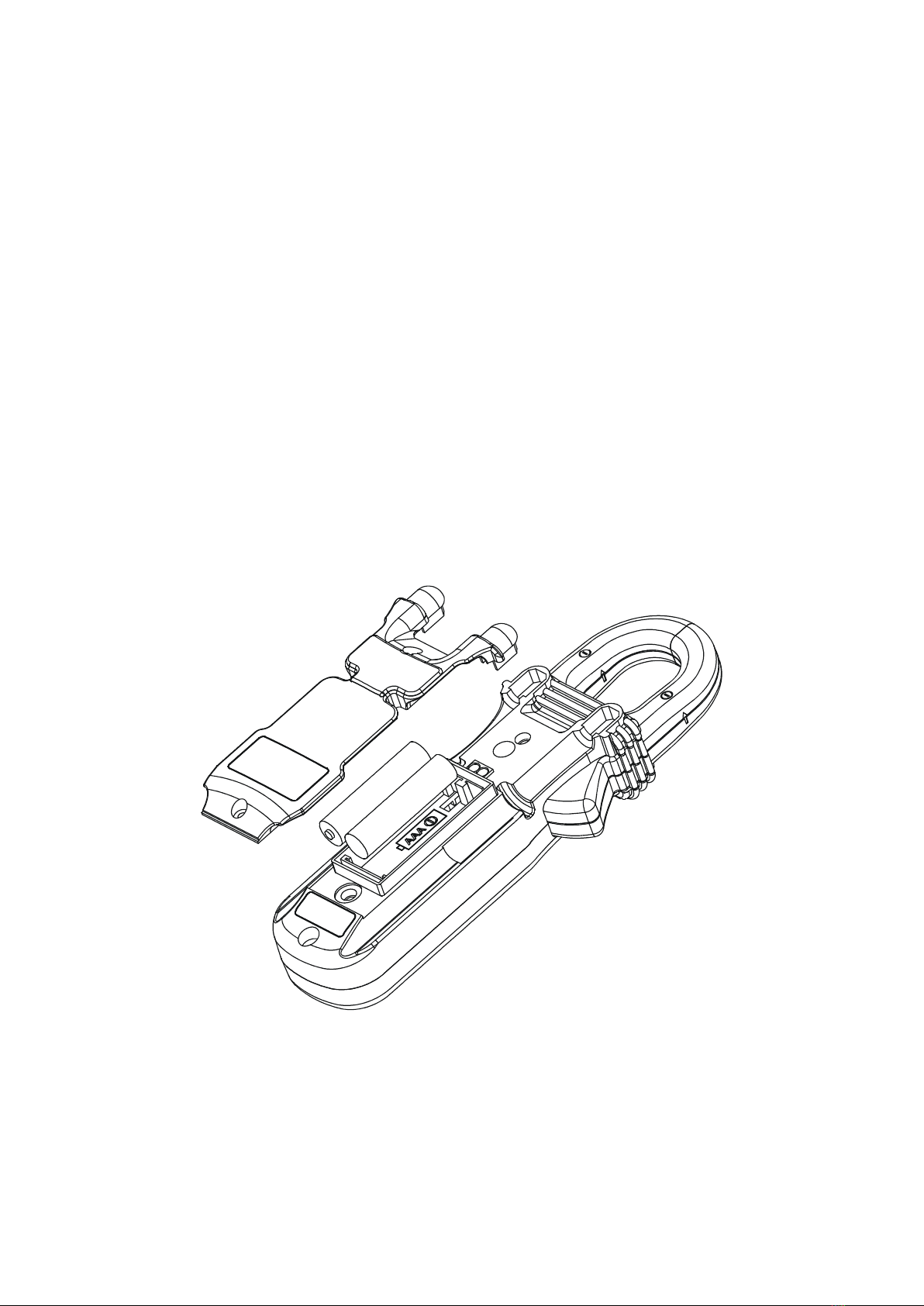

Loosen the 2 captive screws from the battery cover case. Lift the battery cover case.
Replace the batteries. Replace battery cover case. Re fasten the screws.

11
6) SPECIFICA IONS
Display : 3 3/4 digits 4000 counts LCD display(s)
Update Rate : 3 per second nominal
Polarity : Automatic
Low Battery : Below approx. 2.4V
Operating Temperature : 0oC to 40oC
Relative Humidity : Maximum relative humidity 80% for temperature up to 31oC
decreasing linearly to 50% relative humidity at 40oC
Altitude : Operating below 2000m
Storage Temperature : 20oC to 60oC, < 80% R.H. (with battery removed)
Temperature Coefficient : nominal 0.15 x (specified accuracy)/ oC @(0oC 18oC or 28oC
40oC), or otherwise specified
Sensing : Average sensing for Models 061 & 063; True RMS for Models 062 & 065
Safety : Meets IEC61010 1 2nd Ed., EN61010 1 2nd Ed., UL61010 1 2nd Ed.,
CAN/CSA C22.2 No. 61010.1 0.92, IEC61010 2 032, EN61010 2 032 &
UL61010B 2 032 and CAN/CSA C22.2 No. 61010 2 032 04:
Category III 600 Volts ac & dc.
Transient protection : 6.5kV (1.2/50µs surge) for all models
Pollution degree : 2
E.M.C. : Meets EN61326 1:2006 (EN55022, EN61000 3 2, EN61000 3 3,
EN61000 4 2, EN61000 4 3, EN61000 4 4, , EN61000 4 5, EN61000 4 6,
EN61000 4 8, EN61000 4 11)
In an RF field of 3V/m:
Capacitance function is not specified
Other function ranges: Total Accuracy = Specified Accuracy + 50igits
Performance above 3V/m is not specified
Overload Protections :
Clamp on jaws : DC/AC 400A rms continuous
+ & COM terminals (all functions) : 600VDC/VAC rms
Power Supply : standard 1.5V AAA Size (NEDA 24G or IEC R03) battery X 2; or 1.5V
AAA Size (NEDA 24A or IEC LR03) alkaline battery X 2
Power Consumption : 11mA typical for ACA/DCA and 2.9mA typical for other functions
APO Timing : Idle for 30 minutes
APO Consumption : typical 10µA for Model 061 & 063 and 190µA for Model 062 & 065
Dimension : L188mm X W63mm X H40mm
Weight : 218 gm approx
Jaw opening & Conductor diameter : 30mm max

12
Accessories : Test lead pair, batteries installed, user's manual, soft carrying pouch, &
BKP60 banana plug type K thermocouple (model 063 & 065 only)
Optional accessories : BKB32 banana plug to type K socket plug adaptor (model 063 &
065 only)
Electrical Specifications
Accuracy is ±(% reading digits + number of digits) or otherwise specified, at 23oC ±
5oC & less than 75% R.H.
True RMS Model 062 & 065 ACV & ACA clamp on accuracies are specified from 5% to
100% of range or otherwise specified. Maximum Crest Factor are as specified below,
and with frequency spectrums, besides fundamentals, fall within the meter specified AC
bandwidth for non sinusoidal waveforms. Fundamentals are specified at 50Hz and
60Hz.
DC Voltage
RANGE Accuracy
400.0 mV 0.3% + 3d
4.000V, 40.00V, 400.0V 0.5% + 3d
600V 1.0% + 4d
Input Impedance : 10MΩ, 30pF nominal (1000MΩ for 400.0mV range)
AC Voltage
RANGE Accuracy
50Hz ~ 60Hz
4.000V, 40.00V, 400.0V 1.0% + 4d
60Hz ~ 500Hz
4.000V, 40.00V, 400.0V 1.5% + 4d
50Hz ~ 500Hz
600V 2.0% + 4d
Input Impedance: 10MΩ, 30pF nominal
True RMS Model 062 & 065 Crest Factor:
< 2 : 1 at full scale & < 4 : 1 at half scale

13
Ohms
RANGE Accuracy
400.0Ω 0.8% + 6d
4.000kΩ, 40.00kΩ, 400.0kΩ 0.6% + 4d
4.000MΩ 1.0% + 4d
40.00MΩ 2.0% + 4d
Open Circuit Voltage : 0.4VDC typical
Audible Continuity ester
Open Circuit Voltage: 0.4VDC typical
Range: 400.0Ω; Accuracy: 1.5% + 8d
Audible threshold: between 10Ω and 120Ω.
Diode ester
Open Circuit Voltage : < 1.6 VDC Typical
Test Current : 0.4mA Typical
Capacitance
RANGE 1) Accuracy 2) 3)
500.0nF, 5.000µF, 50.00µF, 500.0µF,
3000µF
3.5% + 6d
1)Additional 50.00nF range accuracy is not specified
2)Accuracies with film capacitor or better
3)Specified with battery voltage above 2.8V (approximately half full battery). Accuracy
decreases gradually to 12% at low battery warning voltage of approximately 2.4V
DCA Current (Clamp-on)
RANGE Accuracy 1) 2)
400.0A
0A ~ 50.0A 1.0% + 4d
50.0A ~ 200.0A 1.5% + 5d
200.0A ~ 300.0A 2.0% + 5d
300.0A ~ 400.0A 2.5% + 5d
1)Induced error from adjacent current carrying conductor: < 0.01A/A
2)Relative Zero mode is applied to offset the non zero residual readings, if any

14
ACA Current (Clamp-on)
RANGE Accuracy1)
400.0A
40Hz ~ 60Hz @ 0 ~ 50A 1.0% + 6d
60Hz ~ 400Hz @ 0 ~ 50A 1.5% + 5d
40Hz ~ 60Hz @ 50A ~ 200A 1.5% + 5d
60Hz ~ 200Hz @ 50A ~ 200A 2.0% + 5d
40Hz ~ 60Hz @ 200A ~ 300A 2.0% + 5d
40Hz ~ 60Hz @ 300A ~ 400A 2.5% + 5d
1)Induced error from adjacent current carrying conductor: < 0.01A/A
True RMS Model 062 & 065 Crest Factor:
< 1.8 : 1 at full scale & < 3.6 : 1 at half scale
Hz Frequency
Function Sensitivity (Sine wave) Range
400.0mV 350mV 10Hz ~ 1kHz
4.000V 3.2V 5Hz ~ 20kHz
40.00V 25V 5Hz ~ 100kHz
400.0V 100V 5Hz ~ 100kHz
600V 410V 5Hz ~ 5kHz
DCA/ACA Unspecified
Display counts: 5000
Maximum resolution: 0.001Hz
Accuracy: 0.5%+4d
ype-K emperature (Model 063 & 065 only)
RANGE Accuracy
20 oC ~ 300 oC 2.0% + 3d
300 oC ~ 537 oC 3.0% + 3d
4 oF ~ 572 oF 2.0% + 6d
572 oF ~ 1000 oF 3.0% + 6d
Type K thermocouple range & accuracy not included

LIMI ED WARRAN Y
BRYMEN warrants to the original product purchaser that each product it manufactures
will be free from defects in material and workmanship under normal use and service
within a period of one year from the date of purchase. BRYMEN's warranty does not
apply to accessories, fuses, fusible resistors, spark gaps, batteries or any product
which, in BRYMEN's opinion, has been misused, altered, neglected, or damaged by
accident or abnormal conditions of operation or handling.
To obtain warranty service, contact your nearest BRYMEN authorized agent or send
the product, with proof of purchase and description of the difficulty, postage and
insurance prepaid, to BRYMEN TECHNOLOGY CORPORATION. BRYMEN assumes
no risk for damage in transit. BRYMEN will, at its option, repair or replace the
defective product free of charge. However, if BRYMEN determines that the failure
was caused by misused, altered, neglected, or damaged by accident or abnormal
conditions of operation or handling, you will be billed for the repair.
THIS WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
OR USE. BRYMEN WILL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES.
BRYMEN ECHNOLOGY CORPORA ION
EL:[phone]
FAX:[phone]
http://www.brymen.com
PRINTED ON RECYCLABLE PAPER, PLEASE RECYCLE
COPYRIGHT © MMX Btc, ALL RIGHTS RESERVED
P/N: 7M1C 1081 0000 PRINTED IN TAIWAN
