BSi Easylock MINI Quick start guide

Service
To help ensure a long working life for every
EASYLOCK product, we supply
easily installed parts
.
Check our web page:
https://www.bsidk.com/product/easy-lock-mini-2/
BSIdk.com
BSI A/S Fjordagervej 34
DK
-6100 Haderslev
Date: 22 aug. 2019
Revision: B
Installation and use
EASYlock mini
A rope holding clutch, for conventional and
low stretch rope, range ø6-10mm
Consistent reliable performance over
extended periods
Low to no maintenance required
Tough construction with solid aluminium
handle
Stainless steel and aluminum parts
Available in multiple units for 2, 3 ,4 or 5
ropes.
Easy installation with 2 bolts pr unit.

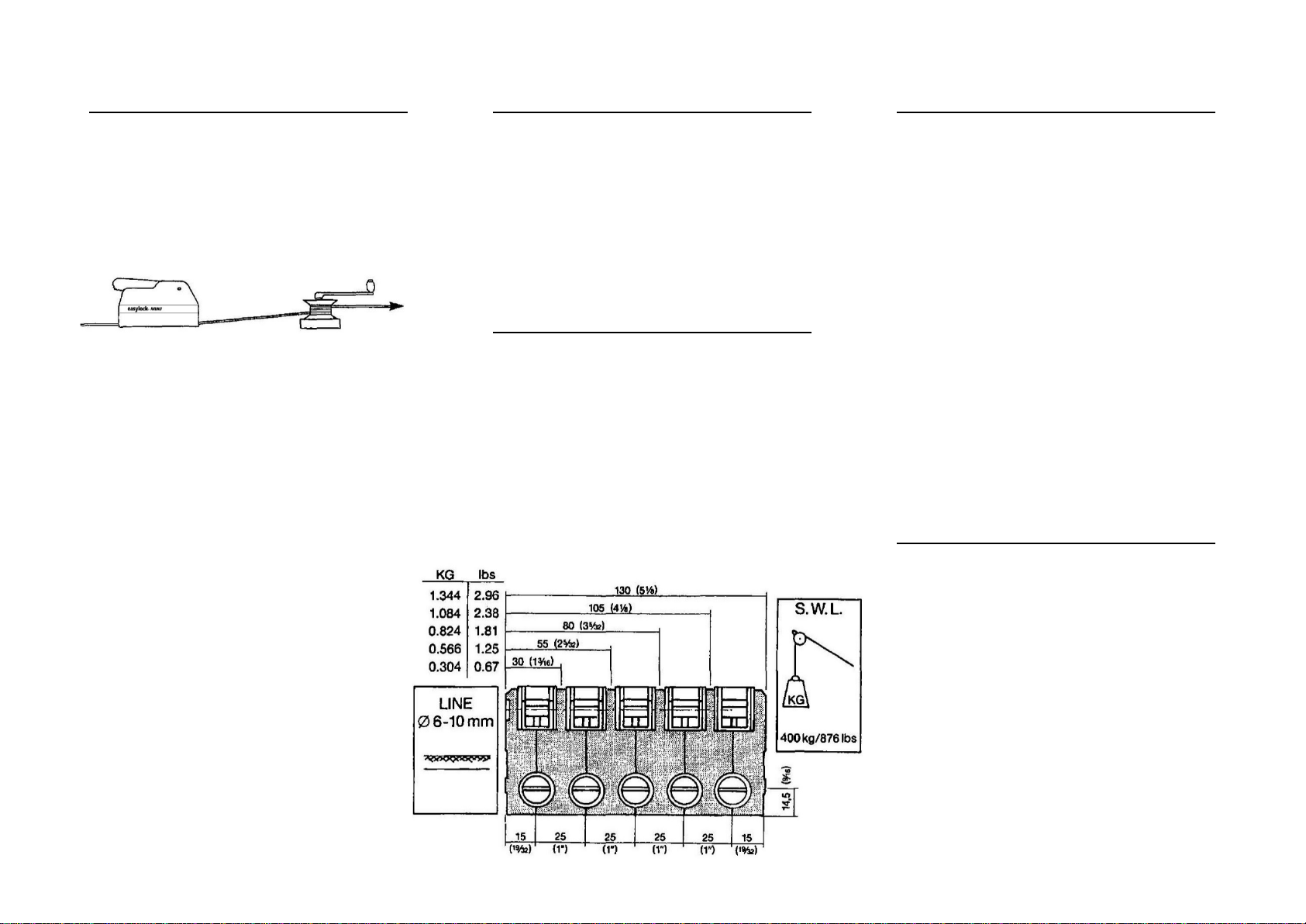

Installation
•
Consider carefully the most suitable location
in relation to the
winch and the rope drag line
before marking out and drilling
6,5mm (1/4”)
holes.
Foam sandwich deck construction
must
be
inspected
whether it needs to be reinforced
to be suitable for the load.
• Install clutch with the handle towards the
winch,
the angle of the line from the clutch up
to the winch drum, should not exceed 10°.
You can reduce this angle by increasing
clutch to win
ch distance or raising the clutch
using a wood
or etc.
•
Multi clutches, try to ensure that the most
heavily loaded ropes have the best collinear
line
.
• Insert correct stainless steel M
6 (5/16")
c
ountersunk screw, nuts and washers.
• Apply silicone seal
ant to ensure a watertight
seal and easy removal.
• Ensure that the clutch is securely fitted to the
deck.
•
For better performance on new ropes, rinse
the
rope in sea water before use.
Use
T
o lead the rope through the clutch, open the
handle
to horizontal. With the handle closed,
the clutch will hold the rope automatically as
the load is eased fo
r the winch. Before rope
release, the rope should be wrapped to the
winch
, then fully
open the handle and the rope
is free to move in e
ither direction.
Maintenance
EASYLOCK
products are made from the best
quality materials for durability and low
maintenance in marine environment.
• Flush regularly with fresh water.
• Inspect product carefully before each new
session.
•
Do not use mineral oil or solvent based
lubricants. The wrong lubricants will degrade
and weaken the molded composite
components, causing serious malfunction.
Safety
Please take care to follow the
se important
safety rules:
• Check that the clutch is correctly specified
for your application
• Check carefully that it is correctly installed
before using it for the time under load.
• Safely release the rope by controlling it on a
winch drum.
• Neve
r open the handle when clutch is
heavily loaded as sudden release may cause
injury, and can damage rope, rig or clutch.
• Use braided rope only (never use three
strand or wire rope).
• Never use the clutch with damaged rope.
• Do not modify any part of
the clutch.
• Always use hand protection.
Manufacturer
’s warranty
All
EASY products are of high technical
quality and the products are covered against
defects in material or poor workmanship for a
period of 2 years. The warranty does not
cover wrong moun
ting, normal wear or
overloading and accept no liability whatsoever
for any claim that may relate directly or
indirectly to the use of this equipment in any
manner or for any application or loading other
than advised in current product information
publishe
d by BSI.
