Bullard TacSight SE35 User manual

TacSight SE35™ Thermal Imager
User Manual
Congratulations
Congratulations on the purchase of your new TacSight SE35
Thermal Imager from Bullard. The TacSight SE35 Thermal Imager
combines advanced thermal imaging technology with our
expertise in high-heat, impact-resistant materials to bring you the
most durable thermal imager on the market. The TacSight SE35’s
innovative, compact design and logical, easy-to-use interface
presents the first truly personalized thermal imaging tool for law
enforcement tactical and patrol applications, as well as assorted
security operations.
Some of the many uses for your TacSight SE35 Thermal Imager
include:
• Vehicle Pursuits and Fugitive Searches
• Perimeter Surveillance
• Search and Rescue
• Hidden Compartments in Vehicles
• Marine and Ground Surveillance
• Environmental Law Enforcement
• Officer Safety
• Training
Bullard stands ready to support your department with industry
leading thermal imager training materials and Law Enforcement
Thermographers Association (L.E.T.A.) certified instructors.
NOTE
To help us better serve you, please fill out and return the
warranty card enclosed with your TacSight SE35 Thermal
Imager.
Read all instructions and warnings before using this product.
Failure to observe this information could result in death or
serious injury. Your thermal imager is like any other tool: it
must be used properly and safely. All users should be trained
on the proper, ethical and safe use of thermal imagers prior to
using the TacSight SE35.
WARNING

Use and Operation
Power
To turn on your TacSight SE35 Thermal Imager, simply depress the large,
dark gray power button under the LCD display (Figure 2). Upon pressing
the power button, the thermal imager will initiate a calibration sequence.
During this process, the display will show “TacSight SE35.” The image will
appear in approximately 30 seconds.To turn off power, depress and release
the power button.
The TacSwitch
This switch, located on the top of the thermal imager, allows the user to
alter the brightness of the LCD display. For standard operations, the switch
should be set to the right for “full brightness” on the LCD. In situations
where it is desirable to limit the backlighting of the user from the LCD, the
switchcanbemoved tothe left,or “dim”position, whichreduces theoutput
of light from the LCD.
For clandestine surveillance operations, an optional TacScope monocular
eyepiece can be attached to the bottom of theTacSight SE35. The thermal
image will display wihtin the monocular scope and the user can switch the
TacSwitch into the “LCD Off” position by moving the switch to the center
position.
Note that the position of theTacSwitch does not affect the transmission of
a wireless image via the optional attachable transmitter handle.
Image Controls
YourTacSight SE35 has three buttons on the top of the thermal imager and
a manual turning focus ring on the front of the imager that allow the user
to control specific aspects of the image.
•The button nearest the display activates Zoom mode. By depressing this
button, the user activates 2x digital zoom. Another press of the button
switches the system to 4x digital zoom. A third press of the button brings
the system back to normal. The digital zoom feature can allow the user
to see more detail within an image without getting closer to the scene.
•The center button is the Enhanced mode button. By depressing this
button, the thermal imager gain is increased, enhancing image sensitivity.
When viewing scenes of moderate and similar temperatures, enhanced
mode can improve the ability to discern details.
•The button nearest the lens is the Polarity button. Activating this button
changes the thermal imager from “white hot” to “black hot.” This allows
the user to compare scenes under different polarity schemes, potentially
improving image interpretation. Also, certain agencies may train with
and prefer one polarity system over the other.
•The hardened thermoplastic ring on the front of the thermal imager is
the manual focus ring.Turning the ring form left to right allows the user
to focous clearly on an object a s close as 18" or 1/2 meter.
NOTE
You will periodically observe a momentary freeze in the image as
the unit shutters and self-calibrates. This is a normal function of
your thermal imager and it will occur every one to five minutes,
depending on the calibration needs of the unit.
Using the Battery Charger
The battery should be charged in the battery charger using either the AC or
DC adapter provided (Figure 3). To charge the battery, simply insert
battery into the charger so that the metal connectors on the battery are
aligned with the metal connectors in the charger. A red light will illuminate
on the charger to indicate that the battery is charging.When the light on the
charger turns to green, your battery will be fully charged.You may leave the
battery in the charger indefinitely as the battery will not overcharge. For
maximum battery life and performance, you should remove the battery
from the charger and discharge it on a monthly basis.

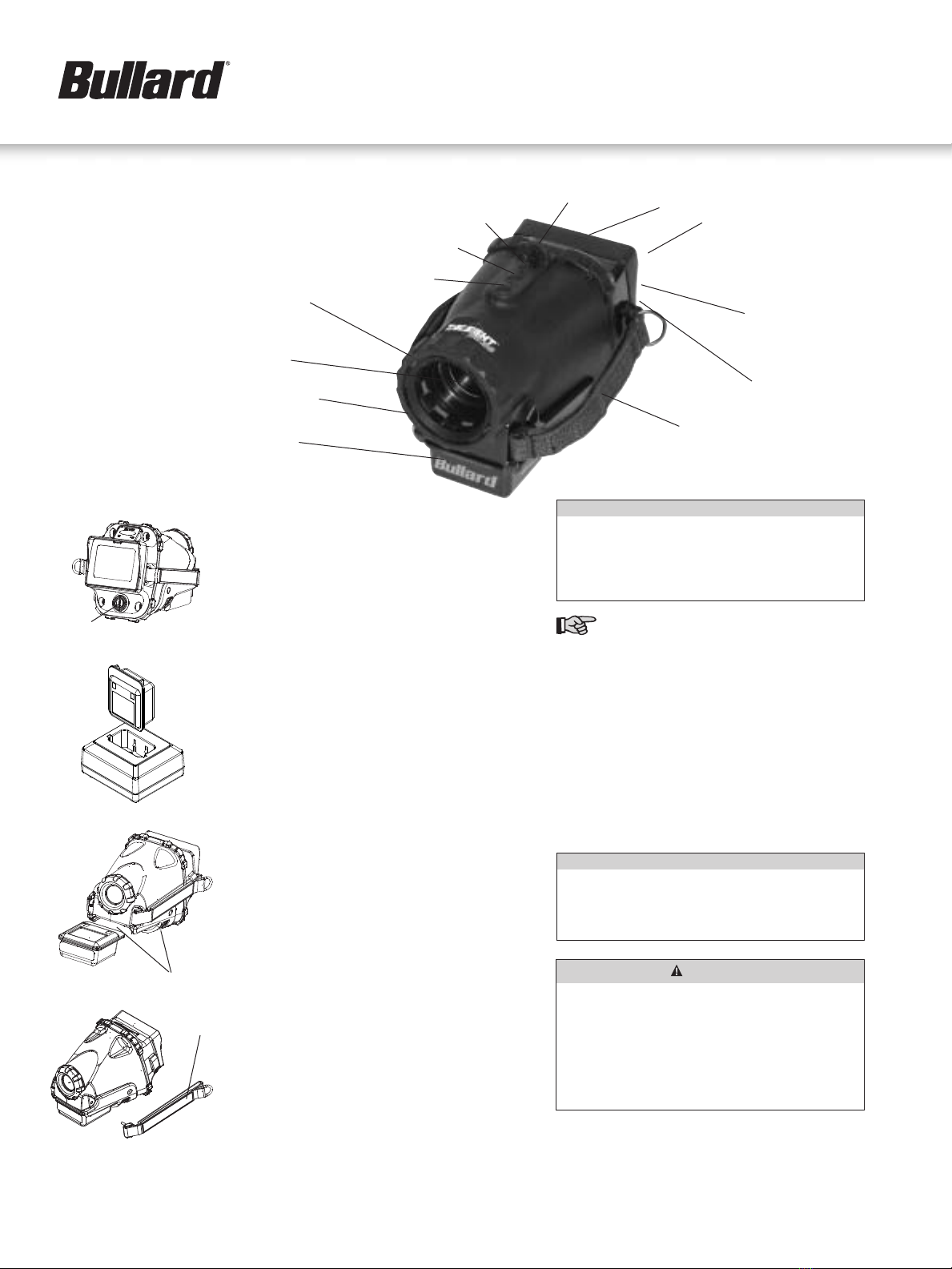

Figure 2
Power Button
Figure 3
Figure 4
Figure 5
Battery Locking Buttons
Side Strap
Lens
Power Button
Battery
LCD Screen
Side Strap
Rear Boot
Polycarbonate
Display Cover
Lens Bezel
Figure 1
TACSIGHT SE35
CAUTION
During use avoid pointing the camera directly at the sun as this
may damage the microbolometer detector elements. While not
in use, take precautions to store the camera so that the lens is
protected from direct exposure to the sun or intense radiation
sources.
CAUTION
An AC Adapter is supplied with the unit for powering the battery
charger. When using AC power, do not substitute an adapter
with a different specification. Failure to observe this instruction
may result in equipment and/or property damage.
As with all batteries, the positive and negative contacts for the
TacSight battery are exposed. Connecting the contacts located
on the label side of the battery with a conductive material will
complete a circuit and could cause the battery to overheat or
combust. Do not store the battery with the contacts facing a
conductive surface, such as a metal table top. Failure to follow
this warning can result in property damage, fire or serious
physical injury.
WARNING
Zoom
Image Enhancement
Polarity
Manual Focus
Screen Dimming Switch

TACSIGHT SE35™ Thermal Imager
User Manual
Loading/Unloading the Battery
Loading and unloading the battery on theTacSight SE35 is easy (Figure 4).
To install a battery, slide the battery into the groove on the bottom of the unit
and ensure that the battery is properly seated.To remove a battery, depress
both battery locking buttons simultaneously and slide the battery out of the
unit. Since it can only be loaded one way, the battery is easily replaced in the
dark.
Additionally, as with all batteries, your rechargeable battery will experience
a slow drain of its charge during storage.The amount of drain varies widely
based on storage conditions. For best performance, charge each of your
batteries every week. A fully charged battery should provide approximately
90 minutes of operating time. This may be affected by storage
temperatures, storage time and the age of the battery.
The approximate battery level is indicated by the colored LED lights on the
top of the display screen. When the red LED light is lit, the battery has
approximately 8 minutes of ooperation time remaining.
NOTE
Bullard provides an optional AA alkaline battery case which can
be used as an alternative to the standard 10 volt NiMH
rechargeable batteries. The AA alkaline battery case requires
eight AA alkaline batteries. Once the batteries are installed, the
case loads into the unit in the same manner as the standard
NiMH battery.
Due to the unique way that alkaline batteries disperse power to
the thermal imager, the LED indicators will report battery levels
that are not necessarily indicative of the battery’s actual
remaining charge.
Do not attempt to place the alkaline battery case into aTacSight SE35 battery
charger.
Side Straps
The side straps are designed to be field replaceable. Users can order
replacements and install them without having to return the thermal imager
to the factory. To adjust a side strap, loosen the hook and loop material on
the inside of the strap and set it to the desired length. Then press the hook
and loop material together.
Removing/Installing the Side Straps
To remove either of the right or left side straps, loosen the hook and loop
material on the inside of the strap and remove the strap from the plastic
loop located on either side of the LCD display (Figure 5). Remove the
screw that holds the strap to the imager.To install, fasten the strap to the
unit using the screw provided. Feed the strap through the strap loop and
adjust to the desired length.
Care Instructions
TheTacSight SE35 Thermal Imager requires very little
maintenance.
For best results, after each use:
• Clean the outside of the unit with mild soap or detergent.
• Wipe the lens with a soft cloth.
• Clean the display with a soft cloth.
• Check screw tightness on side straps.
• Store your TacSight SE35 in the rugged hard case.
Bullard also provides preventive maintenance programs for all of
its thermal imagers. Consult with your distributor regarding
availability and recommendations.
Cleaning the Lens
TheTacSight SE35 lens is recessed in an impact resistant bezel.The
lens can be cleaned with a soft cloth and soapy water as required.
Replacing the Video Display Cover Window
The display cover has a scratch resistant hard coating to minimize
marring. However, if heavy scratching or gouging does occur, the
cover window can be replaced. To do this, simply remove the four
screws along the top and bottom of the window. Remove the plastic
display cover window and replace with a new one making sure that
the countersink slots around the mounting holes are facing
outward. Replace the mounting screws and tighten them; avoid
over-tightening the screws.
Service
If your thermal imager is not functioning properly, contact Bullard
Customer Service at 1-877-BULLARD. A customer service
representative will work with you to determine if the problem can
be solved in the field, or if the thermal imager must be returned to
the Bullard Service Center. If the thermal imager will be returned
to Bullard, please ensure that:
1. You have indicated the Return Authorization number on the
package;
2. Your thermal imager is not contaminated by hazardous
materials;
3. You package the thermal imager carefully, preferably in its
original case;
4. You send all applicable accessories as requested by the
customer service representative;
5. You ship the package with freight prepaid.
Qualified warranty repairs will be handled promptly at no charge to
the user. Non-warranty repairs will be evaluated and quoted based
on the Service Center program in place at the time. Non-warranty
evaluations and repairs may be subject to evaluation fees.
CAUTION
Do not use solvents or paint thinners to clean your TacSight
SE35 Thermal Imager as they could permanently mar the
surface or degrade the properties of the outer shell. Failure to
observe this instruction may result in equipment damage.
CAUTION
TheTacSight SE35 Thermal Imager should not be stored in sub-
freezing environments. Failure to observe this instruction may
result in equipment damage.

©2006 Bullard. All rights reserved.
Bullard is a registered trademark of Bullard.
“It’s your life and you’re worth it”, andTACSIGHT SE35 are
trademarks of Bullard.
6050047615 (1206)
ISO 9001
certified
Warranty
Bullard warrants to the original purchaser that the TacSight SE35 Thermal Imager and
transmitter if applicable, are free of defects in materials and workmanship under intended use
and service for a period of one (1) year from date of manufacture. The company’s obligation
under this warranty is limited to repairing or replacing, at the company ’s option, articles that are
returned within the warranty period and that, after examination, are shown to the company’s
satisfaction to be defective, subject to the following limitations:
a) Article must be returned to Bullard with shipping charges prepaid.
b) Article must not be altered from its original configuration.
c) Articles must not have been misused, abused, or damaged in transport.
d) Maintenance and field replaceable items, if defective, are covered under warranty for a ninety
(90) day period.
These items include:
• Batteries
• Straps
• Battery chargers
• Display covers
• AC/DC adapters
• All accessories except transmitter
Bullard provides a limited lifetime warranty on theTacSight SE35Thermal Imager outer shell.This
warrants that the outer shell is free of defects in materials and workmanship under intended use
and service for the original purchaser.The company’s obligation under this warranty is limited to
repairing or replacing, at the company’s option, articles that after examination are shown to the
company’s satisfaction to be defective, subject to the following limitations:
a) Article must be returned to Bullard with shipping charges prepaid.
b) Article must not be altered from its original configuration.
c) Article must not have been misused, abused or damaged in transport.
d)When the outer shell is obsolete and Bullard no longer stocks the part, the limited lifetime
warranty will be terminated.
In no event shall Bullard be responsible for damages, loss of use or other indirect, incidental,
consequential or special costs, expenses or damages incurred by the purchaser, notwithstanding
that Bullard has been advised of the possibility of such damages.
Any implied warranties, including warranties of merchantability and fitness for a particular
purpose, are limited in duration to one (1) year from the date of manufacture of this product.
Some states do not allow the exclusion or limitation of incidental or consequential damages or
allow limitations on how long an implied warranty lasts, so the above limitations or exclusions
may not apply to you.This warranty gives you specific legal rights, and you may have other rights
that vary from state to state.
Extended Warranty
The extended warranty has all the same terms and conditions as the one-year warranty, except
it is for the period of two years.This warranty can be purchased directly from Bullard or through
any authorized Bullard distributor.The extended warranty must be purchased within 30 days of
the original order.
Bullard
1898 Safety Way
Cynthiana, KY 41031-9303
Toll free: 877-BULLARD (285-5273)
Tel: [phone]
Fax: [phone]
www.bullard.com
Bullard GmbH
Lilienthalstrasse 12
53424 Remagen
Germany
phone: [phone]
fax : [phone]
www.bullardextrem.com
Bullard Asia Pacific Pte. Ltd.
Cisco Centre
20 Jalan Afifi, #08-03
Singapore 409179
Tel: [phone]
Fax: [phone]
www.bullard.com
HANDLETRANSONLY Four-channel wireless remote transmitter (housed in quick-attach handle) -
receiving system not included
HANDLETRANSONLY2 Two-channel wireless remote transmitter (housed in quick attach handle) -
receiving system not included
ML1 MobileLink two-channel handheld receiver with one 10 V NiMH rechargeable
battery and one 10 V charger with 110 VAC (USA only) and 12 VDC adapter
ML2 MobileLink two-channel handheld receiver only
ML3 MobileLink four-channel handheld receiver with one 10 V NiMH rechargeable
battery and one 10 V charger with 110 VAC (USA only) and 12 VDC adapter
ML4 MobileLink four-channel handheld receiver only
MCC1 Mobile Command Center two-channel receiver with recorder
MCC2 Mobile Command Center two-channel receiver without recorder
MCC3 Mobile Command Center four-channel receiver with recorder
MCC4 Mobile Command Center four-channel receiver without recorder
REC Four-channel receiver system (includes the antenna, receiver, and all associated
cabling necessary for receiving transmitted video signal)
REC2 Two-channel receiver system (includes the antenna, receiver, and all associated
cabling necessary for receiving transmitted video signal)
NIMH 10 V NiMH rechargeable battery
RCN17ALK AA Alkaline Battery Case
HANDLE Attachable handle forTacSight series
HANDLEVO Attachable handle with video out forTacSight series
TACSTRAPKIT Replacement strap kit includes left and right side straps
TACWINDOW Replacement hard coated polycarbonate display cover
T3CHARGERBASE Charger for NiMH rechargeable batteries
15VADAPTOR 15 Volt AC adaptor for use withT3 Charger Base
CARADAPTOR DC Car Adaptor for use withT3 Charger Base
T3RETRACT Retractable strap kit that keeps theTacSight convenient yet out of the way
TACPMKIT Field Service kit for “wear and tear” items for your TacSight in a convenient
bundled package - includes display cover window, side straps, and one battery
TACPM Preventative maintenance factory service package to keep your TacSight
performing and looking like new
TACSIGHTEXT Original limited warranty extended one full year
Ordering Information
CATALOG NUMBER DESCRIPTION CATALOG NUMBER DESCRIPTION
