Burg 6 User manual

6
www.burgcc.com

1.1A 1.1B
Fig.1.1
1
Watch Phone
Bluetooth
Band assembling
Cap assembling
Insert SIM card
Keycord assembling
1 - 7
8 - 15
16 - 22
23 - 24
25 - 26
27 - 31
UP
LEFT RIGHT
DOWN

Contacts
OK Back
Number
Send message to
Save
Call
+31735
26.05.2010
18:31
1.2A
1.2B
Fig.1.2
1.3A
Fig.1.3
1.5A
1.4A
Fig.1.4 Fig.1.5
32

0 1
Write your messag
3
d e f D E
144/1
Eng
Messages
1.6A
Fig.1.6
1.7A 1.7B
Fig.1.7
1.1A Step 1: Insert simcard
Open the slot on the side of the watchphone and insert your simcard.
Note: make sure the watchphone is switched off before inserting the
sim card
1.1B Step 2: switch on the watchphone
Press the red button for 2 seconds until the BURG logo appears.Now
your watchphone is ready to use!
Press the red key to activate the background light
1.2A Keypad lock:
The keypad will lock automatically, To Unlock the key pad, press the Red
key for 3 seconds;
1.2B Phone vs. Watch mode:
You can switch between watch and phone mode by pressing
the red button and select the mode you want to enter (in watch mode the
phone is switched off);
Note: the watchphone will switch automatically to watch mode if the bat-
tery is low! 54

1.3A Step 3: Make calls
Input the numbers by pressing the keypads around the digital display
1.4A After inserting the numbers press the green button and choose option
‘Call’ to start dialling the number. After your telephone call press the red but-
ton on the side to end the call.
1.5A Enter the watchphone menu
Press the green button to enter the watchphone menu. Scroll thru the menu
by pressing the keys 0 and 6 or 9 and 3. After you have found the function
you want to select, press the green button, to enter the function’s submenu.
1.6A Send messages
Select the ‘Messages’ function in the watchphone menu by pressing the
green button. In the submenu, select ‘write message’ by scrolling thru the
menu pressing the 0 and 6 key, press the green button to enter the write
message function.
1.7B
In dictionary mode you enter the first letters of the word you want
to write the dictionary will give different possible words that you can
choose by pressing the 0 and 1 buttons, by pressing the green button on
the side you select the word you have chosen.
1.7A
The BURG 6 watchphone is standard equipped with English dictionary
for quick text writing. By pressing the # button you can switch between
dictionary, traditional input and number input.
76

Bluetooth Headset
Power switch Speaker
98

Option Back
BT Device List
Bluetooth ID
Option Back
Device List
Bluetooth ID
Option Back
Device List
Fig.1.8 Fig.1.9 Fig.2.0 Fig.2.1
1.8A
1.8B
1.9A
2.0A 2.1A
1110

1.8A Step 1: Activate Bluetooth
select bluetooth from the main menu, then select bluetooth trig-
ger. Select On to activate the bluetooth.
2.0A Step 3: Pair Device
Select your Bluetooth ID model, Option / pair device / and enter
the passcode 0000. Press the green button to confirm.
2.1A Step 4: Connect Device
Select your Bluetooth ID model, scroll down the menu and find
Connect Device, Now you have connected to the Bluetooth suc-
cessfully.
1.9A Step 2: Search Device
switch on the Bluetooth headset: press and hold the power but-
ton for at least 7 seconds until the indicator stops flashing and
turns into solid blue. Now it is ready to be searched.
Menu -> Device List -> Option -> Search Device
1.8B
OK Back
Bluetooth
Local BT Property
Bluetooth Trigger
Device List
OK Back
Service Status
Off
On
OK Back
Option
Search Device
OK Back
Option
Pair Device
Search Device
Pin Code
0000
OK Back
Option
Connect Device
Search Device
Set name
Authorize Device HS Connect
1312

USB Charging
Troubleshooting
If you cannot connect the headset to your watchphone,do as follows:
Ensure that the headset is charged,switched on,and paired with and con-
nected to your watchphone.
Ensure that the Bluetooth feature is activated on your watchphone.
Check that the headset is within 3 meters of your watchphone and that
there are no obstructions between the head set and the watchphone . such
as walls or other electronic devices.
To reset the headset if it stops functioning, although it is charged, plug the
headset into a charger, and briefly press the power key.This reset does not
clear your settings (for example: paring settings)
Introduction
Bluetooth wireless technology allows you to connect compatible commu-
nication devices without cables. A Bluetooth connection does not require
that the phone and the headset be in line of sight but both devices should
be within 3 meters(9 feet) of each other. Connections can be subject to
interference from obstructions such as walls or other electronic devices.
There may be restrictions on using Bluetooth technology in some location.
Check with your local authorities or service provider.
1514

Remove band
CLASP
BAND
BAND
CASE
PIN-1
PIN-1
PIN-2
PIN-2
PIN-3
PIN-3
1
1716

2 3
1918

41
Place band
2120

2
Insert SIM card
1
2322

2
Chip up
Place Cap
A
A
B
B
C
C
D
D
E
E
B
C
A
E
D
1
2524

2

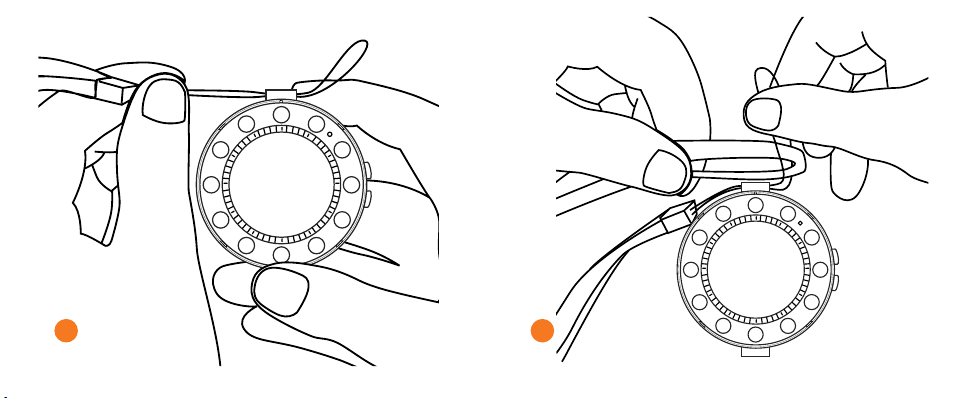

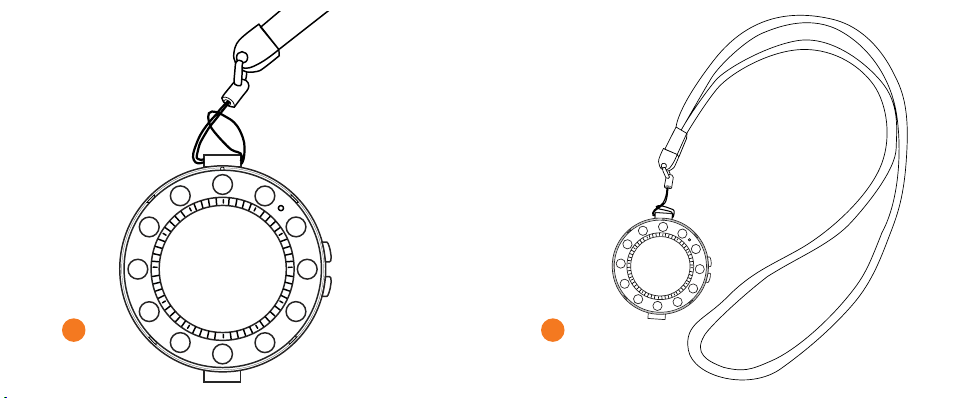

Add Keycord
1
2726

2 3
2928

4 5
3130

Burg CC Watch Phone Warning and Disclaimer
Do not use or place the Watch Phone under water. Avoid dropping it or step-
ping on it. Don’t use the watch during sports activities. The Watch Phone
should not be used by children under the age of 5. When you start to use
this product, please pay attention to the following: For safety reasons, you
should ONLY wear the wrist watch on the OUTSIDE of your wrist, NOT on the
inside or in any other configurations while it is working/transmitting signals.
Do not attempt to repair the Watch Phone yourself in case of damage or
malfunction, as this will void the warranty.
FCC Radiation Exposure Statement:
To ensure compliance with FCC RF exposure requirements, you should keep
a distance of 1.0 cm or more between the front of the watch and the rest
of your body while the watch is transmitting. This transmitter must not be
co-located or operating in conjunction with an extra antenna or other trans-
mitter.
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules. Operation is
subjected to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
IMPORTANT NOTE:
This equipment has been tested and found to comply with the standards
for a Class B digital device, pursuant to article 15 of the FCC Rules. These
standards are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful in-
terference to radio or television reception - which can be determined by
turning the equipment off and on - the user is encouraged to try to correct
the interference by one or more of the following measures:
* Redirect or relocate the receiving antenna.
* Increase the distance between the equipment and receiver.
* Connect the equipment to an outlet on an electricity group other than the
one the receiver is connected to.
* Ask for advice from the dealer or an experienced radio/TV technician.
