Busch-Jaeger Busch-AudioWorld 8216 U Busch-Radio iNet User manual
2CKA001473B8724
│ 30.05.2018
Product manual
Busch
-AudioWorld®
8216 U
Busch-Radio iNet
Valid from Firmware V 01.06
Table of contents
Product manual 2CKA001473B8724
│2
Tableofcontents
1
Notes on the instruction manual.......................................................................................................................4
2
Safety.................................................................................................................................................................5
2.1
Information and symbols used .............................................................................................................5
2.2
Intended use..........................................................................................................................................6
2.3
Improper use .........................................................................................................................................6
2.4
Target group / Qualifications of personnel...........................................................................................7
2.4.1
Operation...........................................................................................................................................7
2.4.2
Installation, commissioning and maintenance..................................................................................7
2.5
Safety instructions.................................................................................................................................8
3
Information on protection of the environment..................................................................................................9
3.1
Environment ..........................................................................................................................................9
4
Setup and function..........................................................................................................................................10
4.1
Functions .............................................................................................................................................10
4.2
Possible combinations ........................................................................................................................11
5
Technical data.................................................................................................................................................12
6
Connection, installation / mounting................................................................................................................13
6.1
Requirements for the electrician.........................................................................................................13
6.2
Mounting..............................................................................................................................................14
6.3
Electrical connection...........................................................................................................................16
6.3.1
Loudspeaker....................................................................................................................................16
6.3.2
Mains voltage...................................................................................................................................16
7
Commissioning................................................................................................................................................17
7.1
Mains voltage activation .....................................................................................................................17
7.1.1
State of the new device at the point of delivery..............................................................................17
7.1.2
The device has already been in use in a different network............................................................17
7.2
Connecting the WLAN-capable device with the radio.......................................................................18
7.3
Connecting the radio with the WLAN (Access Point mode) .............................................................18
7.4
The device cannot find a WLAN connection......................................................................................19
7.5
Setting up the device ..........................................................................................................................19
8
Updating options.............................................................................................................................................20
9
Operation.........................................................................................................................................................21
9.1
Operating modes.................................................................................................................................21
9.2
Normal operation.................................................................................................................................22
9.2.1
Display.............................................................................................................................................22
9.2.2
Button assignment...........................................................................................................................22
9.2.3
Adjusting the volume.......................................................................................................................23
9.2.4
Selecting the station........................................................................................................................23
9.3
Extended operation.............................................................................................................................24
9.3.1
Display.............................................................................................................................................26
9.3.2
Button assignment...........................................................................................................................26
Table of contents
Product manual 2CKA001473B8724
│3
9.4
Functions of extended operation / Setting up the device manually..................................................27
9.4.1
RESET (resetting the device)..........................................................................................................27
9.4.2
Data backup.....................................................................................................................................27
9.4.3
Overview – The main menus..........................................................................................................28
9.4.4
Menu "Internet Radio".....................................................................................................................31
9.4.5
Menu "Favourites" (Favourite stations)...........................................................................................31
9.4.6
Menu "My music/UPnP"..................................................................................................................33
9.4.7
Menu "AUX" (My player) .................................................................................................................34
9.4.8
Menu "Timer/alarm" - "Alarm clock"................................................................................................35
9.4.9
Menu "Timer/alarm" - "Short-time timer" (Duration of play)............................................................37
9.4.10
Menu "Timer/alarm" - "Sleep timer"................................................................................................39
9.4.11
Menu "Settings" - "Language".........................................................................................................41
9.4.12
Menu "Settings" - "Audio mode"......................................................................................................43
9.4.13
Menu "Settings" - "Sound mode" (Genre).......................................................................................44
9.4.14
Menu "Settings" - "Display mode"...................................................................................................45
9.4.15
Menu "Settings" - "Illumination".......................................................................................................46
9.4.16
Menu "Settings" – "Energy efficiency" ............................................................................................47
9.4.17
Menu "Settings" – "Summertime"....................................................................................................48
9.4.18
Menu "Settings" - "Restart the radio"..............................................................................................49
9.4.19
Menu "Settings" - "Firmware update"..............................................................................................49
9.4.20
Menu "Info"......................................................................................................................................50
9.5
Setting up the device via WLAN network...........................................................................................53
9.5.1
WLAN connection with the radio.....................................................................................................53
9.5.2
Screen "Start page".........................................................................................................................54
9.5.3
Screen "Network settings"...............................................................................................................57
9.5.4
Screen "General settings"...............................................................................................................59
9.5.5
Screen "Station list".........................................................................................................................64
10
Maintenance....................................................................................................................................................66
10.1
Cleaning...............................................................................................................................................66
11
FAQ and Tips..................................................................................................................................................67
12
Index................................................................................................................................................................69
Notes on the instruction manual
Product manual 2CKA001473B8724
│4
1 Notes on the instruction manual
Please read through this manual carefully and observe the information it contains. This will
assist you in preventing injuries and damage to property, and ensure both reliable operation and
a long service life for the device.
Please keep this manual in a safe place.
If you pass the device on, also pass on this manual along with it.
Busch-Jaeger accepts no liability for any failure to observe the instructions in this manual.
If you require additional information or have questions about the device, please contact Busch-
Jaeger or visit our Internet site at:
www.BUSCH-JAEGER.de
Safety
Product manual 2CKA001473B8724
│5
2 Safety
The device has been constructed according to the latest valid regulations governing technology
and is operationally reliable. It has been tested and left the factory in a technically safe and
reliable state.
However, residual hazards remain. Read and adhere to the safety instructions to prevent
hazards of this kind.
Busch-Jaeger accepts no liability for any failure to observe the safety instructions.
2.1 Information and symbols used
The following Instructions point to particular hazards involved in the use of the device or provide
practical instructions:
Danger
Risk of death / serious damage to health
– The respective warning symbol in connection with the signal word "Danger"
indicates an imminently threatening danger which leads to death or serious
(irreversible) injuries.
Warning
Serious damage to health
– The respective warning symbol in connection with the signal word "Warning"
indicates a threatening danger which can lead to death or serious
(irreversible) injuries.
Caution
Damage to health
– The respective warning symbol in connection with the signal word "Caution"
indicates a danger which can lead to minor (reversible) injuries.
Attention
Damage to property
– This symbol in connection with the signal word "Attention" indicates a
situation which could cause damage to the product itself or to objects in its
surroundings.
NOTE
This symbol in connection with the word "Note" indicates useful tips and
recommendations for the efficient handling of the product.
This symbol alerts to electric voltage.
Safety
Product manual 2CKA001473B8724
│6
2.2 Intended use
This device is a radio for flush-mounted installation. The device is part of the Busch-
AudioWorld®system.
The device is intended for the following:
■Operation according to the listed technical data,
■Installation in dry interior rooms and suitable flush-mounted boxes,
■Use with the connecting options available on the device.
The intended use also includes adherence to all specifications in this manual.
Busch-Jaeger Elektro hereby declares that radio system type 8216 U conforms to Directive
2014/53/EU.
The complete text of the EU Declaration of Conformity is available at the following Internet
address:
8216 U http://www.busch-jaeger-katalog.de/
2CKA008200A0155,artikel.html
Table 1: Link to Declaration of Conformity
2.3 Improper use
Each use not listed in See “Intended use“ on page 6 is deemed improper use and can lead to
personal injury and damage to property.
Busch-Jaeger is not liable for damages caused by use deemed contrary to the intended use of
the device. The associated risk is borne exclusively by the user/operator.
The device is not intended for the following:
■Unauthorized structural changes
■Repairs
■Outdoor use
■The use in bathroom areas
Safety
Product manual 2CKA001473B8724
│7
2.4 Target group / Qualifications of personnel
2.4.1 Operation
No special qualifications are needed to operate the device.
2.4.2 Installation, commissioning and maintenance
Installation, commissioning and maintenance of the device must only be carried out by trained
and properly qualified electrical installers.
The electrical installer must have read and understood the manual and follow the instructions
provided.
The electrical installer must adhere to the valid national regulations in his/her country governing
the installation, functional test, repair and maintenance of electrical products.
The electrical installer must be familiar with and correctly apply the "five safety rules" (DIN VDE
0105, EN 50110):
1. Disconnect
2. Secure against being re-connected
3. Ensure there is no voltage
4. Connect to earth and short-circuit
5. Cover or barricade adjacent live parts
Safety
Product manual 2CKA001473B8724
│8
2.5 Safety instructions
Danger - Electric voltage!
Electric voltage! Risk of death and fire due to electric voltage of 100 … 240 V.
Dangerous currents flow through the body when coming into direct or indirect
contact with live components. This can result in electric shock, burns or even
death.
■Work on the 100 … 240 V supply system may only be performed by
authorised and qualified electricians.
■Disconnect the mains power supply before installation / disassembly.
■Never use the device with damaged connecting cables.
■Do not open covers firmly bolted to the housing of the device.
■Use the device only in a technically faultless state.
■Do not make changes to or perform repairs on the device, on its components
or its accessories.
■Keep the device away from water and wet surroundings.
Caution! - Risk of damaging the device due to external factors!
Moisture and contamination can damage the device.
■Protect the device against humidity, dirt and damage during transport,
storage and operation.
Information on protection of the environment
Product manual 2CKA001473B8724
│9
3 Information on protection of the environment
3.1 Environment
Consider the protection of the environment!
Used electric and electronic devices must not be disposed of with domestic
waste.
– The device contains valuable raw materials which can be recycled.
Therefore, dispose of the device at the appropriate collecting depot.
All packaging materials and devices bear the markings and test seals for proper disposal.
Always dispose of the packaging material and electric devices and their components via the
authorized collecting depots and disposal companies.
The products meet the legal requirements, in particular the laws governing electronic and
electrical devices and the REACH ordinance.
(EU Directive 2012/19/EU WEEE and 2011/65/EU RoHS)
(EU REACH ordinance and law for the implementation of the ordinance (EC) No.1907/2006).
Setup and function
Product manual 2CKA001473B8724
│10
4 Setup and function
4.1 Functions
The device is a functional radio with various setting options and is installed flush-mounted in the
wall. The device offers you, for example:
■Various possible combinations with other devices.
– E.g. the combination with an Busch-iDock as connecting option for a different player.
■One memory for up to 8 stations (favourite stations).
■Central switching for all playing devices.
■A central clock.
■An alarm call function.
■A sleep function.
■A duration of play setting.
■An automatic overload detection (for more detailed information, see See “Automatic
overload detection“ on page 67).
Setup and function
Product manual 2CKA001473B8724
│11
4.2 Possible combinations
8216 U
8218 U X
8222 EB X
(2x / 4x)
8223 U X
(1x / 2x)
8224 EB X
(2x / 4x)
8252-xxx X
Table 2: Possible combinations
Technical data
Product manual 2CKA001473B8724
│12
5 Technical data
Designation Value
Nominal voltage: 110 ... 230 V AC, ±10%, 50 / 60 Hz
Operating temperature: 5°C to +40°C
Protection type: IP 20
Power consumption during the idle state
■ECO mode:
■Standby mode:
■Premium mode:
≤ 0.1 W
≤ 0.5 W
≤ 5 W
Storage temperature: -20°C to +70°C
Resolution: 128 x 100
Display size 3.8 cm (1.5")
Maximum core cross section of loudspeaker
terminals: 0.8 mm²
Admissible loudspeaker impedance: 4 … 8 Ω
Frequency range: 100 - 10,000 Hz
Wi-Fi standard: 802.11 b/g
Send/receive frequency: 2.4 GHz
Maximum transmission power: 100 mW
Maximum streaming rate: 192 kbps
Supported formats: mp3, AAC(+), OGG, m3u, PLS
Table 3: Technical data
Connection, installation / mounting
Product manual 2CKA001473B8724
│13
6 Connection, installation / mounting
Danger - Electric voltage!
Risk of death due to electrical voltage of 100 … 240 V during short-circuit in the
low-voltage conduit.
– Low-voltage and 100 … 240 V conduits must not be installed together in a
flush-mounted box!
Caution! - WLAN signal is too weak!
If the WLAN signal is too weak at the mounting location planned for the device,
the device cannot be commissioned later.
– Before starting work with a WLAN-capable device, check whether the WLAN
signal is strong enough at the location planned for the installation of the
device.
– If in doubt, select a different mounting location.
6.1 Requirements for the electrician
Danger - Electric voltage!
Install the device only if you have the necessary electrical engineering
knowledge and experience.
■Incorrect installation endangers your life and that of the user of the electrical
system.
■Incorrect installation can cause serious damage to property, e.g. due to fire.
The minimum necessary expert knowledge and requirements for the installation
are as follows:
■Apply the "five safety rules" (DIN VDE 0105, EN 50110):
1. Disconnect
2. Secure against being re-connected
3. Ensure there is no voltage
4. Connect to earth and short-circuit
5. Cover or barricade adjacent live parts.
■Use suitable personal protective clothing.
■Use only suitable tools and measuring devices.
■Check the type of supply network (TN system, IT system, TT system) to
secure the following power supply conditions (classic connection to ground,
protective earthing, necessary additional measures, etc.).
Connection, installation / mounting
Product manual 2CKA001473B8724
│14
6.2 Mounting
Caution! The device can sustain damage when coming into contact with
hard objects!
The plastic parts of the device are sensitive.
– Pull the attachment off only with your hands.
– Do not lever parts off with screwdrivers or similar hard objects.
The flush-mounted insert must only be installed in flush-mounted wall boxes according to DIN
49073-1, Part 1, or suitable surface-mounted housings.
To mount the device, perform the following steps:
1. Pull the attachment off.
– If the device is already mounted
or assembled, pull off the
attachment from the flush-
mounted insert with the aid of the
frame.
Fig. 1: Wall mounting: pulling off the attachment
– If the state of the device is at the
point of delivery, pull off the
attachment from the flush-
mounted insert with your hands.
– Pull the attachment off only with
your hands!
– Do not lever parts off with
screwdrivers or similar hard
objects. This damages the
device.
– When pulling off, first the
resistance of the spring clamps
must be overcome.
Fig. 2: State of the device at the point of delivery:
pulling off the attachment
Connection, installation / mounting
Product manual 2CKA001473B8724
│15
2. Connect the cables to the flush-
mounted insert.
– For the connection assignment,
see chapter 6.3 “Electrical
connection“ on page 16.
Fig. 3: Connecting the cables
3. Mount the flush-mounted insert.
Fig. 4: Mounting the flush-mounted insert
4. Plug the attachment together with the
frame onto the flush-mounted insert.
– Ensure that the plug-in
connection on the rear side does
not get jammed.
– If mounting is difficult, check
whether a burr has formed at the
lock-in opening of the flush-
mounted insert and remove it.
The device is now mounted.
Fig. 5: Mounting the display
Connection, installation / mounting
Product manual 2CKA001473B8724
│16
6.3 Electrical connection
6.3.1 Loudspeaker
For MONO mode, the loudspeaker can be connected to the left (L- / L+) or right (R- / R+)
connecting terminals.
For STEREO mode, two loudspeakers can be connected, one to the left (L- / L+) and one to the
right (R- / R+) connecting terminal.
6.3.2 Mains voltage
L
N
A
LL RRD RL
L1N
16A
AUX B
Fig. 6: Electrical connection
[A] Simultaneous activation with room lighting.
[B] Connection of fluorescent lamps or energy-saving lamps with a 2-pole switch.
Commissioning
Product manual 2CKA001473B8724
│17
7 Commissioning
Caution! - WLAN signal is too weak!
If the WLAN signal is too weak at the mounting location planned for the device,
the device cannot be commissioned later.
– Before starting work with a WLAN-capable device, check whether the WLAN
signal is strong enough at the location planned for the installation of the
device.
– If in doubt, select a different mounting location.
For more detailed information on possible Wi-Fi errors, see See “Interrupted streaming
(interrupted transmissions)“ on page 67.
7.1 Mains voltage activation
7.1.1 State of the new device at the point of delivery
1. Switch on the mains power supply. If
the state of the device is at the point
of delivery, the display shows a date,
the latest software version and the
serial number. The device will then
switch itself off.
2. Reactivate the device. The display
will show that it is an access point. It
will also show the name of the device
and the WLAN receiving status.

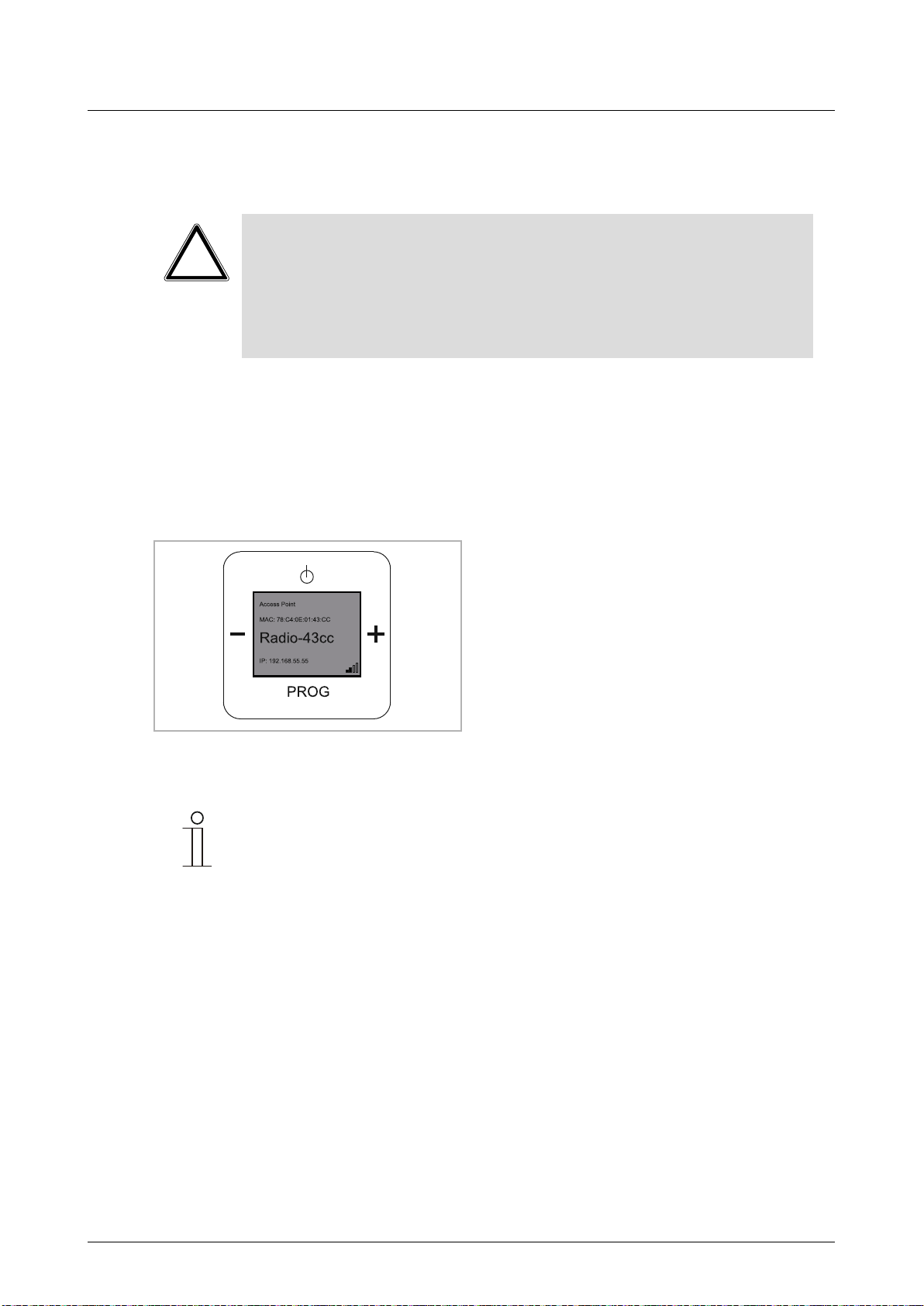

Fig. 7: State of the device at the point of delivery
NOTE
The name of the device depends on the respective device. It is compiled from
the product name and the first four digits of the MAC address.
In this manual the device name "Radio-43cc" is used, which can also be seen in
the graphics.
Important for you is the name shown on the display of your device.
7.1.2 The device has already been in use in a different network
1. If the device has been in use in a different network, reset it to the factory settings.
2. Press the entire rocker switch for approximately 5 seconds.
Commissioning
Product manual 2CKA001473B8724
│18
7.2 Connecting the WLAN-capable device with the radio
PROG
Fig. 8: Connecting the WLAN-capable device with the radio
1. Press the "ON/OFF" button.
2. Search for the WLAN networks with a WLAN-capable device (dependent on the operating
system).
3. Check whether the WLAN network "Radio-43cc“ is displayed.
4. Establish a connection with the WLAN network "Radio-43cc".
7.3 Connecting the radio with the WLAN (Access Point mode)
Fig. 9: Connecting the radio with the Wi-Fi
1. In the address line of the browser, enter "http://radio" or the default IP address of the radio
(http://192.168.55.55).
2. Select the desired language in "Language setting".
3. Enter the network name (SSID) and the password used in your network.
4. Then select "DHCP" (recommended) or "User-defined".
Notice
Observe lowercase and uppercase letters. For "Radio", uppercase and
lowercase letters are possible.
Commissioning
Product manual 2CKA001473B8724
│19
5. Change the name of the device if required and click "Save".
– The radio starts again.
– The time (CET) is displayed after 2 minutes. The reference >“Access Point mode
deactivated. "Radio mode is now active!" is displayed.
– If necessary, the radio carries out an automatic Firmware update.
6. Wait for approximately 2 minutes, until the date and time are displayed!
– The radio is ready.
7. Press the "ON/OFF" button to listen to the first pre-set radio station.
7.4 The device cannot find a WLAN connection

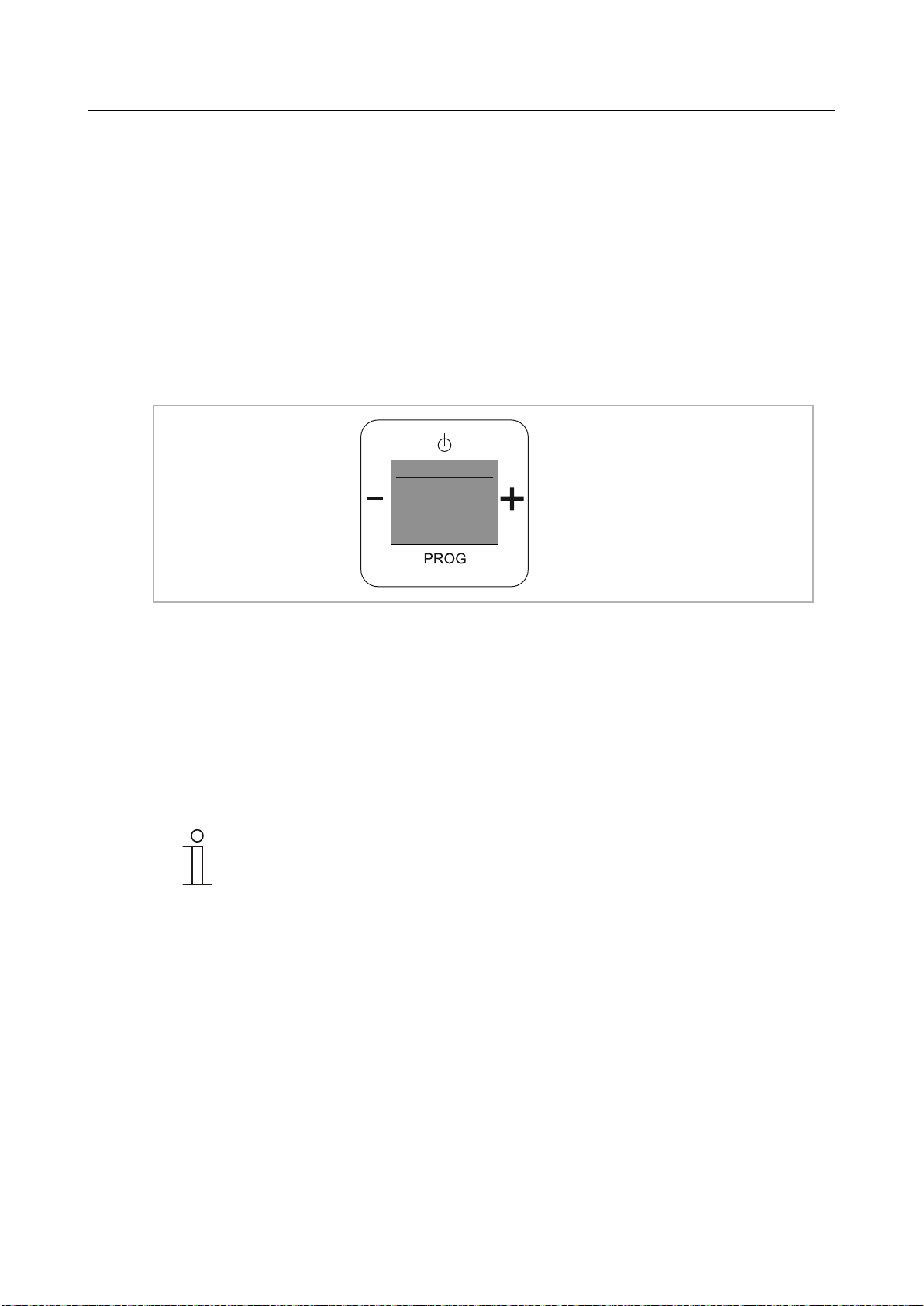

Fig. 10: No WLAN connection
1. Wait a few minutes if the device cannot find the WLAN connection immediately.
2. If it still cannot find the WLAN connection, restart the device.
– Press the entire rocker switch for approximately 5 seconds.
3. Check the network name (SSID) entered and the password.
4. Carry out initial commissioning again.
NOTE
If you press the "ON/OFF" button during the search, the device changes into the
"Firmware update" function.
If you press the "ON/OFF" button again, the device changes to the main menu.
The device can be restarted from all functions.
7.5 Setting up the device
To set up your device you have two options:
1 Setting up the device manually, see chapter 9.4 “Functions of extended operation / Setting
up the device manually“ on page 27.
2 Setting up the device via WLAN, see chapter 9.5 “Setting up the device via WLAN network“
on page 53.
