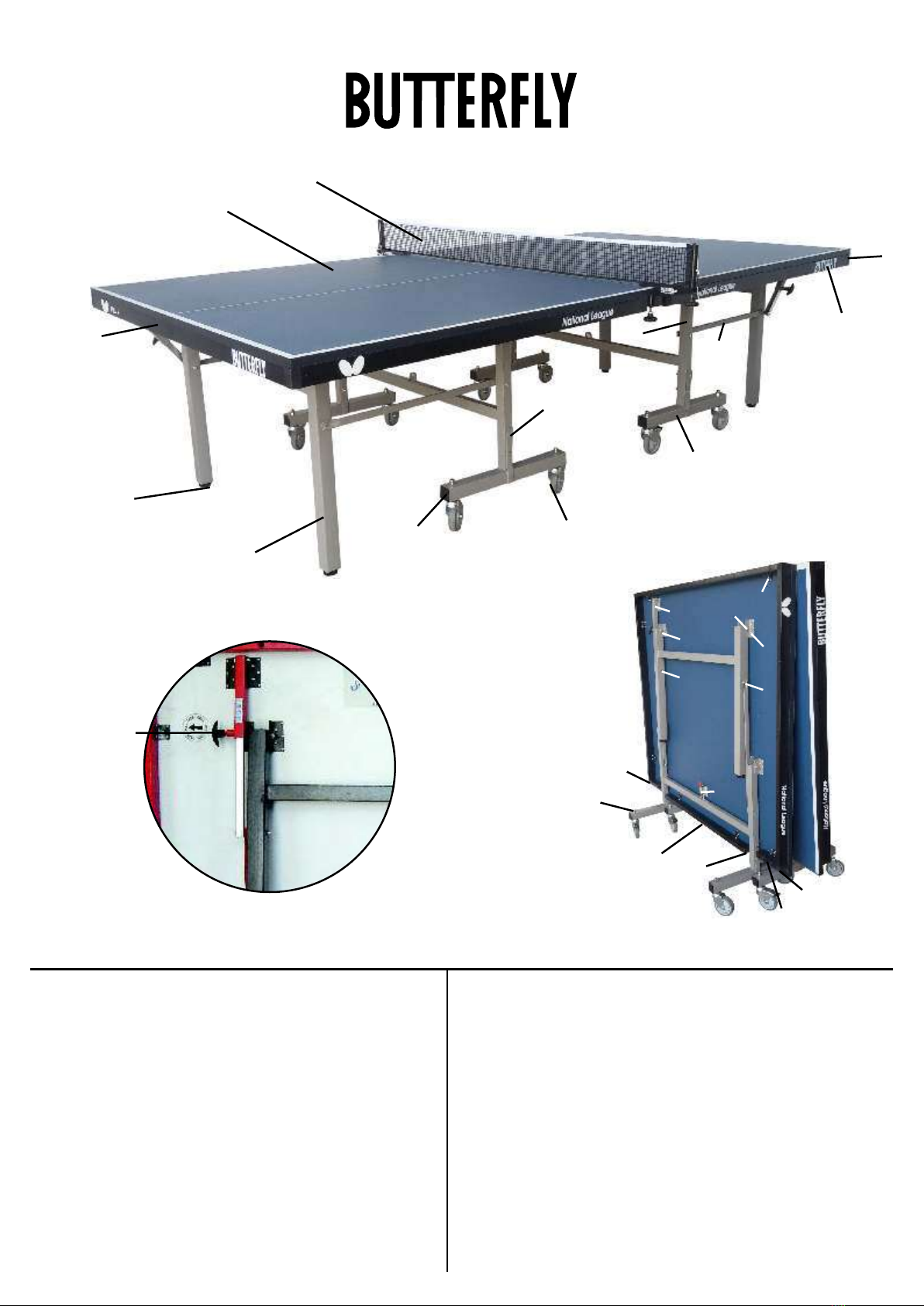

Butterfly Nationlal league 25 Green User manual

National league I
Table Tennis Table
Assembly Instructions
ndoor

1. TABLE TOP 25MM LAMINATED BOARD- 1525×1370×25MM - 2 NOS.
2. END FRAME PIPE -1525×50×25MM - 2 NOS.
3. SIDE FRAME PIPE - 1280×50×25MM - 4 NOS.
4. INNER FRAME PIPE - 960×50×25MM - 2 NOS.
5. SMALL INNER FRAME PIPE - 150×50×25MM - 4 NOS.
6. OUTER LEG - 960×705×45MMSQ - 2 NOS.
7. INNER LEG -1095×504×45MMSQ - 2 NOS.
8. LONG BRACE SUPPORT - 665×25×6MM - 4 NOS.
9. WHEELASSEMBLY- 510×200×45×45MM - 4NOS.
10. SET OF 8 WHEELS - 100 MM WITH 4 LOCK WHEELS
11. BRACKETS FOR OUTER/INNER LEG - 75×25MM - 16 NOS.
12. BRACKETS FOR FRAME PIPE - 38MMSQ - 20 NOS.
13. BRACKETS FOR SIDE LOCK - 75×19MM - 4NOS.
14. BOLTS FOR OUTER/INNER LEG 62×7.5MM & 50×7.5mm - 4 NOS.
15. BOLTS FOR LONG BRACE SUPPORT FIXED TO OUTER/INNER LEG
- 63×6 - 6 NOS.
16. BOLTS FOR SIDE LOCK ATTACHED TO OUTER LEG - 90×6MM
WITH NUT WASHER AND BHOGLI - 2NOS.
17. BOLTS FOR SIDE LOCK ATTACHED TO BRACKET - 3 ×6MM - 2 NOS.
18. DOME NUT - 10MM- 8 NOS.
19. OUTER CORNER - 50x25mm - 4 NOS.
20. SET OF POST CORNER - 50×23MM - 4NOS.
21. LEVELLERS - 50×50MM - 4 NOS.
22. CENTRE LOCK - 2 NOS.
23. SIDE LOCK - 2 NOS.
24. L CORNER TOATTACH P3 & P5 - 50×50MM - 4 NOS.
25. PLASTIC CAPS FOR INNER FRAME PIPE - 25×50MM - 8 NOS.
26. WHEELASSEMBLY CAP - 50×50MM - 8 NOS.
27. NET POST SET - 1 NOS.
28. BOLTS TOATTACHED WHEELASSEMBLY( P9) WITH INNER LEG (P7)
62×7.5MM - 8 NOS.
29. SPARE NET - 1 NOS.
30. SCREW FOR BRACKETS ON TOP 8/13- 260 NOS.
31. SCREW FOR OUTER CORNER & POST CORNERS - 6/13- 20 NOS.
32. SPANNER - 7.5/6MM - 2 NOS.
33. PLASTIC FRAME PIPE PLUG - 48 NOS.
8
P3
P19
P8
P1 P27
P9
P10
P7
P28
P26
P6
P21
P2
P4
P5
P11
P12
P13P14
P15
P16
P17
P20
P22
P24
P25
P18
P23

ADULT ASSEMBLY REQUIRED
P-28 - 62×7.5MM - QTY. - 8
P-32 - 7.5/6 MM - QTY. - 2 P-9 - 510×200×45×45 MM - QTY. - 4
PLEASE READ THE SAFETYINSTRUCTIONSATTHE BOTTOM OF PAGE- 4
STEP - 1
FIX THE WHEELASSEMBLY (P9)TO BOTH INNER (P7) LEGS OF EACH
HALF OF THE TABLE USING 62×7.5MM NUT & BOLTS (×8) & TIGHTEN
IT WITH THE HELP OF 2 SPANNERS.
STEP- 2
SLIGHTLY PULL OUT THE
OUTER LEGS (P6) & PUSH OPEN
THE TABLE SLIGHTLY BY
OPENING CENTRE LOCK (P22).
P-28 - 7.5MM - QTY. - 8

STEP- 3
NOW SLIGHTLY PULL OUT THE
SIDE LOCK (P23) & SLOWL Y
BRING DOWN THE TABLE
PULL
STEP- 4
REPEAT THE SAME FOR THE 2ND HALF OF THE TABLE AS IN STEP- 1, 2, & 3
ADJUST THE HEIGHT REQUIRED WITH THE HELP OF LEVELLERS (P21)
ATTACHEDON ALL 4 OUTER LEGS (P6).
STORING THE TABLE
STEP- 1
PULL OUT THE SIDE LOCK (P23) T O LIFT THE T ABLE ON THE WHEELS.
MAKE SURE THA T LOCK (P22) IS LOCKED PROPERL Y FOR ST ORAGE
REPEA T THE SAME FOR THE 2ND HALF .
STEP- 2
STEP- 5 STEP- 6
YOUR TABLE IS NOW READY FOR PLAY
Safety Instructions:
When lowering each half of the table top, make surethat the outer legs P6 are pulled gently outwards
from the underside of the table, so far as they can go. Failure to do this may result in injury or damage to the table.
This table is suitable for indoor use. It can be used outdoors provided that it is not exposed to direct sunlight,rain or frost.
It should always be stored indoors. Make sure that the wheel brakes are off when moving the table and are on
when the table is stored or in the play position.
ATTACH POST
TO THE LEFT
AND RIGHT
SIDE OF THE
TABLE.
PLACE NET
ONTO POSTS,
FEED STRING
THROUGH
GROOVES.
STEP- 7
