Bxb electronics Ufo-2050 User manual

BXB ELECTRONICS CO., LTD.

O-

-2

iio

..0

tte

BXB ELECTRONICS CO., LTD.

Contents

Contents .....................................................................................................................................................................2

Overview ....................................................................................................................................................................3

System Features .........................................................................................................................................................4

Safety Instructions .....................................................................................................................................................5

Basic Configuration ....................................................................................................................................................6

1. Connection between main control unit & microphones .................................................6

2. Connection between main control unit & video tracking system. ..................................7

3. Connection between main control unit & software. .......................................................7

Operation and Features .............................................................................................................................................8

Front Panel Description ..........................................................................................................................................8

Rear Panel Description ...........................................................................................................................................9

Turn On .................................................................................................................................................................10

LCD Instructions....................................................................................................................................................11

Operations & Settings...........................................................................................................................................13

1.USING MIC ID·················································································13

2.CONFERENCE MODE······································································14

3.OPEN DELEGATE MICROPHONE NUMBER ········································16

4.MIC AUTO-OFF TIME ·······································································16

Save Setting·······················································································17

5.SPEED DOME CAMERA SETTING······················································17

6.SPEED DOME CAMERA MODE··························································19

7.MIC CHECKING MODE·····································································19

8.SPEED DOME RETURN····································································21

9.VIDEO AUTO SWITCH······································································22

Volume Mode Settings··········································································23

MIC Volume Mode Settings ···································································23

AUX Volume Mode Settings···································································23

Tabletop Chairman Microphone Unit.......................................................................................................................24

Tabletop Delegate Microphone Unit........................................................................................................................25

Appendix. Speed Dome Basic Setting.......................................................................................................................26

Power On & Off···················································································26

Telecom On & Off ················································································26

IP Address ·························································································26

Telecom Protocol·················································································27

Definition of Data Transmission Cord·······················································28

BXB ELECTRONICS CO., LTD.

Overview

Thank you for purchasing UFO 2050 conference system from BXB Electronics Co.

UFO 2050 is the latest digital conference system with superb performance and elegant

design which can be used in various conference rooms.

UFO 2050 main control unit has the latest built-in digital module which can control up to 10

chairman units and 999 delegate units. What’s more, the built-in digital volume, camera

positioning and software graphical control module can definitely meet your requirements for any

occasion.

High-speed 360° endless rotation and auto-return enable BXB dome camera to be applied

in various image positions. RS-485 communication interface could apply to remote control. 128

programmable preset points facilitate setting positions more precisely.

The main control unit runs auto-detection to check if all the units work properly when

turning on, facilitating timely system detection.

High reliability is our utmost purpose when developing EDC1000 conference system.

Each main control unit and its fittings have all gone through careful assembly and strict test in

our ISO 9001 approved factory. The excellent performance, high reliability and reasonable price

make it the indispensable conference system for you.

BXB ELECTRONICS CO., LTD.

System Features

Main control unit of the Conference System

1. Digital Control Capability: 10 chairman units& 999 delegate units

2. A 20*4LCD screen and 5 LED setting buttons: MODE, UP, DN STEP& SAVE that could

control conference mode and volume.

3. Built-In digital volume control module

4. Built-In image tracing & positioning control module

5. Built-In software control communication Interface

Chairman Unit

1. Types: Tabletop and flush-mounted

2. Microphone on/off button, control button

3. Pliable in anywhere within circuit

4. ID Setting: 10-Bits DIP Switches

5. Chairman ID code: *01-*10, 10 units at most

Delegate Unit

1. Types: Tabletop, flush-mounted and hand-held

2. Microphone on/off button

3. ID Setting: 10-Bits DIP Switches

4. Delegate ID code: 001-999, 999 units at most

BXB ELECTRONICS CO., LTD.

Safety Instructions

1. Please read and observe these instructions before installing and using the apparatus.

2. Use only accessories specified by the manufacturer. The manufacturer is not liable for damage

caused by the use of non-specified accessories.

3. Install the apparatus and its accessories carefully. Strike and fierce shaking may damage the

apparatus.

4. Make sure the power cord is fixed properly.

5. Do not overload wall outlets and extension cords as this can result in a risk of fire or short circuit.

6. To reduce the risk of damage from lightning strikes, it is important that all electric cables should

be bonded to the same grounding point.

7. Do not block any ventilation openings to prevent overheating and malfunction.

8. Do not expose the apparatus to rain or moisture.

Humidity may lead inside components to damage. Appropriate shelter is necessary when

placing it outside (Best working environment: Temperature 0°C ~ 40°C <32°F ~ 104°F>,

humidity below 90%).

9. Please do not switch on and off the apparatus rapidly.

Rapid switch on and off the apparatus should be avoided all the time to prevent inside sensitive

electronic circuits from being damaged by surges.

10.Do not clean the apparatus and its accessories with chemical solvents. Use only a clean,

dry/dampish cloth.

11.Refer to maintenance technician when the apparatus has been damaged in any way, such as:

A• power-supply cord or plug is damaged

B• liquid has been spilled in

C• has been exposed to rain or moisture

D• has been dropped

E• objects have fallen into the apparatus

F• does not operate normally

12.Note: When the printed circuit board is going through electric static treatment, correct ESD

safety precaution and grounding should be assured.

13.Note: Before connecting the apparatus to main AC, please select the supply voltage in

accordance with the wall voltage in your country to prevent damage. Refer to Installation and

Setting (Page 8) for selecting.

14.Warning: Do not disassemble or remodel the product, as these actions may lead to electrical

shock or damage. The guarantee on the product will become null if the product is ever

disassembled.

BXB ELECTRONICS CO., LTD.

Basic Configuration

1. Connection between main control unit & microphones

1.1 There are 4 microphone links in the back of main control unit, which can be connected

randomly.

1.2 Microphone units are equipped with hidden sockets for connecting Cat.5e cable,

featuring simple and beautiful appearance.

1.3 Chairman units are pliable in anywhere within circuit

1.4 Please make sure the power is off before unplugging any unit.

Up to 25 PCS

CAT.5 Cable

CAT.5 Cable Up to 25 PCS

BXB ELECTRONICS CO., LTD.

2. Connection between main control unit & video tracking system.

2.1 One group of fast socket terminal on main control unit connected with speed dome

control keyboard is adopted with Double core parallel connection (D+ D-).

2.2 Please ensure the plug position correctly to avoid mal-operating while connecting

between main control unit and speed dome control keyboard.

2.3 Double core parallel connection (D+, D-) .Maximum 16 speed dome cameras can be

connected.

2.4 If connecting cord is needed to be made by you, please refer to theAppendix- control

plug instruction.

2.5 The position of RS-485 connector of speed dome can the plug position, please refer to

the Appendix.

2.6 The material of control cords could be referred to the Appendix.

3. Connection between main control unit & software.

3.1 The main control unit and software were connected by the D sub 9P type parallel

connection.

3.2 Please ensure the connection between Graphic control software sever is adopted as

COM 1 port.

SPEED DOME CAMERA NO.1

D+ D-

CONTROL KEYBOARD

16 PCS

D-D+D+ D-

D-D+

SPEED DOME CAMERA NO.2

UFO-2050

BXB ELECTRONICS CO., LTD.

Operation and Features

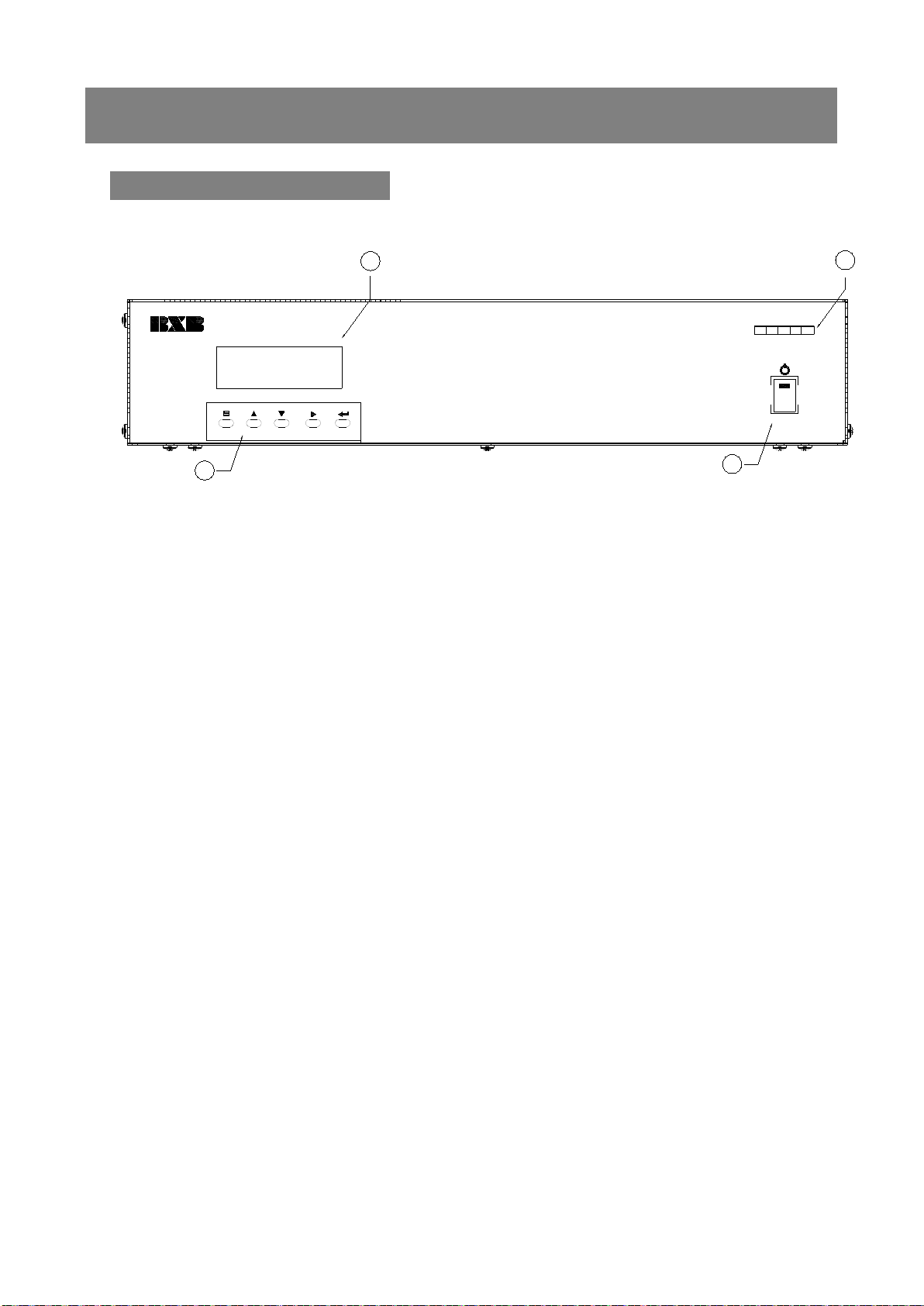

Front Panel Description

○

1 Power switch

○

2 Conference function control

MODE Mode-changing

UP Gain parameter setting/ conference volume up

DN Reduce parameter setting/ conference volume down

STEP Select parameter setting of the IP speed dome from left to right.

SAVE Save settings

○

3 Volume output LED indicator

○

4 20×4 bits LCD screen

-8 -5 0

-2 +2

Mode Up Down

Power

Conference System Control Unit

Down Down

BXB ELECTRONICS CO., LTD.

Rear Panel Description

○

1 Operating voltage: DC 18V/6A host

○

2 DC power supply fuse (DC 250V/8A)

○

3 High-speed dome camera rotation port

○

4 Graphical software RS-232 port

○

5 LINK 1 ~ 4: Microphone output

○

6 L.Spearer VR: Microphone built-in speaker volume knob

○

AUX output terminal (XLR)

※AUX output terminal description

1, 3 Ground

2 Sound (Aux)

BXB ELECTRONICS CO., LTD.

Turn On

1. After confirming all the wiring is done, switch on the main controller and the LCD will

display following information

B X B 1 . 9 8 V e r s i o n

C o n f e r e n c e P A S y s t e m

2. Later, the system will start auto-scanning to see if it operate normally

M e m o r y C h e c k

· · · · · · O K

3. After scanning completes, LCD will display following information (default page)

1 N

O :

2 M O D E :

N o r m a l

3 O P E N - M I C :

0 2 M i c

4 A U T O - O F F : 3 0 S e c

NOTE：

1. When main control unit is ON, this conference system will be executed microphone

connection test. At this moment, the red LED of microphone will be constantly on; 5

seconds later, if the connection was wrong, the faults unit will be flashing. It means the

connection is failure.

2. In this case, the power of main control unit should be switched off and check whether

the microphone connection is correct or not and then switch it on again. If the red LED of

the microphone is constantly on for more than 5 seconds, and the connection of the

microphone is normal.

3. Press the talk button of the chairman unit or any delegate unit, the red LED of

microphone can be cleared, or wait for 30 seconds until the test mode of the system is

finished, and then the conference begins.

BXB ELECTRONICS CO., LTD.

LCD Instructions

1. Using microphones ID code: 3groups of ID code are displayed per page.

Chairman MIC：*01 -*10 Delegate MIC：001 ~ 999

2. Mode - Normal : Normal Mode Override : Override Mode

Chairman : Chairman Mode FIFO : First in first out (FIFO) mode

3. OPEN-MIC: three modes of limiting the number of simultaneously usable units: 1~30, all

open and chairman mode.

4. AUTO-OFF (Automatic Mic-off): 10 ~ 99 second & and manual turn off.

5. SPEED DOME SETTING: Displays and settings of Speed Dome & chairman/delegate

microphone. ID code

6. SPEED DOME MODE:

None：Stop Auto-Image Tracing & Positioning function

Button：When pressing the “Talk” button, the auto image tracing and positioning mode is

activated.

Voice：When using more than two microphones, speed dome will be automatically

detected the voice for executing auto image tracing and positioning mode.

1 N O :

2 M O D E : N o r m a l

3 O P E N - M I C : 0 2 M i c

4 A U T O - O F F : 3 0 S e c

5 S P E E D D O M E S E T T I N G

M I C D O M E A D R

( 0 0 1 ) 0 1 0 0 1

6 S P E E D D O M E M O D E

( N o n e ) B u t t o n V o i c e

BXB ELECTRONICS CO., LTD.

7. MIC CHECKING MODE

System test& scan. Scanning all the units is a must-do when first starts the system.

8. SPEED DONE RETURN

(YES) automatically go back to a default point.

9. VIDEO AUTO SWITCH

(YES) images automatic override

7 ◘M I C

C H E C K I N G M O D E

( T e s t ) S c a n

8 ◘S P E

E D D O N E R E T U R N

Y E S ( N O )

9 ◘V I D E O A U T O S W

I T C H

( Y E S ) N O

BXB ELECTRONICS CO., LTD.

Operations & Settings

1. USING MIC ID

1.1 When the conference unit is using, the red LED of microphone will be constantly on. Meanwhile,

its ID code will be displayed on the LCD of main control unit.

1.2 Less than 3 using microphones, you can see the ID code on the preset menu.

1 N O : 0 0 1 0 0 2 0 0 3

2 M O D E : N o r m a l

3 O P E N - M I C :

0 2 M i c

4 A U T O - O F F :

3 0 S e c

1.3 Over 3 using microphones, ” ” icon will be displayed on the up-right of the LCD，By

pressing the ” MODE “ button,LCD screen will be showed ” ◘” press “UP” and ”DN” button to

check the ID code of using microphone.

1 ◘N O : 0 0 1 0 0 2 0 0 3 

2 M O D E : N o r m a l

3 O P E N - M I C : 0 2 M i c

4 A U T O - O F F : 3 0 S e c

1.4 The symbol of” ◘” icon indicates the operating and setting function is activated. You could repeat

this action to operate and set up all conference modes.

Note:

All the figures shown on this manual is only an example. Each main control unit has been through a

series of quality testing during the process of manufacturing. Due to the default setting is not

identical, users can change the settings simply followed by the instruction manual.

BXB ELECTRONICS CO., LTD.

2. CONFERENCE MODE

2.1 Press ”MODE” button move ” ◘” icon to MODE change the conference mode.

2.1.1The following conference modes can be set.

※The chairman, who is not subject to the following conference mode, can speak anytime

freely.

Normal :

Delegates can press the talk button and speak within the limiting the number of

simultaneously usable units. Press the “Talk” button again to turn it off after speaking.

Chairman：

Only the Chairman unit has the right to speak. Of course, chairman could also permit

thedelegates unit speaking while pushing the “TALK” button by three ways (main control unit,

graphic control server and Chairman unit).

The ID code of requesting Delegate microphone will be ”flashing” in the first column.

Press ”STEP” button to enter delegate-selecting mode. You’ll see （×××）icon. press ”UP”

or ”DN” button select the ID code of delegate microphone.

Press ”STEP” button again the delegate microphone is allowed to talk. You’llsee the

selecting unit of its ID code will be stopped flashing and delegate can talk now. Please

repeat this steps if more delegates request to talk. （this step can also be executed

1 N O : 0 0 1 0 0 2 0 0 3

2 ◘M O D E : N o r m a l

3 O P E N - M I C :

0 2 M i c

4 A U T O - O F F :

3 0 S e c

1 ◘N O : 0 0 1 0 0 2 0 0 3

2 M O D E : C h a i r m a n

3 O P E N - M I C :

0 2 M i c

4 A U T O - O F F :

3 0 S e c

1 ◘N O : ( 0 0 1 ) 0 0 2 0 0 3

2 M O D E : C h a i r m a n

3 O P E N - M I C : 0 2 M i c

4 A U T O - O F F : 3 0 S e c

BXB ELECTRONICS CO., LTD.

simultaneously by pressing the 5 multi-function buttons of chairman unit）

When the numbers of speaker and requesting speakers are over three, you will see this

arrow icons →、←、↔ displayed on LCD of Chairman unit and main unit, indicating →

（next page）、 ←（last page）、 ↔（continued last and next pages）

Override Mode：

Example 1: If you limit the number of simultaneously usable delegate microphone as 1, while the

“TALK” button of the 2nd delegate unit has been pressed, the last using microphone will

be switched off automatically.

Example 2: If you limit the number of simultaneously usable delegate microphone as 3, while the

“TALK” button of the 4th (5th) delegate unit is been pressed, the 1st (2nd) delegate unit will be

switched off. It will be always limited 3simultaneously usable delegate microphones.

Therefore, you can follow the same rule to set up if the numbers of simultaneously usable

delegate microphone ranged from 1~30.

FIFO Mode：

If the limiting numbers of simultaneously usable delegate microphone are 1, while the “TALK”

button of the 2nd delegate unit, the prepared speaker, is been pressed, its indicator lamp & ring of

light are flashing with red color; as for the 3rd delegate unit or more units, theirs “TALK” button

LED are flashing with orange color.; When the 1st delegate finishes speaking, the 2nd one will be

automatically switched on, and the 3rd one will become the prepared speaker. The chairman

microphone is not restricted to this and can speak freely.

At this time, chairman mode operation can still be applied to select prioritized speaker by

overriding the FIFO mode.

1 ◘N O : ( 0 0 1 ) 0 0 2 0 0 3

→

2 M O D E : C h a i r m a n

3 O P E N - M I C :

0 2 M i c

4 A U T O - O F F : 3 0 S e c

1 ◘N O : 0 0 1 0 0 2 0 0 3

2 M O D E : F I F O

3 O P E N - M I C : 0 2 M i c

4 A U T O - O F F : 3 0 S e c

BXB ELECTRONICS CO., LTD.

3. OPEN DELEGATE MICROPHONE NUMBER

3.1 You can select “Open- MIC: ALL MIC” mode (see below ) or set up the limiting number of

simultaneously usable delegate microphone ranged from 1~30.

3.2 Press “MODE” button move ” ◘” to OPEN –MIC mode No. 03 MIC will be flashing p r e s s ”U P ”

or ”DN” button again change the No

3.3 The limiting number of simultaneously usable delegate microphone ranged from 1~30.

i. OPEN –MIC：1 Mic limiting the number of simultaneously usable delegate unit: 1

ii. OPEN –MIC：30 Mic limiting the number of simultaneously usable delegate unit: 30

iii. OPEN –MIC：ALL Mic limiting the number of simultaneously usable delegate unit: None

iv. OPEN –MIC：REQUEST In Chairman mode, this column will be displayed ” REQUEST, ”

meaning delegates need to press button to request to speak.

4. MIC AUTO-OFF TIME

4.1 The function of automatic mic off (from 10~99 sec) could be set up after speaking finished, when

times up, the delegate unit will be automatically switched off or be manually switched off by

pressing the “TALK” button.

4.2 Press ”MODE” button move “◘” to AUTO –OFF mode No. 30 Sec will be flashing press ”UP”

or ”DN” button change the No.

4.3 The function of automatic mic off (from 10~99 sec).

4.4 AUTO –OFF：10 Sec 10 sec later if not speaking, the delegate unit will be automatically

switched off.

i. AUTO–OFF：99 Sec 99 sec later if not speaking, the delegate unit will be automatically

switched off.

ii.AUTO–OFF：Invalid the delegate unit should be manually switched off by pressing the

“TALK”.

1 N O : 0 0 1 0 0 2 0 0 3

2 M O D E : N o r

a l

3 ◘O P E N - M I C :

0 3 M i c

4 A U T O - O F F :

3 0 S e c

1 N O : 0 0 1 0 0 2 0 0 3

2 M O D E : N o r m a l

3 O P E N - M I C : 0 3 M i c

4 ◘A U T O - O F F :

3 0 S e c

Video

BXB ELECTRONICS CO., LTD.

Save Setting

a. When all above settings finished, if you want to save them as default value, you only need to push

“SAVE” button. When it’s done, the saved setting is permanent. Power failures of switching off do not

clear the default value.

b. When “SAVE” button is pressed, the LCD will be displayed in the following information.

S a v e . . . . . . . . . O K

5. SPEED DOME CAMERA SETTING

5.1 Each Speed Dome has the function of Auto-Image Tracing & Positioning which can be set up from

the main control unit. Each chairman/delegate unit could set up to16 Speed Domes which has 128

Programmable Preset Positions of each camera.

5.2 Press “MODE” button move” ◘” to SPEED DOME SETTING mode (the 2nd page of the MENU) ( )

ID code 001 displayed under MIC column press “UP” or “DN” buttonselect the “ID code” of

microphone

5 ◘S P E E D D O M E S E T T I N G

M I C D O M E A D R

( 0 0 1 ) 0 1 0 0 1

5.3 The conference system totally has 1,009 groups of ID codes.

i. 4.6.3.1 ID code of delegate unit: 999 groups of numbers from 001 ~ 999

ii. 4.6.3.2 ID code of chairman unit: 10 groups of numbers from 1 ~ 10

iii. When “ID code” of microphone has been selected press ”STEP” button move to right side to ID code

001 under DOME column （）ID code 01 displayed under DOME column press ”UP” or ”DN” button 

select the “ID code” of IP Speed Dome (See the Appendix – ID Codes of Speed Dome camera)

◘

(

)

5.4 One main control unit can control 16 speed domes cameras. No. 01 ~ 16 is the” ID code” of these 16

speed dome cameras.

BXB ELECTRONICS CO., LTD.

5.5 When “ID code” of speed dome has been selected press ”STEP” button move to right side to ID code

001 under ADR column（）ID code 01 displayed under ADR column press ”UP” or ”DN” button select

the “Programmable Preset Positions” of Speed Dome.

5 ◘S P E E D D O M E S E T T I N G

M I C D O M E A D R

0 0 1 0 1 ( 0 0 1 )

5.6 Each speed dome has 128 Programmable Preset Positions.

i. 4.6.7.1 When the figure under ADR column displayed 001, it is the 1st Programmable Preset

Positions.

ii. 4.6.7.2When the figure under ADR column displayed OFF, the function of Auto-Image Tracing &

Positioning is disabled.

5.7 When above three steps finished setting  press ”SAVE ” button to save the setting value of the speed

dome camera  When “SAVE” button is pressed, the LCD will be displayed in the following information.

S a v e . . . . . . . . . O K

5.8 4.6.9 Now, the picture in LCD will be back to item “b” Repeat the above setting steps for other

conference unit.

5.9 4.6.10 The Programmable Preset Position is the 128th of ID address and the 1st ID code of the IP

speed dome. It is mainly used to turn the IP speed dome automatically to the 128th conference

preset position when there is no using microphone.

BXB ELECTRONICS CO., LTD

6. SPEED DOME CAMERA MODE

6.1 Auto-Image Tracing & Positioning Control Mode

6.1.1 ” None” mode: Auto-Image Tracing & positioning is disabled.

6.1.2 ” Button” mode: The speed dome will be tracing & positioning the image while the “TALK”

button is being pressed. The images of Speed Dome will be positioned to the last talking

microphone. By pressing the “TALK” button, the chairman or delegates could have the

images of positioned again

6.1.3 ”Voice” mode: The speed dome will not only be tracing & positioning the image while the “TALK”

button is being pressed for the first time but also it will be tracing & positioning the image

automatically where the voice coming from.

6.2 How to Operate:

Press ”MODE” button move ” ◘” to SPEED DOME MODE（the 3rd of the MENU）the previous

settings will be displayed on the LCD press ”STEP” button select mode Save

6 ◘S P E E D D O M E M O D E

( N o n e ) B u t t o n V o i c e

7. MIC CHECKING MODE

7.1 After the installation is completed, you have to execute the “Scan” functions first, and then the

system will be automatically scanned and detected all the microphones. The numbers of

microphones and their ID codes will be recorded in the system. Now, the first self-detecting

action is completed

7.2 How to Operate：

i. Press ”MODE” button move ” ◘ ” to 7. MIC CHECKING MODE（the 4th page of the MENU）It

will be showed as following:

7 ◘M I C C H E C K I N G M O D E

( T e s t ) S c a n

BXB ELECTRONICS CO., LTD

Press “STEP” button move ( ) to “Scan” press “Save” button.

7 ◘M I C C H E C K I N G M O D E

T e s t ( S c a n )

The following display will be lasted about 30 sec.

E R A S E M E M O R Y

P L E A S E W A I T .

After that, it will start checking all microphone’s ID installed. It will take about 60 seconds

C H E C K I N G M I C : □□□

M I C C O U N T E R : □□□

E R R O R :

CHECKING MIC: Delegate : 000~999，Chairman ＊01~＊10。

MIC COUNTER：000~1009。

ERROR：Under scanning, no ID code will be displayed

ii. During MIC CHECKING MODE, chairman and delegate’s LCD will also shows the scan

status.

iii. After confirming the above operations correctly, Press ”MODE” button move ” ◘ ” to “MIC

CHECKING MODE” (the 4th page of the MENU) It will be showed as following:

7 ◘M I C

C H E C K I N G M O D E

( T e s t ) S c a n

Press “Save”button, checking time may be various depends on number of installed units

C H E C K I N G M I C : □□□

M I C C O U N T E R : □□□

E R R O R : □□□□□□□□□

Table of contents

Other BXB Electronics Conference System manuals

BXB Electronics

BXB Electronics FCS 6350 User manual

Popular Conference System manuals by other brands

LANIER/RICOH/SAVIN

LANIER/RICOH/SAVIN P3500M user manual

AT&T

AT&T MERLIN LEGEND Release 2.0 Analog Direct-Line... Operator's guide

Polycom

Polycom VSX Series Getting started guide

Yealink

Yealink VC400 user guide

Texas Instruments

Texas Instruments TLV320AIC10 EVM user guide

THOMSON

THOMSON REMOTE COMMUNICATION - V3.0 user manual

Crestron

Crestron CCS-UC-300 Do guide

AT&T

AT&T Lucent Technologies PARTNER Plus Installation and use

LifeSize

LifeSize 220 Series Release notes

Sena

Sena 10C EVO user guide

Honeywell

Honeywell ASPIRE-400 System Description, Installation and Maintenance Manual

Polycom

Polycom CX5000 Integration guide

AT&T

AT&T SPIRIT 308 System planner

Feig Electronic

Feig Electronic ID RW24.ABC-A Mounting instruction

Toa

Toa TS-700 Information

Amdi

Amdi PARTNER/PLUS FOUR instruction sheet

Sony

Sony PCS-1 - Video Conferencing Kit Operation manual

SOFTLINK

SOFTLINK NB-SI2 manual

BXB Electronics UFO-2050 User manual

Popular Conference System manuals by other brands
