3. Package Contents
①1 × 18Gbps HDMI 1×4 HDBaseT Splitter
②4 × HDBaseT Receiver

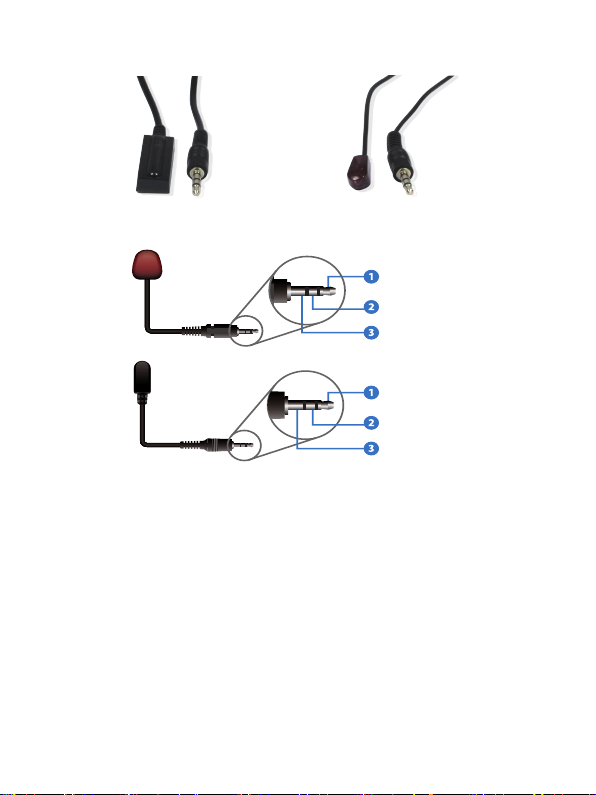

③5 × IR Blaster Cable (1.5 meters)
④5 × 20K~60KHz IR Receiver Cable (1.5 meters)
⑤5 × 3-pin Phoenix Connector
⑥1 × 5-pin Phoenix Connector
⑦10 × Mounting Ear
⑧1 × 24V/2.7A DC Locking Power Adapter
⑨1 × User Manual
1. Introduction
The BG-UDA-E14 18Gbps HDMI 1x4 HDBaseT Splitter can distribute 1
source signal to any 4 display devices. The HDMI signal transmission distance
can be extended up to 120 meters at the resolution of 4K2K@60Hz, 150
meters at 1080P@60Hz via a single CAT6/6a/7 cable. The product supports
up to 7.1CH HD audio pass-through. Audio extract function and advanced
EDID management are supported.
2. Features
-1-
☆HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
☆Support 18Gbps video bandwidth
☆Support video resolution up to 4K2K@60Hz 4:4:4
☆Support HDR, HDR10+, HLG and Dolby vision
☆Support up to 7.1CH HD audio pass-through
☆Support digital and analog audio de-embedded output
☆Extend the signal transmission distance up to 120 meters at the resolution
of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable
☆Support 1 HDMI input, 1 HDMI loop output and 4 HDBaseT outputs.
☆IR, RS-232 routed to HDBaseT output
☆Advanced EDID management
☆Support one-way POC function (only from transmitter to receiver)
☆Compact design for easy and flexible installation
