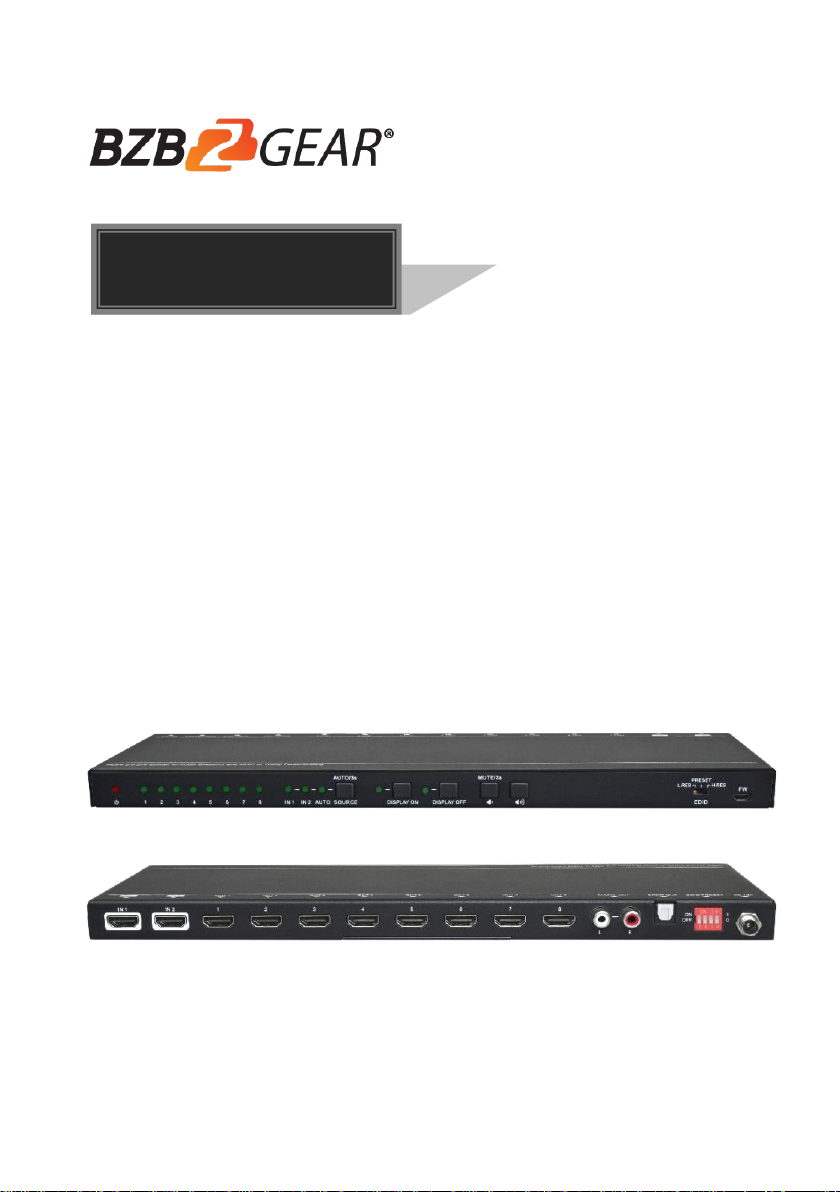

BZB Gear BG-UHD-DA2X8 User manual

BG-UHD-DA2X8
HDMI 2.0 2x8 Splitter with Audio Breakout
and 4K to 1080P Down-Scaling
User Manual

All Rights Reserved
Preface
Read this user manual carefully before using the product. Pictures are shown in this
manual for reference only. Different models and specifications are subject to real
product.
This manual is only for operation instruction, please contact the local distributor for
maintenance assistance. The functions described in this version were updated till
October, 2018. In the constant effort to improve the product, we reserve the right to
make functions or parameters changes without notice or obligation. Please refer to the
dealers for the latest details.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in
which case the user at their own expense will be required to take whatever measures
may be necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

SAFETY PRECAUTIONS
To ensure the best performance from the product, please read all instructions carefully
before using the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment.
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit.Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

Table of Contents
1. Product Introduction ....................................................................................................1
1.1 Features.............................................................................................................1
1.2 Packing List........................................................................................................2
2. Technical Specification................................................................................................3
3. Panel Description ........................................................................................................5
3.1 Front Panel.........................................................................................................5
3.2 Rear Panel .........................................................................................................6
4. System Connection .....................................................................................................7
4.1 Usage Precaution...............................................................................................7
4.2 System Diagram.................................................................................................7
5. EDID Management......................................................................................................8
6. Video Resolution Down-scaling.................................................................................11
7. Firmware Upgrade.....................................................................................................12
8. Panel Drawing...........................................................................................................13
9. Troubleshooting and Maintenance ............................................................................14
10. Customer Service....................................................................................................15
11. Warranty Information ...............................................................................................16
12. Mission Statement...................................................................................................17

1
1. Product Introduction
Thanks for choosing the HDMI 2.0 2x8 Splitter, which can distribute either one of two
HDMI inputs to eight outputs. The splitter supports HDMI video resolution up to
4K@60Hz 4:4:4, 1080P 3D and multichannel audio formats. Except passing EDID
information from the display, there are multiple built-in EDID settings can be selected
by the 4-pin DIP switch on the rear panel. The splitter can de-embed HDMI digital
audio to stereo analog L/R and Toslink SPDIF audio outputs to provide audio sources
for existing audio system.
CEC technology is adopted to turn on/off displays and adjust volume by the control
buttons on the front panel. Moreover, the splitter supports convenient firmware
upgrade through Micro-USB port.
1.1 Features
Supports HDMI 2.0 and video resolution up to 4K@60Hz 4:4:4.
HDMI inputs support HDCP 2.2 and the outputs support HDCP1.4.
Supports video resolution down-scaling, the 4K input can be automatically degraded
to 1080P output for compatibility with 1080P display.
18Gbps high bandwidth.
Features RCA (L/R) jack and Toslink connector for audio de-embedded.
Advanced EDID management: multiple preset and user defined allowed.
Built-in equalizer for signal enhancement to avoid signal attenuation in transmission.
Supports CEC control to turn on/off displays and adjust their volume.
Provides LEDs to indicate the current operating status and to assist troubleshooting
and installation.
Firmware upgrade by Micro-USB port.

2
1.2 Packing List
1x HDMI 2.0 2x8 Splitter
2x Mounting Ears with 4 Screws
4x Plastic Cushions
1x Power Adapter (12V DC 1A)
1x User Manual
Note:Please contact your distributor immediately if any damage or defect in the
components is found.

3
2. Technical Specification
Video Input
Input
(2) HDMI
Input Connector
(2) Female type-A HDMI
HDMI Input Resolution
Up to 4Kx2K@60Hz 4:4:4 8bit
HDMI Standard
2.0
HDCP Version
2.2
CEC
Supported
Video Output
Output
(8) HDMI
Output Connector
(8) Female type-A HDMI
HDMI Output Resolution
Up to 4Kx2K@60Hz 4:4:4 8bit
HDMI Standard
2.0
CEC
Supported
Audio
De-embedded Output
(1) AUDIO OUT; (1) SPDIF OUT
Output Connector
(1) RCA (L/R) jack; (1) Toslink connector
HDMI Audio Format
LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby
Digital® Plus, DTS:X™, and DTS-HD® Master Audio™
pass-through.
Stereo Analog L/R Audio
Format
PCM
Toslink Digital Audio
Format
PCM, Dolby Digital, DTS, DTS-HD
Frequency Response
20Hz ~ 20KHz, ±3dB
Max Output Level
2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV
(316mV) nominal consumer line level signal
THD+N
<0.05% (-80 dB), 20Hz ~ 20KHz bandwidth, 1KHz sine
at 0dBFS level (or max level)
SNR
>80dB, 20Hz ~ 20 KHz bandwidth

4
Crosstalk Isolation
>70dB, 10KHz sine at 0dBFS level (or max level before
clipping)
L-R Level Deviation
< 0.3dB, 1KHz sine at 0dBFS level (or max level before
clipping)
Frequency Response
Deviation
<± 0.5 dB 20Hz ~ 20KHz
Output Load Capability
1K ohm and higher (supports 10x paralleled 10k ohm
loads)
Stereo Channel
Separation
>70dB@1kHz
Control
Control Part
(5) Control buttons; (1) EDID 3-pin DIP switch;
(1) EDID 4-pin DIP switch; (1) Micro-USB port
General
Bandwidth
18Gbps
Operation Temperature
-10℃~ +55℃
Storage Temperature
-25℃~ +70℃
Relative Humility
10%-90%
Power Supply
Input:100V~240V AC; Output: 12V DC 1A
Power Consumption
12W(Max)
Dimension (W*H*D)
324mm x 20mm x 100mm
Net Weight
About 900g
Note: Please adopt high-qualified HDMI cable fully compliant with HDMI 2.0 for
reliable transmission and connection.

5
3. Panel Description
3.1 Front Panel

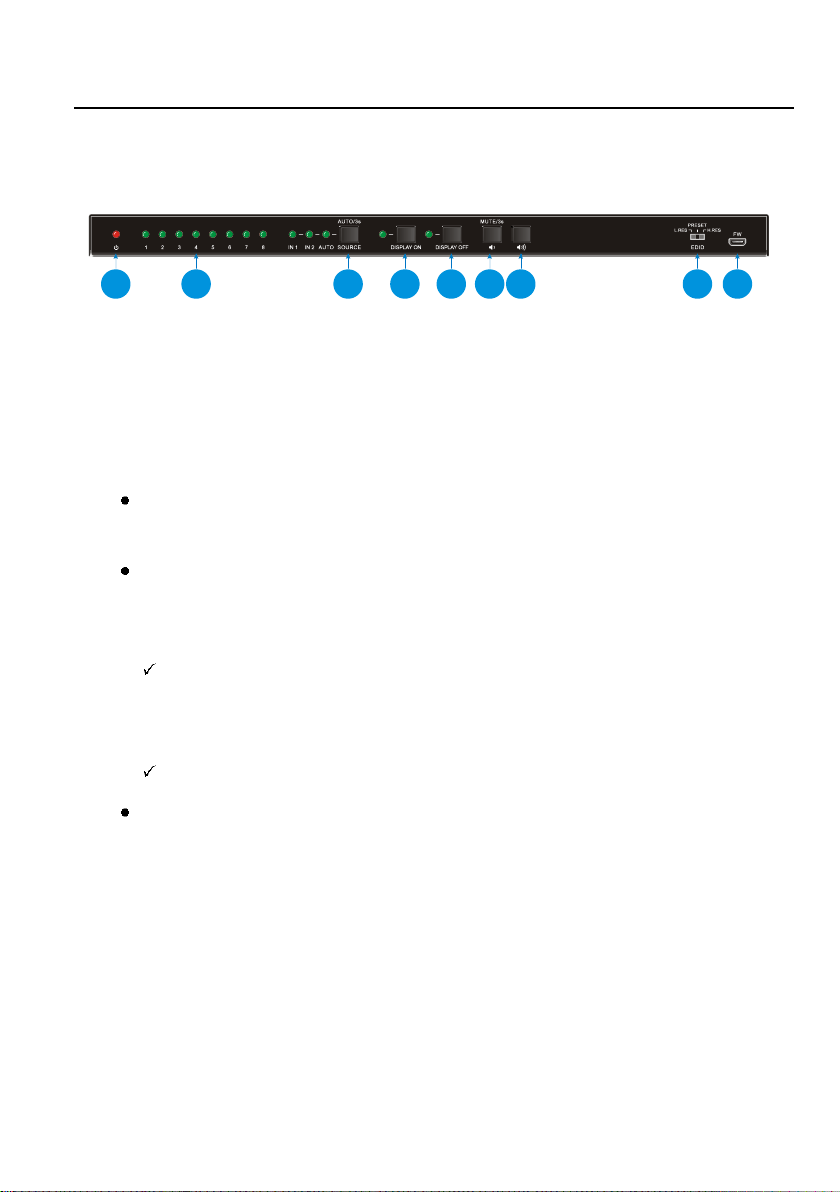

①POWER LED: The LED illuminates red when power is applied.
②OUTPUT LEDs: The LED illuminates green when there is HDMI output on the
corresponding channel.
③SOURCE Button and LEDs:
Press the button to switch to next source device, and then the corresponding
input LED will illuminate green.
Press and hold the button at least three seconds to enable automatic
switching mode. The splitter will automatically select the first available active
source device starting at HDMI input 1.
Upon detecting a new source device connect, the splitter will automatically
select the new one. When an active source device is removed, the splitter
will switch to the next one.
Once restart the splitter, it will resume the last switching status.
Press and hold the button at least three seconds again to exit automatic
switching mode, and the current channel won’t be changed.
④DISPLAY ON Button and LED: Press the button to turn on displays. The LED
blinks green when press this button to send control signal.
⑤DISPLAY OFF Button and LED: Press the button to turn off displays. The LED
blinks green when press this button to send control signal.
⑥VOLUME DOWN/MUTE Button: Press the button to decrease the volume of
displays. Press and hold this button at least three seconds to mute the displays.
⑦VOLUME UP Button: Press the button to increase the volume of displays or exit
123 4 56789

6
mute mode if the displays is already in the mute mode.
⑧EDID: 3-pin DIP Switch for the Extended Display Identification Data (EDID) value
setting. Please refer to the 5.EDID Management for more details.
⑨FW: Micro-USB port for firmware upgrade.
Note: Only the displays which support CEC can be controlled by DISPLAY ON,
DISPLAY OFF, VOLUME UP and VOLUME DOWN buttons.

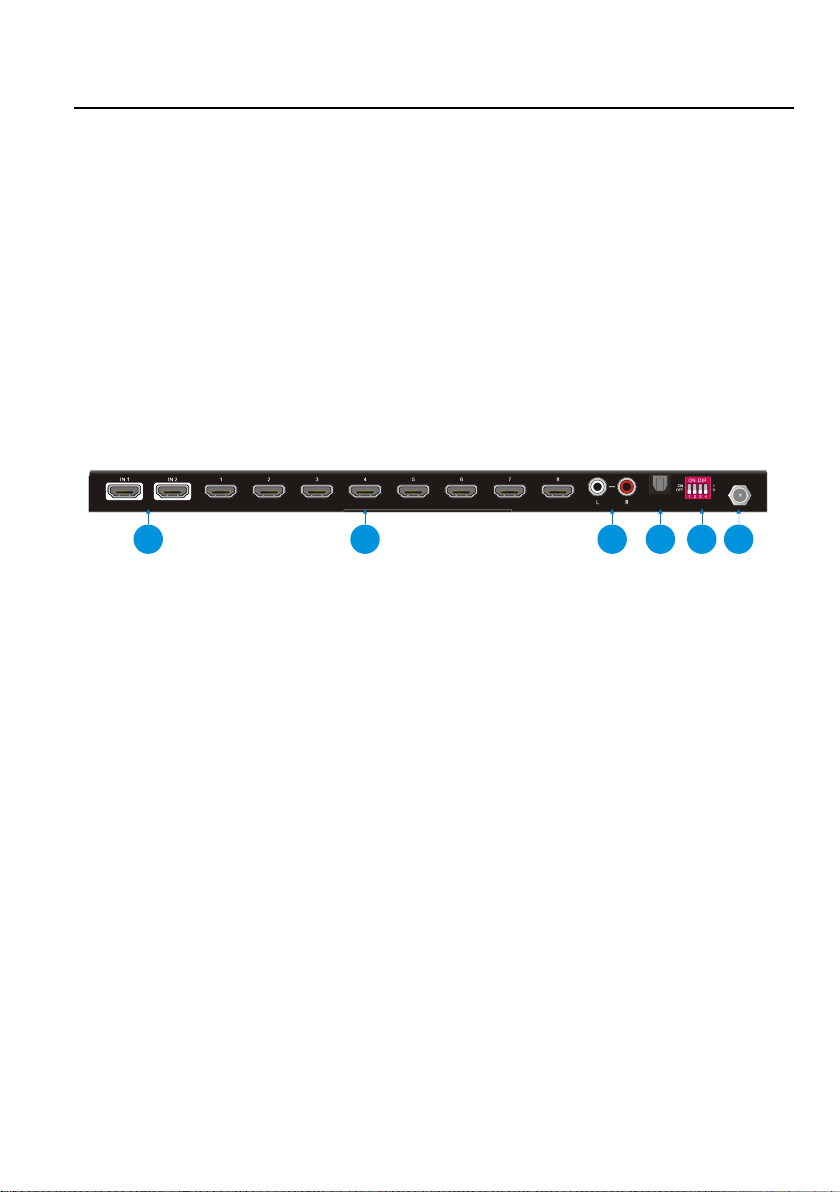

3.2 Rear Panel
①INPUTS: Two type-A female HDMI input ports to connect HDMI sources.
②OUTPUTS: Eight type-A female HDMI output ports to connect HDMI displays.
③AUDIO OUT: RCA jack for stereo analog audio output.
④SPDIF OUT: Toslink connector for digital audio output.
⑤EDID: 4-pin DIP switch for EDID setting. Please refer to the 5.EDID Management
for more details.
⑥DC 12V: DC barrel port to connect an AC power adapter.
1234 5 6

7
4. System Connection
4.1 Usage Precaution
Make sure all components and accessories included before installation.
System should be installed in a clean environment with proper temperature and
humidity.
All of the power switches, plugs, sockets, and power cords should be insulated and
safe.
All devices should be connected before power on.
4.2 System Diagram

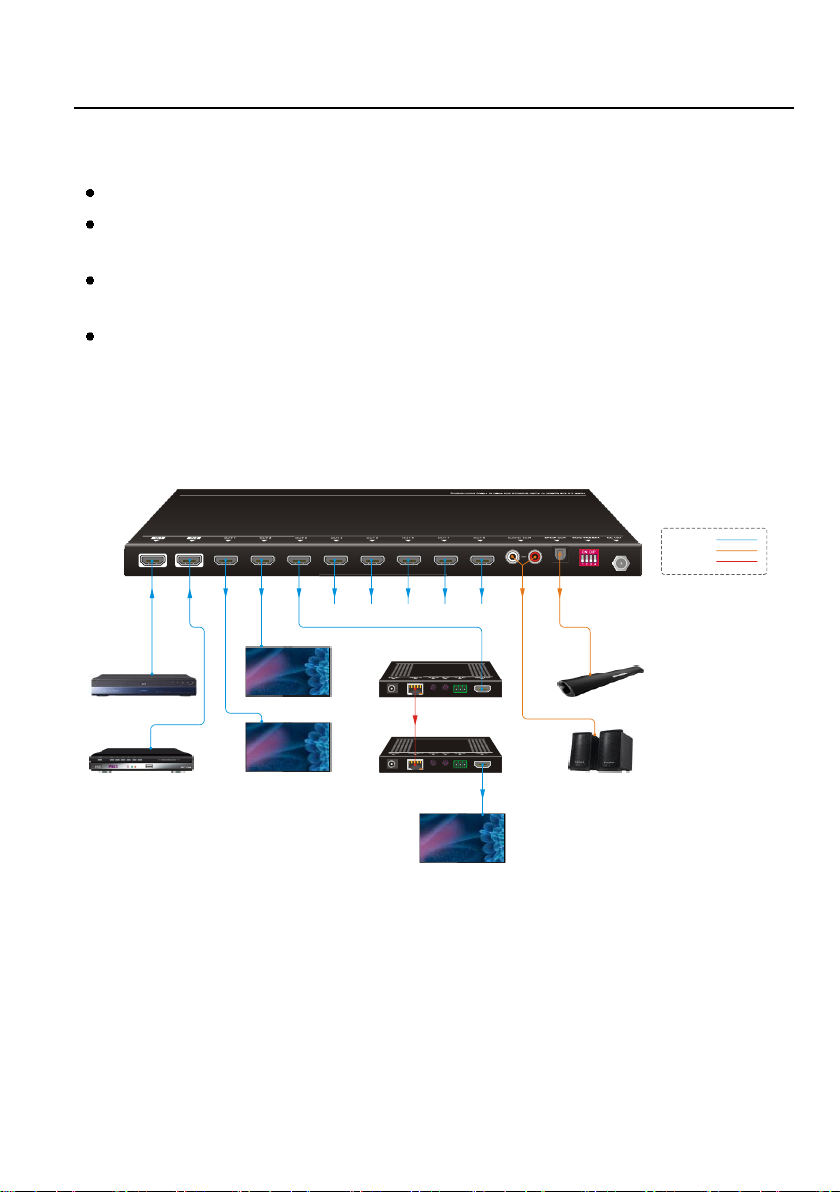

The following diagram illustrates the typical input and output connection of the splitter:
1
3
5
7
2
4
6 8
IN 1
I N 2
LR
ON
OFF 1 0
4K/60 Display
Soundbar
STB Speaker
HDMI 2.0 Tx
HDMI 2.0 Rx
HDMI:
AUDIO:
HDBaseT:
1080p Display
4K/60 Display
4K/60 Display
4K/60 Blu-ray
Down
Scaling
4K@60 4:4:4 HDR
4K/60 Display

8
5. EDID Management
The Extended Display Identification Data (EDID) is used by the source device to
match its video resolution with the connected display. By default, the source device
obtains its EDID from the first connected display. Meanwhile, since the displays with
different capabilities are connected to the splitter, the 3-pin DIP switch on the front
panel and the 4-pin DIP switch on the rear panel can be used incombination to set the
EDID to a fixed value to ensure the compatibility in video resolution.
Switch Status
Description
L.RES
The splitter reads all EDID information from all connected displays,
and choose the one with lowest resolution passing to the source.
PRESET
In this mode, the 4-pin DIP switch on the rear panel can be used to
select predefined EDID and customize a specific EDID as need.
H.RES
The splitter reads all EDID information from all connected displays,
and choose the one with highest resolution passing to the source.
Predefined EDID setting
When the 3-pin DIP switch on the front panel is in PRESET mode, the 4-pin DIP switch
on the rear panel can be used to set the EDID to a built-in fixed value. Use the
following table to determine the settings for the 4-pin DIP switch for specific video
resolution and audio capabilities.
When in the lower position, the switch represents “0”, while putting the switch in the
upper position, it represents “1”.

9
Switch Status
Video Resolution
Audio Format
0000
Obtains EDID from the display connected to the HDMI output port 1.
0001
Obtains EDID from the display connected to the HDMI output port 2.
0010
Obtains EDID from the display connected to the HDMI output port 3.
0011
Obtains EDID from the display connected to the HDMI output port 4.
0100
Obtains EDID from the display connected to the HDMI output port 5.
0101
Obtains EDID from the display connected to the HDMI output port 6.
0110
Obtains EDID from the display connected to the HDMI output port 7.
0111
Obtains EDID from the display connected to the HDMI output port 8.
1000
720P
LPCM
1001
1080P
LPCM
1010
1080P
DTS/Dolby
1011
3840x2160@30Hz
LPCM
1100
3840x2160@30Hz
DTS/Dolby
1101
3840x2160@60Hz
LPCM
1110
3840x2160@60Hz
DTS/Dolby
User defined EDID setting
Except directly invoking the built-in EDID, the specific EDID can be customized by
following the below operation process.
1) Rename the user defined EDID according the following format.
EC_xx_xxxx_xxx.bin
EC: Represents EDID.
xx: Represents EDID ID. It is “15”.
xxxx: Represents the video parameter.
xxx: Represents the audio format.
Example: EC_11_720P_LPCM.bin
2) Power on the splitter, and then connect to the PC with USB cable. The PC will
automatically detect a U-disk named of “BOOTDISK”.
3) Double-click to open the U-disk, a file named of “READY.TXT” will be showed.
4) Copy the user defined EDID (such as EC_11_720P_LPCM.bin) to the

10
“BOOTDISK” U-disk.
5) Reopen the U-disk to check the filename “READY.TXT” whether automatically
becomes “SUCCESS.TXT”, if yes, the user defined EDID was imported into the
splitter and saved as its corresponding EDID ID successfully.
6) Remove the USB cable, and then reboot the splitter.
7) The new EDID now can be invoked via the 4-pin DIP switch directly. The EDID ID
and its corresponding switch status is shown in the below list.
ID
Switch Status
15
1111

11
6. Video Resolution Down-scaling
The product supports video resolution down-scaling, the 4K input can be automatically
degraded to 1080P output for compatibility with 1080P display, shown in the below
chart.
Input
Output
#
Resolution
Refresh
Color
Space
Downscale
1080P Specs
1
3840x2160
60
4:4:4
Support
1080P@60Hz 4:4:4
2
3840x2160
30
4:4:4
Support
1080P@30Hz 4:4:4
3
3840x2160
24
4:4:4
Support
1080P@24Hz 4:4:4
4
3840x2160
60
4:2:0
Support
1080P@60Hz 4:2:0
5
3840x2160
30
4:2:0
Support
1080P@30Hz 4:2:0
6
3840x2160
24
4:2:0
Support
1080P@24Hz 4:2:0
7
3840x2160
60
4:2:2
Support
1080P@60Hz 4:4:4
8
3840x2160
30
4:2:2
Support
1080P@30Hz 4:4:4
9
3840x2160
24
4:2:2
Support
1080P@24Hz 4:4:4

12
7. Firmware Upgrade
Please follow the below steps to upgrade firmware by the Micro-USB port:
1) Connect the splitter to the PC with USB cable.
2) Power on the splitter, and then the PC will automatically detect a U-disk named of
“BOOTDISK”.
3) Double-click to open the U-disk, a file named of “READY.TXT” will be showed.
4) Directly copy the latest upgrade file (.bin) to the “BOOTDISK” U-disk.
5) Reopen the U-disk to check the filename “READY.TXT” whether automatically
becomes “SUCCESS.TXT”, if yes, the firmware was upgraded successfully,
otherwise, the firmware upgrade is fail, the name of upgrade file (.bin) should be
confirm again, and then follow the above steps to upgrade again.
6) Remove the USB cable after firmware upgrade.

13
8. Panel Drawing
324 mm
100 mm
20 mm

14
9. Troubleshooting and Maintenance
Problems
Potential Causes
Solutions
Color losing or no video
signal output in HDMI
display.
The connecting cables may
not be connected correctly
or it may be broken.
Check whether the cables
are connected correctly and
in working condition.
The display is not
compatible with the present
output resolution.
Make sure the resolution of
the display(s) is compatible
with the present resolution.
No HDMI signal output in
the splitter while local
HDMI input is in normal
working state.
The connecting cables may
not be connected correctly
or it may be broken.
Check whether the cables
are connected correctly and
in working condition.
Splash screen in output
devices.
Poor quality of the
connecting cable.
Change for another cable of
good quality.
Static becomes stronger
when connecting the
video connectors.
Bad grounding.
Check the grounding and
make sure it is connected
well.
Note: If your problem still remaining after following the above troubleshooting steps,
please contact your local dealer or distributor for further assistance.

15
10. Customer Service
The return of a product to our Customer Service implies the full agreement of the
terms and conditions hereinafter. There terms and conditions may be changed without
prior notice.
1) Warranty
The limited warranty period of the product is one year.
2) Scope
These terms and conditions of Customer Service apply to the customer service
provided for the products or any other items sold by authorized distributor only.
3) Warranty Exclusion
Warranty expiration.
Factory applied serial number has been altered or removed from the product.
Damage, deterioration or malfunction caused by:
Normal wear and tear.
Use of supplies or parts not meeting our specifications.
No certificate or invoice as the proof of warranty.
The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
Damage caused by force majeure.
Servicing not authorized by distributor.
Any other causes which does not relate to a product defect.
Shipping fees, installation or labor charges for installation or setup of the product.
4) Documentation:
Customer Service will accept defective product(s) in the scope of warranty
coverage at the sole condition that the defeat has been clearly defined, and upon
reception of the documents or copy of invoice, indicating the date of purchase, the
type of product, the serial number, and the name of distributor.
Remarks: Please contact your local distributor for further assistance or solutions.

16
11. Warranty Information
Second Year Assurance
BZB Gear wants to assure you peace of mind. We're so confident in the quality of our
products that along with the manufacturer's one-year limited warranty, we are offering
free second-year warranty coverage upon registration*!
Taking advantage of this program is simple, just follow the steps below:
1. Register your product within 90 days of purchase by visiting
BZBGear.com/warranty.
2. Complete the registration form. Provide all necessary proof of purchase details,
including serial number and a copy of your sales receipt.
For questions, please call 1.888.660.2962 or email [e-mail].
For complete warranty information, please visit BZBGear.com/warranty or scan the
QR code below.
*Terms and conditions apply. Registration is required.
