Cadet Hot One User manual

http://cadetheat.com/rcp
For how-to videos or more information, please visit:
THE HOT ONE
SHOP-TOUGH
AND GARAGE
WORTHY
OWNER’S GUIDE
cadetheat.com
855.CADET.US
Vancouver, Washington
USA
A
S
S
E
M
B
L
E
D
I
N
tested to UL standards
Thank you for your purchase! Question or problem? Let us solve it
with a single phone call, email or online chat! We’ll save you a trip
back to the store!
Phone: 855.CADET.US (855.223.3887)
email: [email protected]
Live chat: cadetheat.com (contact us)
Cadet Customer Service

SAVE THESE INSTRUCTIONS
IMPORTANT INSTRUCTIONS
2

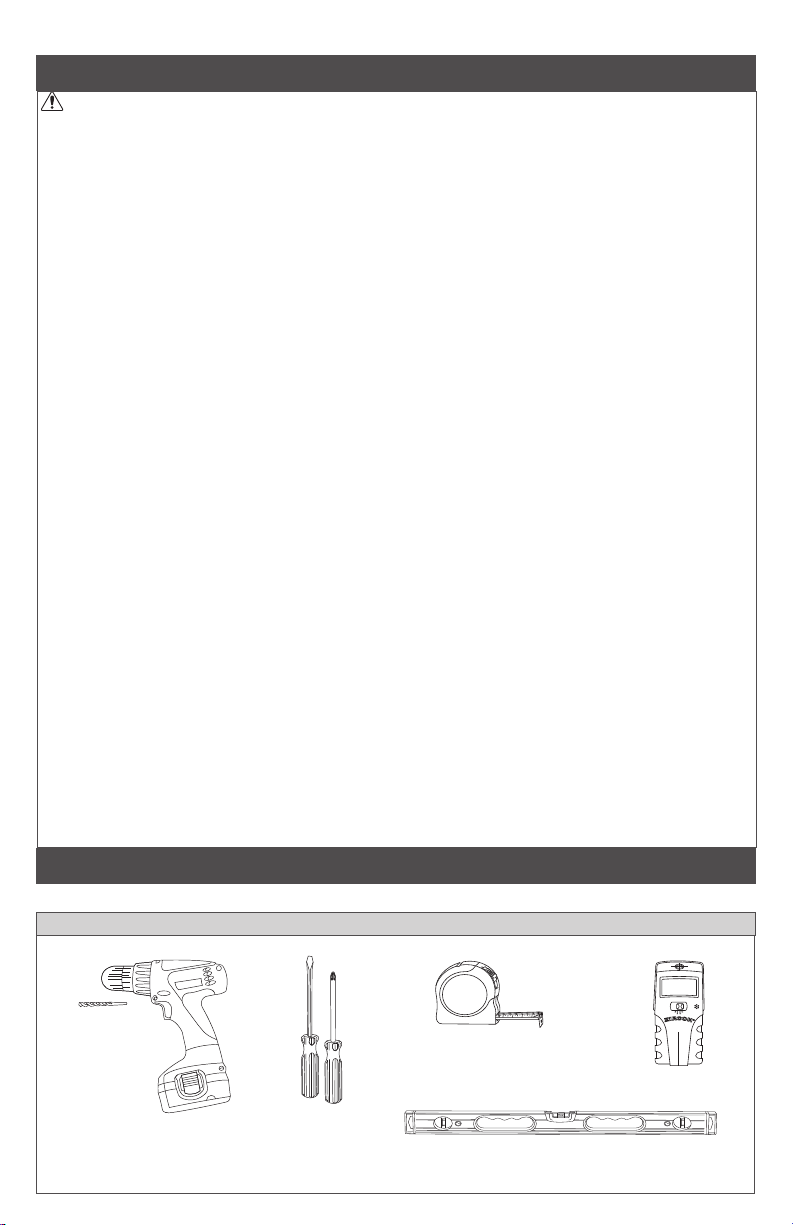

TOOLS REQUIRED
1. Read all instructions before using
this heater.
2. This heater is hot when in use.
To avoid burns, do not let bare skin
touch hot surfaces. If provided, use
handles when moving this heater.
Keep combustible materials, such
as furniture, pillows, bedding,
papers, clothes and curtains at
least 3 feet (.9 m) from the front of
the heater and keep them away
from the sides and rear.
3. Extreme caution is necessary
when any heater is used by or near
children or invalids and whenever
the heater is left operating and
unattended.
4. Always unplug heater when not in
use.
5. Do not operate any heater with
a damaged cord or plug, or after
the heater malfunctions, has been
dropped or damaged in any manner.
Return heater to authorized service
facility for examination, electrical or
mechanical adjustment or repair.
6. Do not use outdoors.
7. This heater is not intended for use
in bathrooms, laundry areas and
similar indoor locations. Never
locate heater where it may fall into
a bathtub or other water container.
8. Do not run cord under carpeting.
Do not cover cord with throw rugs,
runners, or similar coverings.
Arrange cord away from tra󰀩c area
and where it will not be tripped over.
9. To disconnect heater, turn controls
to o󰀨, then remove plug from
receptacle.
10. Connect to properly grounded
receptacles only.
11. Do not insert or allow foreign
objects to enter any ventilation or
exhaust opening as this may cause
an electric shock or re, or damage
the heater.
12. To prevent a possible re, do
not block air intakes or exhaust
in any manner. Do not use on
soft surfaces, like a bed, where
openings may become blocked.
13. A heater has hot and arcing or
sparking parts inside. Do not use
it in areas where gasoline, paint,
or ammable vapors or liquids
are used or stored.
14. Use this heater only as described
in this manual. Any other use
not recommended by the
manufacturer may cause re,
electrical shock, or injury to
persons.
15. Always plug heater directly into
a wall receptacle. Never use with
an extension cord or relocatable
power tap (receptacle/power
strip).
16. CAUTION: Do not operate
without stand attached.
When using electrical appliances, basic precautions should always be followed to
reduce the risk of re, electric shock, and injury to persons, including the following:
Tape Measure
Straight
and Phillips
Screwdrivers
Drill and Drill Bits
Stud Finder
®
®
®
®
®
Level

INSTALLATION INSTRUCTIONS
3
GROUNDING PLUG AND RECEPTACLE REQUIREMENTS
1. WARNING: Risk of re. Do not
use as a residential or household
heater.
2. Do not use outdoors.
3. This heater is not intended for use
in bathrooms, laundry areas, and
similar indoor locations.
4. CAUTION: Do not operate without
stand attached.
5. Heater must be kept clear of
all obstructions: 3 foot (92 cm)
minimum clearance from front, 6
inch (16 cm) minimum clearance
from back and top, and 12 inch
(30.5 cm) minimum clearance
from sides. See Figure 2.
6. Always plug the heater directly
into a 240 volt wall receptacle.
Never use an extension cord.

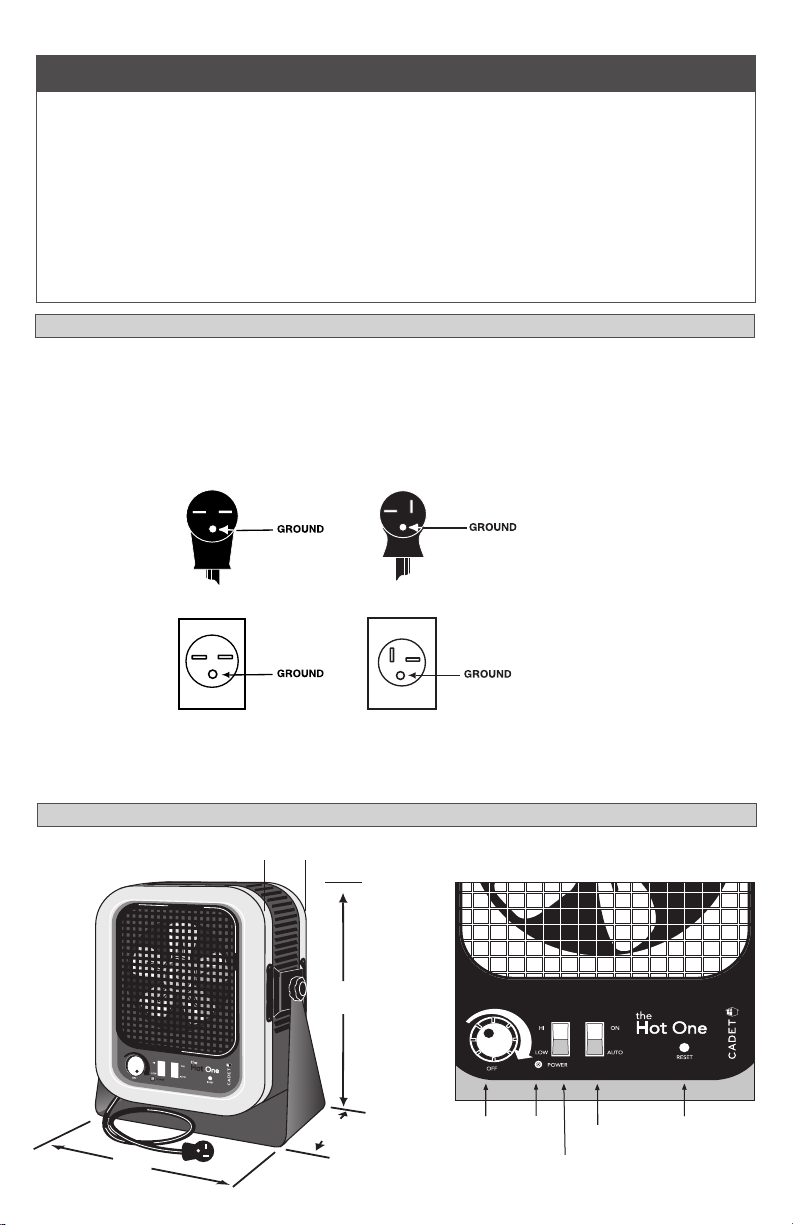

PARTS OF YOUR HEATER
This heater is for use with 240 volts. The cord has a 20 amp or 30 amp plug
as shown in Figure 1. No adapter is available for these blade congurations,
and none should be used. The Hot One requires a 240 volt grounded
receptacle. When properly installed, it provides a ground connection through
the cord to the heater to protect the operator from electric shock. Do not use
an extension cord, power strip or any kind of adapter.
Unanswered questions? Call our technical support team in Vancouver,
Washington at 855.CADET.US or outside the US at 360.693.2505.
Plug Conguration
Receptacle Conguration
RCP402S - 20 AmpRCP502S - 30 Amp
Receptacle Conguration
Plug Conguration
NEMA #6-30R NEMA #6-20R Figure 1
8-1/4"
20.9 cm
8-1/4"
20.9 cm
17-1/2"
44.5 cm
15-3/4"
40 cm
Manual Reset
Limit Button
Thermostat
Knob
Power
Indicator
Light
ON/AUTO
Controls
Watts HI/
LOW

• The Hot One may sit on a oor surface or
be mounted to the wall, or on the ceiling,
using the universal stand provided.
• If mounted on the wall, maintain 6 inch
minimum clearance from the top of the unit
to the ceiling (See Figure 2).
• Recommended for elevations under 7500
feet.
STEP 1 Heater Inspection
STEP 2 Mounting
1. Remove stand from heater by loosening knobs on each side.
2. Place stand in desired position on wall (See Figure 3). Note: A 240 volt receptacle must be within
six feet of the heater.
3. Using a level across the top of the stand, mark the three keyhole locations indicated (See Figure
4). IMPORTANT: the top, center keyhole must be screwed into a wall stud.
4. Insert one of the 2 inch screws provided into the top, center keyhole position, leaving enough of the
screw sticking out to attach the stand later.
5. Using a ⅜ inch drill bit, drill holes through the drywall in each of the two bottom keyhole positions.
Insert drywall anchors (provided) in each hole.
6. Insert the drywall anchor screws until completely screwed in. Then back each anchor screw out
about ½ inch. Place the stand on the three exposed screws and tighten all three screws.
7. Place heater on stand and tighten knobs.
8. Proceed to OPERATING INSTRUCTIONS.
WALL MOUNT
INSTALLATION INSTRUCTIONS
4
Figure 2
Thoroughly inspect your heater for any
shipping or handling damage and remove any
paper or packaging material around the heater.
TIPS BEFORE YOU BEGIN
3' (92 cm) min. clearance
from front of heater
12" (30.5) min. clearance
from sides of heater
6" (16 cm) min.
clearance from
back and
top of heater
Distancia mínima
de 3 pies (92 cm) delante
del calentador
Distancia mínima
de 12" (30.5 cm) desde los
costados del calentador
6" (16 cm) desde
la parte posterior
y superior
del calentador
Figure 3 Figure 4 Wall Mount
screw
drywall
anchor
drywall
anchor
More frequently asked questions on our website here: cadetheat.com/support/FAQ

INSTALLATION INSTRUCTIONS
5
CEILING MOUNT
11
10
9
1
2
3
12
5
8
7
6
4
13
Figure 5 Parts Package
wall
mount
ceiling
mount
Ceiling Mount
Figure 6
Figure 8
Figure 7
screw screw
screw
ceiling rafters
½"
plywood
1. Securely fasten a piece of plywood (not provided) across two of your ceiling rafters that is a
minimum of ½ inch thick, 8 inches wide and long enough to span the distance across the two
rafters (See Figure 6). Note: A 240 volt receptacle must be within six feet of the heater.
2. Remove stand from heater by loosening knobs on each side.
3. Attach the stand to the plywood with the three 2 inch screws provided through the three small
holes indicated (See Figures 5, 6 and 7).
4. Place heater on stand and tighten knobs. Tilt top of heater down approximately 30 to 45 degrees
toward your work area (See Figure 8).
5. Proceed to OPERATING INSTRUCTIONS.

6
OPERATING INSTRUCTIONS
HOW TO OPERATE YOUR HEATER
Select the “LOW” wattage setting. If your desired temperature is not reached, select the “HI” setting.
NOTE: The temperature of the air coming from the front of the heater will be approximately 40˚F
warmer than the room temperature in the “HI” setting. With extremely cold environments, air from
the heater may not feel hot. As the heater continues to operate, the heater air and surrounding air
temperature will continue to increase.
1. The heater must be properly
installed before it is used. Be
sure the plug ts tightly into the
receptacle. The red light indicates
the unit is plugged in.
2. Do not operate without the stand
attached.
3. Do not use breaker panel or wall
thermostat to control heater.
4. Always unplug heater when not in
use.
5. Clean heater at least every six
months or as required. See
“MAINTAINING YOUR HEATER”.
6. CAUTION: Risk of electrical
shock. Do not open. No user-
serviceable parts inside. Any other
service not detailed in this owner’s
guide should be performed by an
authorized service representative.
Fan cycling with heat
1. Press the ON/AUTO switch to
the “AUTO” position and turn the
thermostat knob fully clockwise.
2. When the room reaches
your comfort level, turn
the thermostat knob
counterclockwise until the heater
turns o󰀨. The heat and the fan
will automatically cycle around
this preset temperature.
3. To reduce the room temperature,
turn the knob counterclockwise.
To increase the room
temperature, turn the knob
clockwise.
Fan running continuously with
intermittent heat
Determined by the thermostat setting
1. Press the ON/AUTO switch to the “ON”
position and turn the thermostat knob
fully clockwise.
2. When the room reaches your comfort
level, turn the thermostat knob
counterclockwise until the heater turns
o󰀨. The heater will automatically
cycle around this preset temperature,
however the fan will run constantly.
3. To reduce the room temperature, turn
the knob counterclockwise. To increase
the room temperature, turn the knob
clockwise.
Fan running
continuously
with no heat
1. Press the
ON/AUTO
switch to
the “ON”
position.
2. Turn the
thermostat
knob just
above
the “OFF”
position.
RESETTING THE MANUAL RESET LIMIT CONTROL
About the Manual Reset Temperature Limit Control
The heater is protected by a high temperature manual reset control, designed to open the heater
circuit and stop the electrical current ow when excessive operating temperatures are detected.
Resetting the Manual Reset Temperature Limit Control
If the manual reset limit control has opened the heater circuit due to excessive operating
temperatures, the heater will not work or may blow cold air until the limit reset button is pressed. After
allowing the unit to cool for at least 10 minutes and resolving the problem causing the limit to trip
(typically the heater is blocked or needs cleaning); use a narrow object such as a ball-point pen to
access the reset button through the lower-right hole marked “RESET”. Press FIRMLY. If the manual
reset continues to trip, see Troubleshooting Chart.

7
WARRANTY
For more e󰀨ective and safer operation and to prolong the
life of the heater, read the Owner’s Guide and follow the
instructions. Failure to properly maintain the heater will
void any warranty and may cause the heater to function
improperly.
LIMITED FIVE YEAR WARRANTY: Cadet will repair or
replace any Hot One (RCP) heater found to be defective
within ve years after the date of purchase.
These warranties do not apply:
1. Damage occurs to the product through improper
installation or incorrect supply voltage;
2. Damage occurs to the product through improper
maintenance, misuse, abuse, accident, or alteration;
3. The use of unauthorized accessories or unauthorized
components constitutes an alteration and voids all
warranties. Refer to Cadet website or call customer
service at 855.223.3887 or 360.693.2505 for list of
authorized accessories and components.
4. Cadet’s warranty is limited to repair or replacement.
5. In the event Cadet elects to replace any part of your
Cadet product, the replacement parts are subject to
the same warranties as the product. The installation
of replacement parts does not modify or extend the
underlying warranties. Replacement or repair of
any Cadet product or part does not create any new
warranties.
If you believe your Cadet product is defective, please
contact Cadet during the warranty period, for instructions
on how to have the repair or replacement processed.
Parts and Service
Visit cadetheat.com/parts-service for information on
where to obtain parts and service.
Maintenance As Needed, or every six months minimum.
1. Allow the heater to cool, then disconnect the
power cord from power supply. To disconnect
heater, turn control to “OFF”, then remove
plug from receptacle.
2. Remove front di󰀨user grill by removing the
four screws (one from each corner).
3. Wash grill with hot soapy water and dry, or
use air compressor to blow debris from grill
louvers.
4. While holding fan (to avoid damage or
bending), use an air compressor, hair dryer
or vacuum on blow cycle to blow debris
through the outer cabinet louvers and nned
elements.
5. Vacuum or blow air inside fan area without
touching the elements.
6. Carefully wipe o󰀨 the fan blade without
damaging or bending it.
7. Replace di󰀨user grill and secure with screws.
Any service other than cleaning should be performed by an authorized
service representative.
To register your product, visit cadetheat.com/product-registration
MAINTAINING YOUR HEATER
Reduce-Reuse-Recycle
This product is made primarily of recyclable materials. You can reduce your carbon footprint by recycling
this product at the end of its useful life. Contact your local recycling support center for further recycling
instructions.
INTERNAL HEATER WIRING DIAGRAMS
GROUND
GREEN
BLACK
WHITE
MANUAL RESET
LIMIT
ELEMENTS
TERMINAL BLOCK
MULTI WATT HI/LOW SWITCH
FAN MOTOR
THERMOSTAT
DOUBLE POLE
PILOT
LIGHT
FAN ON/AUTO
SWITCH
CORD
SET

Symptom Problem Solution
TROUBLESHOOTING
If you are uncomfortable working with electricity, running electrical supply
wire or installing a circuit breaker, please consult a licensed electrician.
The plug does
not t recep-
tacle.
1. Heater is 240 volt requiring
a 20 amp or 30 amp 240
volt receptacle (see Figure
1 in “INSTALLATION
INSTRUCTIONS”).
1. DO NOT alter cord. Install the proper 240 volt
receptacle (see Figure 1 in “INSTALLATION
INSTRUCTIONS”).
Heater does
not operate.
1. Heater is or has been
blocked.
2. Thermostat set too low.
3. Circuit breaker not turned
on.
4. Loose plug connection.
5. Defective manual reset limit.
1. Remove obstruction. Push manual reset button
found in front lower panel.
2. Turn knob clockwise until a click sound is heard.
3. Turn circuit breaker on.
4. Check plug connection.
5. Replace manual reset limit.
Elements
heat, fan does
not operate.
1. Jammed fan blade.
2. Defective motor.
1. Remove obstruction.
2. Replace fan motor.
Heater fan
operates,
but does not
discharge
warm air.
1. Manual reset limit tripped.
2. ON/AUTO switch is “ON”
and thermostat setting is
below actual temperature.
3. Defective heater elements.
4. Wire loose from elements.
5. Temperature rise on heater
is 40°F.
1. Allow heater to cool, then push reset.
2. Increase the thermostat setting; turn ON/AUTO
switch to “AUTO”.
3. Replace elements.
4. Check and correct loose wire.
5. Close doors or windows. Provide additional
insulation and/or heaters. Wait for room to warm
up.
Heater does
not shut o󰀨.
1. Heat loss from area is
greater than heater capacity.
2. Defective thermostat.
3. ON/AUTO switch in “ON”
position.
1. Close doors or windows. Provide additional
insulation and/or heaters.
2. Replace thermostat.
3. Change ON/AUTO switch to “AUTO” setting.
Heater
discharges
smoke.
1. Dust, dirt, and lint
accumulated inside the
heater.
2. Jammed blade.
1. Clean heater. (See “MAINTAINING YOUR
HEATER” section for instructions). Blow dirt
accumulation o󰀨 heater with compressed air (air
compressor recommended).
2. Remove obstruction.
Manual reset
limit trips re-
peatedly.
1. Overheating.
2. Overheating at shutdown.
3. Overheating from excessive
dust or dirt particles.
4. Overheating due to elevation
of location.
1. Check all clearance requirements. 6” minimum
clearance required between top of heater and
ceiling. Tilt top of heater down approximately 30 to
45 degrees toward your work area.
2. Discontinue use of breaker to control heater.
3. Clean heater (See “MAINTAINING YOUR
HEATER” section for instructions).
4. Location elevation exceeds recommended 7500
feet.
8
MAINTAINING YOUR HEATER

MAINTAINING YOUR HEATER
Rev 07/16/19 #720086© 2019 Glen Dimplex Americas Printed in USA
9
PARTS LIST
6
11
7
2
10
4
8
12
12
1
9
13
3
5
1 410102 Front Di󰀨user Grill Assembly with
clips
2 040019 Thermostat Knob
3 050524 Pilot Light
4 051226 Thermostat
5 050327 Temperature Limit Switch
6
401723
401726
Element, RCP402S 1333/1000W
(3 req.)
Element, RCP502S 1667/1332W
(3 req.)
7 001601 Fan Blade
8 051424 Fan Motor
9 400202 Mounting Stand
10 040023 Mounting Knob
11 051901
051903
Cordset, RCP402S
Cordset, RCP502S
12 051707
051708
Rocker Switch (HI/LOW)
Rocker Switch (ON/AUTO)
13 100740 Parts Package Mounting Screws
Note: Only the items listed below are available for purchase.
