CAHOMA SLIMFIT Mk-4 User manual

NOTICE
Proprietary and intellectual rights of Cahoma and Lite-Flite, Denmark, are involved in the subject-matter of this material. Therefore, all manufactur-
ing, reproduction, copying, use, disclosure, and sales rights pertaining to such subject-matter are expressly reserved. This material is submitted for
a specific purpose as agreed in writing. By accepting this material the recipient agrees that this material will not be used, copied, or reproduced in
whole or in part nor its contents (or any part thereof) revealed in any manner or to any third party, except own staff, to meet the purpose for which it
was submitted and subject to the terms of the written agreement. All rights reserved.
Gammelby Mosevej 16 –6600 Vejen
Tel
[phone]
Lufthavnsvej 8 - 6580 Vamdrup
Mail
[email protected]o
Denmark
Web
www.cahoma.aero
MAINTENANCE MANUAL User Guide
CMM 80021320-HO Revision: 7
SLIMFIT Mk-4
EMERGENCY PARACHUTE

MAINTENANCE MANUAL
01-03-2020
CMM 80021310-MK-4-7- USER GUIDE 2 / 18
RECORD OF CHANGES
Description
Revision
Prepared
Review
Approved
By
Date
By
Date
By
Date
Fourth Issue
4
JCH
01.01.2007
Fifth Issue
5
JTK
23.03.2011
JCH
23.03.2011
Sixth Issue
6
JTK
10.11.2011
JCH
10.11.2011
Seventh Issue
7
JCH
11.11.2019
TK
JCH
01-03-2020
TABLE OF CONTENTS
RECORD OF CHANGES ...............................................................................................................2
1. DISCLAIMER –NO WARRANTY ..............................................................................................3
2. SPECIFICATIONS .....................................................................................................................3
3. LIFE LIMITS...............................................................................................................................3
4. CANOPY INSPECTION ............................................................................................................4
5. REPAIRS ...................................................................................................................................4
6. ACTUAL USE ............................................................................................................................4
7. PACKING...................................................................................................................................5
8. PACKING TOOLS:...................................................................................................................17
9. ACCESSORIES .......................................................................................................................17
THE SLIMFIT EMERGENCY PARACHUTE SYSTEM
IS PROUDLY
MANUFACTURED IN DENMARK

MAINTENANCE MANUAL
01-03-2020
CMM 80021310-MK-4-7- USER GUIDE 3 / 18
1. DISCLAIMER –NO WARRANTY
Due to the unavoidable danger associated with the use of a parachute system, neither the manufacturer of
the canopy nor the manufacturer and/or seller of the harness/container assy makes any warranty, neither
expressed or implied.
Parachuting is associated with great risks and can lead to serious bodily injury or death.
We cannot advise using Slimfit parachutes, unless the user agrees to assume the risks associated with it
and have the appropriate and required training and insight into the use of parachute equipment.
Parachutes can sometimes operate inadvertently, even though they are designed, manufactured, assem-
bled, packed, maintained and used in accordance with all regulations. Malfunctions can result in disability
or death.
Because of the risks associated with the use of parachutes, neither Free Flight Inc, Cahoma Aps nor
Lite-Flite Aps assumes no liability and makes no warranty, either expressed or implied.
Free Flight Inc, Cahoma Aps and Lite-Flite Aps disclaims any liability in tort for damages, direct or conse-
quential, including personal injuries, resulting from malfunction or from defects in design, manufacturing,
materials or workmanship caused by the use of parachute equipment and does not provide any form of
compensation.
The liability of Cahoma and Lite Flite is limited to replacement of defective parts found upon examination by
manufacturer to be defective in material or workmanship within 30 days after its purchase from factory, and
which has not been caused by accident, striking, improper use, alteration, tampering, excessive use, mis-
use, abuse or otherwise.
2. SPECIFICATIONS
FFE 201 D Preserve 1 is a round conical, 0-porosity (Permeability) steerable canopy
Canopy approved and manufactured under TSO c23b & N.A.S. 804
Maximum assembly deployment speed: 150 knots.
Maximum assembly gross weight (Pilot + clothing + equipment): 242 lbs = 113 kg
Sink rate with pilot weight of 105 kg is approximately 5,5 m/sec.
0-porosity (Permeability), 22 gores, Flying diameter 19,3 ft, 420 sq.ft.
3. LIFE LIMITS
Life time of Free Flight manufactured parachute canopies expires after 20 years from date of manufacture,
provided the assembly passes the periodic inspections as described in section 5.

MAINTENANCE MANUAL
01-03-2020
CMM 80021310-MK-4-7- USER GUIDE 4 / 18
FFE PRESERVE I CANOPY
MODEL 201 (-C)
4. CANOPY INSPECTION
Inspections to be done by a licensed parachute rigger or master rigger only.
Ensure that the canopy is assembled properly according to Cahoma/Lite Flite manual.
Check that the connector links are properly tightened. Never over tightened.
Ensure that steering toggles are installed on steering lines routed through guide rings.
Check for any damage to canopy material or suspension lines.
Canopy and harness/container material is sensible to acid and UV-rays and other violent influence.
Check for any stains or possible soiling by chemicals.
Make sure that no foreign objects are inside the canopy or entangled with lines.
If the assembly fails inspection, it must be removed from service and repaired as described in section 5 or
scrapped.
5. REPAIRS
No major repairs or any alterations are authorized.
If repairs are required, the parachute must be returned to Cahoma/Lite Flite.
Cahoma/Lite Flite will determine further action.
6. ACTUAL USE
After leaving the aircraft, pull hard the chrome opening handle positioned on the shoulder strap at the left
side of the chest.
The canopy is steerable.
By pulling left or right red steering toggles on risers, the canopy can be turned into the wind to optimize the
safest possible landing.
Larger steering effect may be accomplished by pulling the right or left rear riser.
To minimize landing injuries:
- land into the wind
- keep your feet together
- protect your face
- keep your elbows together in front of your chest.

MAINTENANCE MANUAL
01-03-2020
CMM 80021310-MK-4-7- USER GUIDE 5 / 18
7. PACKING
Place the canopy on the packing table and
connect tension devices at both container and
apex ends.
Pleate the canopy. 11 gores to each side.
See procedures from Dan Poynters Parachute
Manual, 9.5.1.
Diaper must be underneath the canopy.
Check each gore on each side.
Ensure that no fabric is wrapped into the next
gore.
Check the skirt band and apex band to be
straight.
Align the skirt band and up fold 45° parallel to
the main seams.
Fold the canopy gores length wise in thirds
over the main seams

MAINTENANCE MANUAL
01-03-2020
CMM 80021310-MK-4-7- USER GUIDE 6 / 18

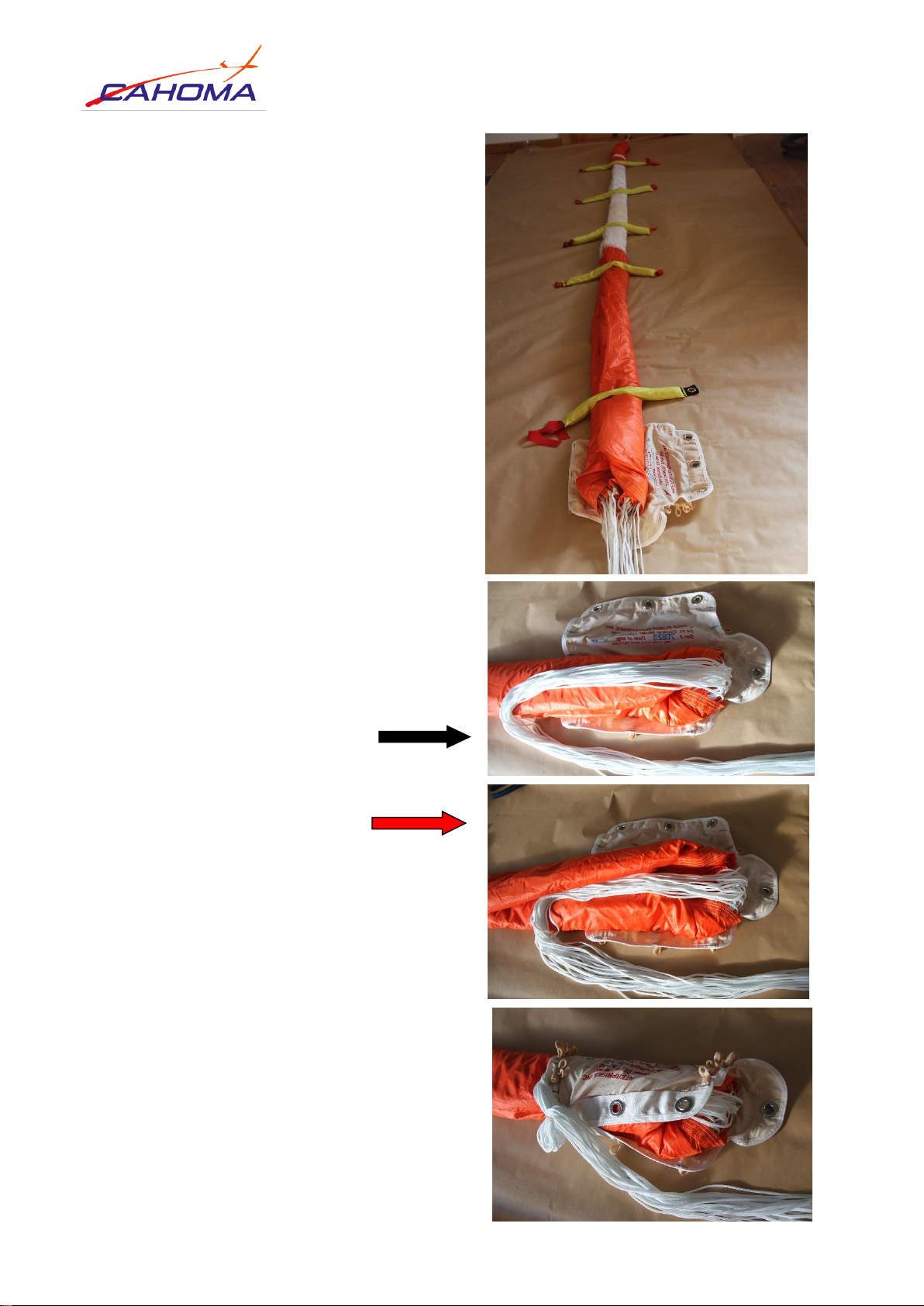

Fold it once more over the main seams
(In Fifths)
Place weight bags over the canopy to keep it
in order during further packing.
Replace all damaged, loose or worn out rub-
ber bands on diaper.
Ensure correct size rubber bands. 7 x 40 mm.
P/N: 20120022
Release tension and pull container towards
the canopy putting lines on top of the
folded canopy
RIGHT
WRONG
Lines must NOT be hidden in the canopy
fabric
Close the diaper starting with the top rubber
band through the top grommet.
Form a loop of suspension lines. No more than
4 cm.

MAINTENANCE MANUAL
01-03-2020
CMM 80021310-MK-4-7- USER GUIDE 7 / 18

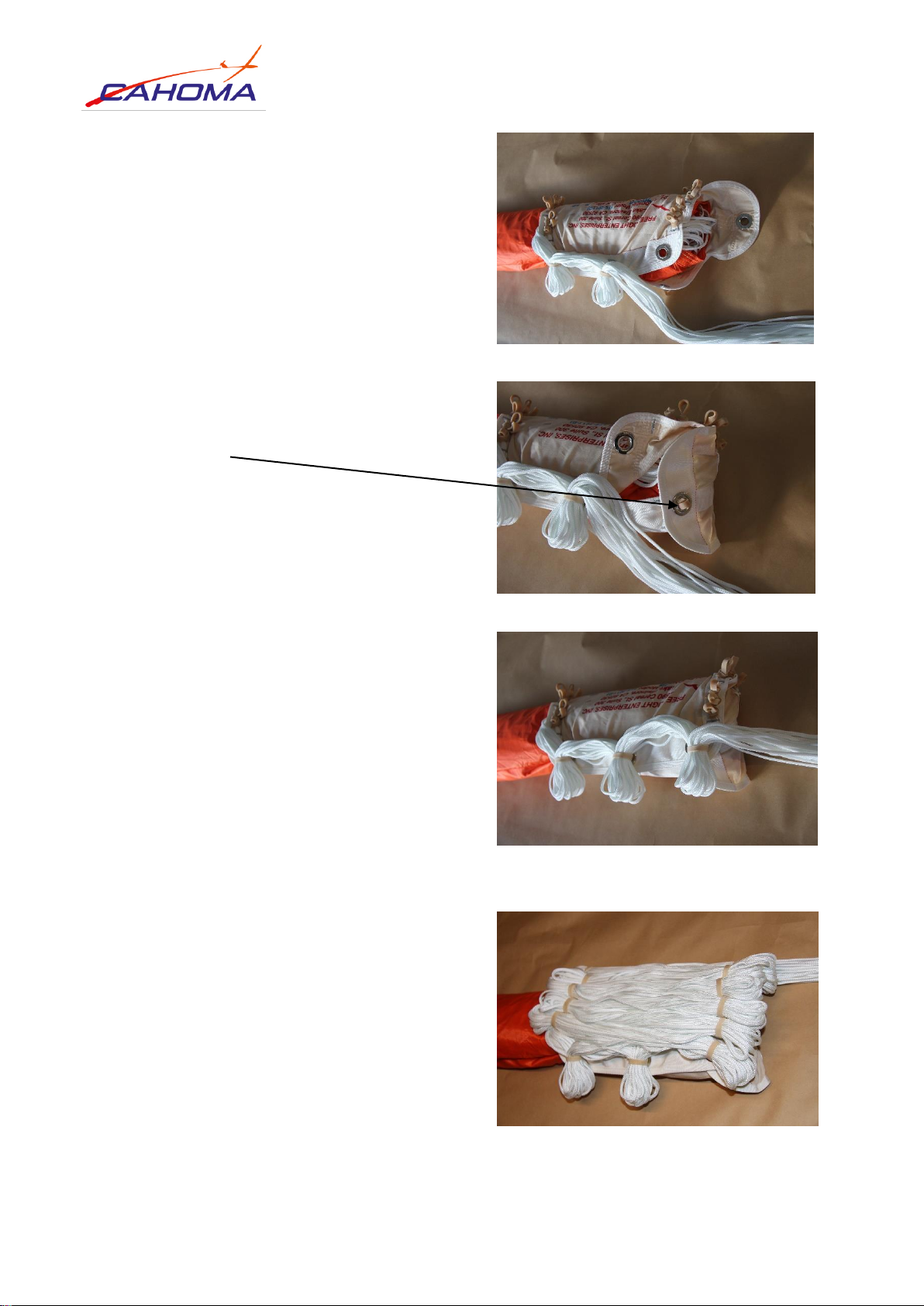

Continue with centre rubber band through the
centre grommet.
Close with a 4 cm line loop
Bring the bottom rubber band through the
bottom flap grommet -
and continue through the lower side flap
grommet.
Close by using a line loop of no more than 4
cm.
Finish stowing of the remaining suspension
lines lengthwise using line loops of no more
than 4 cm.
Complete the packing according to the follow-
ing instructions for SLIMFIT packing.

MAINTENANCE MANUAL
01-03-2020
CMM 80021310-MK-4-7- USER GUIDE 8 / 18
It is mandatory that the pilot chute bridle be
installed through both positioning loops on 2
apex vent lines and around all the other vent
lines.
The bridle must have a stitching through the
loop to prevent it from tightening around the
vent lines during the opening sequence.
With a fixed wrench size 9 check that con-
nector links are tightened.
Never over tightened.
Check that toggles are in correct place on the
Velcro.
Short closing loop (3-4cm) to go on the top
ripcord pin.
Long closing loop (4-5cm) to go on the end
ripcord pin.

MAINTENANCE MANUAL
01-03-2020
CMM 80021310-MK-4-7- USER GUIDE 9 / 18

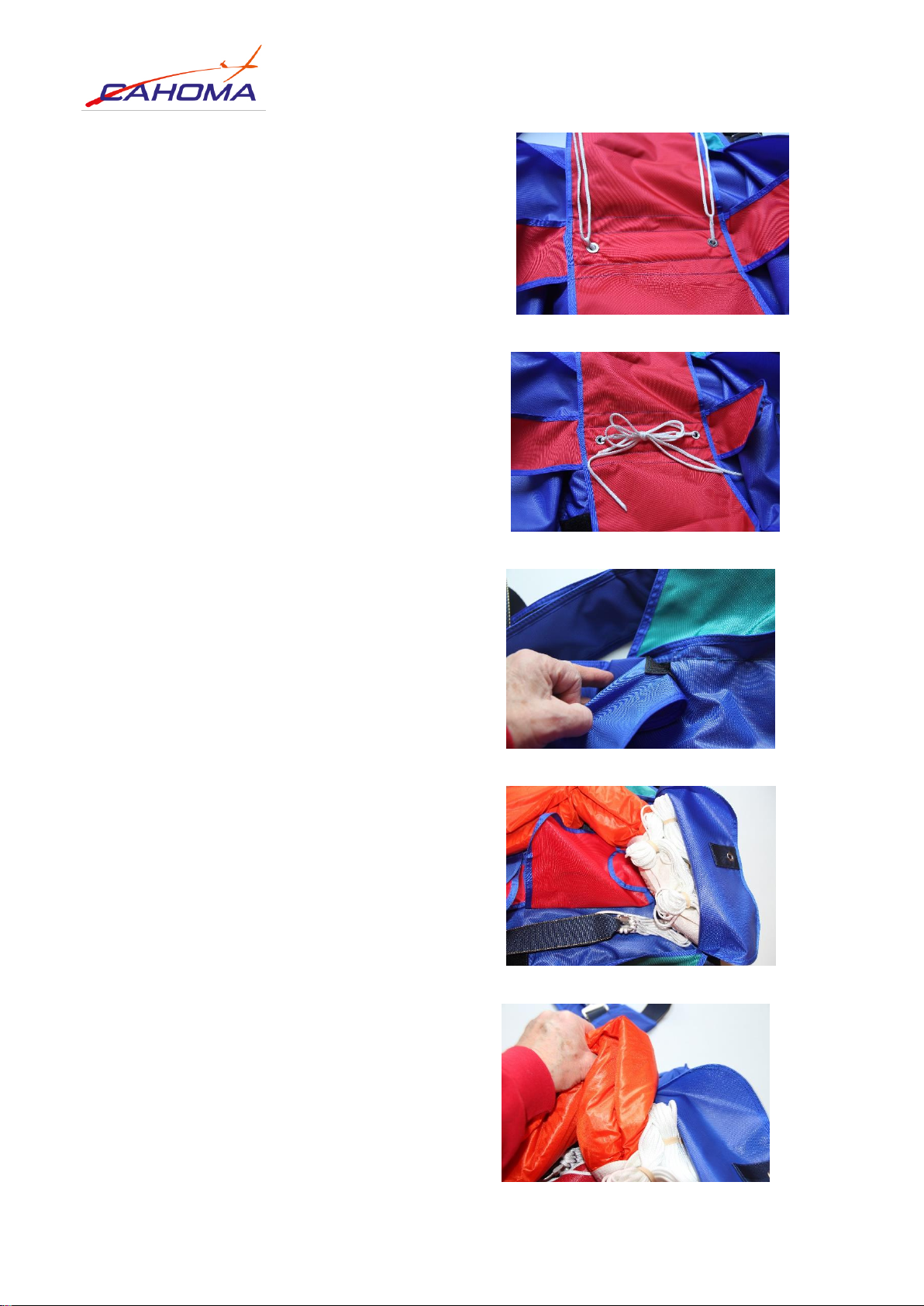

Route pull up cords into each their grommet in
the rear of the container.
Pull up cords now appears inside the container
Keep the loops in place in the container by
knotting the pull up cords together.
Close the velcro in the upper corners of the
container top cover
The diaper with the lines to be stowed in a bot-
tom corner of the container, ensuring that it
fills in the corner completely.
One extra short loop of canopy fabric to be
stowed in the opposite bottom corner of the
container.
Stove properly to completely fill in the corner.

MAINTENANCE MANUAL
01-03-2020
CMM 80021310-MK-4-7- USER GUIDE 10 / 18
Make sure there is no sloppy bottom corners.
One loop of canopy to be folded sidewise
across the container followed by half a loop
towards the centre.
Fold canopy up and down around the centre
cover flaps.
Continue folding the canopy.
Once again fold the top part of canopy
Dress the canopy into the top corners of the
container
Make sure that the corners are completely
filled in.

MAINTENANCE MANUAL
01-03-2020
CMM 80021310-MK-4-7- USER GUIDE 11 / 18
Fold the centre inner flaps over the canopy to
each side.
Also fold centre bottom and top flap to protect
the canopy material from the closing loops.
Untie the pull cords and route them through
the grommets in the top and bottom cover.
When closing the top cover on top of bottom
cover, make sure to dress the canopy fabric
and the inner flaps so it looks neat and tidy,
and the closing loops are not in touch with the
canopy fabric.
OBS:
Older models have a slightly longer top cover,
with the grommet sitting 4 cm from the edge.
These models are packed with the bottom
cover over the top cover.
IMPORTANT:
Pull the inner flaps to the sides in order to
move away the canopy fabric from the pilot
chute bed.
Pull up the loops and insert temporary pins.
Compress the pilot chute using the pilot chute
retainer wrap and closing pin.

MAINTENANCE MANUAL
01-03-2020
CMM 80021310-MK-4-7- USER GUIDE 12 / 18
The pilot chute bridle cord is S-folded in the
valley between the pull up cords
Place the pilot chute so the closing pin can
only be removed to the right side of the con-
tainer where the spring cover flap is situated.
Pull up the closing loops through the pilot
chute grommets and keep in place with tempo-
rary pins.
Once again pull the inner flaps to the sides to
make room for the pilot chute.
Close the left side cover.
Pull up the closing loops and secure with tem-
porary pins.
Remove the closing pin and retainer wrap from
pilot chute

MAINTENANCE MANUAL
01-03-2020
CMM 80021310-MK-4-7- USER GUIDE 13 / 18
Close the right-side container cover.
Pull up the closing loops and secure with tem-
porary pins.
CLOSING CONTAINER WITH S-HOOK
SPRING
USE
Pull Up winding handle
Pull up chair
OR
New PS retaining pull up tool
This magnificent tool will retain the pull up cord
in the position you decide without handhold.
First S-hook to be inserted in either closing
loop
PS Pull Up Tool 20150160

MAINTENANCE MANUAL
01-03-2020
CMM 80021310-MK-4-7- USER GUIDE 14 / 18
Pull up the second closing loop so the opening
is well proud of the grommet.
With a cord pull the S-hook towards the loop
Carefully and gentle ease the second S-hook
through the loop opening
Slowly and carefully remove both pull up cords
from the loops.
Close the velcro cover over the spring.

MAINTENANCE MANUAL
01-03-2020
CMM 80021310-MK-4-7- USER GUIDE 15 / 18
Dress the parachute with the dressing tool.
Flip over the container and check that both
ripcord pins are correctly in place.
Loops must be at the middle of the pin.
Seal as applicable.
Sign parachute log card and place in pocket.
Place the back pad on Velcro stripes.
Your parachute is ready
Count your packing tools.
Make sure nothing is left inside the parachute!
.

MAINTENANCE MANUAL
01-03-2020
CMM 80021310-MK-4-7- USER GUIDE 16 / 18
AFTER PACKING, REMEMBER YOUR PAPERWORK !
Personal notes:

MAINTENANCE MANUAL
01-03-2020
CMM 80021310-MK-4-7- USER GUIDE 17 / 18
8. PACKING TOOLS:
60030030 Dan Poynter: The Parachute Manual
20153080 Pull up cords, 3mm, 85 cm, 2 ea
20150145 Shot bag (Packing weight)
20150150 Temporary closing pins, 2 ea
20150135 Pilot Chute retainer with flagged closing pin
20150180 Dressing tool
20150154 Pull up handle
20150153 Pull up plate
20150155 Pull up chair
20150160 PS retaining pull up tool
9. ACCESSORIES
90011605 Connector links # 5 Stainless Steel
20090080 Toggles, set of 2
80023112 Closing loop, 3 - 5 cm –define desired length
20120022 Rubber bands, ¼ kg, 7 x 40 mm
20050380 Pilot chute for Slimfit with top grommets
20070203 Pilot chute bridle cord
20101490 Ripcord, 2 pin
80023108 Opening spring with 2 S-hooks
80022510 Back pad, semi sheep, to be ordered with container
80022520 Back pad, nylon duck, to be ordered with container
60030211 Packing Instructions, MK-4, GB (This manual)
60031020 Parachute record log card
80022102 Transport bag

MAINTENANCE MANUAL
01-03-2020
CMM 80021310-MK-4-7- USER GUIDE 18 / 18
HAPPY FLYING WITH SLIMFIT MK-4
