This manual explains how to operate your HQView-325 image scaler. HQView-325 is designed
to provide users with a powerful and flexible method of driving large display devices, and
multiple screen applications including flexible geometry correction functions.
If you have any queries relating to this or any other product supplied by Calibre please visit
our web site www.calibreuk.com.
(44) 1274 730960, for the attention of our Technical Support Department.
COPYRIGHT
This document and the software described within it are copyrighted with all rights reserved. Under
copyright laws, neither the documentation nor the software may be copied, photocopied, reproduced,
translated, or reduced to electronic medium or machine readable form, in whole or in part, without
prior written consent of Calibre UK Ltd ("Calibre"). Failure to comply with this condition may result in
prosecution.
Calibre does not warrant that this product package will function properly in every hardware/software
environment.
Although Calibre has tested the hardware, firmware, software and reviewed the documentation,
CALIBRE MAKES NO WARRANTY OR REPRESENTATION, EITHER EXPRESS OR IMPLIED,
WITH RESPECT TO THIS HARDWARE, FIRMWARE, SOFTWARE OR DOCUMENTATION, THEIR
QUALITY, PERFORMANCE, MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE.
THIS SOFTWARE AND DOCUMENTATION ARE LICENSED 'AS IS', AND YOU, THE LICENSEE,
BY MAKING USE THEREOF, ARE ASSUMING THE ENTIRE RISK AS TO THEIR QUALITY AND
PERFORMANCE.
IN NO EVENT WILL CALIBRE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE
SOFTWARE OR DOCUMENTATION, even if advised of the possibility of such damages. In
particular, and without prejudice to the generality of the foregoing, Calibre has no liability for any
programs or data stored or used with Calibre software, including costs of recovering such programs or
data.
Calibre UK Ltd
Cornwall House, Cornwall Terrace
Bradford, West Yorkshire
BD8 7JS, England
Telephone +44 (0)1274 394125
Fax + 44 (0)1274 730960
Email techsupport@calibreuk.com
Web-site www.calibreuk.com
Copyright (c) 2014 All World-wide Rights Reserved
All trade marks acknowledged
Calibre operates a policy of continued product improvement, therefore specifications are subject to
change without notice as products are updated or revised.
E&OE.
©Calibre UK Limited Issue 2.40 10th January 2014, W: www.calibreuk.com
Contents
SAFETY WARNING: 1
INTRODUCTION 2
1.1. General Introduction 2
HQVIEW-325 SYSTEM DESCRIPTION 4
2.1. Product Overview 4
2.2. Product Specification 4
2.2.1. Power Supply Requirement 4
2.2.2. Computer (SVGA) Inputs VESA formats 4
2.2.3. HDMI & DVI Inputs 4
2.2.4. Audio Output 4
2.2.5. Display Output 5
HQVIEW-325 CONTROL 7

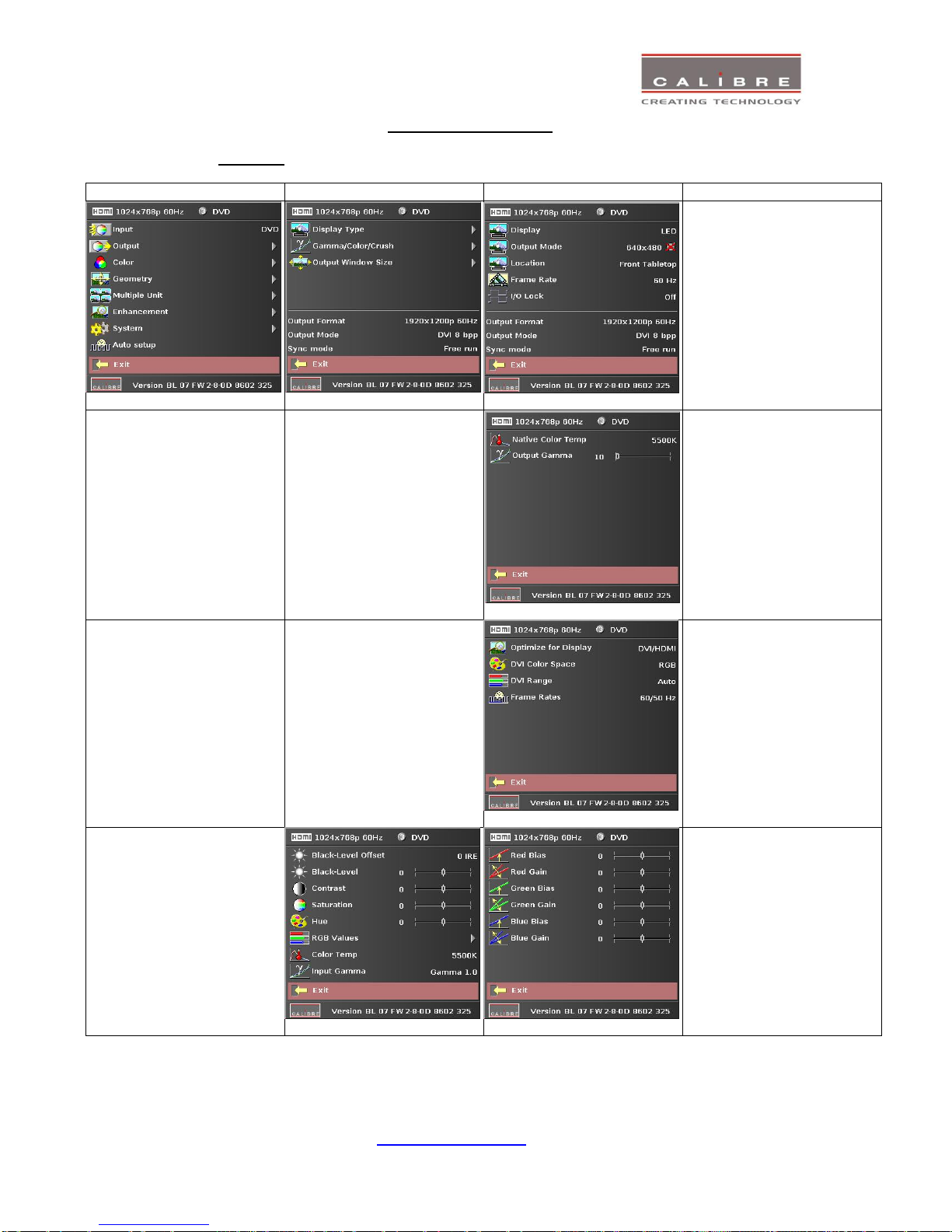

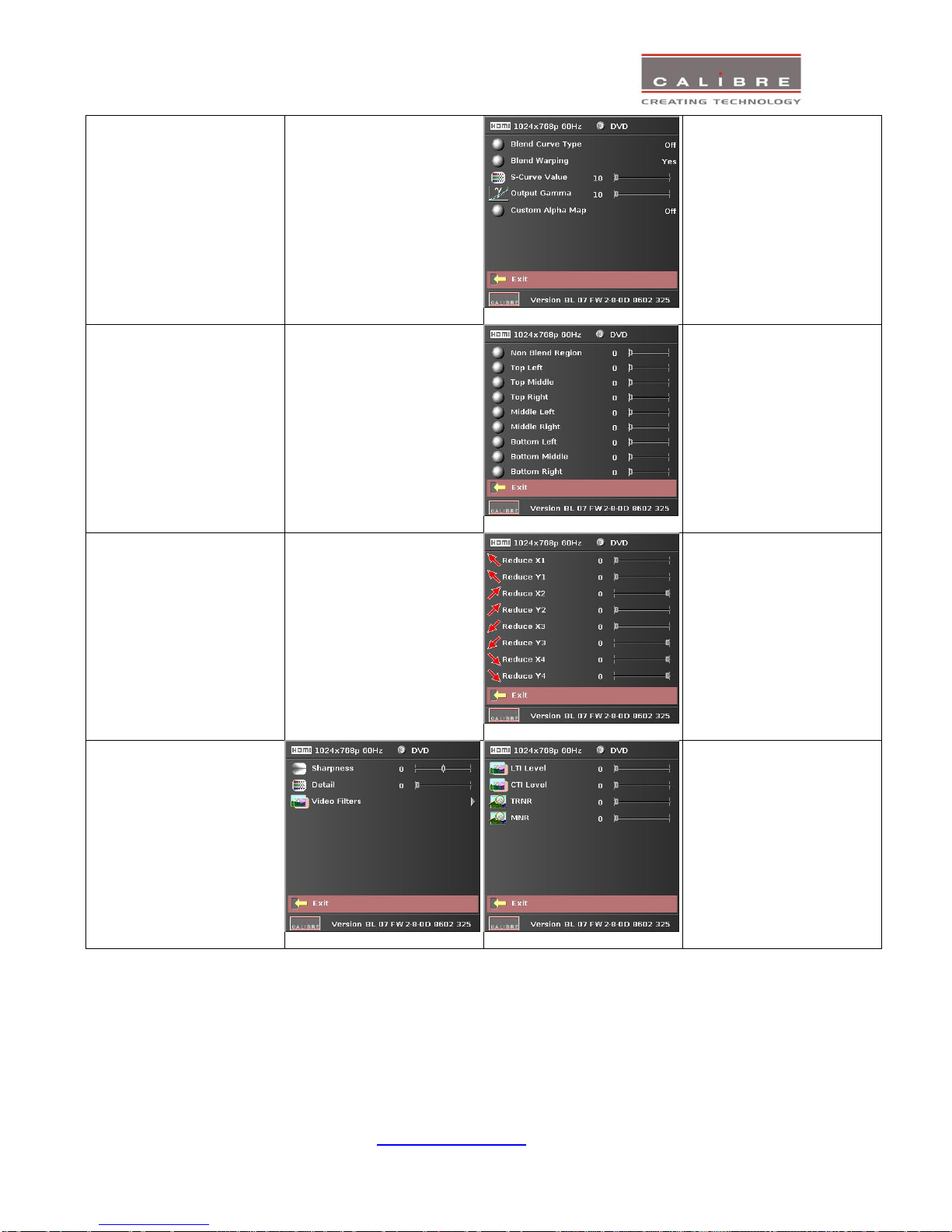

3.1. Menu Tree 7
3.2. Introduction 13
3.3. Main Menu 14
3.4. Input 14
3.5. Output 14
3.5.1. Display Type 14
3.5.2. Output Mode 15
3.5.3. Location 15
3.5.4. Frame Rate 15
3.5.5. I/O Lock 15
3.5.6. Native Colour Temp 16
3.5.7. Output Gamma 16
3.5.8. Output Config 16
3.6. Colour 17
3.6.1. Black-Level Offset 17
3.6.2. Black-Level 17
3.6.3. Contrast 17
3.6.4.Saturation 17
3.6.5. Hue 17
3.6.6. RGB values 17
3.6.7. Colour Temp 17
3.6.8. Input Gamma 18
3.7. Geometry 18
3.7.1. Horizontal/Vertical Position 18
3.7.2. Edge Control 18
3.7.3. Picture Format 18
3.7.4. Overscan 18
3.7.5. Pan Tilt Zoom 19
3.7.6. Warp 19
3.8. Multiple Unit 20
3.8.1. Auto Zoom 20
3.8.2. Units Wide/Units High 20
3.8.3. Horizontal Pos/Vertical Pos 20
3.8.4. Blend Width 20
3.8.5. Blend Curve Type 21
3.8.6. Black-Level Uplift 21
3.8.7. Reduce Black-Level Uplift Width 21
3.9. Enhancement 22
3.9.1. Sharpness 22
3.9.2. Detail 22
3.9.3. Video Filters 22
3.10. System 22
3.10.1. User 22
3.10.2. Names/Profiles 22
3.10.3. Input Config 23
3.10.4. Display Mode 24
©Calibre UK Limited Issue 2.40 10th January 2014, W: www.calibreuk.com
3.10.5. Menu Settings 24
3.10.6. Network Settings 24
3.10.7. Factory Defaults 24
REMOTE CONTROL WEB SERVER 25
4.1. Introduction 25
4.2. Installing the Software 25
4.3. Discovery Tool 25
4.4. Software Operation 25
4.5. File Upload 26
FIRMWARE UPDATE 28
5.1. Introduction 28
5.2. Updating Firmware 28
ENVIRONMENTAL AND EMC 29
6.1. Recommended Operating Conditions 29
6.2. Storage 29
6.3. CE and FCC Compliance 29
6.4. PAT Testing 29
©Calibre UK Limited Issue 2.40 10th January 2014, W: www.calibreuk.com
SAFETY WARNING:
1. THERE ARE NO USER SERVICEABLE PARTS WITHIN THE UNIT. REMOVAL OF THE TOP COVER
WILL EXPOSE DANGEROUS VOLTAGES. DO NOT OPERATE THE UNIT WITHOUT THE TOP COVER
INSTALLED.
2. ENSURE THAT ALL ELECTRICAL CONNECTIONS (INCLUDING THE MAINS PLUG AND ANY
EXTENSION LEADS) ARE PROPERLY MADE AND COMPLY WITH ELECTRICAL SAFETY
REGULATIONS.
3. ENSURE THAT THE INTEGRITY OF THE EQUIPMENT ISOLATION BARRIER IS MAINTAINED WHEN
CONNECTING TO OTHER EQUIPMENT. THIS MEANS THAT ONLY LOW VOLTAGE ISOLATED
CIRCUITS MAY BE CONNECTED TO THE SIGNAL INPUTS AND OUTPUTS. IF ANY DOUBT EXISTS
CONSULT QUALIFIED SERVICE PERSONNEL.
4. TO PREVENT SHOCK OR FIRE HAZARD DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE. IF SUCH EXPOSURE OCCURS, REMOVE THE PLUG FROM THE MAINS OUTLET AND
HAVE THE EXPOSED UNIT CHECKED BY QUALIFIED SERVICE PERSONNEL.
5. DO NOT CONTINUE TO OPERATE THE EQUIPMENT IF YOU HAVE ANY DOUBT ABOUT IT
WORKING NORMALLY, OR IF IT IS DAMAGED IN ANY WAY. WITHDRAW THE MAINS PLUG FROM
THE MAINS OUTLET AND CONSULT QUALIFIED SERVICE PERSONNEL.
6. DO NOT REMOVE ANY FIXED COVERS UNLESS YOU ARE QUALIFIED TO DO SO AND EVEN THEN
WITHDRAW THE MAINS PLUG FROM THE MAINS OUTLET BEFORE YOU START.
7. THIS EQUIPMENT CONTAINS NO USER SERVICEABLE PARTS. REFER ALL SERVICING AND
MAINTENANCE TO QUALIFIED SERVICE PERSONNEL.
8. TO AVOID EXPLOSION, DO NOT OPERATE THIS EQUIPMENT IN AN EXPLOSIVE ATMOSPHERE
©Calibre UK Limited Issue 2.40 10th January 2014, W: www.calibreuk.com
INTRODUCTION
1.1.
General Introduction
HQView-325 is a very flexible image scaler developed specifically for driving large screen displays and
multiple screen applications from video or graphics sources.
HQView-325 features state of the art digital image processor which provides market leading HD & SD
per-pixel multiple Iow-angle motion-adaptive de-interlacing and automatic film pull-down correction for
3:2 and 2:2, significantly outperforming the capabilities of benchmark competitor products. HQView-325
features excellent image processing algorithms for the very best scaling, film and video noise reduction
and MPEG artefact reduction.
HQView-325 uses a flexible high performance video input front end including HDMI and DVI video with
HDCP encryption, as well as computer graphics inputs in SVGA analogue and HDMI/DVI digital
formats.
The output format can be set to I/O Lock mode where it locks the output frame rate to the input frame
rate dynamically without frame rate conversion so as to reduce system latency, or it can be set to a fixed
output frame rate for driving basic screens which are not 50Hz-compatible.
A Low latency mode with non-motion adaptive reduced processing is available for when the shortest
latency is important.
Outputs are available in DVI/HDMI digital formats with HDCP encryption compatibility.
HQView-325 supports Pan, Tilt and Zoom to select a part of the input image, fill the screen and pan
within it.
HQView-325 supports multi-screen or multi-projector installations by means of Auto Zoom and Edge
Blend with elaborate Black Level Uplift.
Edge Blend electronically reduces the brightness level of certain image regions to seamlessly match the
brightness of overlapping areas. Auto Zoom automatically crops and zooms the input video image to
display a section of the total image on the corresponding projector or screen.
Embedded warp allows adjustment of the image in a projection scenario to match a rotated, tilted or
curved screen. For 9:16 portrait mode signage special predefined portrait modes are available to rotate
and stretch a video image to fill a +/-90° rotated display panel.
HQView-325 also features free form warp capability for non-flat screens in single or multi projector
installation. Warp maps created with the PC tool “Warp Generator” can be uploaded into HQView-325.
HQView-325 is supported by 3rd party PC based auto calibration software creating such warp maps
using camera captured information.
System control is via an OSD controlled by keys on the front panel or through the inbuilt TCP/IP web
server.
Additionally a free API manual is published on our website at the link given below to allow the use of the
LAN or RS232 remote control ports.
http://www.calibreuk.com/documents/hqview/HQView_LEDView%20API%20Protocol_v2.02%20Generic
.pdf
©Calibre UK Limited Issue 2.40 10th January 2014, W: www.calibreuk.com
1.1.1.
Packing List
HQView-325 is supplied with the following:
1) This manual
2) 3 pin plug IEC mains cable
3) DVI-D output cable
4) CD containing manuals and useful applications
©Calibre UK Limited Issue 2.40 10th January 2014, W: www.calibreuk.com
HQVIEW-325 SYSTEM DESCRIPTION
2.1.
Product Overview
HQView-325 is designed to accept the following input signals:
VGA analogue (computer interface) via a 15HDD
DVI (Digital Visual Interface) via DVI-I (supporting a digital or 2nd analogue VGA input)
HDMI via HDMI connector
2.2.
Product Specification
This section provides technical details for all possible inputs.
Please note that not all possible input options may be applicable to certain output modes.
2.2.1.
Power Supply Requirement
100V-264VAC 50/60Hz connected via a standard IEC connector located on the rear panel.
2.2.2.
Computer (SVGA) Inputs VESA formats
Signal formats: DOS, VGA –WUXGA up to 165MHz pixel clock
RGB video level 0.7V - 1.0V
RGB input impedance 75 Ohms
Sync format Separate H & V sync at TTL/5V levels.
2.2.3.
HDMI & DVI Inputs
HDMI 1.3 with or without HDCP, 36-bit video deep colour compatible. HDCP compatibility can be turned
off for use with MAC computers.
DVI-D input with or without HDCP
Signal formats -video
480i and 576i (SD) in double-rate formats (1440 pixels per line), 480p, 576p (ED), 720p, 1080i at 50,
59.94 & 60Hz, 1080p at 24, 25, 30, 50, 59.94 & 60Hz.
Signal formats –computer
DOS, VGA –WUXGA up to 165 MHz pixel clock
2.2.4.
Audio Output
Audio is embedded in the HDMI input video stream. The audio is passed through the system and re-
embedded into the HDMI output signal.
Also, HQView-325 features a S/PDIF coaxial digital audio output connector for monitoring audio of the
HDMI channel.
When HDMI is selected as the input channel the HDMI EDID is read by a video source such as a Blue
Ray Player. HQView-325 allows the source to provide the formats shown under output formats for HDMI
in the below table. (Note: Dolby TrueHD and DTS HD-Master are not in the list of audio formats and
thus not supported.)
©Calibre UK Limited Issue 2.40 10th January 2014, W: www.calibreuk.com
All formats are re-embedded into the HDMI output data stream, those which are not allowed on the
SPDIF output are muted on the SPDIF channel.
Output Channel
Output Format
HDMI
PCM up to 8ch, up to 24Bit, up to 192kHz sampling rate
(incl. 32kHz,44.1kHz,48kHz,96kHz,192kHz)
Dolby Digital (AC3) up to 5.1 channels, up to 640kBit/sec bit stream rate
MPEG2 up to 8ch, up to 112kBit/sec bit stream rate
DTS up to 6.1 channels, up to 1536kBit/sec bit stream rate
SPDIF
PCM up to 2ch, up to 24Bit, up to 96kHz sampling rate
(incl. 32kHz,44.1kHz,48kHz,96kHz)
Dolby Digital (AC3) up to 5.1 channels
DTS up to 6.1 channels
2.2.5.
Display Output
A DVI-I connector is provided which will support DVI outputs as well as HDMI 1.3 with 36-bit video and
HD audio formats when connected to a suitable HDMI 1.3 receiver. When the input signal has HDCP
encryption, the DVI-D output connector will carry a similarly HDCP encrypted signal. When an HDCP
encrypted signal is input, but the display device does not support HDCP, the output image will
turn black and a message indicating HDCP Signal will come up to indicate this.
The color depth of the HDMI output signal is determined by the set-up of HQView and the capabilities of
the monitor. The bit depth per color channel is displayed in the output section of the menu system
Note: The processor’s HDCP compliance can be turned off. This is of importance particularly when
using a MAC computer as the source. A MAC will encrypt it’s output signal if a compliant device is seen
attached to it’s output. By turning off the HQView processor’s compliance the MAC will see a non-
compliant device and therefore will not encrypt its output.
©Calibre UK Limited Issue 2.40 10th January 2014, W: www.calibreuk.com
The following output modes can be set up:
(HFP/VFP: horizontal/vertical front porch, HBP/VBP: horizontal/vertical front porch, HS/VS:
horizontal/vertical sync, HTot/VTot: horizontal/vertical total pixels)
Hor Pix
Ver Pix
HTot
HFP
HS
HBP
VTot
VFP
VS
VBP
Hor Freq
Ver Freq
Pix Clock
Specification
640
480
800
16
96
48
525
10
2
33
31.47
59.94
25.175
VESA DMT
640
480
800
16
96
48
629
62
2
85
31.46
50.02
25.170
proprietary
640
480
800
16
96
48
629
62
2
85
30.19
48.00
24.154
proprietary
800
600
1056
40
128
88
628
1
4
23
37.88
60.31
40.000
VESA DMT
800
600
1056
40
128
88
628
1
4
23
31.40
50.00
33.158
VESA 60 - CLK wind down
800
600
1056
40
128
88
628
1
4
23
30.14
48.00
31.832
proprietary
1024
768
1344
24
136
160
806
3
6
29
48.36
60.00
65.000
VESA DMT
1024
768
1312
40
104
144
793
3
4
18
39.63
49.98
52.000
VESA CVT 001M3
1024
768
1312
40
104
144
793
3
4
18
38.11
48.06
50.000
proprietary
1280
768
1664
64
128
192
798
3
7
20
47.78
59.87
79.500
VESA CVT 001M9/VESA DMT
1280
768
1648
56
128
184
793
3
7
15
39.59
49.93
65.250
VESA CVT001M9
1280
768
1648
56
128
184
793
3
7
15
38.06
48.00
62.730
proprietary
1280
800
1680
72
128
200
831
3
6
22
49.70
59.81
83.500
VESA CVT 001MA/VESA DMT
1280
800
1680
72
128
200
831
3
6
22
41.55
50.00
69.804
propietary
1280
800
1680
72
128
200
831
3
6
22
39.89
48.00
67.012
propietary
1280
1024
1688
48
112
248
1066
1
3
38
63.98
60.02
108.000
VESA DMT
1280
1024
1688
48
112
248
1066
1
3
38
53.32
50.02
90.000
VESA 60 - CLK wind down
1280
1024
1688
48
112
248
1066
1
3
38
51.17
48.00
86.370
proprietary
1360
768
1792
64
112
256
795
3
6
18
47.71
60.02
85.500
VESA AddDMT
1360
768
1744
56
136
192
793
3
5
17
39.56
49.89
69.000
VESA CVT 001M9
1360
768
1688
48
112
248
1066
1
3
38
51.17
48.00
86.370
proprietary
1366
768
1792
26
100
300
795
4
3
20
47.70
60.00
85.478
proprietary
1366
768
1792
26
100
300
795
4
3
20
39.75
50.00
71.232
proprietary
1400
1050
1864
88
144
232
1089
3
4
32
65.31
59.98
121.750
VESA CVT 001M3/VESA DMT
1400
1050
1864
88
144
232
1089
3
4
32
54.43
49.98
101.458
VESA 60 - CLK wind down
1400
1050
1864
88
144
232
1089
3
4
32
52.27
48.00
97.435
proprietary
1440
900
1904
80
152
232
934
3
6
25
55.93
59.89
106.500
CVT 1.30MA/VESA DMT
1440
900
1872
72
144
216
929
3
6
20
46.34
49.88
86.750
VESA CVT 001MA
1600
1200
2160
64
192
304
1250
1
3
46
75.00
60.00
162.000
VESA DMT
1600
1200
2128
96
168
264
1238
3
4
31
61.80
49.92
131.500
VESA CVT 002M3
1600
1200
2128
96
168
264
1238
3
4
31
59.42
48.00
126.450
proprietary
1680
1050
2240
104
176
280
1089
3
6
30
65.29
59.95
146.250
VESA CVT 002MA
1680
1050
2208
88
176
264
1083
3
6
24
54.12
49.97
119.500
VESA CVT 002MA
1680
1050
2208
88
176
264
1083
3
6
24
51.98
48.00
114.780
proprietary
1920
1200
2080
48
32
80
1235
3
6
26
74.04
59.95
154.000
VESA CVT 002MA-R/VESA DMT
1920
1200
2080
48
32
80
1129
3
6
20
61.42
49.97
127.750
VESA CVT calculated
1920
1200
2080
48
32
80
1235
3
6
26
29.64
24.00
61.650
proprietary
1920
1200
2080
48
32
80
1129
3
6
20
59.28
48.00
123.300
proprietary
720
480
858
19
62
57
525
27
3
15
31.47
59.94
13.500
EIA/CEA-861-B Format 6
720
576
864
12
63
69
625
27
3
19
31.25
50.00
13.500
EIA/CEA-861-B Format 24
720
576
864
12
63
69
625
28
3
18
30.00
48.00
12.960
proprietary
720
480
858
16
62
60
525
9
6
30
31.47
59.94
27.000
EIA/CEA-861-B Format 2
720
576
864
12
64
68
625
5
5
39
31.25
50.00
27.000
EIA/CEA-861-B Format 17
720
576
864
12
64
68
625
5
5
39
30.00
48.00
25.920
proprietary
1280
720
1650
110
40
220
750
5
5
20
44.95
59.94
74.176
EIA/CEA-861-B Format 4
1280
720
1980
440
40
220
750
5
5
20
37.50
50.00
74.250
EIA/CEA-861-B Format 19
1280
720
4125
2585
40
220
750
5
5
20
17.98
23.98
74.176
SMPTE 296M-1997 Format 8
1280
720
2063
483
40
260
750
5
5
20
35.97
47.96
74.176
proprietary
1920
1080
2200
88
44
148
1125
25
5
15
67.43
59.94
74.176
EIA/CEA-861-B Format 5
1920
1080
2640
528
44
148
1125
25
5
15
56.25
50.00
74.250
EIA/CEA-861-B Format 20
1920
1080
2750
638
44
148
1125
25
5
15
53.95
47.95
74.176
SMPTE 274-1998 Format 11
1920
1080
2750
638
44
148
1125
25
5
15
53.95
47.95
74.176
SMPTE 274-1998 Format 10
1920
1080
2200
88
44
148
1125
4
5
36
67.43
59.94
148.352
EIA/CEA-861-B Format 16
1920
1080
2640
528
44
148
1125
4
5
36
56.25
50.00
148.500
EIA/CEA-861-B Format 31
1920
1080
2750
638
44
148
1125
4
5
36
26.97
23.98
74.176
EIA/CEA-861-B Format 32
1920
1080
2640
440
88
192
1125
3
5
37
53.95
47.95
142.418
proprietary
©Calibre UK Limited Issue 2.40 10th January 2014, W: www.calibreuk.com
HQVIEW-325 CONTROL
3.1.
Menu Tree
1st Level
2nd Level
3rd Level
4th Level
©Calibre UK Limited Issue 2.40 10th January 2014, W: www.calibreuk.com
©Calibre UK Limited Issue 2.40 10th January 2014, W: www.calibreuk.com
©Calibre UK Limited Issue 2.40 10th January 2014, W: www.calibreuk.com
©Calibre UK Limited Issue 2.40 10th January 2014, W: www.calibreuk.com
©Calibre UK Limited Issue 2.40 10th January 2014, W: www.calibreuk.com
©Calibre UK Limited Issue 2.40 10th January 2014, W: www.calibreuk.com
3.2.
Introduction
The front panel has keys for OSD menu navigation and input channel selection. OSD navigation is
through two direction keys and a Menu/Enter key
.
1 –Standby key: When applying power to the unit it starts up. This is indicated by the green On LED
flashing. Once the unit is operational, the On LED is permanently on. By pressing the Standby Key, the
unit is put into standby mode. This is indicated by the red Standby LED being permanently on.
The red Keylocked LED indicates a keypad locking condition issued through the OSD menu. If a key on
the front panel is now pressed an OSD message comes up and displays the multiple key press to be
applied to unlock the front panel keys. (OSD can be disabled)
2 –Input channel selection keys: All input channels can be directly selected. The active channel is
indicated by the red LED above the corresponding channel key being on.
3 –Test Pattern key: Key to directly activate a Test Pattern. Use the up/down keys to toggle trough the
available test patterns or can be selected in the menu system. The LED is switched on when in Test
Pattern mode.
4 –OSD navigational keys: With the Menu key the OSD menu is activated. The up/down keys are used
for OSD menu navigation. To exit the OSD menu or any submenu press the up and down key
simultaneously or navigate to the Exit item and press the menu/enter key. To access a submenu
navigate to it and press the menu/enter key. To apply a change go to the menu item, press the
menu/enter key and make a parameter change with the up/down key. Confirm the change by pressing
the Menu/enter key. This will also bring you back to the submenu.
With the following multiple key presses further functions can be applied:
Keypad unlock: Menu/Up/Down
Input Mode reset: Menu/VGA
Factory reset: Menu/DVI
Set output mode to 720p: Menu/HDMI
The back panel features all input and output connectors, communication ports and the power supply
connector.
1 –Digital audio output 2 –HDMI input 3 –DVI-D and VGA input 4 –DVI/HDMI output
5 –USB port 6 –TCP/IP port 7 –RS232 port 8 –Power supply connector
1
2
3
4
5
6
7
8
1
2
3
4
©Calibre UK Limited Issue 2.40 10th January 2014, W: www.calibreuk.com
3.3.
Main Menu
The main menu lists the input channel select item, 6 sub menus, and a menu item for automatic setup
of VGA modes. The 6 sub menus are Output, Color, Geometry, Multiple Unit, Enhancement and
System.
On each menu page an Exit menu item is available to leave the menu or submenu. The menu may also
be left by pressing the up/down key simultaneously.
The menu system is contextual. Some adjustments are not applicable to all signal types or operating
modes, in which case those non-applicable functions will be ghosted/ greyed out and are not accessible.
All menus have a top status line and a bottom line indicating the firmware revision number. In the status
line the currently selected input channel is indicated and the detected mode is identified. The firmware
revision number displays the revision number of the boot-loader behind BL, the revision number of the
firmware behind FW and the model number 325 of the unit.
Navigating the menu system or changing values is done with the up and down keys. In the following
sections the set-up method using the up and down keys is described.
To set up your HQView-325 it is recommended that you follow this procedure:
Choose the correct output mode and parameters to suit your screen or projector.
Select the correct input signal.
Set the input levels and features appropriately to optimize the appearance of your image.
Set any other parameters to suit your application.
Note: All Input parameters are specific to your chosen input channel and input signal type, they are not
global to the unit. All Output parameters are specific to the output so will appear to be global.
3.4.
Input
In addition to the front panel buttons the list of available inputs can be scrolled through in the Input menu
using the Up and Down keys. The new input is not selected until the Menu key is pressed. The list of
inputs are: VGA, DVI, HDMI and Test Pattern.
Test patterns can be generated by HQView-325 without needing an input connected. When Test Pattern
is selected as the input, the required test pattern can be chosen with the menu navigation up/down keys
when the menu system has been exited, or it can be selected in menu/System/Input Config/Test Pattern
Setup.
3.5. Output
This menu contains adjustments associated with setting up outputs from the unit. The items are
organized in three sub menus, Display Type, Gamma/Color/Crush and Output Config. Use the up and
down keys to scroll to the required item and press the Menu key.
3.5.1. Display Type
Settings: LCD/Plasma, Projector
The Display Type setting defaults to Projector. When set to LCD/Plasma Multiple unit configurations
with auto zoom are available, but without edge blend. Note: For HQView-325 leave the setting to
Projector mode, since for this model essentially there is no difference to LCD/Plasma mode.
©Calibre UK Limited Issue 2.40 10th January 2014, W: www.calibreuk.com
3.5.2. Output Mode
Settings: 640x480, 800x600, 1024x768, 1280x768, 1280x800, 1280x1024, 1360x768, 1366x768,
1400x1050, 1440x900, 1600x1200, 1680x1050, 1920x1200, 480i, 576i, 480p, 576p, 1080i, 720p, 1080p
Set up the desired output resolution with output mode.
The output mode setting should match the native resolution of the imaging device to avoid double
scaling.
The default output resolution as set by the factory or after a user issued factory reset is 720p.
3.5.3. Location
Settings: Front Tabletop, Front Ceiling, Rear Tabletop, Rear Ceiling
The image can be flipped to accommodate different projection scenarios as well as screens mounted
upside down.
3.5.4. Frame Rate
Available Settings: 60 Hz, 50 Hz, 48 Hz, 24 Hz, Auto
In auto mode the output frame rate follows the input frame rate as configured in the Output Config
menu.
Signals with 24Hz, 25H, 48Hz, 50Hz input modes get special treatment, modes with other refresh rates
are displayed at 60Hz.
24Hz input modes will be output at 24Hz if the output resolution is set to either 720p or 1080p and the
Frame Rate setting in the Output Config menu includes 24Hz, otherwise it is displayed at twice the rate
if the Frame Rate setting in the Output Config menu includes 48Hz.
Otherwise a 24Hz input mode is displayed at 60Hz. 48Hz input modes will be output at 48Hz if the
Frame Rate setting in the Output Config menu includes 48Hz.
Otherwise it is displayed at 50Hz.
A 25Hz input mode is output at twice the frame rate 50Hz.
An exception to the 24/25Hz input mode treatment is if the output resolution is set to 480i or 480p. 480i
and 480p are always run at 60Hz output rate.
50Hz input modes are displayed at 50Hz output rate.
The output frame rate can also manually set to 24Hz, 48Hz, 50Hz or 60Hz if possible, i.e. such output
modes are available.
Only 720p and 1080p output modes are available with 24Hz refresh rate.
480i and 480p output modes are only available at 60Hz refresh rate.
For all other modes 48Hz, 50Hz and 60Hz refresh rate is available.
3.5.5. I/O Lock
Settings: Off, Auto
If I/O Lock is switched off the output is run with a fixed refresh rate determined by the frame rate setting,
which deviates from the input refresh rate, even if both are nominally at the same rate. This causes
occasional frame dropping or repeat.
If I/O Lock is set to Auto the output refresh rate is following the input video refresh rate if locking is
possible.
Locking is achieved by modulating the output clock and works if input and output refresh rate are
nominally at the same rate, e.g. when frame rate is set to 60Hz and the video input is also 60Hz.
©Calibre UK Limited Issue 2.40 10th January 2014, W: www.calibreuk.com
If e.g. the video input rate is 50 Hz and the Frame rate is set to 60Hz, the output will enter free run
mode.
When Frame Rate is set to Auto the matching frame rate is chosen.
The status line of the OSD window under Sync Mode indicates if the output signal is locked to the input
signal (I/O Locked) or in free run mode (Free Run).
3.5.6. Native Colour Temp
Settings: 5500, 6500, 7500, 9300, 10000
Native Colour Temp allows the user to select from pre-configured colour temperatures to match the
display. If both Native Colour Temp set here in the Output menu and Colour Temp set in the Colour
menu are set to the same value, no conversion is performed.
3.5.7. Output Gamma
Settings: 1.0 to 3.0 in steps of 0.1
Output gamma allows to re-gamma video signals with pre-configured gamma values to match the
display. Input gamma and output gamma both default to 2.2. If they are both set to the same value,
there is no effect on the image.
Note: If e.g. an adjustment to reduce the level of red in the image is required, select a higher number for
the (input) Colour Temp in the Colour menu, or a lower number for the Native Colour Temp in the
Output menu.
3.5.8. Output Config
This Menu provides items to configure the output port.
Optimize for Display
Settings: DVI forced, Optimized, DVI/HDMI
Internally, the display interface processes data at a full ten bits per colour. A resolution of ten bits per
colour is provided for the VGA output. The colour depth on the DVI-D output is determined by the
supported standard of the attached monitor or device when set to DVI/HDMI. For DVI 1.0 and HDMI
1.1/1.2 devices it is 24 bit, for HDMI 1.3 compliant devices it is up to 36 bit.
DVI forced will output with 24 bit colour depth irrespective of the supported standard of the attached
monitor.
When the Optimized setting is enabled the output resolution is automatically set to the native screen
resolution of the attached display. The colour depth is determined in the same way as when set to
DVI/HDMI.
DVI Colour Space and DVI Range
The colour space of the DVI output port can be set to RGB or YPbPr, the range can be set to Expand,
Normal, Compress and Auto.
A limited video range is only using the following greyscale for video information - 8 Bit System: 0x01 ..
0xFE, 10 Bit System: 0x004 .. 0x03FB.
Auto makes the best choice for the range for the DVI and 3G-SDI output. If the HDMI/DVI output does
not behave as expected, e.g. because the HDMI display is not evaluating AVInfoFrames properly, the
range can be changed manually.
Frame Rates
Settings: 60/50 Hz, 60/50/24 Hz, 60/50/48, 60/50/24/48
Table of contents
Other Calibre Media Converter manuals
Calibre
Calibre FoveaHD User manual
Calibre
Calibre HQView620 User manual
Calibre
Calibre HQView-400S User manual
Calibre
Calibre HQView-2xx Series User manual
Calibre
Calibre HQView-500 Series User manual
Calibre
Calibre HQView-300 Series User manual
Calibre
Calibre HQView-100S User manual
Calibre
Calibre LEDView-510 User manual
Calibre
Calibre VideoExcel User manual
