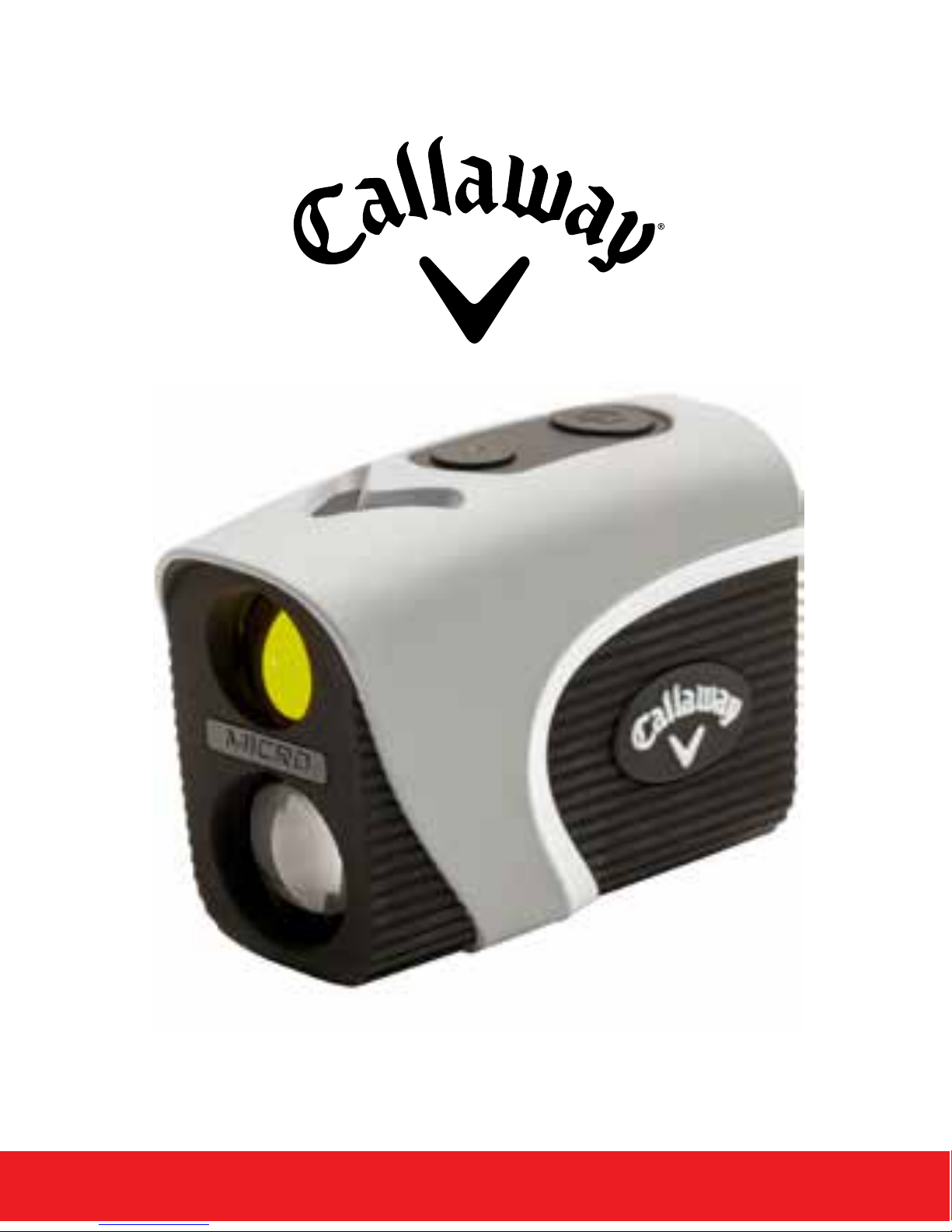

Callaway Micro User manual

© 2016 CALLAWAY GOLF COMPANY. Callaway Golf and the
Chevron device are trademarks of Callaway Golf Company.
IZZO Golf is an ofcial licensee of Callaway Golf Company.

Micro RANGEFINDER

INTRODUCTION
The Callaway Micro Laser Rangender delivers the benets of both
laser and prism technology within one ultra compact, lightweight
device. For courses that have agsticks with built-in reectors, prism
mode is ideal for quickly acquiring the distance to the pin with minimal
effort and a high degree of accuracy. To acquire distances to other
objects, laser mode allows you to scan the landscape for distances to
hazards, trees, front of the green, etc. When playing a course without
agstick reectors, simply stay in laser mode throughout the round
and engage P.A.T. (Pin Acquisition Technology) to lock onto the ag
quickly and accurately.
2INTRODUCTION
INCLUDES
A. CR2 - 3VOLT LITHIUM BATTERY
B. Carry Case
C. Cleaning Cloth

Product Callaway Micro Rangender
Model Micro
Dimensions 3.5" x 2.5" x 1.5 "
Weight 3.74 oz.
Battery CR2 3 -Volt Lithium Battery
Display LCD Display
Max Range 5-600 yd
Range To Flag 5-300 yd (Prism Mode)
Accuracy +/- 1 yd
Unit of Measure Yards/Meters
Weather Resistant Protected against light rain
To view the instructional video, please visit:
www.callawaydmd.com/micro-laser-rangender
ENGLISH 3
SPECIFICATIONS

BATTERY INSTALLATION
The Laser Rangender uses a replaceable CR2 3-volt lithium
battery. To install, remove the battery cap located on the side of the
device. Insert battery negative end rst (at end) and close battery cap.
1. Lift hatch tab.
2. Turn counterclockwise to open.
3. Insert battery into chamber (negative end rst).
4. Replace battery cap and tighten by turning clockwise.
NOTE: If the Low Battery Icon is present on LCD display, there are
approximately 200 ranges left from the time the Low Battery Icon rst
appears until the battery is completely drained. The Low Battery Icon
will ash if the battery life is very low. In this case, the battery needs to
be replaced before next use.
4BATTERY INSTALLATION

ENGLISH 5
RANGEFINDER DIAGRAM
A. Aiming Scope
B. Power Button
C. Mode Button (M)
D. LCD Screen
E. Battery Chamber
LCD DISPLAY
A. Distance
B. Unit of Measure (Y or M)
C. Mode Indicator
D. Low Battery Indicator
163
LASER
Y

6HOW TO USE
HOW TO USE
1. While holding the rangender out in
front of you, PRESS and RELEASE the
Power Button to power on the Laser.
Note: Be sure to use both eyes while
looking through the Aiming Scope with
the rangender out in front of you, (DO
NOT aim by bringing the rangender
close to one eye.
2. Align the Red Dot inside the Aiming
Box and aim at your target. PRESS and
RELEASE the Power Button again to
re the laser.
3. The device will make a “beep” sound
and the distance will be displayed on
the LCD Screen.
Note: There could be a slight delay
(1 or 2 sec.) before the distance is
displayed.
158
PIN
Y
INCORRECT

ENGLISH 7
MEASUREMENT MODES
To change modes, PRESS and RELEASE the Mode Button (M).
1. Laser - Standard Laser Mode is recommended when measuring
distances to larger objects.
2. Pin -P.A.T. (Pin Acquisition Technology) Mode is best used
when measuring the distance to a agstick or smaller objects.
3. Prism -Prism Mode is ideal for courses that have agsticks with
NOTE: Prism Mode will only work properly when aiming at a agstick
with a built-in reector.
- - -
LASER
Y
- - -
PIN
Y
- - -
PRISM
Y
1. Laser Mode 2. Pin Mode 3. Prism Mode
built-in reectors. Be sure to aim in the general direction
of the built-in reector. For example, if the built-in reector
is located in the middle of the agstick, then aim the laser
towards the middle of the agstick (see diagram on Page 8).

4. Scanning - To measure distances to multiple targets in succession,
HOLD the Power Button. Measurements will change as you scan
the landscape and change targets. Scanning should only be used
while in Laser or Pin Mode.
NOTE: While scanning in P.A.T. Mode, the measurement will only
change when a shorter distance is measured. This is useful when
measuring the distance to a agstick when there are trees or other
objects in the background.
5. Unit of Measure - To change the unit of measure from Yards (“Y”)
to Meters, PRESS Power Button to power on, then HOLD Mode
Button (M). The unit of measure is indicated by a “Y” or “M”
shown directly to the right of the distance displayed.
PRISM MODE DIAGRAM
NOTE: The closer you are to the Pin, the more accurately you will
have to aim the Rangender in the direction of the built in reector.
8HOW TO USE
Reector located in
Middle of Pin
Reector located on
Top of Pin

ENGLISH 9
OPERATIONAL NOTES
1. The maximum measurement range is 5-600 yards to random
objects and 5-300 yards to a agstick with, +/- 1 yard accuracy.
NOTE: Maximum range can depend on several factors, including
target characteristics and environmental conditions. For instance,
longer maximum distances may be obtained to targets that are
large in size, brightly colored, or have a reective nish. Ranging
capability can also be affected by the angle to the target and
lighting conditions.
2. Auto Shutoff - To conserve battery life, the device will
automatically power off when idle for more than 5 seconds.
3. Weather Conditions - Heavy rain and thick fog can potentially
limit the maximum range of the device.
4. Weather Resistant - The device is protected against light rain.
MAINTENANCE
1. To clean, use only a soft, clean cloth to prevent scratches.
2. Do not submerge in liquid or apply any cleaning products.
3. Do not store in extremely hot/cold temperatures (<50°F - >110° F).
4. Store in carrying case when not in use.

10 TROUBLESHOOTING
TROUBLESHOOTING
Rangender is consistently providing inaccurate measurements.
• Make sure the device is set to the desired unit of measure
(Yards or Meters).
• Weak battery signal can affect the accuracy of the device. If the
Low Battery Indicator is present on the LCD display, replace
the battery.
• Make sure there isn’t anything obstructing your view such as
leaves, branches, your nger, etc.
Measurment is not displayed
• If using Prism Mode, a yardage will only be displayed when
laser is red at a agstick with a built-in reector.
• Weak battery signal can affect the accuracy of the device. If the
Low Battery Indicator is present on the LCD display, replace
the battery.
• Make sure there isn’t anything obstructing your view such as
leaves, branches, your ngers, etc.
When should P.A.T Mode be used?
• When measuring the distance to smaller targets such as
a agstick.
• When scanning the landscape to measure distances to a
smaller target such as a agstick and there are trees or other
objects in the background.
When should Prism Mode be used?
• Only when measuring the distance to a agstick with a
built in reector.

ENGLISH 11
TROUBLESHOOTING (CONTINUED)
When should the battery be replaced?
• If the Low Battery Indicator is present on the LCD display.
• If the rangender is consistently providing inaccurate
measurements.
• If the LCD display is not present when PRESSING the
Power Button.
What type of battery does the rangender use?
• CR2 3-Volt Lithium Battery.
If you have any other questions or concerns,
please call 1-888-606-4634 or go to www.callawaydmd.com.
WARNING
• NEVER look directly into the sun or intense light when using
the laser rangender.
• DO NOT aim/point laser rangender at another person.
• DO NOT aim/point laser rangender at anyone’s eyes or face.
• DO NOT attempt to disassemble the laser rangender.
• DO NOT submerge in any liquid.
• DO NOT store the laser rangender in extreme cold/hot
temperatures (>50°F - <110°F).

ENGLISH 17
WARRANTY POLICY
This product is warranted to be free from defects for up to (1) year
from the original purchase date. IZZO Golf cannot refund your purchase
unless purchased directly from IZZO Golf. IZZO Golf will replace or
repair any unit that is determined defective under normal use within
the warranty period. Please call Customer Service at 888-606-4634
to request a Return Authorization. All defective products with a
Return Authorization must be returned to:
IZZO Golf
Attn: Returns Dept.
1635 Commons Parkway
Macedon, NY 14502
RA # : ___________
Please include a note with your Name, Address, Phone # and the
Return Authorization #.Your replacement will be shipped once we
diagnose the returned unit.
To register your product visit: www.callawaydmd.com/registration
For any other questions or concerns, please call 1-888-606-4634 or
go to www.callawaydmd.com
© 2016 CALLAWAY GOLF COMPANY. Callaway Golf and the
Chevron device are trademarks of Callaway Golf Company.
IZZO Golf is an ofcial licensee of Callaway Golf Company.
12 WARRANTY/CAUTION

TÉLÉMÈTRE Micro

INTRODUCTION
Le télémètre laser Micro de Callaway offre l'avantage d'avoir la
technologie laser et prismatique dans un appareil léger et ultra
compact. Pour les terrains avec des drapeaux équipés de réecteurs,
le mode prisme est idéal pour connaître rapidement la distance
au drapeau avec un effort minimal et beaucoup de précision. Pour
connaître la distance aux autres objets, le mode laser vous permet
de balayer le paysage pour les distances aux obstacles, arbres, le
devant du vert, etc. Lorsque vous jouez sur un terrain sans drapeaux
équipés de réecteurs, vous n'avez qu'à rester en mode laser et
activer le P.A.T. (technologie d'acquisition de drapeau) pour viser le
drapeau rapidement et précisément.
2INTRODUCTION
COMPREND
A. PILE LITHIUM CR2 - 3 VOLT
B. Valise de transport
C. Tissu de nettoyage

Produit Télémètre Micro Callaway
Modèle Micro
Dimensions 3,5 po x 2.5 po x 1,5 po
(11.4 x 7.62 x 4.16 cm)
Poids 3,74 oz (208g).
Pile Pile lithium CR2 3 volts
Afchage Écran LCD
Portée max 5-600 vg
Distance au drapeau 5-300 vg (mode prisme)
Précision +/- 1 vg
Unité de mesure Verges/Mètres
À l'épreuve des éléments Protégé contre la pluie ne
Pour visionner le vidéo d'instructions, visitez le :
www.callawaydmd.com/micro-laser-rangender
CARACTÉRISTIQUES
FRANÇAIS 3

INSTALLATION DE LA PILE
Le télémètre laser utilise une pile remplaçable au lithium CR2
3-volts. Pour l'nstaller, retirez le couvercle à pile situé sur le côté
de l'appareil. Insérez le pôle négatif d'abord (côté plat) et fermez le
couvercle.
1. Soulevez la languette.
2. Tournez dans le sens anti-horaire pour ouvrir.
3. Insérez la pile dans le compartiment (côté négatif en premier).
4. Replacez le couvercle et serrez en tournant dans le sens horaire.
REMARQUE : Si l'icône pile faible se trouve sur l'afchage LCD, il y
a environ 200 prises de mesure possibles, du moment ou l'icône pile
faible apparait, avant que la pile ne soit déchargée. L'icône Pile faible
clignotera si la durée de la pile est très basse. Dans ce cas, la pile devra
être remplacée avant sa prochaine utilisation.
4INSTALLATION DE LA PILE

FRANÇAIS 5
DIAGRAMME DU TÉLÉMÈTRE
A. Viseur
B. Bouton d'alimentation
C. Bouton mode (M)
D. Écran LCD
E. Compartiment à pile
ÉCRAN LCD
A. Distance
B. Unité de mesure (Y ou M)
C. Indicateur du mode
D. Batterie faible Indicator
163
LASER
Y

6UTILISATION
UTILISATION
1. En plaçant le télémètre devant
vous, APPUYEZ BRIÈVEMENT sur le
bouton d'alimentation pour allumer
le laser.
Remarque : Assurez-vous d'utiliser
vos deux yeux lorsque vous regarder
dans le viseur lorsque le télémètre
est devant vous, (NE PAS visez en
approchant le télémètre d'un seul oeil).
2. Alignez le point rouge dans le
carrée de visée et visez votre cible.
APPUYEZ BRIÈVEMENT sur le
bouton d'alimentation une autre fois
pour tirer le laser.
3. L'appareil gazouillera et la distance
sera afchée sur l'écran LCD.
Remarque : Il peut y avoir un court
délai (1-2 sec.) avant que la distance ne
s'afche.
158
DRAPEAU
Y
INCORRECT

FRANÇAIS 7
MODES DE MESURE
Pour changer de mode, APPUYEZ BRIÈVEMENT sur le bouton
mode (M).
1. Laser - Le Mode laser standard est recommandé lorsque vous
mesurez des distances vers des objets plus gros.
2. Drapeau -P.A.T. (Technologique d'acquisition de drapeaux) -
Le mode P.A.T est recommandé lorsque vous mesurez la distance
au drapeau ou d'objets plus petits.
3. Prisme -Le mode prisme est idéal pour les terrains avec des
drapeaux équipés de réecteurs. Assurez-vous de viser en
direction du réecteur intégré. Par exemple, si le réecteur intégré
est situé au milieu du drapeau, pointez le laser vers le milieu du
drapeau (voir le diagramme de la page 8).
REMARQUE : Le mode prisme ne fonctionnera efcacement que
lorsque vous visez un drapeau avec un rélecteur
intrégré.
- - -
LASER
Y- - -
DRAPEAU
Y- - -
PRISME
Y
1. Mode laser 2. Mode drapeau 3. Mode prisme
