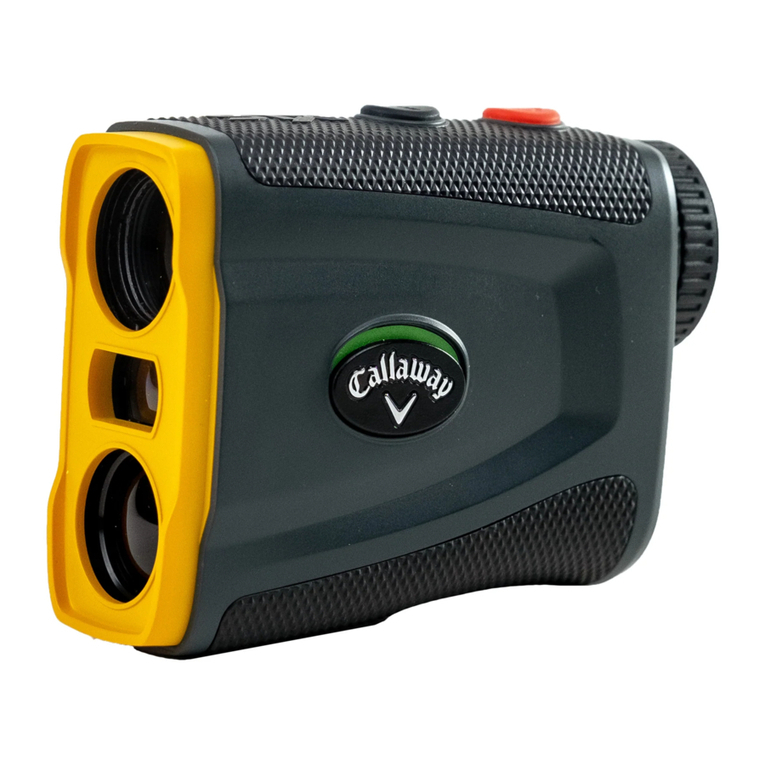

Callaway XLS User manual

CALLAWAY laser rangefinder QUICK START
HOW TO USE
To view complete user manual visit: www.CallawayDMD.com/product-support
While looking through the Eye
Piece, PRESS & RELEASE the
Power Button. The rangender
is now powered on.
1.
To focus/increase clarity, use
the Diopter Adjustment by
turning the Eye Piece.
2.
Continue looking through the Eye
Piece, aim the Zero-In Aiming Circle
at your intended target & PRESS the
Power Button. The laser will re and
the Laser Indicator Box will appear
around the Zero-In Aiming Circle.
The measurement will be displayed at
the top of the LCD display.
3.
A. Eye Piece
B. Diopter
Adjustment
C. Power Button
D. Mode Button
E. Slope Switch
F. Battery Door
LCD DISPLAY
A. Zero-In Aiming Circle
B. Laser Indicator Box
C. P.A.T. Mode Indicator
D. Pulse Indicator
E. Distance
F. Unit of Measure
G. Angle of Incline/Decline
H. Slope Adjusted Distance
I. Battery Indicator
RANGEFINDER DIAGRAM
--- Y

4. Unit of Measure - To change the unit of measure from
Yards to Meters, start with the device powered o󰀨. Then
HOLD the Mode Button for 3 sec. The unit of measure
is indicated by a “Y” or “M” shown directly to the right of
the distance displayed.
P.A.T. with Pulse Technology - P.A.T. Mode is best used
when measuring the distance to a Flagstick or smaller
objects. Device will provide a short vibration to conrm
that the laser has locked on to the pin. To toggle between
Standard and P.A.T Mode, quickly PRESS the Mode
Button once while device is powered on. When P.A.T.
Mode is activated, the agstick icon will appear on the
left side and the Pulse icon will appear at the top of
the LCD display (Fig. B).To turn Pulse ON/OFF, quickly
PRESS the Mode Button Twice.
MEASUREMENT MODES
1. Standard - Standard Mode is recommended when
measuring distances to larger objects. (Fig. A)
2.
3. Scanning - To measure distances to multiple targets
in succession, PRESS and RELEASE Power Button
to power on. Then HOLD Power Button, the Laser
Indicator Box will ash and the laser will continuously
re. Measurements will change as you scan the
landscape and change targets.
NOTE: While scanning in P.A.T. Mode, the measurement will only
change when a shorter distance is measured. This is useful when
measuring the distance to a agstick when there are trees or other
objects in the background.
--- Y--- Y
SLOPE FUNCTION
The Slope Switch on the side of the XLS has
two positions:
1. RED is showing: Slope function is o󰀨. The Laser is
tournament legal when the slope is turned o󰀨.
2. GREEN is showing: Slope function is enabled. Slope
adjusted yardage will be displayed after every time the
laser is red. The Laser is not tournament legal when
the slope is enabled.
SLOPE OFF SLOPE ON
