Cambo CS-CIRUS User manual

CS-CIRUS
HDSLR/DV SUPPORT SYSTEMS
INSTRUCTION MANUAL
EN
Please read this manual carefully before using the Cambo CS rig!
CAMBO | WHERE TRADITION MEETS VISION | MADE IN THE NETHERLANDS

Instruction Manual CS-
Cirus
2
Thank you for purchasing a Cambo product
The Cambo CS system complies with the “Arriflex
®
15mm Light Weight” standard.
This means the CS system is compatible with parts of other brands using the 15mm
light weight standard. The 15mm light weight standard characteristics are: 15mm iris
rods that are positioned 60mm apart and 85mm below the optical axis.
The Cirus-rig has an adjustable positioning of the camera in the x and y-axis.
Ensuring the optimal viewing position, whether you use a loupe or a direct view on
the DSLR monitor.
Due to the modular character of the Cambo rig system, the user is fully in charge of
customizing the rig to his or her personal preferences.
The Cirus-rig can be used with any follow-focus and/or matte box, this rig
configuration centers the weight of the rig on the handle axis.
The distance between the optical centre of the lens and the iris rods is adjustable,
making this rig applicable to different types of cameras.
For use of DSLR with battery pack the CS-153 clamp can be turned upside down,
lowering the camera mount.
Warnings
Before loosening a clamp knob, ensure that the loosened part of the rig is
supported.

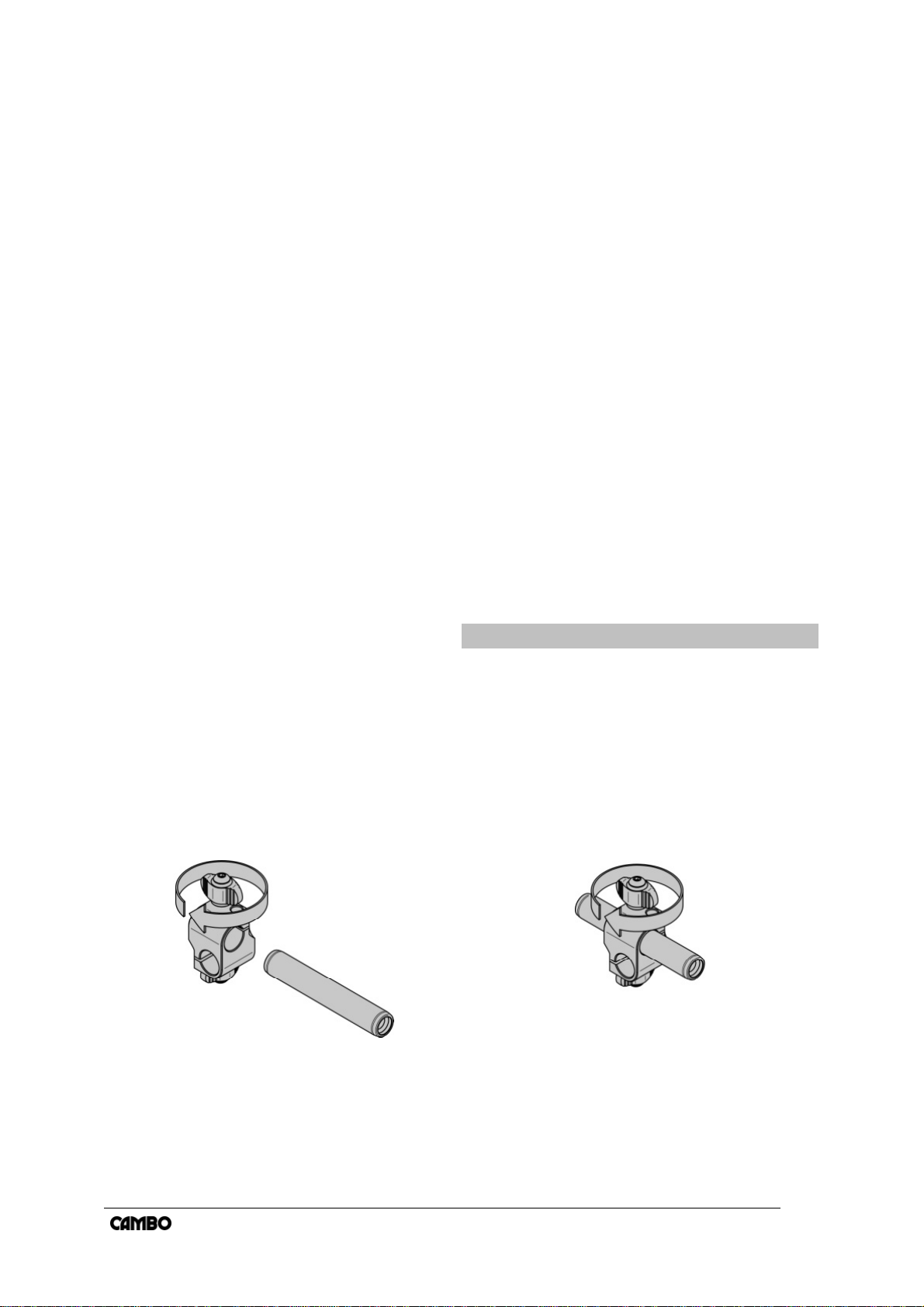

Do not tighten the clamp without a rod inserted. This can deform and damage
the clamp.




Always check, after (re)assembly of the rig, if the clamps connecting the rods
are well tightened.
Do not lift the rig while holding only one handle. This could lead to excessive
force momentum on the handle joint, causing it to shift.

Instruction Manual CS-
Cirus
3

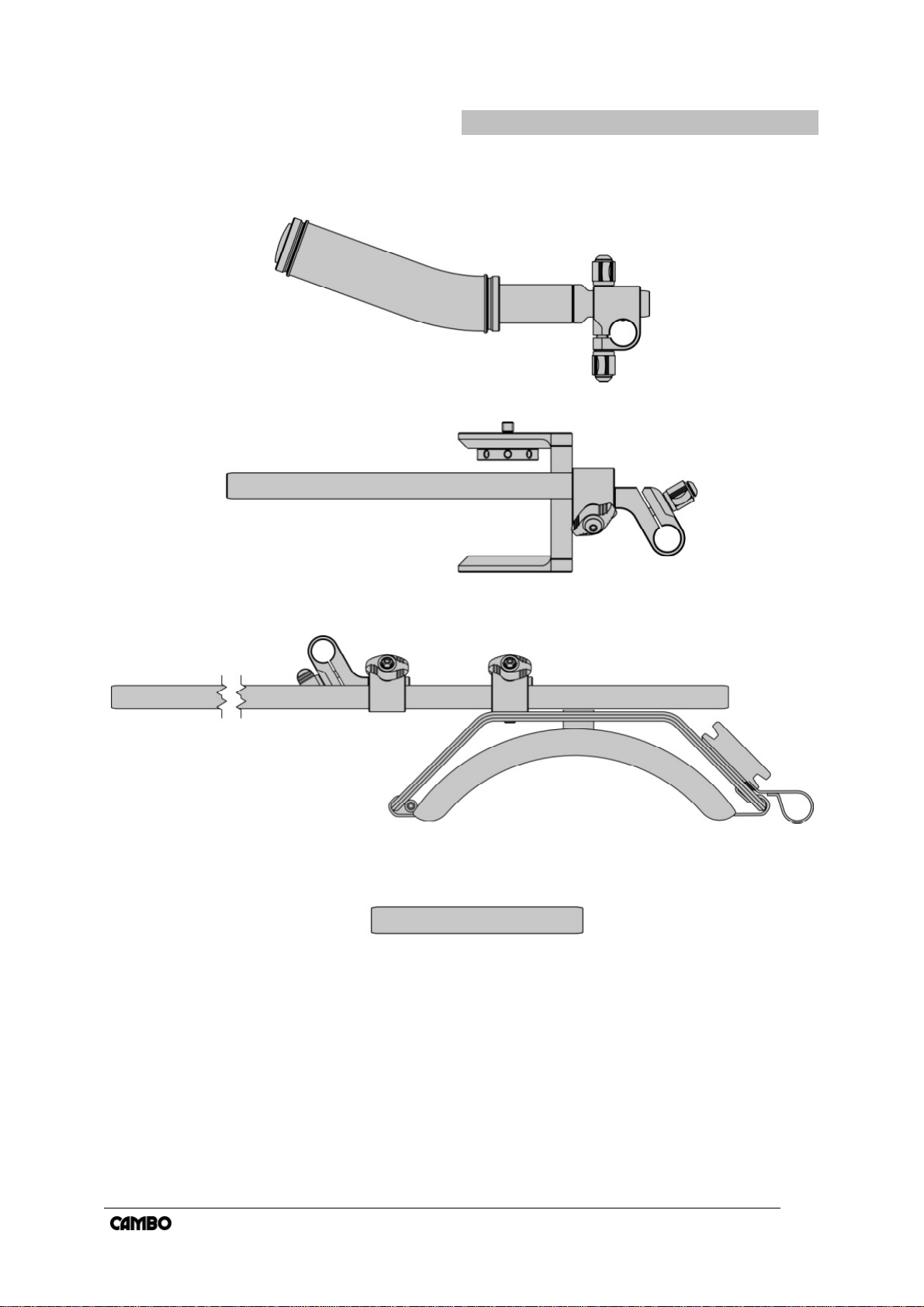

Item check list
Before starting, please check if all items are included in your package. If anything is missing,
contact your dealer.
CS-H1 grip handle compact (1x)
CS-1522 iris rods 220mm (2x), CS-M1 camera/tripod mount (1x), CS-153 triple clamp (1x)
CS-1546 460mm iris rods (2x), CS-P1 ergonomic pad (1x), CS-152 dual clamp (1x), CS-153 triple
clamp (1x)
CS-1512 iris rod 120mm (1x)

Instruction Manual CS-
Cirus
4

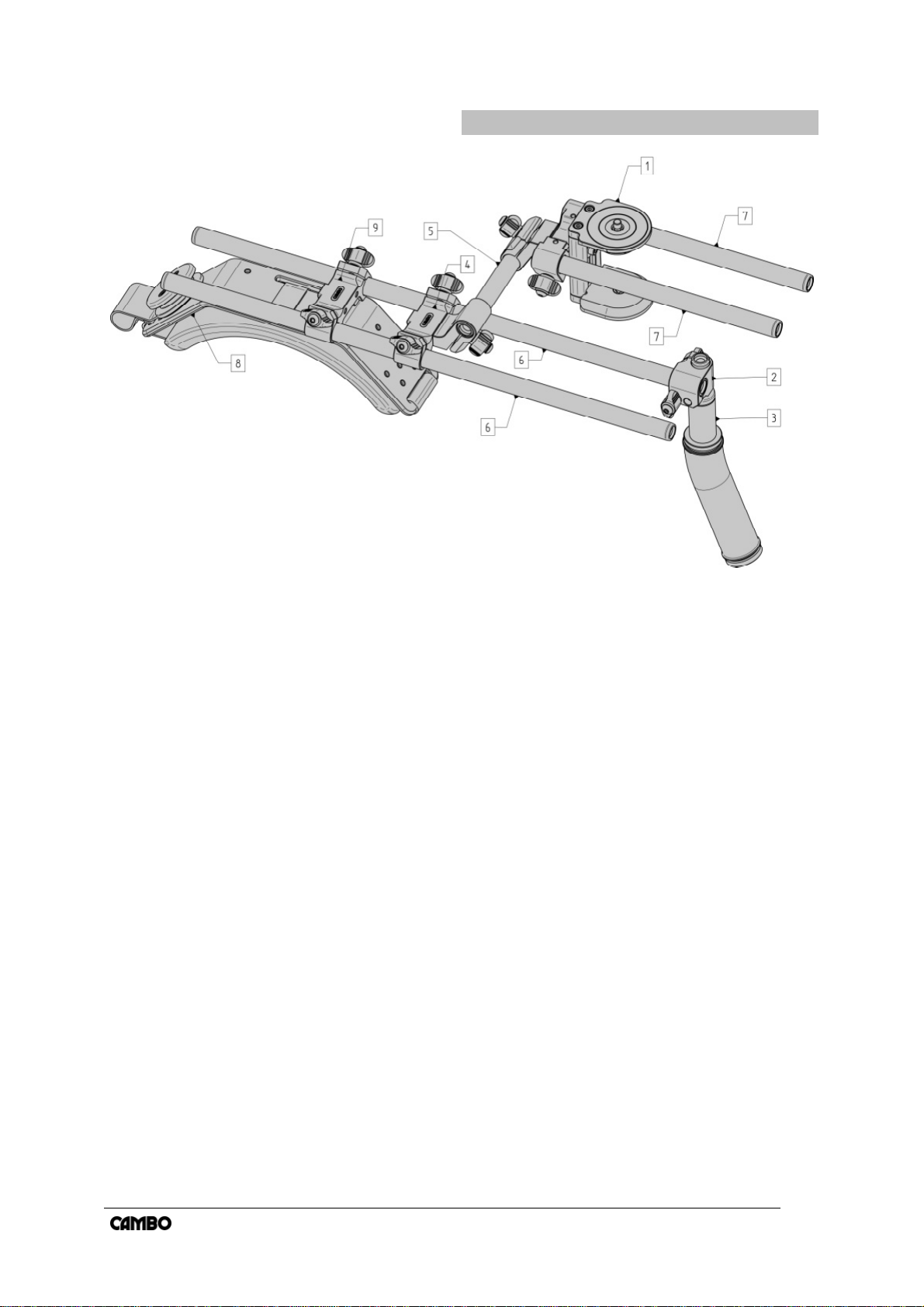

Overview CS-Eris rig
1 CS-M1 Camera/tripod mount
2 CS-151 Perpendicular 15mm rod clamp
3 CS-H1 Compact grip handle (As an assembled unit includes CS-151 part)
4 CS-153 Triple 15mm rod clamp
5 CS-1512 Iris rod 120mm
6 CS-1546 Iris rod 460mm
7 CS-1522 Iris rod 220mm
8 CS-P1 Ergonomic shoulder pad
9 CS-152 Dual 15mm rod clamp

Instruction Manual CS-
Cirus
5
CS-Eris rig adjustments
Its advisable to use a tripod
for the assembly of the CS-
Eris rig.
Its also advisable to use
quick-release plates for the
connection between the rig
and camera and between rig
and tripod. This ensures a
fast decoupling of both rig
and camera.
The “15mm Arriflex LW”
standard, indicates a distance
of 85mm between the optical
axis and the axis of the rods.
Due to the variation in
camera bodies and quick-
release plates the distance
between the camera and rods
is adjustable.
Use a hex-key 4mm to loosen
the socket bolt, by turning it
counter clockwise. Set the
distance between camera
and rods to the appropriate
value, fasten the CS-M1
mount by turning the hex-key
clockwise (do not over tighten
the bolt).
!
!!
!

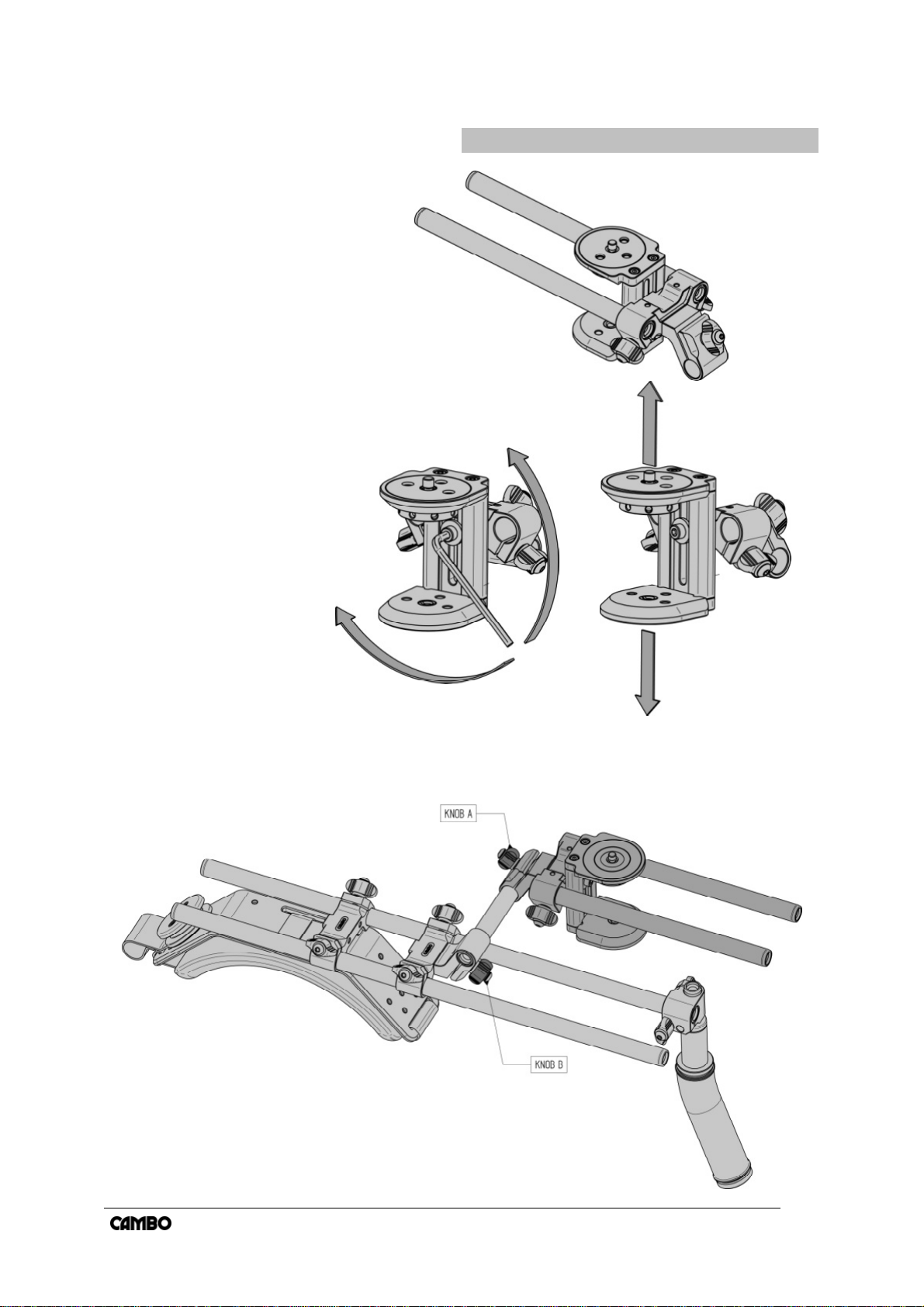

WARNING: DON’T LOOSEN KNOB A OR B WIT
HOUT SUPPORTING THE LOOSENED
PART! Loosened part is indicated dark grey in the image below.

Instruction Manual CS-
Cirus
6
Before adjusting the angle between the camera and the shoulder assembly, please mount the rig to a
tripod or place the rig on a table.
When the rig is mounted to a tripod, please support the shoulder assembly, before loosening knob A
(image on page 5), now the angle between camera and shoulder pad can be adjusted by tilting the
shoulder assembly up or down. After setting the appropriate angle please tighten knob A.
The image above shows the different mounting options of the CS-P1 shoulder pad. The CS-152/153
and the CS-158 can be mounted directly to the CS-P1 shoulder pad.
Cambo CS system accessories
The CS-15XX iris rods feature 3/8” sockets which can be used for mounting attachments.

Instruction Manual CS-
Cirus
7

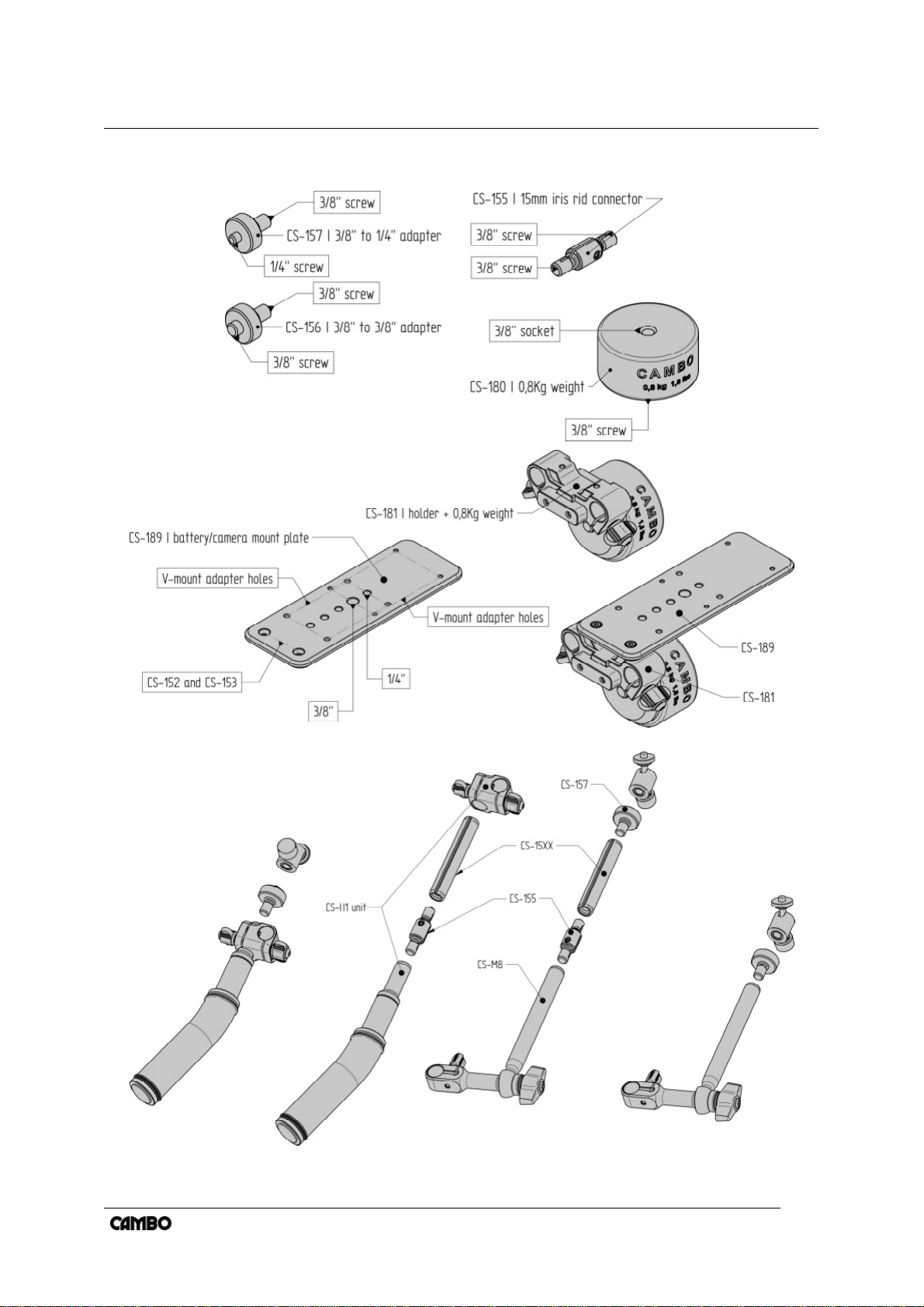

Name Function
CS-155 iris rod connector
CS-156 3/8” adapter
CS-156 1/4” adapter
To couple two CS-15XX iris rods
To attach a 3/8” accessory
To attach a 1/4” accessory
monitor, microphone, light, etc.
The CS-181 unit can be used to adjust the weight distribution of the CS-rig.
The CS-M8 is a separate monitor/microphone/light stand which couples to the 15mm iris rod. The CS-
H1 handle can be extended using a CS-155 connector and a CS-15XX iris rod.

Instruction Manual CS-
Cirus
8
Cambo CS system
15mm CS rig assemblies
CS-Abrix HDSLR Camera Support Basic
CS-Cilix HDSLR Support Two Grip Handheld
CS-Styx HDSLR/DV Shoulder Mount
CS-Cirus HDSLR OFFSET RIG
CS-Eris HDSLR Support Fully Adjustable
CS-Chronos HDSLR Cinema Rig Professional
15mm iris rod clamp units
CS-151 Rod Clamp 15mm Perpendicular
CS-152 Rod Clamp 15mm Dual Parallel
CS-153 Rod Clamp 15mm Triple Dual/Perpendicular
CS-154 Rod Clamp 15mm Bracket Quad Parallel
CS-158 Rod Clamp 15mm Single (Connects to the CS-152 and CS-P1)
Camera/tripod mount units
CS-M0 Compact Camera/Accessory Mount
CS-M1 Compact Camera/Tripod Mount
CS-M2 DV Camera/Tripod Mount One Column Base
CS-M4 DV Camera/Tripod Mount Two Column Base
CS-M8 Monitor/Microphone Support
CS-394 Quick Release Mount Manfrotto 394 RC4 Low Profile
Handle units
CS-H1 Grip Handle Compact (Includes the CS-151)
CS-H2 Grip Handle Telescopic
Shoulder support units
CS-P1 Shoulder Pad Ergonomic Adjustable
Weight/battery units
CS-180 0.8Kg/1,8Lbs Weight with 3/8” mount connections
CS-181 Weight Holder Including 1x 0.8Kg/1,8Lbs weights
CS-182 Weight Holder Including 2x 0.8Kg/1,8Lbs weights
CS-189 Battery/Camera Mount Plate (Connects to the CS-152 and CS-153)
15mm Rod Connector and Adapters
CS-155 Cambo Iris Rod Connector
CS-156 Cambo Iris Rod to 3/8" Adapter
CS-157 Cambo Iris Rod to 1/4" Adapter
HDRB Heavy Duty Stainless Steel Reducer Bushing 3/8” to 1/4”
15mm iris rods
CS-1509 Iris Rod 90mm / 3.5"
CS-1512 Iris Rod 120mm / 5"
CS-1522 Iris Rod 220mm / 9"
CS-1530 Iris Rod 300mm / 12"
CS-1536 Iris Rod 380mm / 15"
CS-1546 Iris Rod 460mm / 18"
Matte-box units
CSM-100 Matte-box Flexible Hood
CSM-210 Matte-box Kit, two filter holder, one rotating
Follow-focus units
CSMFC-1 Follow Focus Kit Universal
Viewer-loupe units
CS-30 3” Monitor Viewing Loupe 3.0x Magnification
Cambo Photographic Industry B.V. / Cambo Video and Broadcast Products B.V. Cambo R&D 14-6-2010
This instruction manual is prepared with care, although no responsibility, financial or otherwise, is accepted for any consequences related the
information stated in this instruction manual. All specifications in this instruction manual are subject to change without notice.
For more information please visit the Cambo web site: www.cambo.com
