CAMBRIONIX PowerPad15s User manual

User Manual
PP15S
2022-08
©2022Cambrionix Ltd. All rights reserved.
EN

PP15SPage 1 of 39
1.Table of Contents
1.Table of Contents1
2.Your PP15S at a glance3
2.1.Key Features3
3.Safety4
3.1.Signal word panel4
3.2.Safety alert symbol5
3.3.Pictograms5
3.4.Product modification5
3.5.Power supply6
3.6.Storage and Installation7
4.Getting Started8
4.1.Opening your product8
4.2.What's Included8
4.3.Connecting to the mains9
4.4.Connecting to Host9
4.5.Charging9
4.6.Cables9
4.7.Registration10
4.8.Help and Support11
5.Using your PP15S12
5.1.Using without connecting to host12
5.2.Using when connected to host12
5.2.1Connecting the Hub to a host computer12
5.2.2Charging12
5.2.3Data Transfer13
5.2.4Communication Interface and Protocol13
5.3.Scalability15
5.4.Manage Ports & Your PP15S16
5.4.1Port Modes16
5.4.2Charging Profiles16

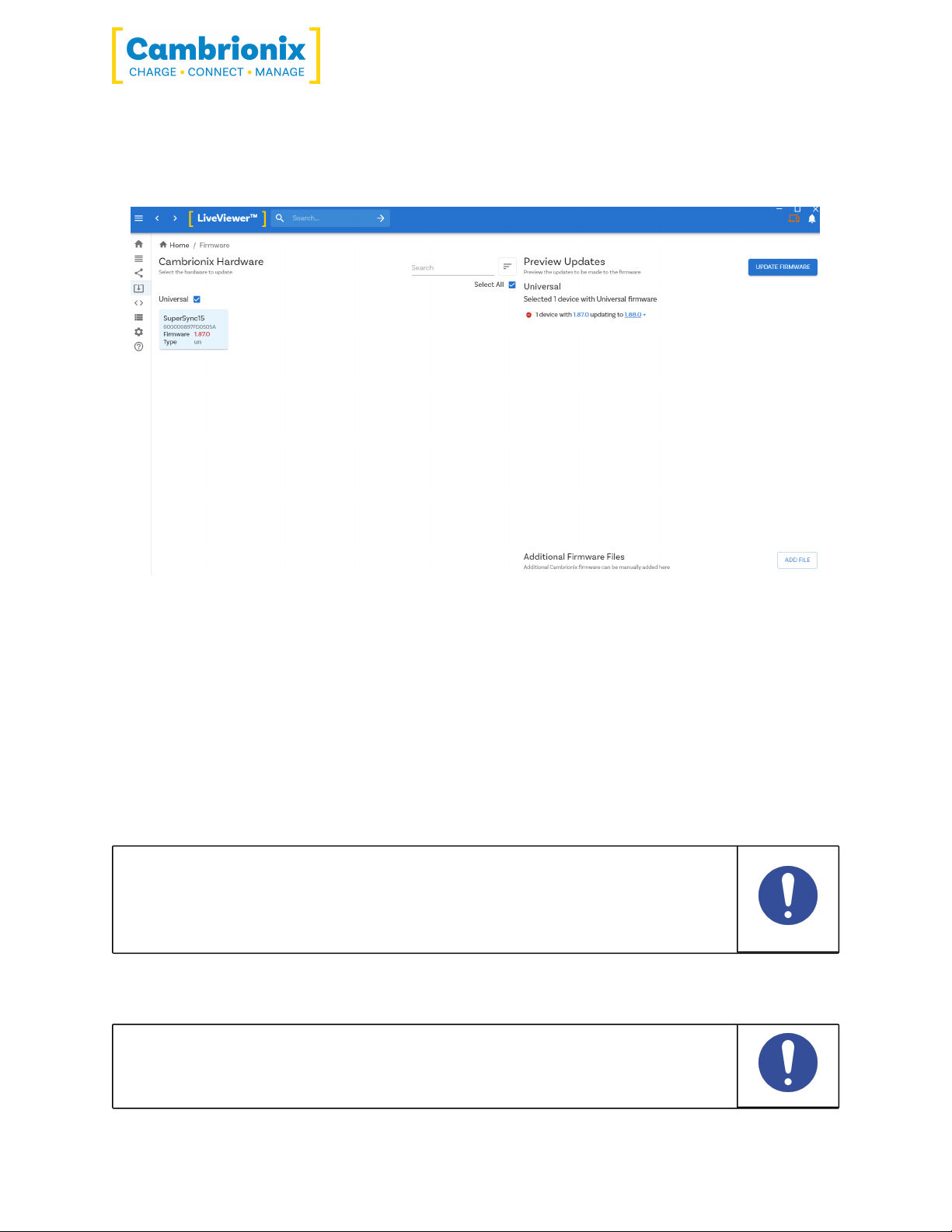

5.4.3Firmware16
5.5.Software19
5.5.1Installing Software19
5.5.2LiveViewer20
5.5.3Cambrionix API21

PP15SPage 2 of 39
5.5.4Updating Software21
5.5.5Removing Software22
5.5.6Command Line Instructions (CLI(23
5.6.Cleaning your PP15S25
6.Product Specifications26
6.1.Input Power Requirements26
6.2.Output Power26
6.3.Error flag rail values26
6.4.Physical specifications26
6.5.Packaged information27
6.6.Consumables and Placing Orders27
6.7.Power Supply28
7.Troubleshooting29
7.1.Initial troubleshooting tips29
7.2.Logging through LiveViewer29
7.3.Hardware Failure30
7.4.Device connection.30
7.5.Hub connection issues31
7.6.No GUI32
7.7.Software troubleshooting33
8.Disposal34
9.Returns and Damaged Products35
9.1.What do I do if my order arrives and something the product is faulty
or is physically damaged?35
9.2.What happens after I have requested a Return?35
10.Compliance and Standards37

PP15SPage 3 of 39
2.Your PP15S at a glance
The PP15S has been designed primarily for desktop use, being highly compact and quiet. It
provides 10W of charging power to each of its 15 x USB 2.0 Type-A ports, allowing mobile
devices to be charged quickly, safely and reliably. All ports can be controlled using Cambrionix
software to enable charging and data transfer while monitoring important port and device
information.
The PP15S can charge attached USB devices without using a local computer, and our intelligent
charging algorithm allows almost any device to be charged at its optimum rate (up to 2.1A). The
firmware can be updated to enable new charging profiles, ensuring the PP15S can charge the
latest devices. It is ready to charge out-of-the-box and sync devices when attached to a host
computer.
When a local (host) computer is connected, the host can control the operation of the ports
using freely available software. Device charging and synchronisation can be monitored through
Cambrionix’s LiveViewer App, the Application Programming Interface (API) or Command Line
Interface (CLI). Cambrionix’s free monitoring and control software can be downloaded from
www.cambrionix.com/software
2.1.Key Features
Up To
480Mbps
per Port
Up To
2.1A
per Port
Up To
85
Devices
Transfer Data SeamlesslyPowerScalability
Each high-speed port can
transfer data up to 480 Mbps
Each port can charge devices up
to 2.1A (10W(
Up to 85 devices can be
connected at once using
multiple hubs

PP15SPage 4 of 39
3.Safety
This user manual is for informational purposes only, it contains information for the start-up and
operation of this product. Note: the contents and the product described are subject to change
without notice. To avoid injuries and damage, observe the safety instructions in the user
manual.
This manual has been arranged to follow IEC/ICEE 82079-1 standard. This is to facilitate the
easier understanding and location of information relating to the PP15S. Any errors or omissions
can be reported using our support ticket system (seeHelp and Support). This way, any issues
can be collected and fixed.
Understanding and observing the instructions in this user manual are prerequisites for
hazard-free use and safety during operation. This user manual cannot cover all possible
applications. If you would like additional information or if problems arise that are not
sufficiently addressed in this manual, please ask your distributor or contact us directly using the
means preferred, which are located on the back cover of this manual.
CAUTION
Personal Injury and Damage to the product
l
Observe the safety instructions in this user manual
3.1.Signal word panel
Depending on the probability of serious consequences, potential dangers are identified with a
signal word, the corresponding safety colour, and if appropriate, the safety alert symbol.
CAUTION
Indicates a potentially hazardous situation that, if not avoided, may result in moderate or
minor (reversible) injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, may result in damage to the
product and its functions, or to property in its proximity.

PP15SPage 5 of 39
3.2.Safety alert symbol
Use of the safety alert symbol indicates a risk of injury.
Observe all measures that are marked with the safety alert symbol in order to
avoid injury
3.3.Pictograms
Warning Signs
Electrical hazardFire Hazard
Mandatory action signs
Read operating instructionsMandatory regulation
3.4.Product modification
Cambrionix products are designed and manufactured to meet the requirements of UK and
International safety regulations. Modifications to the product could affect safety and render the
product non-compliant with relevant safety standards, resulting in injury or damage to the
product.
CAUTION
An electric shock or personal injury may occur
l
Do not modify the product in any way.

PP15SPage 6 of 39
CAUTION
l
Do not dismantle the product.
CAUTION
Fire, or personal injury may occur
l
Do not obstruct air vents on the product.
l
Do not cover the product in combustible material.
CAUTION
Damage to your product may occur
l
Do not bend or compress any part of the product.
3.5.Power supply
This section describes the safety precautions you must follow when using the power supply.
CAUTION
An electric shock or personal injury may occur
l
Do not use a damaged power cord or plug, or a loose power socket.
l
Do not touch the power plug with wet hands.
l
Do not allow liquids to come into contact with the unit or power supply.
CAUTION
Damage to your product may occur
l
Do not short circuit the Power Supply Unit (PSU) supplied with your
product.
l
Do not disconnect the power cord while the product is being used.

PP15SPage 7 of 39
CAUTION
l
Do not bend or pull the power cord with excessive force.
3.6.Storage and Installation
This section describes safety precautions you must follow when installing and storing your
PP15S.
CAUTION
An electric shock or personal injury may occur
l
Do not place the power cord near heat sources.
l
Connect the plug to an earthed socket.
CAUTION
Damage to your Cambrionix product may occur
l
Operate the product only in an environment where the ambient
temperature is inside the operating temperature range.
l
Operate the product only in an environment where the relative humidity is
inside the operating range.
l
Be careful not to leave the power cord underneath a heavy object.
CAUTION
Overheated power sockets may cause a fire
l
Do not overload the power socket that your hub is connected to.
l
Insert the power plug all the way into the socket so that it is not loose.

PP15SPage 8 of 39
4.Getting Started
This manual provides a reference for end-users installing for the first time and using their hub
after that. As well as a guide for product safety-related information.
The PP15S is intended to be used in an indoor static environment in which the environment
falls within the tested specifications to provide charge, sync and management functionality.
Please see the physical specifications section of this manual for information on the
environment specifications.
4.1.Opening your product
When you have received your product, please check the packing slip to ensure all contents and
quantities are correct before opening. This is to avoid retesting and repackaging any items that
are not required.
When opening the packaging, use a suitable method to open the box i.e, do not use a knife.
This is to ensure the product is not damaged.
CAUTION
Personal Injury and Damage to the product
l
There will be a sticker on the hub advising you to read the User manual before use. This
will need to be removed before use as it may be covering host ports, vents etc.
4.2.What's Included
l
USB 2.0 Type-A Cable (to provide communication between the host system and hub(
l
PP15S Hub
l
2m Mains power cable (Country specified on order including fuse for the UKplugs(
l
Power Supply Unit
Part descriptionPart number
USB 2.0 Type-A updater cable200343
Power Supply Unit200421
UK Power cable200144
US Power cable200327

PP15SPage 9 of 39
EU Power cable200329
AUSPower cable200337
IND Power cable200341
4.3.Connecting to the mains
Connect the Power Supply Unit (PSU) to the hub using the 4-pin DIN plug. Connect the power
cable to the PSU. Making sure you adhere to local safety regulations, connect the power cable
to the 100 – 250 VAC mains power outlet and switch the hub on using the small power switch
located adjacent to the power input connector on the hub. When the device is switched on, a
red LED next to the power input will be illuminated. The hub is now ready to charge attached
devices.
Periodic inspections should be made to power supply cables and any USB cables for any signs of
damage. If any damage is found, replace the damaged cord before further use.
4.4.Connecting to Host
Once the power is connected, connect the PP15S to your host system using a USB 2.0 Type-A
cable. Using an incorrect host cable may result in the hub and all subsequent ports not being
recognised by your host.
Please note that USB specifications require a minimum 100 mA charge current to be delivered
during data transfer. As indicated in above, if the attached device has a BC1.2 compliant CDP
port, the device can draw up to 2.1A while transferring data.
4.5.Charging
Your PP15S will allow your device to charge at the maximum rate possible up to 2.1A. The way
that charging takes place is the PP15S will provide the device with a capability to charge and the
devices USB charging controller will determine the maximum amount of charge it wants to
draw down.
4.6.Cables
Some USB cables are data transfer only, and some are power delivery only. There are also
options that can handle both tasks. Be sure to verify a cable’s abilities before purchasing it and
select a cable which can handle the speeds and power transfer that you require. We would
advice using the cable that was provided with the device to connect to our hubs.

PP15SPage 10 of 39
4.7.Registration
You may register your product at www.cambrionix.com/product-registration

PP15SPage 11 of 39
4.8.Help and Support
FAQs and help can be found on the Help page here
l
www.cambrionix.com/help_pages/help.
You can raise a support ticket for more in depth support here
l
https://cambrionix.atlassian.net/servicedesk/customer/portals
You can also download any of our manuals and keep up to date at the link here
l
www.cambrionix.com/product-user-manuals
When contacting support, please supply the product information for the hub in question. This
can be found on the Device Information Plate which is either on the underside or back of the
unit.
Providing serial and Purchaseorder numbers, can help identify the product in question faster,
and speed up the process.

PP15SPage 12 of 39
5.Using your PP15S
In this section, you can find information using your hub in charge or sync application. You can
also find information on managing your hub, changing port modes, connecting multiple hubs to
one host and using Cambrionix Software.
5.1.Using without connecting to host
When the Hub is switched on and is not connected to a local host computer it is
automatically configured to charge devices using its intelligent charging algorithm. Connect the
devices to be charged to any of the available ports (not the Host Port) using
USB - compliant cables.
Once the devices are connected, the algorithm will detect the highest charge rate allowable for
each attached device. Charging at the optimum rate (up to 2.1A) specified by the manufacturer
will commence once profiling is complete. Depending on the state of charge of the device
attached, this may take tens of seconds.
5.2.Using when connected to host
5.2.1Connecting the Hub to a host computer
Connect the PP15S to your host system using a USB 2.0 Type-A cable. Using an incorrect host
cable may result in the hub and all subsequent ports not being recognised by your host.
5.2.2Charging
When the Host Port is connected to a local computer, the hub defaults to Sync mode and
charge currents are determined according to USB Implementers Forum (USBIF) Super-Speed
USB3 specifications. If the attached device complies with USB-IF Battery Charging
specification BC1.2 and supports Charging Downstream Port (CDP), the hub can provide
high-speed charging at 2.1A. If the connected device does not comply with BC1.2, the charge
current will be limited to 500 mA in compliance with USB specifications.

PP15SPage 13 of 39
If you wish to limit the charging to your devices whilst connected to your host system then you
can disable CDPon all ports by inputting the following commands.
The CLI commands for turning off the sync charge options, with a 1 or 0 per port.
settings_unlock
settings_reset
settings_set sync_chrg 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
settings_set alt_sync_chrg 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
reboot
This can also be done via the API if this is easier. Just supply that string (joined with \n) like:
cbrxapi.cbrx_connection_set(handle, "Settings", "settings_unlock\nsettings_reset\nsettings_
set sync_chrg 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0\nsettings_set alt_sync_chrg 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0\nreboot("
Note that settings_reset clears any previous settings, so if you need to retain something else, it
would be better to issue settings_display first, which gives you the entire settings which you
can then modify and re-issue in entirity.
5.2.3Data Transfer
If you wish to transfer data, change applications, restore or update your mobile device, a data
connection to a local host computer is required. The hub is compatible with macOS®,
Windows™ and Linux® operating systems and can transfer data between these operating
systems and many mobile operating systems such as iOS™ and Android.™
In order to transfer data, connect the host port to your local (host) computer using a USB 2.0
Type-A compliant cable. Any devices connected to the hub will now appear as if they were
connected to the host computer’s USB port.
5.2.4Communication Interface and Protocol
The PP15S appears as a virtual serial port (also called a UART or VCP). On Microsoft Windows™,
the system will appear as a COM port, the COMport number can be found in device manager.
On macOS®, a device file is created in the / directory. S is an alpha-numeric serial string unique
to each device
/dev/tty.usbserial S

PP15SPage 14 of 39
Devices incorporate a FT230X USB to UART converter IC from FTDI International. On Windows 7
or later, a driver may automatically be installed (if Windows is configured to download drivers
from the internet automatically). If this is not the case, or if a Mac® or Linux® platform is used,
the driver may be downloaded from www.ftdichip.com. The VCP drivers are required. For
Linux® or Mac computers, the default OS drivers should be used.
The default communications settings should be set to 115200 baud, 8 data bits, no parity, and
one stop bit. This is sometimes referred to as "115200,8,N,1". No flow control is used. ANSI
terminal emulation should be selected

PP15SPage 15 of 39
5.3.Scalability
If you wish to synchronise more devices, multiple hubs can be connected to allow more devices
to be managed from a single host computer simultaneously.
To daisy-chain multiple hubs, each hub needs to be connected to mains power
individually, and the first hub in the chain should be connected to the local computer through
the hub’s “host port”. The host port of the next hub in the daisy-chain is then connected to any
of the first hub's downstream USB ports. More hubs are added in the same way.
Using this daisy-chain approach, a maximum of four additional hubs can be linked, allowing a
total of 71 devices to be synced from a single host computer. Alternatively, a star topology can
be used, which allows up to 85 devices to be synced from a single computer. In this
arrangement, the first hub is attached in the same way, connecting the hubs host port to the
computer’s USB port. After that, five additional hubs can be attached to the downstream USB
ports of the first hubs by their host ports as shown below.

PP15SPage 16 of 39
5.4.Manage Ports & Your PP15S
Each port on your PP15S can be managed either individually, or all together. You can turn the
ports off and on, change the port mode, or change the charging profiles. This can be done
either through LiveViewer, or by connecting to the hub via the API.
5.4.1Port Modes
Charge
Turn specific ports or the whole hub to charge only mode (no data
connection, hub emulates an OEMcharger(
ﺔﻨﻣاﺰﻣTurn specific ports or the whole hub to sync mode
BiasedDetect the presence of a device but it will not sync or charge it
Off
Turn specific ports on or off or switch the whole hub on or off (no
power and no data channels open(
5.4.2Charging Profiles
To ensure attached devices charge at their optimum rate, our smart USB hubs come with the
below intelligent charging profiles built in:
0Intelligent charging algorithm which will select a profile 1-6
12.1A (Apple(
2
BC1.2 Standard (this covers the majority of Android™ phones and
other devices(
3Samsung
42.1A (Profile 1 but with a longer timeout(
51.0A (Typically used by Apple(
62.4A (Typically used by Apple(
5.4.3Firmware
The firmware can be kept up to date using our LiveViewer software. As part of delivering an
easy user experience, our LiveViewer application is now a set-and-forget solution. The
LiveViewer application will discover your USB hub’s firmware and present an update for you.
To update the firmware, first, go to the firmware updater section of LiveViewer. Here you can
see the available Firmware versions to download and install to the hub.

PP15SPage 17 of 39
The current firmware version on the hub is displayed in the firmware updater section alongside
the hub's name. This will appear red if a newer version is available or green if it is the most up
to date.
To install the firmware onto the hub click the hub/ hubs connected that you want to update,
then select the firmware version you want to upgrade to. Once selected press the update
button at the top and the update will commence.
Firmware versions and hardware
We advise not to change the firmware version on any new products you receive as this may
cause compatibility issues and stop your PP15S from functioning.
CAUTION
Your PP15S may not function correctly
l
Do not install old firmware onto a new product
CAUTION
Your Cambrionix Firmware may get corrupted

PP15SPage 18 of 39
CAUTION
l
Do not interrupt the Firmware update process.
l
Do not disconnect the power during the update process.

PP15SPage 19 of 39
5.5.Software
More productivity, saving you time. Cambrionix provides three interfaces by which the Hub can
be monitored and managed:
•LiveViewer
•Cambrionix API
•Command Line Instructions
The PP15S uses string commands to communicate with the host system. These can be sent via
the virtual serial port of the PP15S directly, or the API can be used to provide other protocols
that send translated string commands. LiveViewer can use the API to interact with the devices
through a user-friendly application.
There are three different channels for both our LiveViewer application and the API. The three
channels are Alpha/ Beta and Release. We would recommend using the release version of both
the APIand LiveViewer.
We will push bug fixes and updates through Alpha and then onto Beta before it is merged into
the Release version. If you have found a bug that we have a fix for, the Alpha and Beta releases
may already have addressed these and implemented fixes.
5.5.1Installing Software
Cambrionix has two pieces of software that can be used to manage the devices and your hub
using different host systems. This section has instructions and information on using our
software on three of the most popular host systems.
Our software is available to download from www.cambrionix.com/software, you will find
software available for Windows™, Mac® and Linux® Systems.
Linux® OS systems tested with our software are Ubuntu 18.04 LTS or Debian 9; some other OS
versions based on the two mentioned will work. Some different Linux® OS versions may work,
but we have not tested with them.
To install on Mac® and Windows™ systems, download the install files from the above link, once
downloaded run the install process and dialogue boxes will help you through installation and
initial set-up.
