Cameo EVOS W7 IP User manual

USER´S MANUAL
BEDIENUNGSANLEITUNG
MANUEL D`UTILISATION
MANUAL DE USUARIO
INSTRUKCJA OBSŁUGI
MANUALE D‘ USO
EVOS®W7 IP
IP65 LED WASH-MOVING HEAD
CLEW7IP

CONTENTS / INHALTSVERZEICHNIS / CONTENU /
CONTENIDO / TREŚĆ / CONTENUTO
ENGLISH
INFORMATION ON THIS USER MANUAL 4
INTENDED USE 4
DEFINITIONS AND SYMBOLS 4
SAFETY INSTRUCTIONS 5
NOTES ON PORTABLE OUTDOOR DEVICES 9
PACKAGING CONTENT 9
INTRODUCTION 9

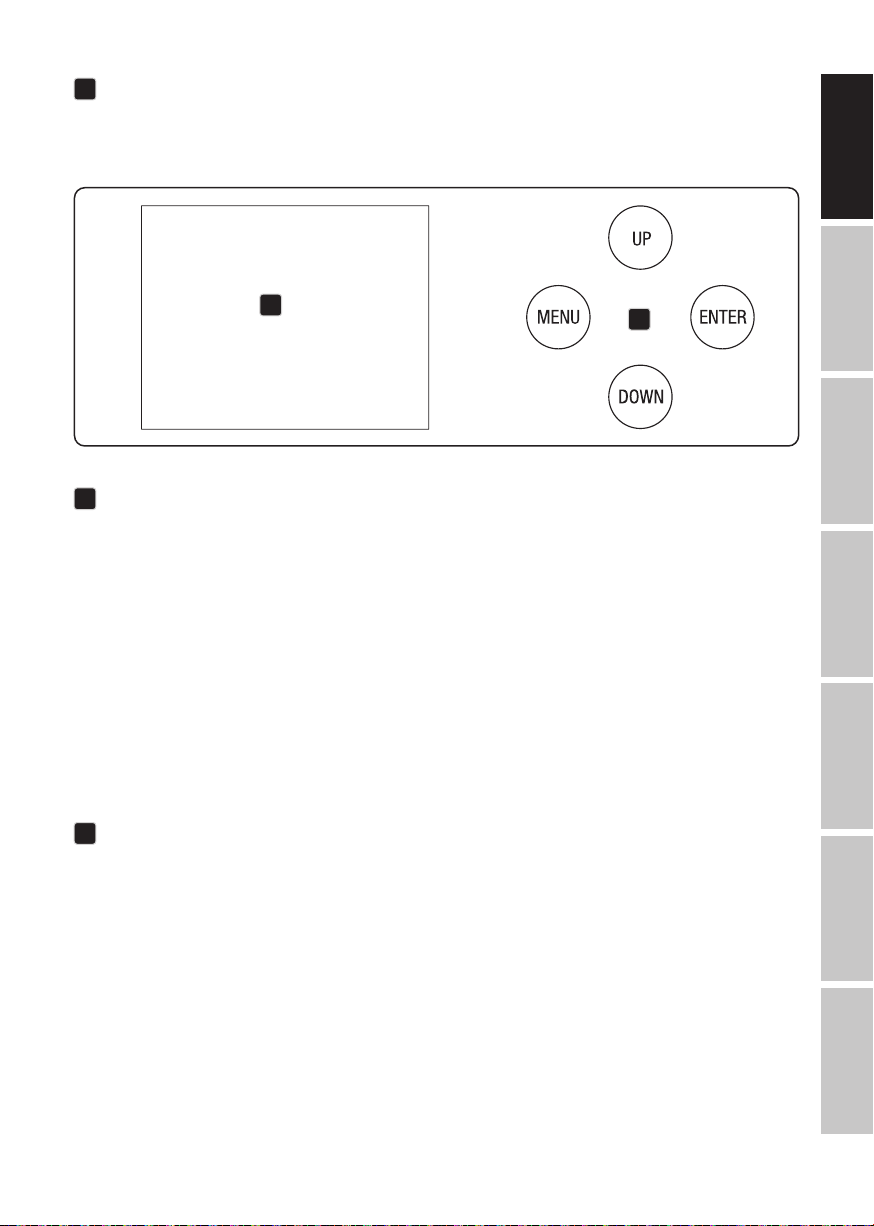

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS 10
OPERATION 13
SET-UP AND INSTALLATION 30
CARE, MAINTENANCE AND REPAIR 31
DIMENSIONS 32
TECHNICAL DATA 33
EXPLANATION OF IP PROTECTION CLASS 34
MINIMUM DISTANCE TO ILLUMINATED SURFACE 35
MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS 35
DISPOSAL 35
MANUFACTURER’S DECLARATIONS 36

DEUTSCH
INFORMATIONEN ZU DIESER BEDIENUNGSANLEITUNG 39
BESTIMMUNGSGEMÄSSER GEBRAUCH 39
BEGRIFFS- UND SYMBOLERKLÄRUNGEN 39
SICHERHEITSHINWEISE 40
HINWEISE FÜR ORTSVERÄNDERLICHE OUTDOOR-GERÄTE 44
LIEFERUMFANG 44
EINFÜHRUNG 45
ANSCHLÜSSE, BEDIEN- UND ANZEIGEELEMENTE 46
BEDIENUNG 49
AUFSTELLUNG UND MONTAGE 67
PFLEGE, WARTUNG UND REPARATUR 68
ABMESSUNGEN 69
TECHNISCHE DATEN 70
ERLÄUTERUNGEN ZUR IP-SCHUTZART 71
MINDESTABSTAND ZUR BELEUCHTETEN FLÄCHE 72
MINDESTABSTAND ZU NORMAL ENTFLAMMBAREN MATERIALIEN 72
ENTSORGUNG 72
HERSTELLERERKLÄRUNGEN 73
DMX CONTROL / DMX STEUERUNG / PILOTAGE DMX /
CONTROL DMX / STEROWANIE DMX / CONTROLLO DMX 74
FRANÇAIS Coming soon
ESPAÑOL Coming soon
POLSKI Coming soon
ITALIANO Coming soon

4
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
ENGLISH
You have made the right choice!
This device has been developed and manufactured to the highest quality standards to ensure
many years of trouble-free operation. Please read this user manual carefully to be able to quickly
put your new Cameo Light product to optimum use. For more information about Cameo Light,
please visit our website .
INFORMATION ON THIS USER MANUAL
• Carefully read the safety instructions and the entire manual before operating the device.
• Observe the warnings on the device and in the user manual.
• Always keep the user manual within reach.
• If you sell or pass on the device, it is important that you also include this user manual, as it is an
integral part of the product.
INTENDED USE
The product is a device for event technology!
This product has been developed for professional use in the field of event technology and is not
suitable for use as domestic lighting!
Furthermore, this product is only intended for qualified users with specialist knowledge of event
technology!
Use of the product outside the specified technical data and operating conditions is considered
improper use!
Liability is exempted when damage and third-party damage to persons and property is caused by
inappropriate use!
The product is not suitable for:
• Use by persons (including children) with limited physical, sensory or mental abilities or lack of
experience and knowledge.
• Children (children must be instructed not to play with the device).
DEFINITIONS AND SYMBOLS
1. DANGER: The word DANGER, possibly in combination with a symbol, indicates immediately
dangerous situations or conditions for life and limb.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates potentially
dangerous situations or conditions for life and limb.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, is used to indicate situa-
tions or conditions that may lead to injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, refers to situations
or conditions that can lead to damage to property and/or the environment.

5
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
This symbol identifies hazards that can cause electric shock.
This symbol identifies hazardous areas or hazardous situations.
This symbol indicates hazards caused by hot surfaces.
This symbol indicates hazards caused by intense light sources.
This symbol indicates a device in which there are no user-replaceable parts.
This symbol indicates additional information on the operation of the product.
SAFETY INSTRUCTIONS
DANGER:
1. Do not open or modify the unit.
2. If your device no longer functions properly, if liquids or objects get inside it or if it
has been damaged in any other way, switch it off immediately and disconnect it
from the mains. The device may be repaired only by authorised repair technicians.
3. For devices of protection class 1, the protective earth conductor must be connected
correctly. Never disconnect the protective earth conductor. Devices of protection
class 2 do not have a protective earth conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the unit fuse.
WARNING:
1. The device may not be operated if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the power cable of the device is damaged, do not operate the device.
4. Permanently connected power cables may only be replaced by a qualified person.

6
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
ATTENTION:
1. Do not operate the device if it has been exposed to large temperature fluctuations
(for example, after transport). Moisture and condensation can damage the device.
Switch on the device only when it has reached room temperature.
2. Make sure that the voltage and frequency of the mains supply correspond to the
values indicated on the device. If the device has a voltage selector switch, do not
connect the device until it has been set correctly. Use only suitable power cables.
3. To disconnect the unit from the mains at all poles, it is not sufficient to press the
on/off switch on the unit.
4. Make sure that the fuse used corresponds to the type specified on the device.
5. Make sure that appropriate measures have been taken against power surges (e.g.
lightning strike).
6. Observe the specified maximum output current on devices with Power Out connec-
tion. Ensure that the total current consumption of all connected devices does not
exceed the specified value.
7. Replace pluggable mains cables only with original cables.
DANGER:
1. Danger of suffocation! Plastic bags and small parts must be kept out of reach of
persons (including children) with reduced physical, sensory or mental capabilities.
2. Danger caused by falling device! Make sure that the device is securely installed
and cannot fall down. Only use suitable stands or mounts (particularly for fixed
installations). Ensure that accessories are properly installed and secured. Ensure
that applicable safety regulations are observed.
WARNING:
1. Use the device only in the manner intended.
2. Operate the device only with the accessories recommended and intended by the
manufacturer.
3. During installation, observe the safety regulations applicable in your country.
4. After connecting the unit, check all cable routes to avoid damage or accidents, e.g.
due to tripping hazards.
5. Always observe the specified minimum distance to normally flammable materials!
Unless explicitly stated, the minimum distance is 0.3 m.
6. Always observe the minimum distance to the illuminated surface specified on the
device!
CAUTION:
1. Moving components such as mounting brackets pose a jamming hazard.
2. In the case of devices with motor-driven components, there is a risk of injury from
the movement of the device. Sudden movement of the device can cause shock
reactions.

7
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
3. The exterior surface of the device can become very hot during regular operation.
Ensure that accidental touching of the housing is not possible. Always allow the
lamp to cool sufficiently before removal, maintenance work and charging etc.
ATTENTION:
1. Do not install and operate the device in the vicinity of radiators, heat accumulators,
ovens, or other heat sources. Ensure that the device is always installed in such a
way that it is sufficiently cooled and cannot overheat.
2. Do not place ignition sources such as burning candles near the device.
3. Vents must not be covered and fans must not be blocked.
4. Use the original packaging or packaging provided by the manufacturer for trans-
port.
5. Avoid shock or impact to the device.
6. Observe the IP rating as well as the ambient conditions such as temperature and
humidity according to the specification.
7. Devices can always be further improved. In the event of any discrepancies between
the operating instructions and the device labelling with regard to operating condi-
tions, performance or other device characteristics, the information on the device
always takes precedence.
8. The unit is not suitable for tropical climates and for operation at elevations higher
than 2000 m above sea level.
9. Unless explicitly stated, the unit is not suitable for operation in marine conditions.
CAUTION! IMPORTANT INFORMATION REGARDING LIGHTING PRODUCTS!
1. Never look directly into the beam of light, not even for a short period of time.
2. Never look into the beam of light using optical devices such as a magnifying glass.
3. Stroboscopic effects may cause epileptic seizures in susceptible individuals!
SIGNAL TRANSMISSION BY RADIO (E.G. W-DMX OR WIRELESS AUDIO SYSTEMS):
The quality and performance of wireless signal transmissions generally depends on
the ambient conditions.
For example, the following factors can impact range and signal stability:
Shielding (e.g. masonry, metal structures, water)
High volumes of radio traffic (e.g. powerful wireless LAN networks)
Interference
Electromagnetic radiation (e.g. LED video screens, dimmers)
All range specifications refer to free-field line-of-sight applications without interference!
The operation of transmission systems is subject to official regulations. These may
vary from region to region and must be checked by the operator before use (e.g. radio
frequency and transmission power).

8
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
WARNING: Devices with wireless signal transmission are not suitable for use in sen-
sitive areas in which radio operation can lead to potentially detrimental interactions.
These include e.g.:
• Hospitals, health centres or other healthcare facilities that provide patient treatment
with skilled personnel and equipment.
• Hazardous areas Class I, II and III
• Restricted areas
• Military facilities
• Aircraft or vehicles
• Areas where the use of mobile phones is prohibited
TRANSMISSION VIA W-DMX
WARNING: In general, wireless DMX transmission must not be used for applications
involving safety-related factors that might result in personal injury or property dama-
ge in the event of a failure.
This applies in particular to moving scene or traverse structures, DMX-controlled
motors/lifts or lifting devices for operating DMX-operated platform lifts, hydraulic
systems or comparable moving components.
Furthermore, wireless DMX transmission must not be used to trigger flame or pyro-
technic devices, explosion-driven effects, or to control gas or liquid effects. These
include CO2 cannons, confetti shooters, water effects or similar.
CAUTION! POTENTIAL DAMAGE FROM EXTERNAL LIGHT SOURCES!
Solar radiation, laser radiation and bundled light beams from other spotlights can da-
mage the housing and internal components such as filters, gobo and colour wheels,
motors, cables, belts, etc., as well as light sources!
Do not expose the unit and especially the lens opening to direct sunlight, laser radi-
ation and bundled light beams from other spotlights during unpacking, installation,
prolonged non-use and operation! Always point the lens opening towards the floor
when the unit is not in use! Damage caused by external light sources is excluded from
the manufacturer's warranty!

9
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
NOTES ON PORTABLE OUTDOOR DEVICES
1. Temporary operation! Event equipment is generally only designed for temporary
operation.
2. Continuous operation or permanent structural installation – particularly outdoors –
can impair the function, surfaces and seals and accelerate material fatigue.
3. Damage to the surface coating can impair the device's corrosion protection. Da-
maged surface coating (e.g. scratches) must be promptly repaired using suitable
measures.
PACKAGING CONTENT
Remove the product from the packaging and remove all packaging material.
Please check the completeness and integrity of the delivery and notify your distribution partner
immediately after purchase if the delivery is not complete or if it is damaged.
The packaging includes:
X1 x EVOS W7 IP Moving Head
X1 x power cable
X2 x Omega bracket
XUser manual
INTRODUCTION
MOVING HEAD EVOS®W7 IP65
CLEW7IP
CONTROL FUNCTIONS:
16-channel, 18-channel, 23-channel, 33-channel, 43-channel and 87-channel DMX control
Art-Net4
sACN
Kling-Net
W-DMX™
RDM-enabled
Master/slave operation
Stand-alone functions
FEATURES:
IP65 rating.19 x 40 W RGBW LEDs. Zoom function. Strobe. Pan and tilt motors with 16-bit
resolution. Automatic position correction. Temperature-controlled fans. 5-pole DMX connections.
Network connections. Neutrik powerCON TRUE1 mains connections. 2 Omega mounting
brackets and inclusive. Operating voltage: 100–240 V AC. Power consumption 900 W
The spotlight supports the RDM standard (Remote Device Management). Remote device manage-
ment allows the user to monitor the status and configuration of RDM devices using an RDM-ca-
pable controller.

10
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
CONNECTIONS, OPERATING AND DISPLAY ELEMENTS
5 3 4 1 2
67
1POWER IN
IP65 power input socket with rubber sealing cap. Operating voltage 100–240 V AC/50–60 Hz.
Connection via supplied power cable (when not in use, always close with the rubber sealing cap).
2POWER OUT
IP65 power output socket with rubber sealing cap. Enables power supply to other CAMEO
spotlights. Ensure that the total current consumption of all connected devices does not exceed
the value specified on the device in amperes (A) (when not in use, always close with the rubber
sealing cap).
3DMX IN
Male IP65 5-pin XLR socket for connecting a DMX control device (e.g. DMX console; when not in
use, always close with the rubber sealing cap).
4DMX OUT
Female IP65 5-pin XLR socket for forwarding the DMX control signal (when not in use, always
close with the rubber sealing cap).
5NET IN / OUT
RJ45 network connections for connecting to an ArtNet, sACN or Kling-Net network (NET IN) and
for forwarding the control signal (NET OUT). Always close with the rubber sealing cap when not in
use. Use cables with IP65 rating and CAT 5e or better cables to set up the network.
6W-DMX™ ANTENNA
Antenna for W-DMX™ control.

11
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
7PRESSURE EQUALISATION ELEMENT
Pressure equalisation element to prevent condensation inside the housing. In order to ensure its
proper function, the element must be protected from dirt.
89
8LC DISPLAY
The illuminated LC display shows the currently activated operating mode (main screen), the menu
items in the selection menu and the numerical value or operating status of certain menu items. If
no entry is made within approximately one minute, the display automatically reverts to the main
screen. Note on the main screen in operating modes with external control: When the control signal
is interrupted, the characters in the display start flashing; when the control signal is present again,
the flashing stops.
The battery-powered display can be activated even if the device is disconnected from the mains.
Press and hold ENTER for about 3 seconds. You can now access device information and modify
and save system settings without a mains connection. The external control of the spotlight is not
activated in this case. For this reason, the display indicates that there is no DMX signal even if a
DMX signal is present at the device input.
9TOUCH-SENSITIVE CONTROL PANELS
MENU – Press MENU to access the main menu. Press again or repeatedly to return to the main
screen.
UP and DOWN – Select menu items in the main menu (DMX address, operating mode, etc.) and
in the sub-menus using UP and DOWN. Change the value or status of a menu item, e.g. DMX
address.
ENTER – Press ENTER to access the menu level in order to make value or status changes, and to
access one of the sub-menus. Confirm value or status changes by pressing ENTER.
Before navigating the unit menu, make sure that the control panels are dry and clean so that their
functionality is not impaired.

12
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
10 PAN LOCK
Mechanical locking device to prevent the horizontal rotation of the head during transport. Dis-
connect the unit from the mains, move the head parallel to the base (4 possible positions) and
push the locking lever in the direction of the pan rotation axis to lock it in position. Unlock the
device before startup.
11 TILT LOCK
Mechanical locking device to prevent the vertical rotation of the head during transport (5 possible
positions). Disconnect the unit from the mains and slide the locking lever in the direction of the
tilt rotation axis, while moving the head of the unit vertically until one of the 7 locking positions is
reached and the locking lever engages. Unlock the device before startup.
10
11
LOCK
UNLOCK
LOCK
UNLOCK
12
12 RECESSED GRIPS
In addition to the two transport handles on the base of the unit, there are convenient recessed
grips at the top of the inner sides of the two device arms.

13
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
OPERATION
NOTES
As soon as the spotlight is correctly connected to the power supply, the following will be displayed
in succession: "Welcome to Cameo", the model name and the software version. After this process,
the spotlight is operational and starts up in the previously selected mode.
MAIN SCREEN
The main screen displays different information depending on the selected operating mode.
Main Menu
Control
Settings
Info
Service
Quick-Light
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Mode
Slave
(Scene x)
030°C
!
030°C
Mode: Art-Net (sACN)+DMX
Universe:
IP:
Main Address:
Pixel Address:
0
192.168.000.150
001
001
!
030°C
Mode: Kling-Net+DMX
Main Address: 001
!
030°C
Mode: Art-Net (sACN)
Universe:
IP:
DMX Address:
87CH
0
192.168.000.150
001
!
001
87CH
030°C
!
Main Menu
Control
Settings
Info
Service
Quick-Light
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Mode
Slave
(Scene x)
030°C
!
030°C
Mode: Art-Net (sACN)+DMX
Universe:
IP:
Main Address:
Pixel Address:
0
192.168.000.150
001
001
!
030°C
Mode: Kling-Net+DMX
Main Address: 001
!
030°C
Mode: Art-Net (sACN)
Universe:
IP:
DMX Address:
87CH
0
192.168.000.150
001
!
001
87CH
030°C
!
DMX and W-DMX operating modes Art-Net and sACN operating modes
Temperature of the LED unit Temperature of the LED unit
Operating mode and DMX mode
DMX start address and DMX mode
Universe
Warning message
IP address
DMX address

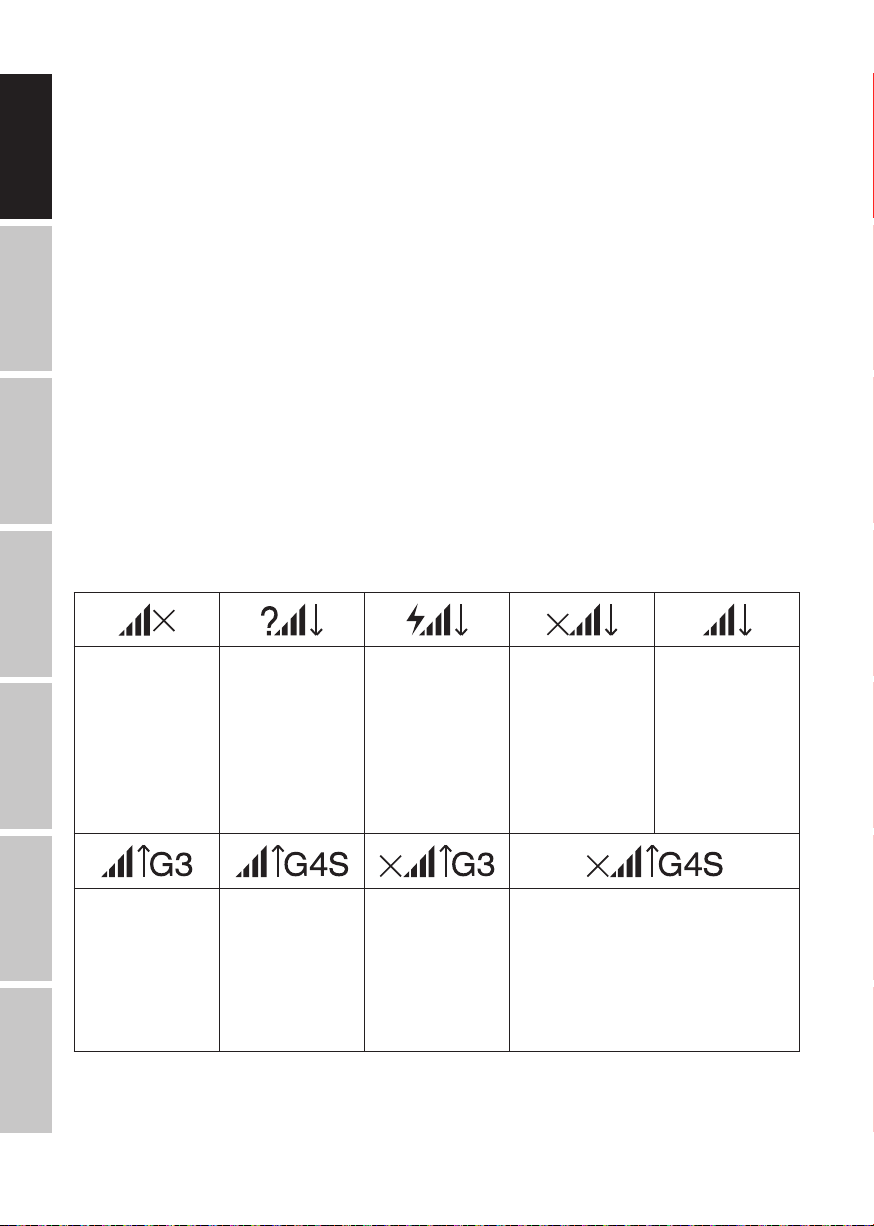

W-DMX Status W-DMX Status
Operating mode Art-Net / sACN + DMX Operating mode Kling-Net + DMX
Temperature of the LED unit Temperature of the LED unit
Operating modeOperating mode
Main addressUniverse
IP address
Main address
W-DMX Status W-DMX Status
Main Menu
Control
Settings
Info
Service
Quick-Light
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Mode
Slave
(Scene x)
030°C
!
030°C
Mode: Art-Net (sACN)+DMX
Universe:
IP:
Main Address:
Pixel Address:
0
192.168.000.150
001
001
!
030°C
Mode: Kling-Net+DMX
Main Address: 001
!
030°C
Mode: Art-Net (sACN)
Universe:
IP:
DMX Address:
87CH
0
192.168.000.150
001
!
001
87CH
030°C
!
Main Menu
Control
Settings
Info
Service
Quick-Light
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Mode
Slave
(Scene x)
030°C
!
030°C
Mode: Art-Net (sACN)+DMX
Universe:
IP:
Main Address:
Pixel Address:
0
192.168.000.150
001
001
!
030°C
Mode: Kling-Net+DMX
Main Address: 001
!
030°C
Mode: Art-Net (sACN)
Universe:
IP:
DMX Address:
87CH
0
192.168.000.150
001
!
001
87CH
030°C
!
Main address
Main address
Main Menu
Control
Settings
Info
Service
Quick-Light
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Control
DMX
W-DMX
Art-Net
sACN
Art-Net+DMX
sACN+DMX
Kling-Net+DMX
Slave
Scenes
Mode
Slave
(Scene x)
030°C
!
030°C
Mode: Art-Net (sACN)+DMX
Universe:
IP:
Main Address:
Pixel Address:
0
192.168.000.150
001
001
!
030°C
Mode: Kling-Net+DMX
Main Address: 001
!
030°C
Mode: Art-Net (sACN)
Universe:
IP:
DMX Address:
87CH
0
192.168.000.150
001
!
001
87CH
030°C
!
Slave and Scene operating modes
Temperature of the LED unit
Operating mode
Warning message
W-DMX Status

14
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
Note on the main screen in operating modes with external control: When the control signal is
interrupted, the characters in the display start flashing; when the control signal is present again,
the flashing stops.
Warning message: If the warning symbol (triangle with exclamation mark) appears in the display,
there is an error in one or more components of the unit. The affected components can be viewed
in the Info Menu under Error Info. If the error cannot be rectified by a restart or reset, please
contact an authorised service centre.
W-DMX™
To pair a W-DMX receiver with a W-DMX compatible transmitter, the Reset command must be
executed in the receiver menu under Connect (select Reset and confirm). The receiver is now in
pairing standby and waiting for a pairing request from a transmitter. Start the pairing process by
selecting Link in the menu of the transmitter and confirm; the devices are now paired automati-
cally. In the same way, several receivers can be paired simultaneously or one after the other to
a transmitter (e.g. for master/slave operation). A W-DMX connection is always maintained until it
is disconnected by means of the Reset command in the receiver or the Unlink command in the
transmitter, regardless of whether a device has been disconnected from the power supply in the
meantime.
W-DMX™STATUS
W-DMX
deactivated
W-DMX
activated as
receiver, not
paired
W-DMX
activated
as receiver
and paired,
transmitter is
switched off or
out of range
W-DMX
activated as
receiver and
paired, no DMX
signal
W-DMX
activated as
receiver and
paired, DMX
signal available
W-DMX
activated as
transmitter with
G3 standard,
DMX signal
available
W-DMX
activated as
transmitter with
G4s standard,
DMX signal
available
W-DMX
activated as
transmitter with
G3 standard, no
DMX signal
W-DMX activated as transmitter
with G4s standard, no DMX signal

15
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
CONTROL MENU
The control menu is used to select the various operating modes and set their options in the
respective sub-menus. The DMX address, DMX operating mode, universe, IP address and subnet
mask are globally set for all operating modes, where relevant.
DMX OPERATION VIA XLR CABLE
Starting from the main screen, press MENU to enter the main menu. Use UP and DOWN to select
the Control menu and press ENTER. Now select the DMX menu item and confirm again. Informa-
tion on the sub-menu items in the DMX menu and the corresponding setting options can be found
in the table below.
Select with UP and DOWN, confirm with ENTER, change value or status with UP and DOWN,
confirm with ENTER, return with MENU.
Setting the DMX start address
Selecting the DMX mode
Activate (select G3 or G4s) or deactivate (Disable)
the forwarding of the DMX signal via W-DMX, set
the W-DMX standard (G3 / G4s) and establish (Link)
or disconnect (Unlink) a connection with another
W-DMX device.

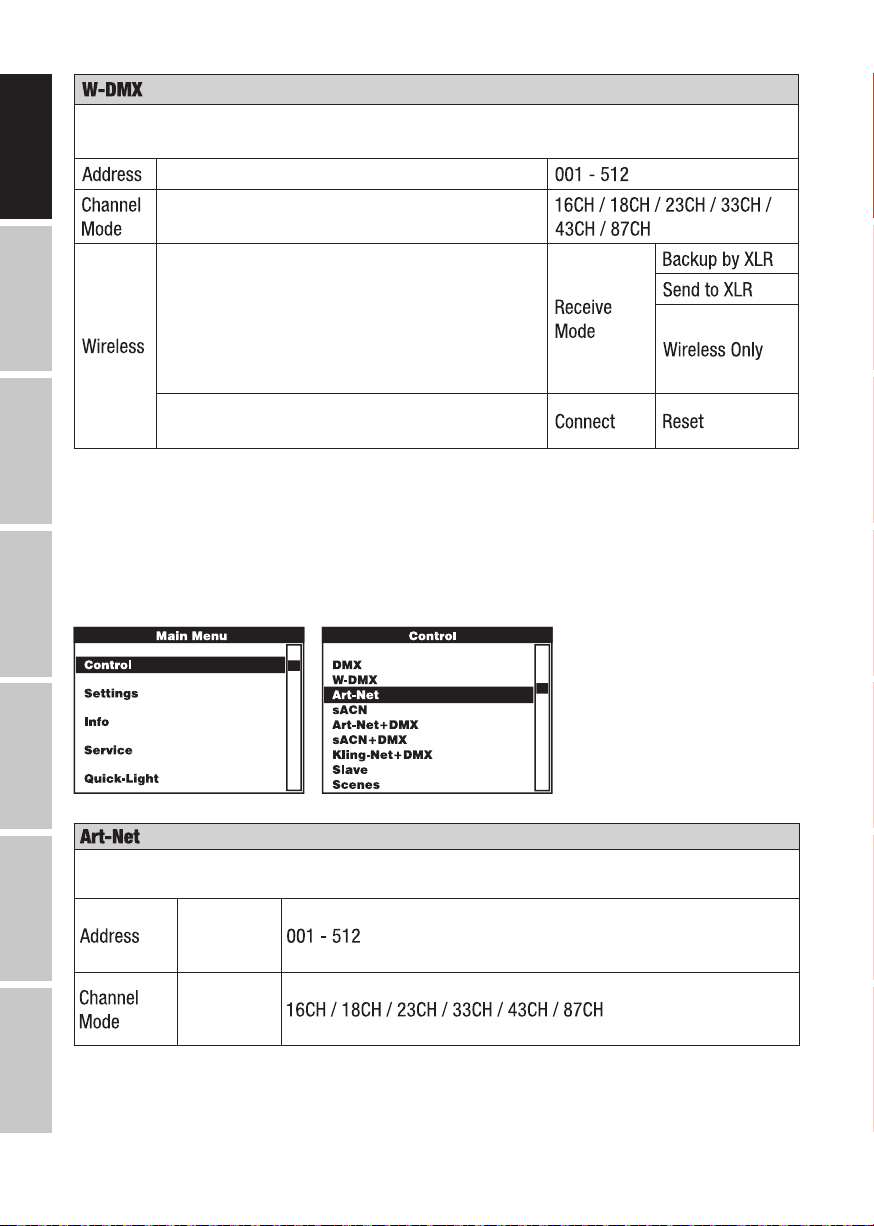

DMX OPERATION VIA W-DMX
Starting from the main screen, press MENU to enter the main menu. Use UP and DOWN to select
the Control menu and press ENTER. Now select the menu item W-DMX and confirm again. See
the table below for information on the sub-menu items in the W-DMX menu and the correspon-
ding setting options.

16
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
Select with UP and DOWN, confirm with ENTER, change value or status with UP and DOWN,
confirm with ENTER, return with MENU.
Setting the DMX start address
Selecting the DMX mode
Select reception options: 1. Backup by XLR = If
W-DMX is interrupted, XLR takes over (assuming
a wired connection is established). 2. Send to XLR
= Forward DMX signal via DMX OUT (XLR) 3. Wire-
less Only = Receive only via W-DMX, no backup,
no forwarding of the DMX signal.
Reset = Terminate the connection to all W-DMX
devices and put them on pairing standby.
OPERATION VIA ART-NET
Starting from the main screen, press MENU to enter the main menu. Use UP and DOWN to select
the Control menu and press ENTER. Now select the menu item Art-Net and confirm again. See the
table below for information on the sub-menu items in the Art-Net menu and the corresponding
setting options.
Select with UP and DOWN, confirm with ENTER, change value or status with UP and DOWN,
confirm with ENTER, return with MENU.
Setting the
DMX start
address
Selecting
the DMX
mode

17
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI

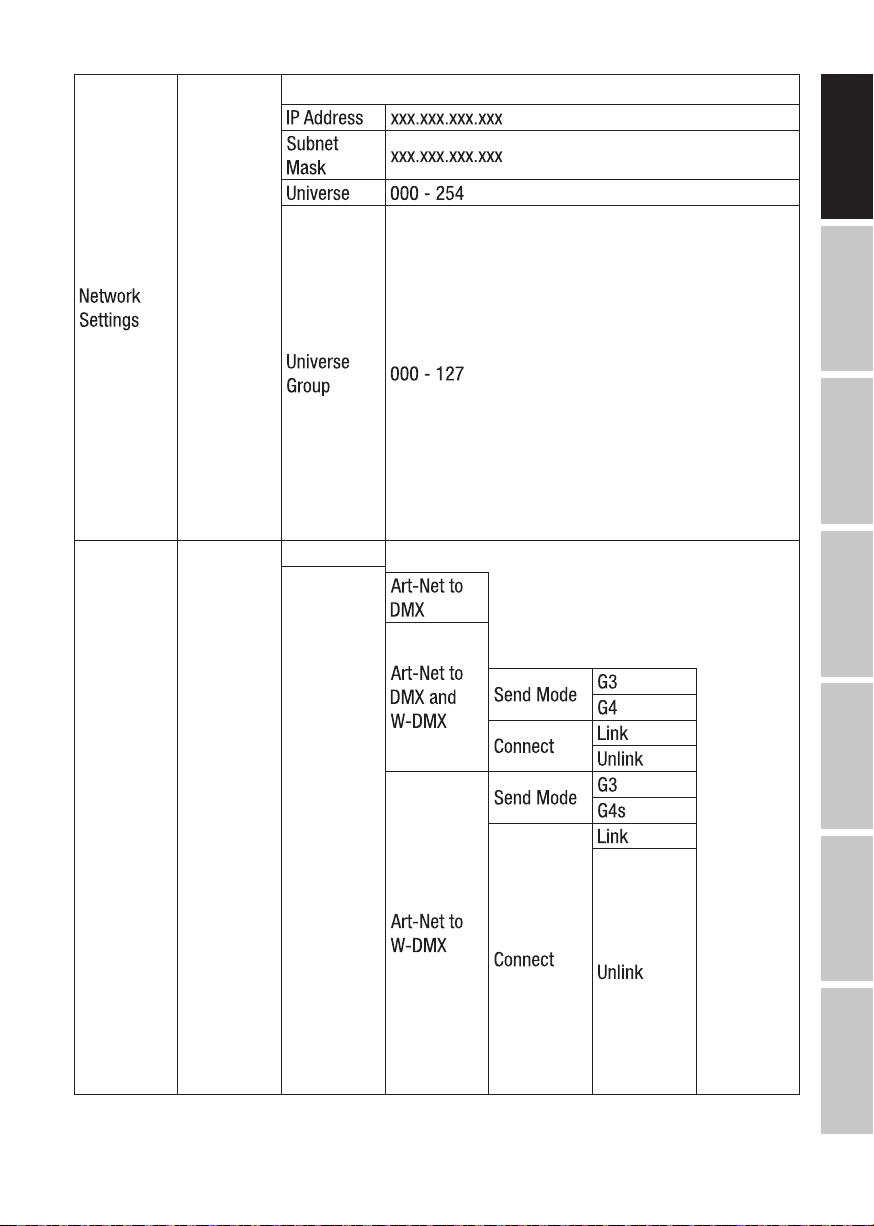

Network settings: IP address: set 1st block, confirm, set 2nd block, confirm… Subnet mask: set 1st block, confirm, set 2nd block, confirm…

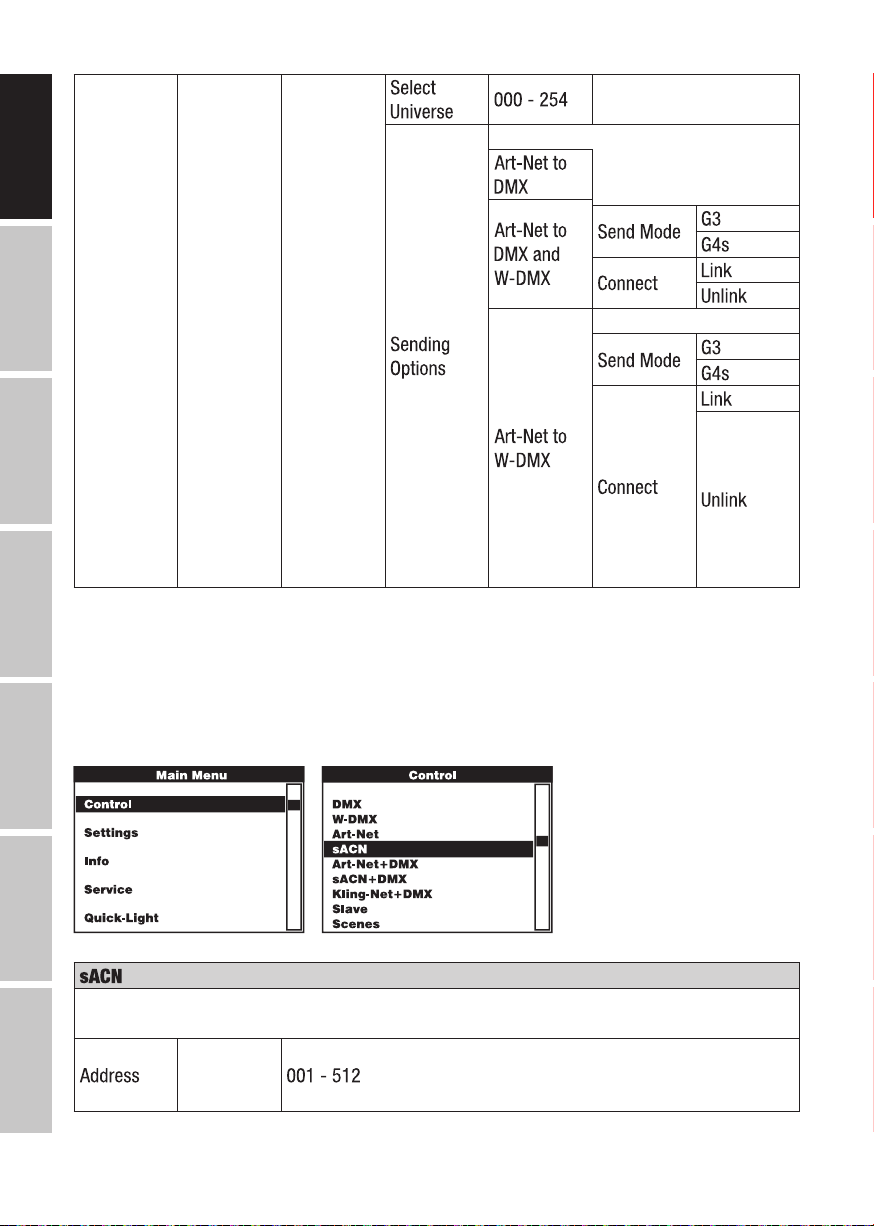

Send to
DMX
The Art-Net control signal can be forwarded in the defined universe to DMX OUT (Art-Net to DMX), to W-DMX (Art-Net to W-DMX) or to both (Art-Net to DMX and W-DMX). The function is deactivated by means of “Disable”.
Disable
Current
Universe
(alternative
to “User
Universe”)

18
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
Send to
DMX
The Art-Net control signal can be forwarded in any universe from 000 to 254 (Select Universe) to DMX OUT (Art-Net to DMX), to W-DMX (Art-Net to W-DMX) or to both (Art-Net to DMX and W-DMX).
User
Universe
(alternative
to “Current
Universe”)
OPERATION VIA SACN
Starting from the main screen, press MENU to enter the main menu. Use UP and DOWN to select
the Control menu and press ENTER. Now select the menu item sACN and confirm again. Infor-
mation on the sub-menu items in the sACN menu and the corresponding setting options can be
found in the table below.
Select with UP and DOWN, confirm with ENTER, change value or status with UP and DOWN,
confirm with ENTER, return with MENU.
Setting the
DMX start
address

19
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
Selecting
the DMX
mode
Network settings: IP address: set 1st block, confirm, set 2nd block, confirm… Subnet mask: set 1st block, confirm, set 2nd block, confirm…
The sACN control signal can be forwarded in the defined universe to DMX OUT (sACN to DMX), to W-DMX (sACN to W-DMX) or to both (sACN to DMX and W-DMX). The function is deactivated by means of “Disable”.
Disable
Current
Universe
(alternative
to “User
Universe”)

20
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
The sACN control signal can be forwarded in any universe from 000 to 254 (Select Universe) to DMX OUT (sACN to DMX), to W-DMX (sACN to W-DMX) or to both (sACN to DMX and W-DMX).
User
Universe
(alternative
to “Current
Universe”)
OPERATION VIA ART-NET AND DMX
The operating mode Art-Net+DMX offers the possibility of controlling the LEDs and the head mo-
vement separately via Art-Net and DMX. You can choose whether the LEDs should be controlled
via Art-Net and the head movement via DMX, or vice versa. Selecting this mode automatically ac-
tivates the 87-channel DMX mode. Starting from the main screen, press MENU to enter the main
menu. Use UP and DOWN to select the Control menu and press ENTER. Now select the menu
item Art-Net+DMX and confirm again. Information on the sub-menu items in the Art-Net+DMX
menu and the corresponding setting options can be found in the table below.
