Cameo ZENIT W600 User manual

ZENIT®W600
LED OUTDOOR WASHLIGHT
CLZW600
USER´S MANUAL
BEDIENUNGSANLEITUNG
MANUEL D`UTILISATION
MANUAL DE USUARIO
INSTRUKCJA OBSŁUGI
MANUALE D‘ USO
SNAPMAG®
TECHNOLOGY
MULTIPLE
ANGLES
iDMX® APP
CONTROL
FIRMWARE VERSION 2.20 AND HIGHER

ENGLISH
INFORMATION ON THIS USER MANUAL 6
INTENDED USE 6
DEFINITIONS AND SYMBOL EXPLANATIONS 6
SAFETY INSTRUCTIONS 7
NOTES ON PORTABLE OUTDOOR DEVICES 11
SCOPE OF DELIVERY 11
INTRODUCTION 12
CONNECTIONS, OPERATING AND DISPLAY ELEMENTS 12
OPERATION 14
SETUP AND INSTALLATION 25
CARE, MAINTENANCE AND REPAIR 26
OPTIONAL ACCESSORIES 27
DMX TECHNOLOGY 28
TECHNICAL DATA 30
EXPLANATION OF IP PROTECTION CLASS 32
MINIMUM DISTANCE TO ILLUMINATED SURFACE 32
MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS 32
DISPOSAL 33
MANUFACTURER’S DECLARATIONS 34
DEUTSCH
INFORMATIONEN ZU DIESER BEDIENUNGSANLEITUNG 35
BESTIMMUNGSGEMÄSSER GEBRAUCH 35
BEGRIFFS- UND SYMBOLERKLÄRUNGEN 35
SICHERHEITSHINWEISE 36
HINWEISE FÜR ORTSVERÄNDERLICHE OUTDOOR-GERÄTE 41
LIEFERUMFANG 41
EINFÜHRUNG 41
ANSCHLÜSSE, BEDIEN- UND ANZEIGEELEMENTE 42
BEDIENUNG 44
AUFSTELLUNG UND MONTAGE 53
PFLEGE, WARTUNG UND REPARATUR 53
OPTIONALES ZUBEHÖR 55
DMX TECHNIK 56
TECHNISCHE DATEN 58
IP-SCHUTZART 60
CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ /
CONTENUTO

MINDESTABSTAND ZUR BELEUCHTETEN FLÄCHE 60
MINDESTABSTAND ZU NORMAL ENTFLAMMBAREN MATERIALIEN 60
ENTSORGUNG 61
HERSTELLERERKLÄRUNGEN 62
FRANCAIS
INFORMATIONS CONCERNANT CE MANUEL D’UTILISATION 63
UTILISATION CONFORME 63
EXPLICATIONS DES TERMES ET DES SYMBOLES 63
CONSIGNES DE SÉCURITÉ 64
REMARQUES CONCERNANT LES APPAREILS D’EXTÉRIEUR MOBILES 69
CONTENU DE LA LIVRAISON 69
INTRODUCTION 70
RACCORDEMENTS, ÉLÉMENTS DE COMMANDE ET D‘AFFICHAGE 70
UTILISATION 73
INSTALLATION ET MONTAGE 82
ENTRETIEN, MAINTENANCE ET RÉPARATION 83
ACCESSOIRES DISPONIBLES EN OPTION 85
TECHNIQUE DMX 86
CARACTÉRISTIQUES TECHNIQUES 88
EXPLICATIONS RELATIVES À L’INDICE DE PROTECTIONIP 90
DISTANCE MINIMALE PAR RAPPORT À LA SURFACE ÉCLAIRÉE 90
DISTANCE MINIMALE PAR RAPPORT AUX MATÉRIAUX NORMALEMENT INFLAMMABLES 90
ÉLIMINATION 91
DÉCLARATIONS DU FABRICANT 92
ESPAÑOL
INFORMACIÓN SOBRE ESTE MANUAL DE INSTRUCCIONES 93
USO PREVISTO 93
TÉRMINOS Y SÍMBOLOS 93
INSTRUCCIONES DE SEGURIDAD 94
INDICACIONES PARA EQUIPOS PORTÁTILES DE EXTERIOR 99
VOLUMEN DE SUMINISTRO 99
INTRODUCCIÓN 99
CONEXIONES, ELEMENTOS DE MANEJO Y ELEMENTOS DE VISUALIZACIÓN 100
FUNCIONAMIENTO 102
INSTALACIÓN Y MONTAJE 112
CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ /
CONTENUTO

CUIDADO, MANTENIMIENTO Y REPARACIÓN 112
ACCESORIOS OPCIONALES 114
TECNOLOGÍA DMX 115
DATOS TÉCNICOS 117
EXPLICACIÓN SOBRE LA CLASE DE PROTECCIÓN IP 119
DISTANCIA MÍNIMA CON RESPECTO A LA SUPERFICIE ILUMINADA 119
DISTANCIA MÍNIMA CON RESPECTO A MATERIALES NORMALMENTE INFLAMABLES 119
ELIMINACIÓN 120
DECLARACIONES DEL FABRICANTE 121
POLSKI
INFORMACJE DOTYCZĄCE NINIEJSZEJ INSTRUKCJI OBSŁUGI 122
UŻYTKOWANIE ZGODNE Z PRZEZNACZENIEM 122
OBJAŚNIENIA TERMINÓW I SYMBOLI 122
ZASADY BEZPIECZEŃSTWA 123
UWAGI DOTYCZĄCE PRZENOŚNEGO SPRZĘTU ZEWNĘTRZNEGO 128
ZAKRES DOSTAWY 128
WPROWADZENIE 129
PRZYŁĄCZA, ELEMENTY OBSŁUGI I WSKAŹNIKI 129
OBSŁUGA 132
USTAWIANIE I MONTAŻ 141
CZYSZCZENIE, KONSERWACJA I NAPRAWY 141
OPCJONALNE AKCESORIA 143
TECHNIKA DMX 144
DANE TECHNICZNE 146
OBJAŚNIENIA DOTYCZĄCE STOPNIA OCHRONY IP 148
MINIMALNA ODLEGŁOŚĆ OD POWIERZCHNI OŚWIETLONEJ 148
MINIMALNA ODLEGŁOŚĆ OD NORMALNIE ŁATWOPALNYCH MATERIAŁÓW 148
UTYLIZACJA 149
OŚWIADCZENIA PRODUCENTA 150
ITALIANO
INFORMAZIONI SUL PRESENTE MANUALE D'USO 151
UTILIZZO CONFORME 151
SPIEGAZIONE DI CONCETTI E SIMBOLI 151
INDICAZIONI SULLA SICUREZZA 152
AVVERTENZE PER DISPOSITIVI PORTATILI PER ESTERNI 157
CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ /
CONTENUTO

VOLUME DI CONSEGNA 157
INTRODUZIONE 157
CONNESSIONI, ELEMENTI DI COMANDO E VISUALIZZAZIONE 158
UTILIZZO 160
INSTALLAZIONE E MONTAGGIO 171
PULIZIA, MANUTENZIONE E RIPARAZIONE 171
ACCESSORI OPZIONALI 173
TECNOLOGIA DMX 174
DATI TECNICI 176
SPIEGAZIONI SULLA PROTEZIONE IP 178
DISTANZA MINIMA DALLA SUPERFICIE ILLUMINATA 178
DISTANZA MINIMA DAI MATERIALI NORMALMENTE INFIAMMABILI 178
SMALTIMENTO 179
DICHIARAZIONI DEL PRODUTTORE 180
DMX
DMX CONTROL / DMX STEUERUNG / PILOTAGE DMX / CONTROL DMX /
STEROWANIE DMX / CONTROLLO DMX 181
CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ /
CONTENUTO

6
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
ENGLISH
YOU‘VE MADE THE RIGHT CHOICE!
We have designed this product to operate reliably over many years. Please read this User‘s Ma-
nual carefully, so that you can begin making optimum use of your Cameo Light product quickly.
Learn more about Cameo Light on our website CAMEOLIGHT.COM.
INFORMATION ON THIS USER MANUAL
• Carefully read the safety instructions and the entire manual before operating the device.
• Observe the warnings on the device and in the user manual.
• Always keep the user manual within reach.
• If you sell or pass on the device, it is important that you also include this user manual, as it is an
integral part of the product.
INTENDED USE
The product is a device for event technology!
This product has been developed for professional use in the field of event technology and is not
suitable for use as domestic lighting!
Furthermore, this product is only intended for qualified users with specialist knowledge of event
technology!
Use of the product outside the specified technical data and operating conditions is considered
inappropriate!
Liability for damage and third-party damage to persons and property due to inappropriate use is
excluded!
The product is not suitable for:
• Use by persons (including children) with limited physical, sensory or mental abilities or lack of
experience and knowledge.
• children (children must be instructed not to play with the device).
DEFINITIONS AND SYMBOL EXPLANATIONS
1. HAZARD: The word HAZARD, possibly in combination with a symbol, indicates situations in
which there is an immediate danger or risk of potentially fatal injury.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates situations in
which there is an immediate danger or risk of potentially fatal injury.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, indicates situations or
conditions that could result in injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, indicates situations
or conditions that could result in damage to property and/or the environment.

7
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
This symbol identifies hazards that can cause electric shock.
This symbol identifies hazardous areas or hazardous situations.
This symbol indicates hazards caused by hot surfaces.
This symbol indicates hazards caused by intense light sources.
This symbol indicates a device in which there are no user-replaceable parts.
This symbol indicates additional information on the operation of the product.
SAFETY INSTRUCTIONS
HAZARD:
1. Do not open the device and do not perform any modifications.
2. If your device no longer functions properly, if liquids or objects get inside it or if it
has been damaged in any other way, switch it off immediately and unplug it from
the power source. The device may be repaired only by authorised repair techni-
cians.
3. For devices of protection class 1, the protective conductor must be connected
correctly. Never disconnect the protective conductor. Devices of protection class 2
do not have a protective conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.
WARNING:
1. The device may not be operated if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the device's power cable is damaged, the device may not be used.
4. Permanently connected power cables may only be replaced by a qualified person.

8
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
ATTENTION:
1. Do not switch on the device if it has been exposed to extreme temperature fluctu-
ations (for example, following transport). Moisture and condensation can damage
the device. Switch on the device only when it has reached room temperature.
2. Ensure that the voltage and frequency of the mains supply match the values spec-
ified on the device. If the device has a voltage selector switch, do not connect the
device until it has been set correctly. Use only suitable power cables.
3. To disconnect the device from the mains on all poles, it is not sufficient to press the
on/off switch on the device.
4. Make sure that the fuse used corresponds to the type printed on the device.
5. Ensure that suitable measures have been taken against overvoltage (e.g. lightning
strikes).
6. Observe the specified maximum output current on devices with a Power Out con-
nection. Ensure that the total current consumption of all connected devices does
not exceed the specified value.
7. Replace plug-in power cables with original cables only.
HAZARD:
1. Choking hazard! Plastic bags and small parts must be kept out of reach of persons
(including children) with reduced physical, sensory or mental capabilities.
2. Risk of falling! Make sure that the device is securely installed and will not fall
down. Only use suitable stands or mounts (particularly for fixed installations).
Ensure that accessories are properly installed and secured. Ensure that applicable
safety regulations are observed.
WARNING:
1. Use the device in the prescribed manner only.
2. Operate the device using only accessories of the type recommended and supplied
by the manufacturer.
3. Observe safety regulations applicable in your country during installation.
4. After connecting the device, ensure that all cables are routed so as to avoid dam-
age or accidents, such as from tripping.
5. Always observe the specified minimum distance to normally flammable materials!
Unless explicitly stated, the minimum distance is 0.3 m.
6. Always observe the minimum distance to the illuminated surface, which can be
read on the device!

9
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
CAUTION:
1. Moving components such as mounting brackets may become jammed.
2. In the case of devices with motor-driven components, there is a risk of injury due
to the movement of the device. Sudden movement of the device can cause shock
reactions.
3. The housing surface of the device can become very hot during regular operation.
Ensure that accidental touching of the housing is not possible. Always allow the
device to cool sufficiently before removal, maintenance work and charging etc.
ATTENTION:
1. Do not install or use the device in the vicinity of radiators, accumulators, stoves, or
other heat sources. Ensure that the device is always installed in such a way that it
is sufficiently cooled and cannot overheat.
2. Do not place any ignition sources, such as burning candles, near the device.
3. Ventilation openings must not be covered and fans must not be blocked.
4. For transport, use the original packaging or packaging provided by the manufactur-
er.
5. Avoid any impacts to or shaking of the device.
6. Observe the IP rating and the ambient conditions such as temperature and humidi-
ty according to the specifications.
7. Devices can be continuously further developed. In the event of deviating informa-
tion on operating conditions, performance or other device properties between the
user manual and the device labelling, the information on the device always has
priority.
8. The device is not suitable for tropical climate zones or for operation over 2,000 m
above sea level.
9. Unless explicitly stated, the device is not suitable for operation under marine
conditions.
NOTE:
In the case of conversion or retrofit sets or accessories provided by the manufacturer,
be sure to observe the enclosed instructions.
CAUTION! IMPORTANT INFORMATION REGARDING LIGHTING PRODUCTS!
1. Never look directly into the beam of light, not even for a short period of time.
2. Never look into the beam of light using optical devices such as a magnifying glass.
3. Stroboscopic effects may cause epileptic seizures in susceptible individuals!

10
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
4. These luminaires contain permanently installed light sources which cannot be
replaced by the user. The light source contained in this luminaire may only be
replaced by the manufacturer or its service partner or a similarly qualified person.
SIGNAL TRANSMISSION AND CONTROL BY RADIO
(E.g. W-DMX or audio radio systems, Bluetooth):
The quality and performance of wireless signal transmissions generally depends on
the ambient conditions.
The following factors can impact range and signal stability, for example:
• Shielding (e.g. masonry, metal structures, water)
• High volume of radio traffic (e.g. powerful wireless LAN networks)
• Interference
• Electromagnetic radiation (e.g. LED video screens, dimmers)
All range specifications refer to free-field application with visual contact and without
interference!
The operation of transmission systems is subject to official regulations. These may
vary from region to region and must be checked by the operator before use (e.g. radio
frequency and transmission power).
WARNING: Devices with wireless signal transmission are not suitable for use in sen-
sitive areas in which radio operation can lead to potential detrimental effects. These
include:
• Hospitals, health centres or other healthcare facilities that provide patient treatment
with skilled personnel and equipment.
• Hazardous areas Class I, II and III
• Restricted areas
• Military facilities
• Aircraft or vehicles
• Areas where the use of mobile phones is prohibited

11
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
TRANSMISSION VIA W-DMX
WARNING: In general, wireless DMX transmission must not be used for applications
involving safety-related factors that might result in personal injury or property dam-
age in the event of a failure.
This applies in particular to moving scene or traverse structures, DMX-controlled
motors/lifts or lifting devices for operating DMX-operated platform lifts, hydraulic
systems or comparable moving components.
Furthermore, wireless DMX transmission must not be used to trigger flame or pyro-
technic devices, explosion-driven effects, or to control gas or liquid effects. These
include CO2cannons, confetti shooters, water effects or similar.
NOTES ON PORTABLE OUTDOOR DEVICES
1. Temporary operation! Event equipment is generally only designed for temporary
operation.
2. Continuous operation or permanent structural installation – particularly outdoors –
can impair the function, surfaces and seals and accelerate material fatigue.
3. Damage to the surface coating can impair the device's corrosion protection.
Damaged surface coating (e.g. scratches) must be promptly repaired by suitable
measures.
SCOPE OF DELIVERY
Remove the product from the packaging and remove all packaging material.
Please check the completeness and integrity of the delivery and notify your distribution partner
immediately after purchase if the delivery is not complete or if it is damaged.
Product includes:
XHeadlights
X1 Power cable
X2x omega bracket
XOperating instructions

12
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
INTRODUCTION
LED WASH LIGHT 600 W RGBW IP65
CLZW600
CONTROL FUNCTIONS:
2-channel CCT, 3-channel color macros, 3-channel RGB 8-bit, 4-channel RGBW 8-bit, 8-channel
RGBW 8 bit, 6-channel RGB 16-bit, 8-channel RGBW 16-bit, 10-channel full-access 8-bit, and
15-channel full-access 16-bit DMX controll
Master/slave mode
Standalone functions
W-DMX™
FEATURES:
DMX-512. 40 x 15 W high-power RGBW LEDs. W-DMX™. Stroboscope. 16-bit dimmer. 4 dimmer
curves. Color temperature correction. Adjustable LED PWM frequency. Fast access feature.
IP65-class protection. 5-pin DMX connections. Plastic feet. 2 x Omega mounting brackets
included. Operating voltage 100–240 V AC. Power consumption 565 W. 25°, 45°, 60°x10°, 100°
diffusers and flap optionally available.
The spotlight features the RDM standard (Remote Device Management). This remote device man-
agement system makes it possible to carry out status checks and configure RDM devices with an
RDM-enabled controller.

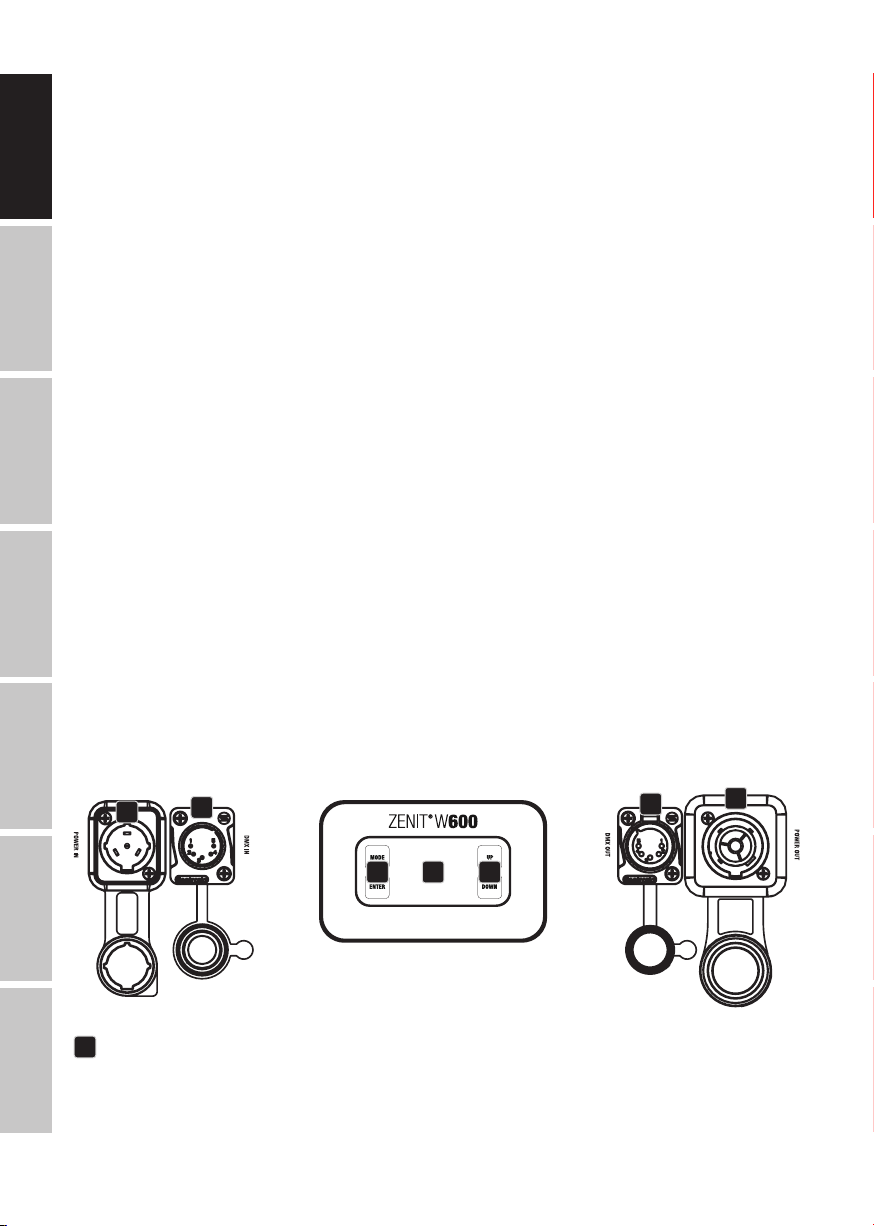

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS
134
56 6
2
1POWER IN
IP65 power input socket with rubber sealing cap. Operating voltage 100-240 V AC/50-60 Hz.
Connection via included power cable (when not in use, always close with rubber sealing cap).

13
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
2POWER OUT
IP65 power output socket with rubber sealing cap. Facilitates power supply to other CAMEO
spotlights. Ensure that the total current consumption of all connected devices does not exceed
the value specified on the device in amperes (A) (when not in use, always close with the rubber
sealing cap).
3DMX IN
Male IP65 5-pin XLR socket for connecting a DMX control device (e.g. DMX console; when not in
use, always close with the rubber sealing cap).
4DMX OUT
Female IP65 5-pin XLR socket for sending DMX control signal (when not in use, always close with
the rubber sealing cap).
5OLED-DISPLAY
Displays the current operating mode and other system settings.
6TOUCH-SENSITIVE CONTROLS
MODE
Press MODE to access the selection menu for system settings. Press repeatedly to go back to the
main display.
ENTER
Press ENTER to access the menu levels to make value changes, and to access the sub-menus.
Confirm changes by pressing ENTER.
UP and DOWN
Select individual menu items in the selection menu (DMX address, operating mode etc.) and in the
sub-menus. Allow changes to the value of a menu item, such as the DMX address as required.
PRESSURE EQUALISATION ELEMENT
The pressure equalisation element to prevent condensation inside the housing is in the device
base, behind the cable feed for the LED unit. In order to ensure its proper function, the element
must be protected from contamination.
HOUSING FAN
The 3 housing fans and the heat sink are on the back of the LED unit. Ensure air circulation by not
covering the device, and cleaning it regularly.

14
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
NOTES: In order to provide protection from spraying water, in accordance with protection class
IP65, special IP65-rated XLR connectors must be used correctly with the DMX input and output
sockets, or they must be closed using the rubber sealing caps. When connected correctly, or
when sealed correctly with the rubber sealing caps, the POWER IN and POWER OUT sockets are
protected from spraying water, as in accordance with IP65.
PLEASE NOTE
As soon as the spotlight is correctly connected to the power supply, the following will be displayed
in succession during the starting process: “Welcome to Cameo”, the model name and the soft-
ware version. After this process, the spotlight is ready for operation, and starts in the previously
enabled mode.
• If one of the DMX operating modes is activated and there is no DMX signal to the DMX input, the
currently programmed DMX address is displayed and the characters on the display will begin to
flash.
• After approximately 1 minute of inactivity, the display will automatically show the currently
active operating mode.
• Fast Access Feature: In order to simplify the menu guide, the device has an intelligent menu
structure that allows direct access to previously selected menu items and sub-menu items.
1. Press MODE and ENTER simultaneously for direct access to the last-edited sub-menu item,
where you can make changes instantly as required (DMX starting address and all modes).
2. Press MODE for direct access to the last-selected and last-edited menu item. Press ENTER
repeatedly to access the sub-menu items in order to change individual settings (DMX start-
ing address and all modes).
• Before changing device settings, ensure that the control panel is dry and dust free so that its
functionality is not impaired.
• The display can be rotated 180° by pressing UP when the main display is visible.
OPERATION
MAIN DISPLAY
After the power-up process, the spotlight is ready for operation, and starts in the previously
activated mode. The main display appears with the following information: current mode (in the
example DMX mode) and W-DMX™ status.
DMX address
001
W-DMX™status
Current operating mode

15
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
W-DMX™
1. To pair with W-DMX™-compatible transmitters, enable W-DMX™ in the device settings (Set-
tings -> Wireless Setting -> W-DMX On Off -> On) and reset the W-DMX™ module (Receive Re-
set -> Yes). Start the pairing process as described in the operating instructions of the W-DMX™
transmitter. Pairing is then completed automatically.
2. Pair a group of W-DMX™ devices to create a DMX universe with them. First decouple all
devices that should form the group (Settings -> Wireless Setting -> Receive Reset). Then select
a CLZW600 with a DMX controller via DMX cable and select “Transmit” in the settings (Settings
-> Wireless Setting -> Operating Mode -> Transmit). Select “Receive” in the settings of the
W-DMX™ device that you want to control via W-DMX™ (Settings -> Wireless Setting -> Operat-
ing Mode -> Receive), and pair it by selecting “Link” in the settings of the DMX cable
controlled CLZW600, then confirm your selection (Settings -> Wireless Setting -> Link -> Link).
Pairing is then completed automatically.
3. It is also possible to create a connected group of W-DMX™ devices via W-DMX™, and operate
them in master/slave mode. First decouple all devices that should form the group (Settings ->
Wireless Setting -> Receive Reset). In the settings (Settings -> Wireless Setting -> Operating
Mode) of the master unit select “Transmit”, and in the settings of the slave units select “Receive”.
On the master unit select “Link” (Settings -> Wireless Setting -> Link -> Link) and confirm your
selection by pressing ENTER. Pairing of the devices is then completed automatically. On the mas-
ter unit select one of the standalone modes (Auto, Color Macro, Static, Tunable White, User Color),
and use this to control the slave unit.
W-DMX™ STATUS
G3 G4S
W-DMX™
deactivated
W-DMX™
as receiver
activated,
not coupled
W-DMX™
as receiver
activated and
device coupled,
Transmitter off,
or out of range
W-DMX
activated and
coupled device,
no DMX signal
W-DMX™
as reveicer
activated and
coupled device,
DMX signal is
present
W-DMX™
and transmissi-
on mode G3
Arrow up = send
operation
Down arrow =
Receive mode
Arrow flashing =
Coupling
Flashing stops =
Coupled
W-DMX™
and transmissi-
on mode G4S
Arrow up = send
operation
Down arrow =
Receive mode
Arrow flashing =
Coupling
Flashing stops =
coupled

16
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
SET DMX START ADDRESS (DMX ADDRESS)
Press MODE to access the device settings selection menu (--- Menu ---). Use UP and DOWN to
select the menu item “DMX Address” (observe arrow) and confirm with ENTER. The display will
show a three-digit number field and you can use the UP and DOWN controls to configure the
desired DMX start address. Confirm with ENTER and press MODE to return to the main display (in
the example, “DMX address 001”).
---------------- Menu ----------------
DMX Address
DMX Mode
Stand Alone
Slave
Settings
System Info
DMX address
001
001
5xx
-
SET DMX MODE (DMX Mode)
Press MODE to access the device settings selection menu (--- Menu ---). Use UP and DOWN to
select the menu item “DMX Mode” (observe arrow) and confirm with ENTER. In the sub-menu,
you can now select between 9 different DMX operating modes with the UP and DOWN buttons.
Confirm your selection with ENTER. DMX tables with the channel assignments can be found in
these instructions under DMX CONTROL.
---------------- Menu ----------------
DMX Address
DMX Mode
Stand Alone
Slave
Settings
System Info
------------ DMX MODE ------------
15CH Full Access
10CH Full Access
8CH 8Bit
8CH User-Calibrated
6CH Factory-Calibrated
4CH User-Calibrated
3CH Factory-Calibrated
3CH Color Macro
2CH CCT Factory-Calib

17
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
CONFIGURING STANDALONE MODE
Press MODE to access the device settings selection menu (--- Menu ---). Using the UP and DOWN
controls, select the menu item “Stand Alone” (observe arrow) and confirm with ENTER. In the sub-
menu you can now select from the standalone modes “Auto”, “Colour Macro”, “Static”, “Tunable
White”, “User Colour” and the timer function “Timer” using UP and DOWN. Confirm your selection
with ENTER.
---------------- Menu ----------------
DMX Address
DMX Mode
Stand Alone
Slave
Settings
System Info
------------ Stand Alone -----------
Auto
Color Macro
Static
Tunable White
User Color
Timer
AUTO MODE (programme 1 to programme 6)
The 6 different auto-programmes each comprise non-editable color-change sequences. Bright-
ness and speed are independently adjustable. Select auto mode as described above under
“CONFIGURE STANDALONE MODE” and confirm with ENTER. Now use UP and DOWN to select one
of the 6 auto programmes (observe arrow) and confirm with ENTER. To adjust brightness, use UP
and DOWN to select the menu item “Dim” and confirm with ENTER, then use UP and DOWN to
select the desired value between 000 and 255. Confirm by pressing ENTER. Set the run speed by
selecting the menu item “Speed”, confirm with ENTER, and then select the desired value between
001 and 100. Confirm by pressing ENTER. Press MODE four times to return to the main display
(Mode Auto).
000
255
-
Dim
001
100
-
Speed
----------- Stand Alone -----------
Auto
Color Macro
Static
Tunable White
User Color
Timer
Mode
Auto
---------------- Auto ----------------
Program 1
Program 2
Program 3
Program 4
Program 5
Program 6
------------- Program x -------------
Dim <255>
Speed <100>
001
100
-

18
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
COLOR MACROS (Color Macro)
15 different preset color macros are available. Select color macro mode as per the procedure
previously described in SETTING OPERATION MODE and confirm with ENTER. Now use UP and
DOWN to select the desired color preset (observe arrow) and confirm with ENTER (Color Off =
blackout). A three-digit figure is shown on the display, and you can set the desired brightness on a
scale from 000 to 100 using UP and DOWN. Confirm by pressing ENTER. Press MODE three times
to return to the main display (Color Macro Mode).
Mode
Color Macro
------------ Color Macro ------------
Color O󰀨
Red <100>
Amber <100>
Yellow Warm <100>
Yellow <100>
Green <100>
Turquoise <100>
Cyan <100>
Blue <100>
Lavender <100>
Mauve <100>
Magenta <100>
Pink <100>
Warm White <100>
White <100>
Cold White <100>
----------- Stand Alone -----------
Auto
Color Macro
Static
Tunable White
User Color
Timer
001
100
-
STATIC MODE (STATIC)
The static mode allows the functions Dimmer, Strobe, R, G, B, W and Color Temp to be adjusted
directly on the device with values between 000 and 255, in a similar way to a DMX controller. In
this way, an individual scene can be created without the need for an additional DMX controller.
Select static mode as per the procedure previously described in SETTING OPERATION MODE and
confirm with ENTER. Now use UP and DOWN to select the menu item you wish to edit (observe
arrow) and confirm with ENTER. The display will now show a three-digit number field, and you
can use UP and DOWN to configure the desired value between 000 and 255. Confirm by pressing
ENTER. Press MODE three times to return to the main display (Static Mode).
Mode
Static
---------------- Static ----------------
Dimmer <255>
Strobe <255>
Red <255>
Green <255>
Blue <255>
White <255>
000
255
-
----------- Stand Alone -----------
Auto
Color Macro
Static
Tunable White
User Color
Timer

19
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
COLOR TEMPERATURE (Tunable White)
The color temperature mode enables the light to be configured with a color temperature of warm
white to cold white (CCT), and allows brightness (Dim) to be adjusted directly on the device. Select
color temperature mode as described above under “CONFIGURE STANDALONE MODE” and con-
firm with ENTER. Now use UP and DOWN to select the menu item you wish to edit (observe arrow)
and confirm with ENTER. The display will now show a three-digit number field and you can use UP
and DOWN to configure the desired value. Confirm by pressing ENTER. Press MODE three times to
return to the main display (Tunable White Mode).
----------- Stand Alone -----------
Auto
Color Macro
Static
Tunable White
User Color
Timer
Mode
Tunable White
000
100
-
Dim
000
255
-
CCT
------------- Program x -------------
Dim <100>
CCT <255>
USER PRESETS (User Color)
The operating mode “User Presets” allows the overall brightness and a color mixture of R, G, B
and W to be saved directly in the device in five individual color presets. Select “User Color” as
described above under “CONFIGURE STANDALONE MODE” and confirm with ENTER. Now use UP
and DOWN to select presets Color1 to Color5, confirm with ENTER, and select the sub-menu item
you would like to edit (observe arrow). Confirm by pressing ENTER.
The display will now show a three-digit number field and you can use UP and DOWN to configure
the value between 000 and 255 as required. Confirm again with ENTER. Once all settings have
been made according to preference, press MODE four times to return to the main display (User
Color Mode).
Mode
User Color
------------ User Color ------------
Color1
Color2
Color3
Color4
Color5
----------- Stand Alone -----------
Auto
Color Macro
Static
Tunable White
User Color
Timer
001
255
-
------------ Color1 ------------
Dimmer <255>
Strobe <255>
Red <255>
Green <255>
Blue <255>
White <255>

20
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
TIMER FUNCTION (Timer)
The timer function allows the standalone modes “Colour Macro”, “Static”, “Tunable White” and
“User Colour” to be timer controlled in such a way that the fade-in time can be set from 0 to 60
minutes, the dwell time from 1 to 24 hours and the fade out time from 0 to 60 minutes. Time
control starts immediately after activating the timer function in the previously activated stand-
alone mode and remains active even if the spotlight is switched off and restarted. Select “Timer”
by means of procedure described above under CONFIGURE STANDALONE MODE and confirm with
ENTER. Now select “Fade In”, “Dwell Time” and “Fade Out” for the individual settings (observe
arrow) and confirm with ENTER. The display will show a three-digit number field in each case and
you can use UP and DOWN to set the value as required from 000 to 060 or 001 to 024. Confirm
by pressing ENTER again. Once all settings have been configured as required, activate the timer
function by selecting the submenu item “Timer On/Off” using UP and DOWN, confirm with ENTER,
select “On” and confirm again with ENTER (to deactivate the timer function, please select “Off”
and confirm). Press MODE three times to return to the main display.
------------ Timer ------------
Timer On/O󰀨
Fade In < 1min>
Dwell Time < 1h>
Fade Out < 1min>
----------- Stand Alone -----------
Auto
Color Macro
Static
Tunable White
User Color
Timer
Note: The timer function is suitable for use in master/slave mode via cable and W-DMX™.
SET SLAVE MODE
Press MODE to access the device settings selection menu (--- Menu ---). Use UP and DOWN to
select the menu item “Slave” (observe arrow) and confirm with ENTER. Connect the master and
slave units (same model) with a DMX cable, and enable one of the standalone modes on the mas-
ter unit (Auto, Color Macro, Static, Tunable White, User Color). The slave unit will now follow the
master unit. If there is no control signal, the display characters will flash. Flashing stops as soon
as a control signal is present.
Mode
Slave
---------------- Menu ----------------
DMX Address
DMX Mode
Stand Alone
Slave
Settings
System Info
